FakeTec PCB Case
Testosterone Edition
Introduction

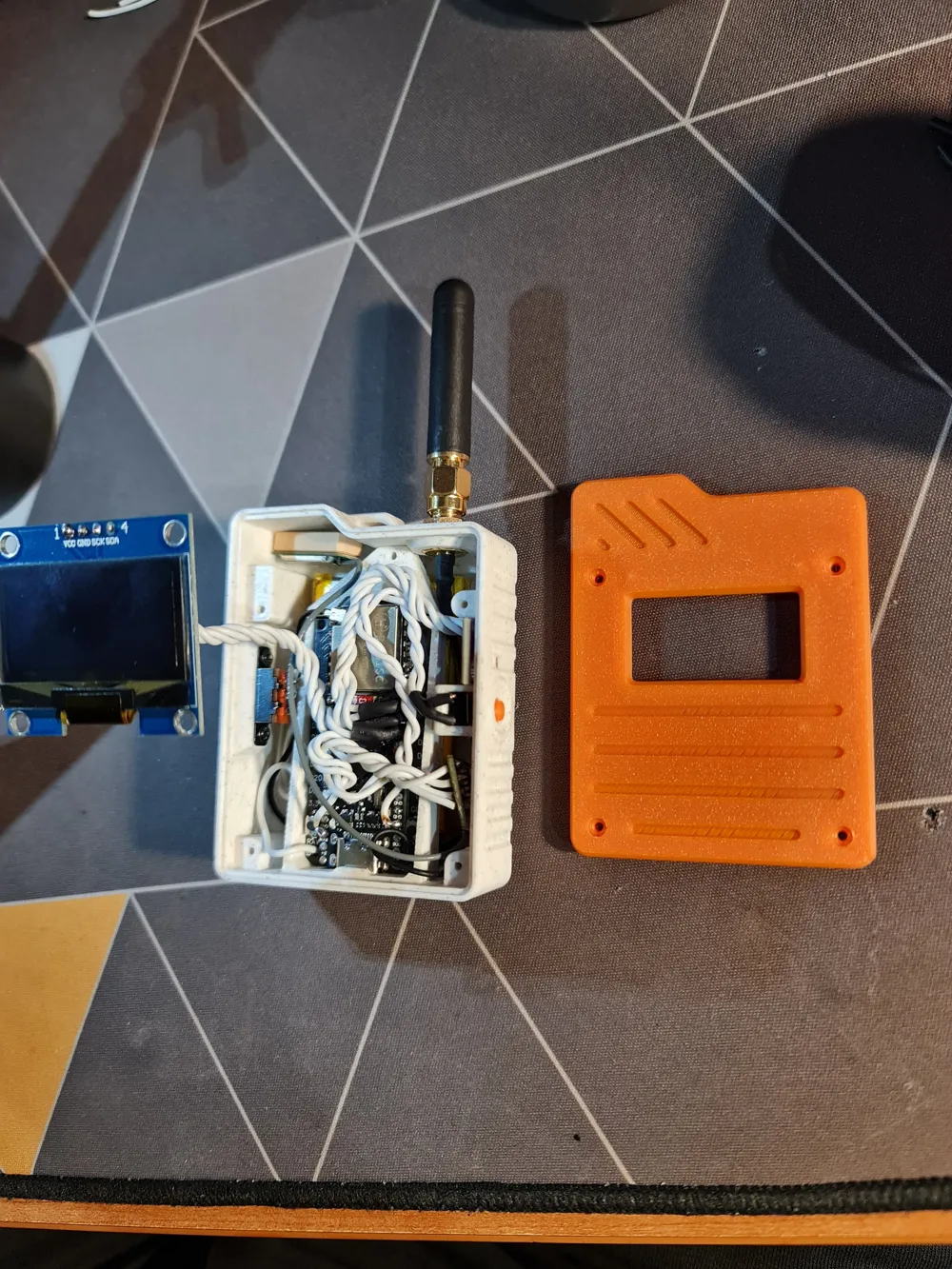

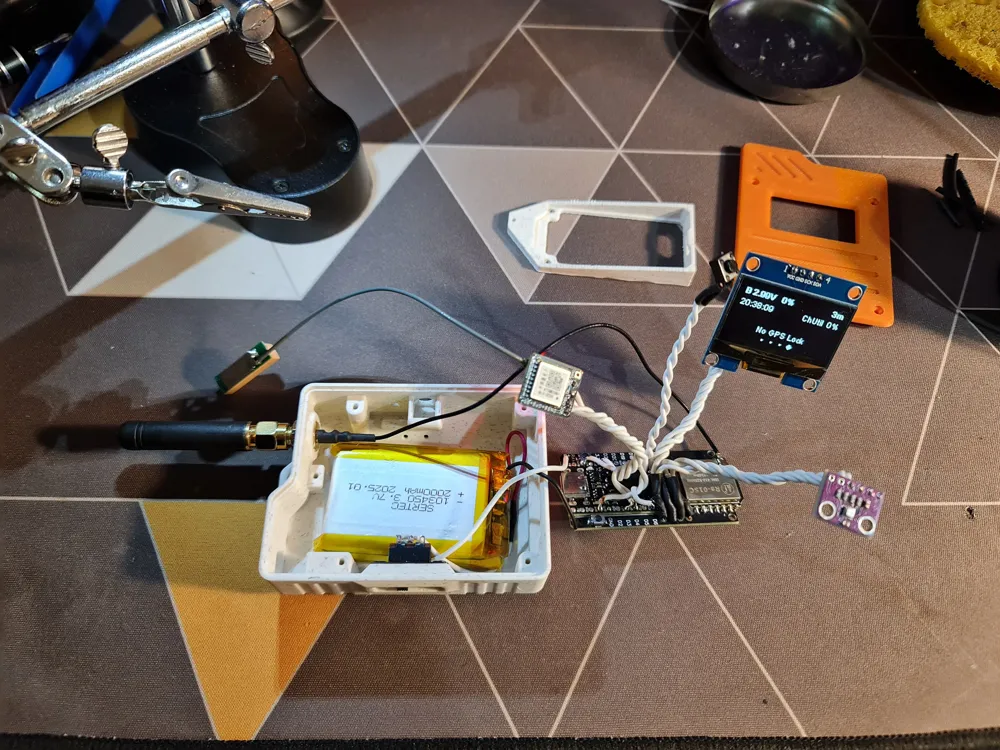

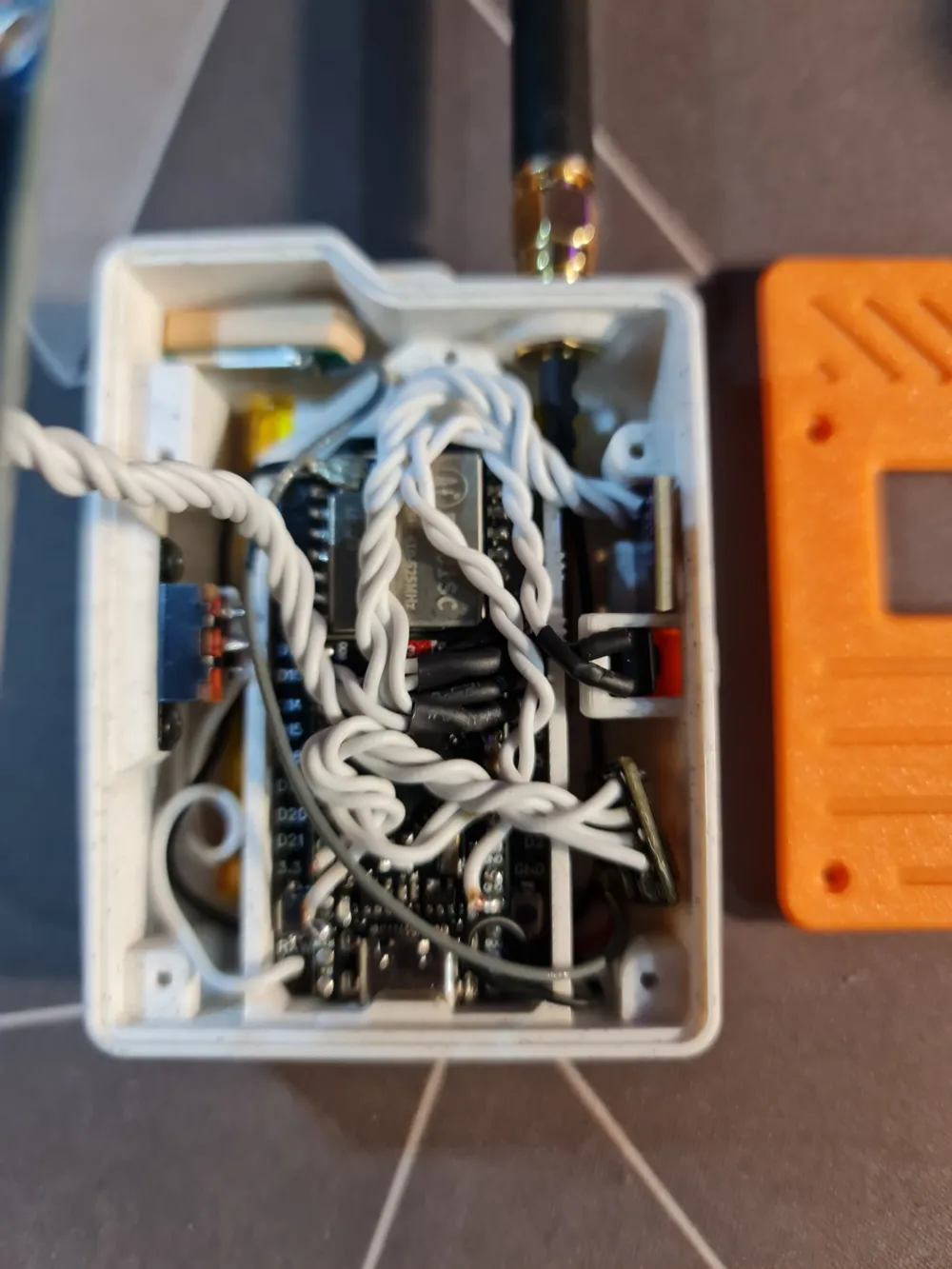

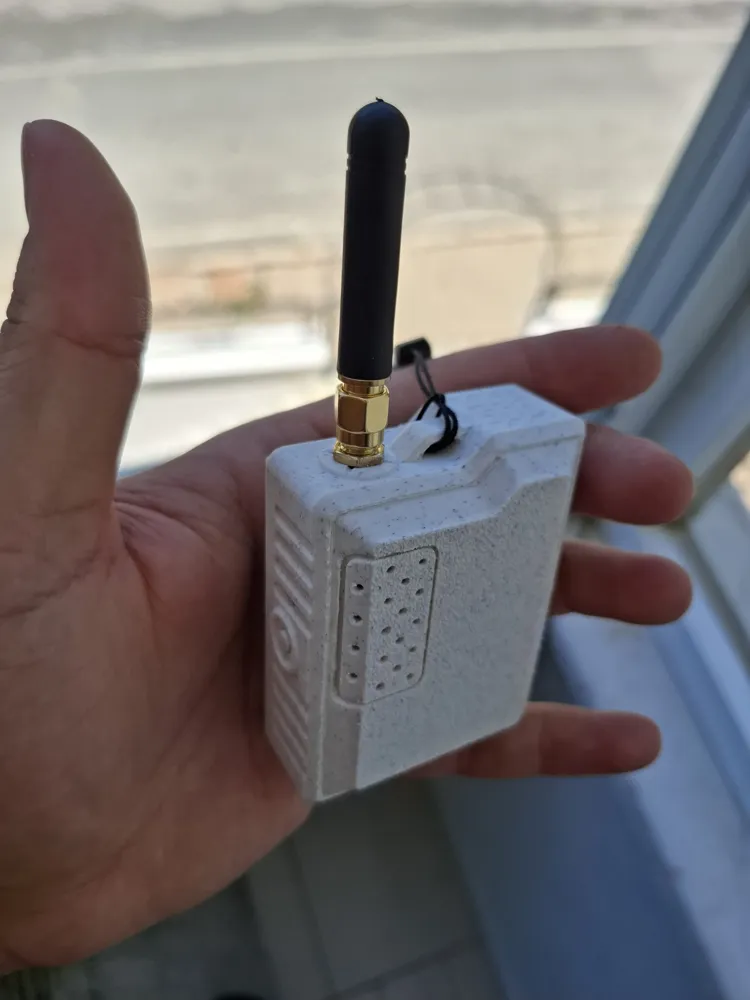

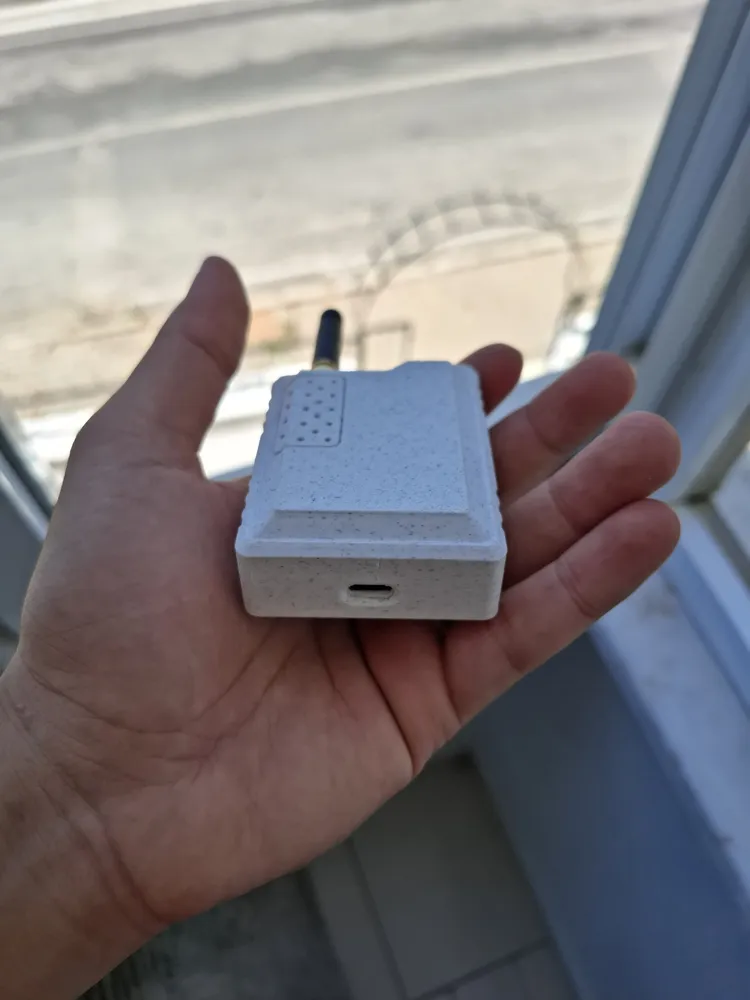

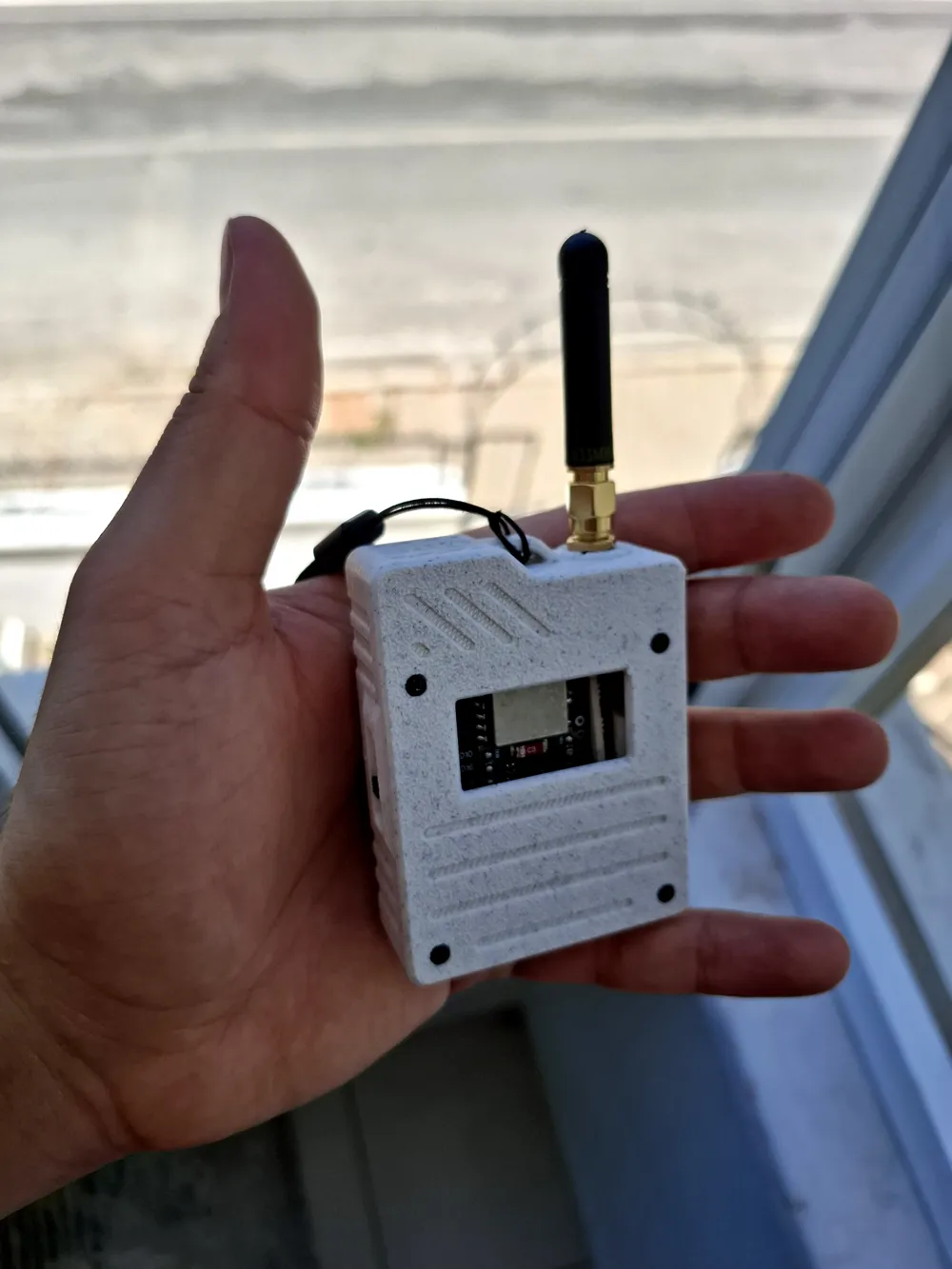

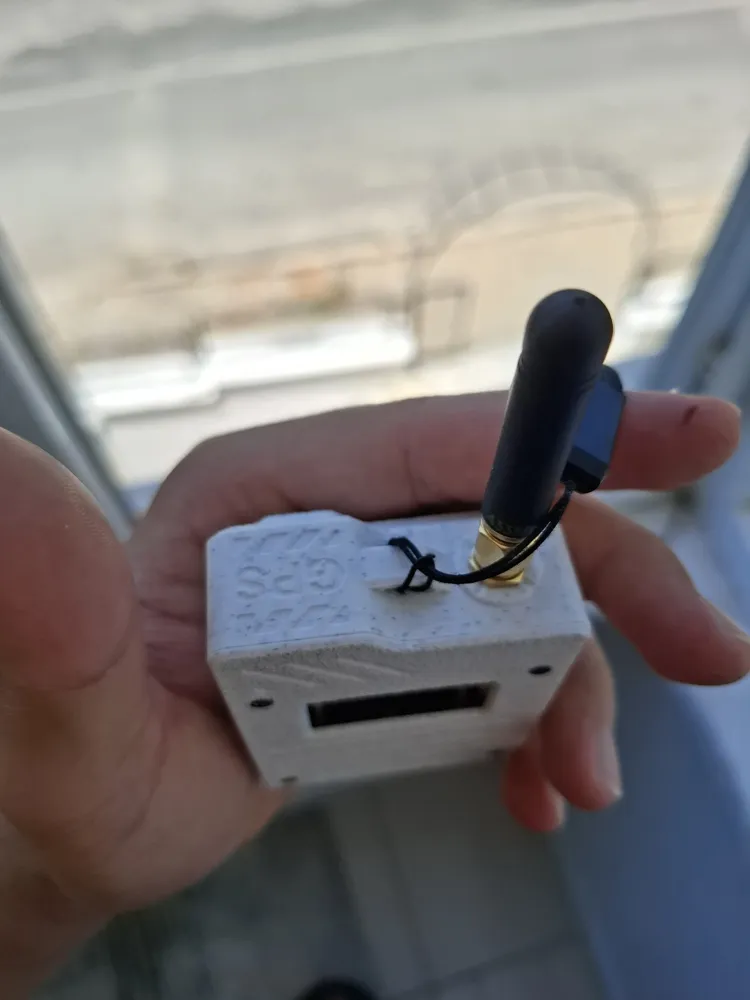

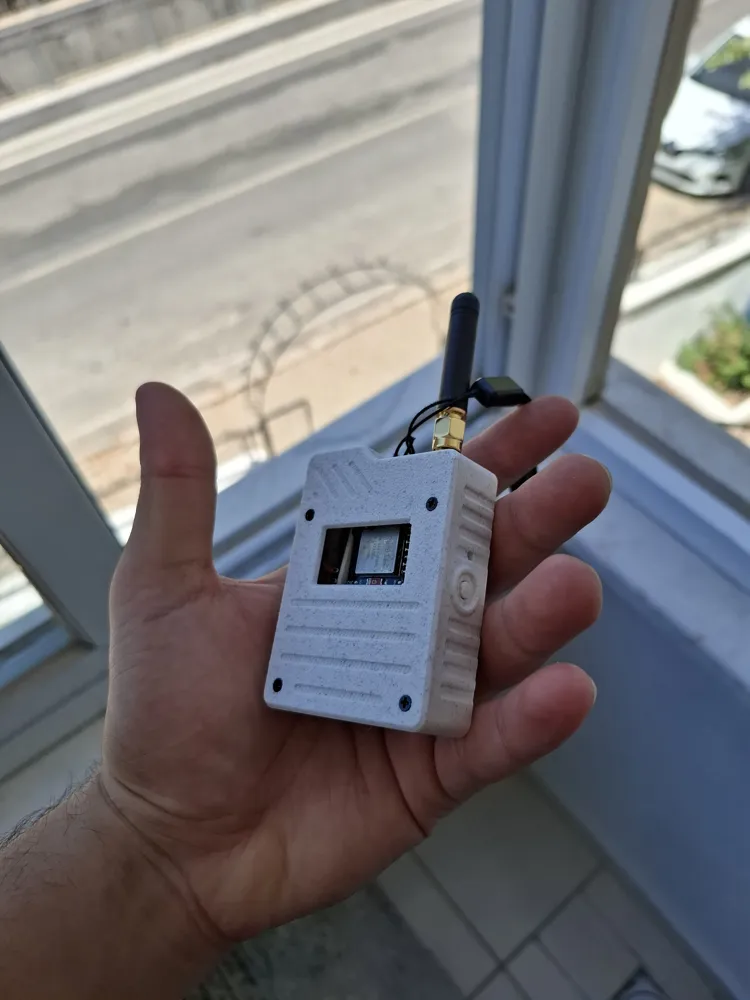

This project is a portable case designed for the FakeTec PCB. It includes a 1.3-inch or 0.96-inch OLED display, GPS module, BME280 sensor, and on/off switch. The power comes from a 3.7V 2000 mAh LiPo battery. The case is compact, easy to assemble, and ideal for outdoor or mobile use. You can find all STL files, part links, and technical details below. There are four case versions you can choose depending on your needs. All models are uploaded in the highest resolution, sharp enough to be worth resin printing. (Have you ever seen STL files this large before? 😄)
Model Code Display Button BME280 Description 1 D1B1S1 ✅ Yes ✅ Yes ✅ Yes Full version with all components 2 D1B1S0 ✅ Yes ✅ Yes ❌ No With display and button, but no BME280 3 D0B0S1 ❌ No ❌ No ✅ Yes Includes only BME280, no screen or button 4 D0B0S0 ❌ No ❌ No ❌ No Minimal setup: no screen, no button, no BME280 STL files for each version are included separately.
Required Parts
| Part | Description | Buy Link |
|---|---|---|
| OLED Display (0.96") | Oled 0.96-inch I2C screen | AliExpress |
| OLED Display (1.3") | Oled 1.3-inch I2C screen | AliExpress |
| ATGM336H TZT GPS | Small GPS module | AliExpress |
| BME280 Sensor 3,3V | Temperature, humidity, pressure | AliExpress |
| 103450 LiPo Battery | 3.7V 2000 mAh rechargeable battery | AliExpress |
| Slide Switch (6mm) | SS12F15 6mm on/off | AliExpress |
| IPEX to SMA Cable | RP-SMA SMA Female Male Antenna | AliExpress |
| 6x6x5 Tact Button | Push Tact Switch 2 pins | AliExpress |

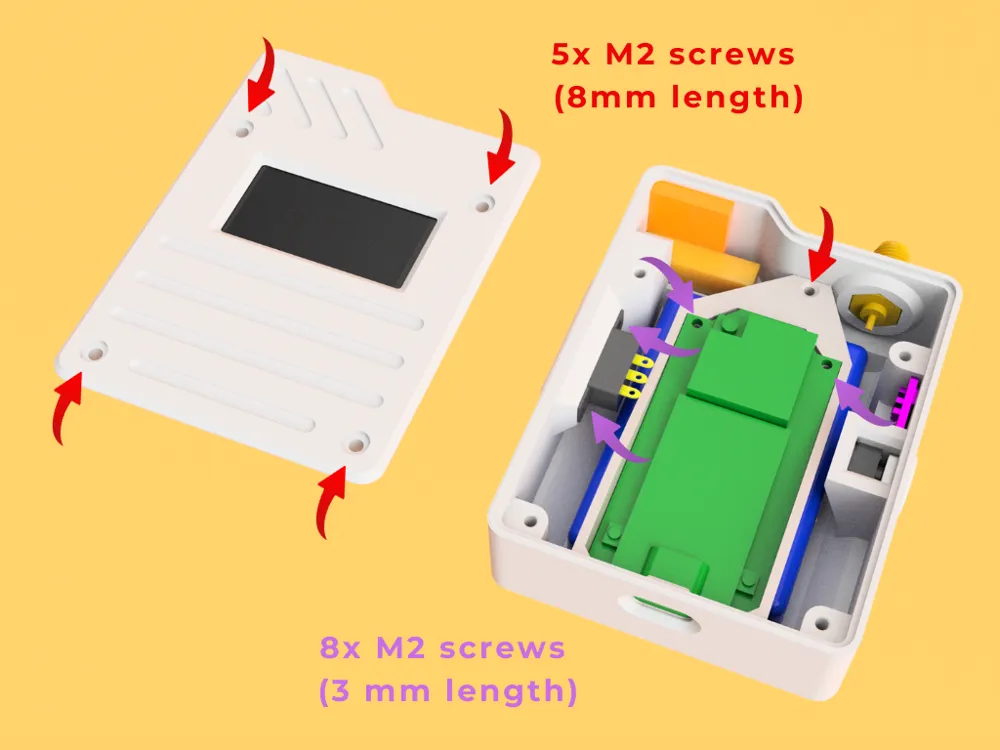

Screws
| Screw Type | Quantity | Use |
|---|---|---|
| M2 x 8mm | 5 | 4 for the lid, 1 to pcb base to case |
| M2 x 3mm | 8 | 2 for the switch, 2 to PCB, 4 to oled screen |
Why BME280?
The BME280 sensor is a reliable and widely used module that provides temperature, humidity, and pressure data in one compact package. It's perfect for indoor air monitoring and environmental sensing. There are two popular versions on the market — one with 3.3V logic and another with a 5V regulator. This model is designed specifically for the 3.3V version, so please make sure to use the correct module.
You can read this article for a comparison with other sensors:
🔗 Sensor Comparison – RandomNerdTutorials
Conclusion
This FakeTec-compatible case is great for projects that need protection and portability. It is easy to print and assemble. You can choose the full version with screen and sensor or a basic one. Everything is tested and ready to use.
