Foot-pedal box for NECCHI Q132A sewing machine
Print Profile(3)
Description

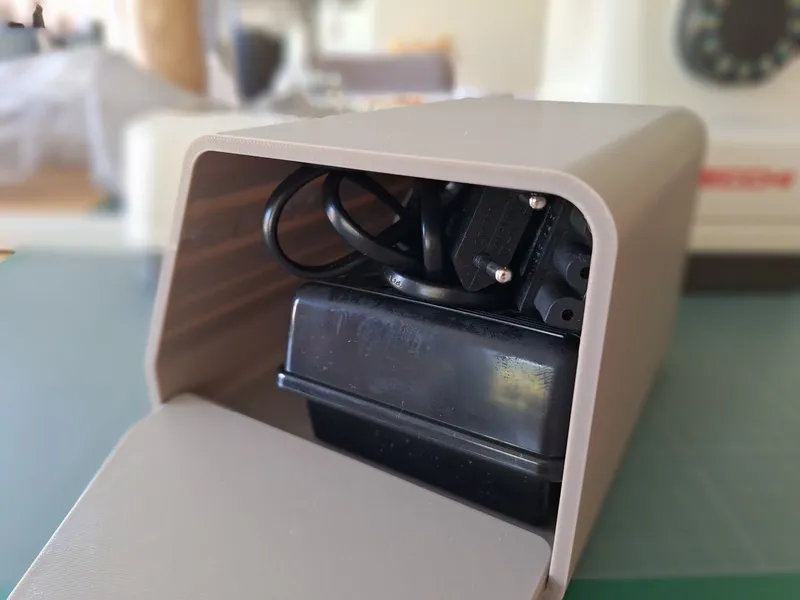

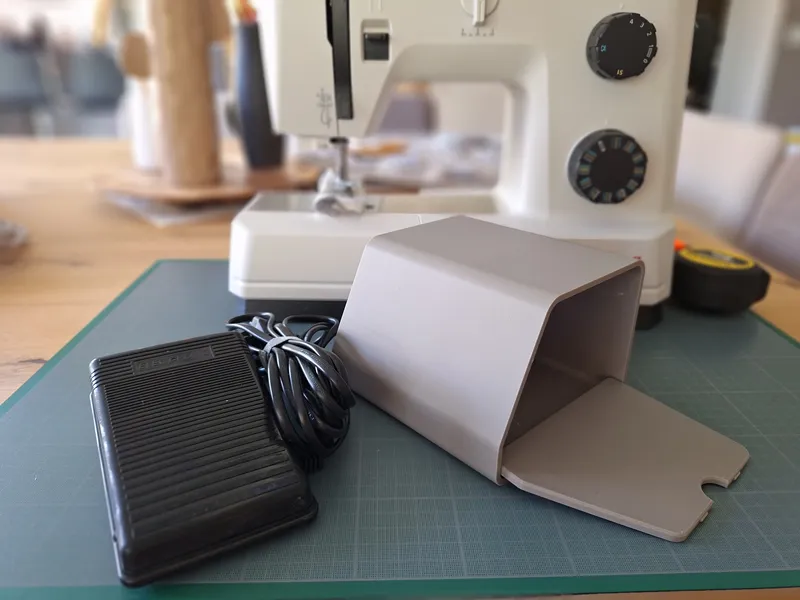

Wanted a box to store the foot-pedal of our NECCHI Q132A sewing machine. I found one here https://makerworld.com/en/models/121716-footpedal-box-for-singer-heavy-duty#profileId-130981 but wanted to have one with different size and a door to close it. So I redesign it completely

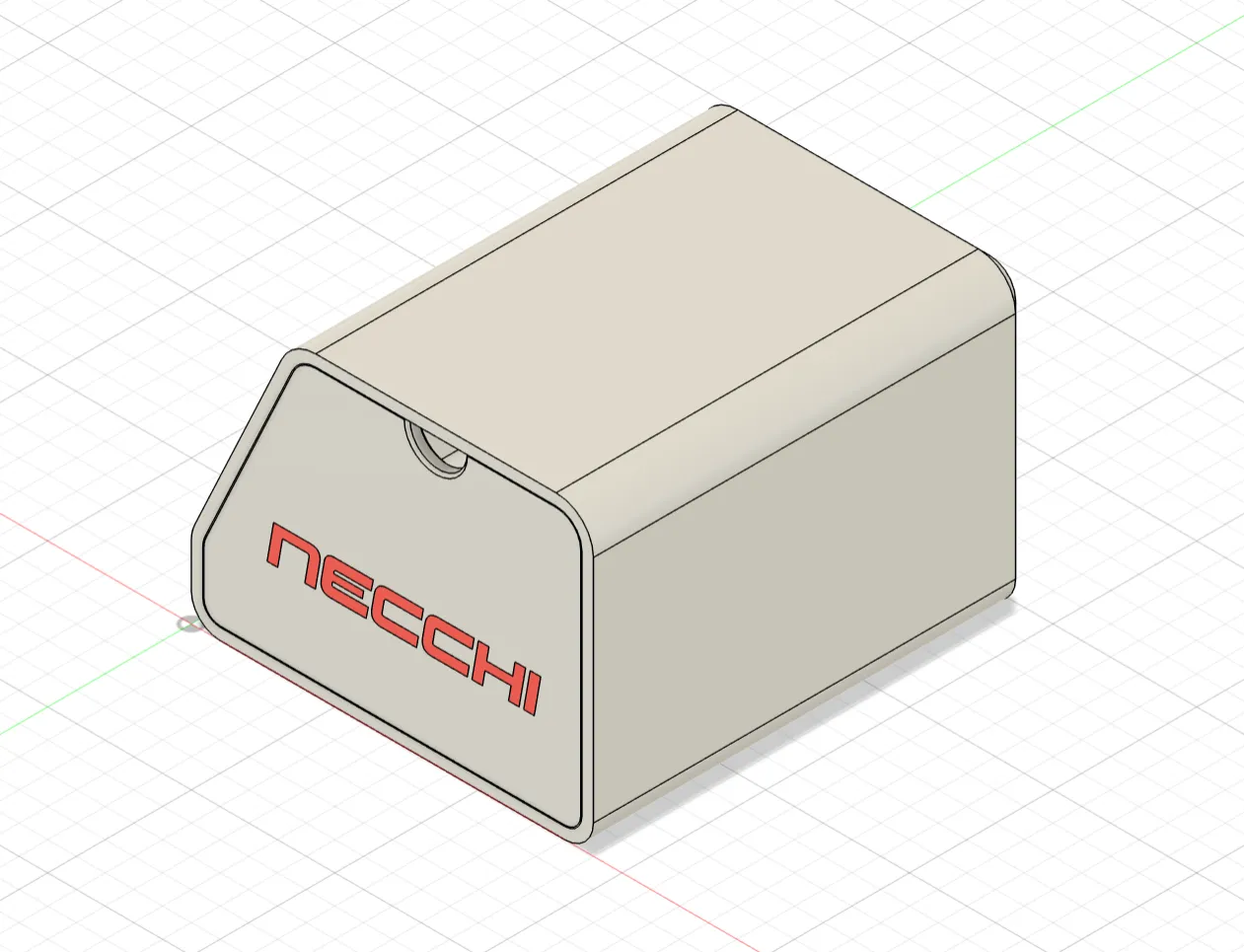

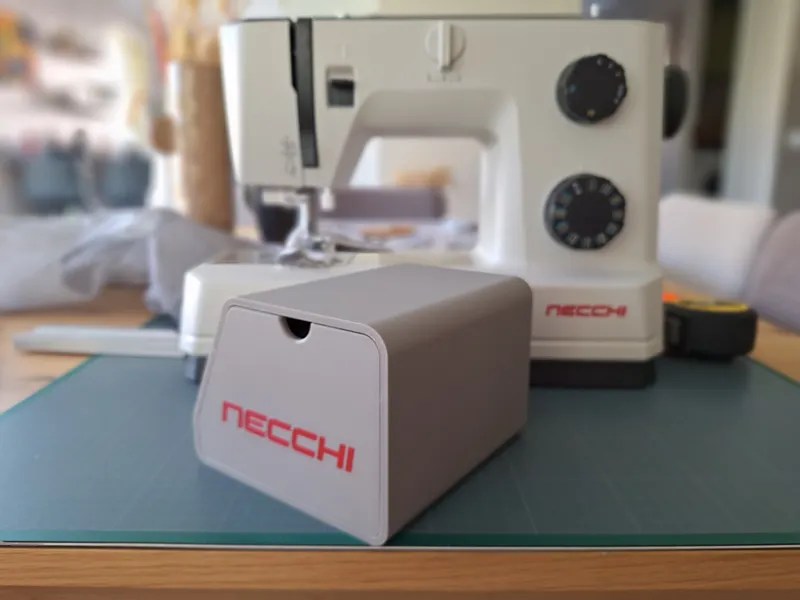

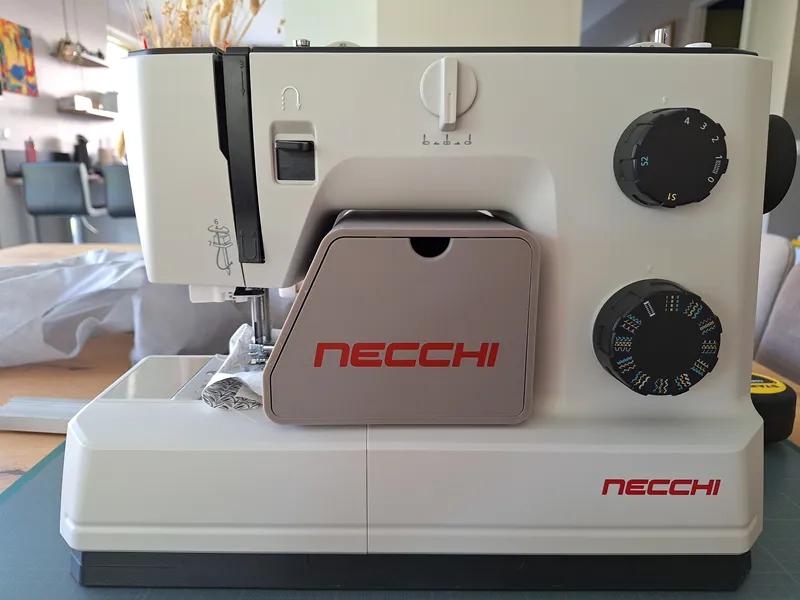

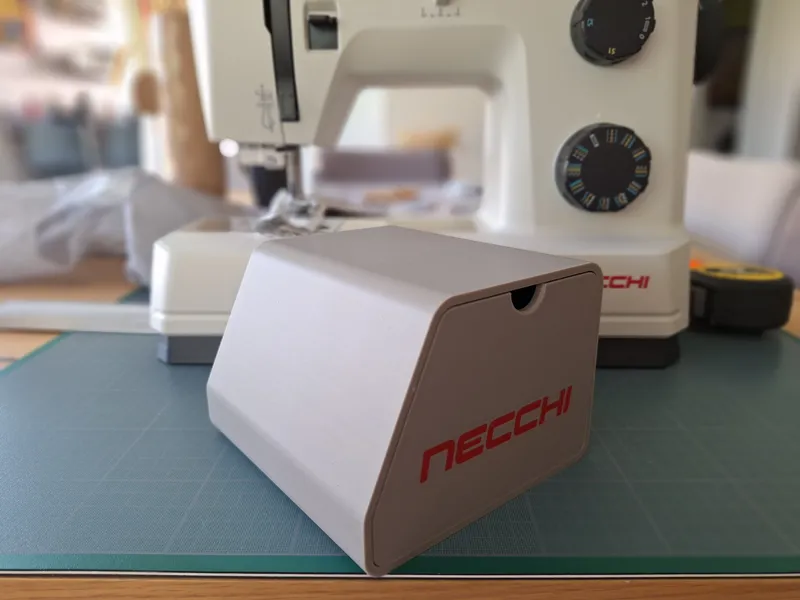

The new model as a door and the NECCHI logo on it that can be printed with a different color (e.g. Red). Printing profiles include the one with logo and the one without logo

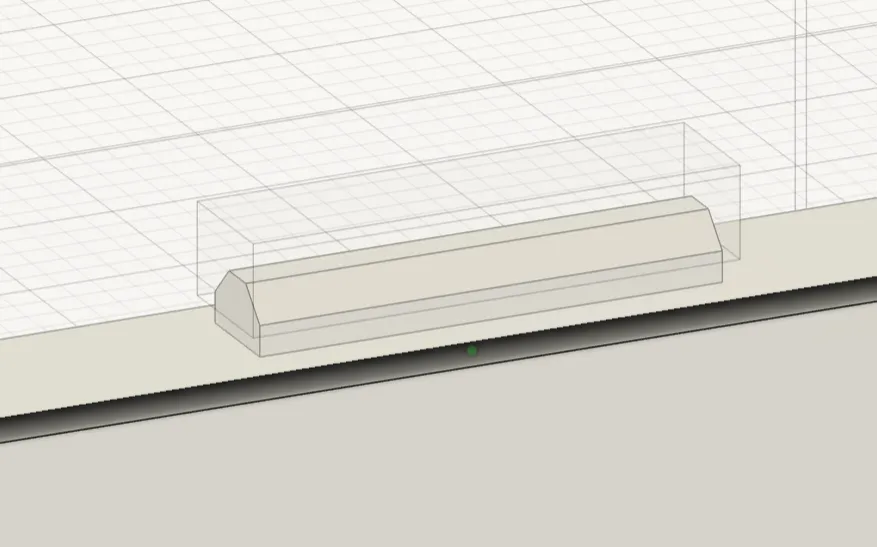

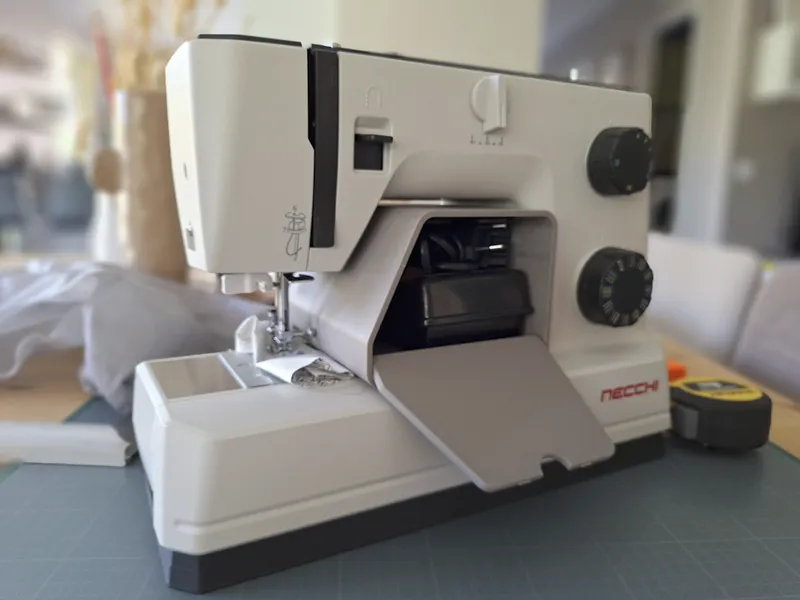

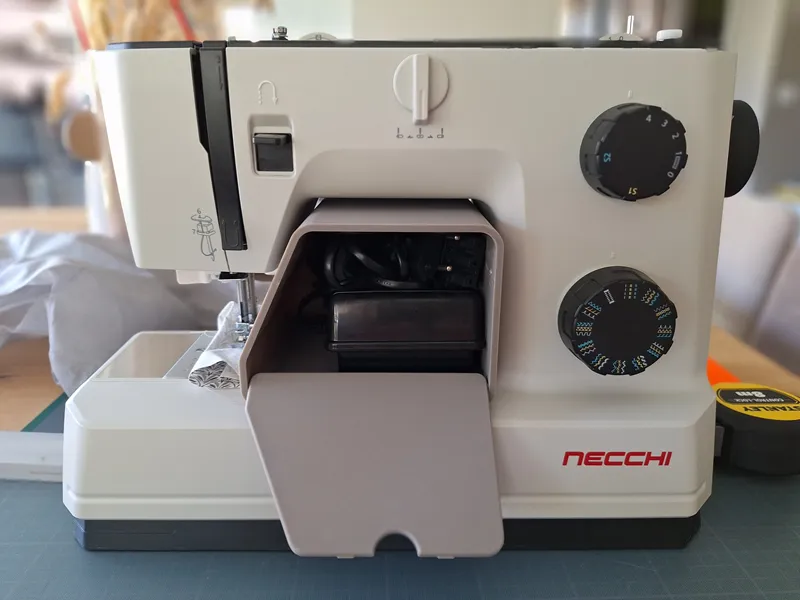

Door includes hinges and locks systems that work fine with printing parameters and accuracy of my printer
Only box can be printed if door is not needed

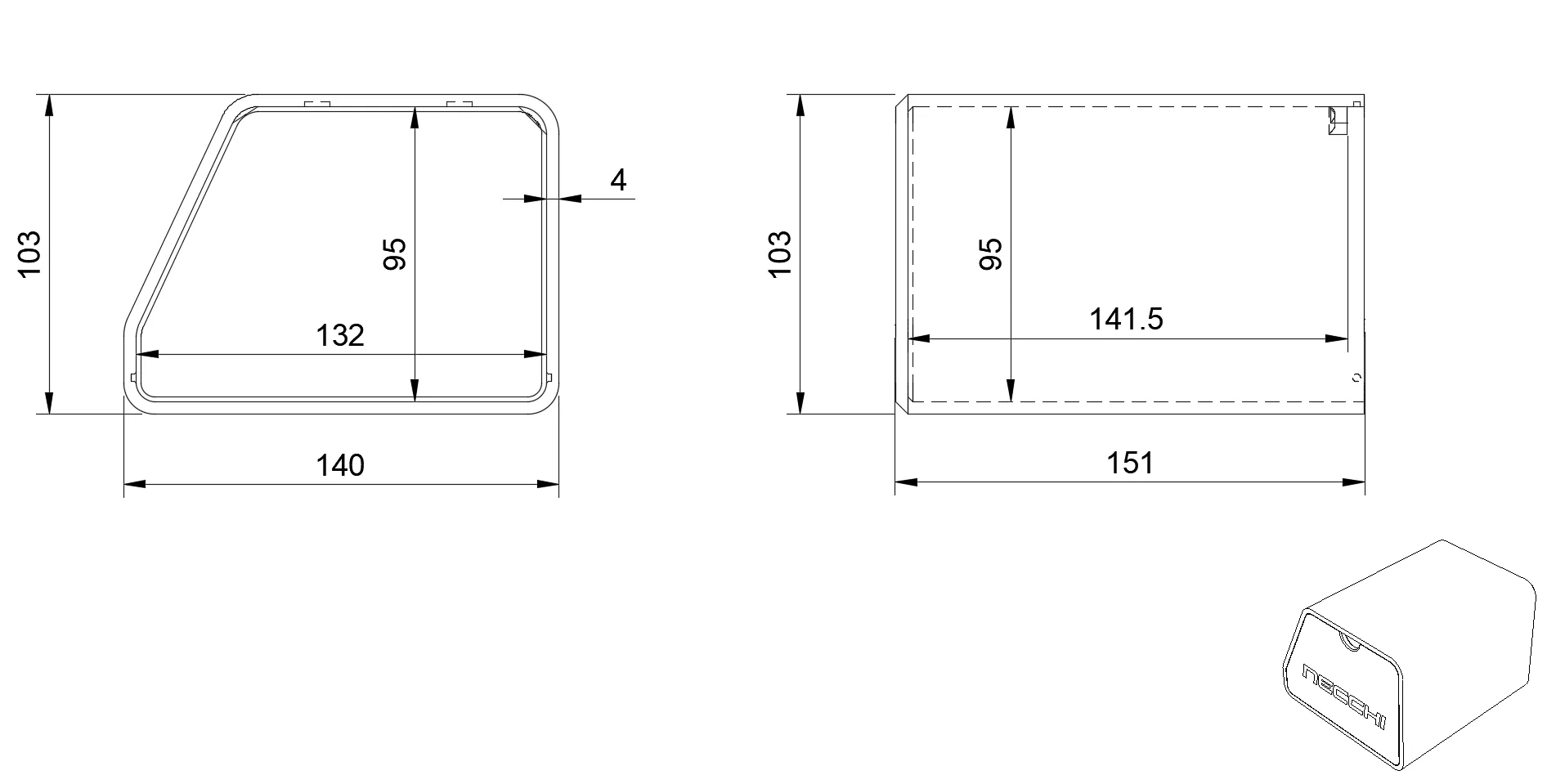

Dimensions of my model are the following:

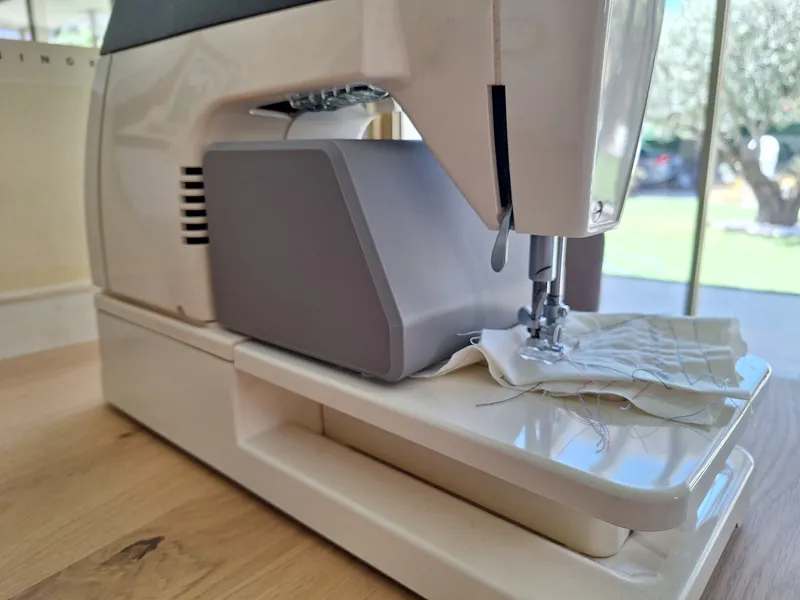

Compatibility: Model should fit also Singer and some other trademarks sewing machines. I tested it OK on my old Singer 7184. Following a maker, it fits also Singer 4452. Check dimensions from attached drawing for compatibility.

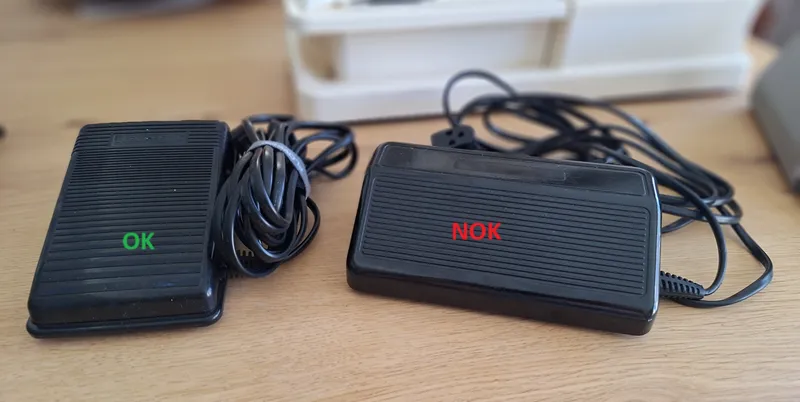

But it's not compatible with large foot-pedal models like the one I have on my old Singer.
On top of .stl, .3mf and .obj (for lid with logo) files, I uploaded .step file so you can modify the design and adapt it to your needs. Wanted to share the Fusion .f3d file but I can't as there is no parameters
You can also look at other parts I designed and 3D printed for my sewing machines
- NECCHI Q132A sewing machine spool pin
- TPU storage block for sewing machine bobbins
- Rubber feet for Singer 7184 sewing machine
- Hook Drive Gear #174488 for Singer 7184
Downloads, feedback and comments (and for sure "likes") will be always welcome. Feel free to post nice pictures of your makes.
Boost Me (for free)
If you like this model, please consider boosting it. It would be greatly appreciated 😉
Take a look also at my other designs you may find something interesting
Enjoy
