Blank Wall Plate for 4x4 Junction Box

Print Profile(1)

All
P1S
A1 mini
X1 Carbon
H2D
A1
X1E
X1
P1P
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
45 min
1 plate
5.0(2)

Open in Bambu Studio
Boost
22
47
4
1
119
63
Released

Description

Covers a 4x4 junction box. Keeps wiring connections accessible to stay code compliant. I was surprised no body seems to make a cover for these to go over the drywall. This is for the square boxes with diagonal holes for fasteners. Standard fastener threads are #8-32 for these boxes. Recommend at least 1 inch screws with countersunk heads to secure the cover to the box.

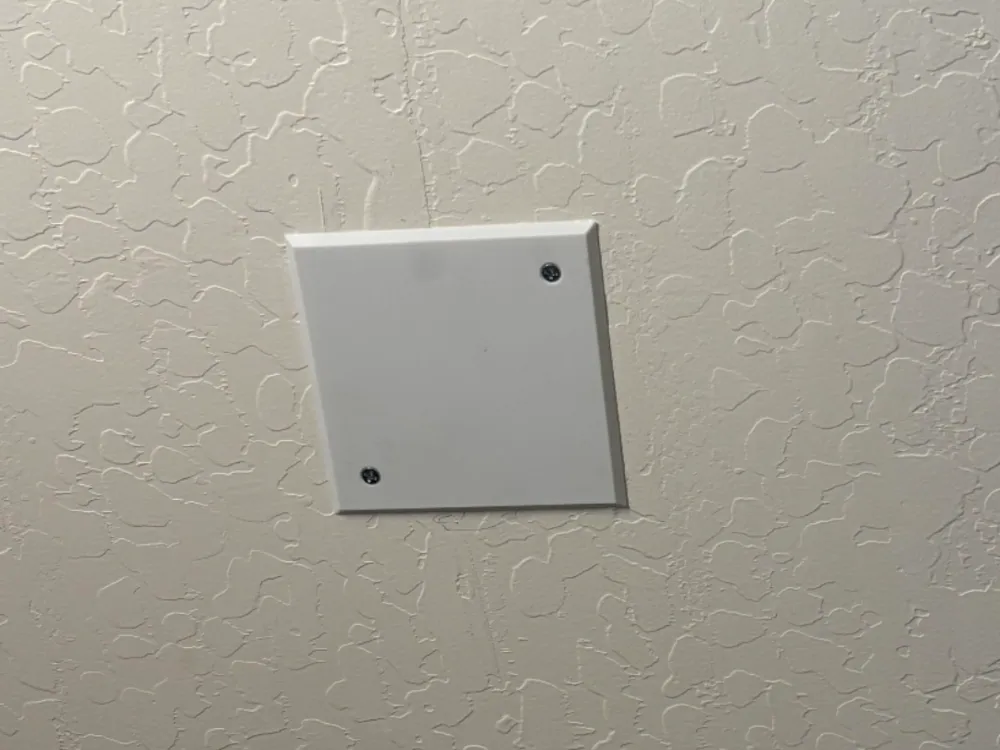

Configurations with filleted edges, filleted edges and corners, or chamfered edges (photo).
