Bill of Materials
- M3x10 Countersink screw x 4:
- M3 threaded insert x 4:
- M4x16 screw x 1:
Description

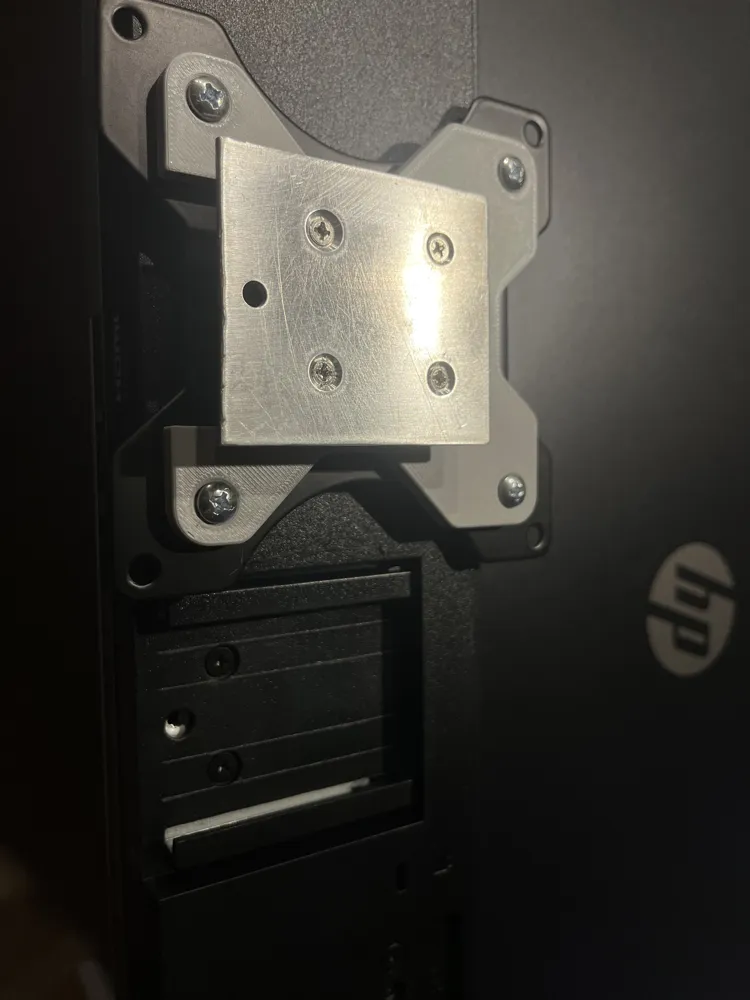

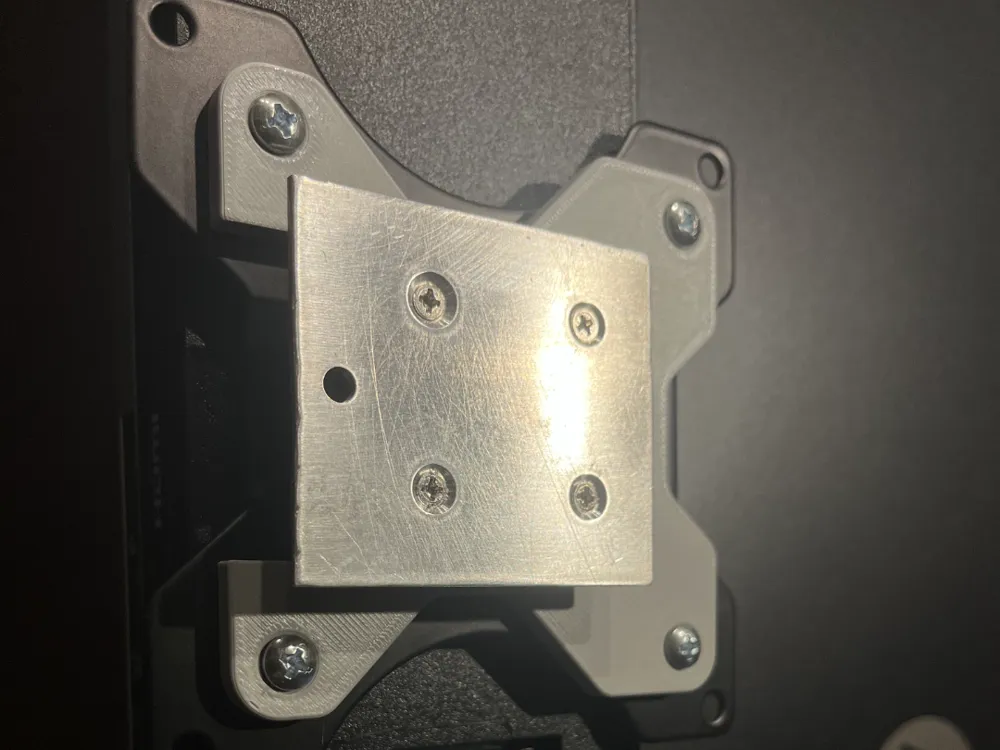

I have designed a VESA adapter for the HP 524sh.

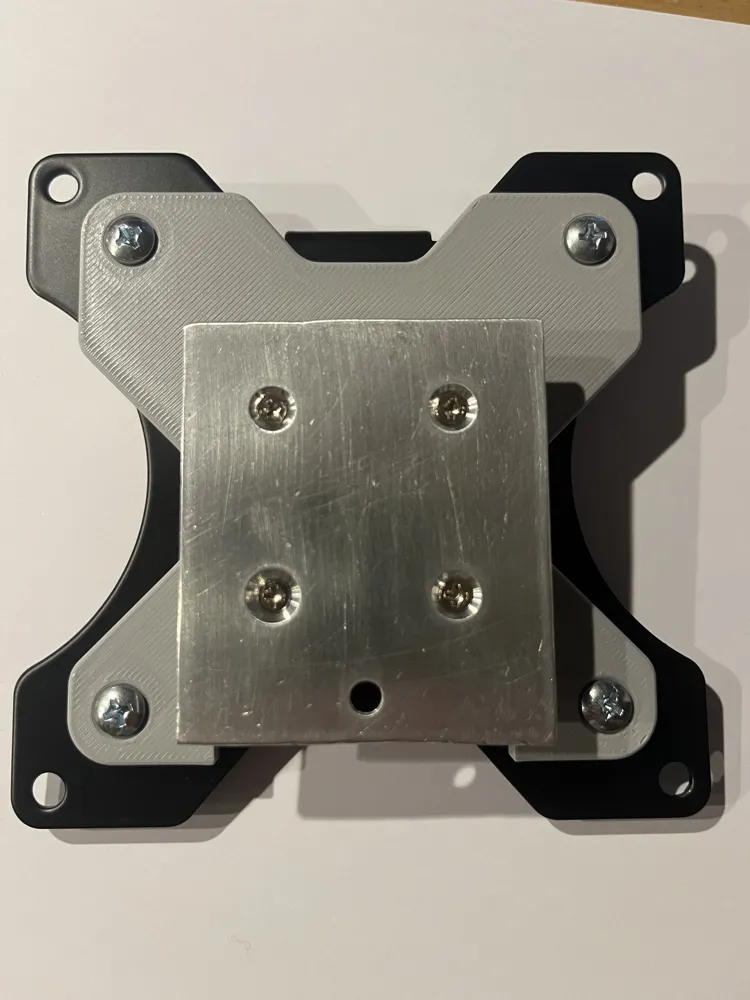

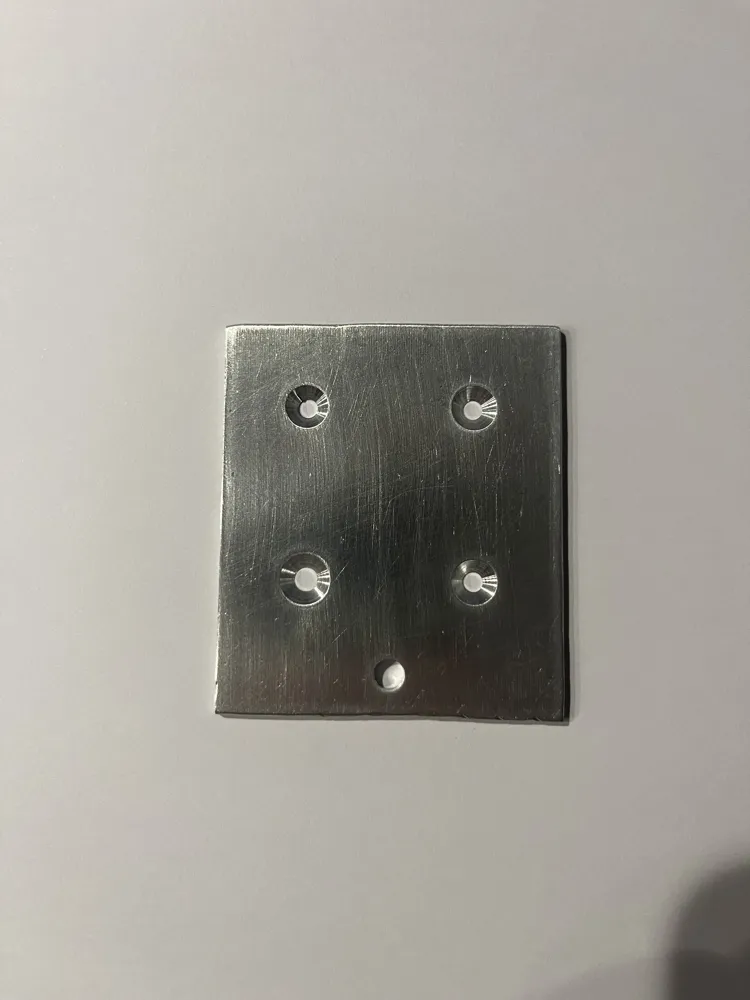

The model consists of two parts: the adapter and the front plate. The front plate can be 3D printed using PETG, but I have also included a technical drawing for manufacturing it from metal. (Or just use the print as template)

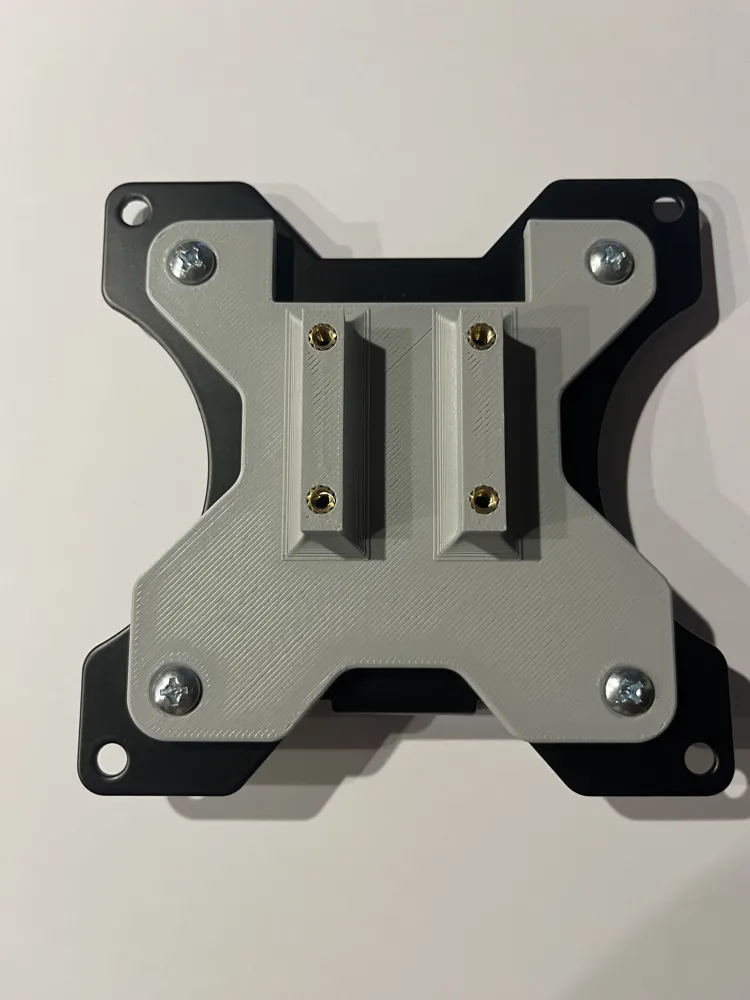

To mount the front plate, you will need 3x M3 countersunk screws and 4x M3 threaded inserts. Additionally, one M4 screw is required to securely fasten the monitor.
