Thread pitch gauge for nuts M1-M10
Print Profile(1)
Description
Boost Me (for free)
Please boost me

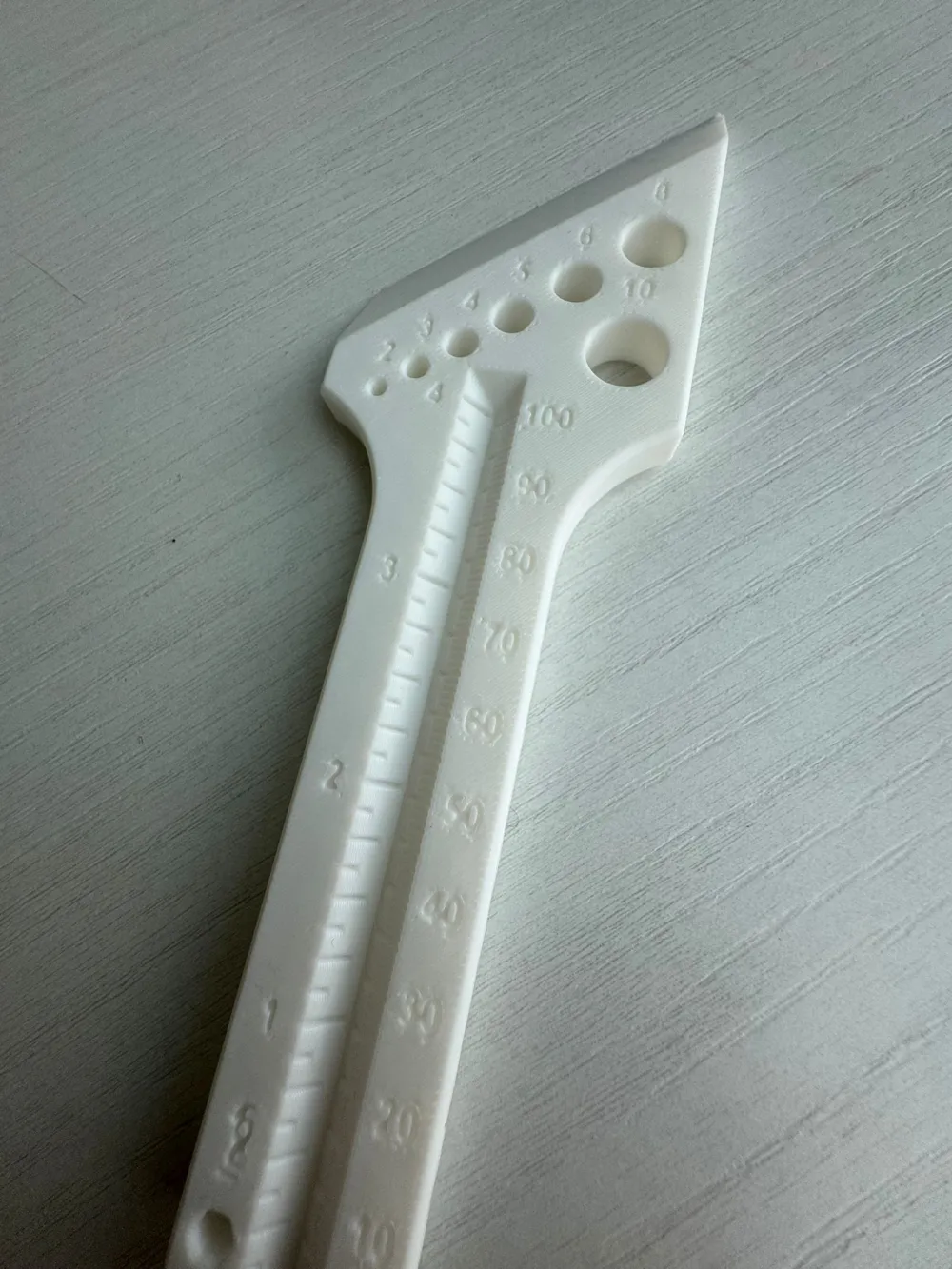

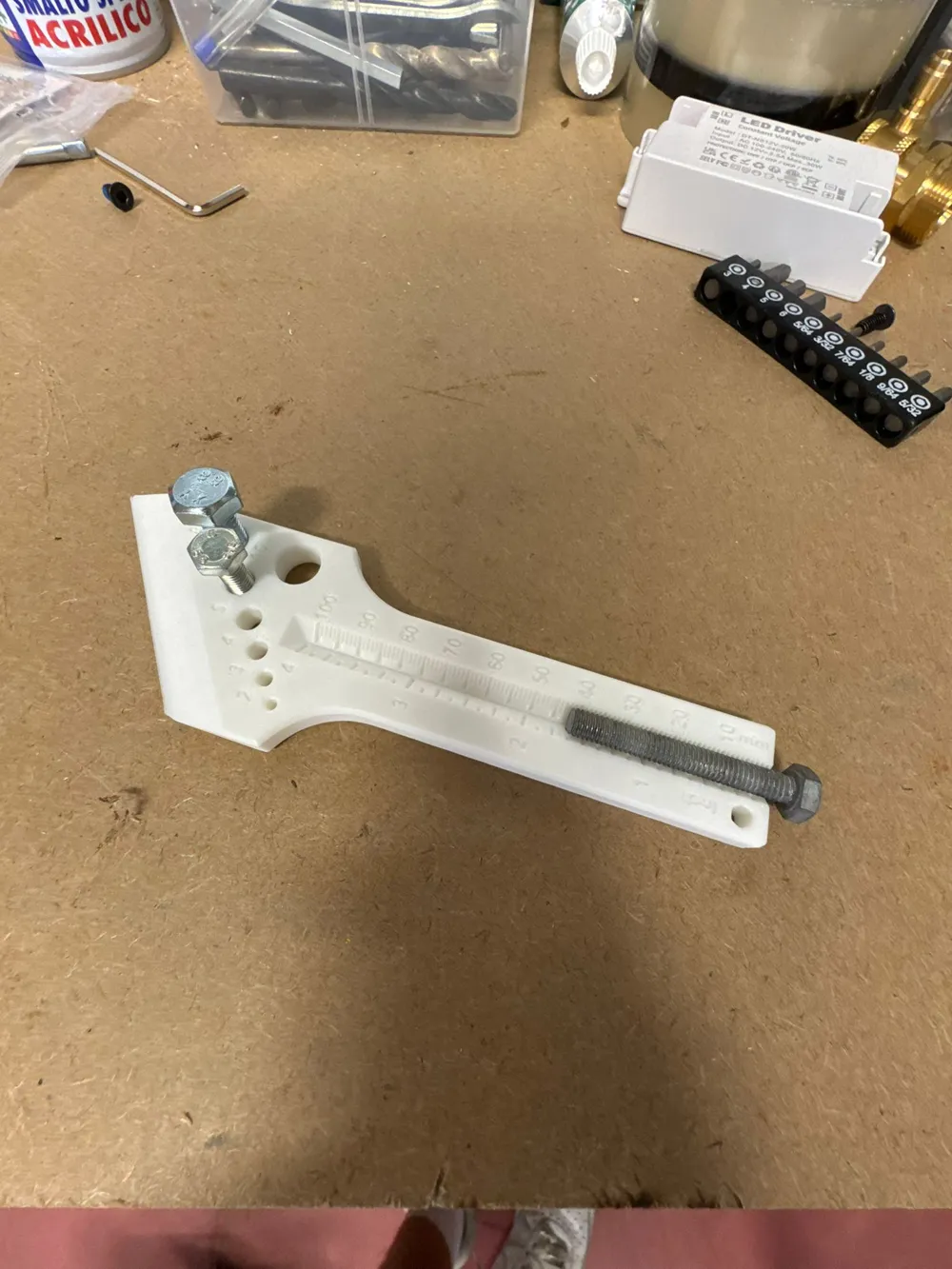

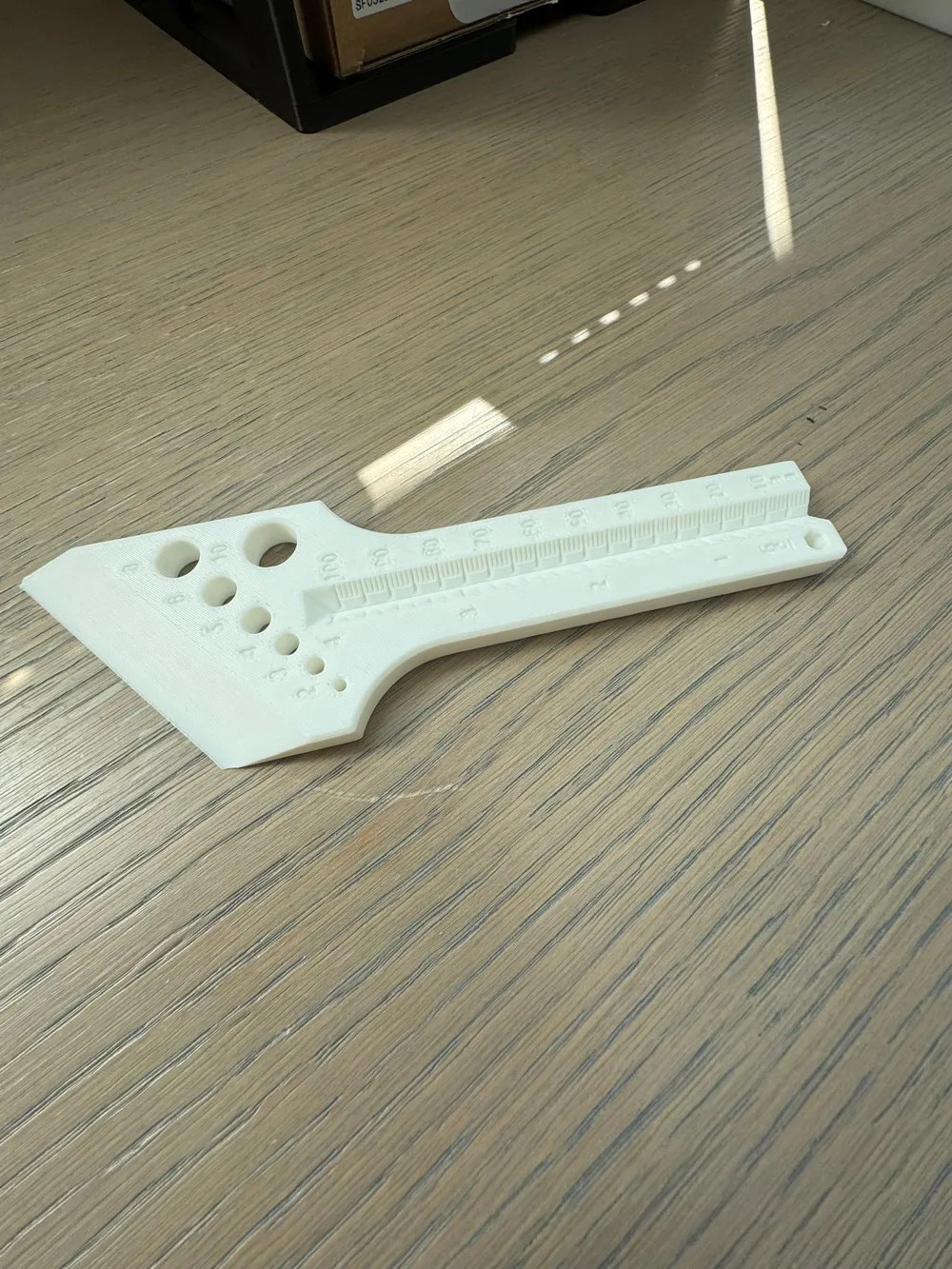

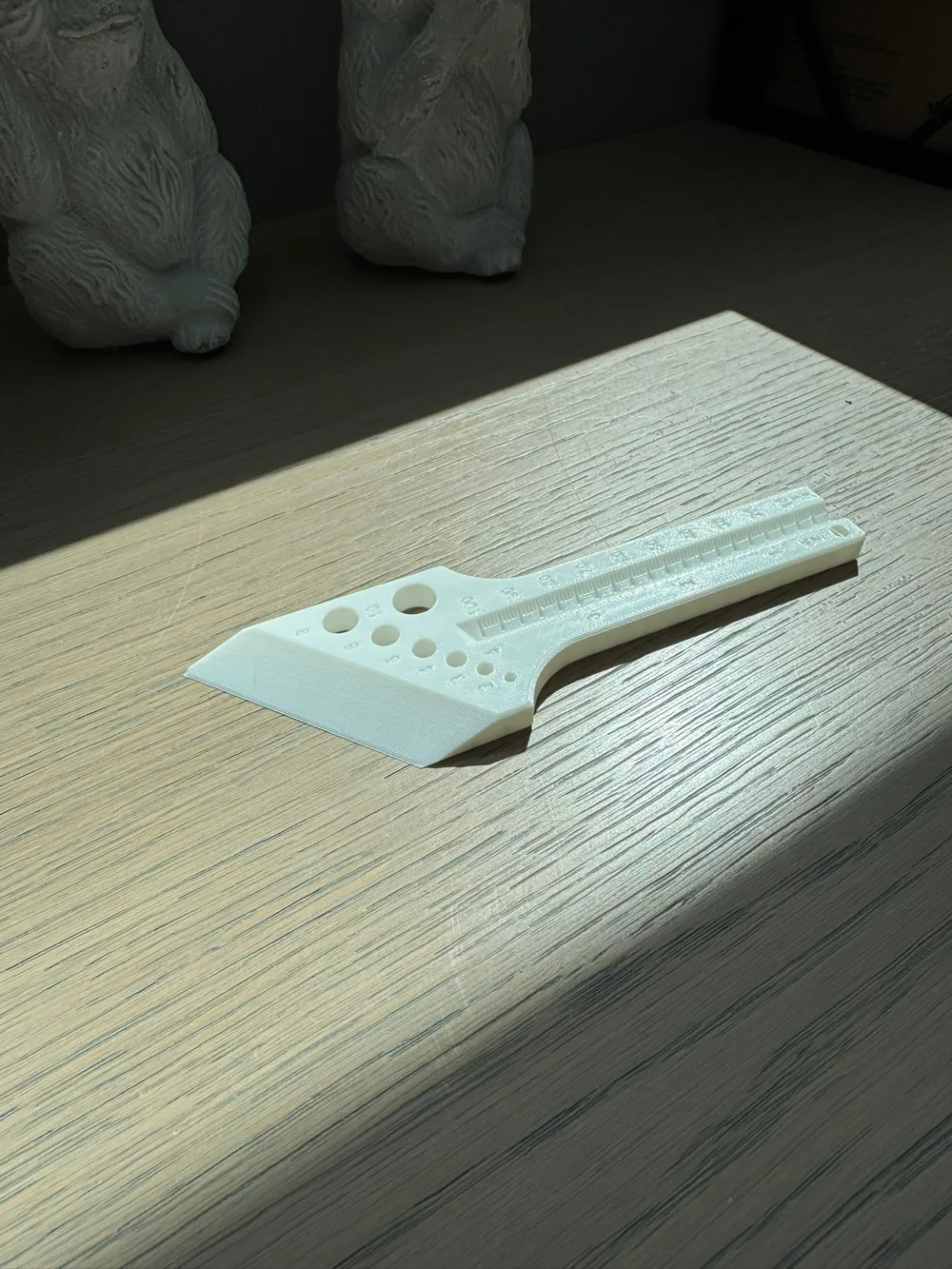

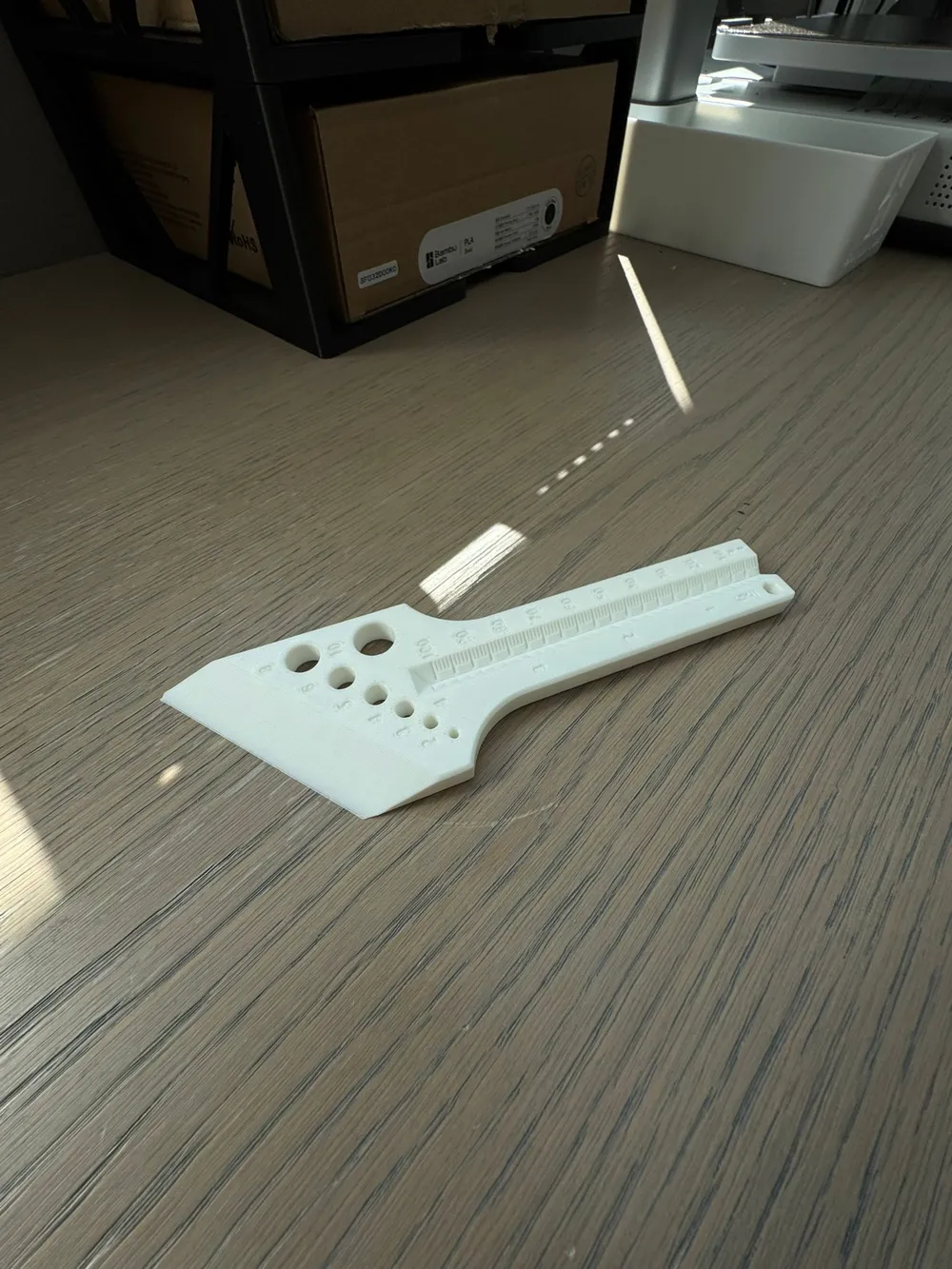

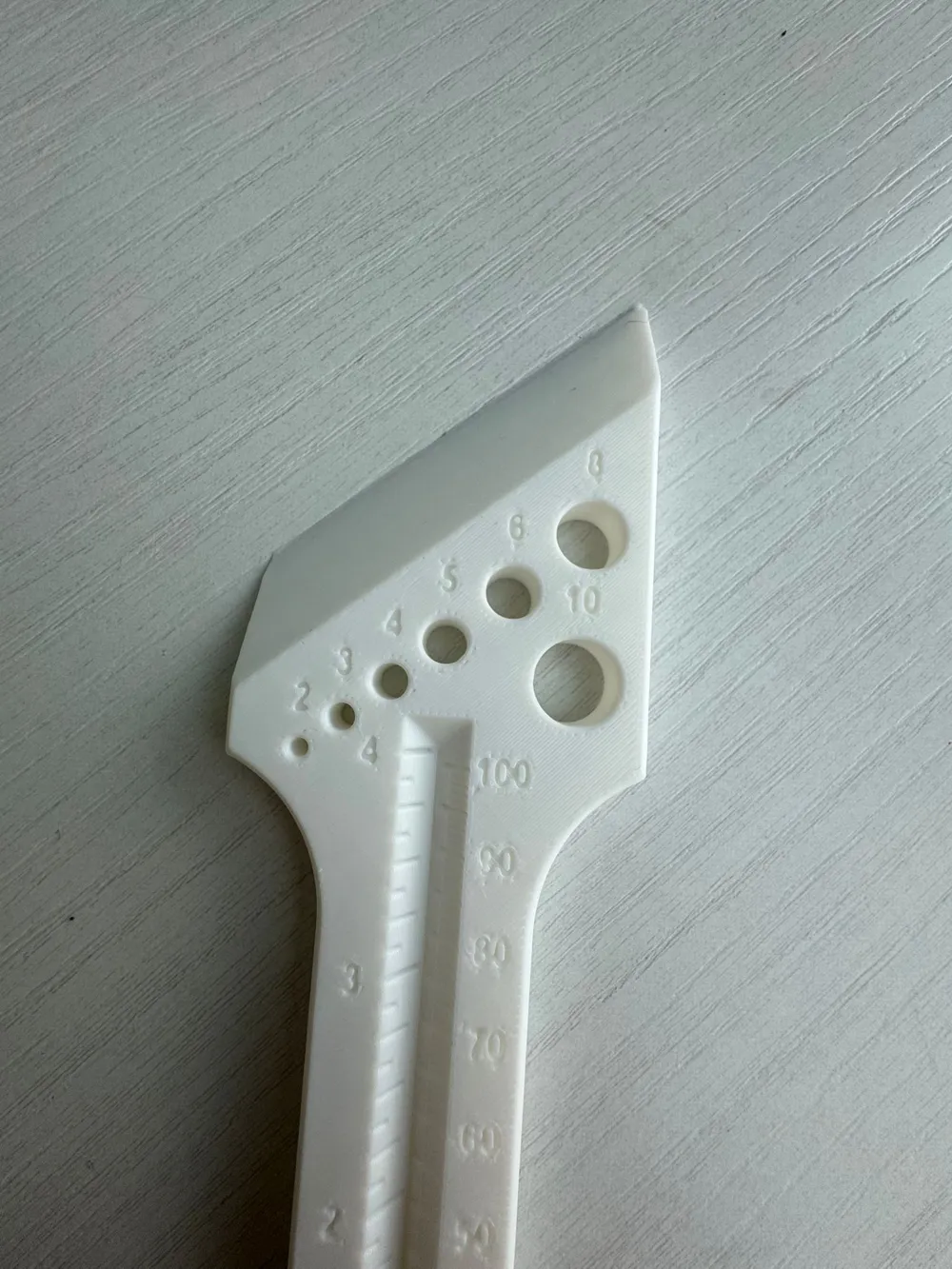

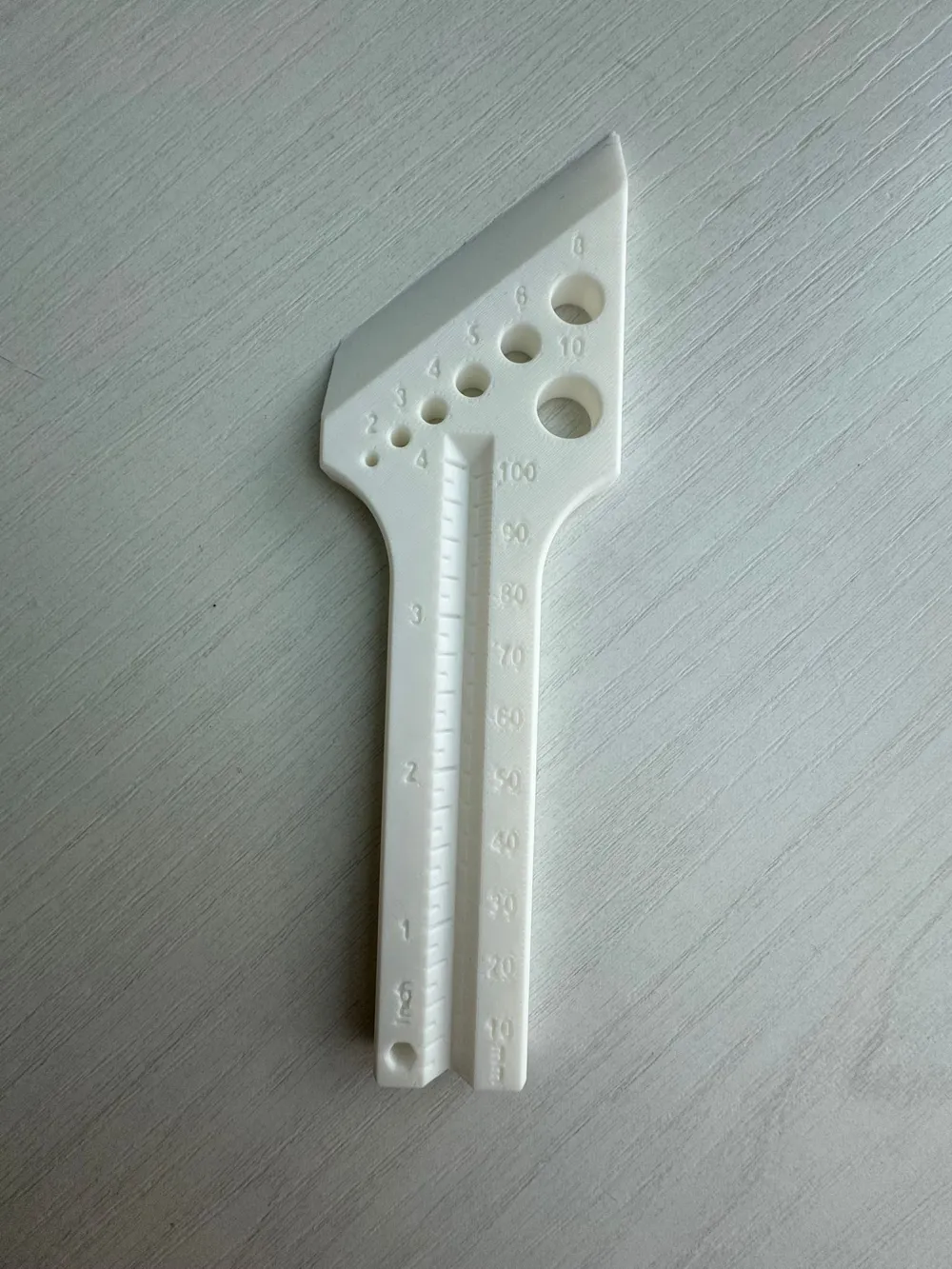

This model represents a compact hand tool for the quick verification of female metric threads (nuts) ranging from M1 to M10. It is divided into graduated sections, each corresponding to a specific nominal diameter of the metric thread. Each section features a calibrated hole with a specific pitch, marked with embossed text for immediate identification.
Technical Features:

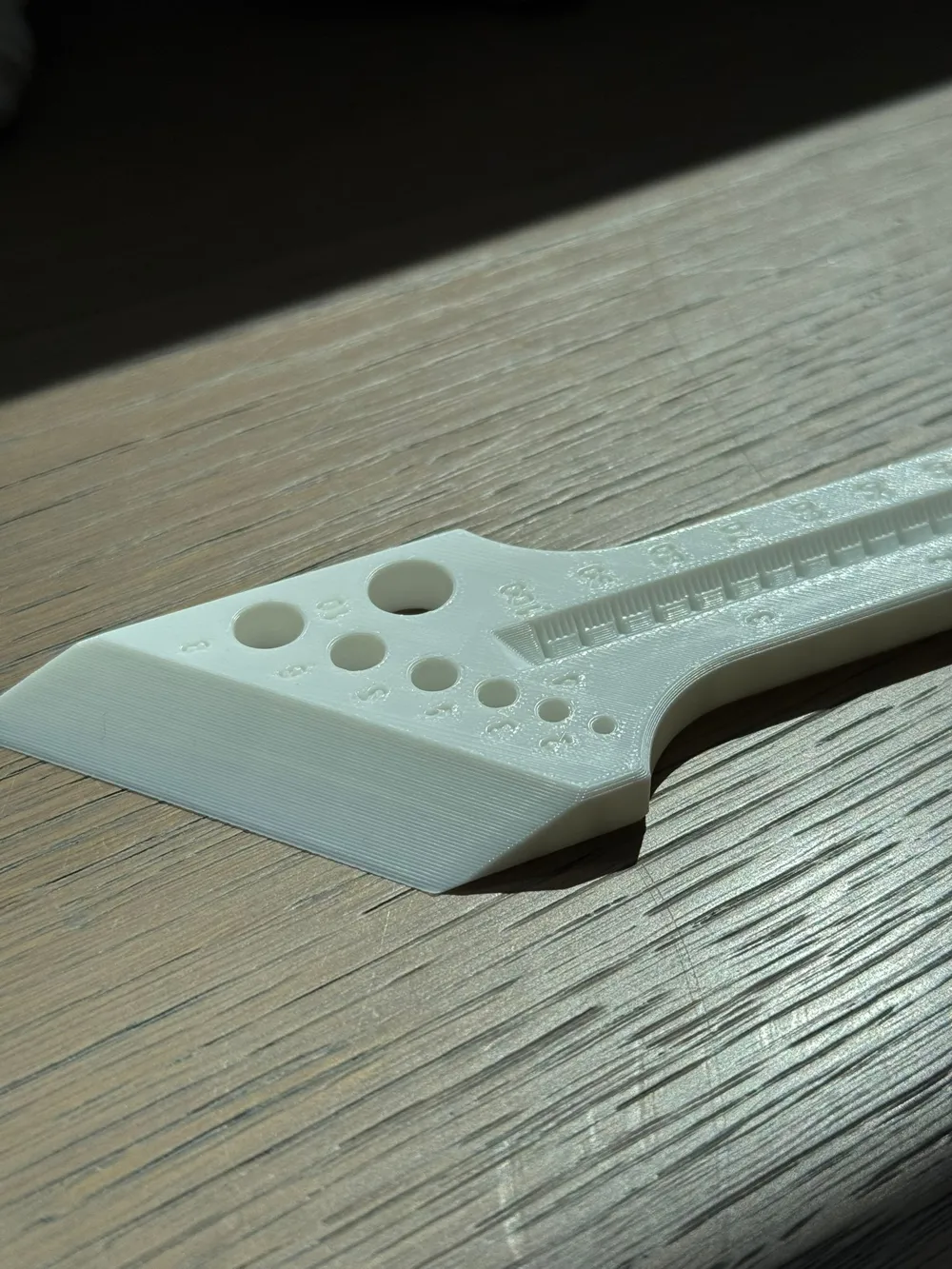

- Measurement Holes: 10 holes with diameters and pitches corresponding to metric threads M1, M2, M3, M4, M5, M6, M7, M8, M9, M10.
- Marking: Embossed text adjacent to each hole clearly indicates the thread type (e.g., "M5").
- Structure: Flat and elongated shape, designed for easy handling.
- Recommended printing material: PLA
