Folding door Jewelry box
Print Profile(2)
Bill of Materials
- Steel rods 2pcs x 1: D6mm - 32.5cm long
Description
Boost Me (for free)
Boosting this design is free for you, yet it makes a huge difference for me. Thanks for helping me keep creating!
Membership
Commercial License
If you find my designs interesting and useful, and would like to see more in the future, please consider giving me a boost and becoming a supporting member.
Also, if you need parts for any of my designs, please use the BOM link provided on the model page when buying. This gives me a small commission.
Update : 10.08.2025

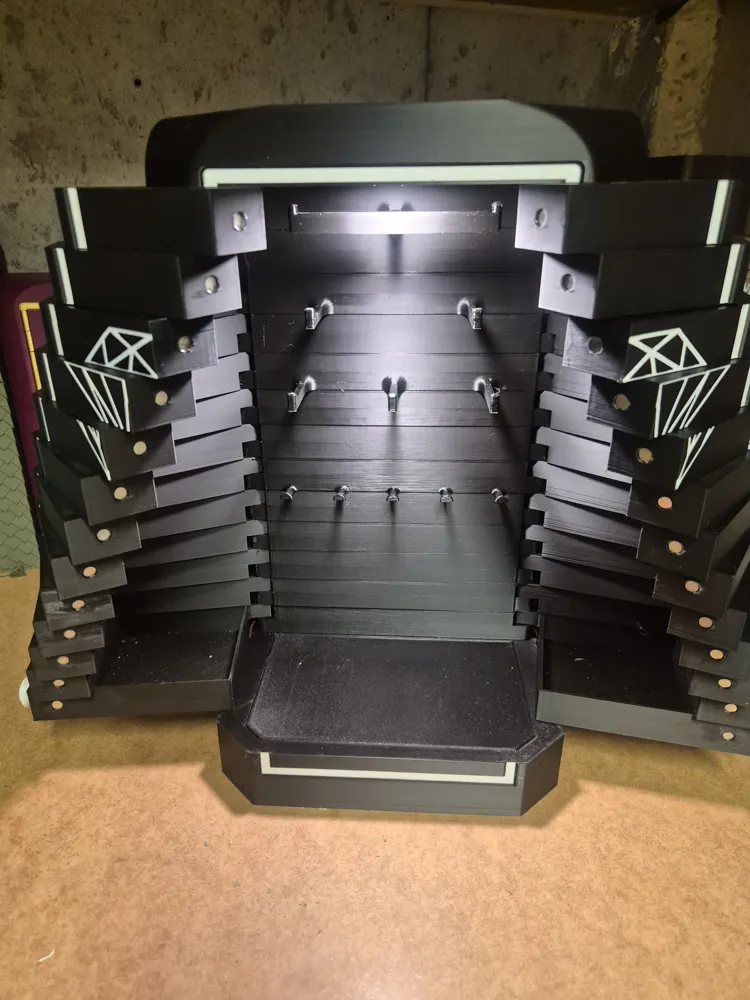

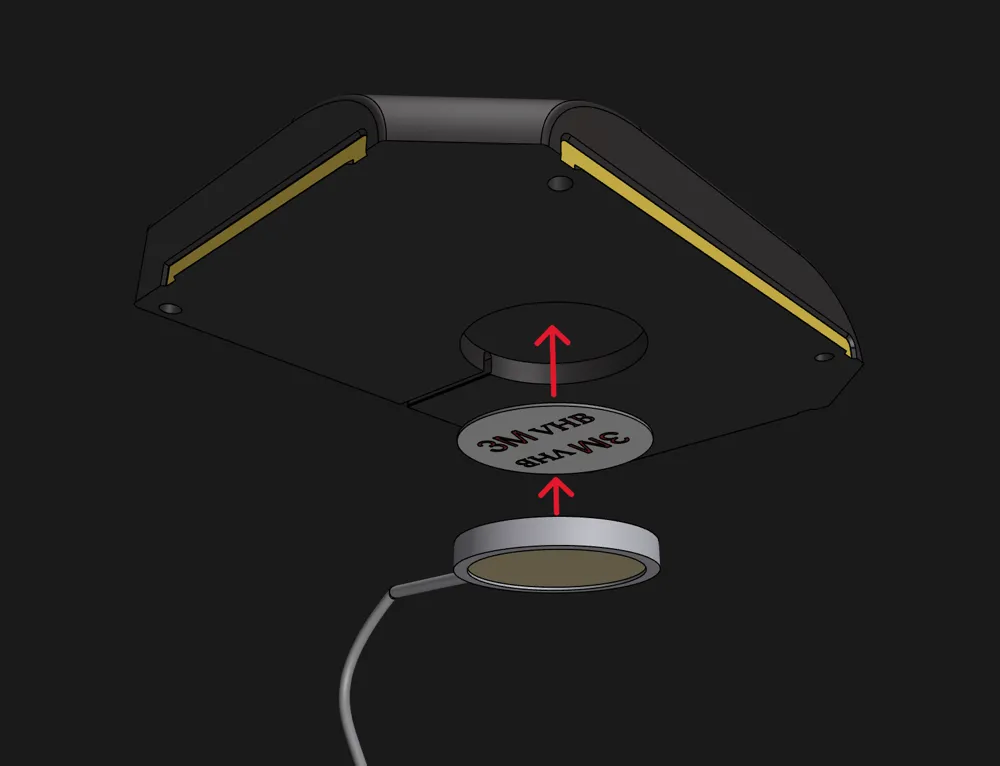

New print profile added. Alternative top with cutout for Led Lamp Kit 001. Light up your jewellery!

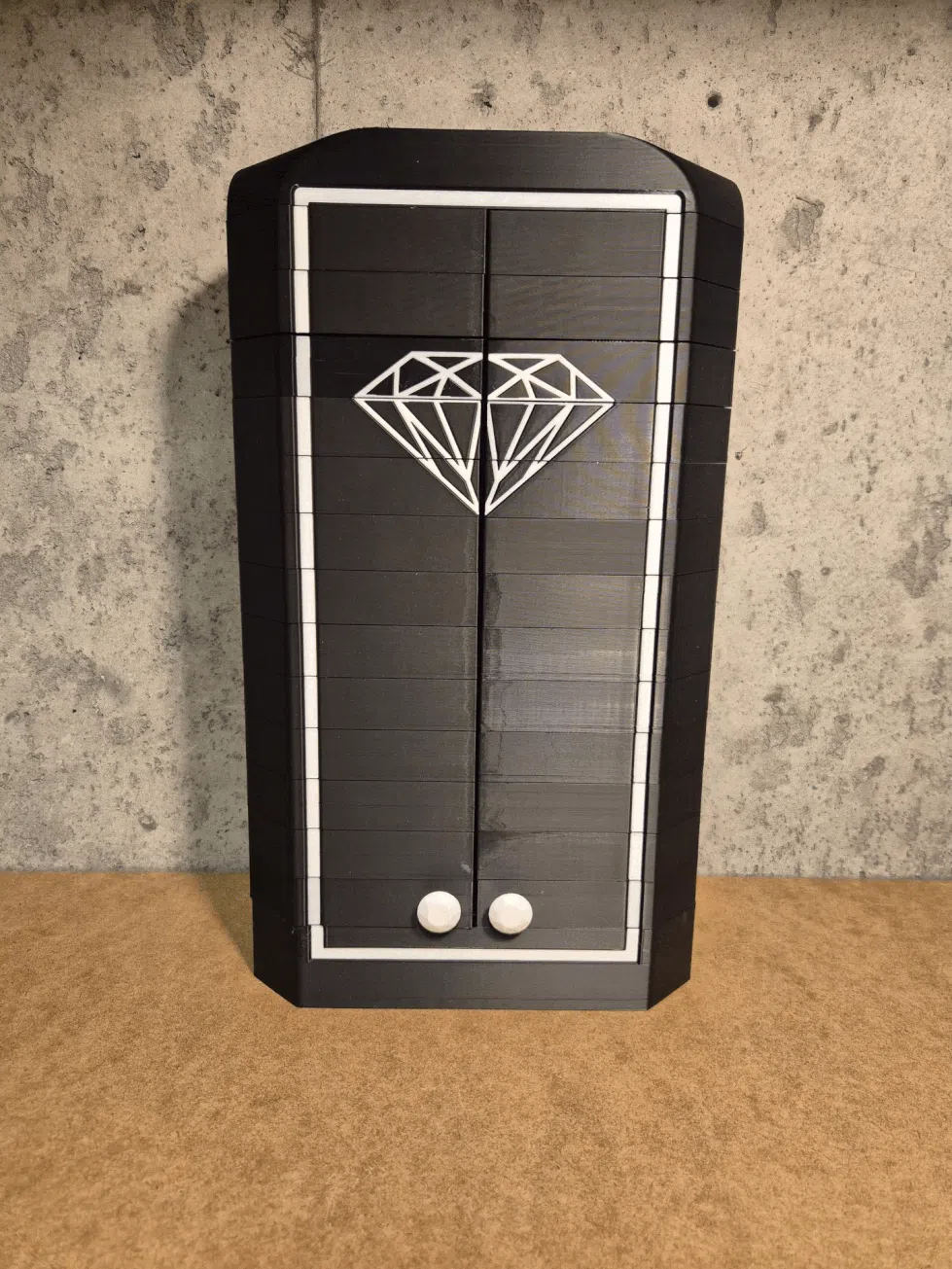

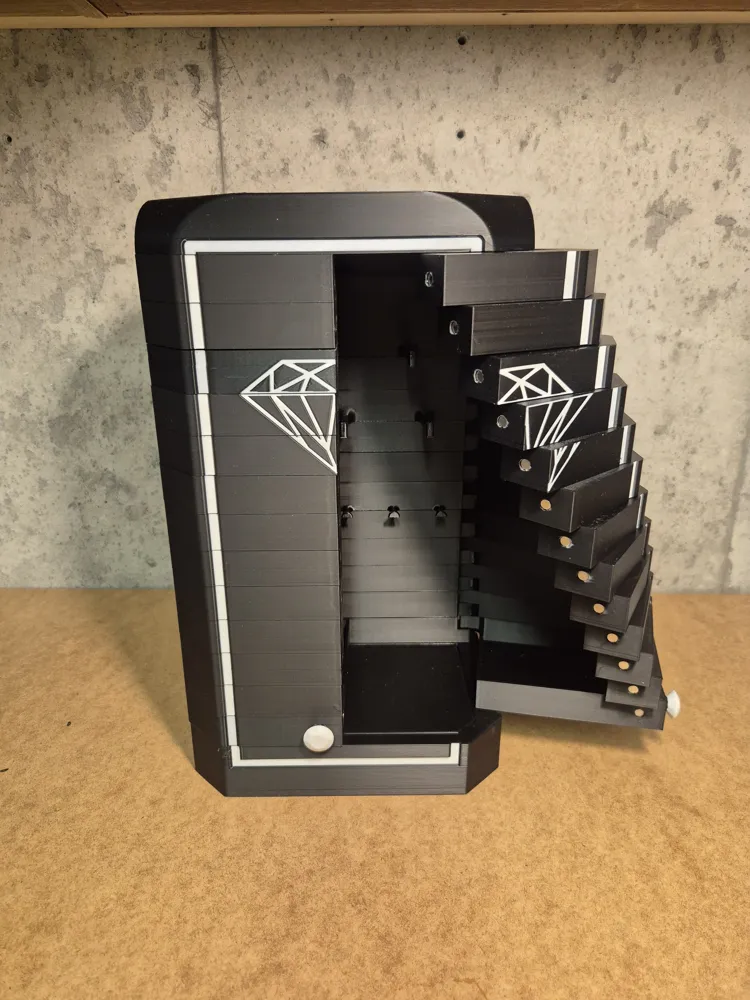

Modular jewelry box
A mesmerizing jewelry box with folding doors, customizable storage, and a hidden compartment—combining artistry with functionality!
Key Features:

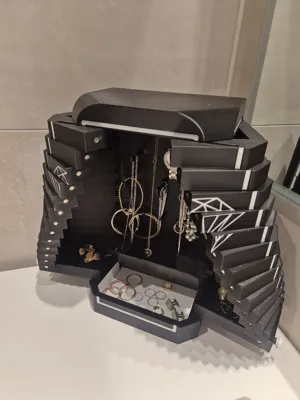

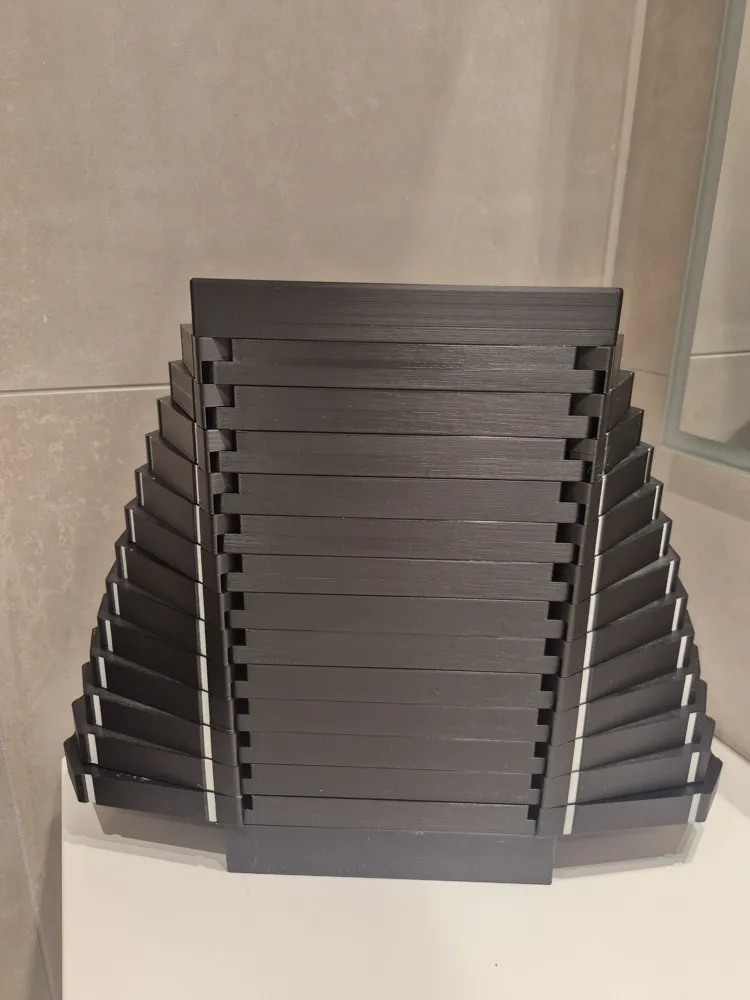

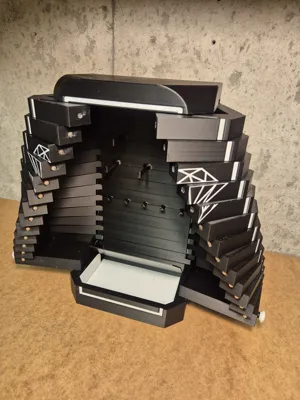

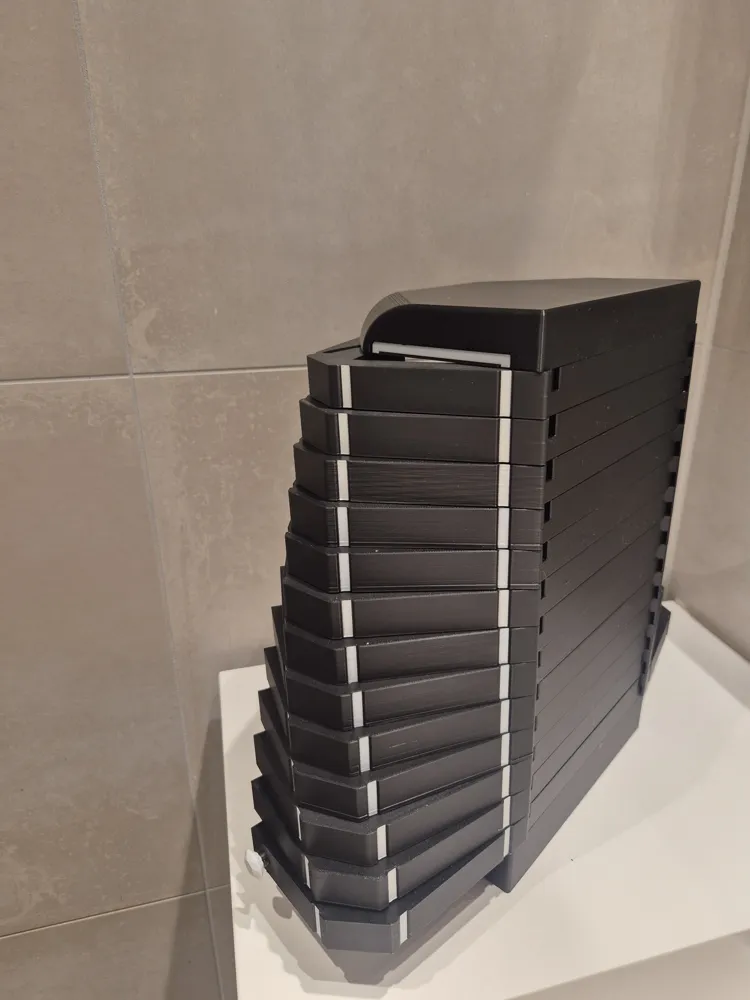

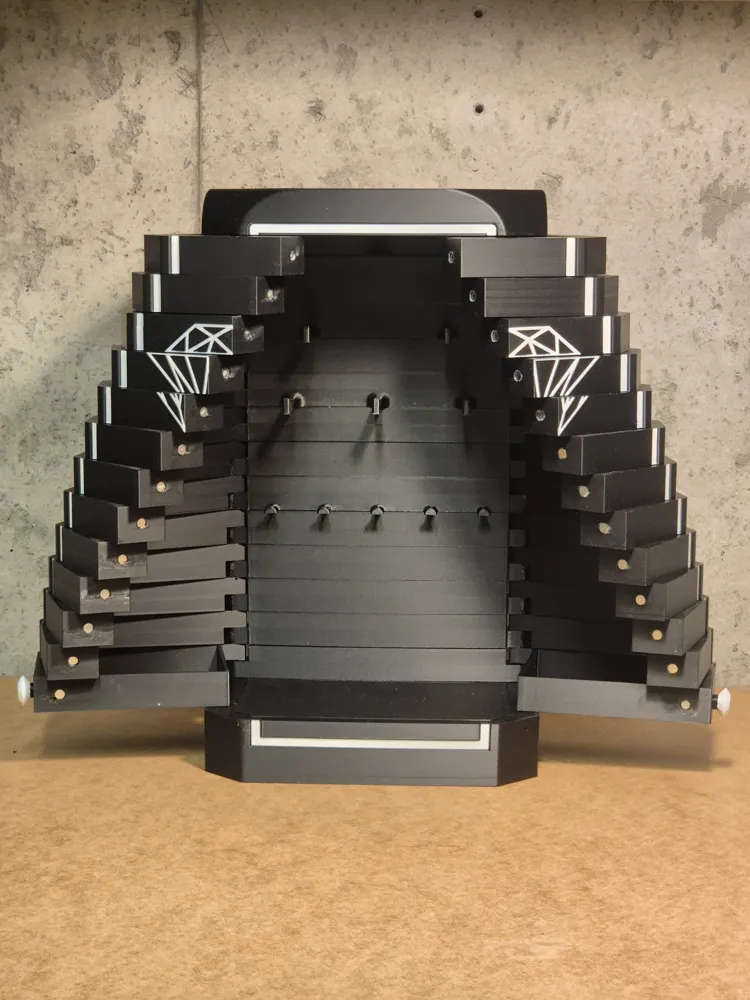

✨ Folding Doors – 13 interlocking pieces per door glide open in a cascading motion, creating a hypnotic effect.

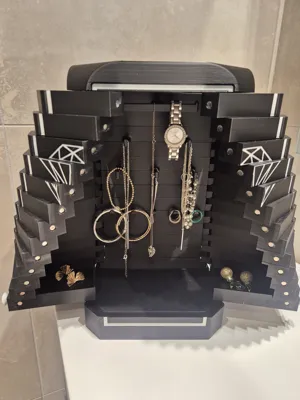

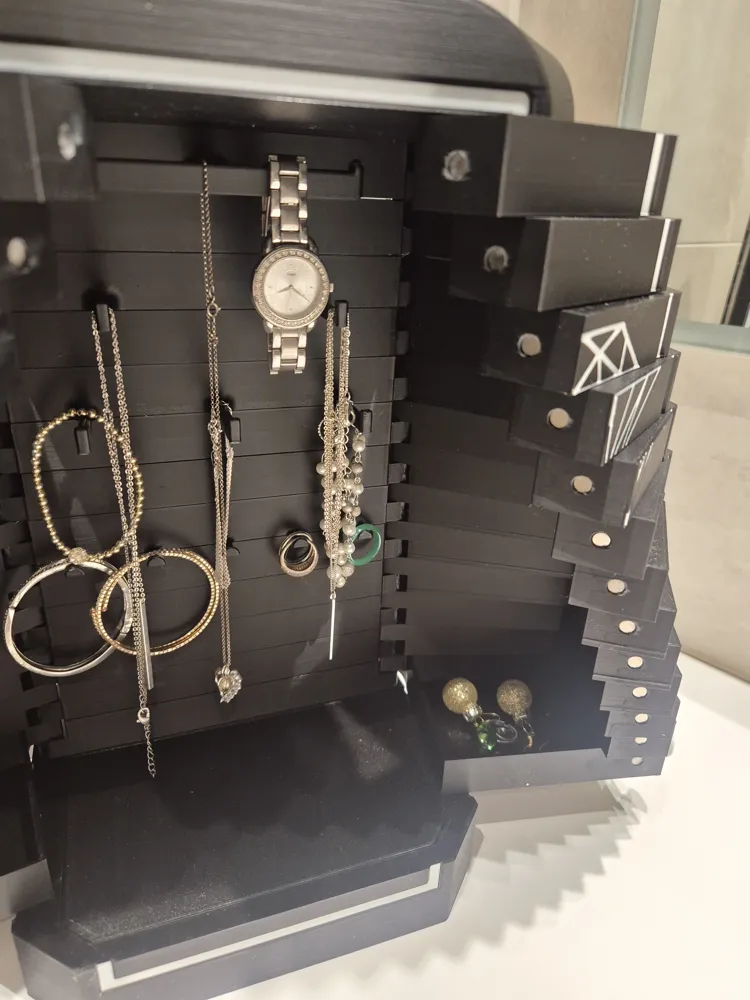

🔧 Modular Back Wall – Swap out panels (included) for hooks, pegs, or shelves to fit rings, necklaces, or watches.

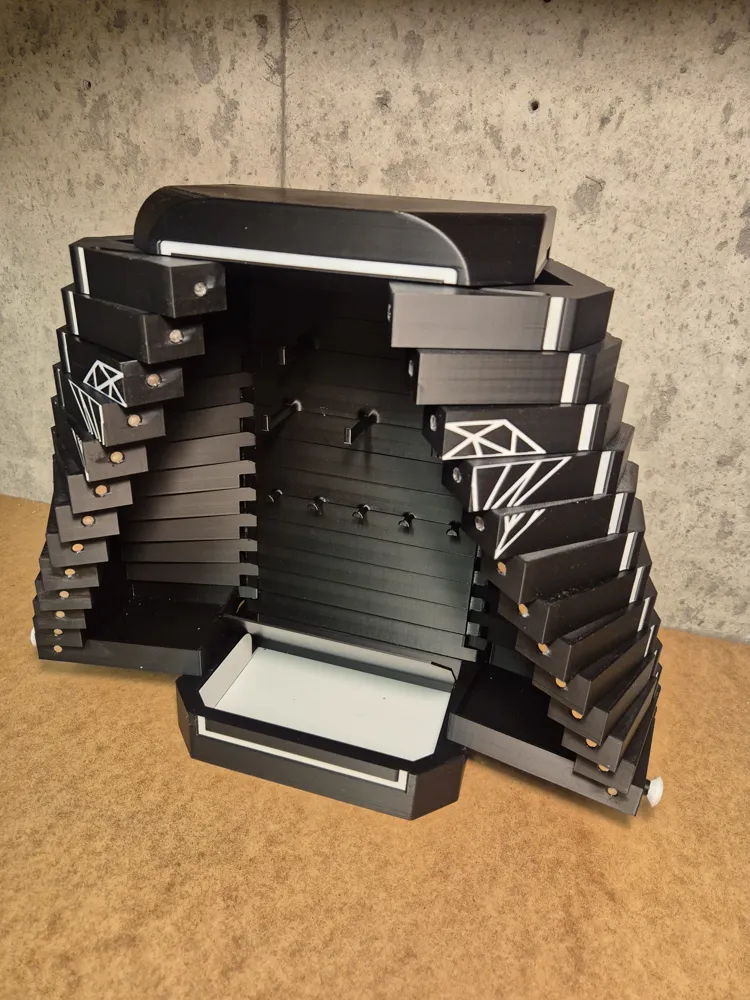

🗝️ Secret Compartment – Hidden compartment under the base only accessible when fully opened—perfect for valuables.
🧩 No Assembly Hassle – Designed for easy printing and fun construction.
Check out my other boxes here :
- Jack Daniels No7
- Jack Daniels Tennessee Honey
- Wine Box
- Jeagermeister
- RedBull
- Sode Can wine box
- Crown Royal box

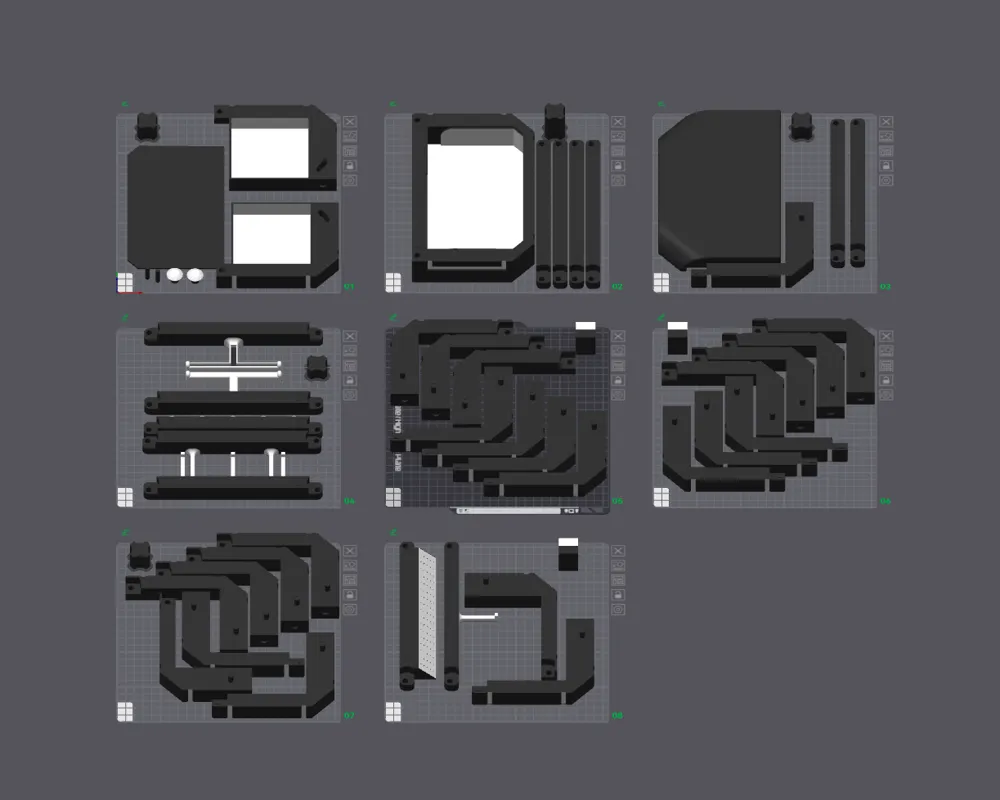

3D printed parts :
- knobs x 2
- Pins for top part x 2 ( Glue them in the holes near the front)
- Base x 1
- Top x 1
- Back pcs x 13 (Choose wich one you like)
- Door parts x 26
You can print extra parts to make it taller if you want. Remember to also get longer rods if you do.
Other parts needed :
- Magnets : 26pcs D8x3mm
- Steel/alu rods : 2 pcs D6mm and 32.5cm long
Steel rods: Buy here (affiliate link)
This is an affiliate link — I may earn a small commission if you buy through it, at no extra cost to you. It helps support my future designs.
Magnets : Buy via maker supply (affiliate link)
The steel rods must be 6mm in diameter an at least 32.5cm/12.8inch long. (You may have to cut it to length)
It's recommended to glue the rods to the base for a more stable box.
The magnets size is 8x3mm.
The steel rods can be bought at sites such as temu, amazon, ebay… or at your lokal hardware store?
Magnets is available in Maker supply.

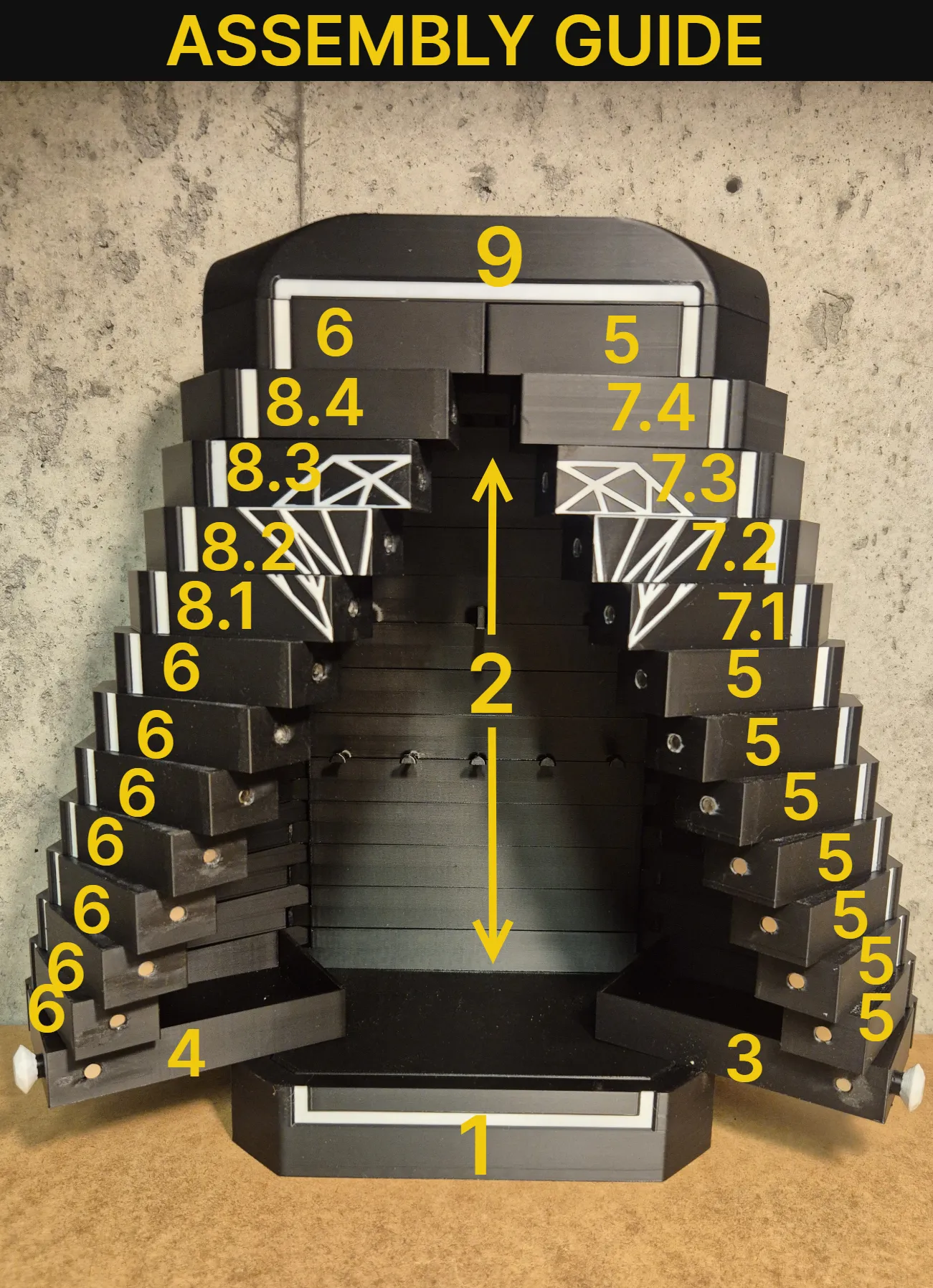

One's you have printed all the parts and acquired the accessories you need, just follow the assembly guide down below.
Each individual part is marked with a number, making it super easy to assemble.
The mechanics :

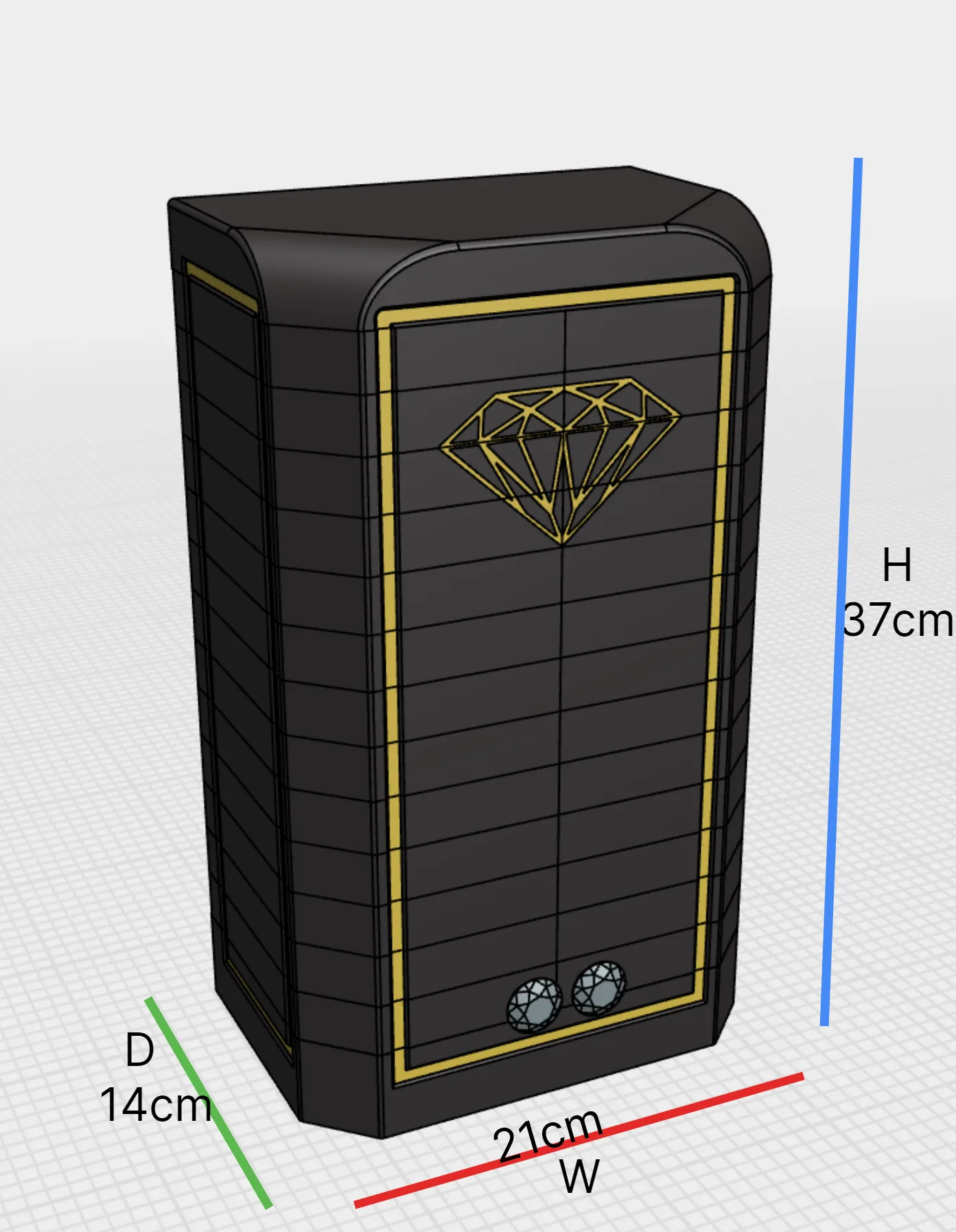

Size :

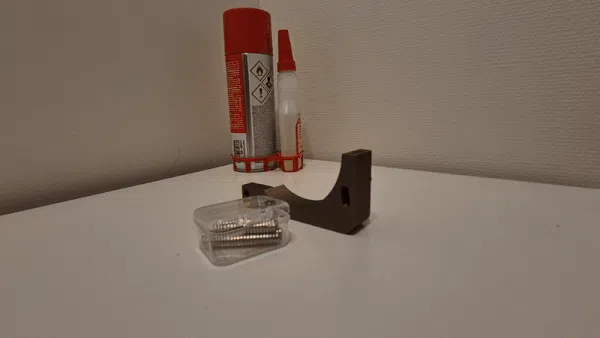

Glue the magnets in place :
Follow me if you want to see more of my designs in the future!
