Audi A3 8V Golf7 USB Android Auto Carplay retrofit

Remixed by

Print Profile(1)

All
P1S
P1P
H2D
X1 Carbon
A1
X1
X1E
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 5 walls, 10% infill
0.2mm layer, 5 walls, 10% infill
Designer
1.7 h
1 plate

Open in Bambu Studio
Boost
7
21
2
0
10
5
Released

Description

Content has been automatically translated.
Show original

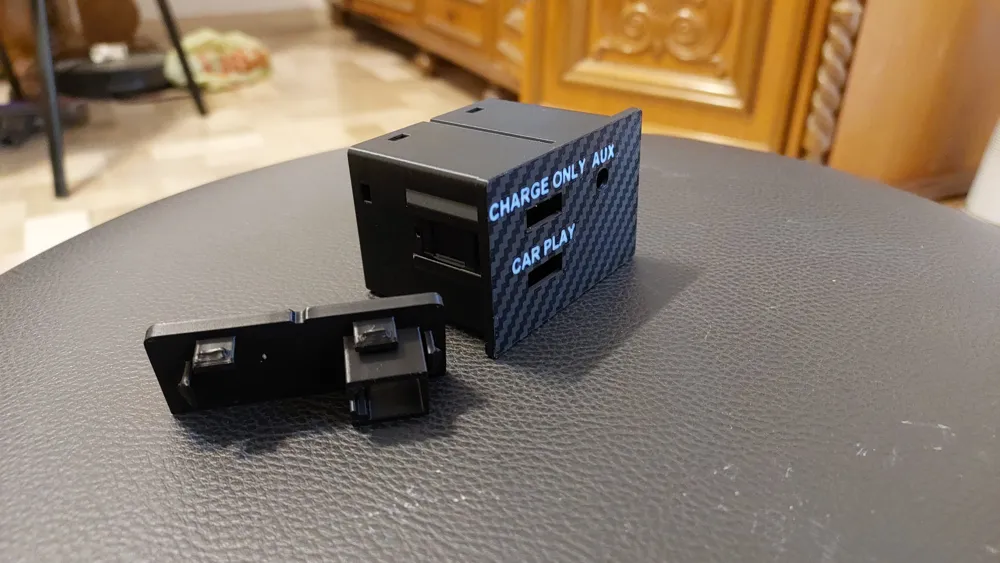

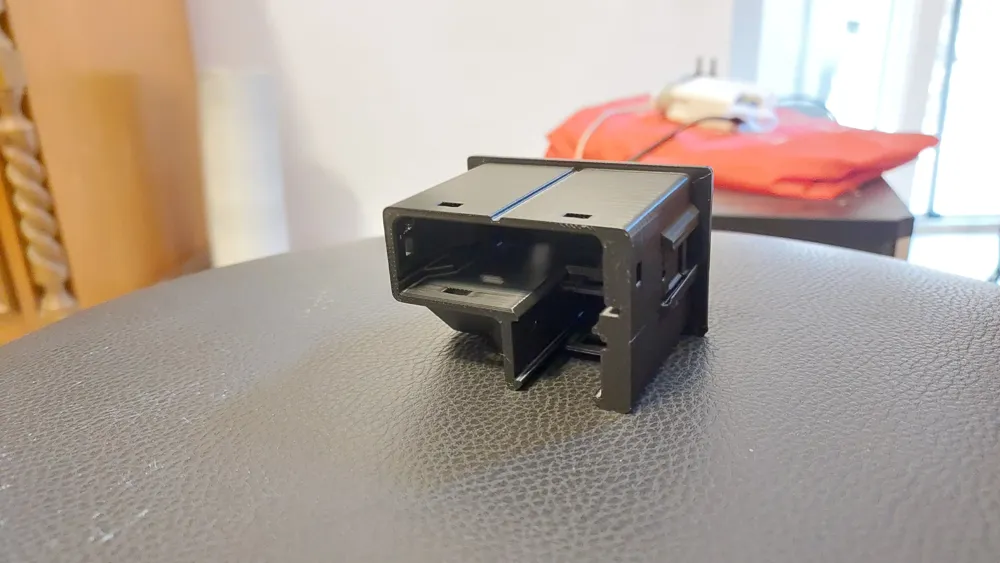

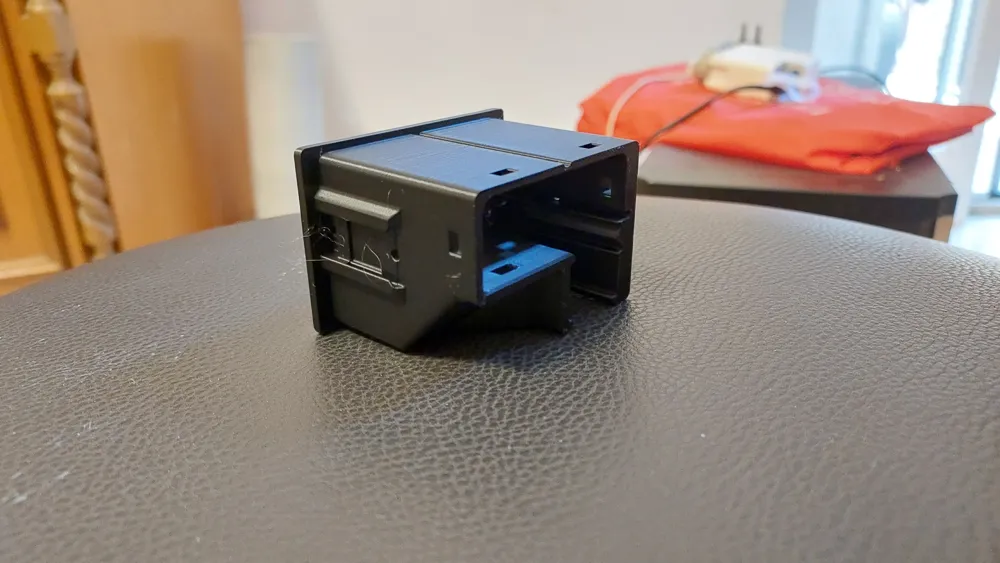

This adapter allows you to have Android Auto and CarPlay without losing the original adapter in your Audi A3 8V

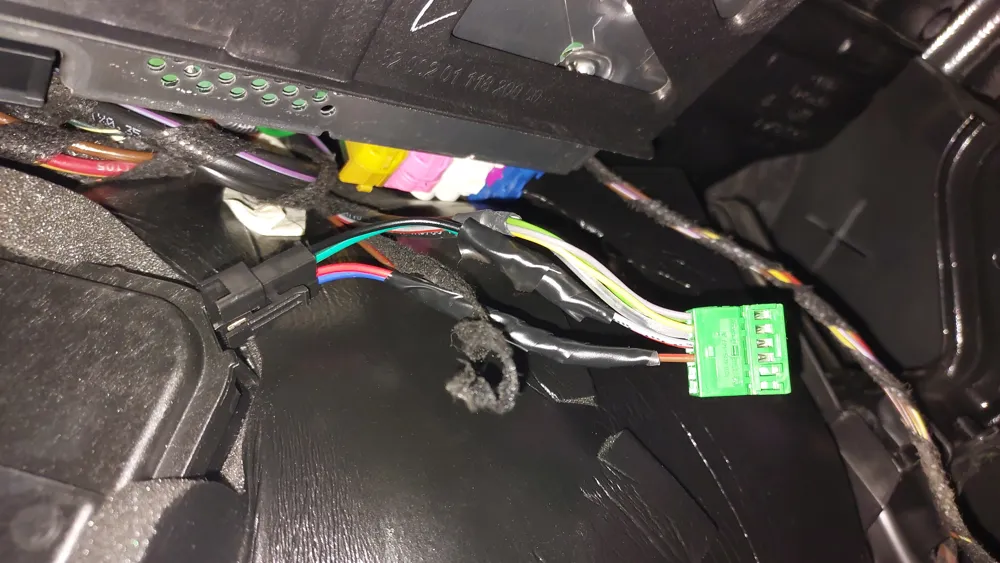

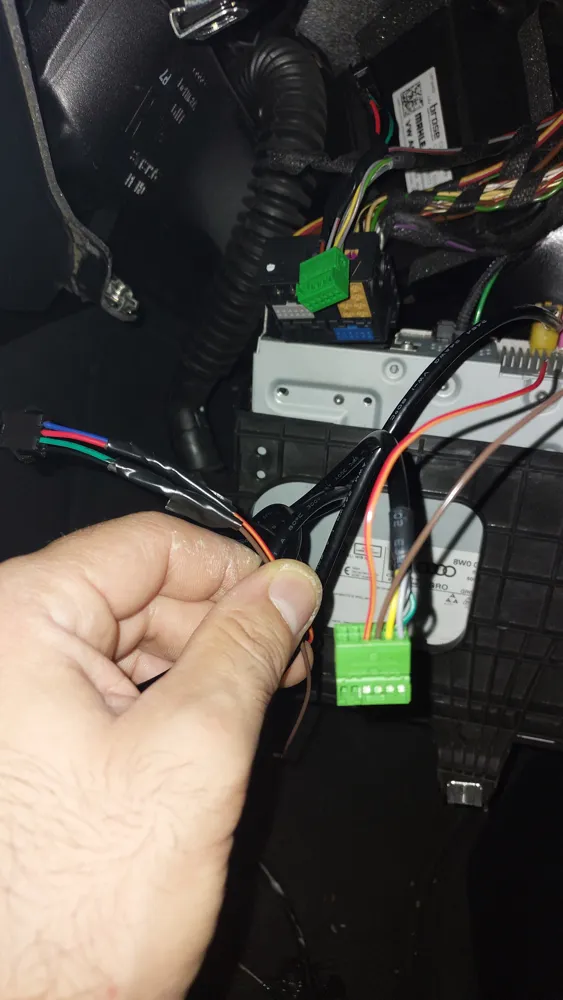

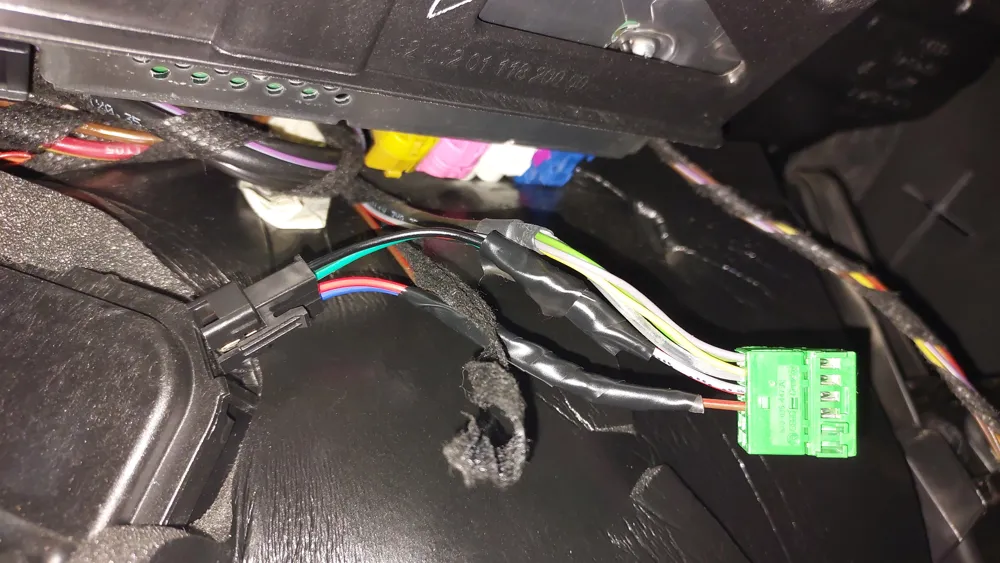

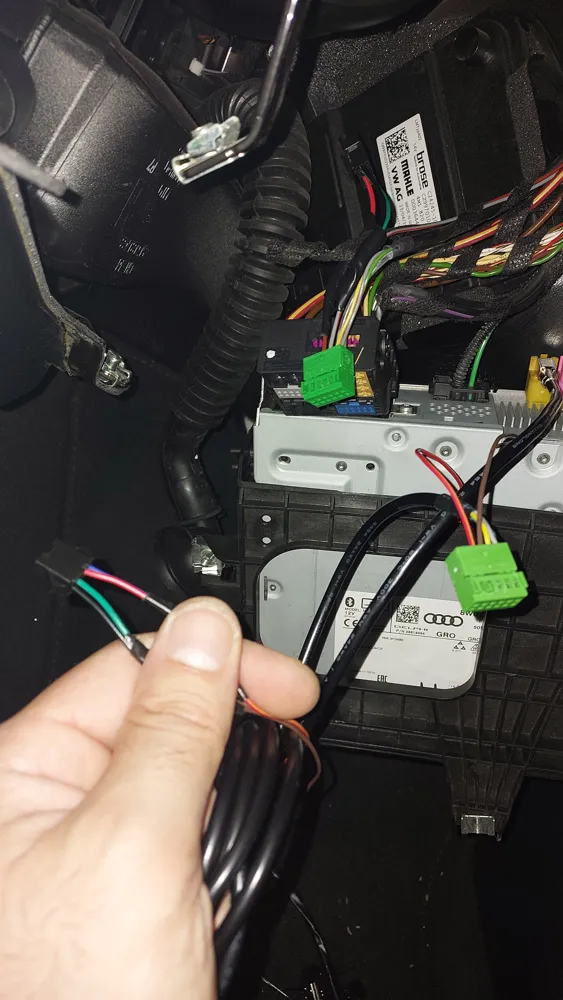

To avoid losing the original adapter, you must make a Y-shaped detour from the original power supply. I did this directly near the rectangular green connector, behind the stereo unit. Pay attention to the polarity! Follow the same path as the cable provided with the Golf 7 USB adapter. I take no responsibility.

adapter: 5Q0035726E is cheap, only 30$

original model by @Chaklab

https://makerworld.com/en/models/1518219-audi-a3-8v-golf-7-usb-port-retrofit-for-carplay#profileId-1590808

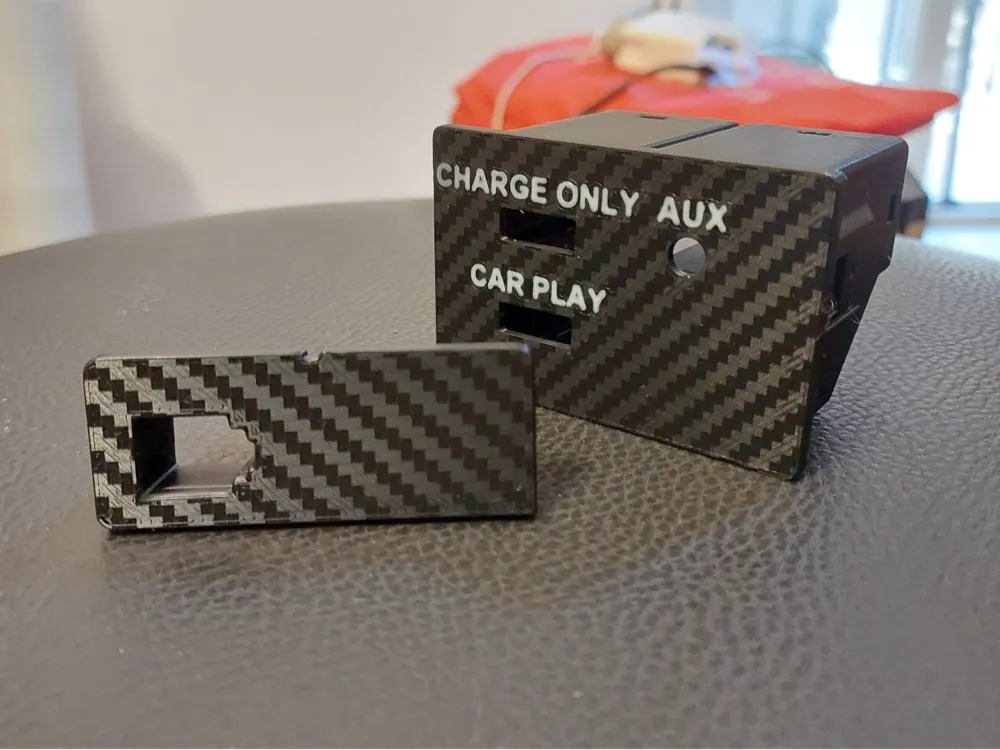

I added the lettering and a two-color profile.
You can easily change the materials and colors.

Boost Me (for free)

if you like this model please give me a boost
