🇩🇪 Magnetic HU Sticker for German License Plates (Demo/Model Purposes) 🇩🇪

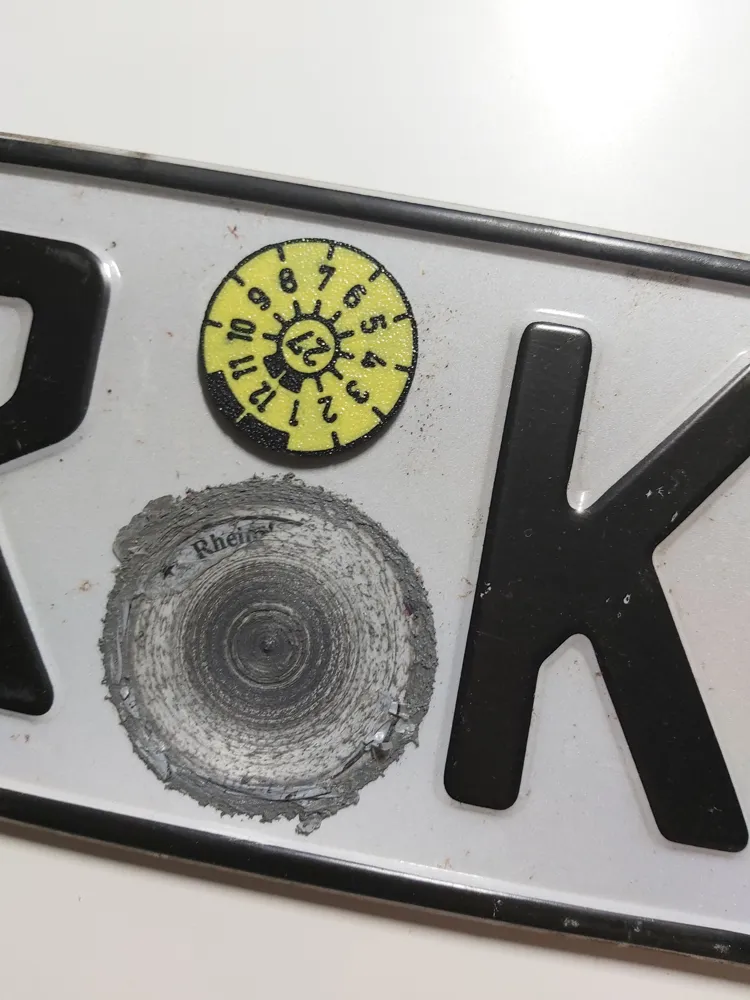

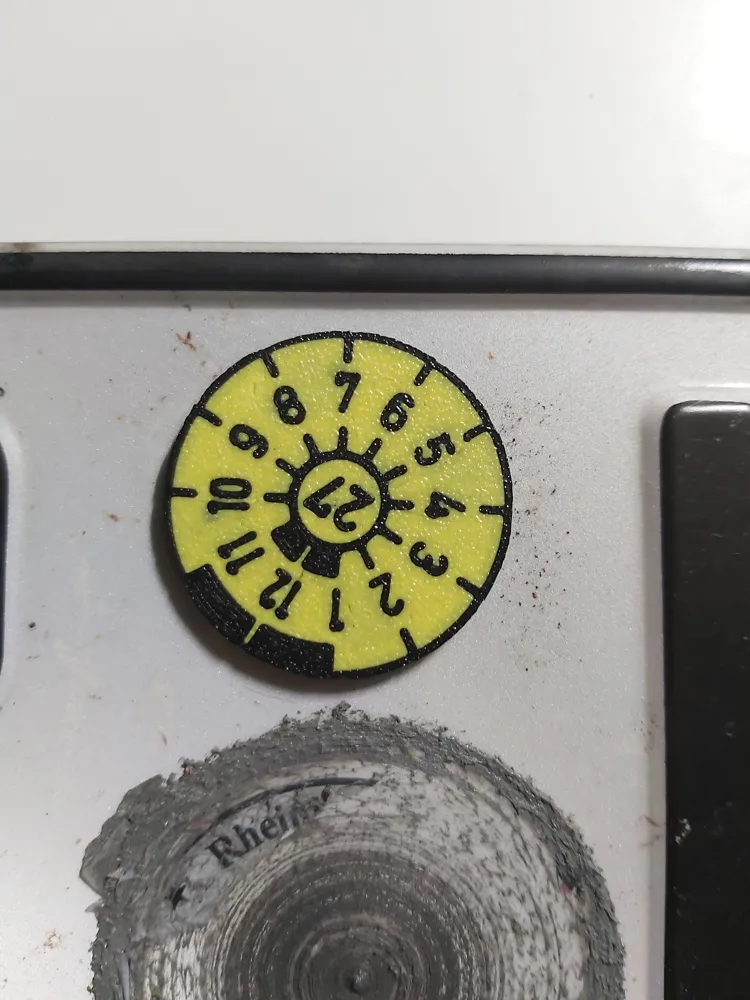

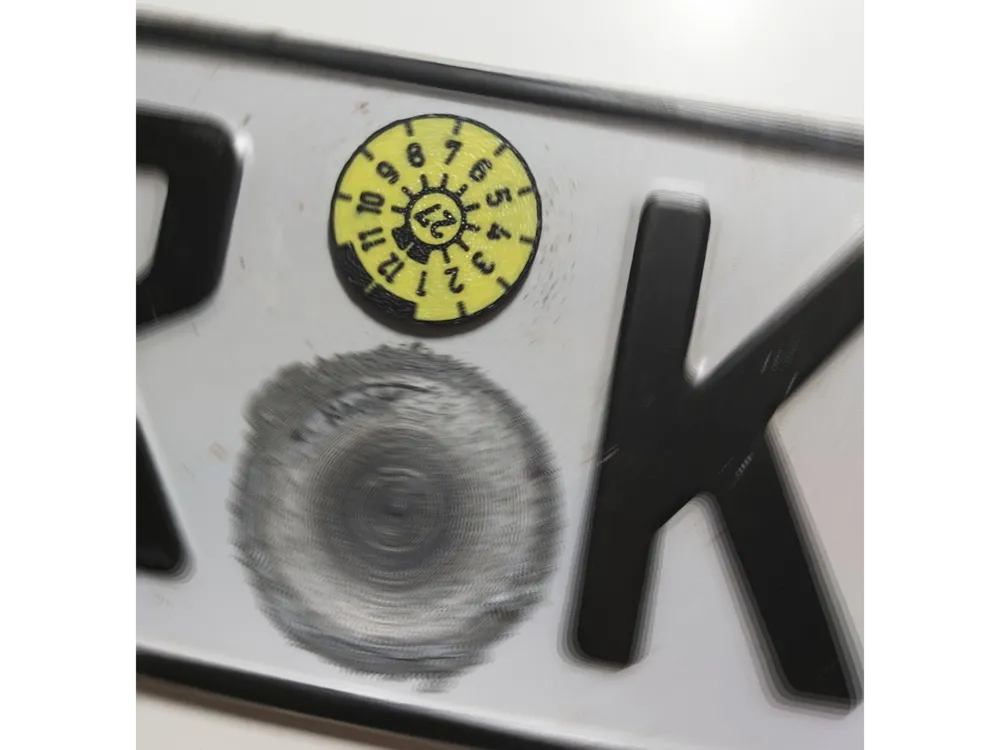

This is a model of a magnetically adhering HU sticker (main inspection) including the back for a German vehicle license plate - ideal for model vehicles, display pieces, demonstration purposes, or simply as a refrigerator magnet

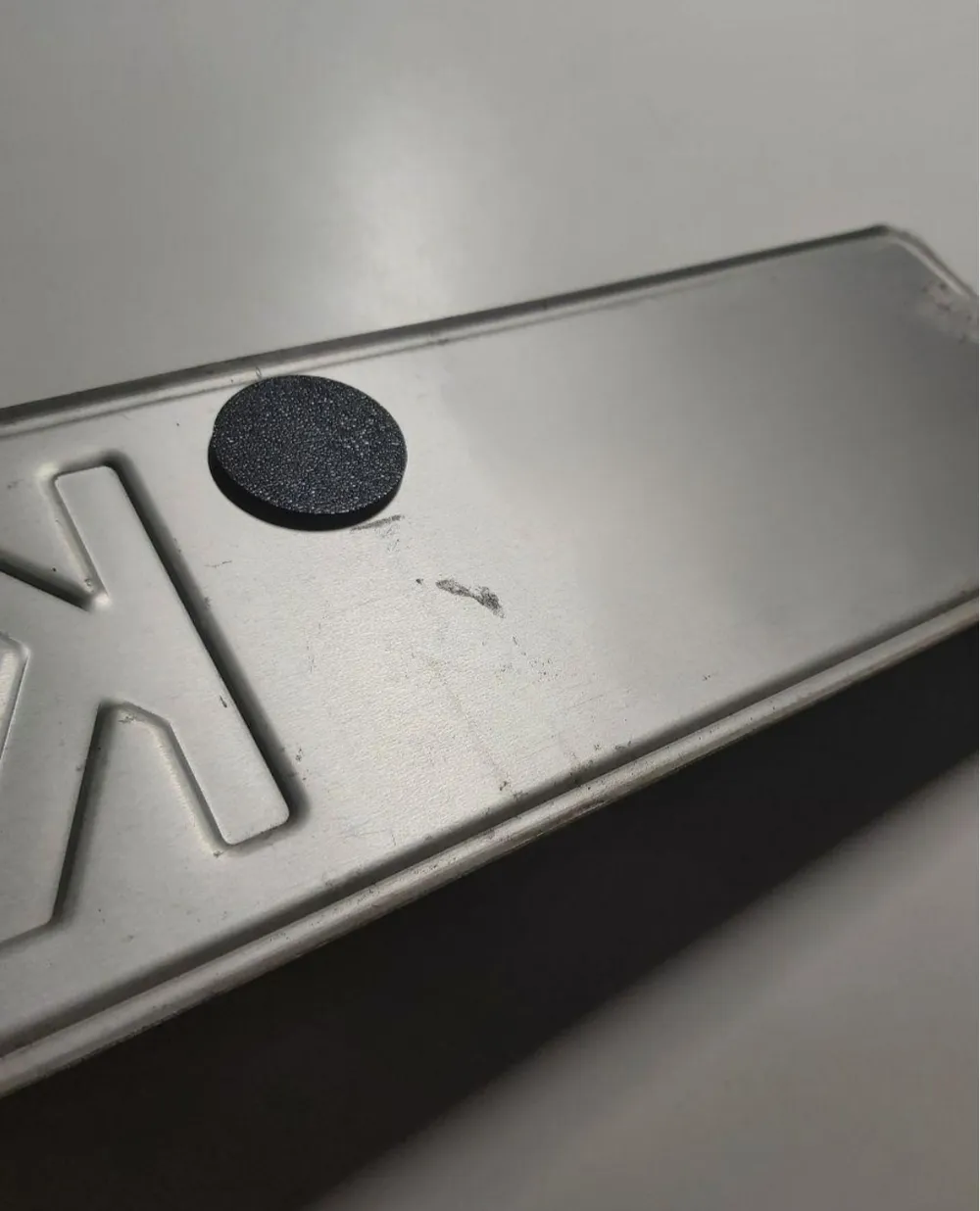

Available for download is the sticker with the year “27” on a yellow background. The color corresponds to the inspection year. Also available is the back / the counterpart to the sticker, so that the magnetically adhering sticker holds on aluminum sheet license plates
In both the sticker and the counterpart, four recesses are embedded to press in neodymium magnets of size ⌀6x2mm. Gluing the magnets is not necessary. A good hold is ensured by pressing in the magnets. (tested with PETG)
Newly added: Sticker in NON-AMS version. The last three layers of the sticker are printed in black. (Pause already added in 3mf file)
IMPORTANT: Absolutely pay attention to the polarity when pressing in the magnets! Test beforehand - then press in!
An incorrectly inserted magnet can completely prevent adhesion and cannot be removed from the recess without destroying the model!
Model dimensions:
- ⌀35 mm (True to original)
- Sticker: 2.6 mm thick
- Counterpart: 3 mm thick
⚠️Note: This model is exclusively for decorative, educational, or presentation purposes. It is not suitable or intended for use in road traffic! This model does not replace a TÜV sticker. I assume no responsibility for misuse
Print settings:
- Material: PETG
- 0.2 mm layer height
- Filament change for the first three layers
Infill doesn't matter
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
