ASM Filament Remaining Scale
Print Profile(2)
Description

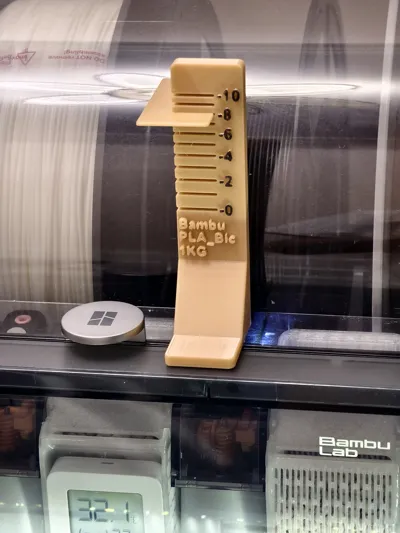

A filament remaining gauge for Bambu Lab AMS, the calculator accommodates various brands and types of filaments, requiring no contact and no opening of the lid, thus extending the desiccant's lifespan

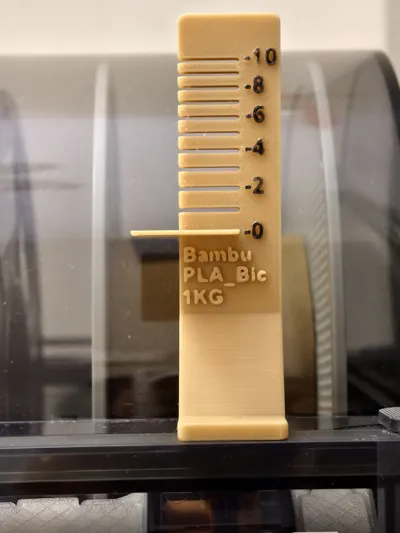

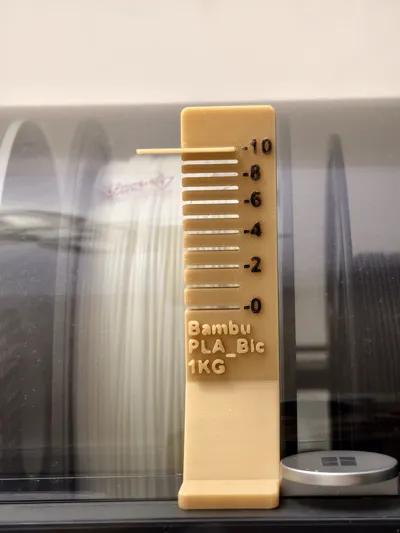

!!!Filament weight is indicated below the insert plate!!!

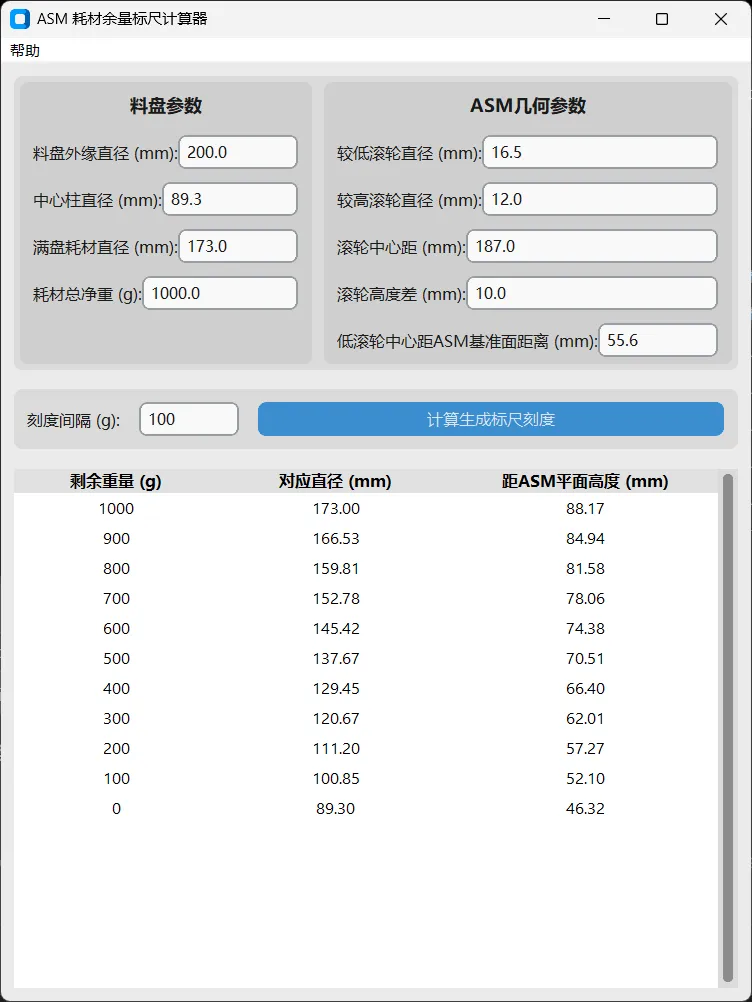

Custom scale height can be determined using the filament calculator, or alternatively, you may leave a comment specifying the brand, filament type (PLA, PETG, etc.), and spool parameters, and I will assist you in modifying the model
The universal filament calculator can be acquired by downloading the CAD file
The default spool parameters are set for Bambu Lab PLA Basic, and the AMS geometric parameters require no modification, however, should you require compatibility with other filaments, you will need to measure and input the respective filament spool parameters. The scale interval can be adjusted

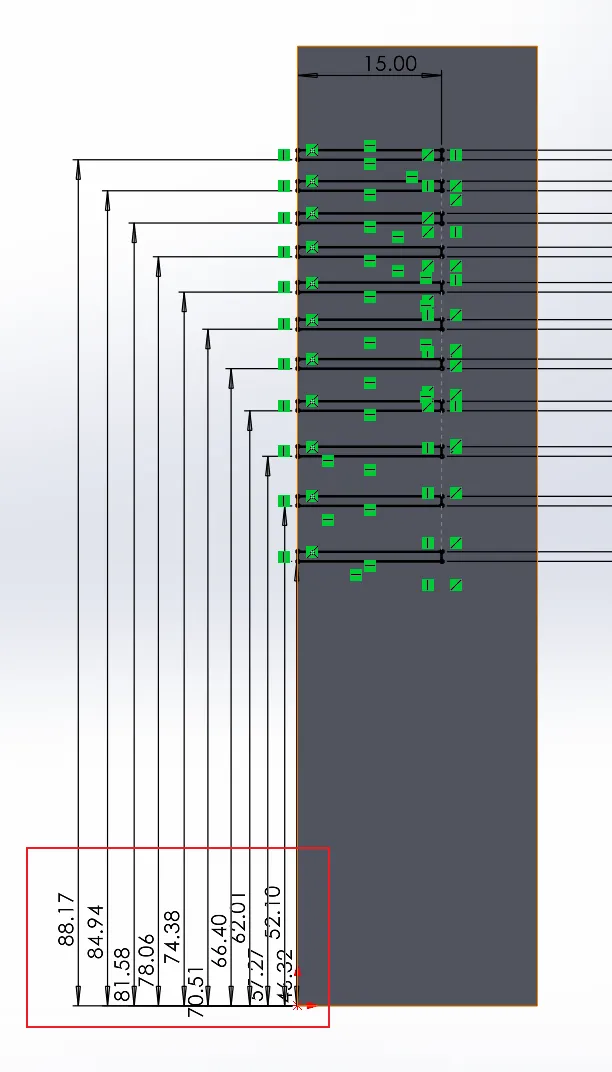

Upon completion of the calculation, simply modify the length on the left side (with the bottom left corner serving as the origin)
