Dog bowl holder

IP Report

Print Profile(1)

All
P1S
X1E
X1 Carbon
A1
H2D Pro
X1
P1P
H2S
H2D
P2S
H2C
X2D
A2L

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
25.8 h
4 plates
4.7(3)

Open in Bambu Studio
Boost
17
33
9
0
18
6
Released

Description

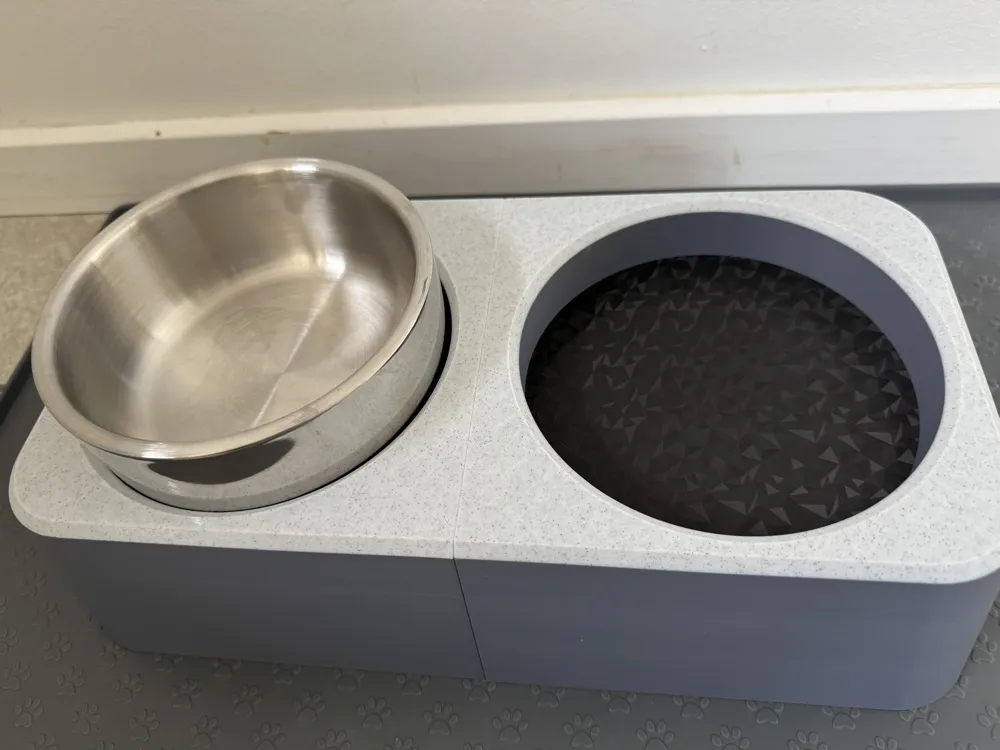

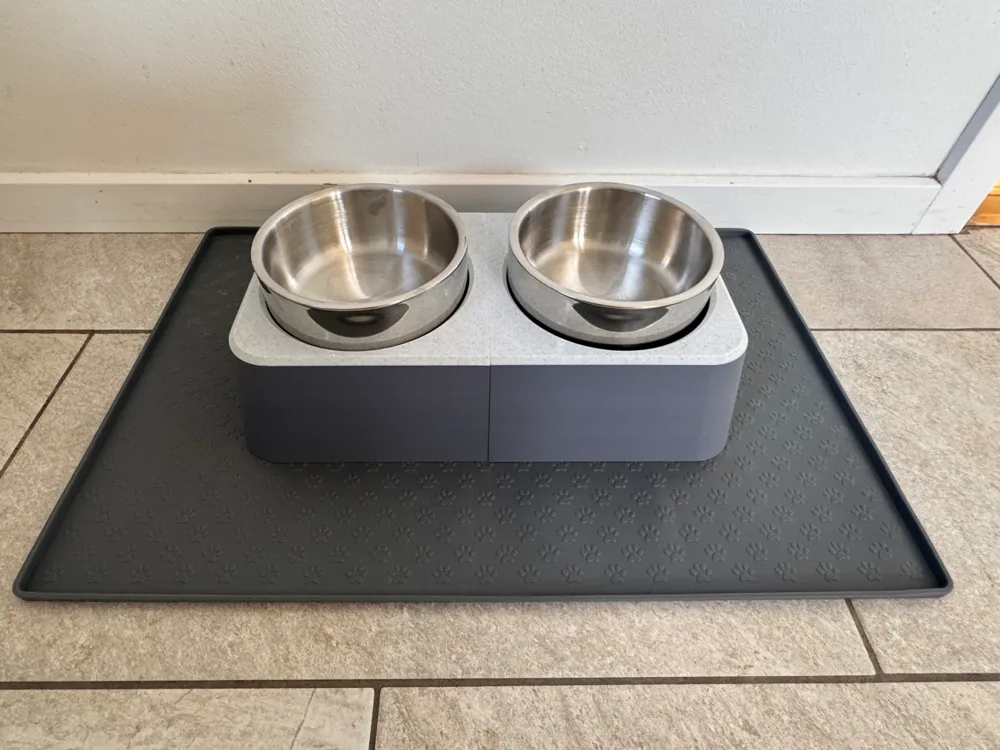

I made this holder for dog bowls. We are getting puppy italian greyhound. She has long legs so I want the bowls sit higher so she doesnt need to bend when eating or drinking. The bowls are 15,5cm diameter, but the holder can hold also a bit bigger ones, 16cm for sure. Or you scale it up to your need. Originally I wanted to print it on Elegoo because of size, but I didnt have time to level the printer and after 3 fails, I just cut it in half and printed on Bambu P1S. Then we glued them together.

Parts are divided so you dont need any supports, here is description:

Cover - the upper part as the whole piece - print this on large printer or print body2 x2

Body2 - half of upper part - print twice (I added 2mm in teh middle so it is not too thin when split.

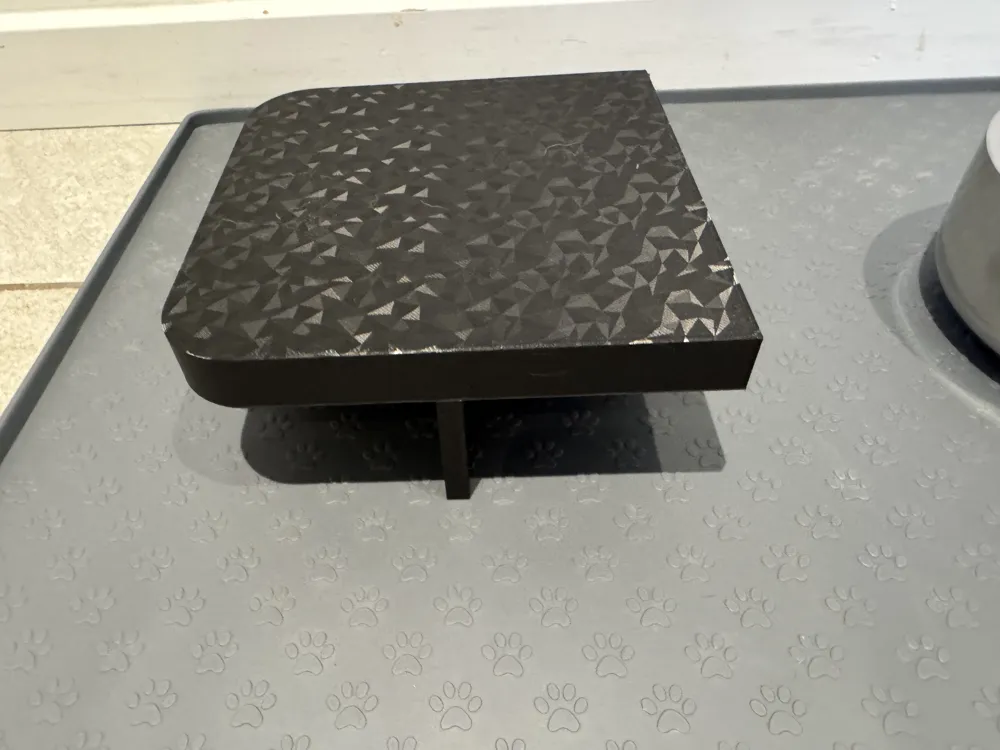

Support1, Support2 - they are identical, they go under the cover to support the bowl from below. My bowls do not have any rims so I had to do that. If you have bowls with rims, you dont need this, just scale cover to your size. I printed support in different colour because I didnt have enough grey. You can use any filament that you have left overs, you will not see it anyway :-)

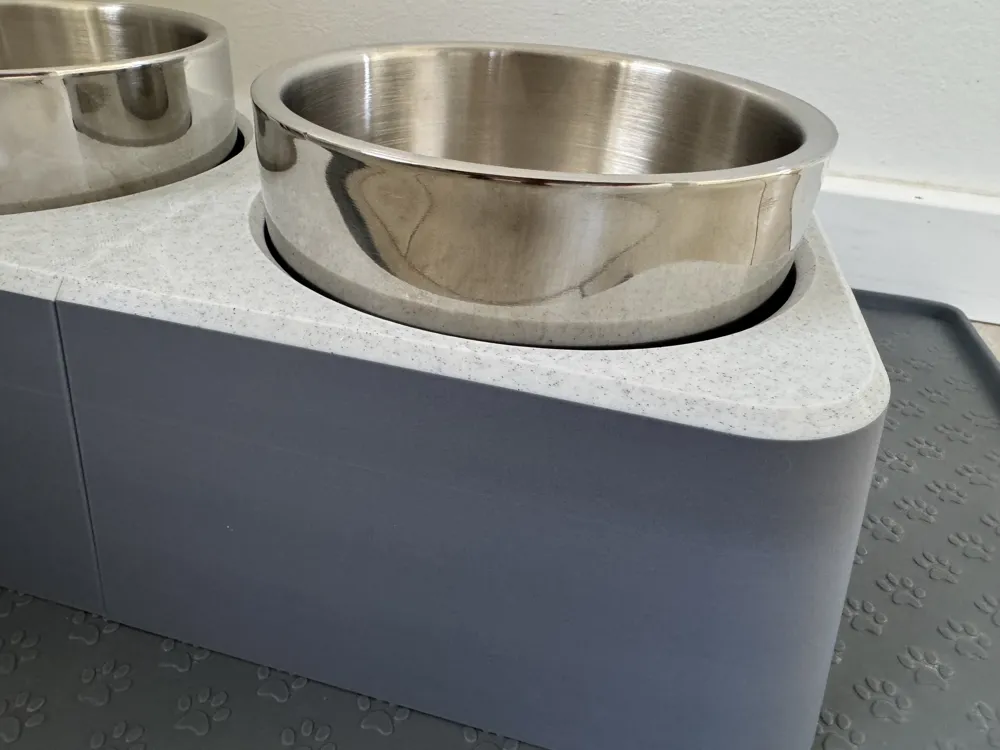

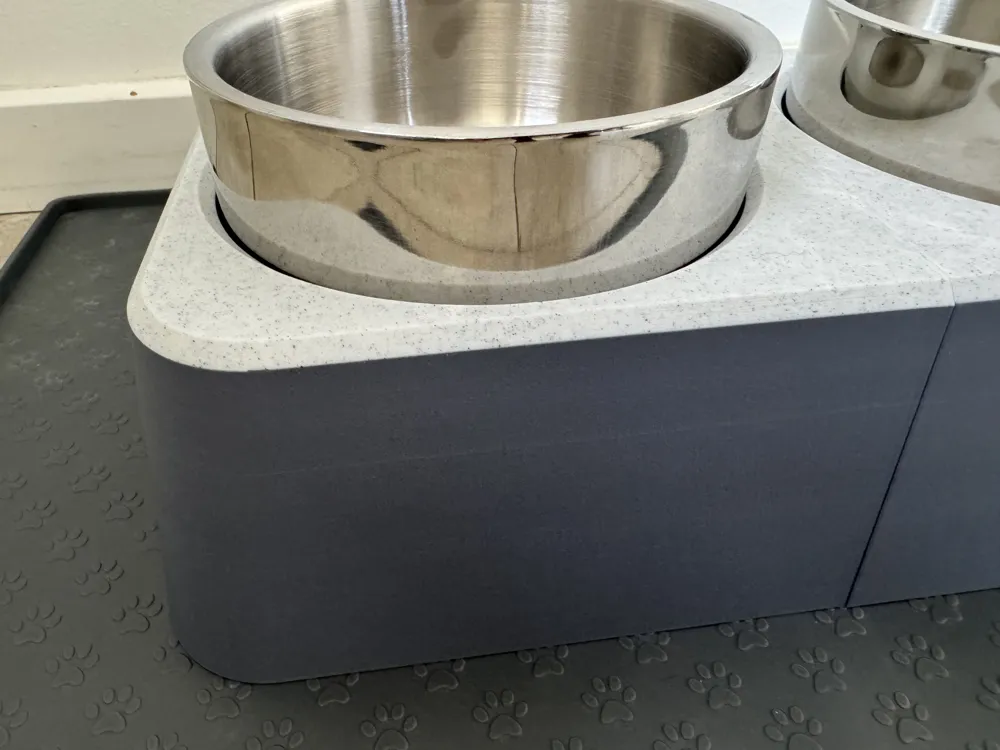

I also painted cover so it gets a bit fancy look.



Note: The system does not allow me to upload other 3mf files, I will create profiles and upload sometimes next week. Please message me if you need it urgently and I will send it to you. It was made in Fusion and I printed it on P1S so no problems.
