Description

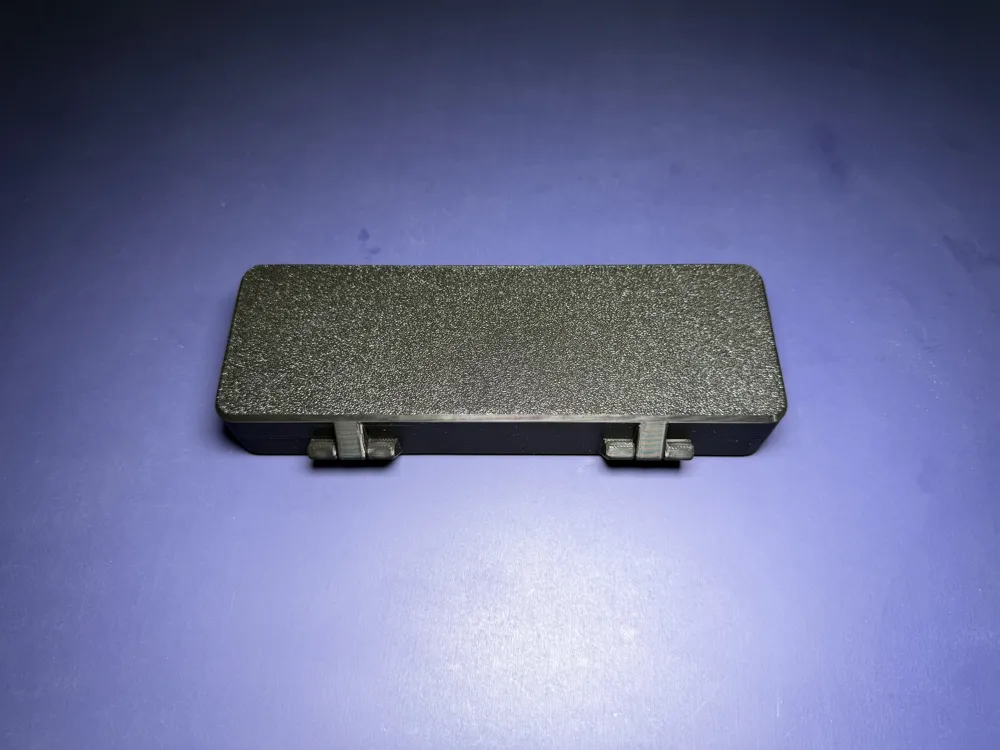

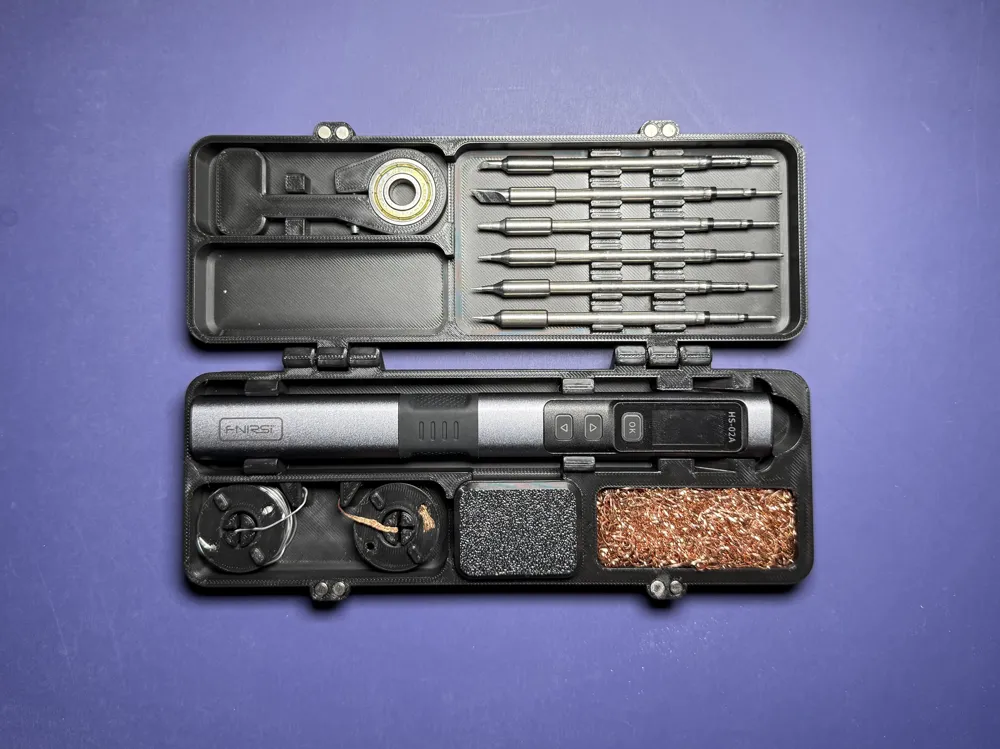

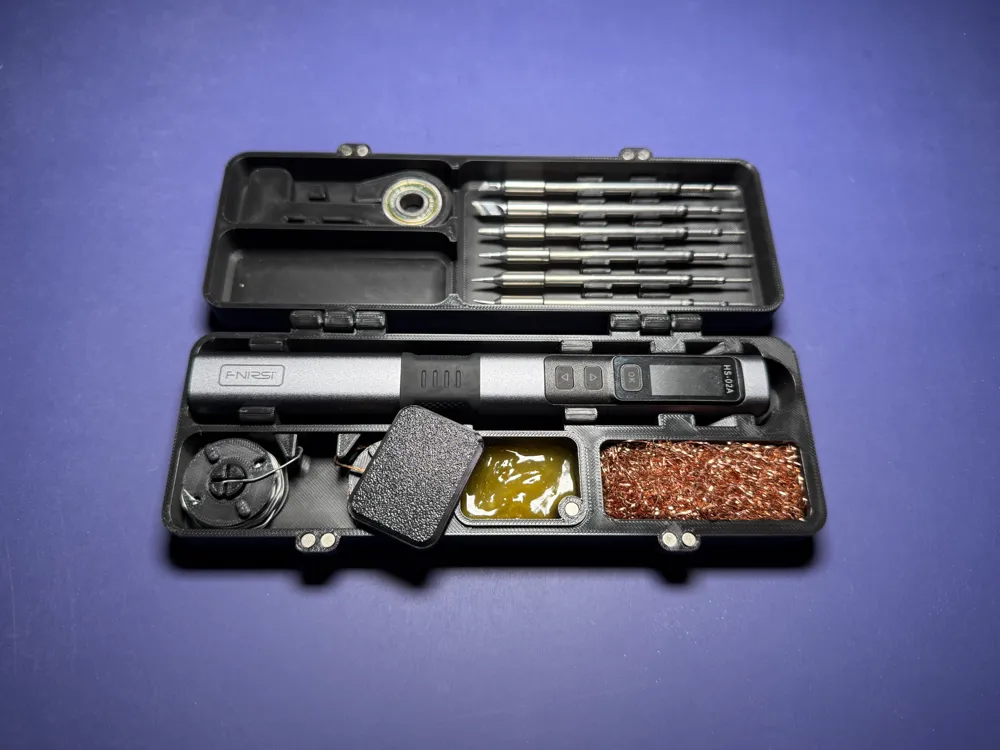

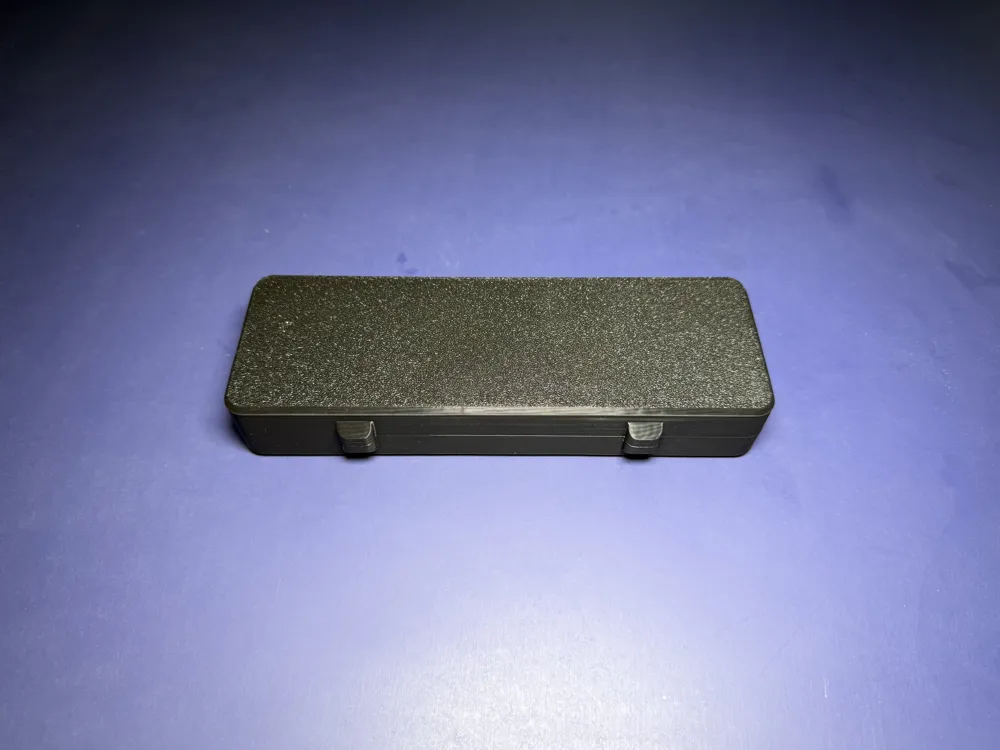

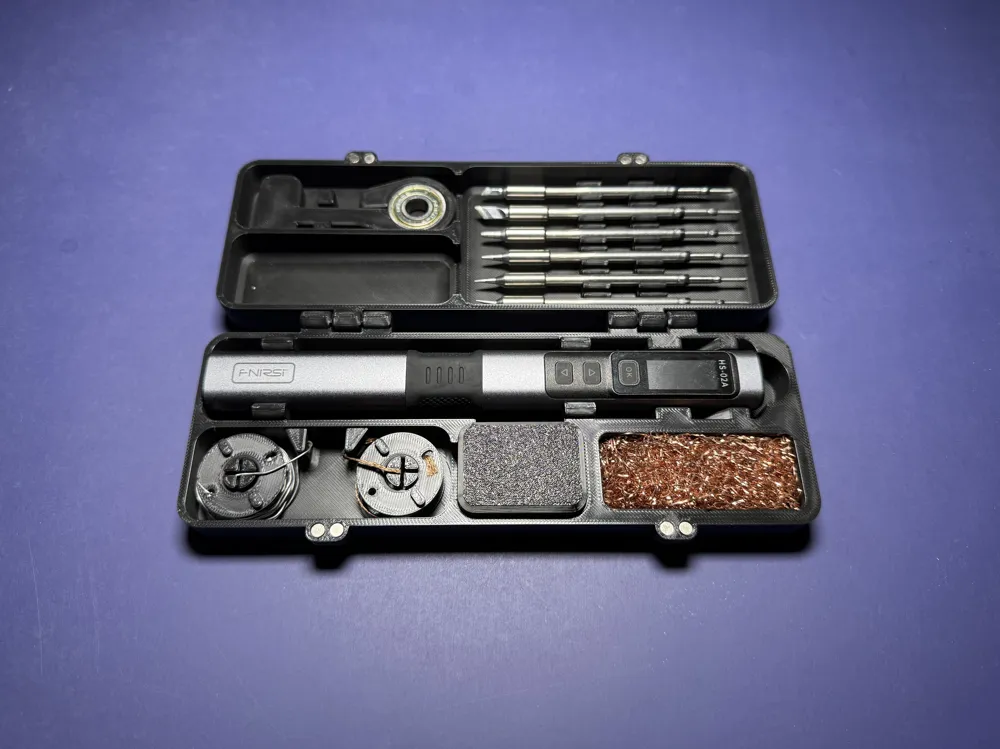

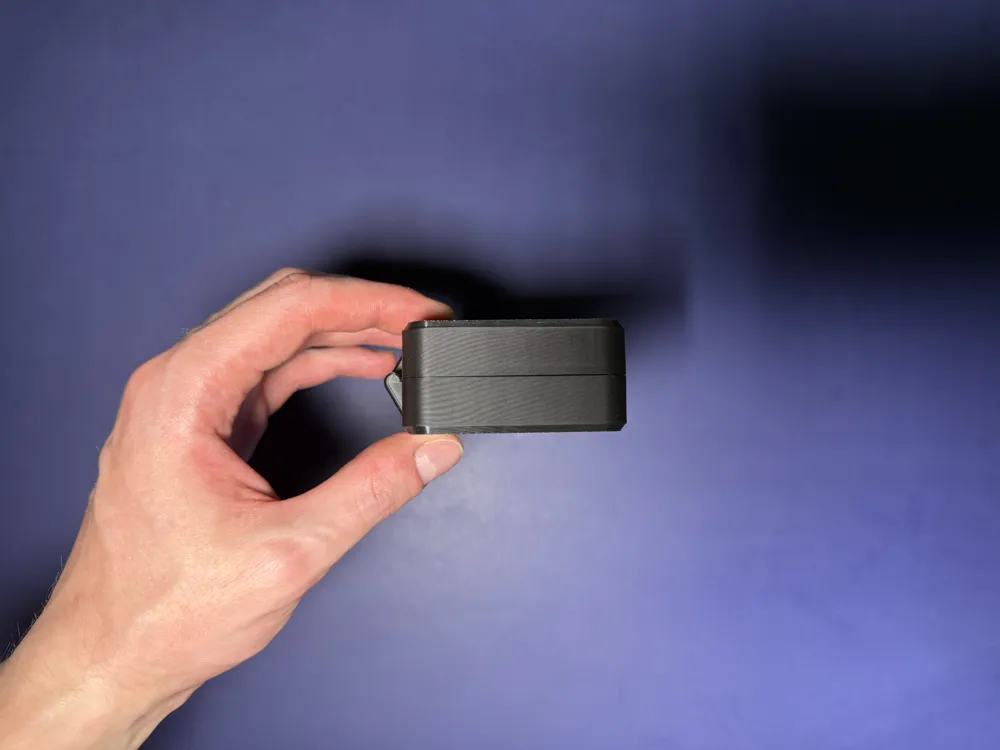

I made the case for my own FNIRIS HS-02 because I couldn't find one that I liked. This one uses a print in place hinge, 4x2mm magnets for the lid and doesn't have an outer shell. It's inspired by various Pinecil v2 cases shared here.

There are two versions: HS-02A and HS-02B. The version A has larger diameter tips called C245 (4.5mm in the middle). The version B has smaller diameter tips called C210 (3.5mm in the middle). Thanks to @snazzer for making me aware of the size difference.

Non-printed Part Requirements:

4 x 2mm circular magnets → Quantity: 8 → For the case lid
Super glue → For glueing the magnets in place

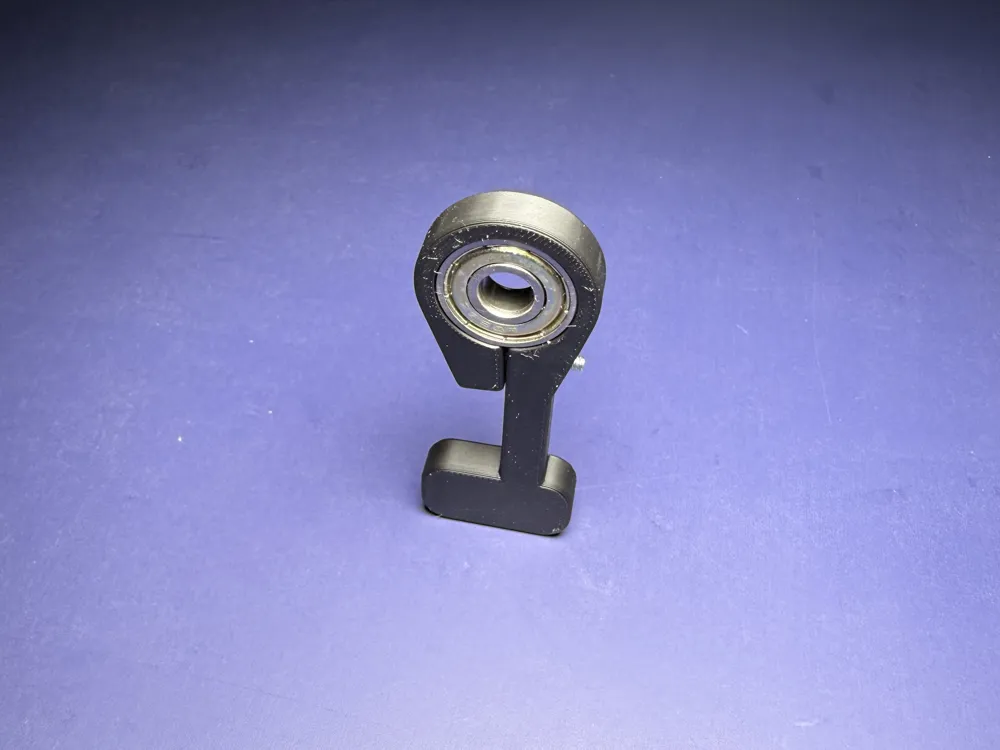

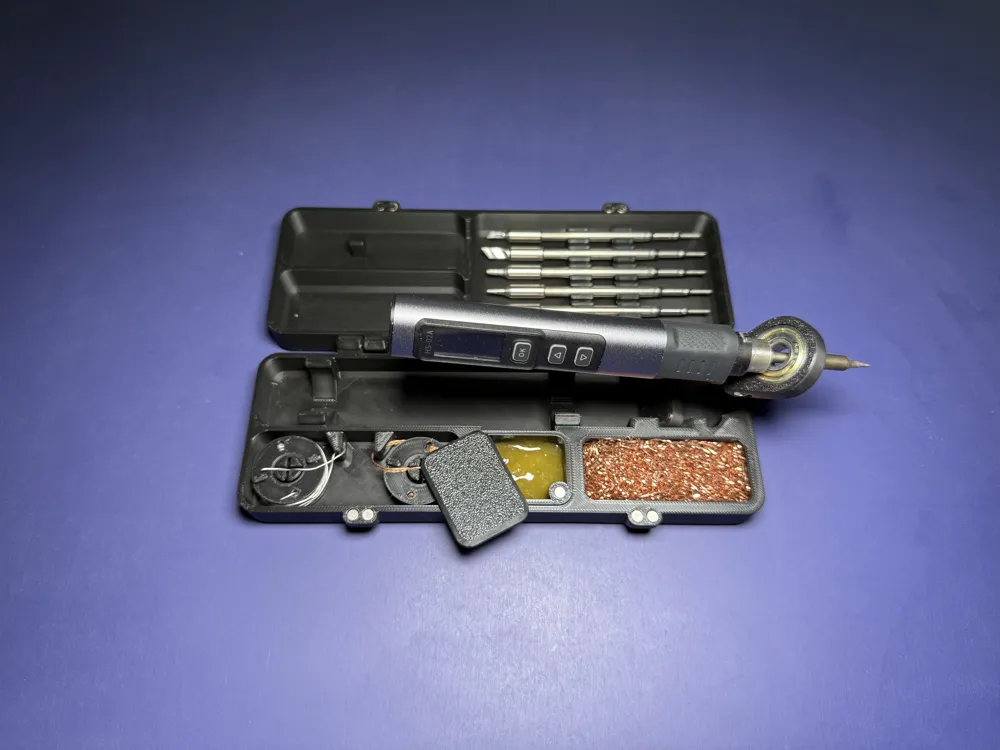

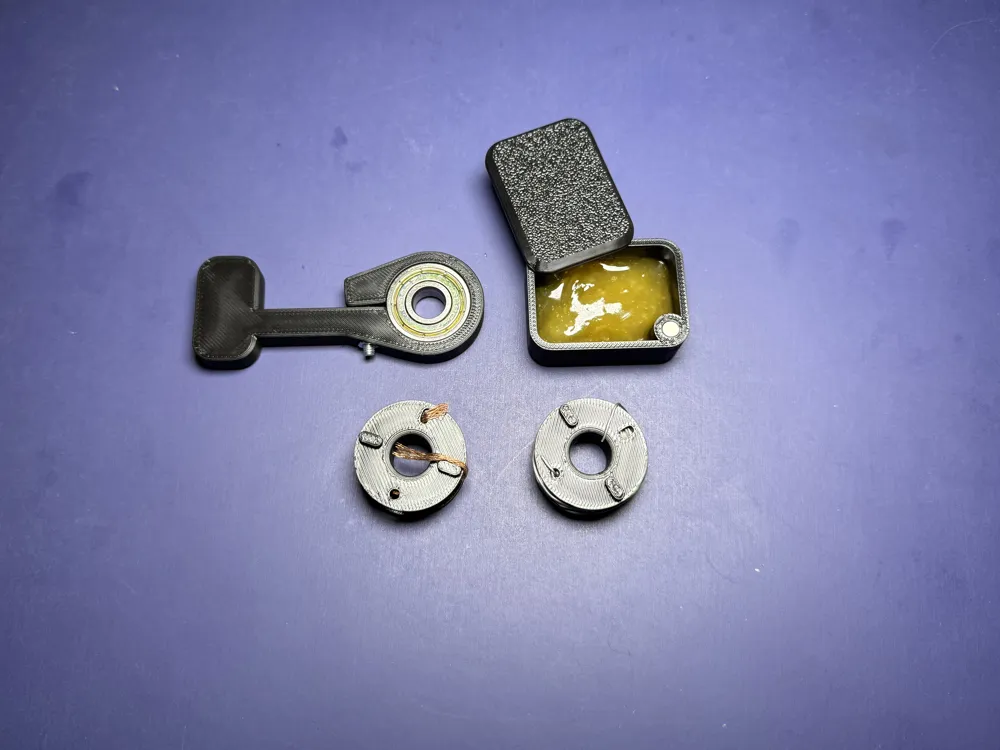

M3 20mm screw → Quantity: 1 → For the soldering iron stand
M3 Nut → Quantity: 1 → For the soldering iron stand
608ZZ Bearing → Quantity: 1 → For the soldering iron stand

After printing, work the hinge a bit so that it starts functioning smoothly. For the best magnetic pull install the magnets in an alternating fashion:

For bottom (from left to right): N - S ------ N - S (instead of N - N ------ N - N)

For top (from left to right): S - N ------ S - N (instead of S - S ------ S - S)

Important note: There are 2 plates. Print without support for the case plate. Print with support for the accessories plate.

Boost Me (for free)

I've shared the Onshape link below so that you can edit the model. The only reason this model has a standard license is that Makerworld-exclusive models are required to have it.

→ Model Link on Onshape ←
