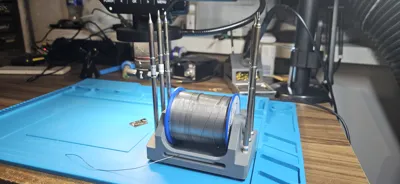

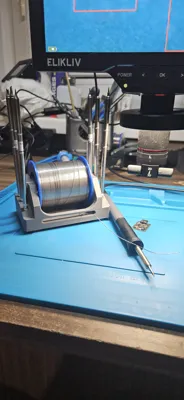

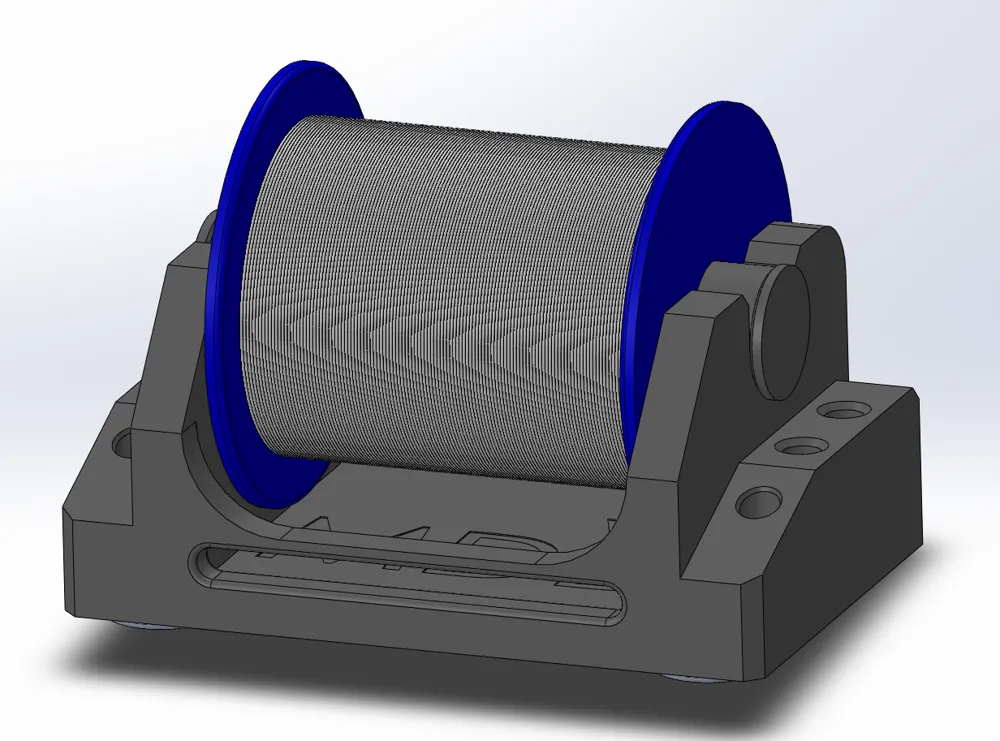

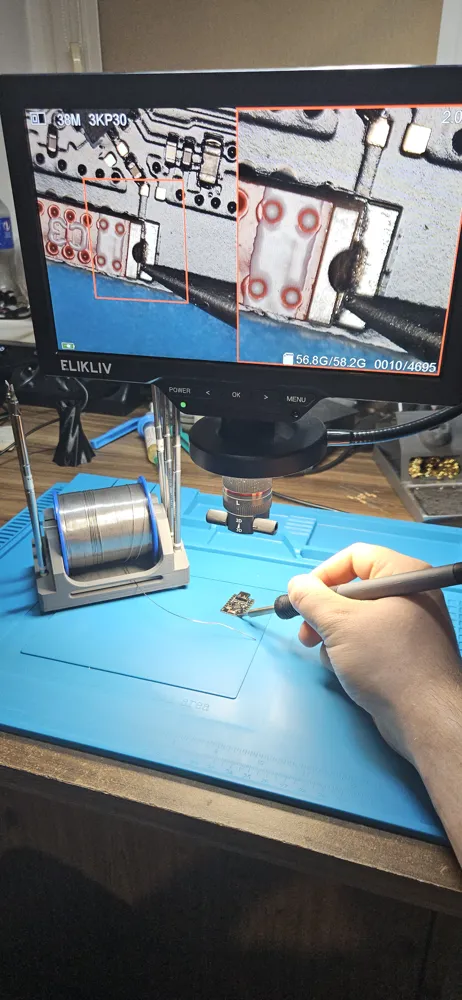

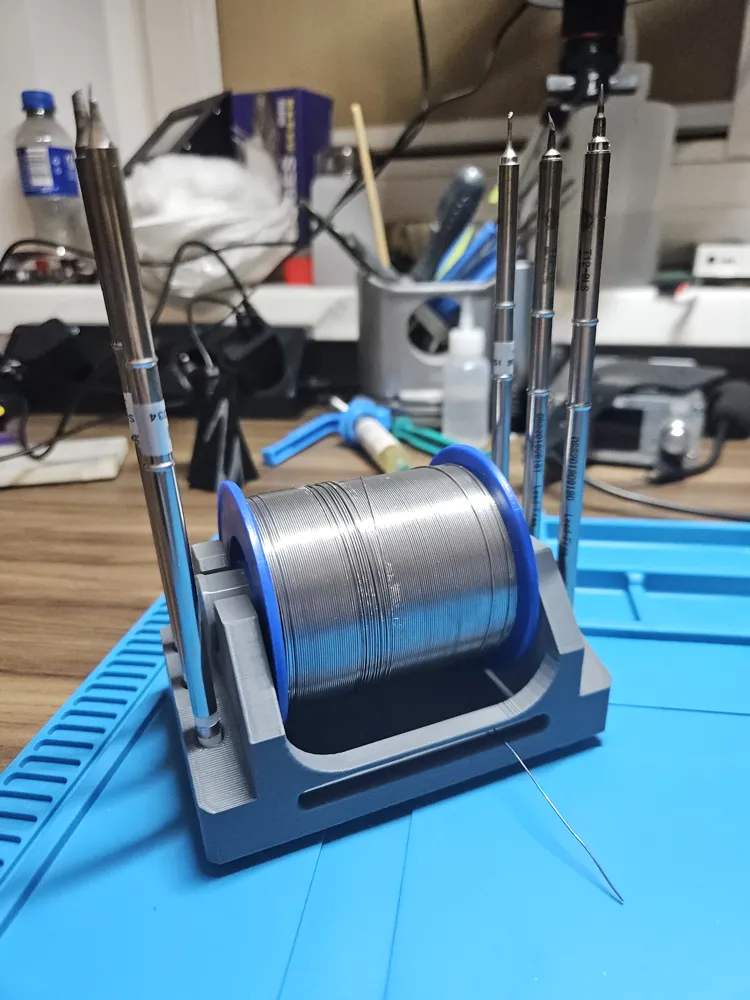

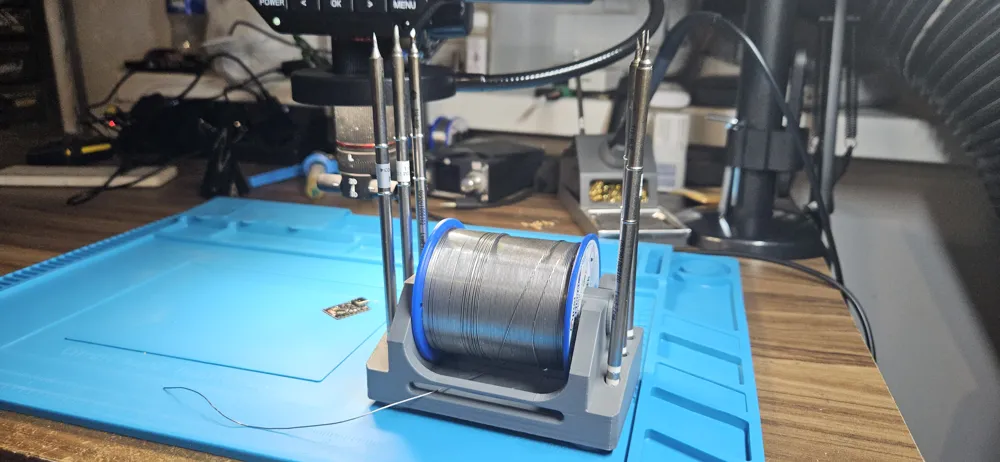

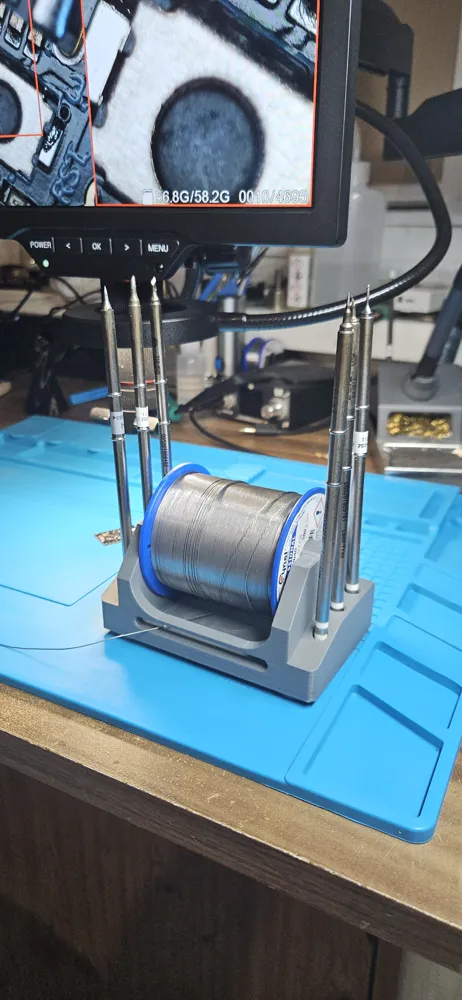

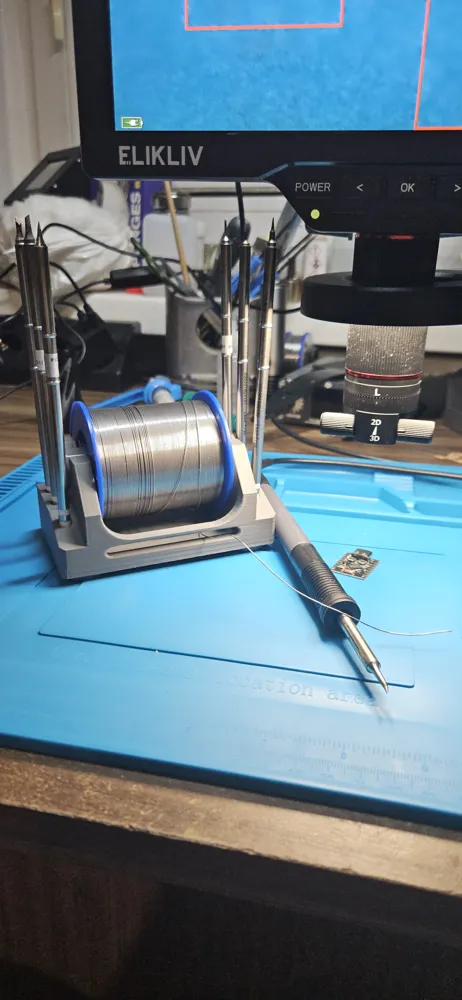

Solder Wire Spool Holder with T12 Tip Storage
Print Profile(1)
Description
Designed for Cynel 500g solder wire spools (0.5 mm), dimensions:
67.5 mm length, 66 mm diameter, 20 mm inner hole.
Features:
- Compact, modern design
- Front slot for wire feed – no need for extra cutters
- 6 holes for T12 soldering tips
- Underside slots for 20 mm rubber feet – stable on any work surface
- Feet are included and can be printed using TPU and glued in designed place
- One-piece design – simple, clean, functional
Please keep in mind the part is 3D printed, do not insert tips pointing down.
