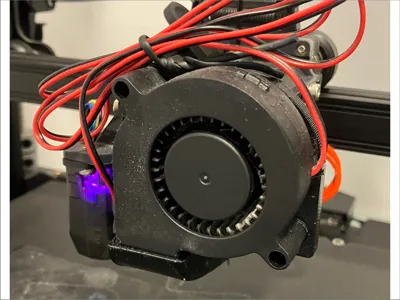

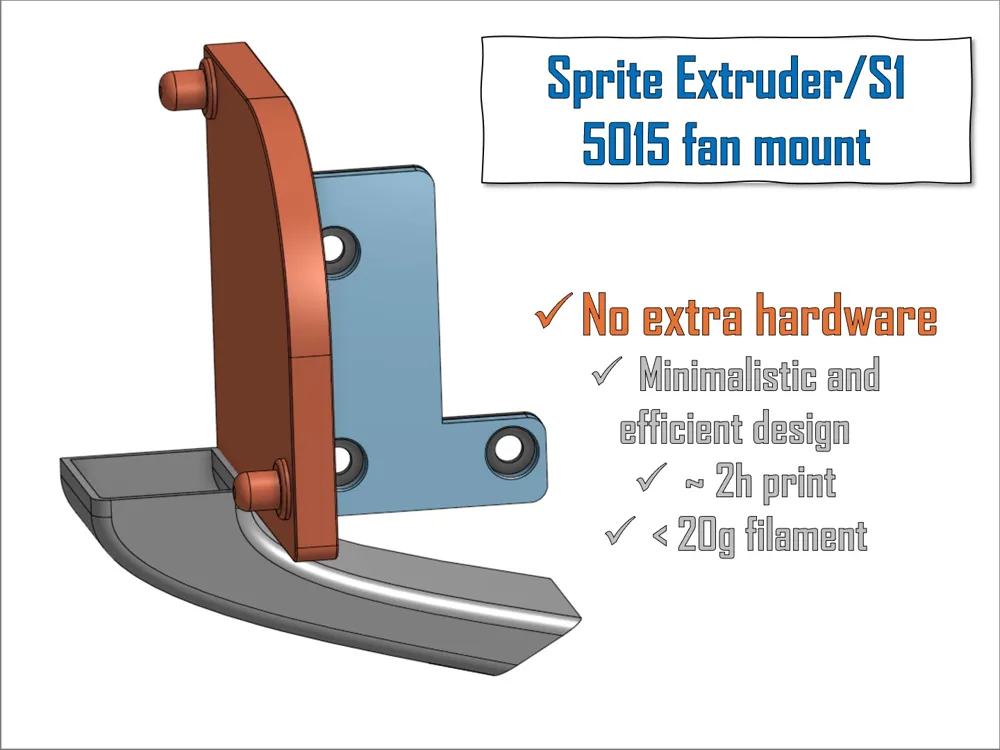

Sprite Extruder/S1 5015 Fan Mount and Duct

5015 Fan Mount and duct for sprite extruder and Ender3 S1 printers.

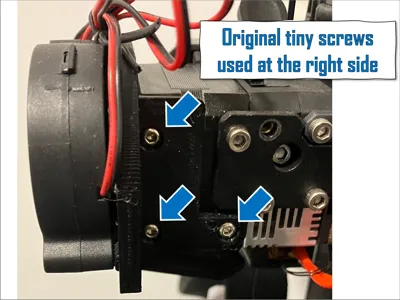

• NO extra hardware required: uses the same 3 small screws from the stock fan
• Minimalist and efficient design: tested for the last 4 months without any issues
• Fully uses potential of upgraded fan: uses single duct with wide opening

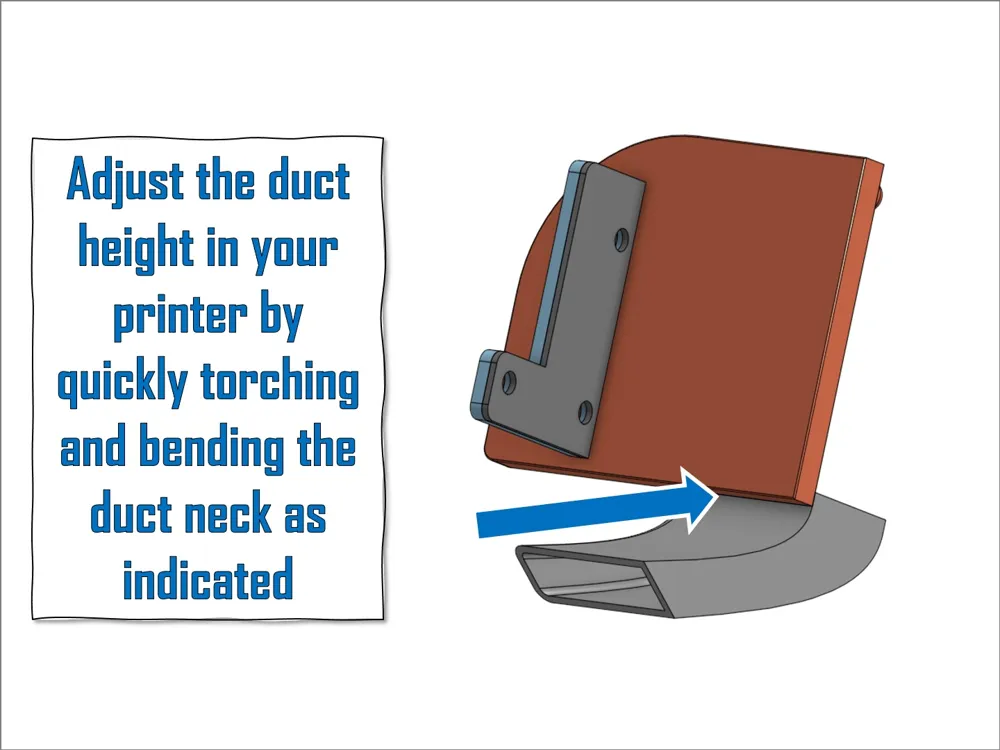

• Versatile: easily adjust duct height to your printer set up
• Easy assembly: slot in fan output on duct then slide fan on the 2 pins

Printing:

• PETG: required
• Supports: required as per image (NOT needed inside the duct)
• Layer height: irrelevant
• Infill: 15%
• Infill of >90% at the pins: recommended

Please leave a like and share your print pictures if you liked it. Looking forward to hear your thoughts.

Happy printing!
