Chinese Chess - Planetary Gear Chess
Print Profile(1)
Description
Planetary Gear Chess-------Beacon Tower Warnings, Upholding Orthodoxy, Employing the Unexpected
Design Philosophy-----------A Draw is Victory--Repelling Invaders, Not Eradicating Them

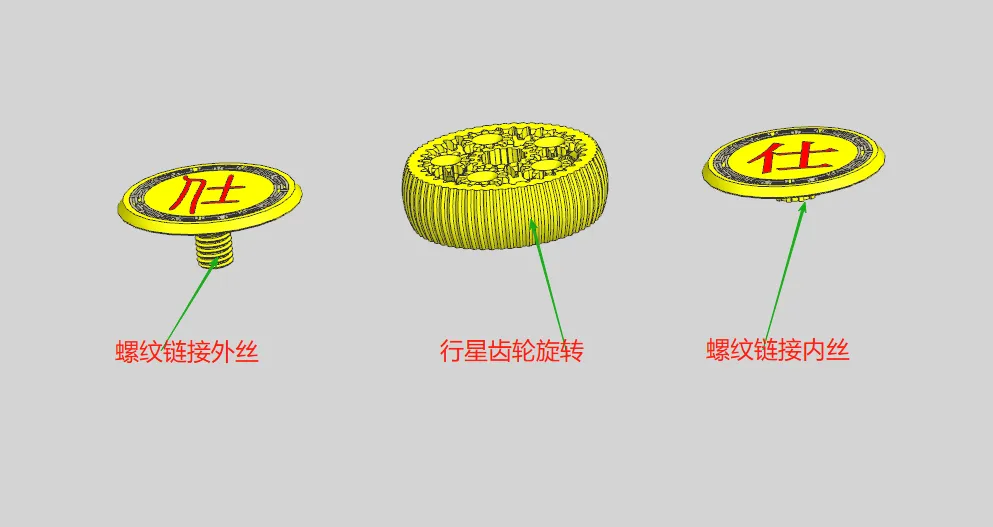

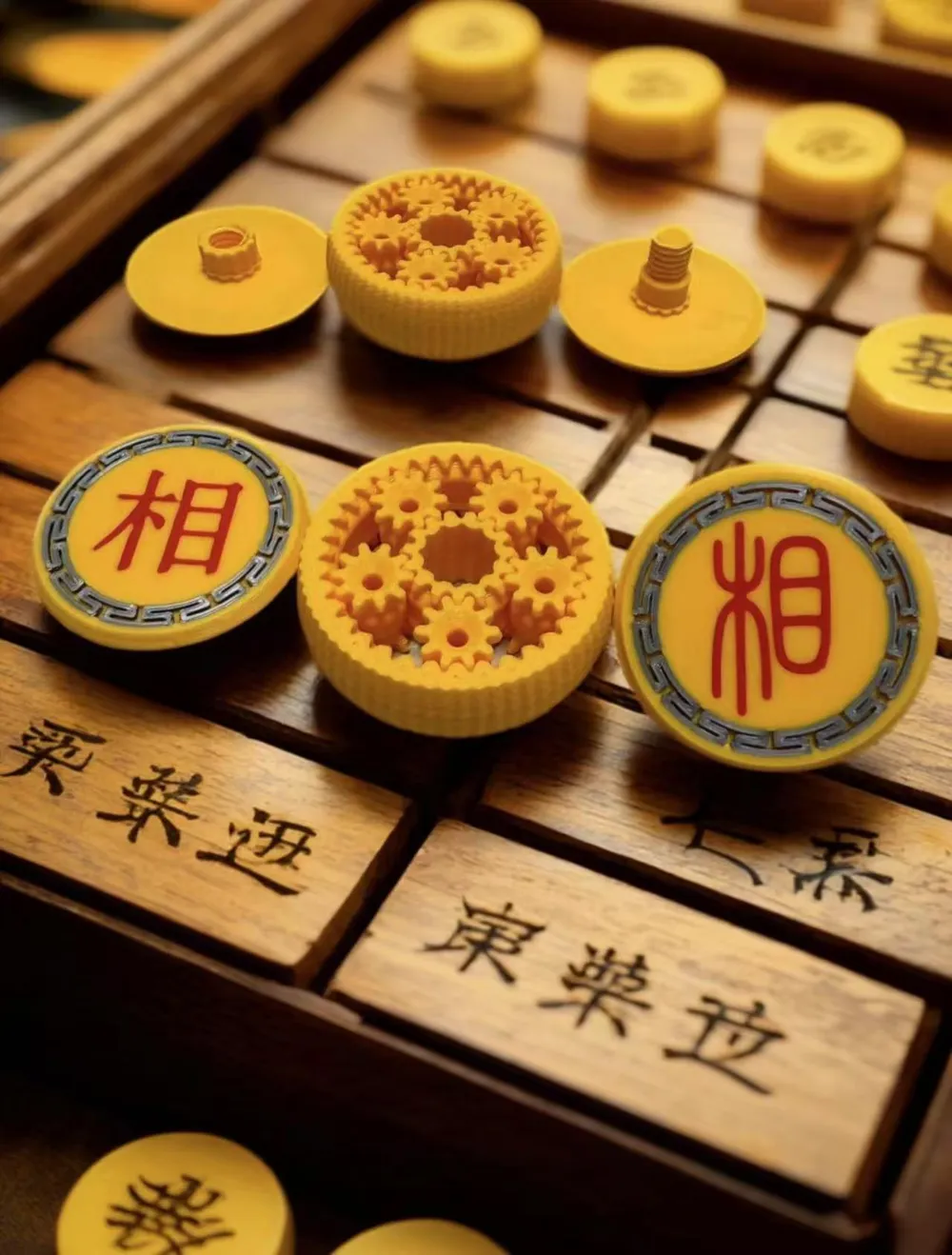

Design Innovation-----------Traditional single-piece chess figures are transformed into three-part geared pieces, each functioning as a distinct fidget spinner, with opposing sides designed to display different fonts. The chessboard utilizes mortise-and-tenon screw connections.

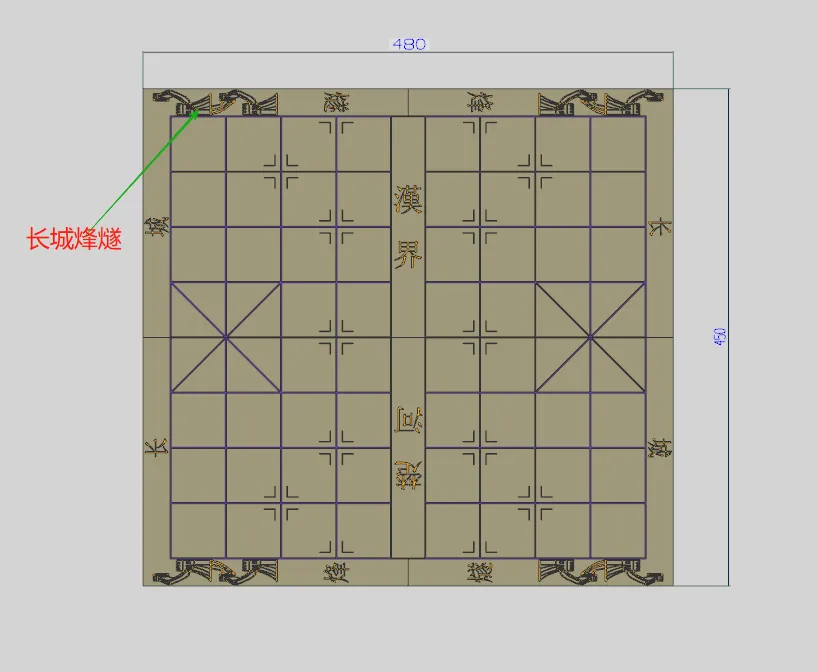

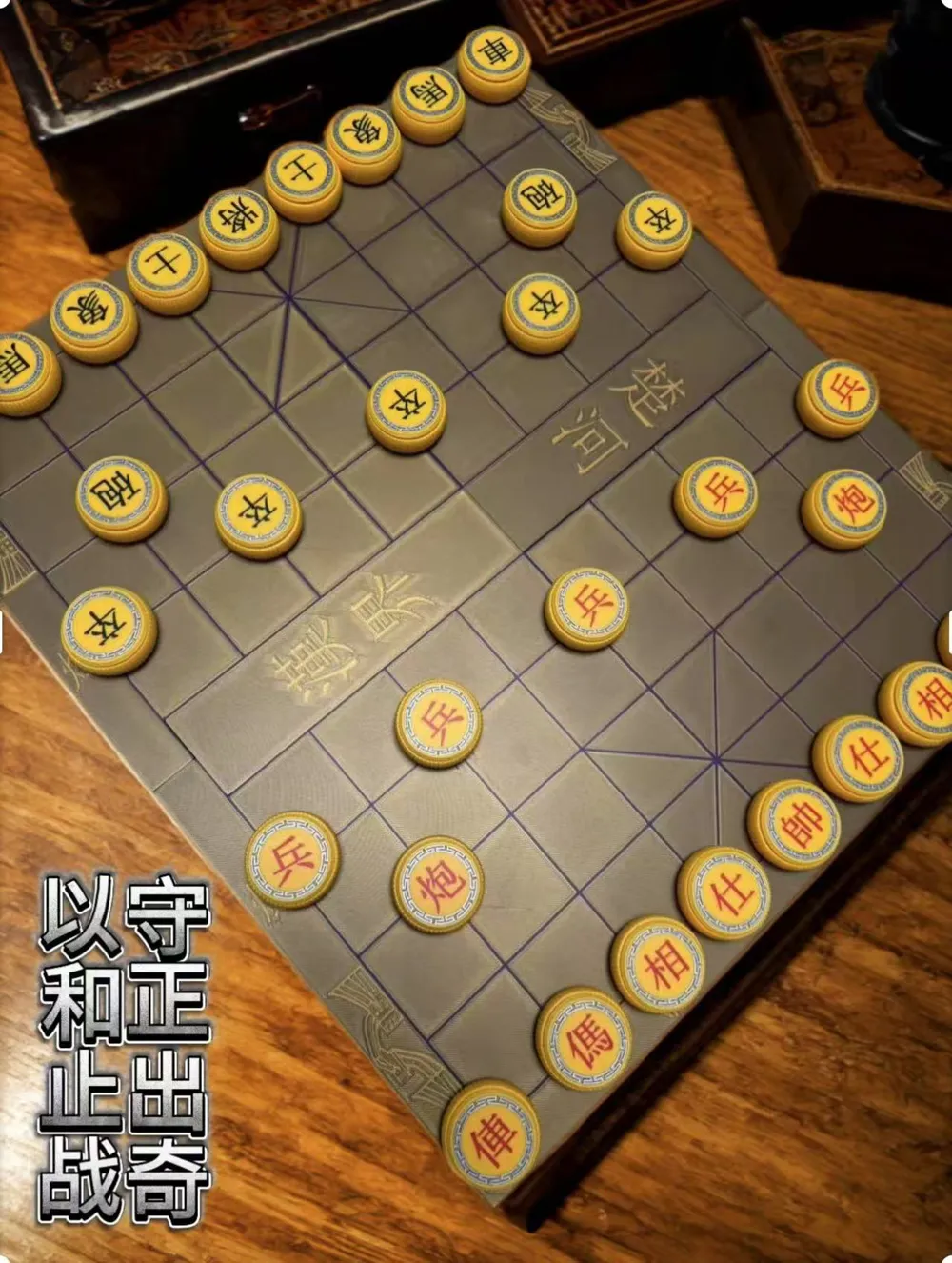

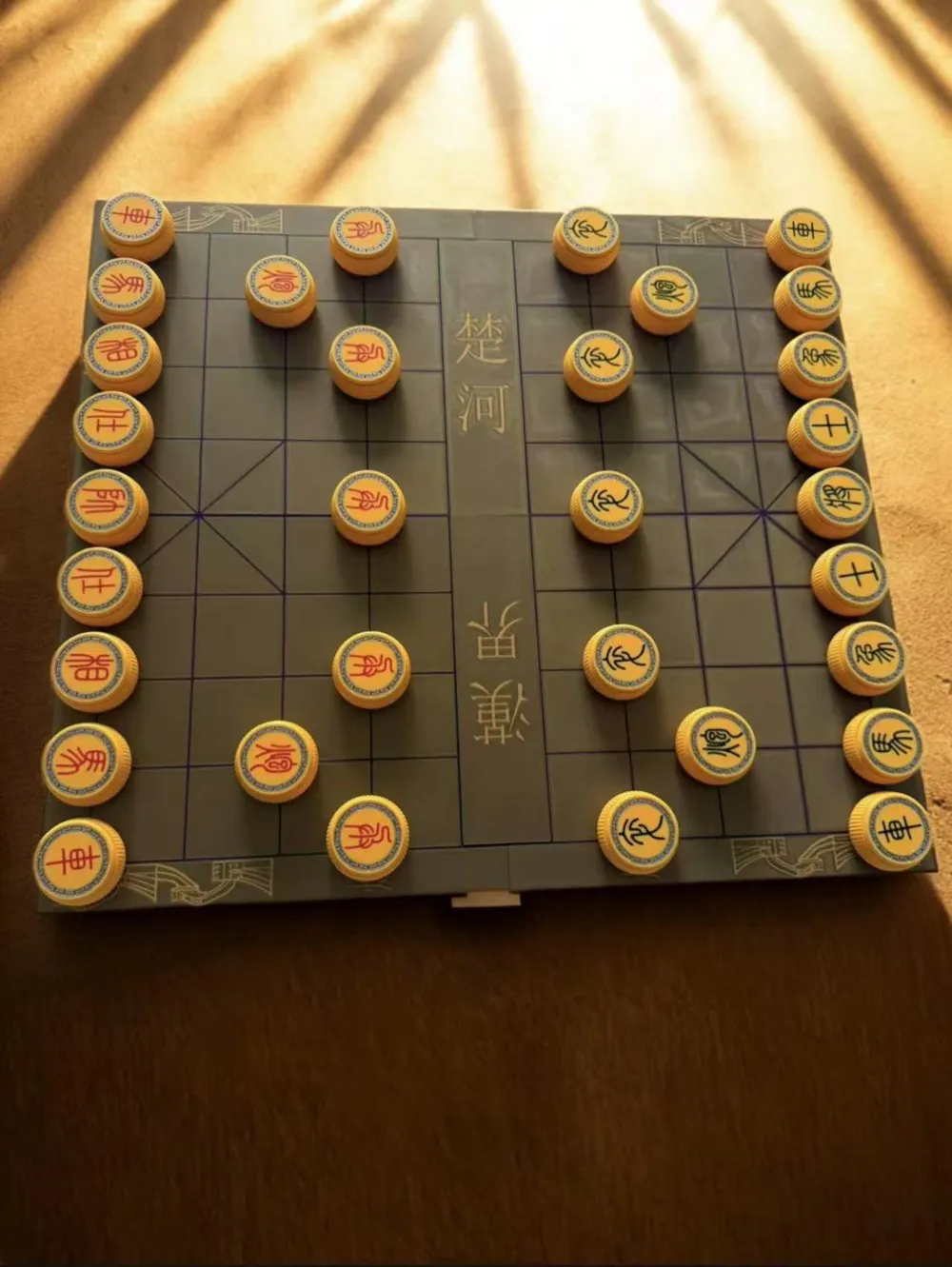

Chessboard Dimensions-----------480mm*450mm*15mm
Chessboard Design Philosophy-----Mortise-and-Tenon Connections, Threaded Fastening.
Piece Dimensions----------Diameter 45*21

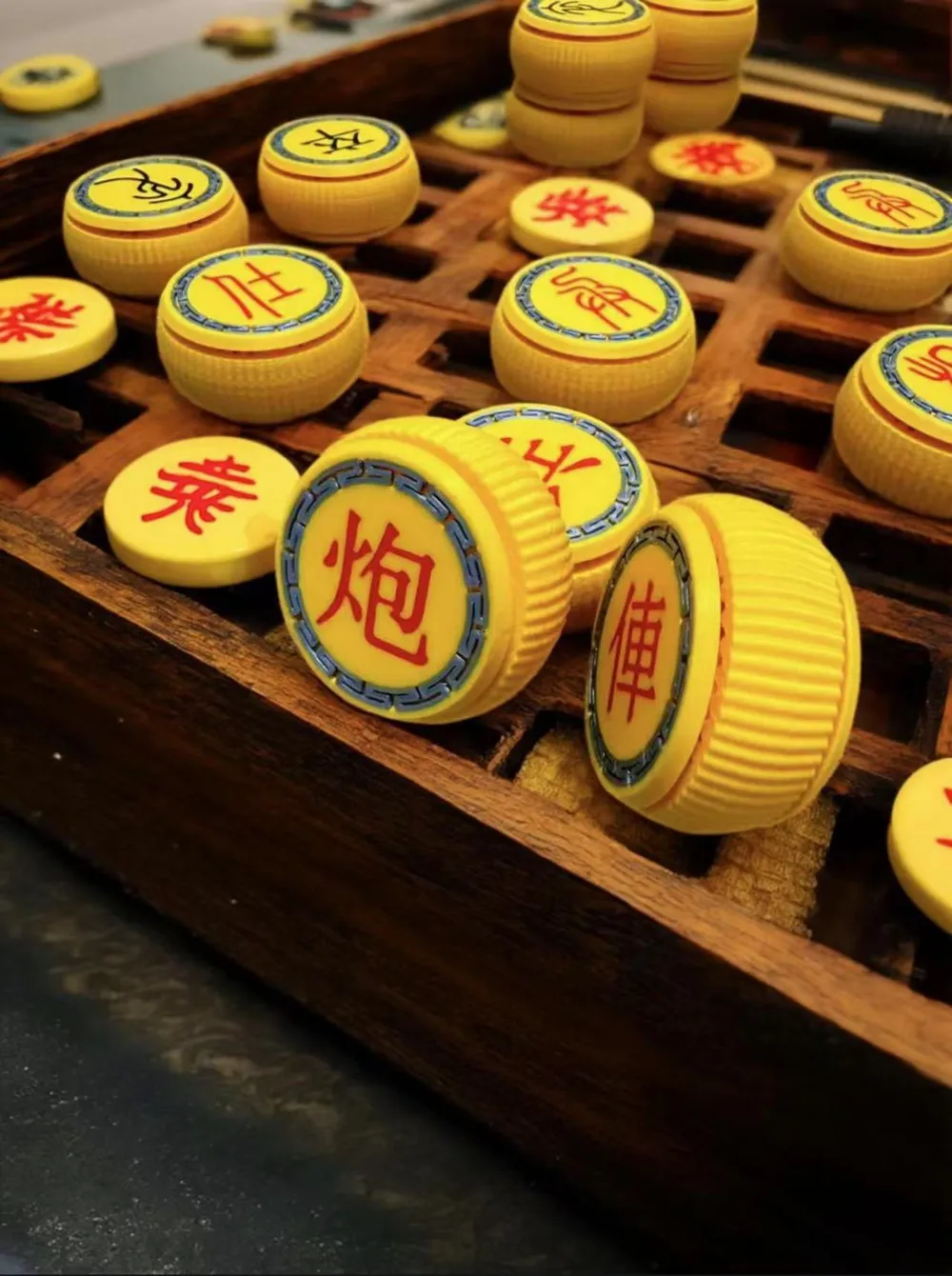

Piece Design Configuration-----Incorporating planetary gear characteristics, allowing rotation, metaphorically representing the ancient wisdom of "versatility and defeating adversaries with sagacity".
Filament Information: This creation utilizes Bambu Lab Official PLA Basic filament. The printing parameters have been meticulously refined through multiple adjustments.

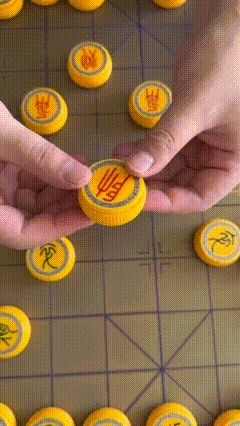

Assembly Instructions: The chess pieces are connected via mechanical threads; simply pinch them until secure, with a tightened thickness of approximately 21mm.

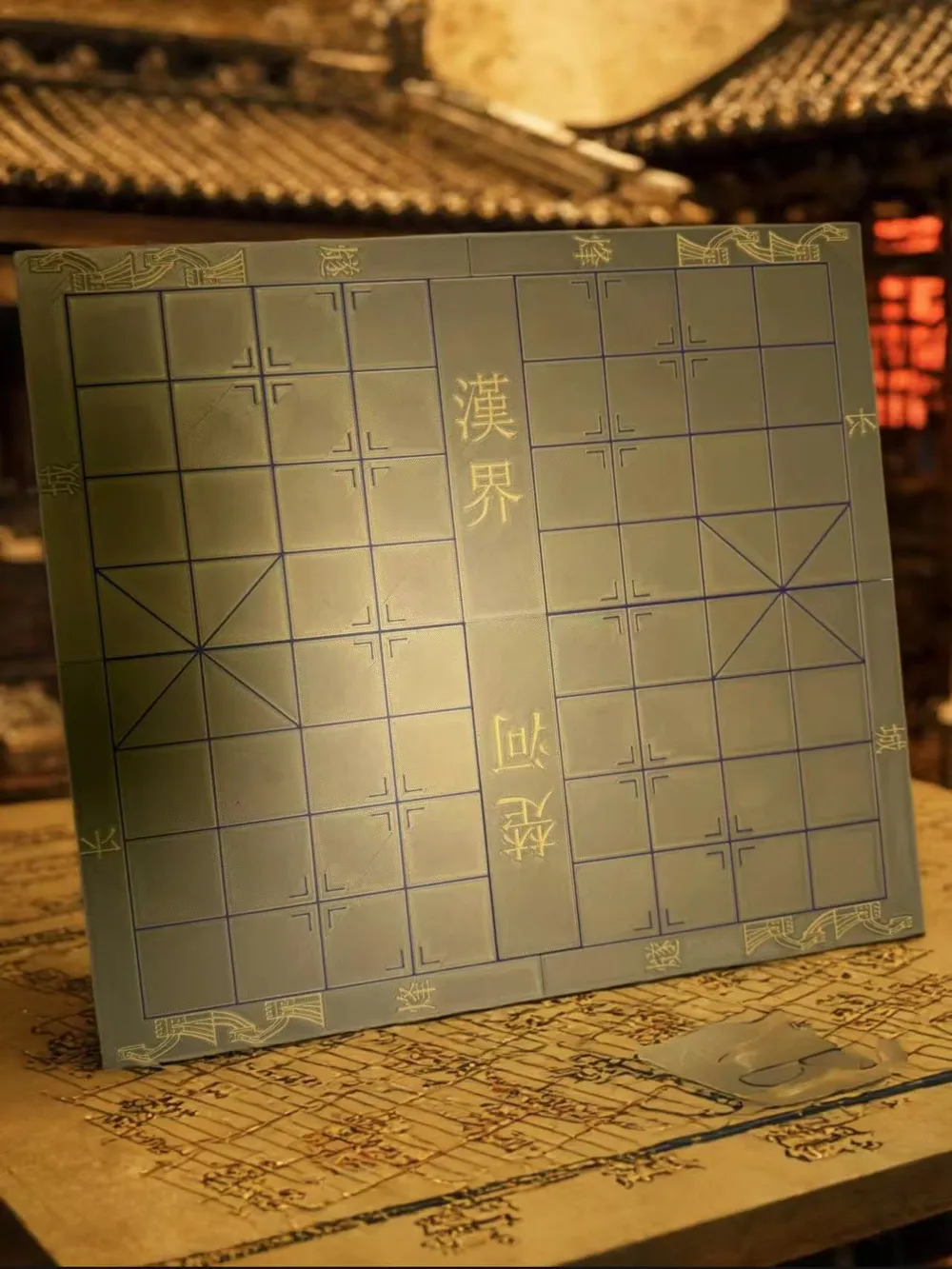

Printing Notes: 1: The chessboard, measuring 480mm*450mm*15mm, is composed of four sections, each measuring 240mm*225mm*15mm.
