Mounting Fixture for Honeycomb Laser Bed
Print Profile(0)
Description

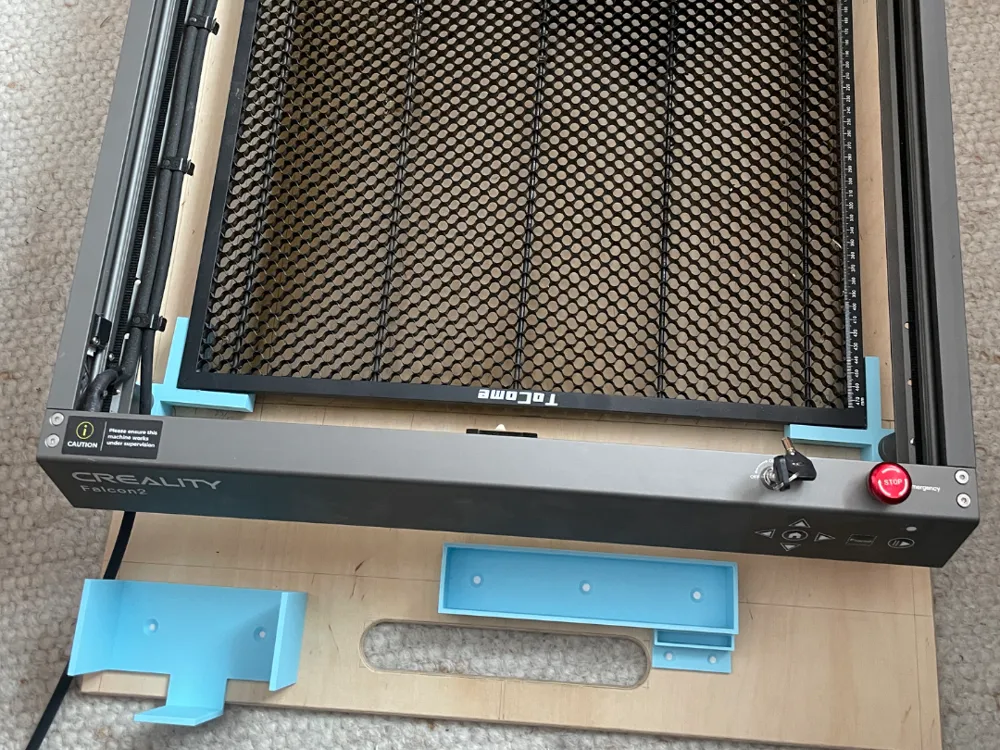

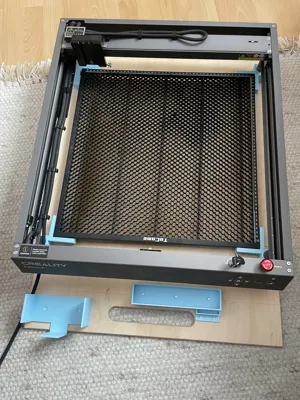

Alignment feet designed to securely accommodate a honeycomb laser bed for the Creality Falcon 2
These feet have significantly enhanced the placement and stability of my honeycomb on the laser bed

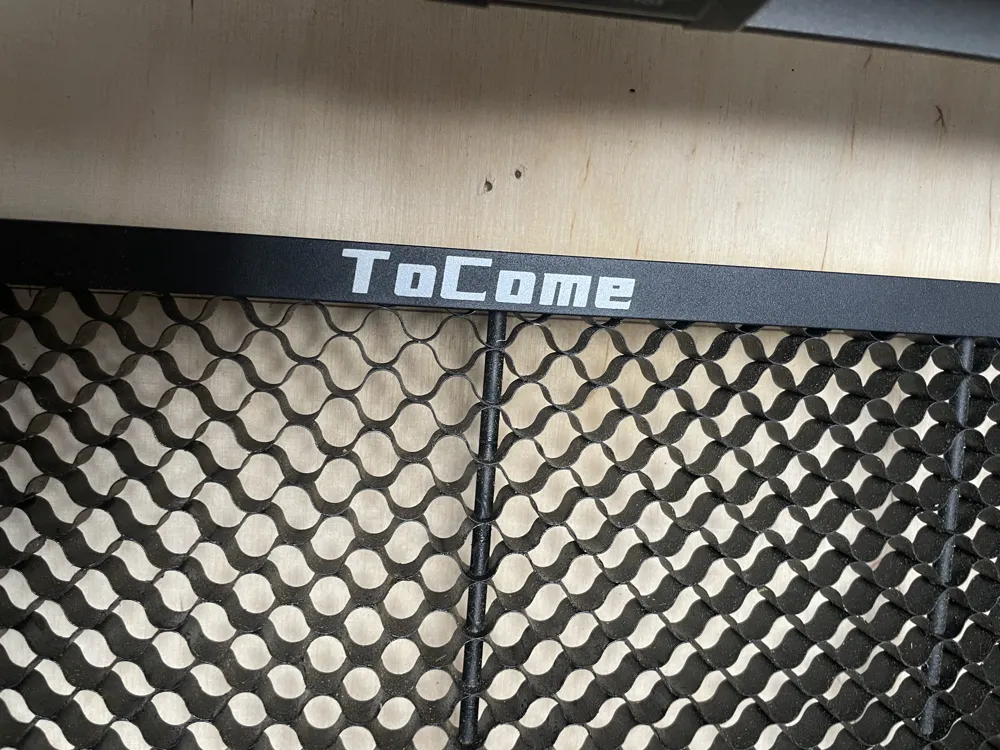

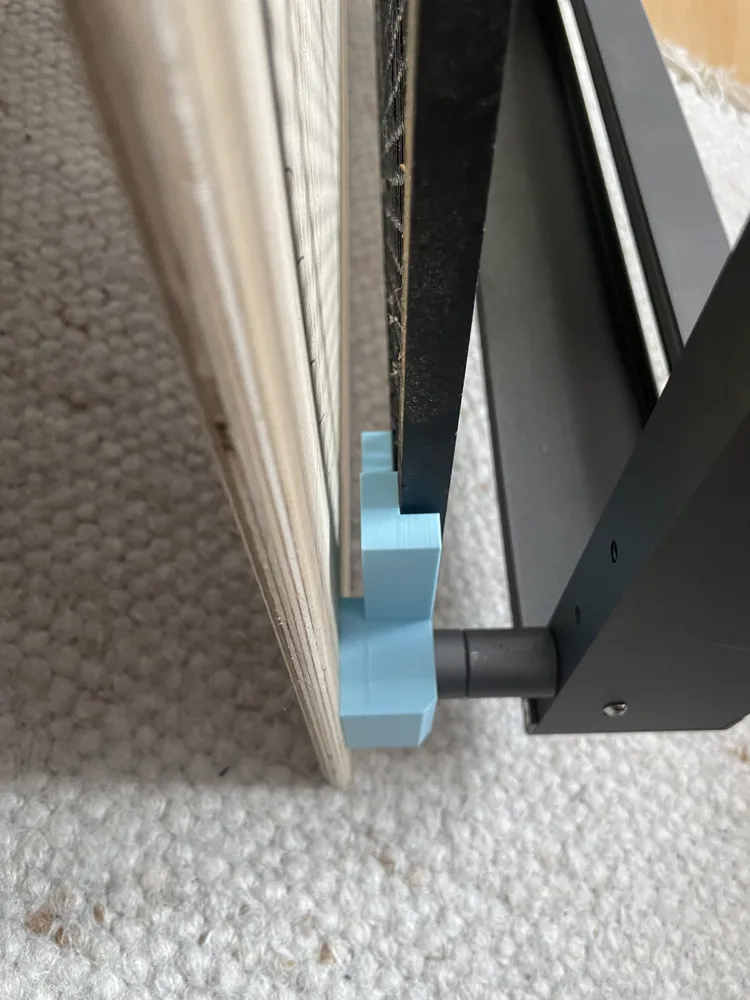

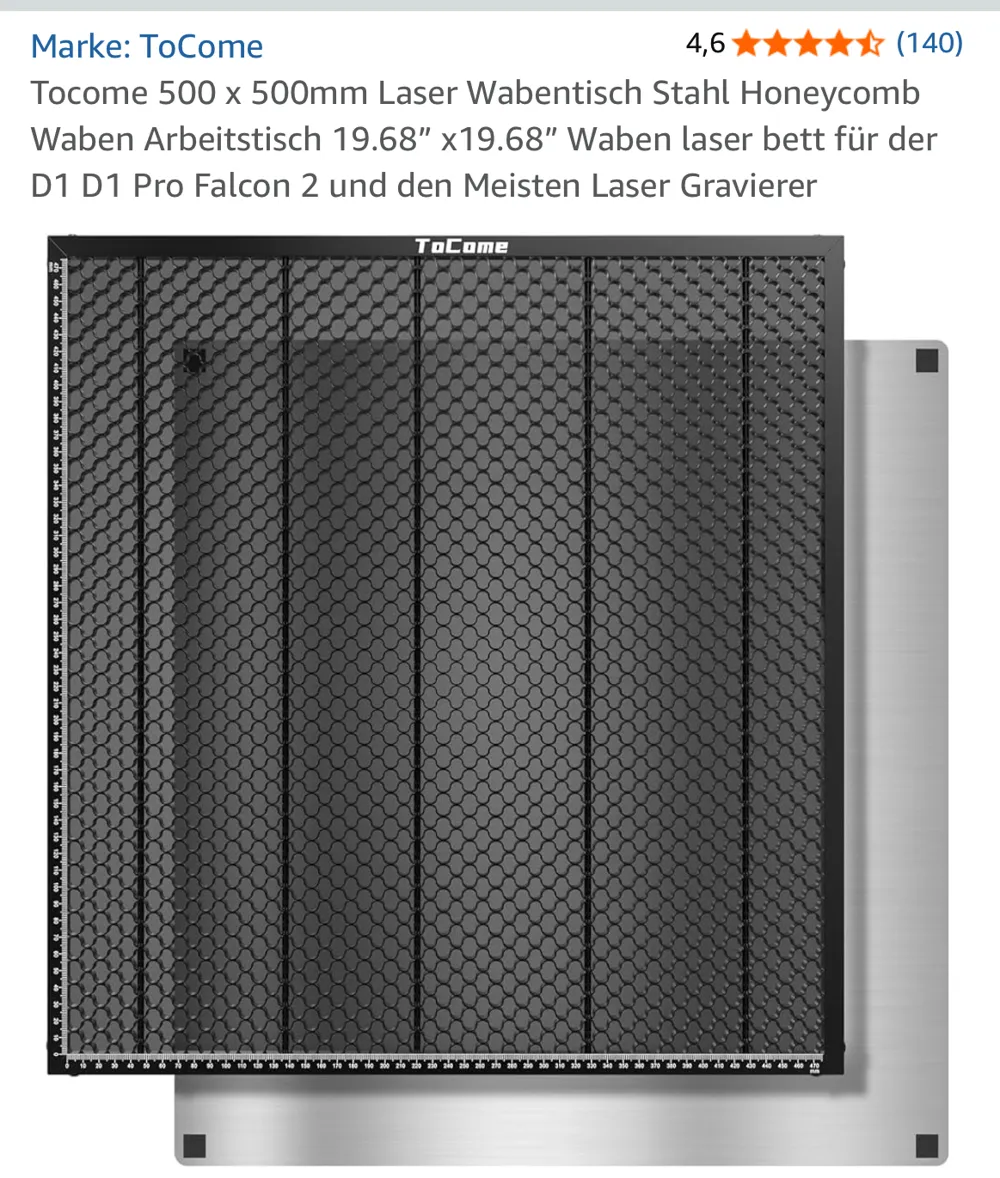

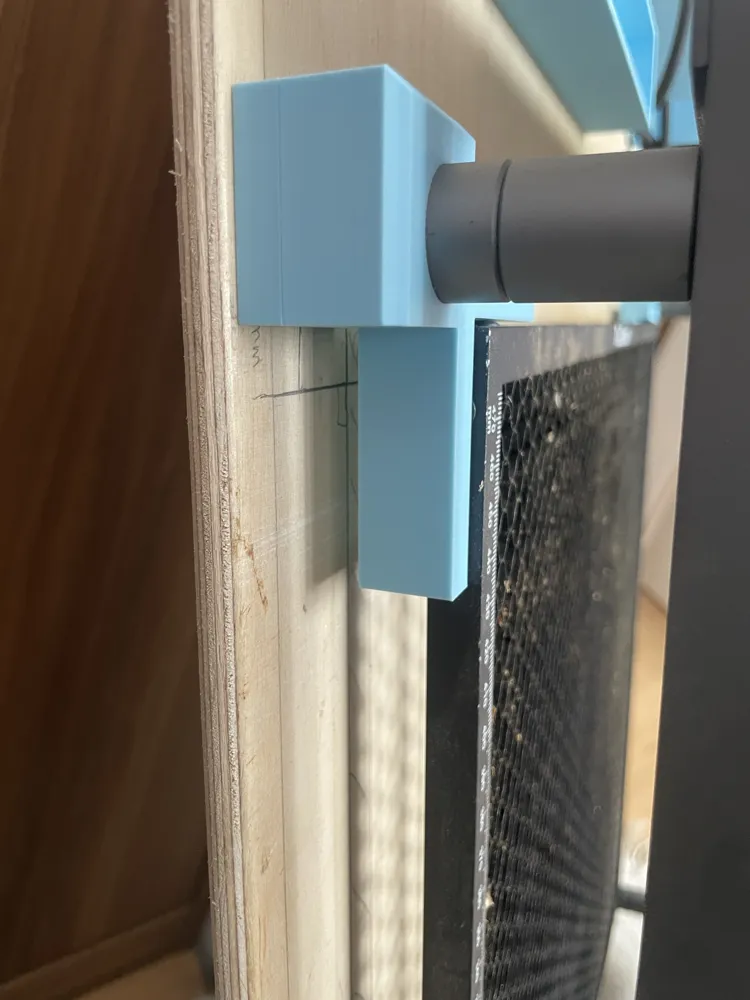

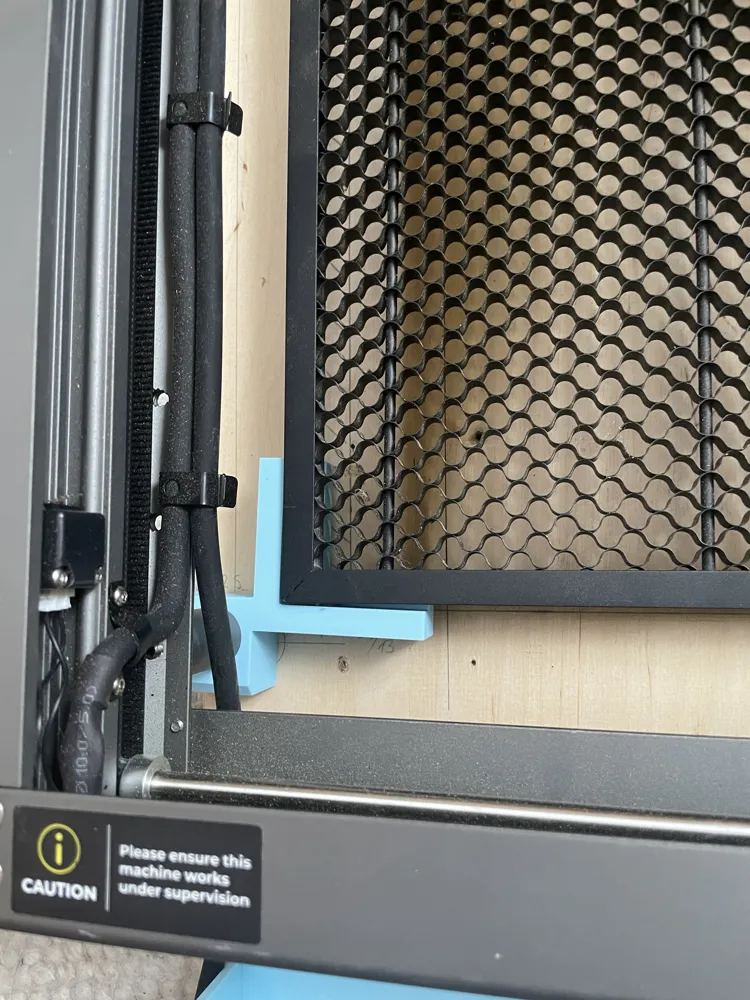

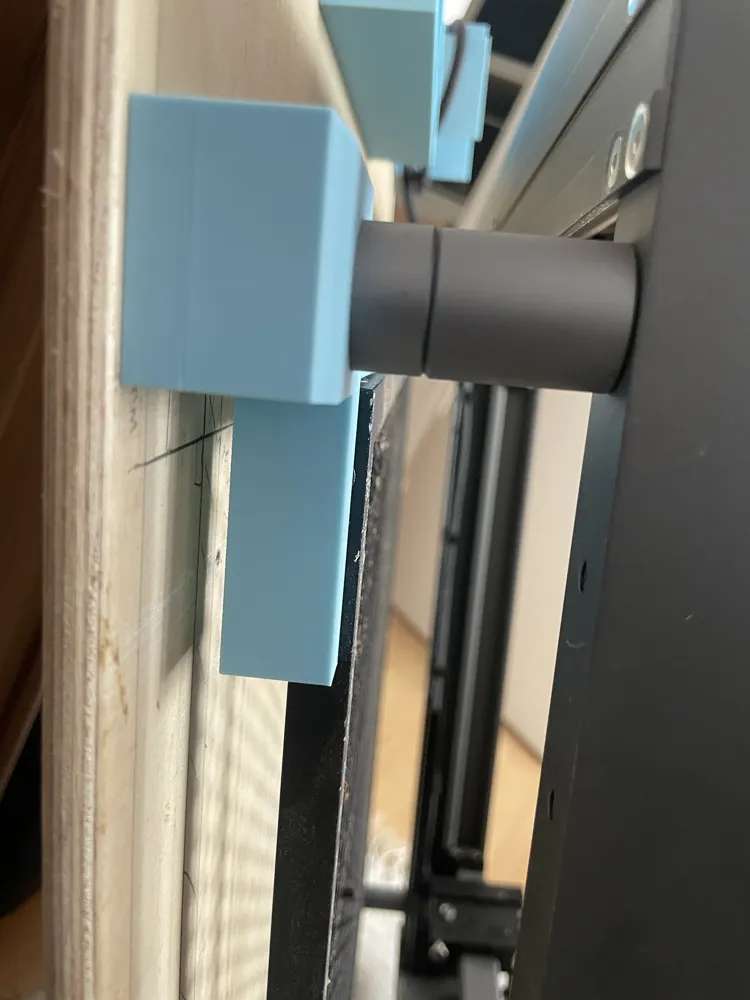

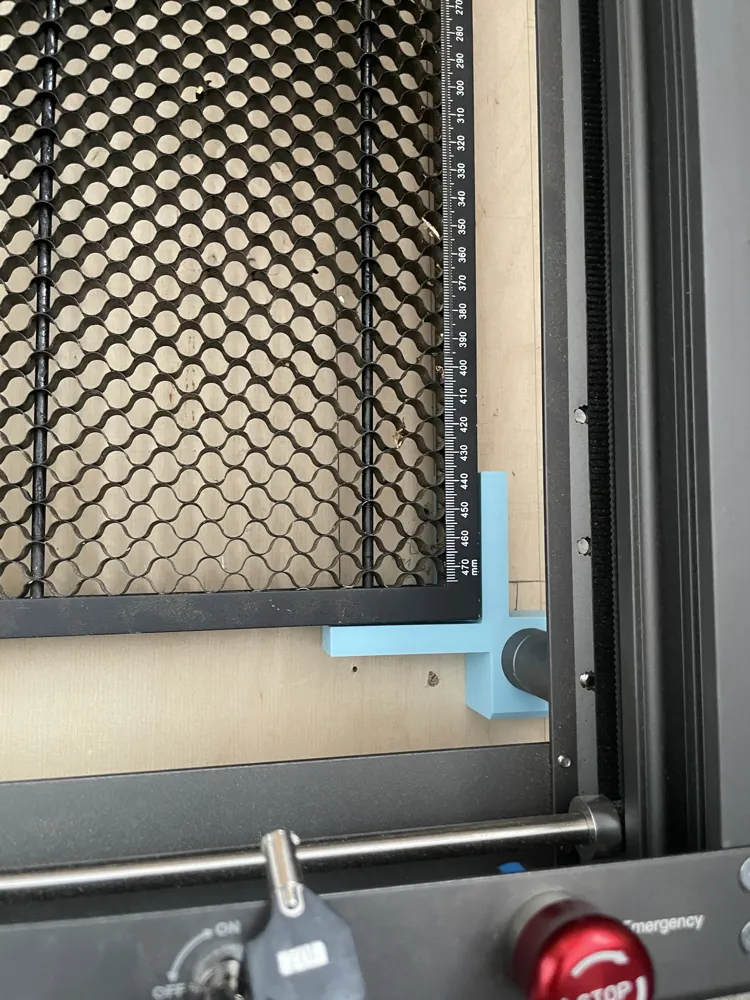

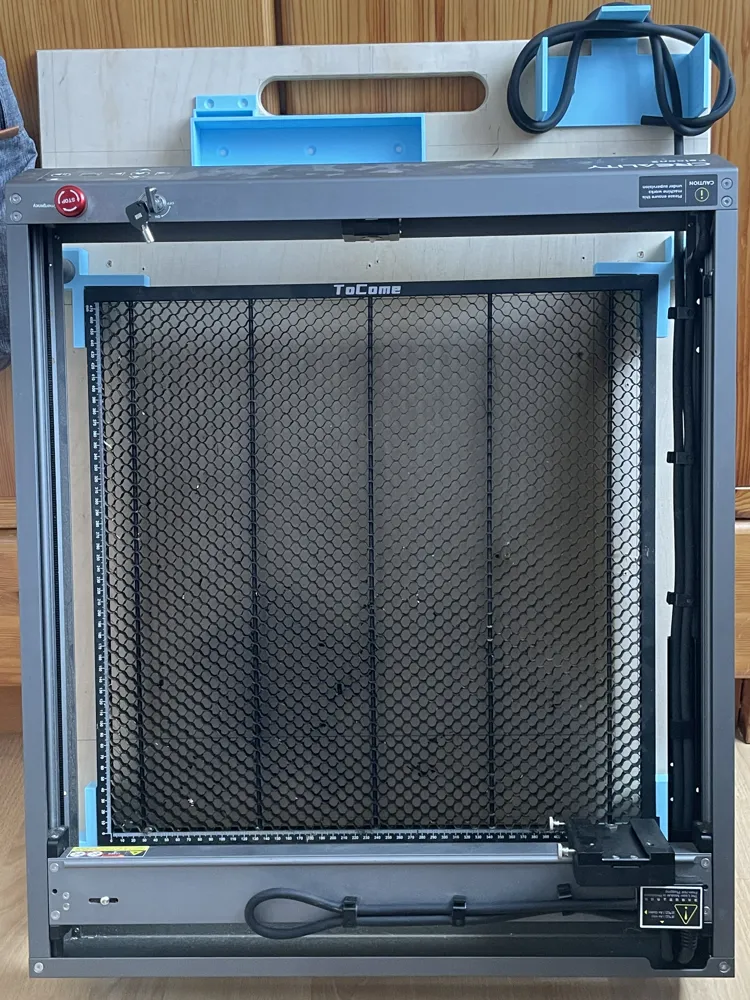

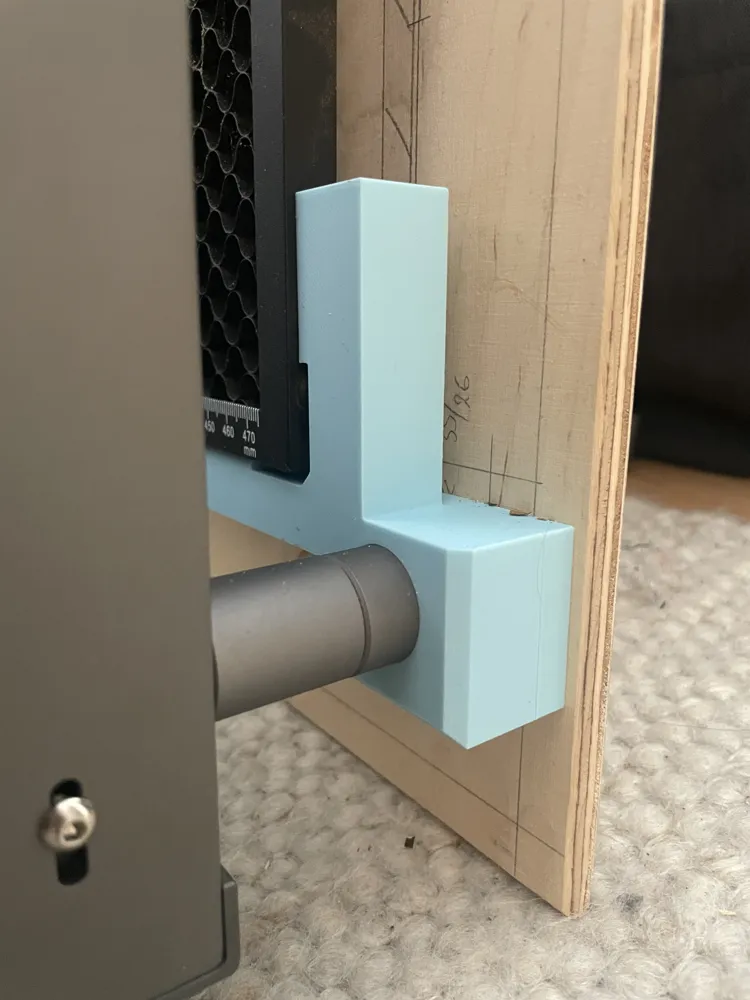

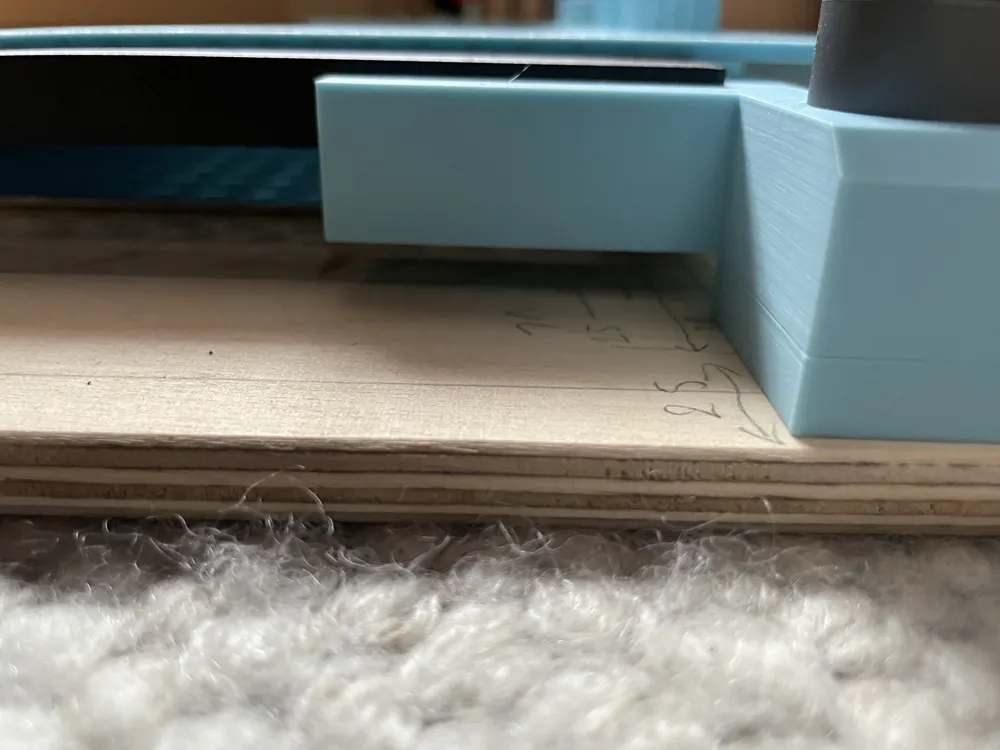

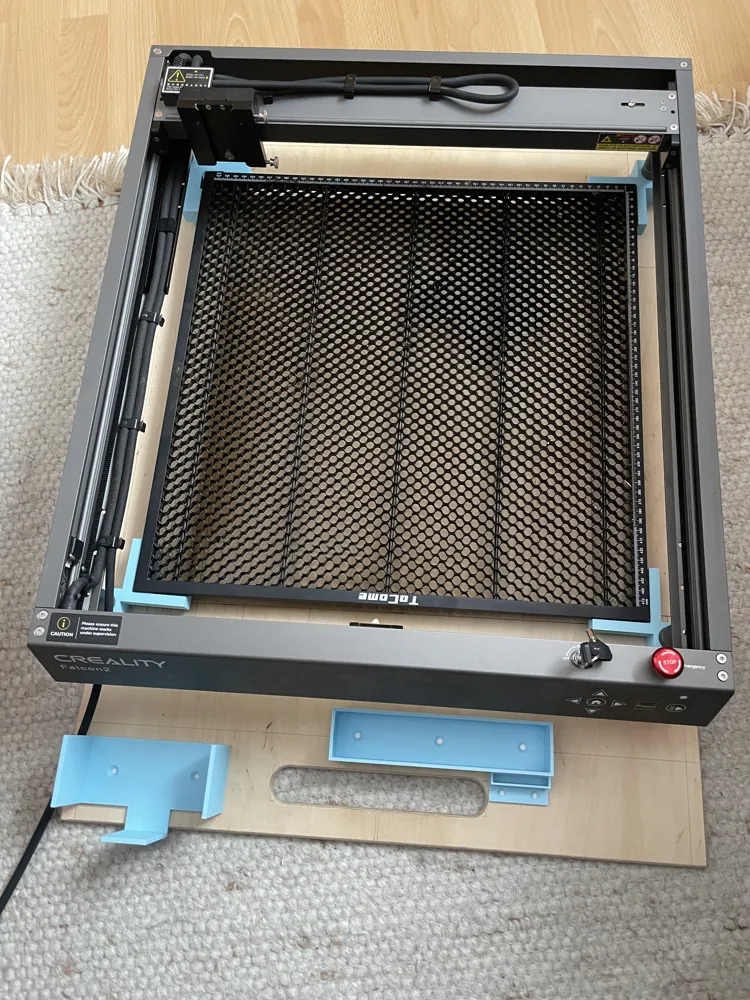

The feet/holders are meticulously engineered to integrate seamlessly with the existing feet of the Falcon 2's enclosure. These feet are precisely dimensioned to ensure the honeycomb perfectly aligns and covers the laser area perpendicularly. Furthermore, I have incorporated an additional foot, functioning as an adapter, onto these alignment feet to facilitate the precise placement of an aluminum plate beneath the honeycomb. This design allows for effortless removal and reinsertion of the honeycomb with exceptional repeatability. The honeycomb employed is manufactured by ToComb; an image of the product has been appended
