Split Bolt For AMS Lite Cord Dry Box

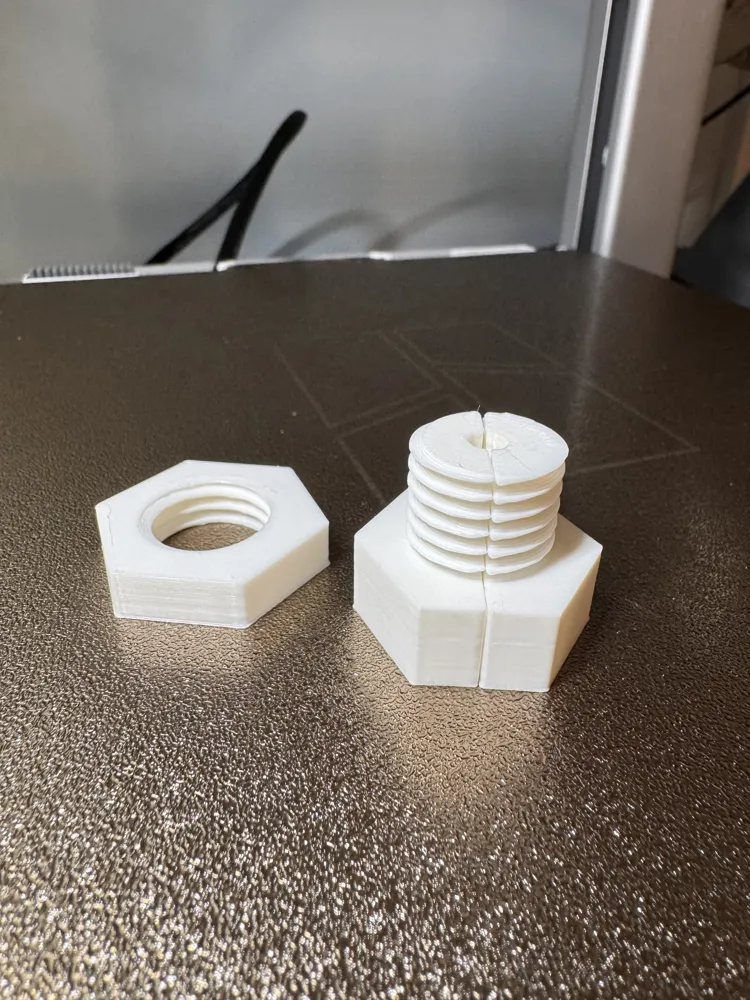

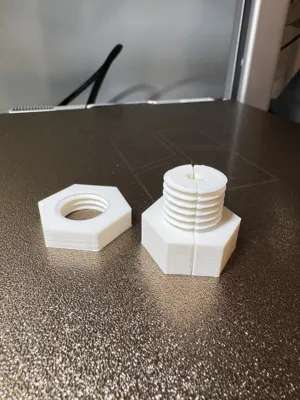

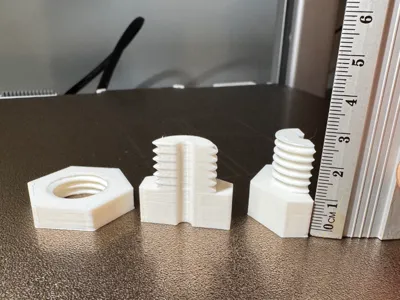

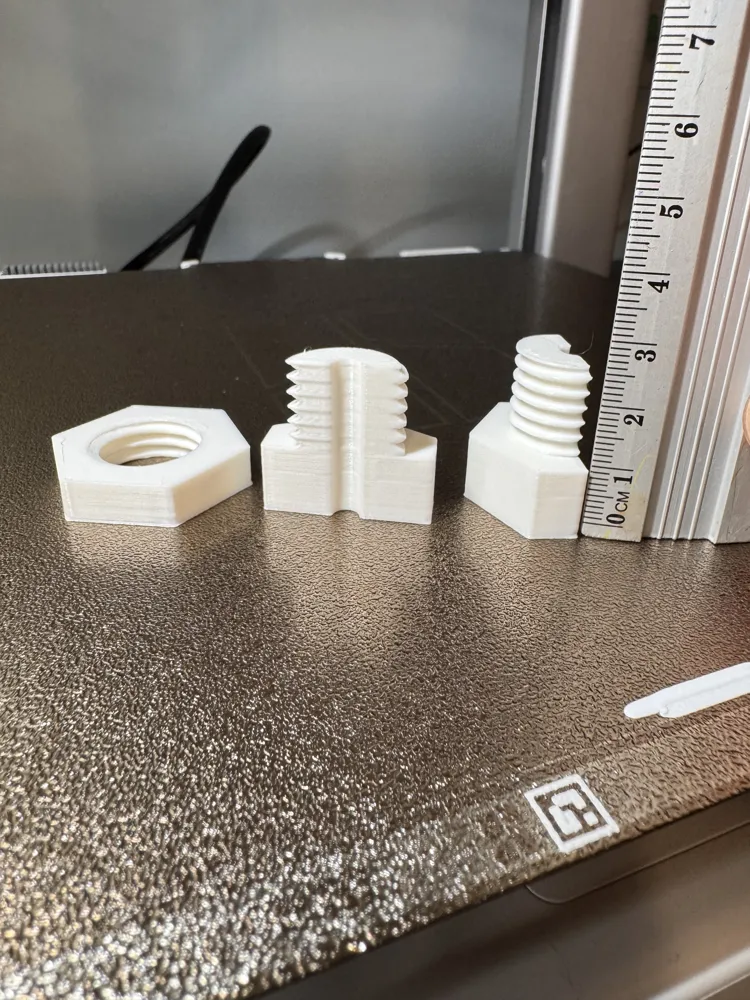

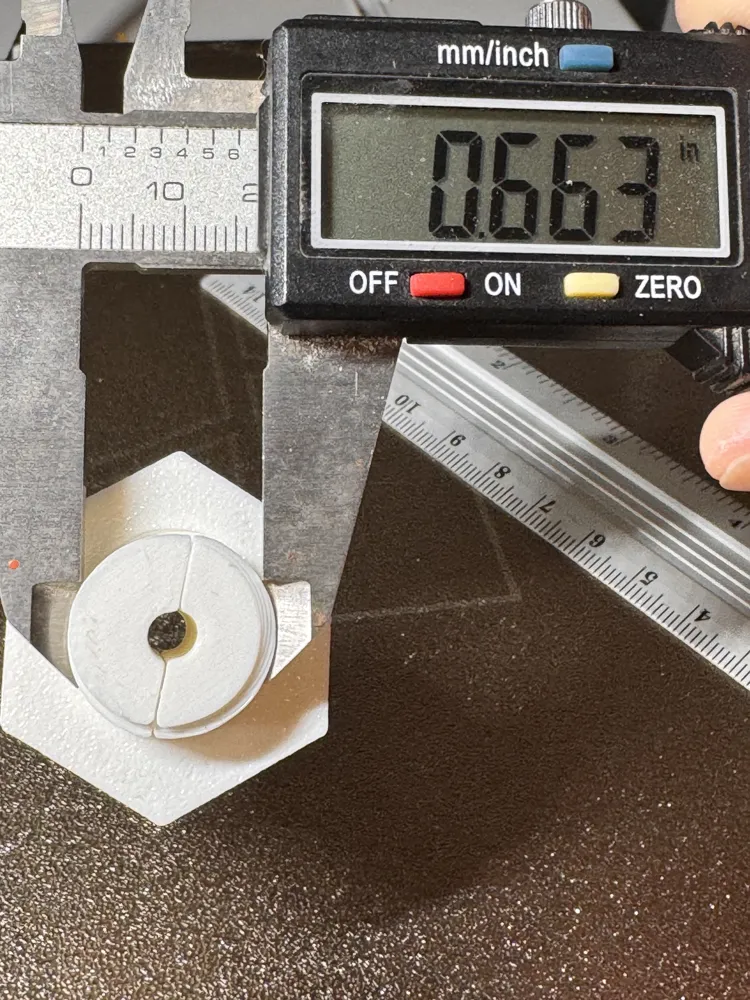

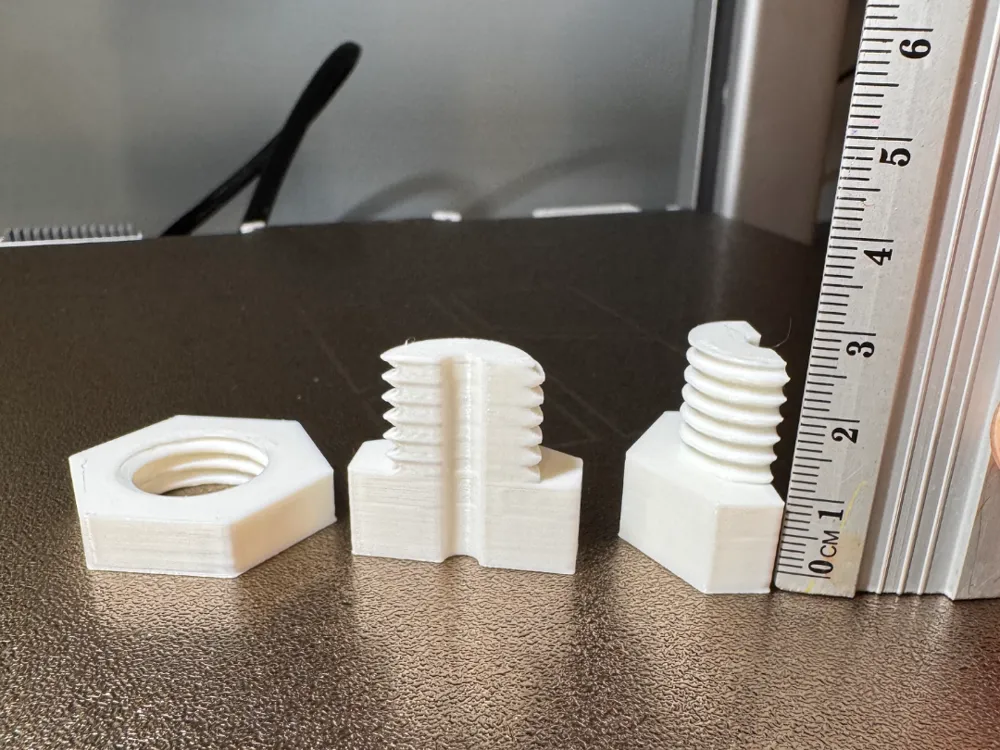

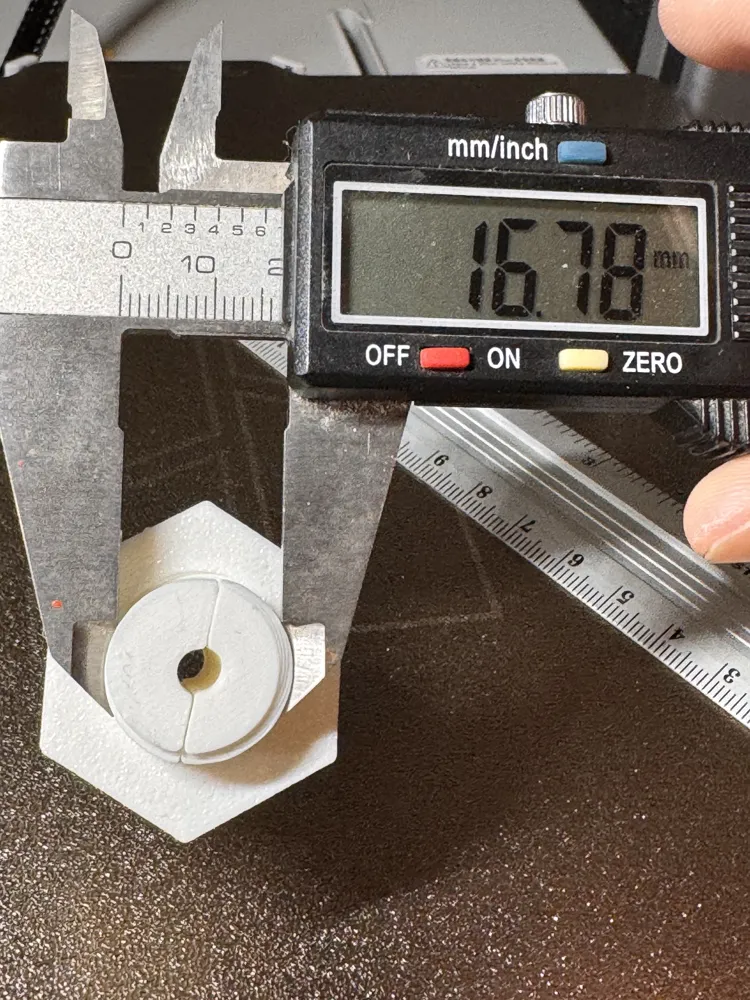

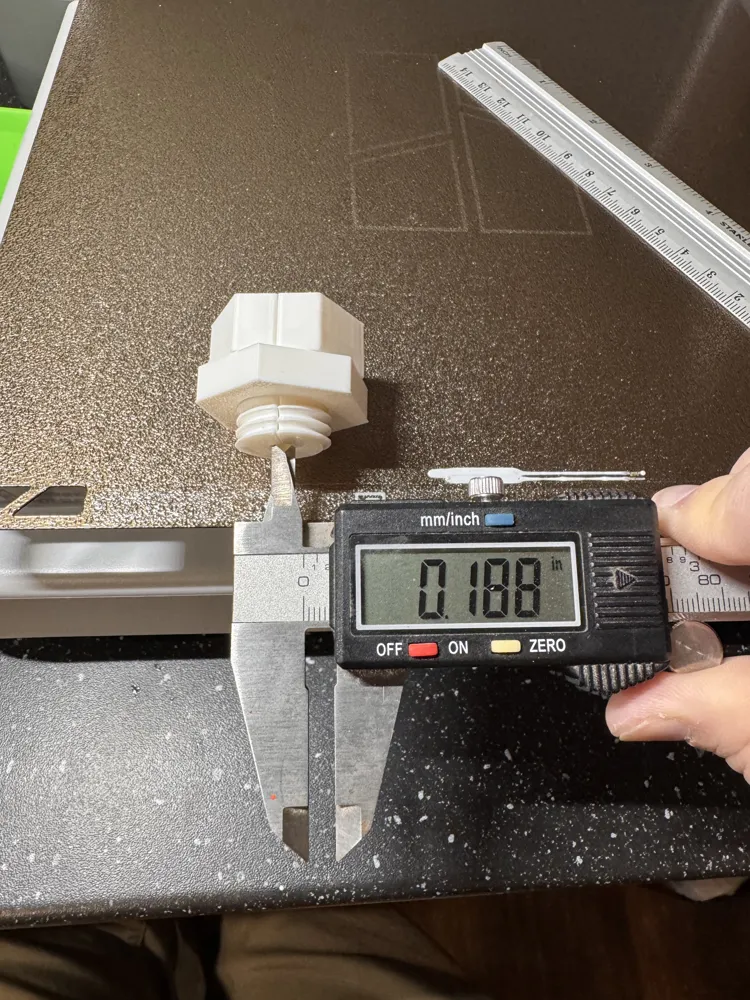

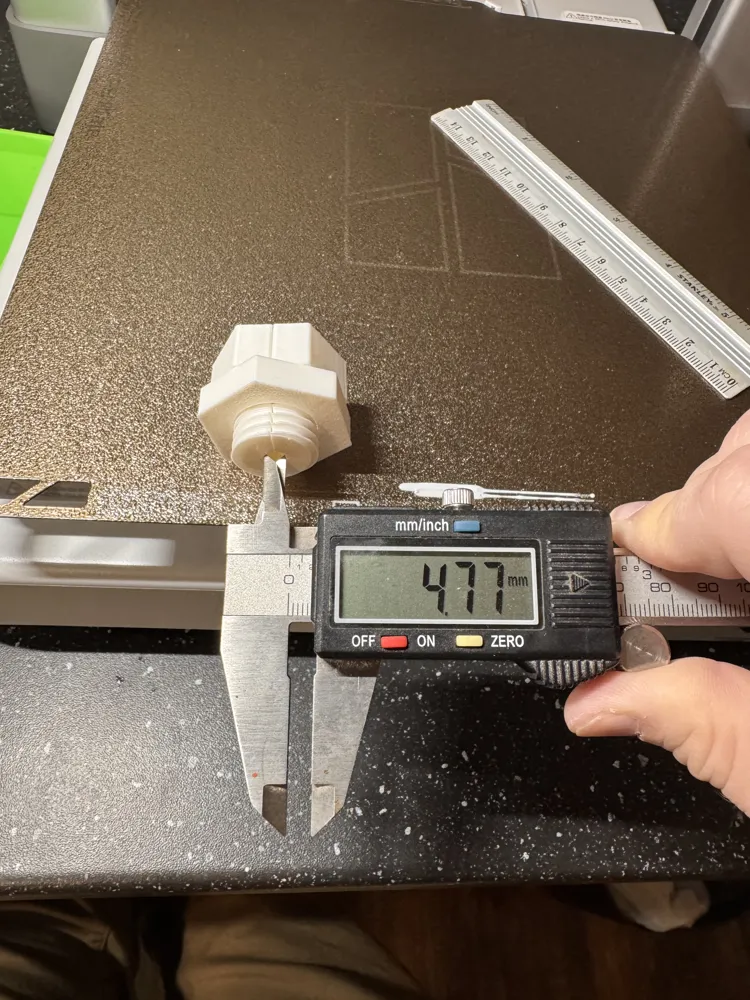

I was making the upside-down AMS holder, and I was breaking the split nut provided by 3D Part Factory. I made this one with 3 wall thickness. Very subtle change but it made all the difference. I also eliminated all the other clutter in the file and it is JUST the split nut specifically leaving the split nut for a 4.5 mm cord. The AMS Lite uses a 4.4mm cord. It fits VERY well.

I would recommend using a thin bead of silicone around the nut if you are following the instructions by 3D Part Factory, making sure it stays air-tight. But honestly, it is a good fit and most likely not needed.

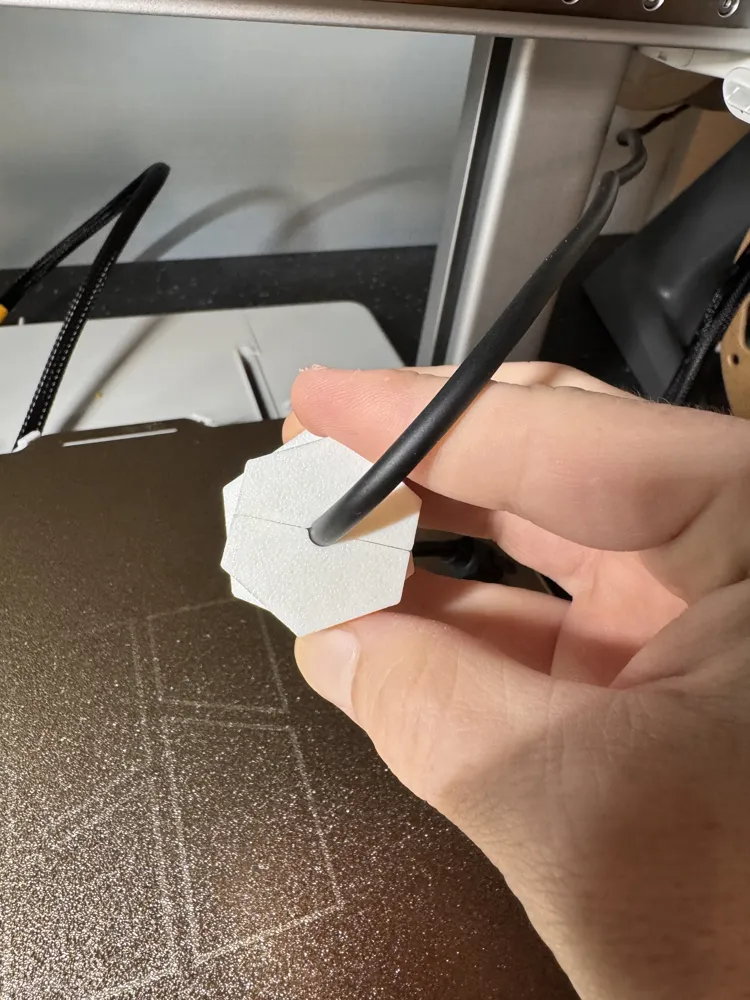

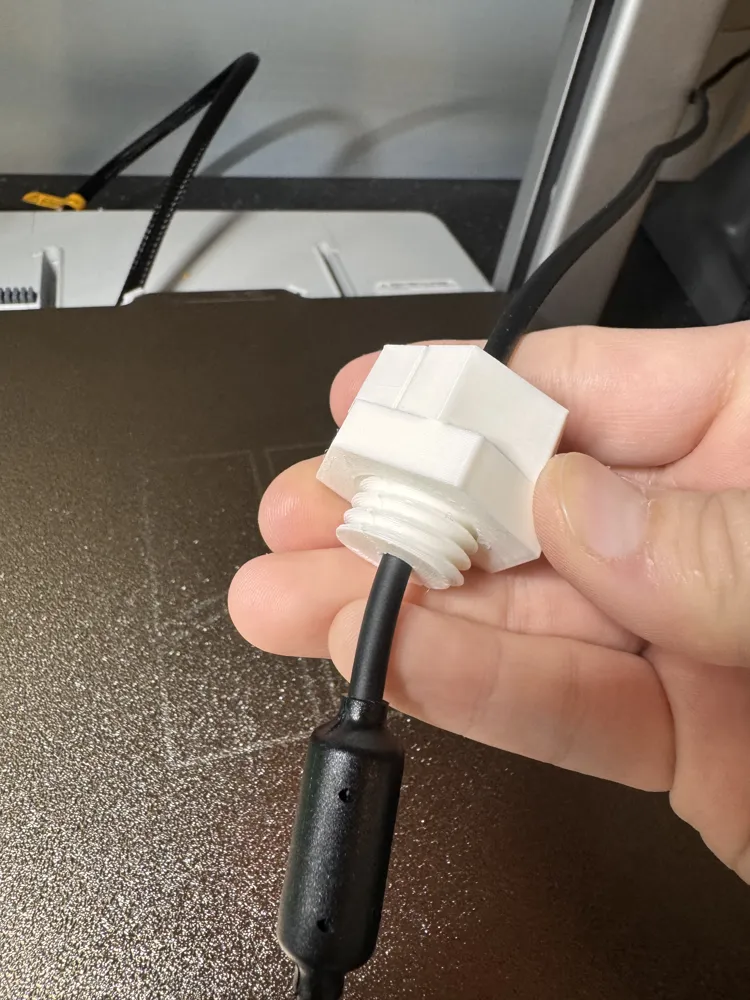

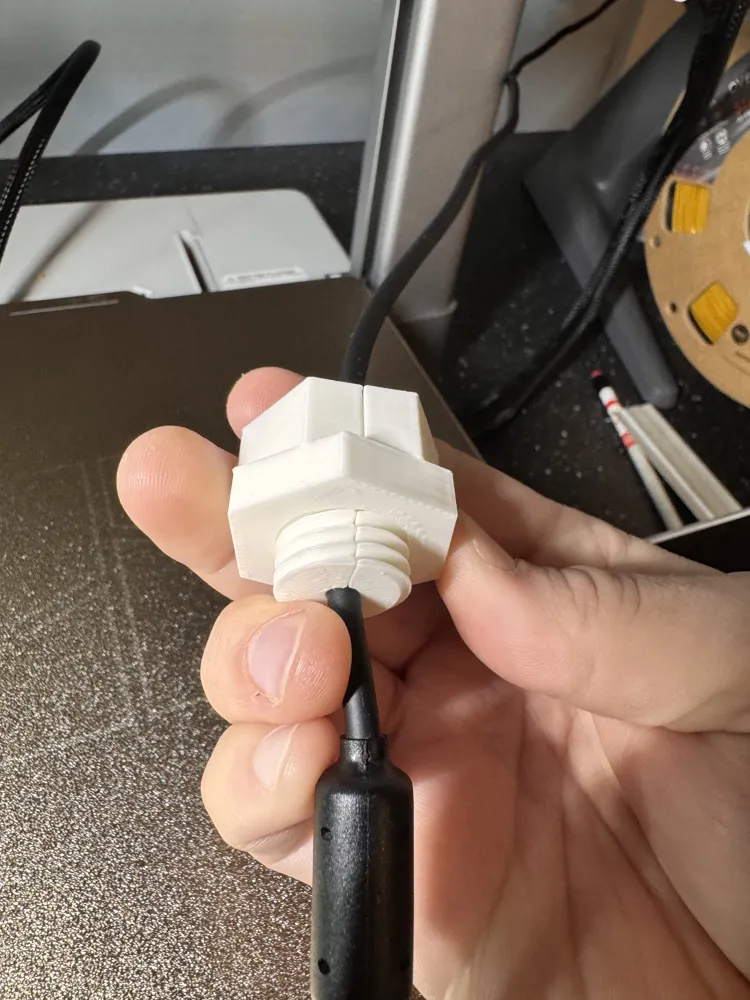

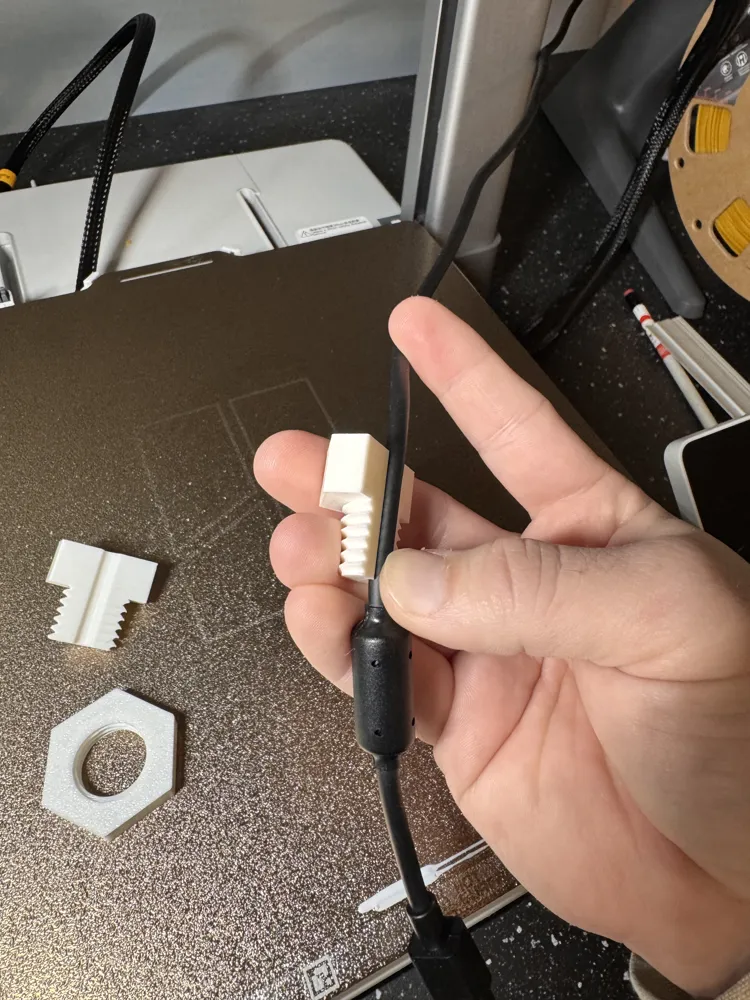

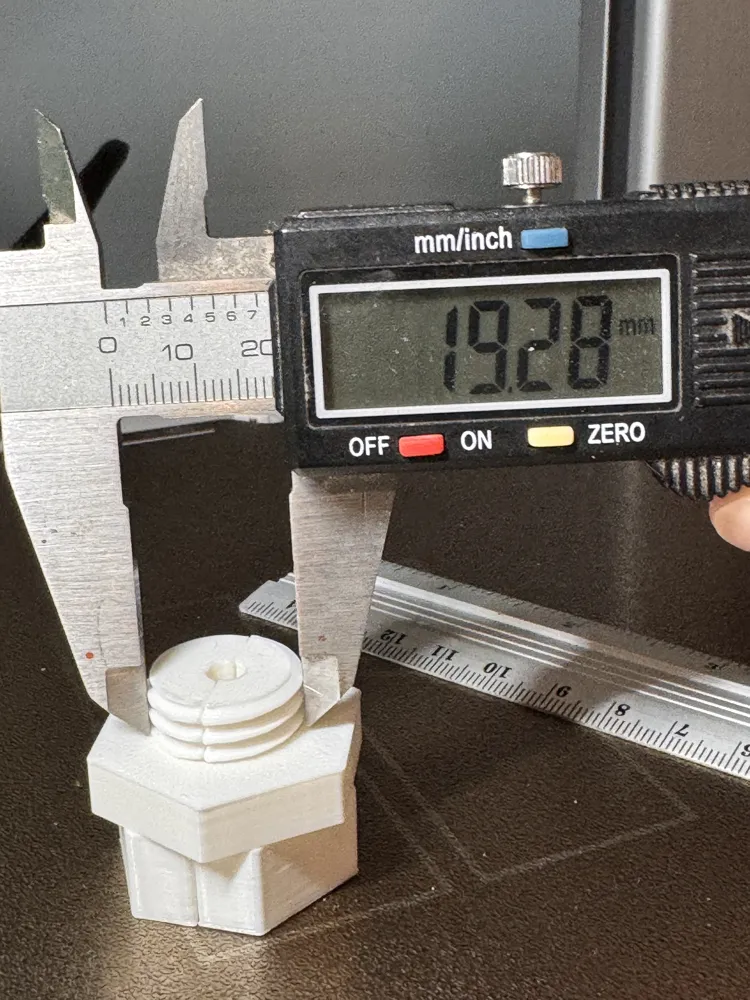

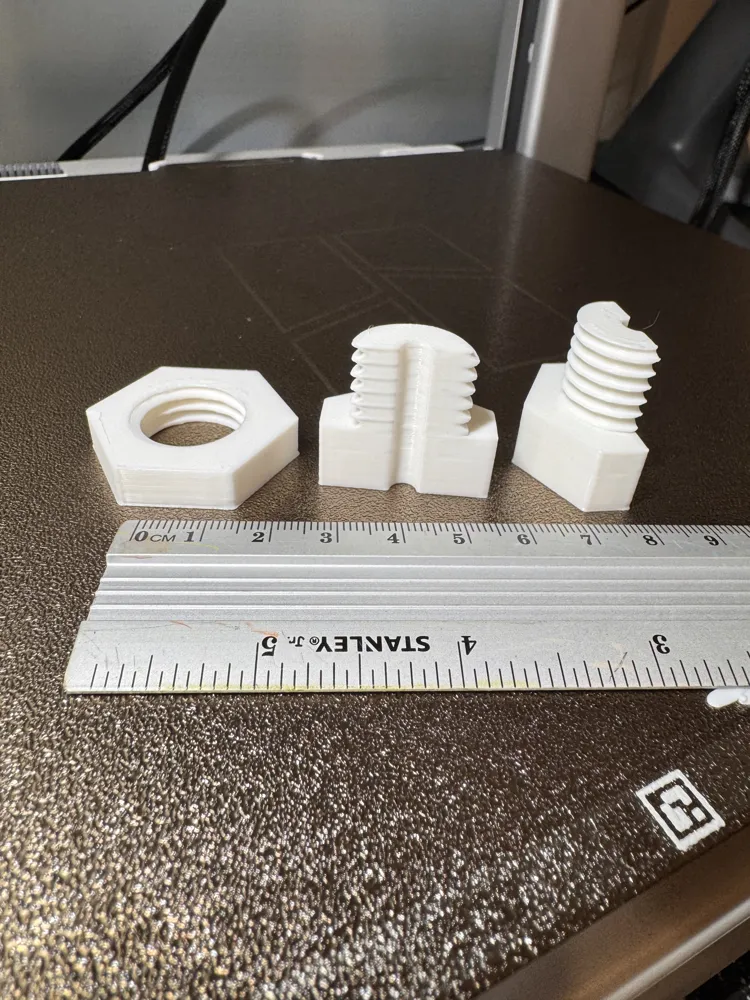

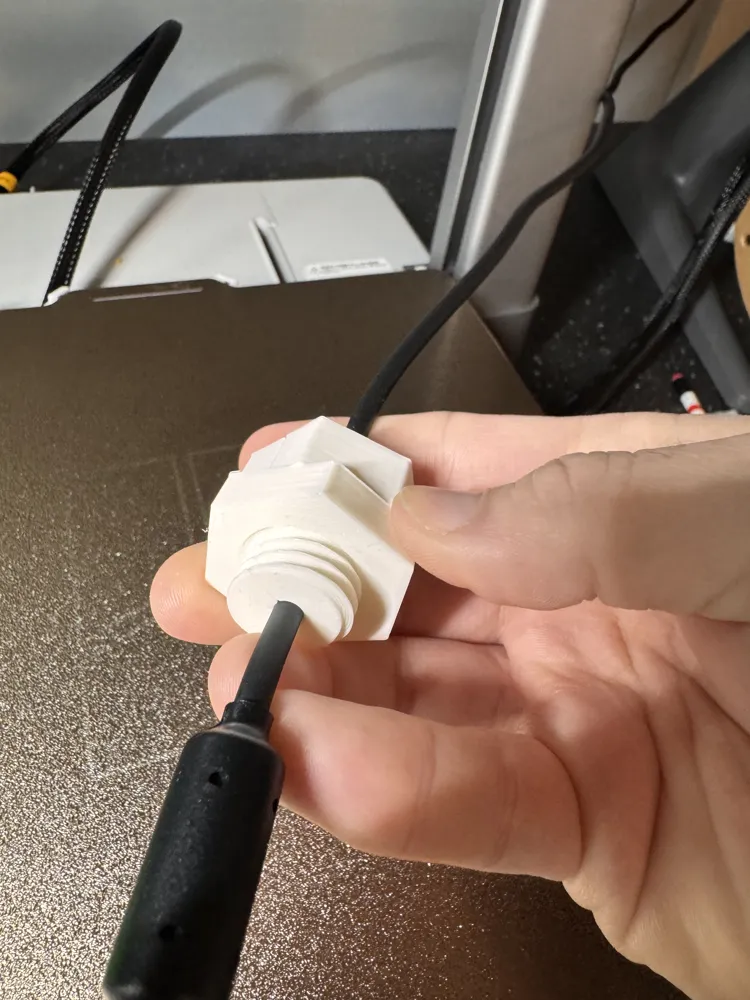

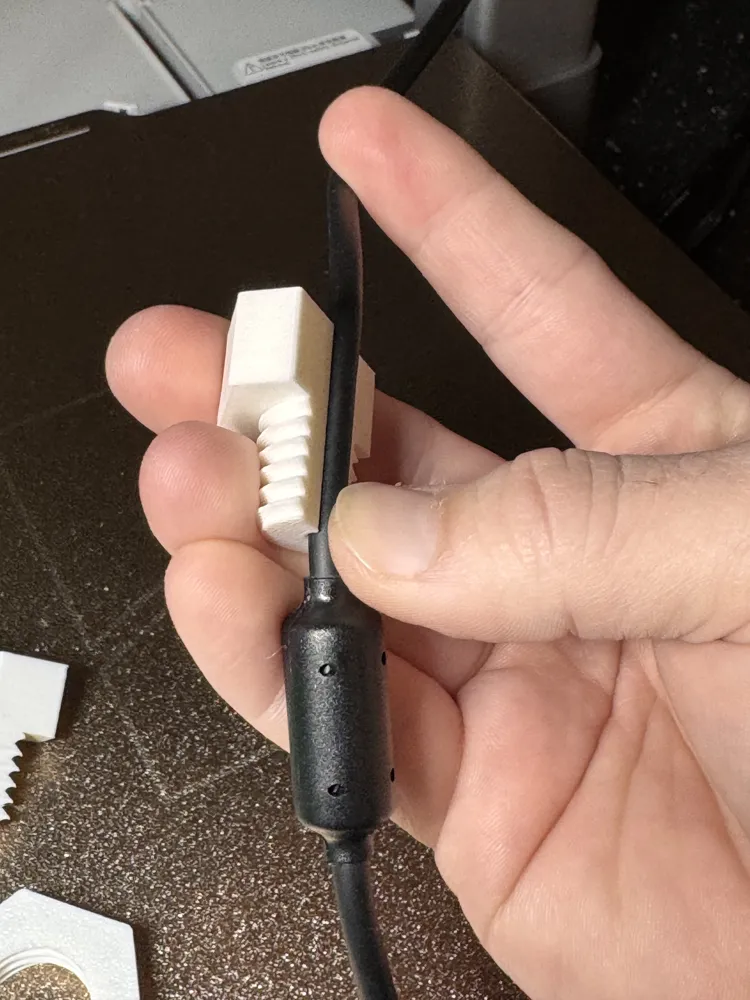

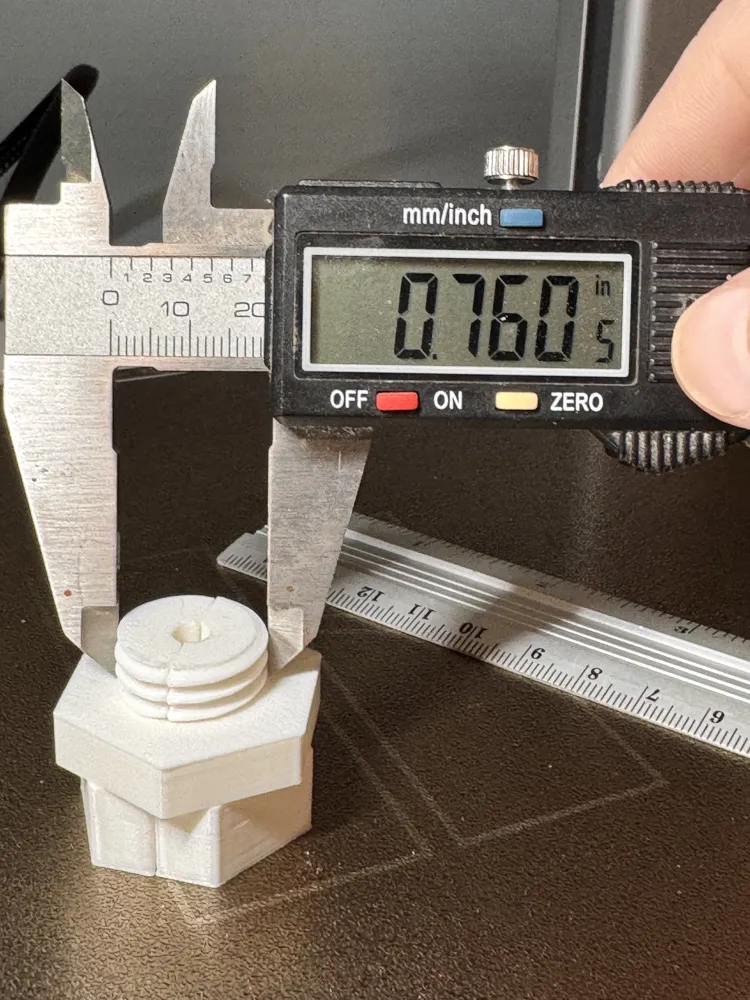

To make the hole, I would cut it slightly larger than the threads. which measure around 19mm or .75" then insert the cable, put the bolt through the hole, and screw on the nut.

 If you have any conerns please let me know in the comments and I will see if I can help! Mine printed in the first go in about 40 minutes using Overature white matte PLA
