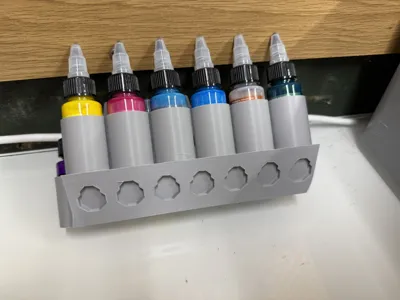

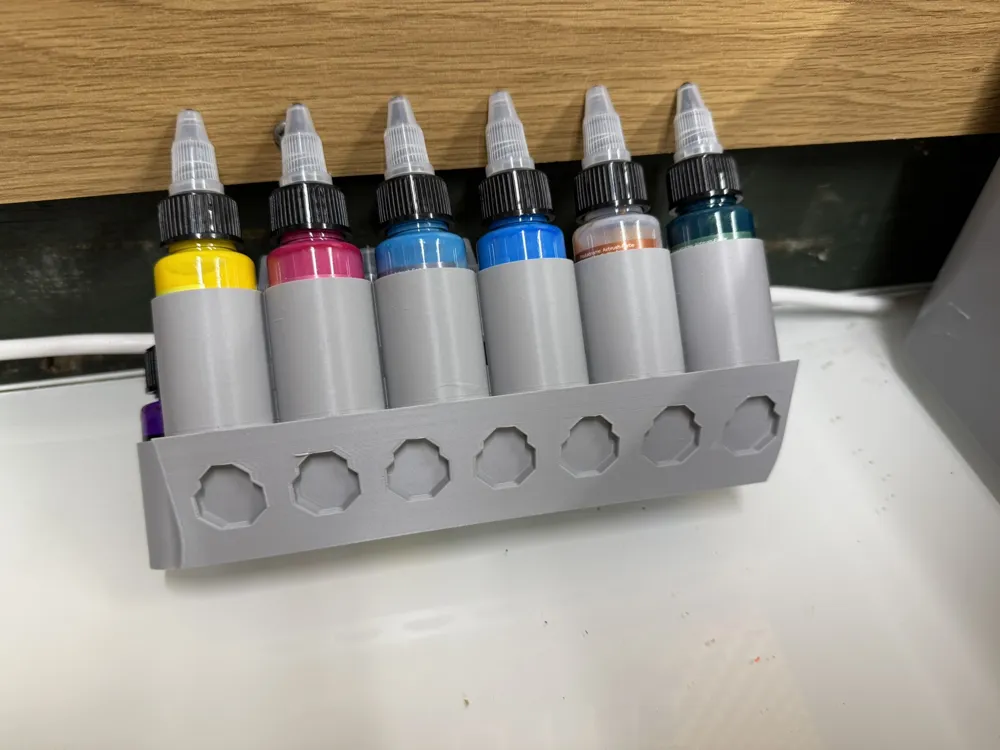

Multiboard MEDIUM 26.5 dia Paint Bottle Holder
Print Profile(1)
Description
NOTE!
I have now designed several of these holders so this text is copied and pasted to each of them so the links work.
The various holders are designed to accommodate bottles in a range of sizes and were originally designed specifically for:
Citadel
Vallejo paint bottles
Army Paint
Amazon style generic acrylic paints like X-Arty
Larger Amazon generic bottles
Thinner bottles
Water squeeze bottles
ETC!
General:
This is a paint bottle holder set designed for the Multiboard system here:
There are several types out there but none seemed to quite fit what I needed.
The design uses the small thread bolt available here:
https://thangs.com/designer/Multiboard/3d-model/Small%20Thread%20-%20Multipoint-1123334
“Small Thread – Multipoint”
This set is suitable for the make or size mentioned but will of course accommodate smaller diameters to a point.
DO NOT SCALE – The sockets at the back must be 25mm apart!
You can evenly stack the system vertically
Very easy to install and can be removed and moved at a later date without damage.
Provides an excellent visual layout to be able to easily view paint colours/labels etc. on all displayed bottles. However as a side affect this unfortunately does mean you will need more space than some other systems.
32mm dia Bottle Version available here:
https://makerworld.com/en/models/2607369-multiboard-32mm-dia-paint-bottle-holder#profileId-2877644
CITADEL 33.5mm dia Bottle Version available here:
MEDIUM 26.5mm dia Bottle Version available here:
LARGE 35mm dia Bottle Version available here:
37.5mm dia LARGE PLUS Bottle Version available here:
NEW! 41mm dia LARGE ++ Bottle Version available here:
https://makerworld.com/en/models/2756451-multiboard-41mm-dia-bottle-holder#profileId-3059234
EXTRA LARGE 200ml, 50mm dia Bottle Version now available here:
62.5mm dia EXTRA LARGE + Bottle Version available here:
https://makerworld.com/en/models/2757780-multiboard-62-5mm-dia-bottle-holder#profileId-3060993
Installation Pointers:

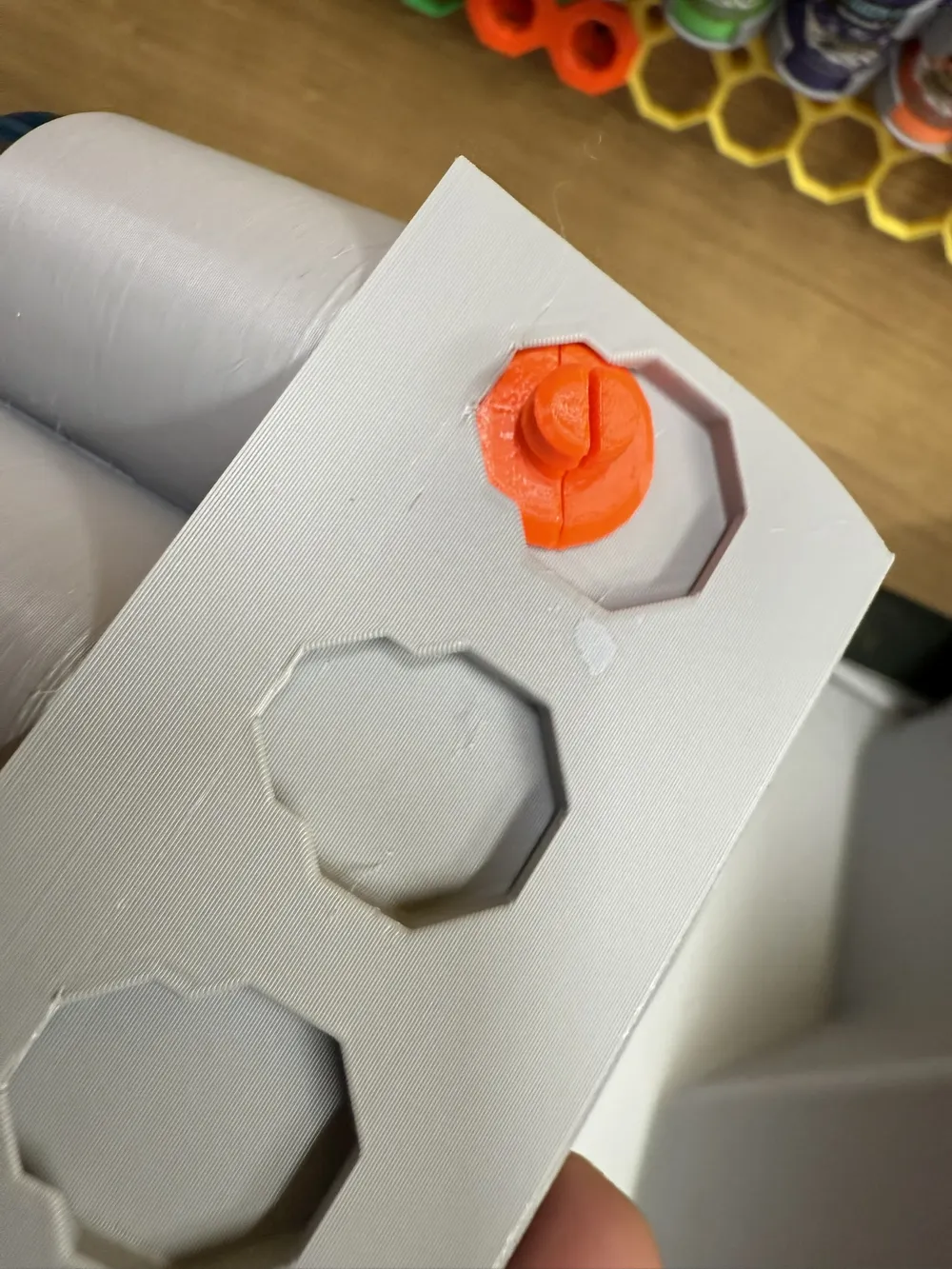

You will need at least two small thread multipoint bolts/screws, link above. On my install I normally use two but think about the weight of a full holder, with full bottles and one of the larger holders it may be worth installing more!
I installed all my bolts finger tight, if the holders don’t slide on easily just loosen the bolts slightly. Check the holder for level when you think it is properly seated.

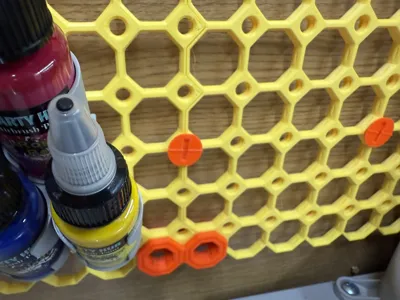

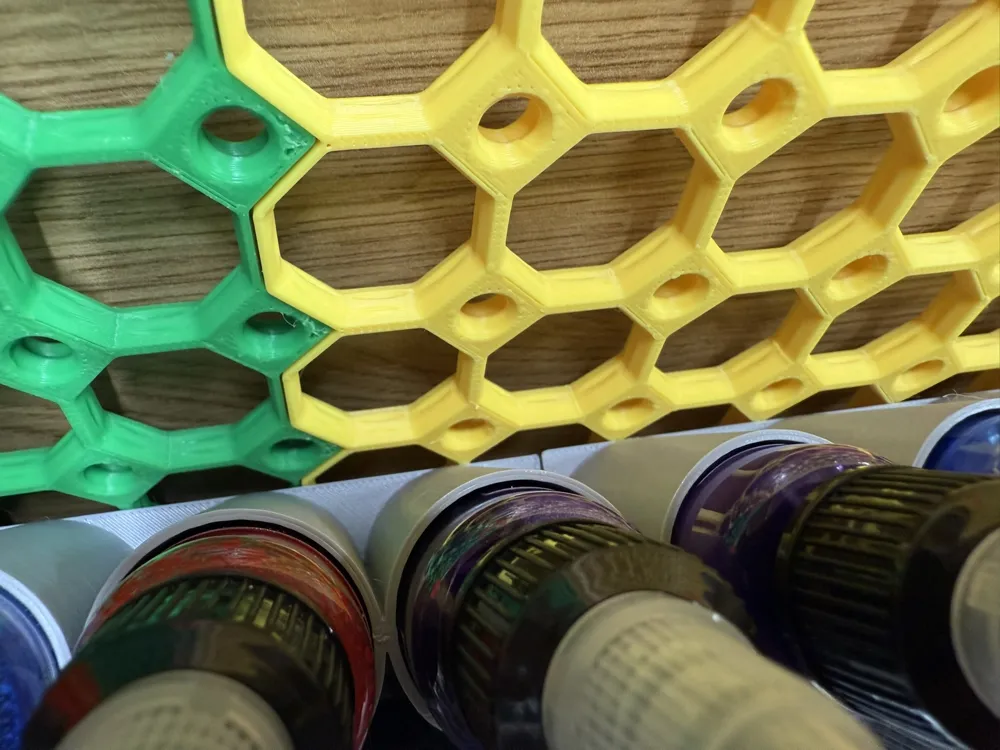

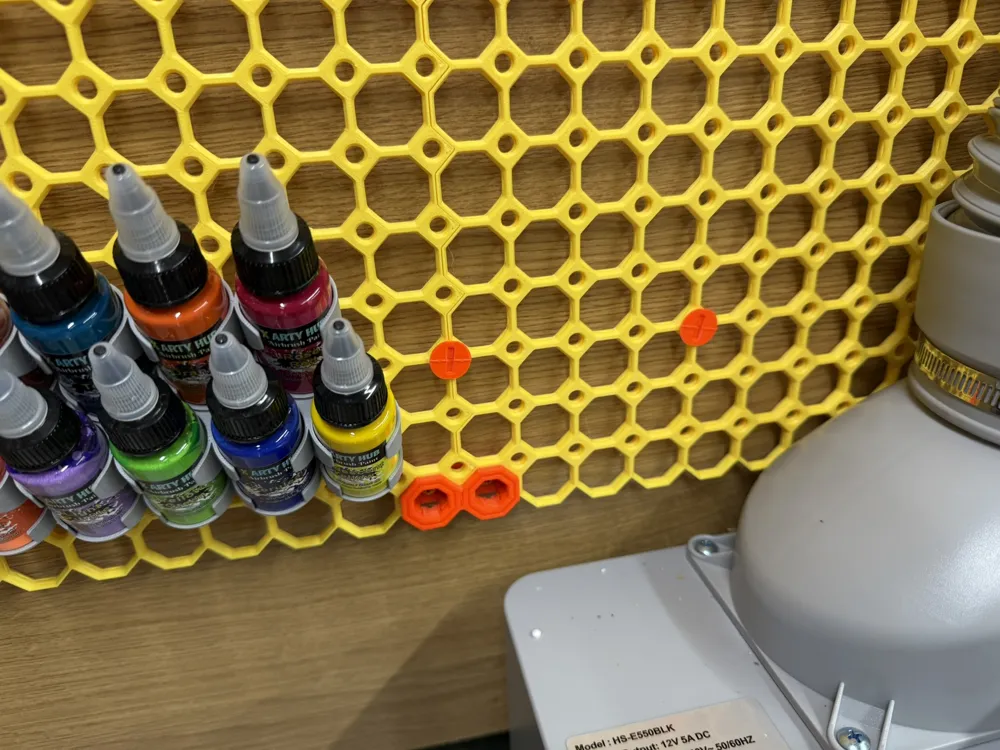

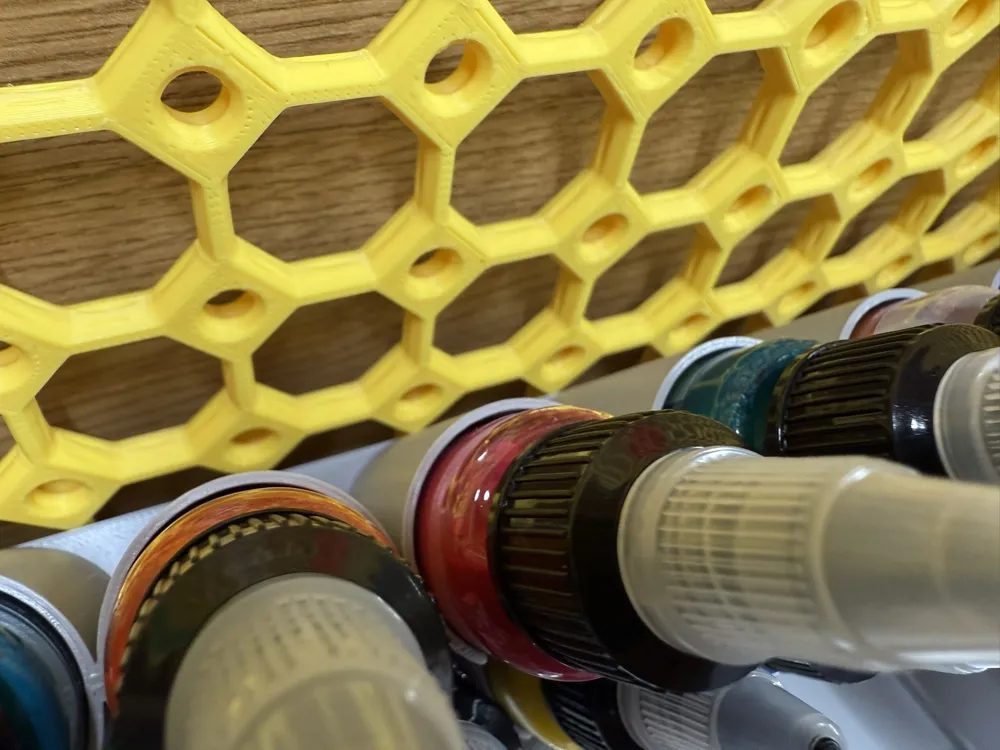

The bolts locate in the small diamonds which are built into the Multiboard main pieces.

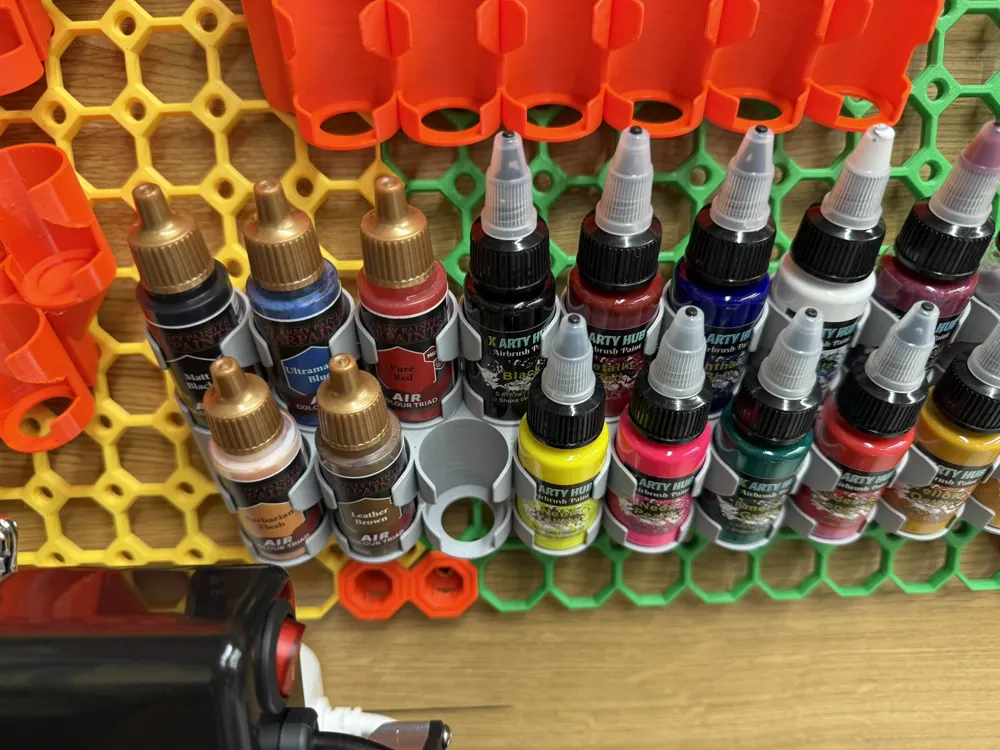

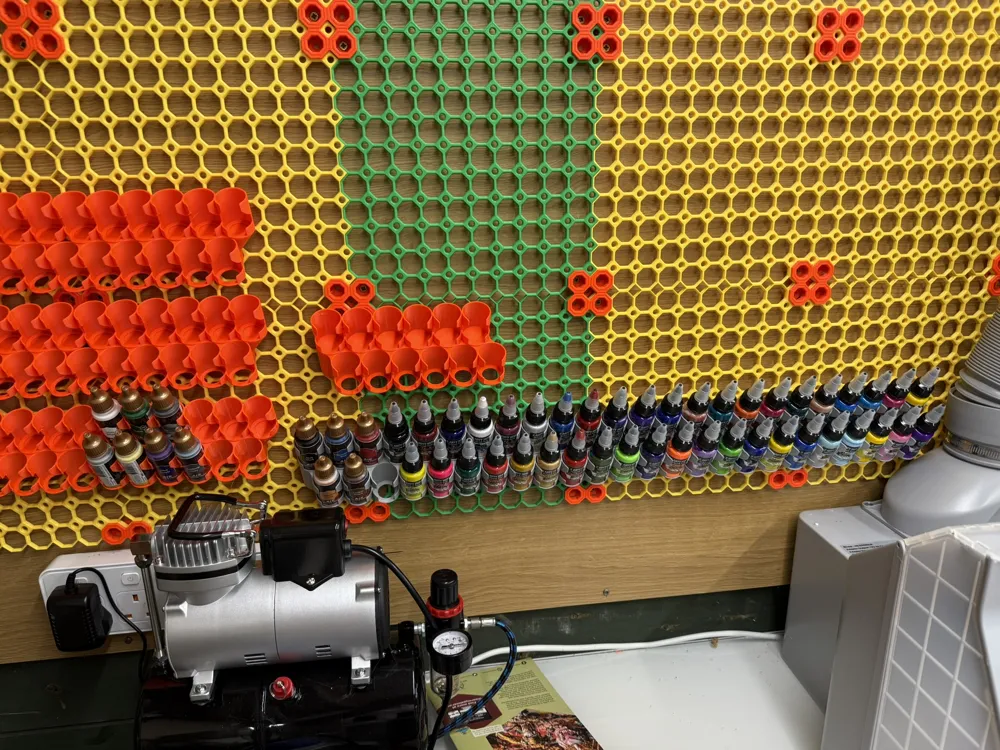

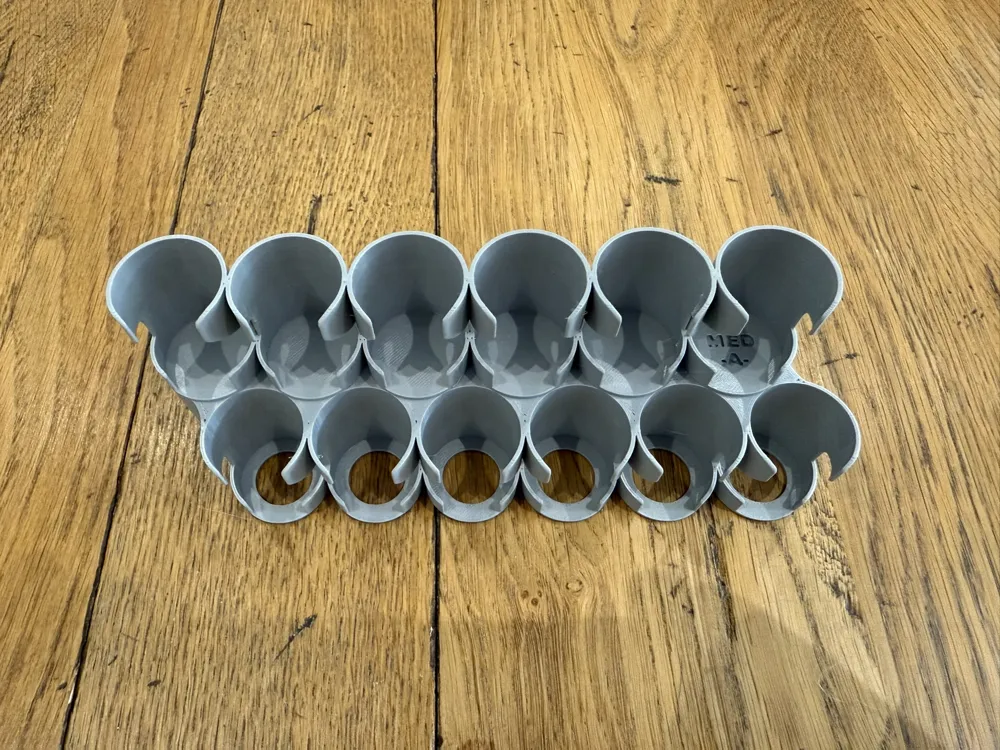

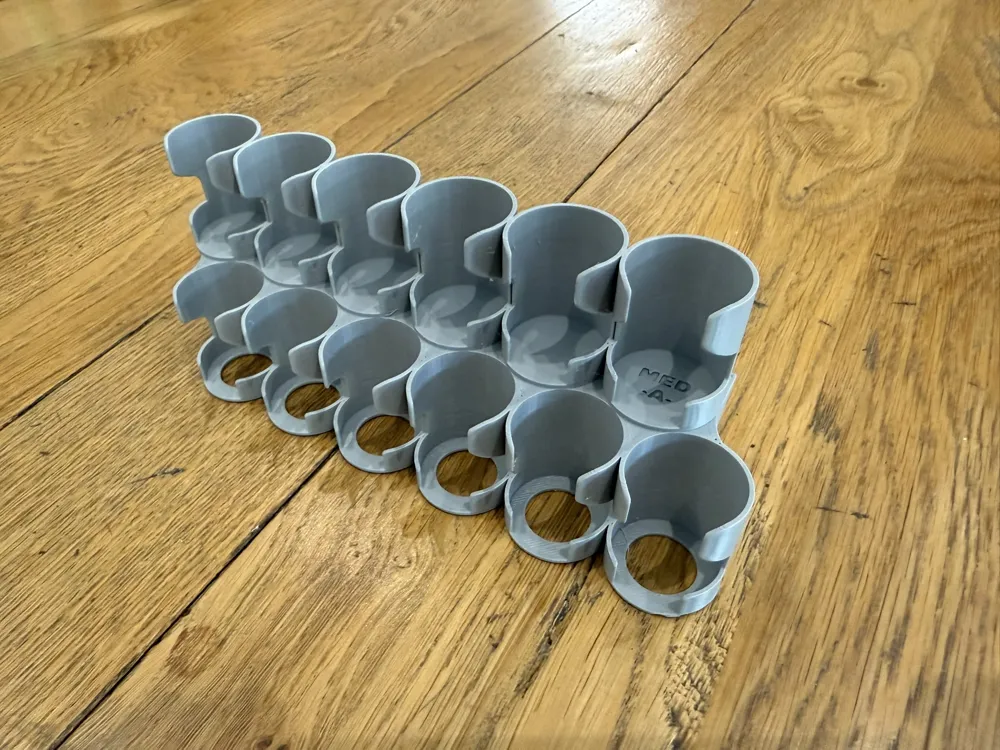

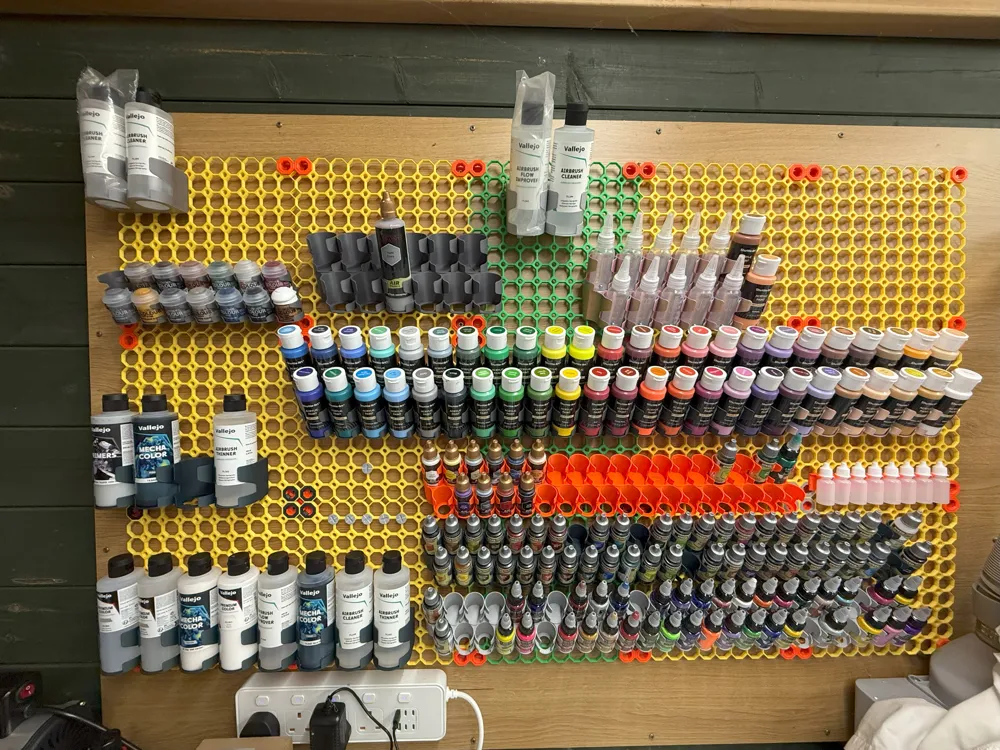

The Holders are labelled “A-Z” (Usually the last holder will be F, G or H). A is the left most holder. If you are wanting to place them together in a line as shown you should in pics start with “A”, then “B” and so on. Note that “A” will not connect to “D”. If you think you might want to expand left, start with B or C (etc.).
If anyone needs even more horizontal holders let me know and I will try to help time allowing.
There is a small overlap so if you want them tight together fit A first, then B (etc.).

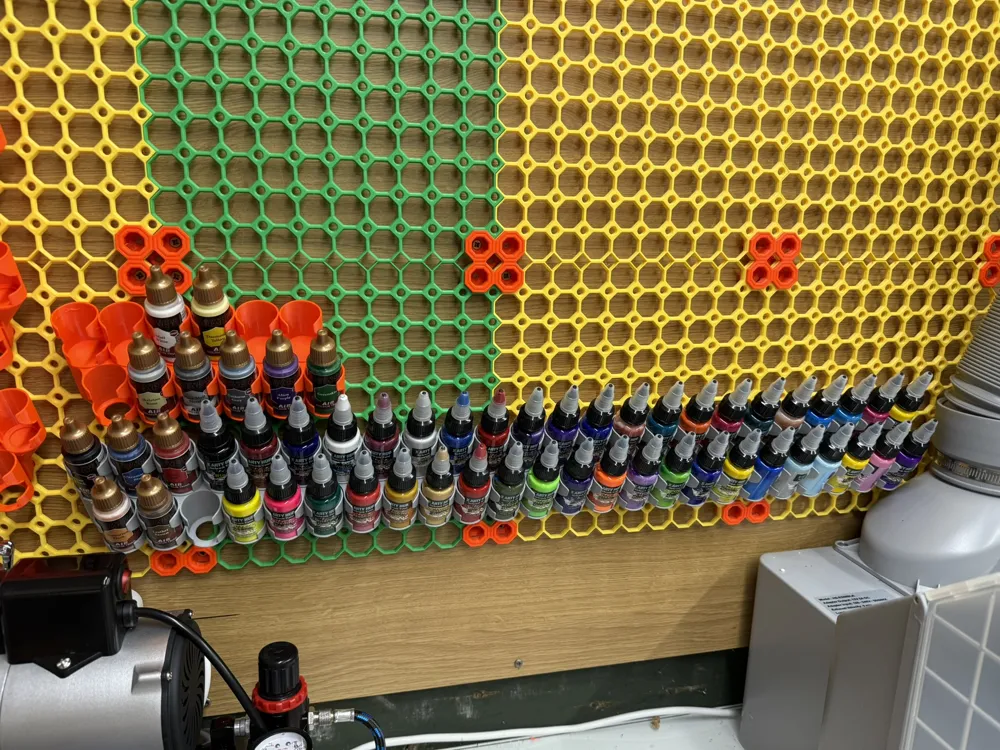

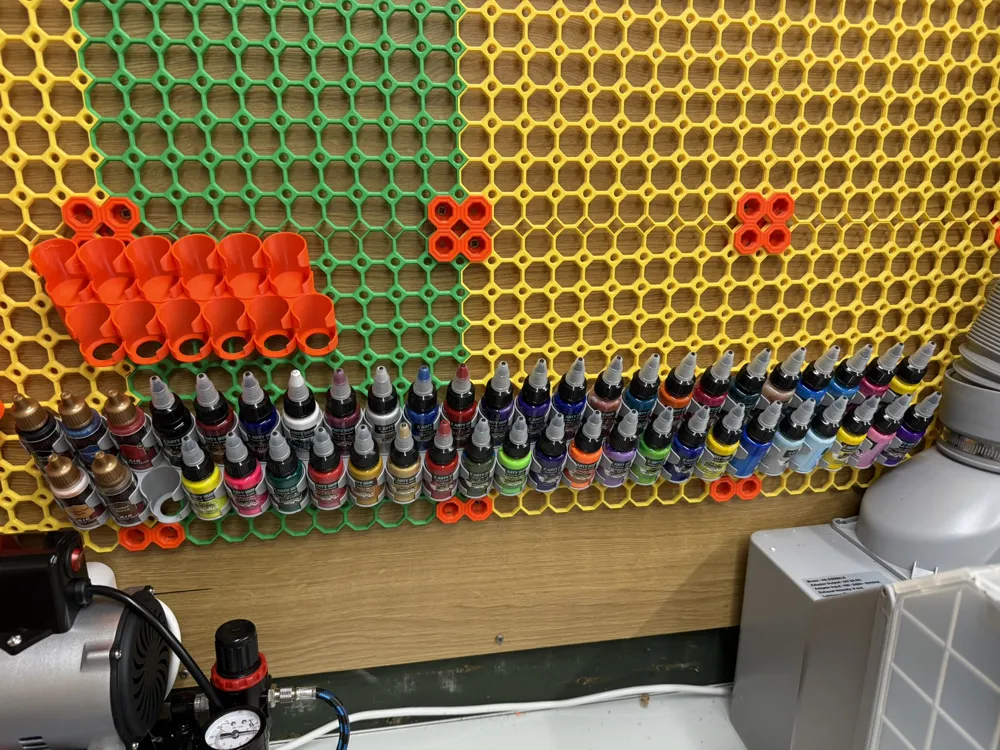

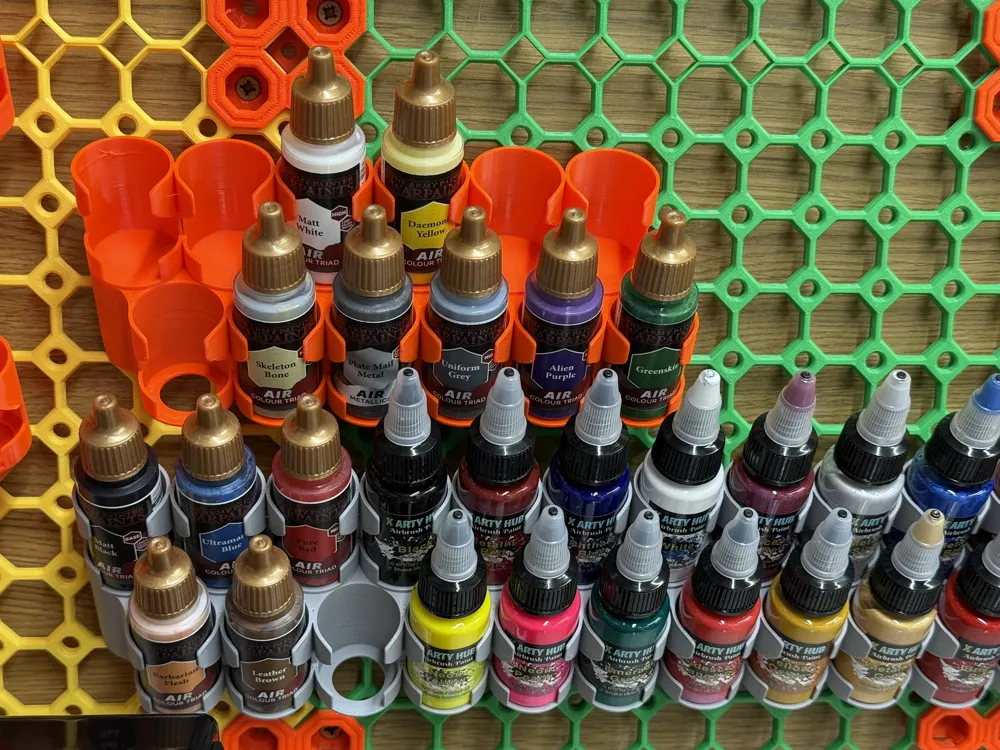

To stack vertically - see the pics.
Printing:
Usually there will be a 3mf file usually designed for an H2D and one or more STL files. If there is only one you will need to load it into your slicer and split the file to parts or objects and then arrange and print the ones you want.
Multiboard recommend 3 wall loops.
No supports are normally needed
PLA or PETG will be fine, PETG is arguably a little better because it will flex if the bottles are tight.
License
You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.
