PSA Slab/ CGC Slab Graded Card Modern Wall Frame
Print Profile(3)
Description
Boost Me (for free)
Best way to show your appreciation is a boost! (You'll get more, I promise!)
One piece display frame for PSA/CGC graded cards. I've only tested with the standard sized slabs.
AMS required to print in 2+ colors
Ironing settings should be adjusted to your preferences.
Supports are not needed, but printing the center support helps the inner bezel to print cleaner.
Profile 1 Is meant for most colors other than white as the inside color (Secondary). Because it uses less layers, white bleeds through. The material difference is marginal.
Profile 2 is meant for white as the inside color (Secondary), it uses 6 layers of white and as shown in the profile's picture, it prevents the color bleed. If you're unsure about how your color will print, I'd recommend using this profile.

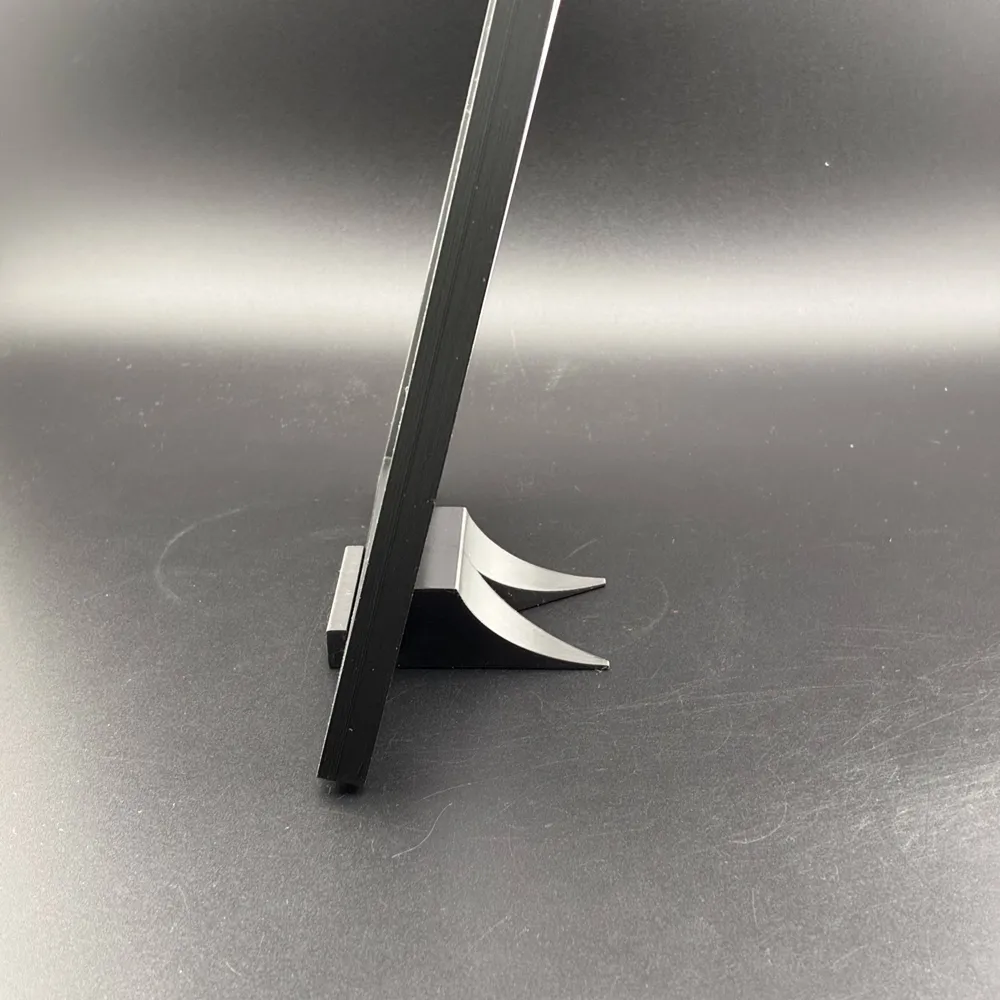

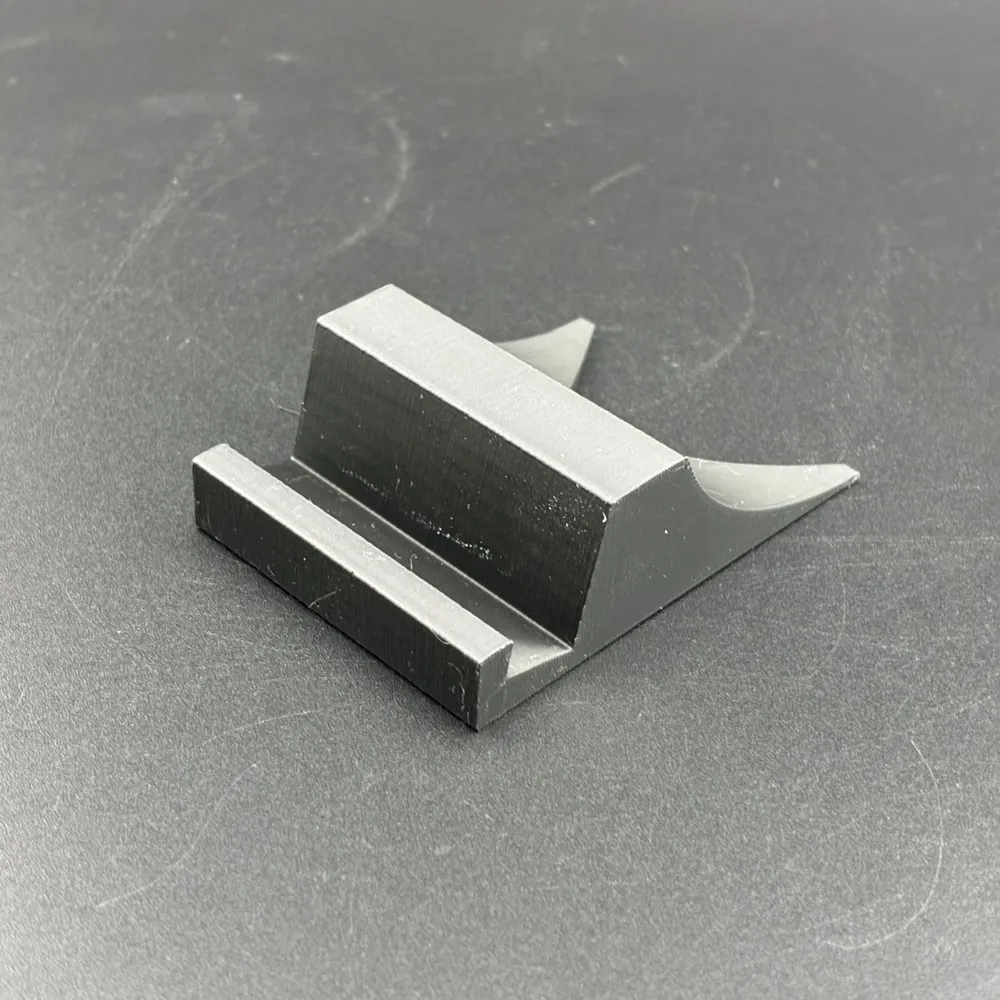

Profile 3 is just the stand. It holds the frame to slant back ~12*. No supports needed. I prefer it printed on its side, but prints well either orientation.

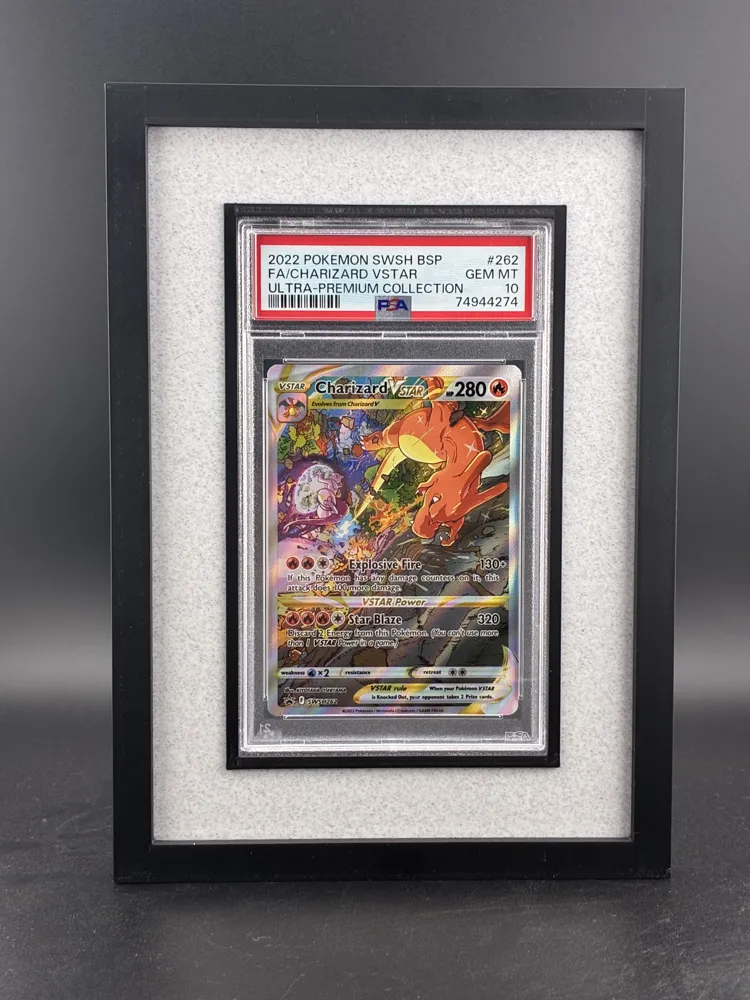

Slab just presses in and can be pushed out through the front to remove it. (Press slowly by the corners to insert/remove)
Overall dimensions (LxWxH): 194mm x 138mm x 9mm
If you enjoy it, please post pictures! This is my third version of the frame. If this one gets enough support, I'll release the version that doesn't require an AMS.
Not for resale/mass production without written consent.
