Miele Washing Machine Door Prop

Print Profile(2)

All
P1S
X1 Carbon
H2D
A1
X1E
X1
P1P
H2D Pro
H2S
P2S
H2C
X2D
A2L

0.16mm layer, 2 walls, 15% infill
0.16mm layer, 2 walls, 15% infill
Designer
46 min
1 plate
4.8(6)

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
46 min
1 plate

Open in Bambu Studio
Boost
63
261
7
1
213
165
Released

Description

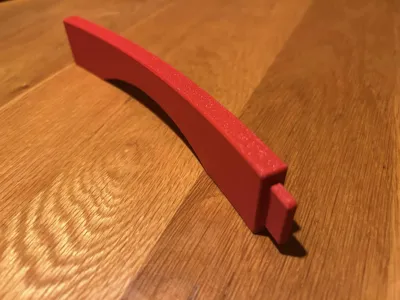

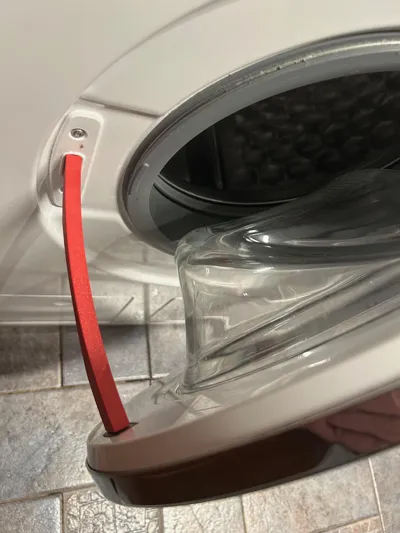

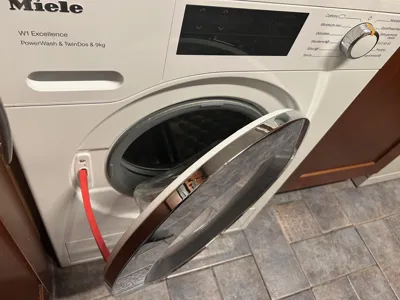

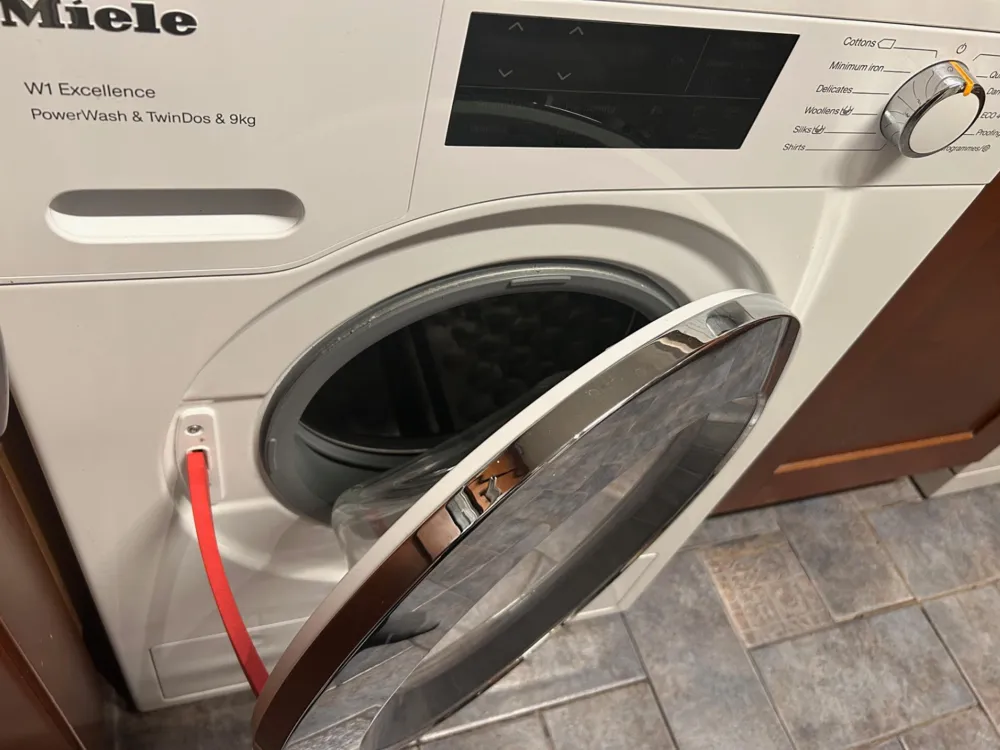

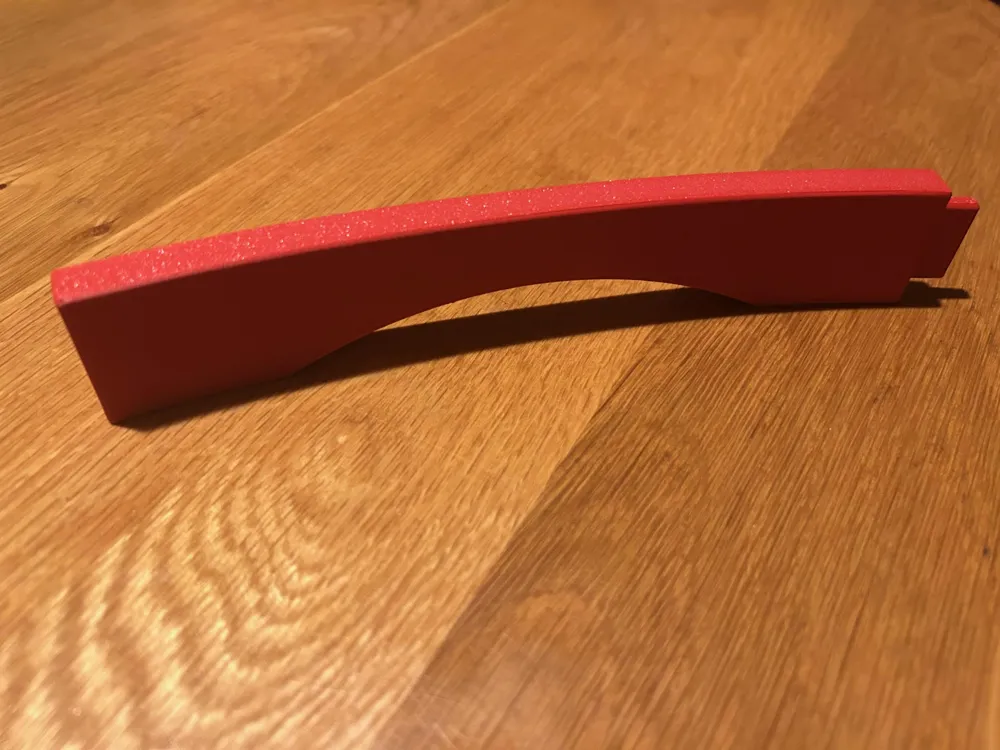

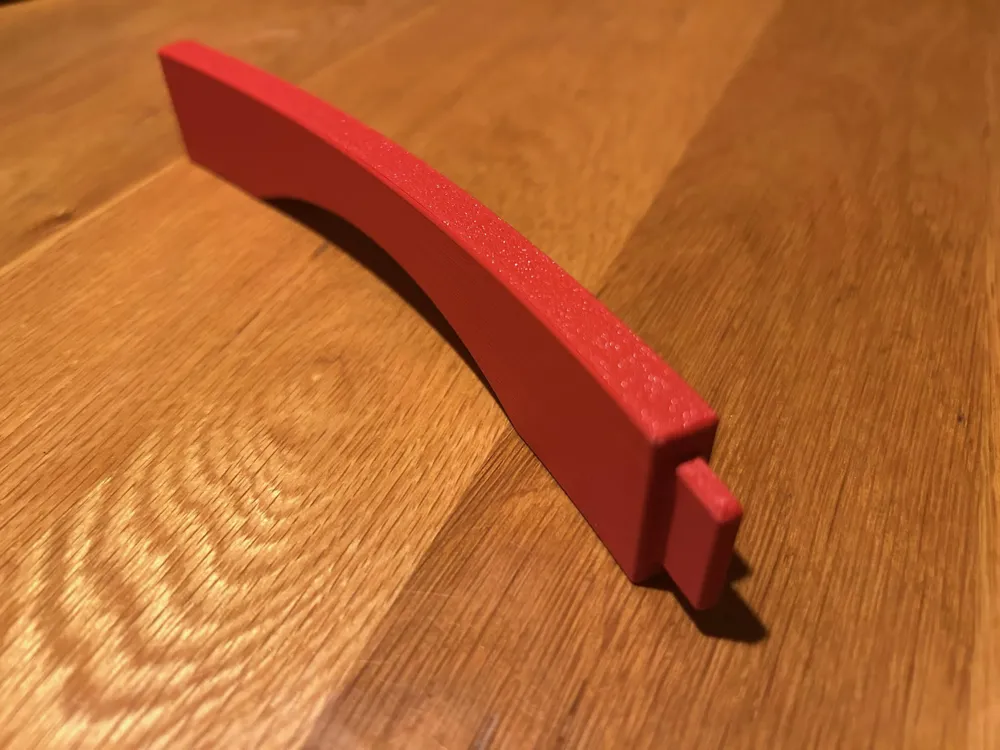

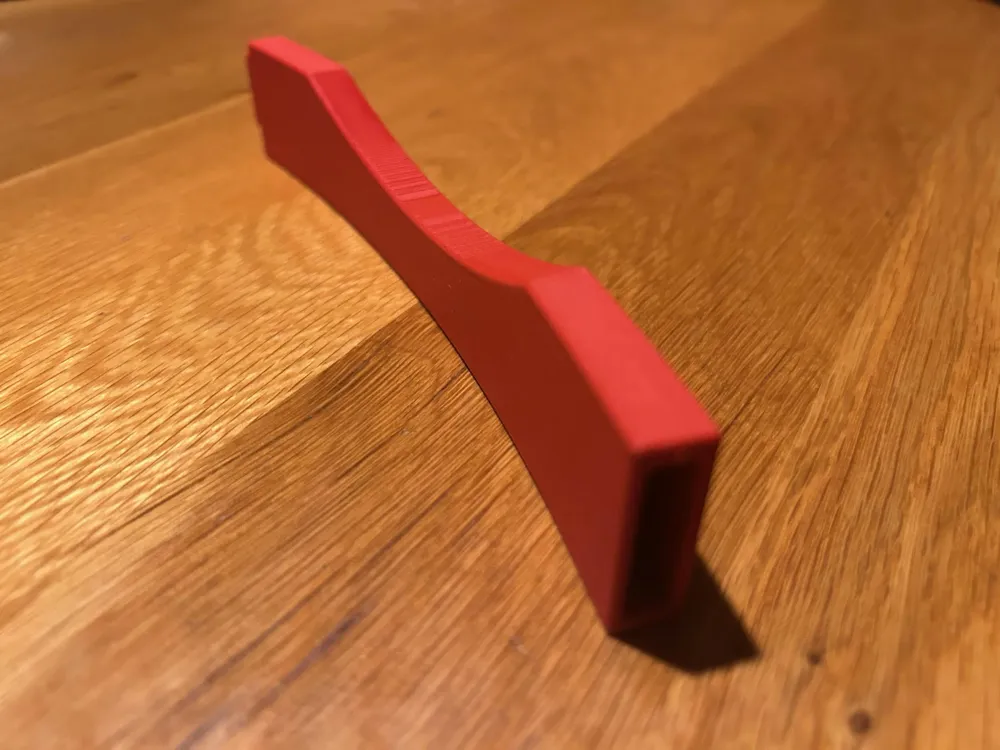

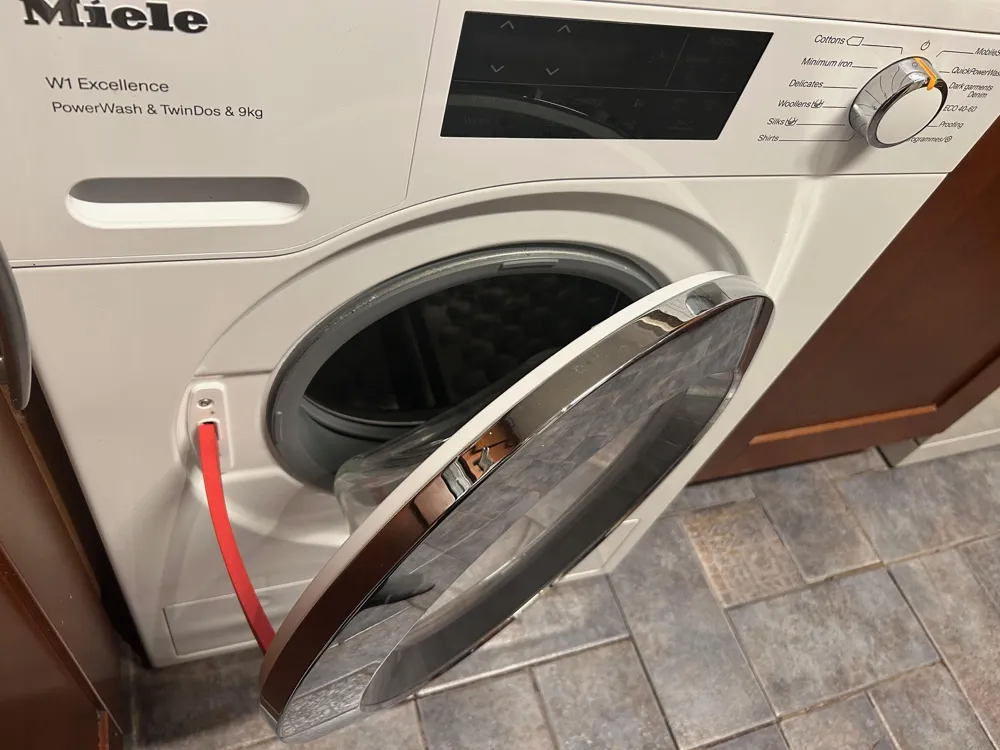

Simple prop to keep door of Miele washing machine slightly open when not in use.  This is recommended to prevent growth of biofilm and mould on the door seals.  I only started using CAD software (Siemens Solid Edge) today and this is my first model and a version 1: very simple, a slightly loose fit, but it works well enough.  Possible improvements for a version 2 would be to add magnets and to adjust the dimensions for a slightly tighter fit.  Example shown, printed in Bambu Matte PLA on P1s with tree supports for peg and hole - easily removed.  Will work on left or right hinged door as is, or can be mirrored to suit your preference for the location of the curved cut out when fitted.
