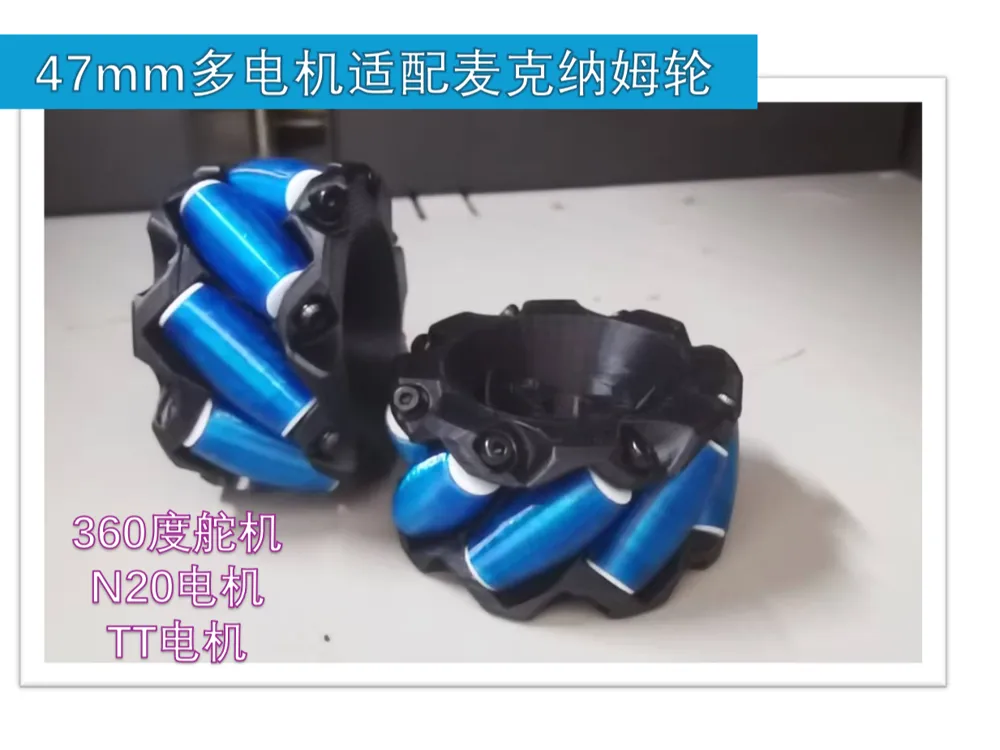

47mm Multi-Motor Adaptable Mecanum Wheel (Mecanum)

Project Inspiration:

Recently, I've been making things with the Bambu Lab CyberBrick kit, thinking of using four 360-degree servos to create an omnidirectional car with Mecanum wheels,

the Mecanum wheels on Makerworld are either too large or too complicated to assemble, so this 47mm diameter Mecanum wheel came about,

Currently compatible with three common motor types:

1、360-degree 9g servo; 2、N20 motor; 3、TT motor

If you need to adapt to other motor types, please leave a message in the comment section and let me know

Assembly:

In addition to the printed parts, you will also need to prepare:

1、Electric screwdriver

2、M2*28 hex screws*32 pieces

3、M2*12 hex screws*3

Special Note:

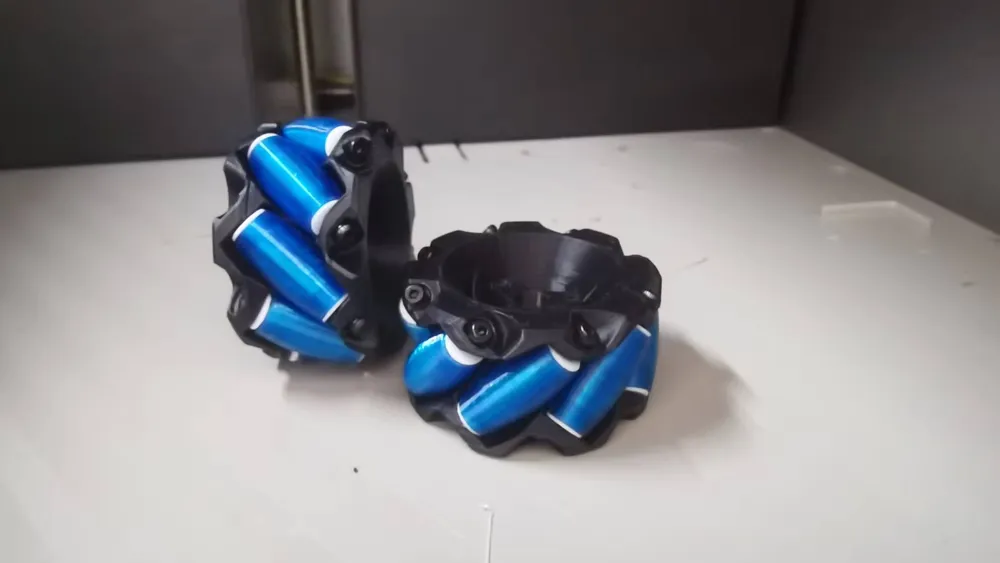

Assembly is very simple; the Mecanum wheel mainly consists of a hub, rollers, and motor connectors. Different motor connectors adapt to different motors,

all hubs are the same. To use with different motors, simply print different motor connectors
