Pocket-Sized Canadian Coin Holder
Print Profile(4)
Description

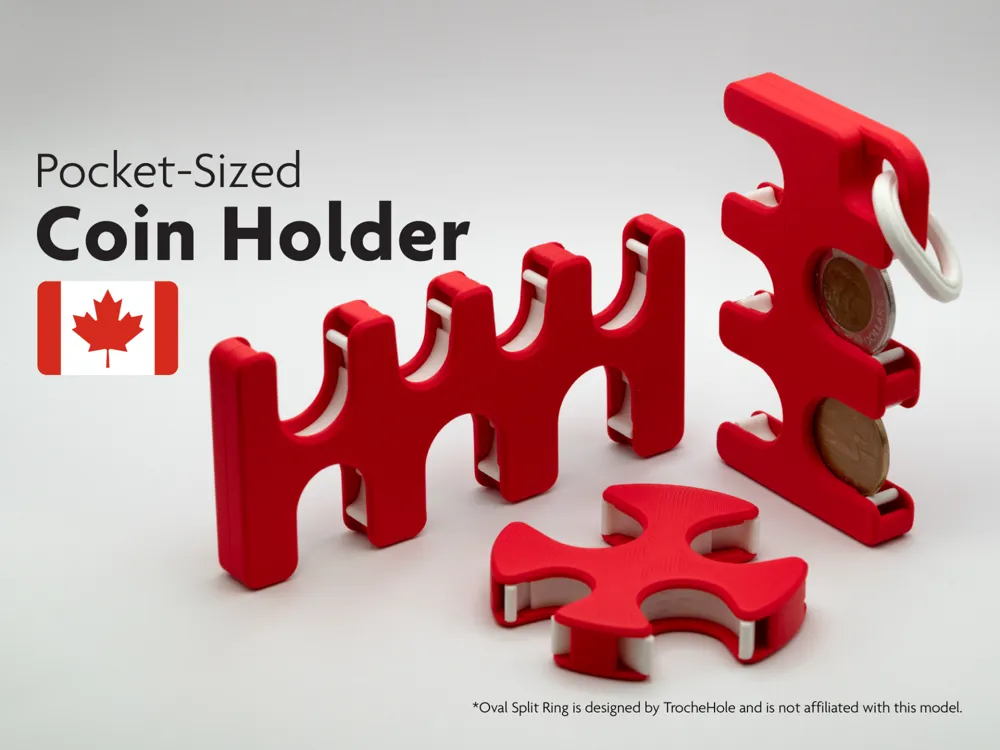

A pocket-sized coin holder for CAD coins, providing quick and easy access.
The model consists of 3 parts: a bottom cover, a top cover, and a frame.
All parts are held together through a friction fit; no supports or additional hardware are necessary.
Design for the grip mechanism inspired by Rick's Pocket coin Holder (HKD).
Design for the Oval No.5 Split Ring by TrocheHole is not affiliated with this model.
Specifications

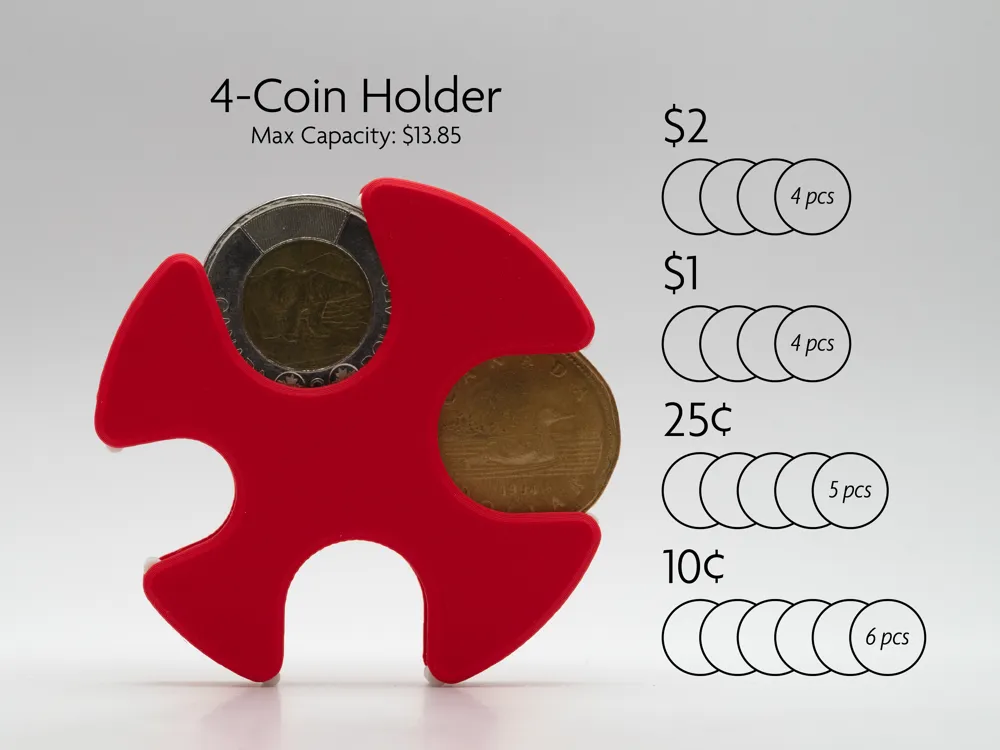

4-Coin Holder
Max Capacity: $13.85
Weight at Full Capacity: 106.31 g (3.75 oz)
Dimensions: ∅ 66.39 mm x 12 mm (∅ 2.61 in x 0.47 in)

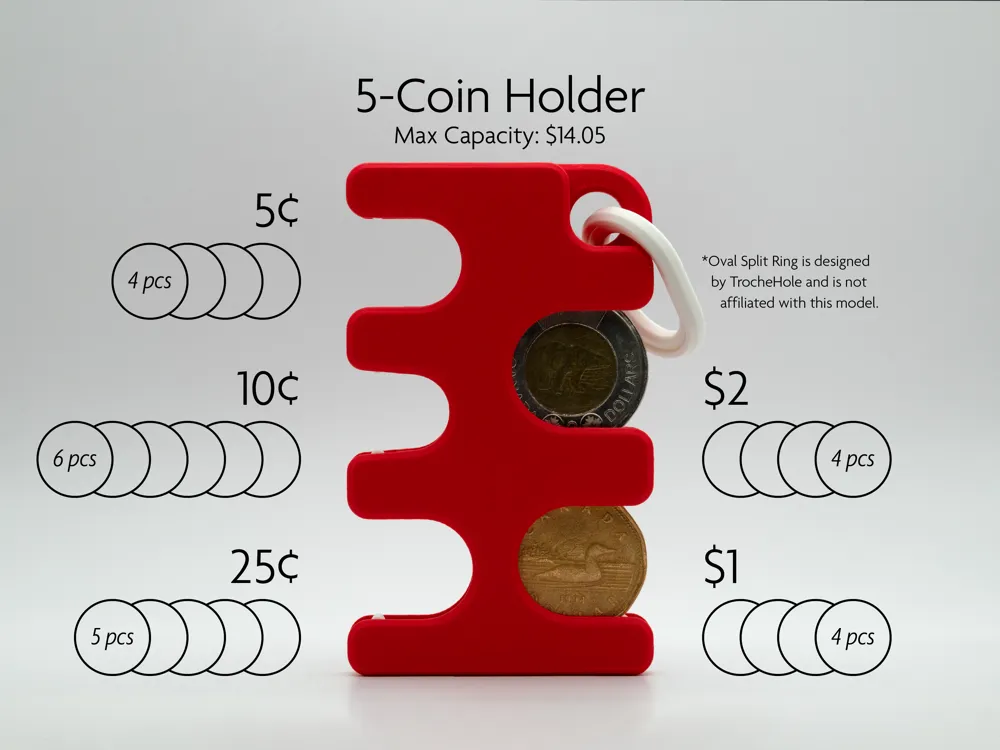

5-Coin Holder
Max Capacity: $14.05
Weight at Full Capacity: 130.91 g (4.62 oz)
Dimensions: 92.01 mm x 55 mm x 12 mm (3.62 in x 2.17 in x 0.47 in)

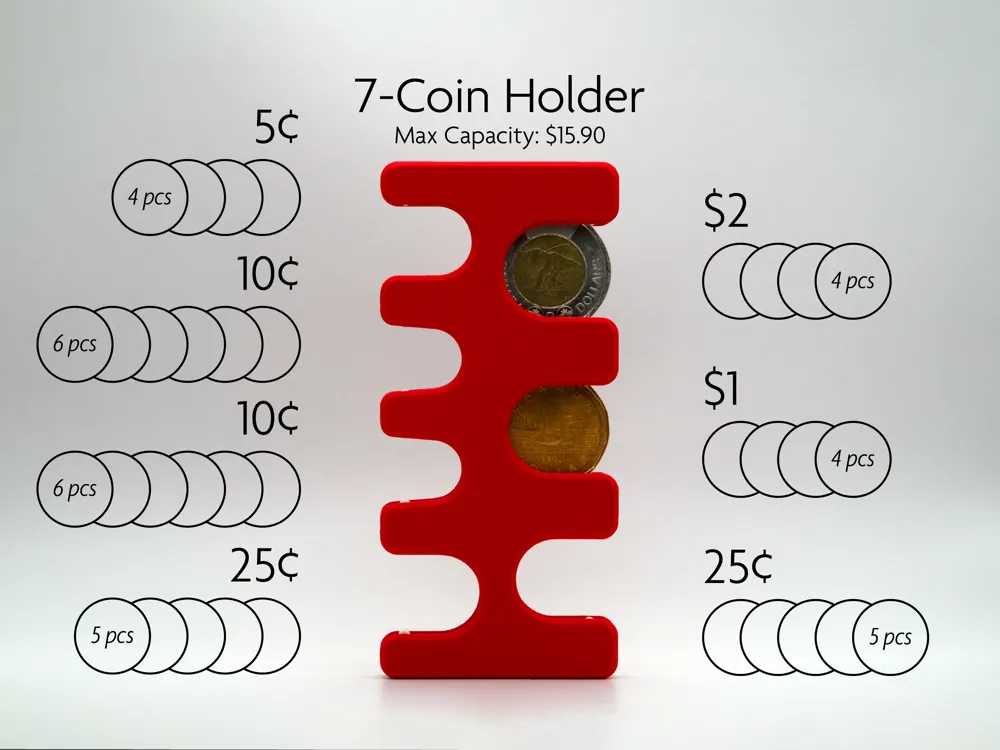

7-Coin Holder
Max Capacity: $15.90
Weight at Full Capacity: 169.5 g (5.98 oz)
Dimensions: 117.24 mm x 54 mm x 12 mm (4.62 in x 2.13 in x 0.47 in)
Assembly Instructions
Wait until the print has fully cooled before removing it from the build plate to prevent warping.
- Identify the respective bar and slot orientation on the frame and covers for proper alignment.
- Snap the bottom cover to the frame, pushing down on the pegs.
- Snap the top cover to the frame, pushing down on the pegs.
Coin Holders for Other Currencies
Disclaimers
Designed with 0.2 mm tolerances and printed in Bambu Lab Matte PLA on a Bambu Cool Plate SuperTack.
I recommend printing the frame in a dark filament to reduce the visibility of scuffs from the coins.
I have not personally verified the holder at max capacity, since I do not have all of the coins.
Boost Me (for free)
If you enjoyed the model, any contribution is greatly appreciated.
