Description

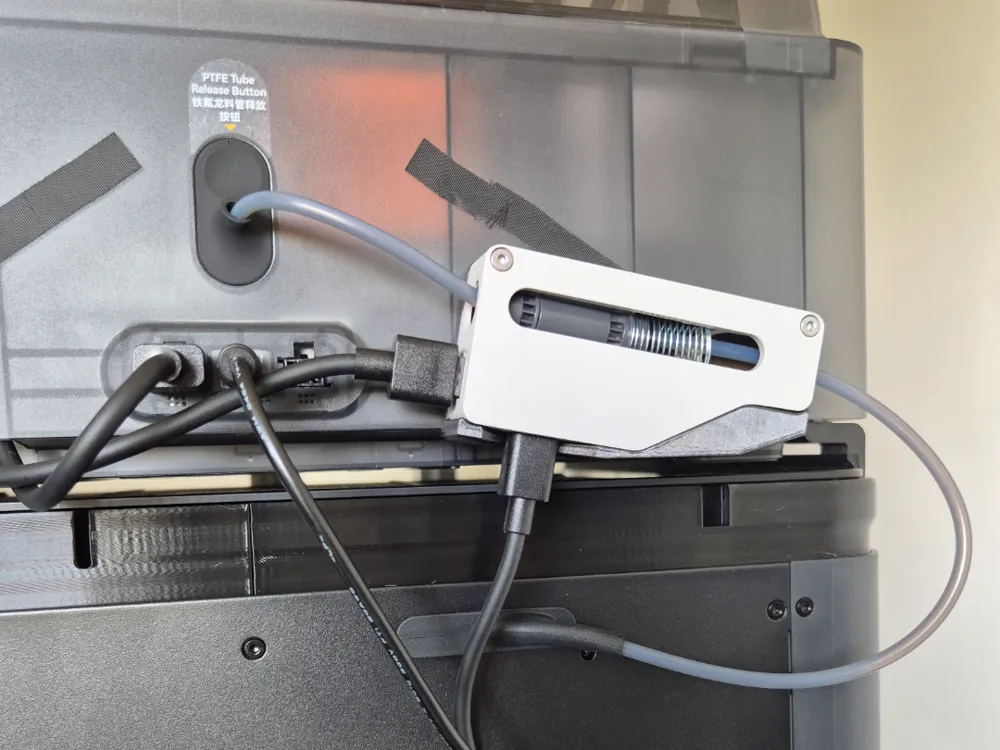

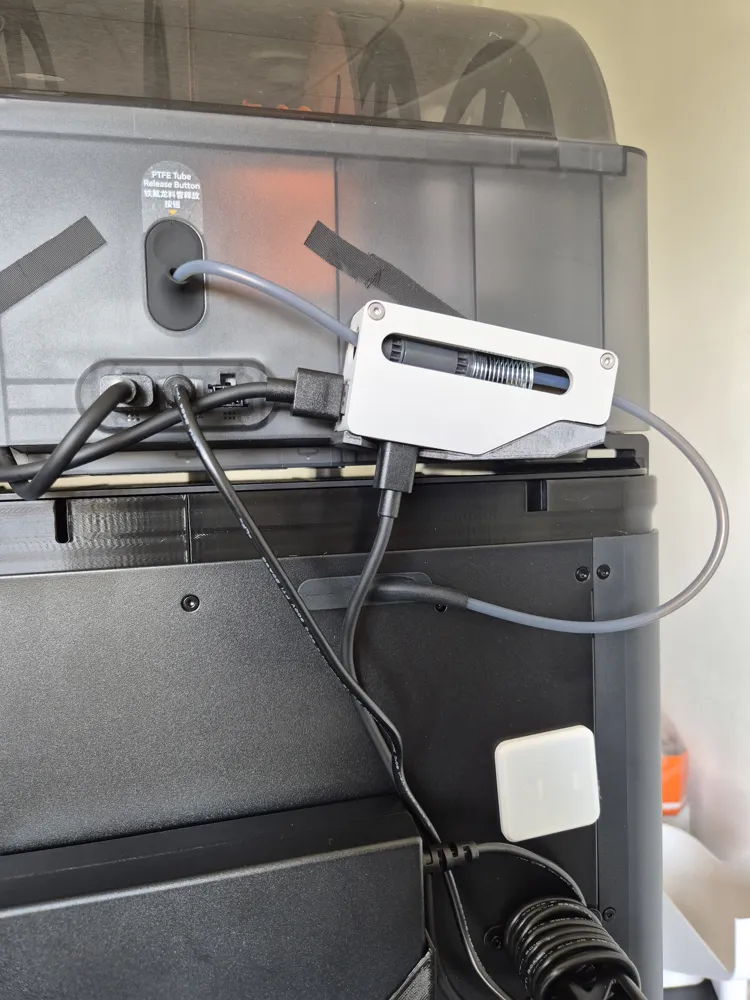

I wanted to relocate the AMS buffer to speed up filament change and load time.
Like many others I already have a riser installed, so i modelled my relocater to fit even of the AMS is sitting higher.
The wire for the buffer will stop the top glas for sliding all the way back, but it will have about 10 cm of travel.
For installing:
- Clip the relocator on the back of the AMS 2 pro.
- Adjust the length of the ptfe tube from the AMS to the buffer - make sure it doesn't have turn to hard.
- Adjust the length of the ptfe tube from the buffer to the printer - again, no hard turns.
- In the printer presets inside Bambu Studio - edit “filamant load time” and “filamant unload time” to about 15 sec.
So far i have done over 1000 filament changes with no issues.
Enjoy printing and saving time on filament changes!
