Door opener: pulley and counterweight system.
Print Profile(1)
Description

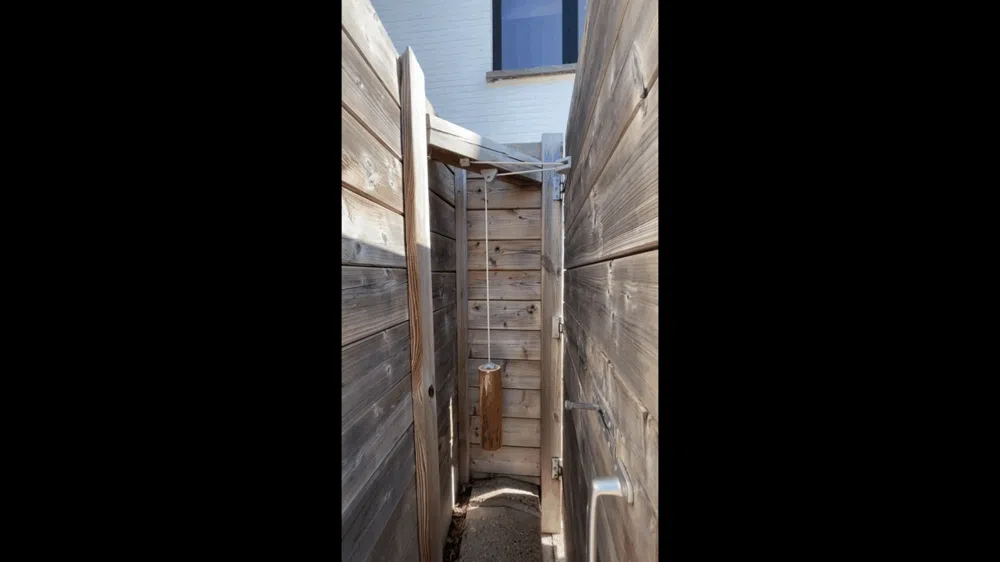

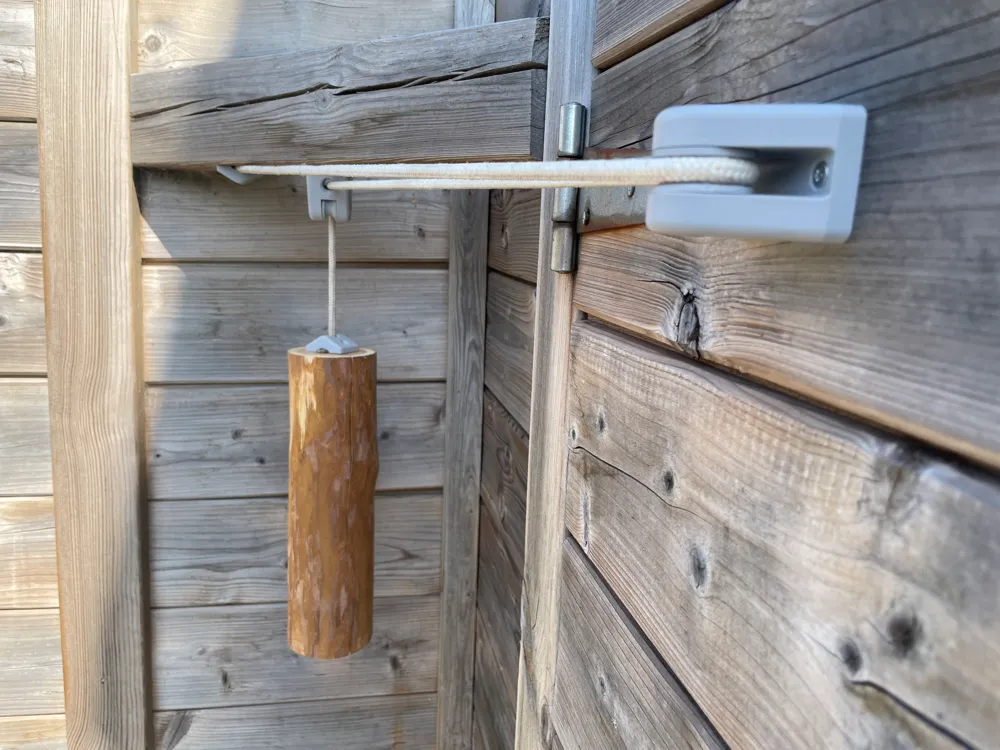

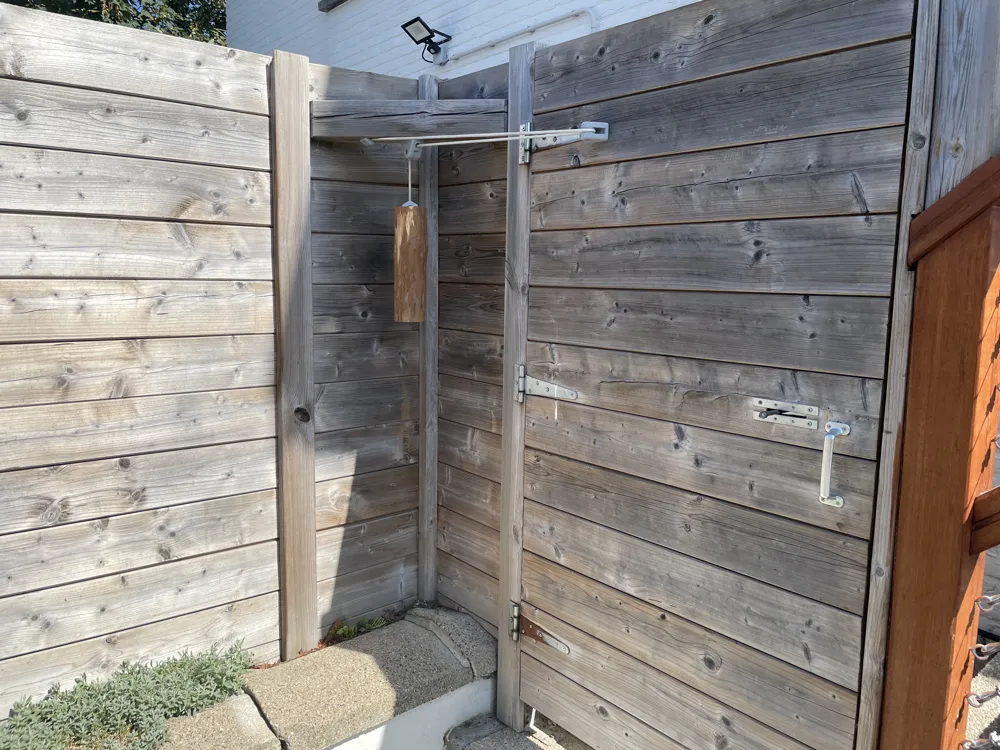

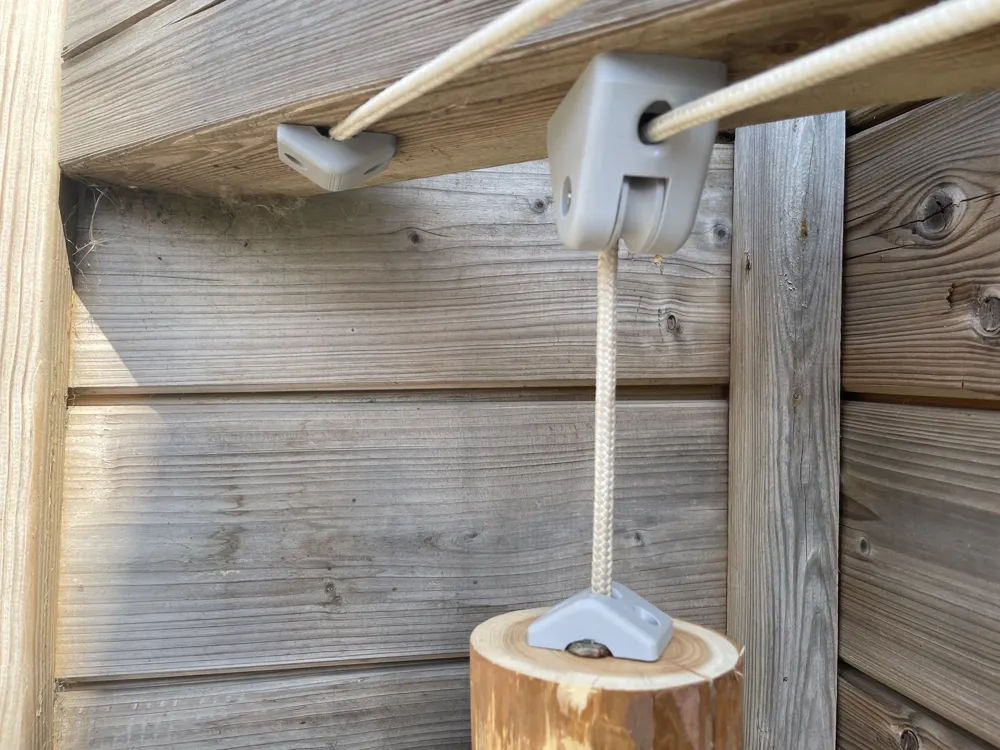

Door (and hatch) opener with a pulley and counterweight system.
my use case is to make sure the door stays open when it is not properly locked. A door that seems closed but isn't locked can create a dangerous situation with dogs escaping on a busy road.
Keeping an attic hatch open might also be a useful application.

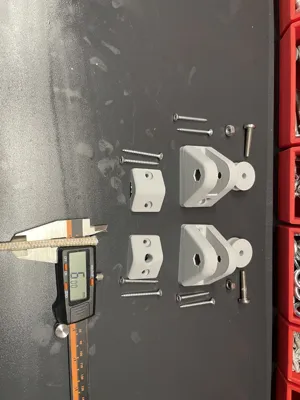

Hardware needed:
- 8 3.5mm screws (20 to 30 mm long)
- 1-2 m 6mm nylon rope (depending on your usecase)
- 2 M6x30 bolts (panhead or Allen bolt)
- 2 M6 nuts
all in A2-70 stainles steel or zinc plated steel.
