「250828 Updated a blender source file.」

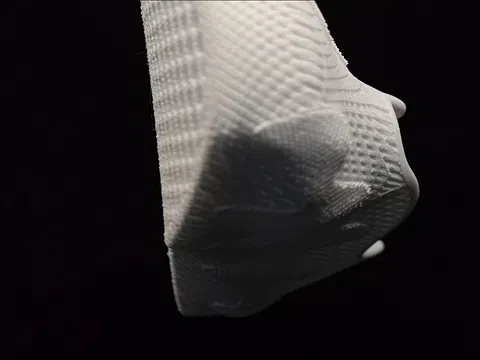

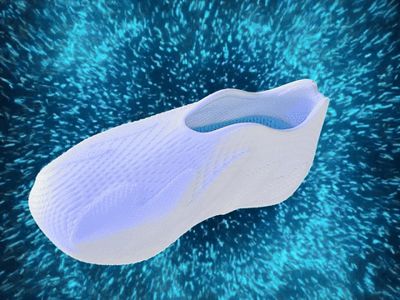

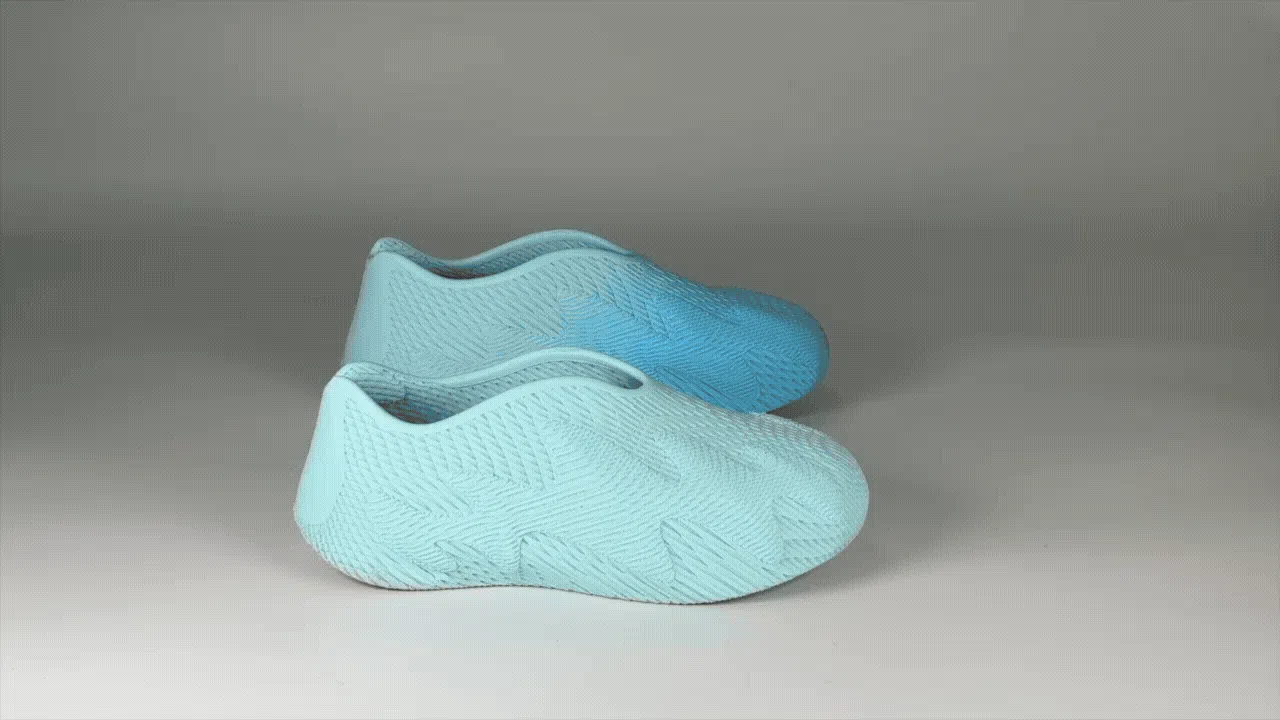

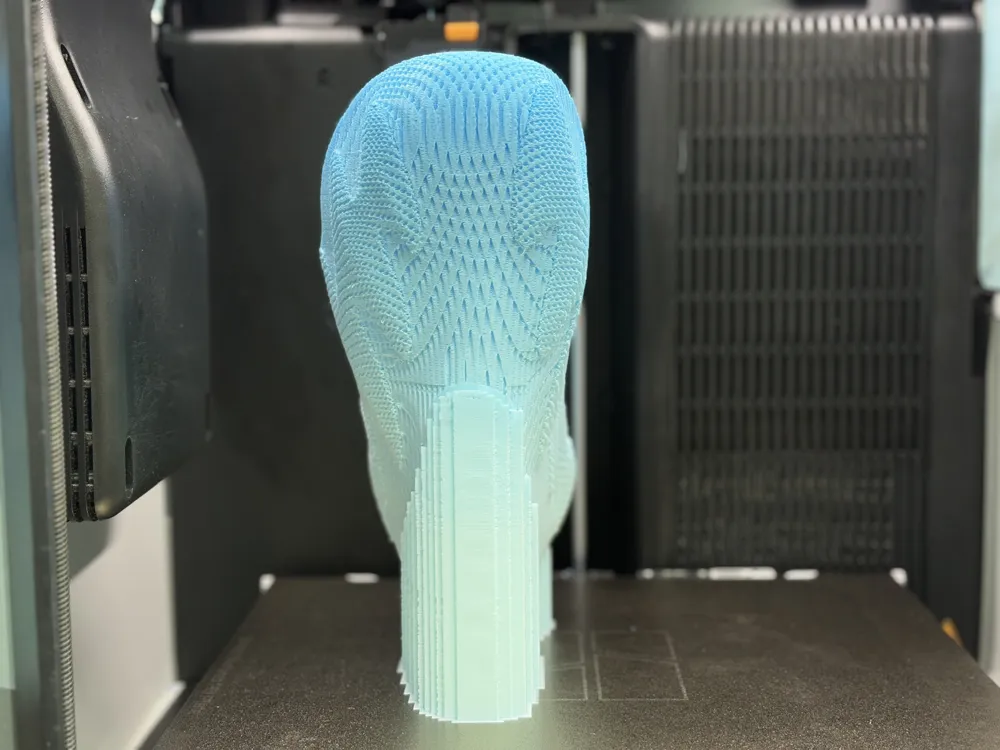

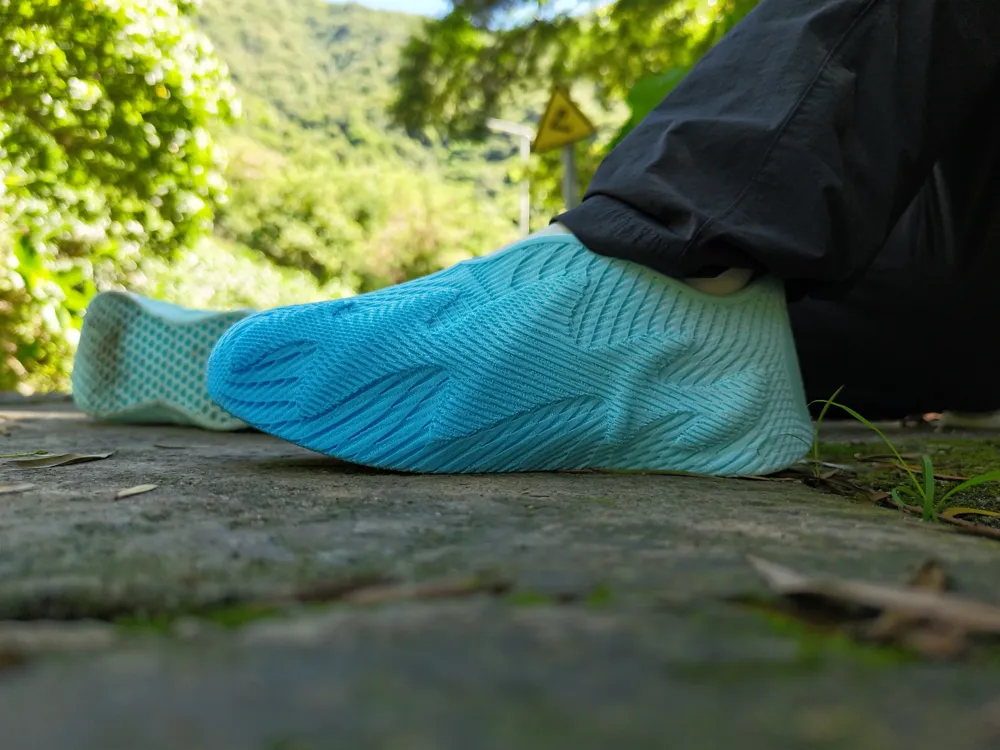

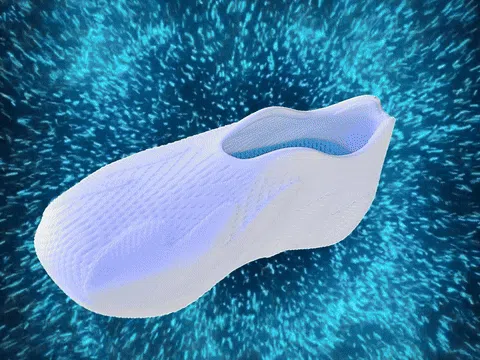

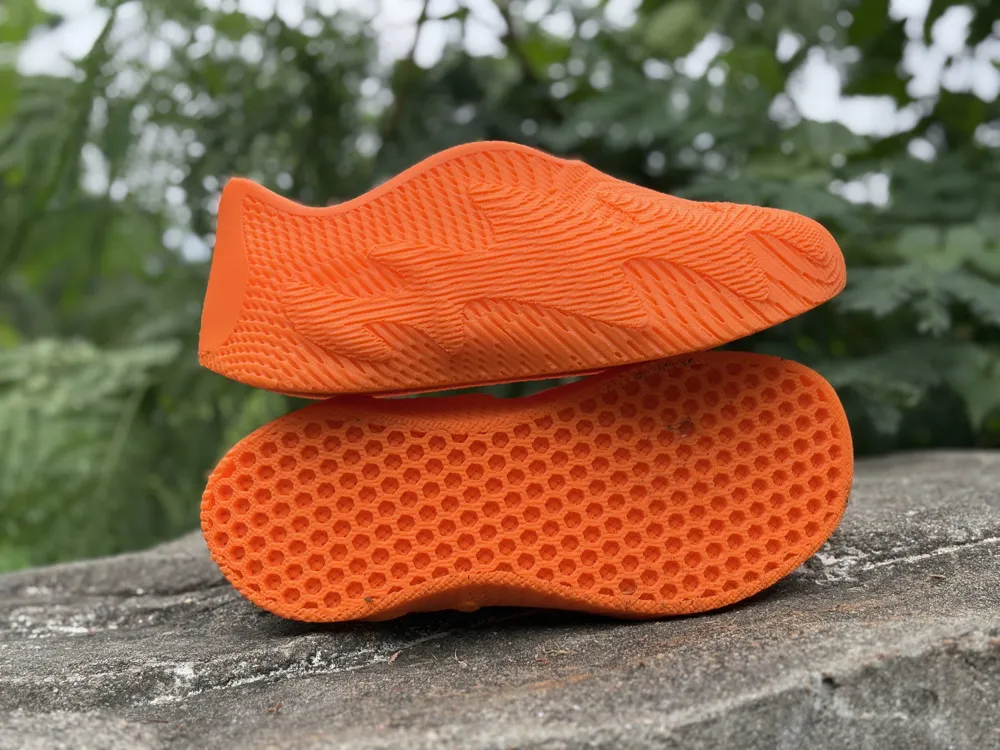

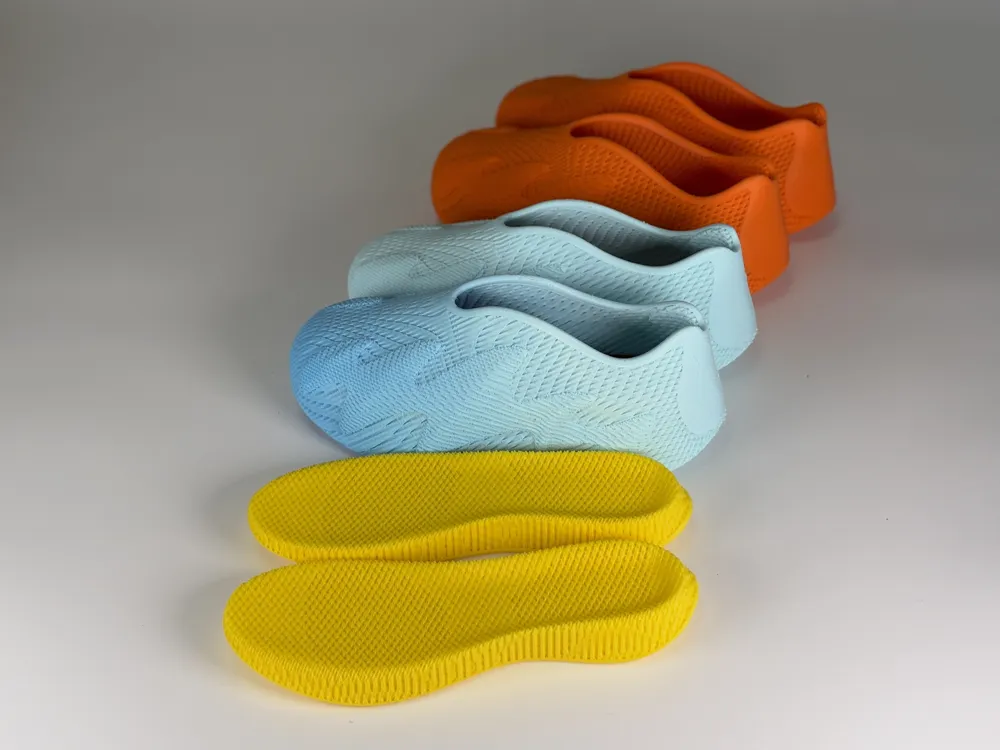

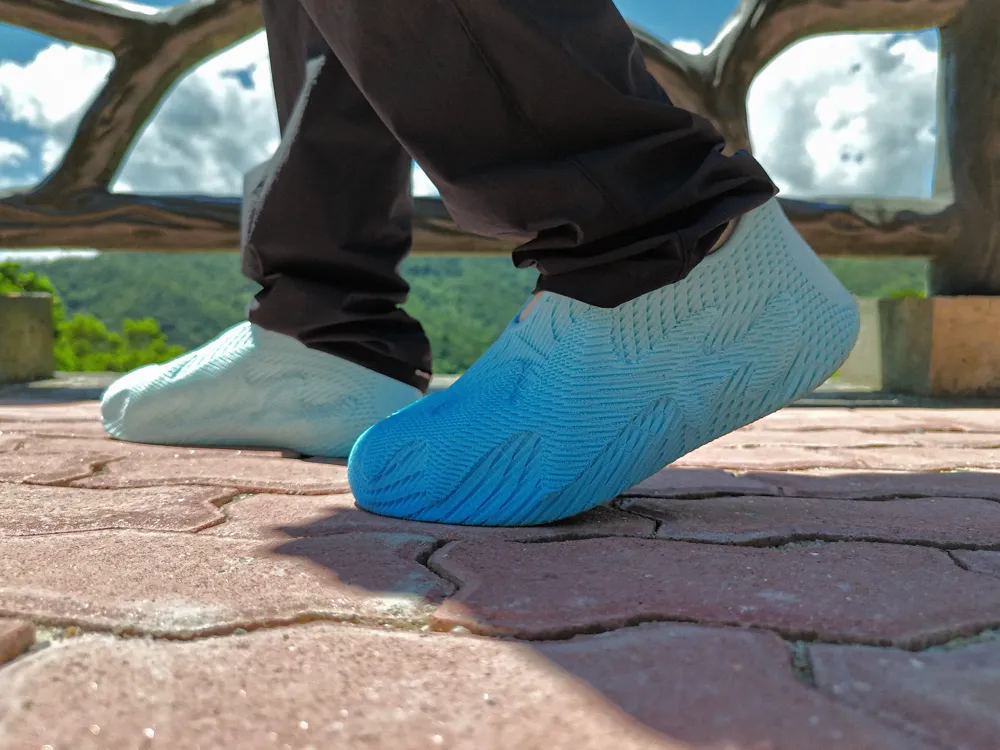

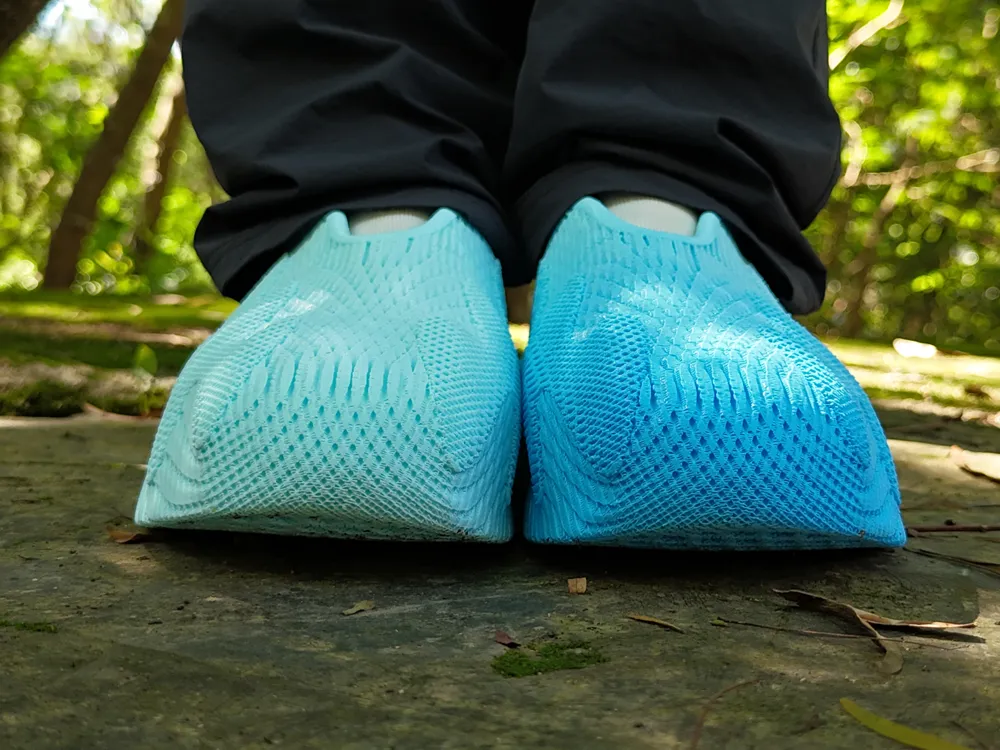

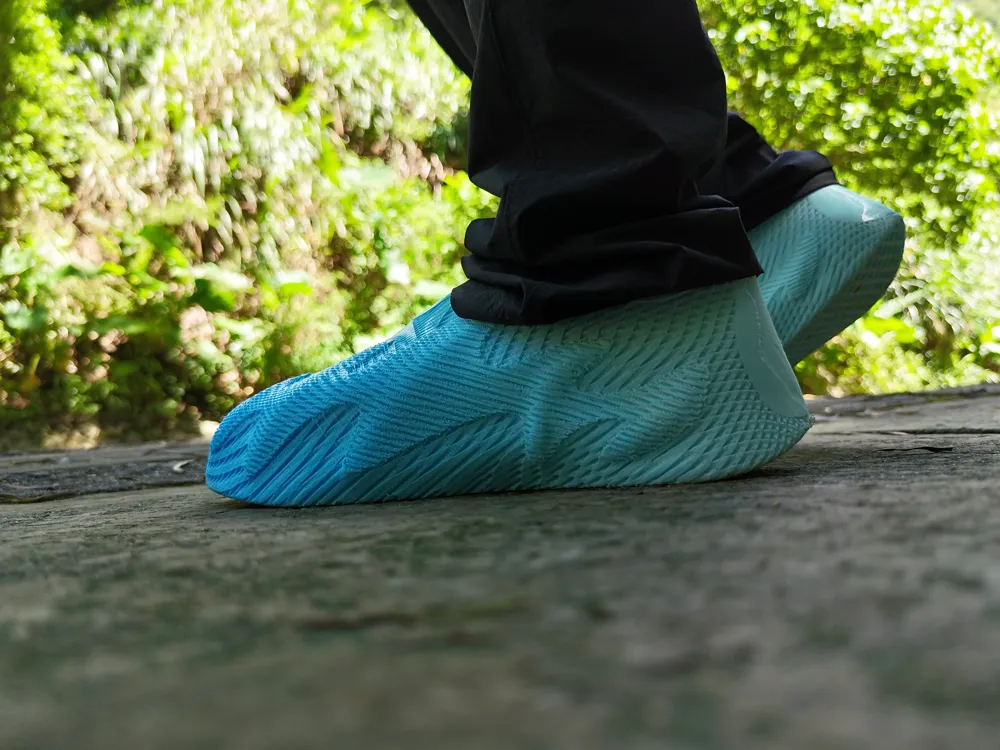

This is a pair of shoes 3D printed using flexible filament, inspired by shark scales.
The design was created in Gravity Sketch and Blender.
At 100% scale, the shoe last used is 275 mm, which roughly corresponds to EU size 43, suitable for a foot length of around 267 mm. (Data reference: https://www.nike.com/sg/size-fit/mens-footwear)

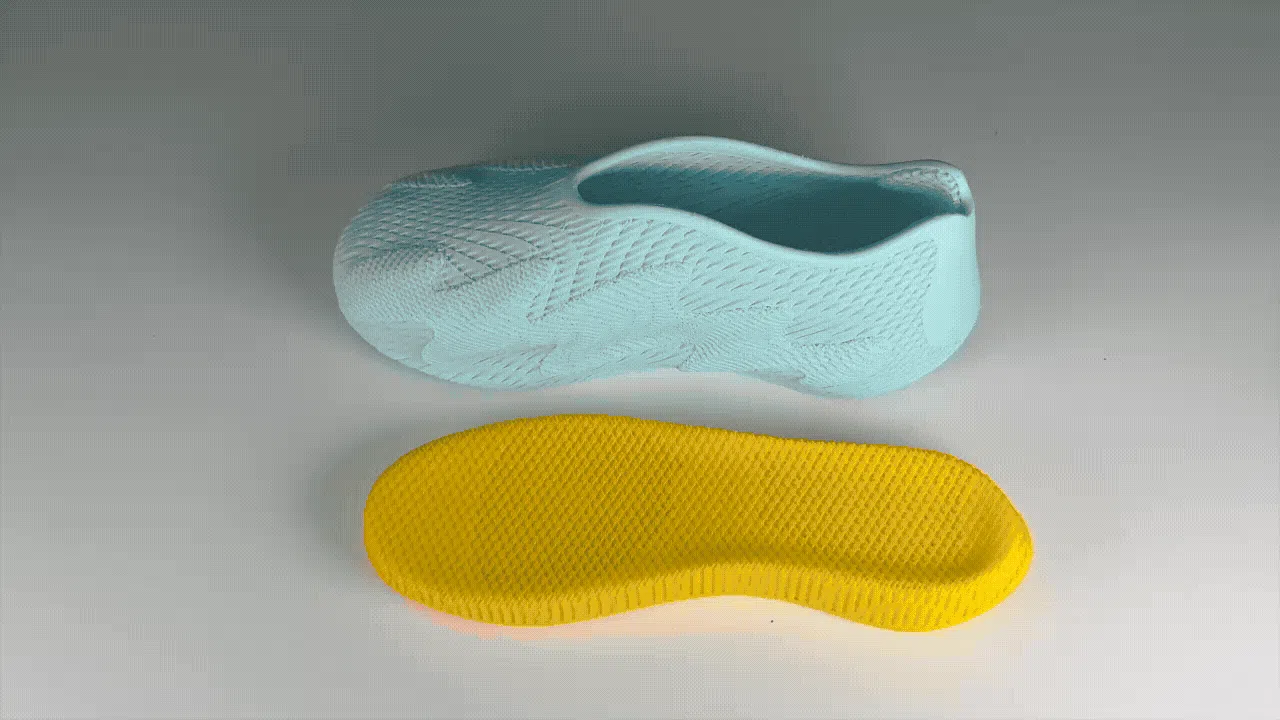

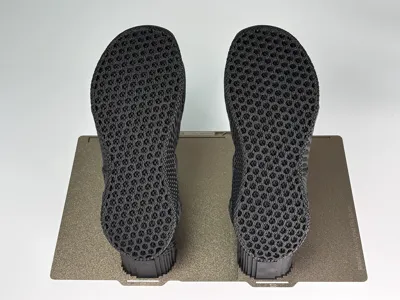

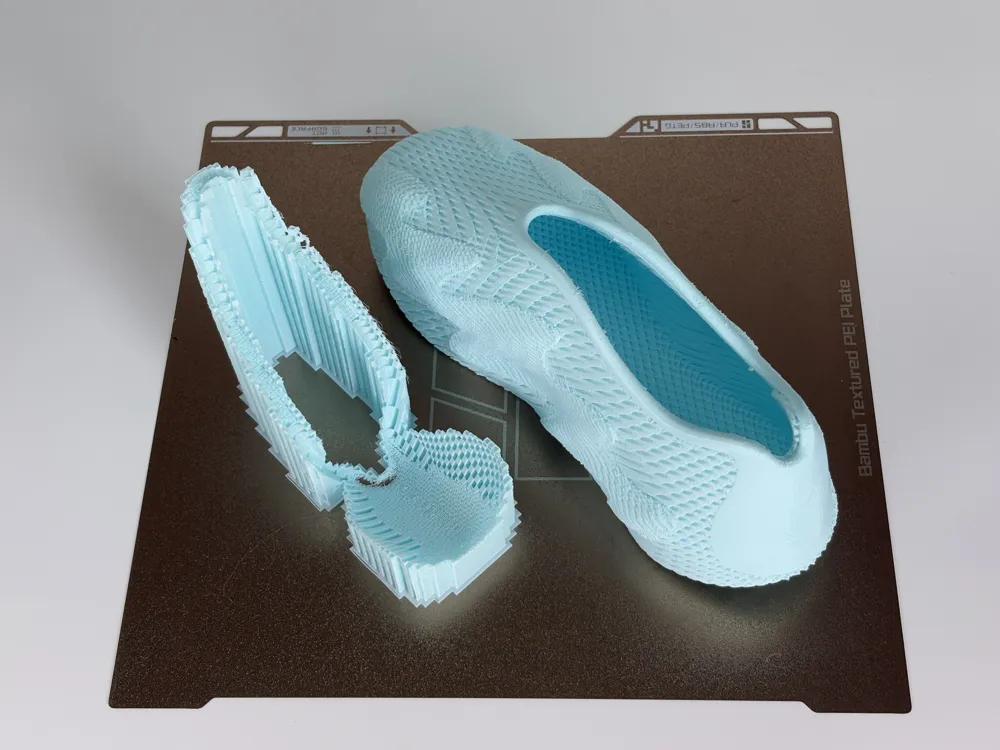

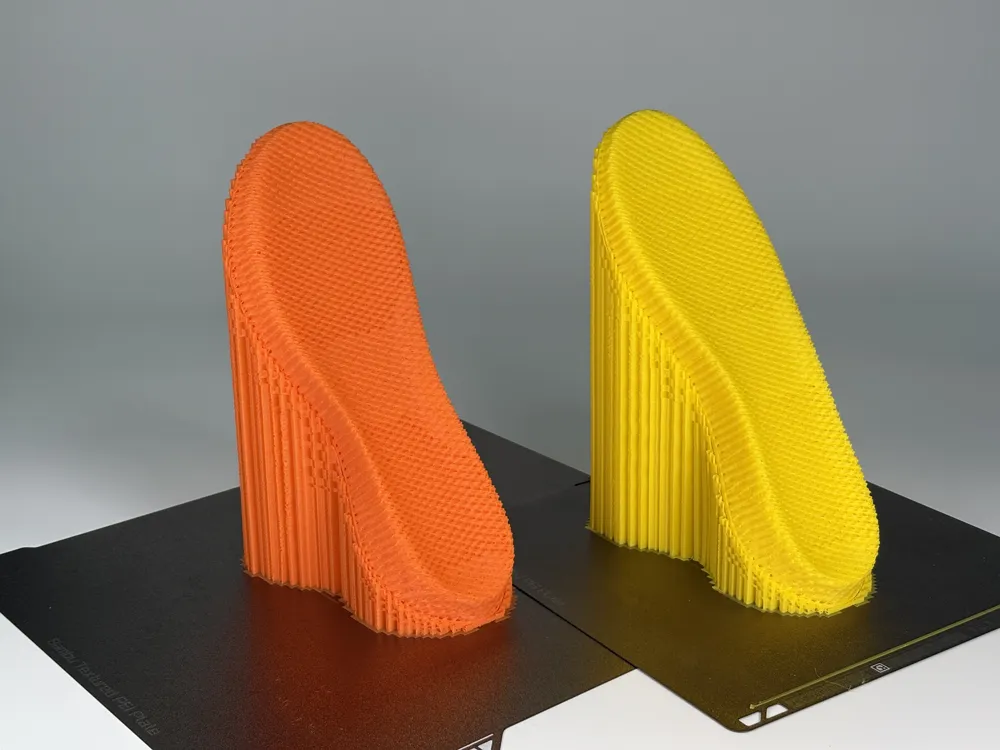

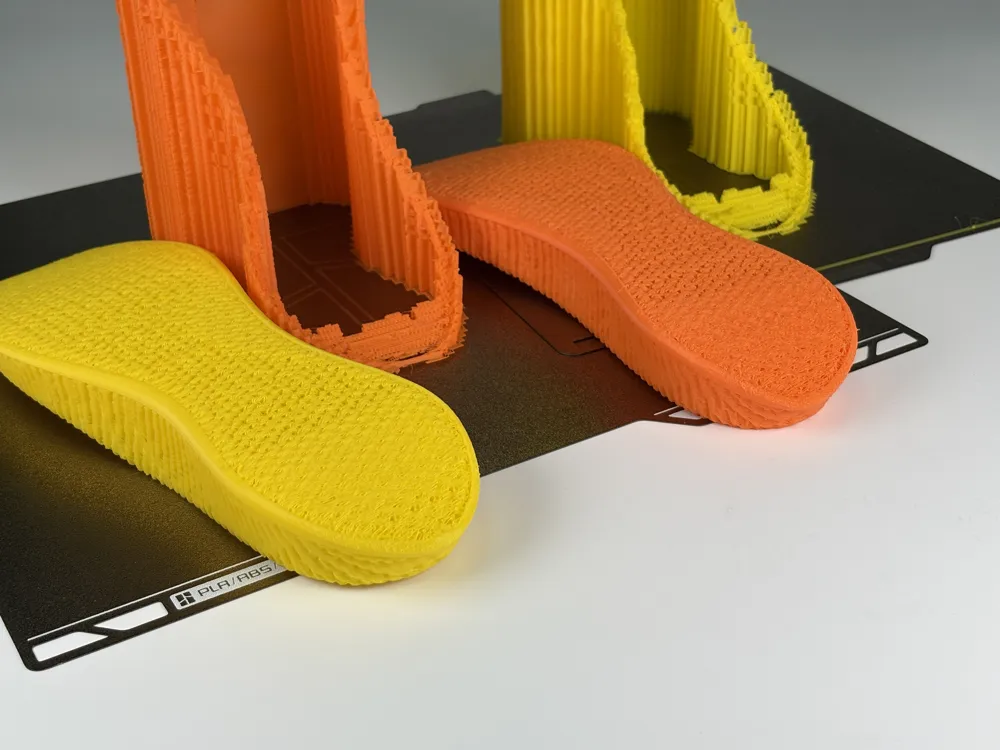

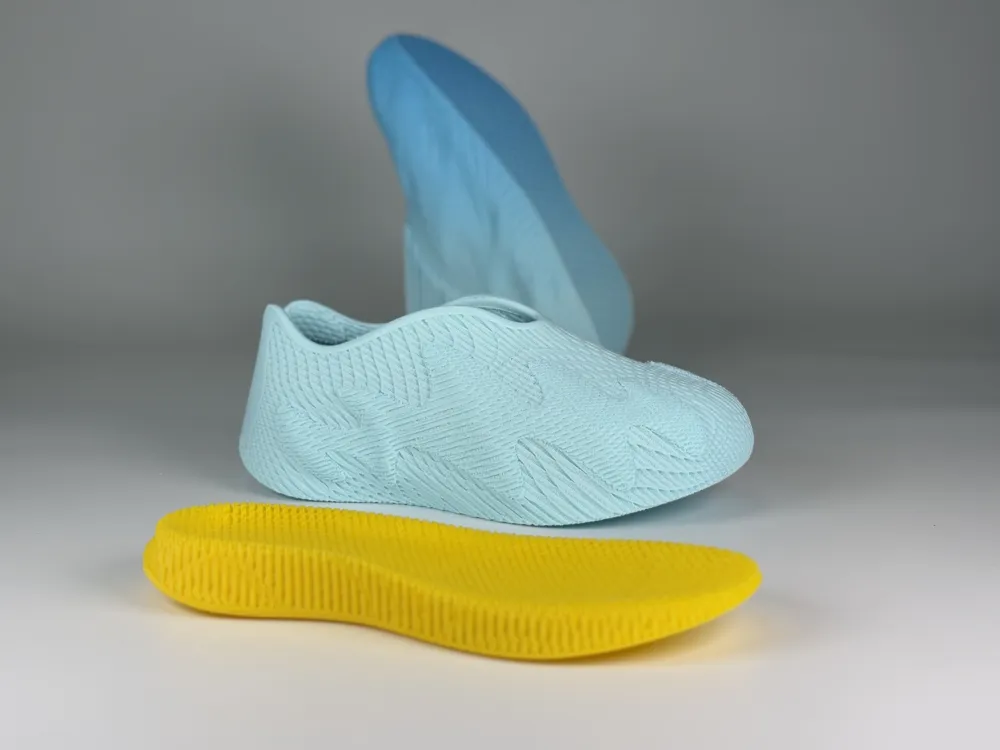

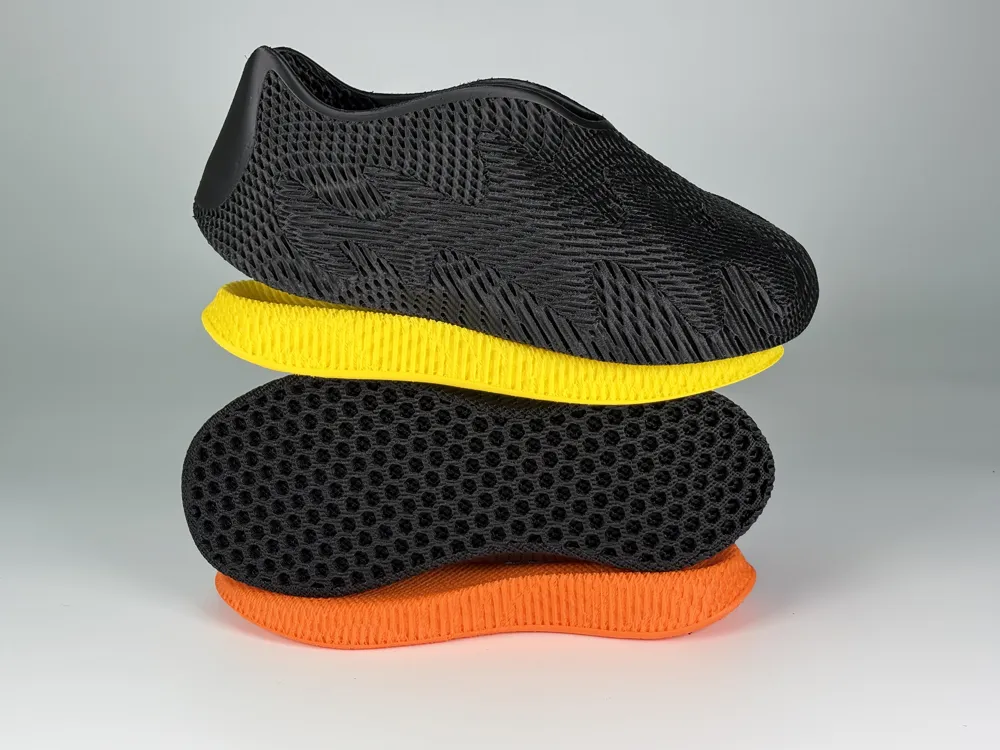

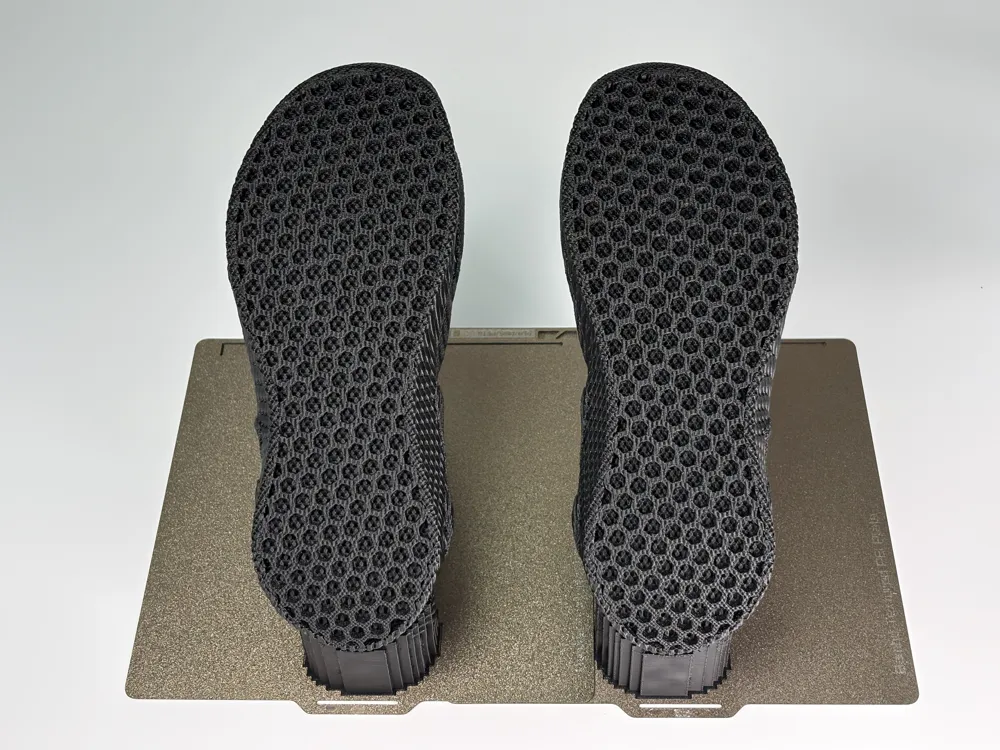

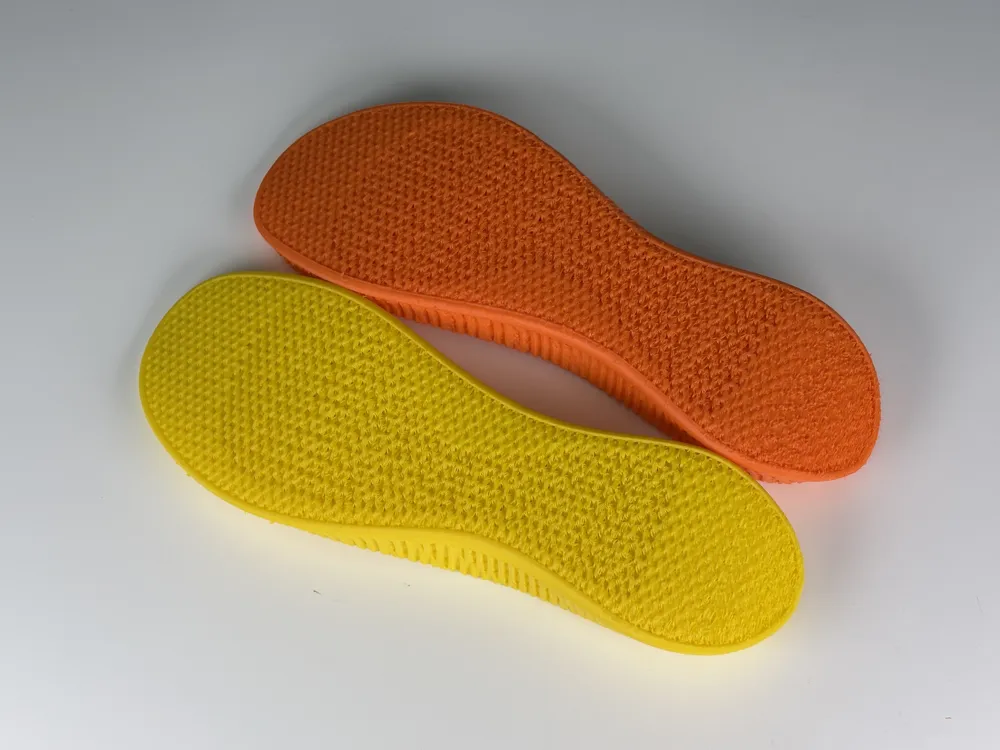

The midsole features a detachable design, allowing you to print the shoe shell and midsole with different materials. For example, you can use Bambu Lab TPU 85A to print the shoe shell for a softer upper, and use PEBA 85A for the midsole to achieve better support.
A 3 mm thick heel pad is added at the back. This component is important for ensuring a snug fit — make sure its infill density matches that of the shoe upper.

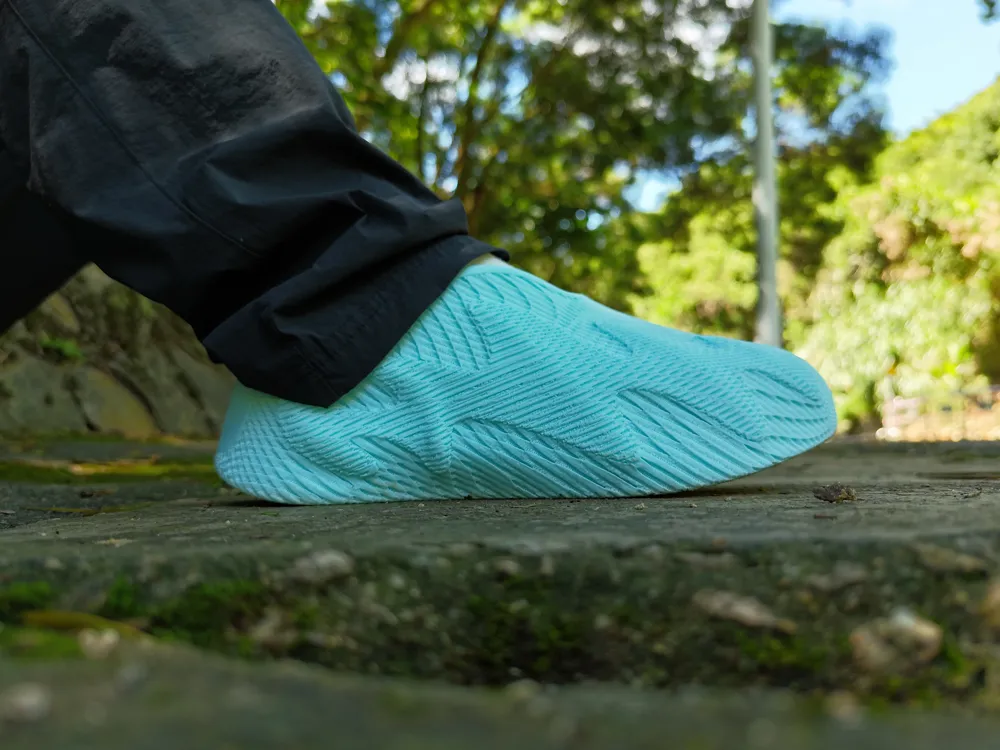

This is a casual shoe and is not recommended for professional sports. Do not wear it on slippery or rugged terrain.
It is machine washable and can be tumble-dried at temperatures below 80 °C.
For TPU printing tips, please refer to: https://wiki.bambulab.com/en/filament-acc/filament/tpu-85a-90a
