Pushee: Click&Retract Parametric Markers Organizer

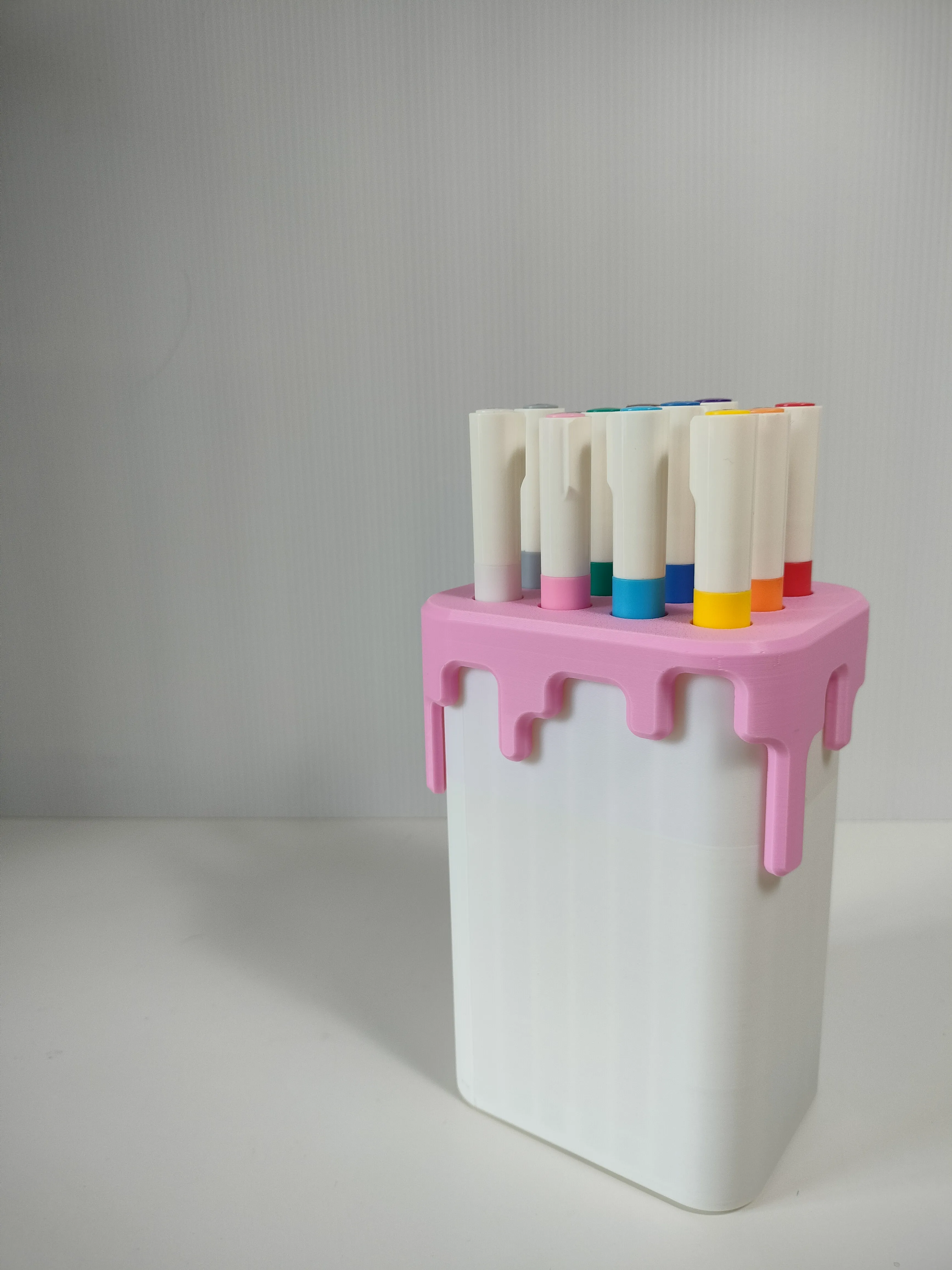

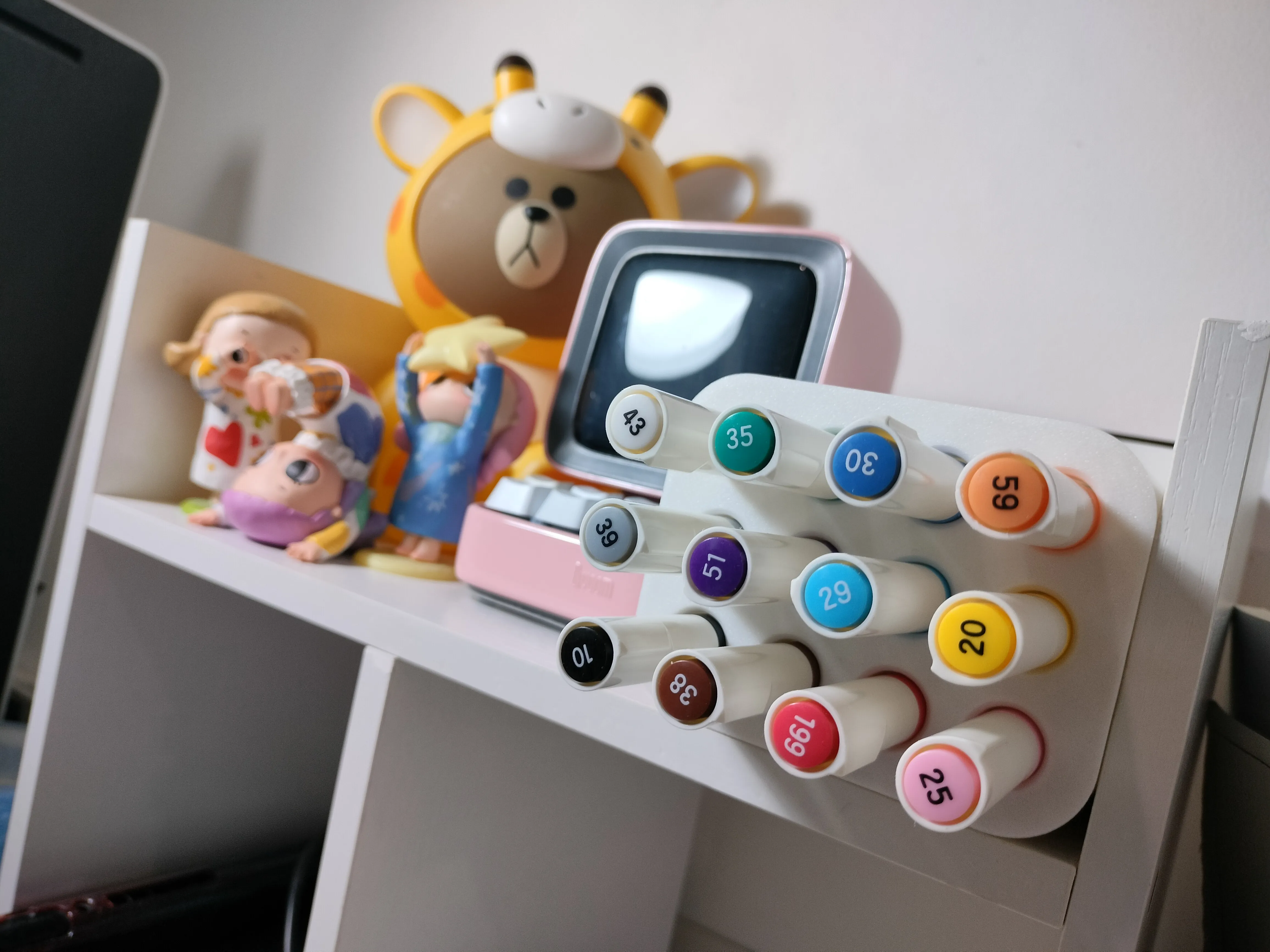

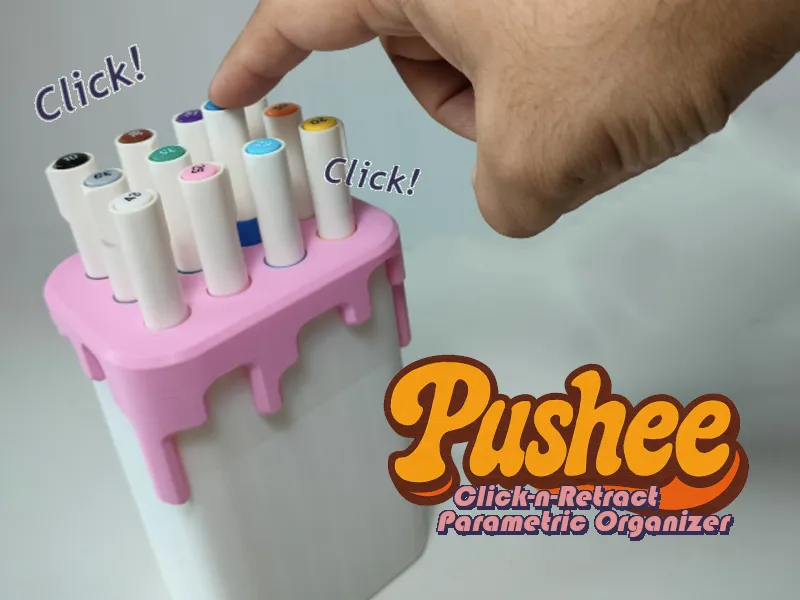

Introducing Pushee : Click-n-Retract Parametric Markers Organizer

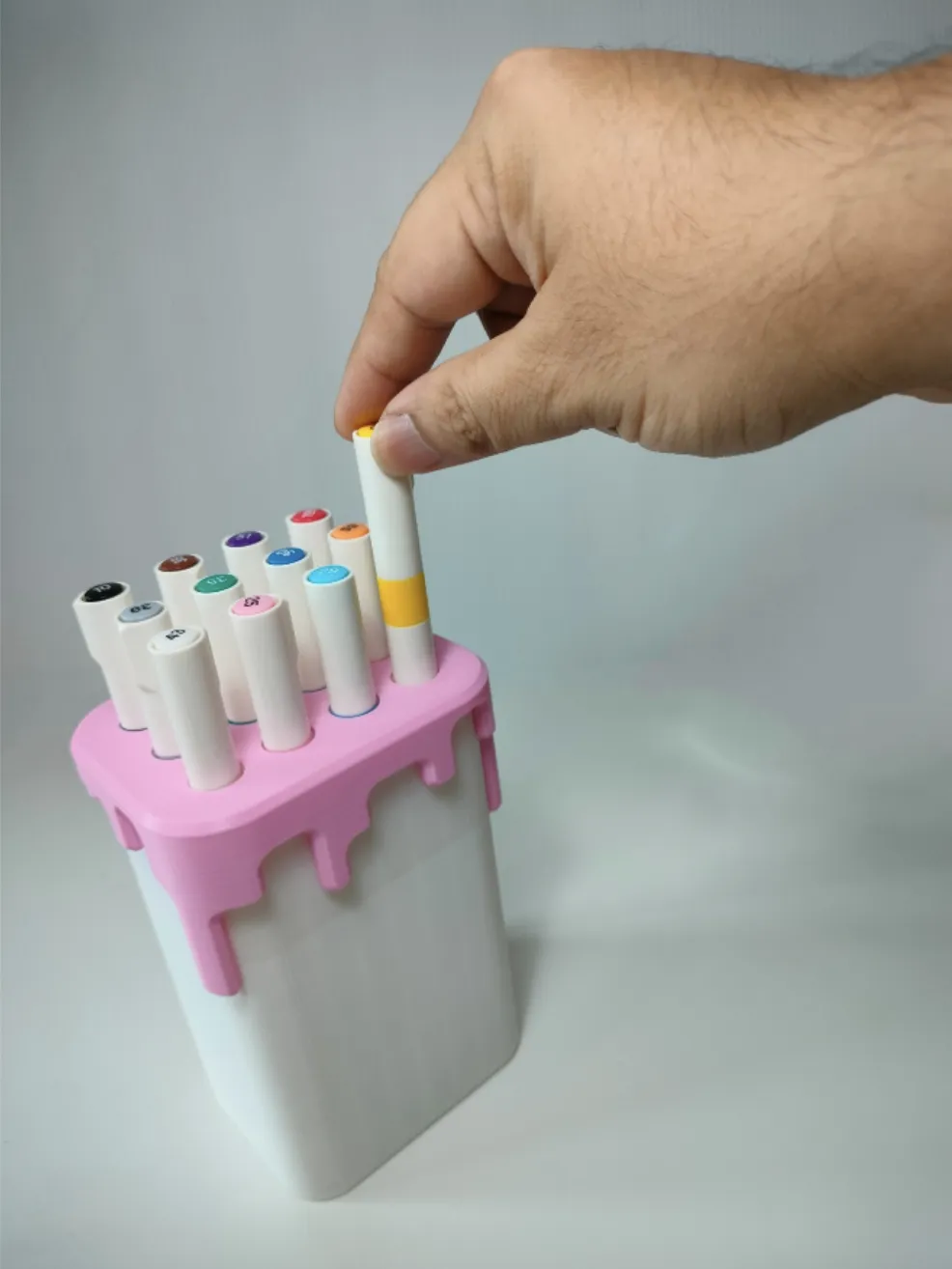

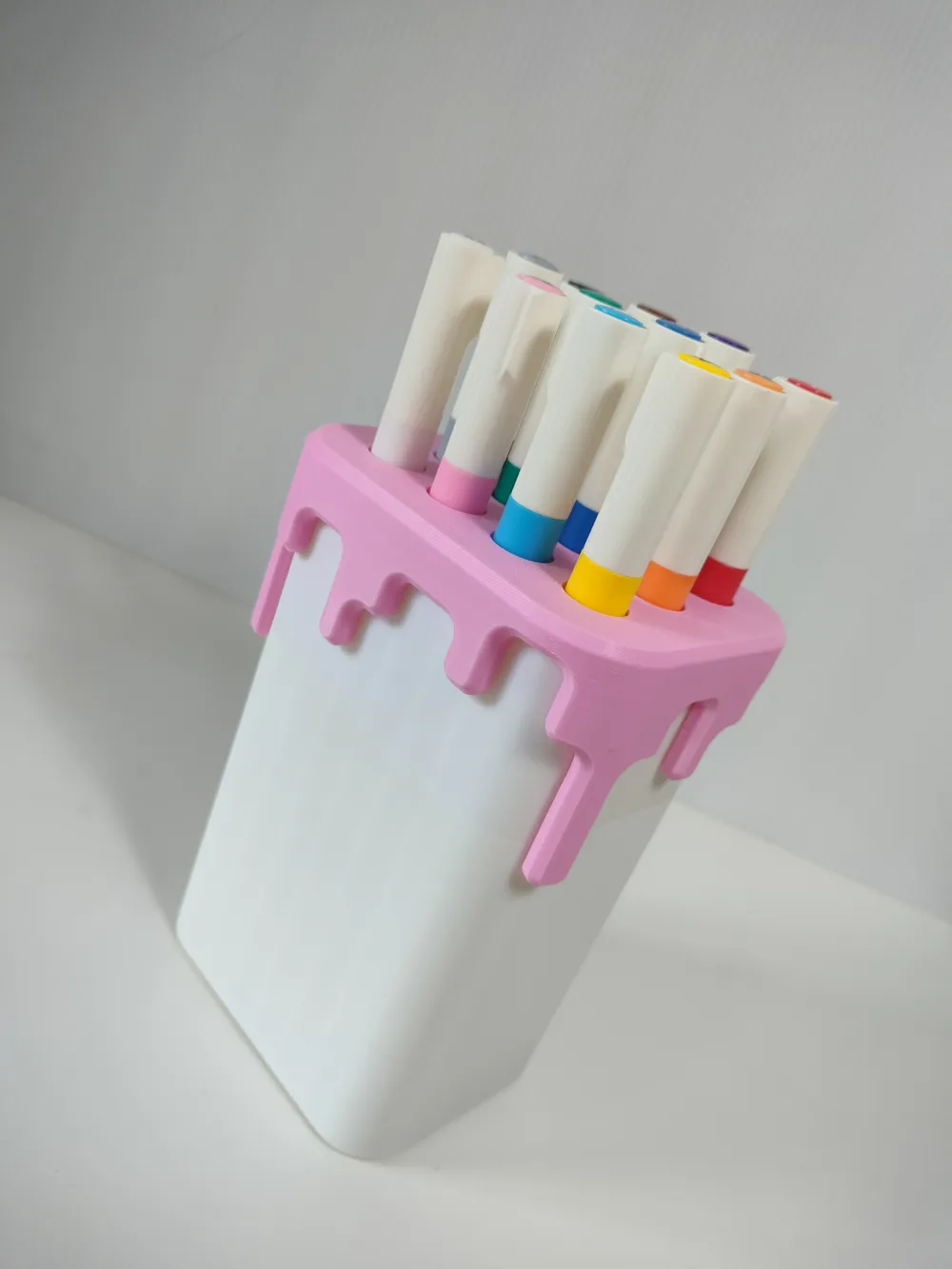

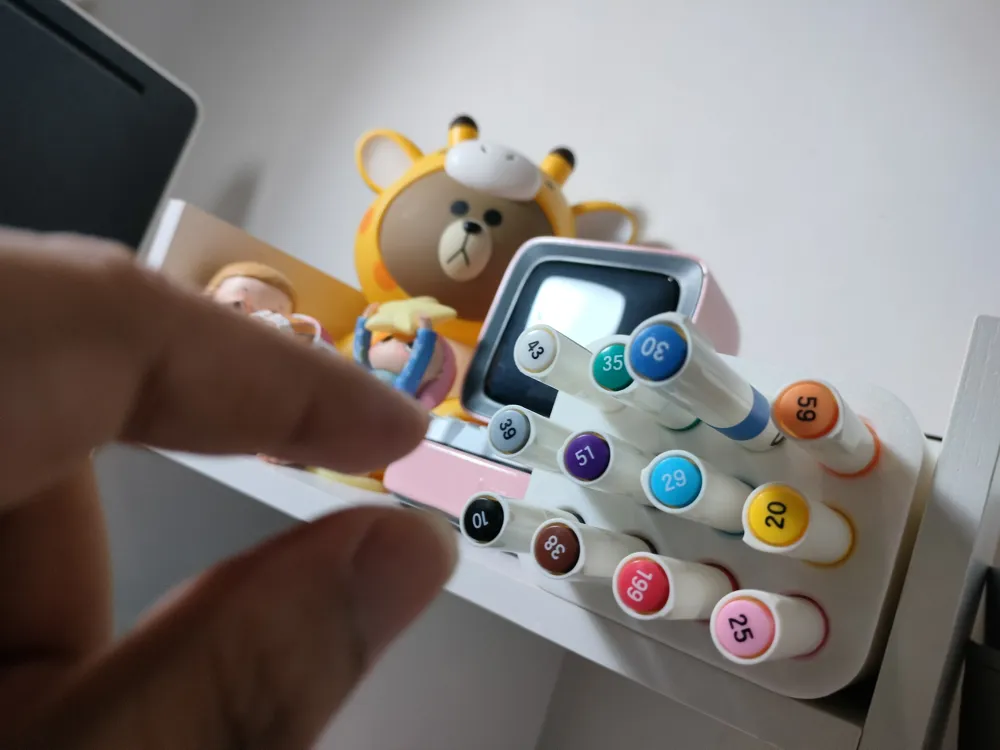

Tired of fumbling with scattered markers? Meet the Pushee – a sleek, 3D-printed organizer that transforms the way you store and use your markers. Each slot is equipped with a spring-loaded retractable mechanism, so a gentle press instantly raises your marker for easy, one-hand retrieval. No more tipping, shaking, or digging through clutter.

Design for FDM printing with no supports require. Specially! Its parametric modular design means you can customize the number of slots, adjust the dimensions, and connect multiple units to suit your workspace perfectly—whether it’s for art studios, classrooms, or offices. Lightweight yet durable, it’s as stylish as it is functional, turning everyday organization into a satisfying click-and-grab experience.

And here’s the secret bonus: when you’re feeling stressed or just need a quick brain break, Pushee transforms into a surprisingly addictive fidget toy. Click it, pop it, and let that spring-loaded motion melt the tension away. It’s like your desk’s little stress-busting sidekick

Once you try it, you’ll wonder how you ever worked without it.👍

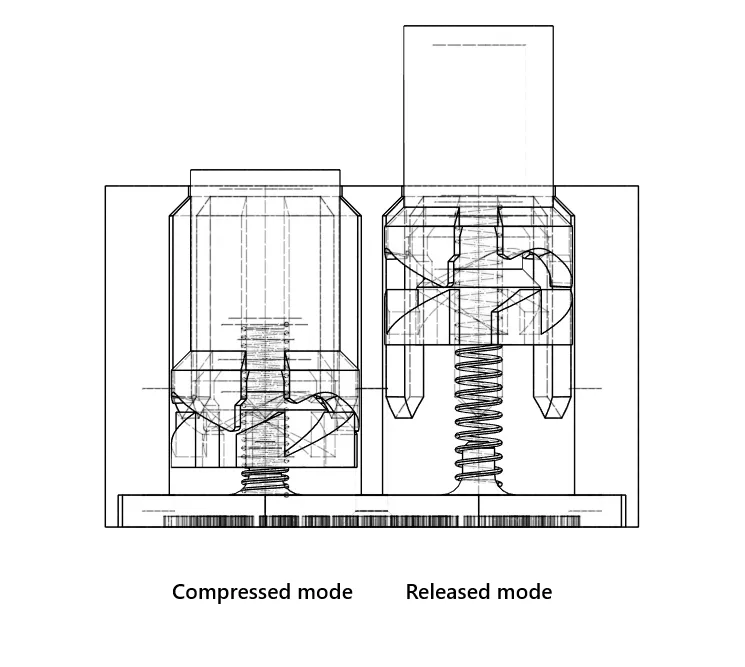

Inner Mechanics

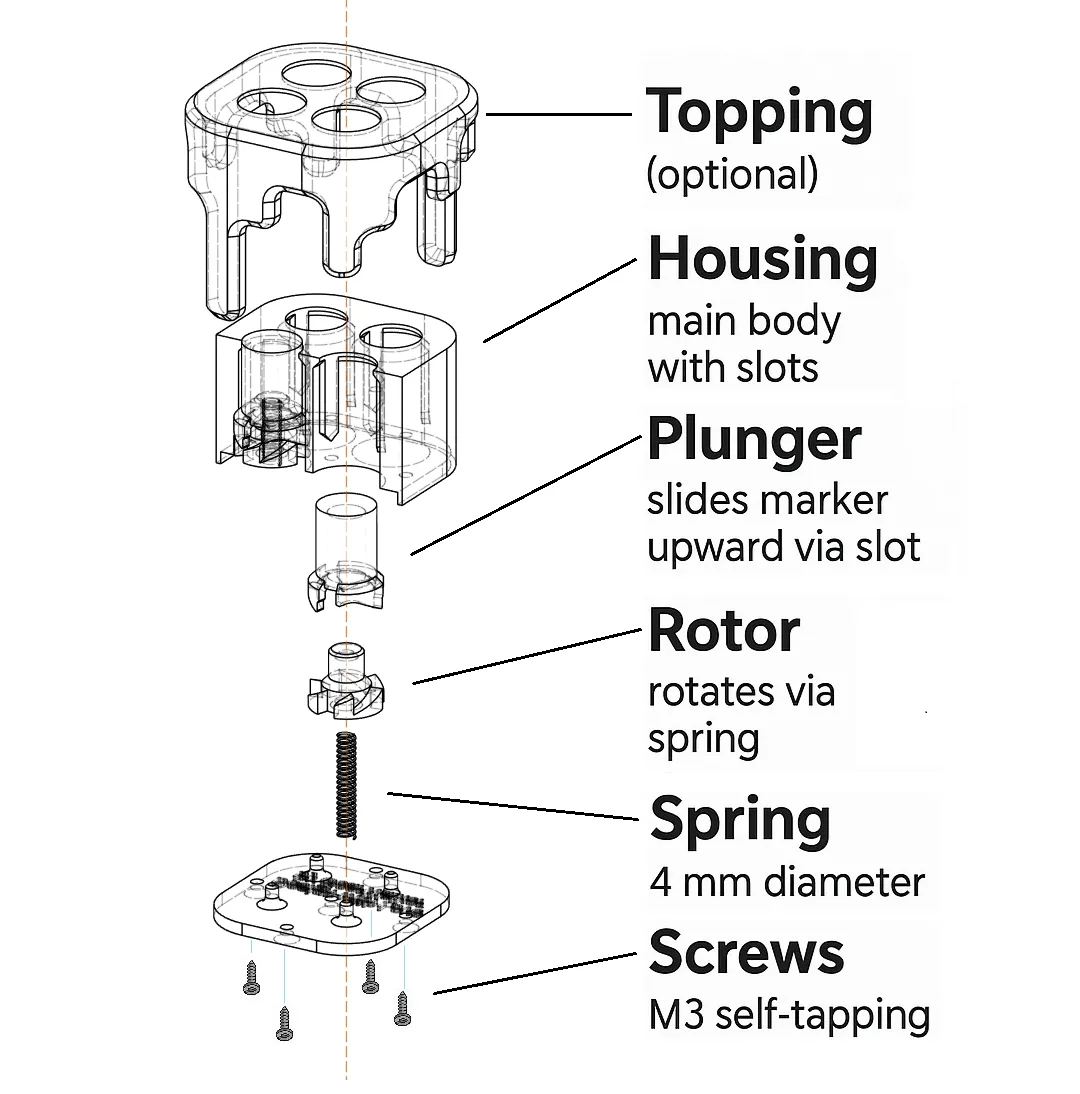

3D Printed & Hardware Parts

Plunger		A precision sliding component that pushes the marker upward by moving vertically along the slot’s guiding track. It delivers smooth, controlled motion for easy marker retrieval.

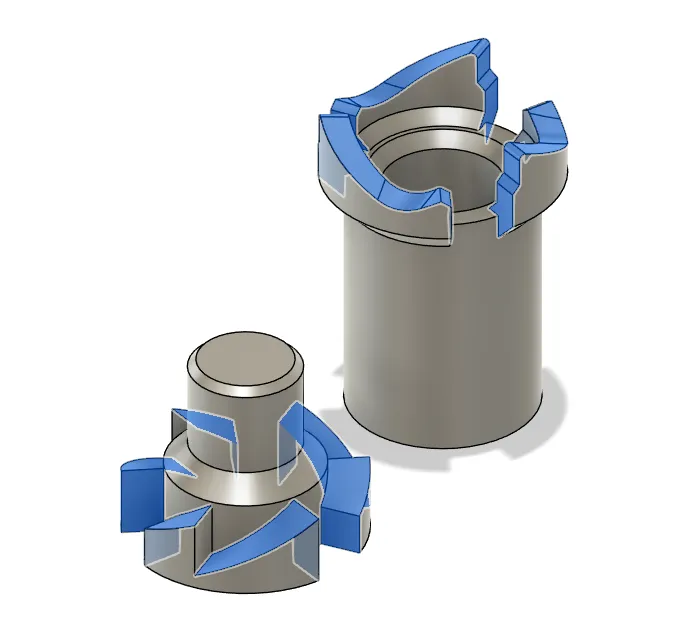

Rotor		A rotating mechanism powered by spring tension, featuring gear-like teeth that interlock with the plunger. This interaction enables the smooth retractable motion of the system.
Housing		The main body of the organizer, containing all marker slots and serving as the mounting frame for the retractable mechanism. Strong, stable, and designed for modular expansion.
Topping		(Optional) An aesthetic add-on that elevates the product’s overall appeal. You could use it without one… but why miss out on the extra style and charm? 😘
Bottom Cover		The base plate that locks the springs and internal mechanisms securely in place, ensuring everything stays aligned and operates reliably.
Springs		4 mm diameter, 20–25 mm length coil springs—perfectly suited for the plunger’s upward motion. You can even repurpose springs from empty ballpoint pens.
Screws		M3 self-tapping screws, 10 mm in length, used to firmly assemble the entire structure for a stable and long-lasting build.
Grease		High-quality silicone lubricant applied to the mechanism for essential smooth operation, reduced wear, and a satisfying, friction-free feel.

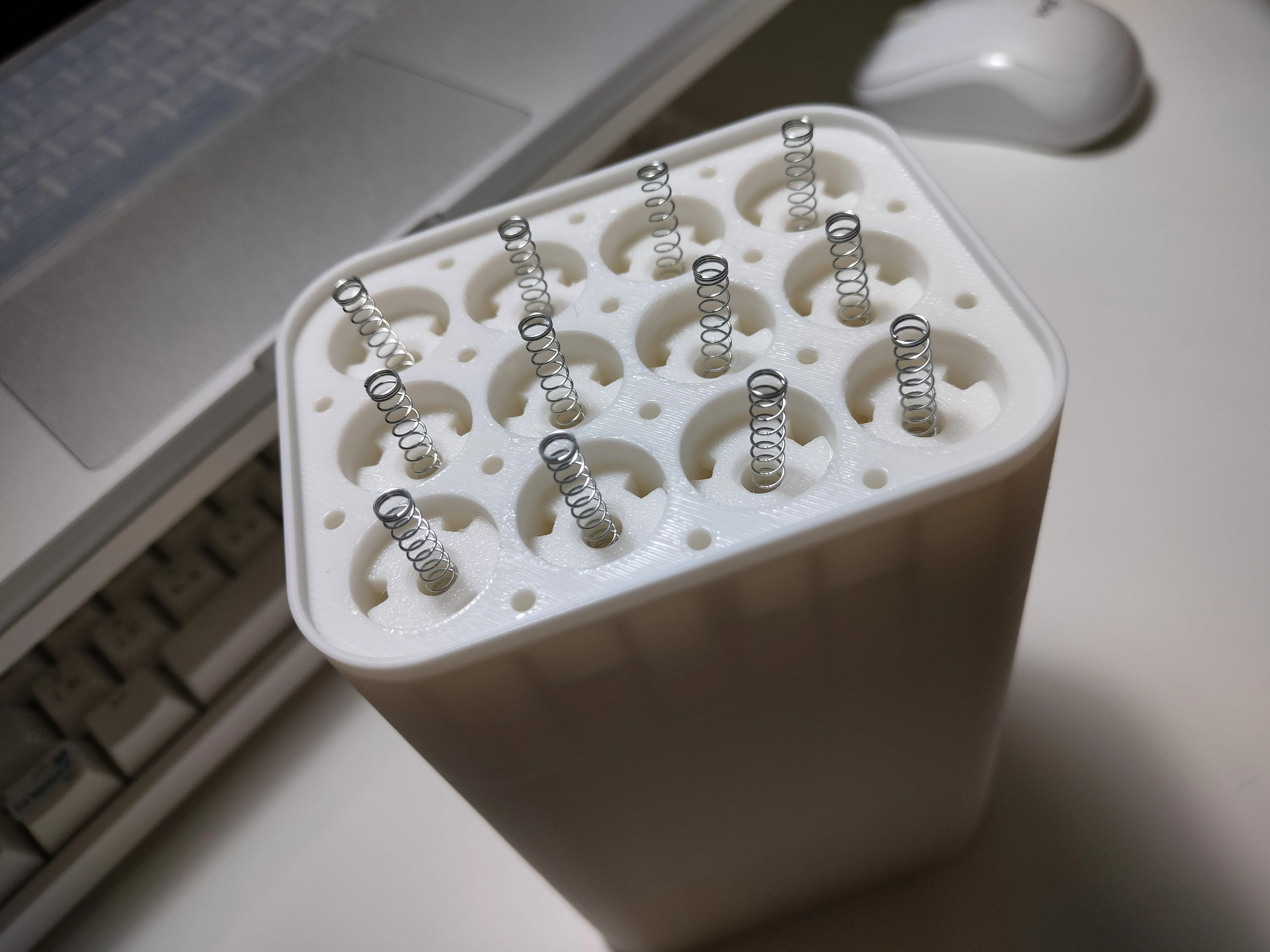

Assembly steps

[NOTE] ⚠️ The number of 3D printed parts, springs and screws depends on each individual’s configuration adjustments. Please take care when counting the quantities.

Tips & Tricks

• Apply lubricant grease to the surfaces of the rotor and plunger. Ensuring these surfaces are properly treated is crucial to prevent the mechanism from stuck.

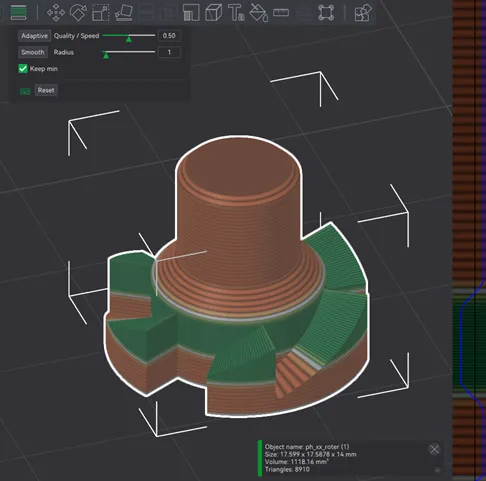

• To improve the rotor’s performance, we can use adaptive layer height to increase the surface smoothness in specific areas.
