Description

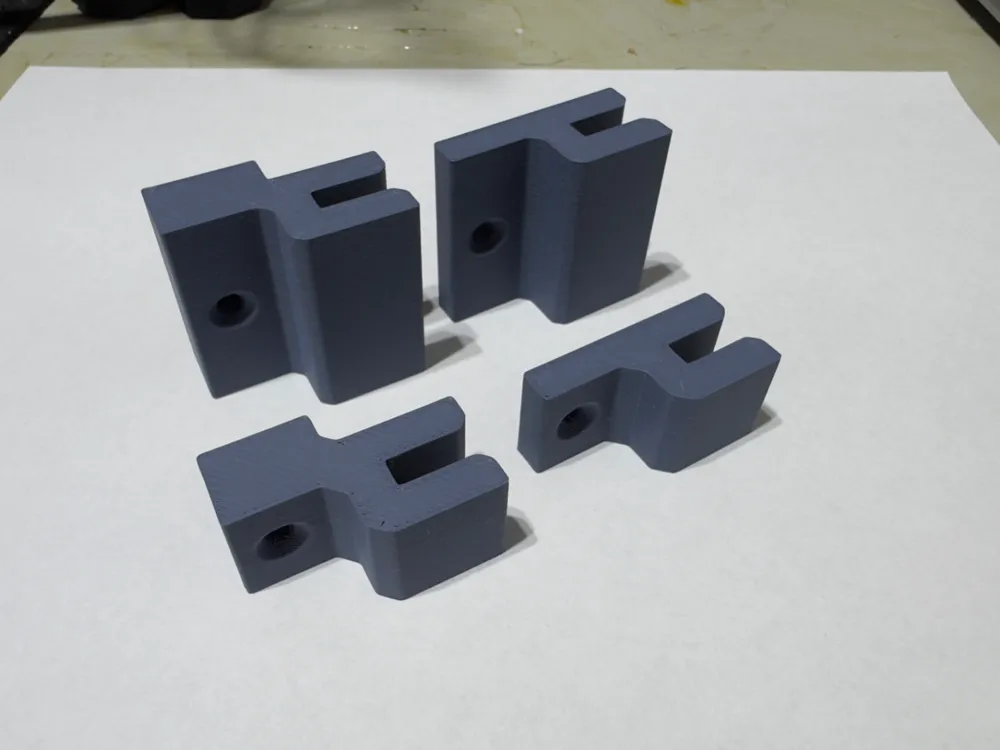

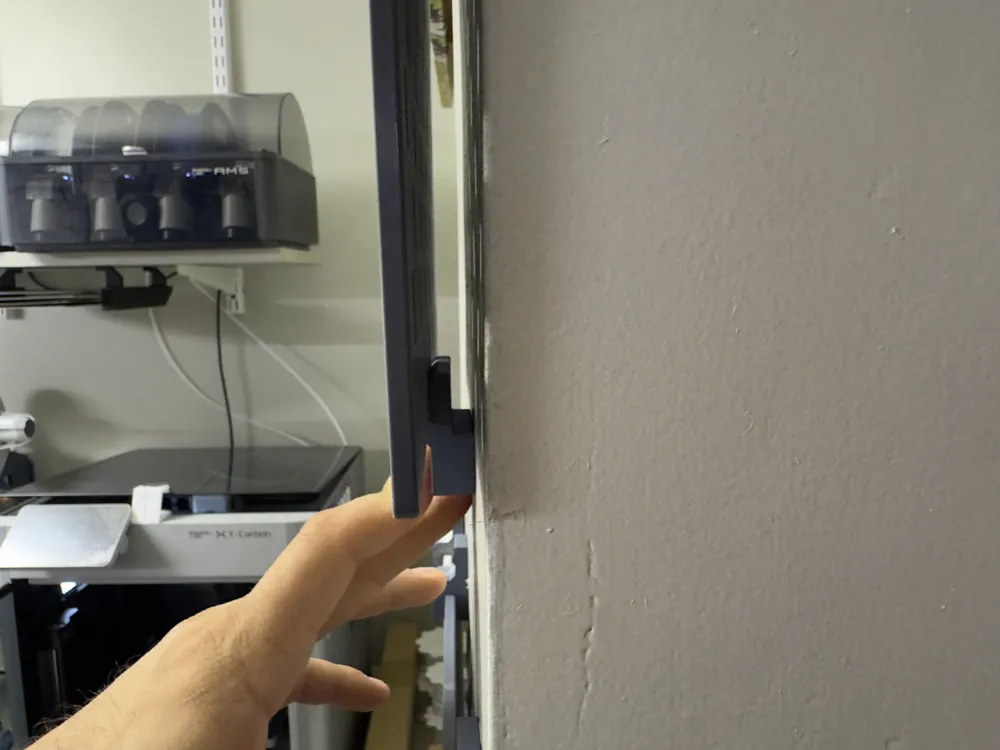

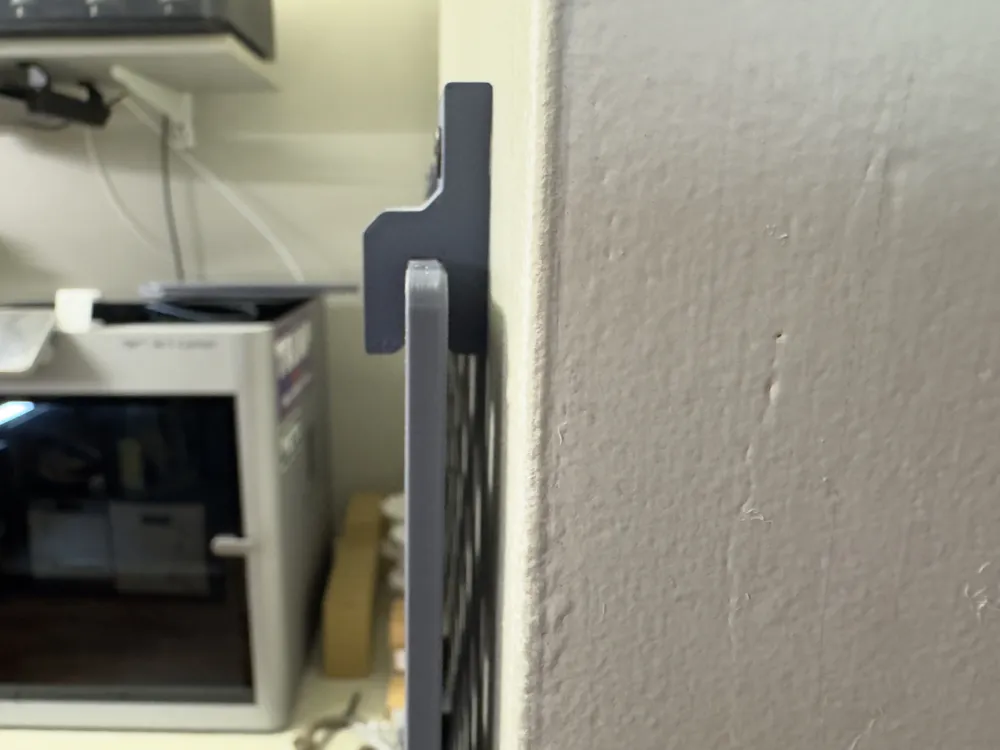

I designed these mounts for 3D printed Skadis boards that print without built-in holes. There are two 20mm versions and two 40mm versions, one that holds the board about 7mm away from the wall and one that holds it about 14mm away from the wall. Most if not all printed or purchased Skadis accessories should fit with the standard mounts but I added a thicker one if necessary.

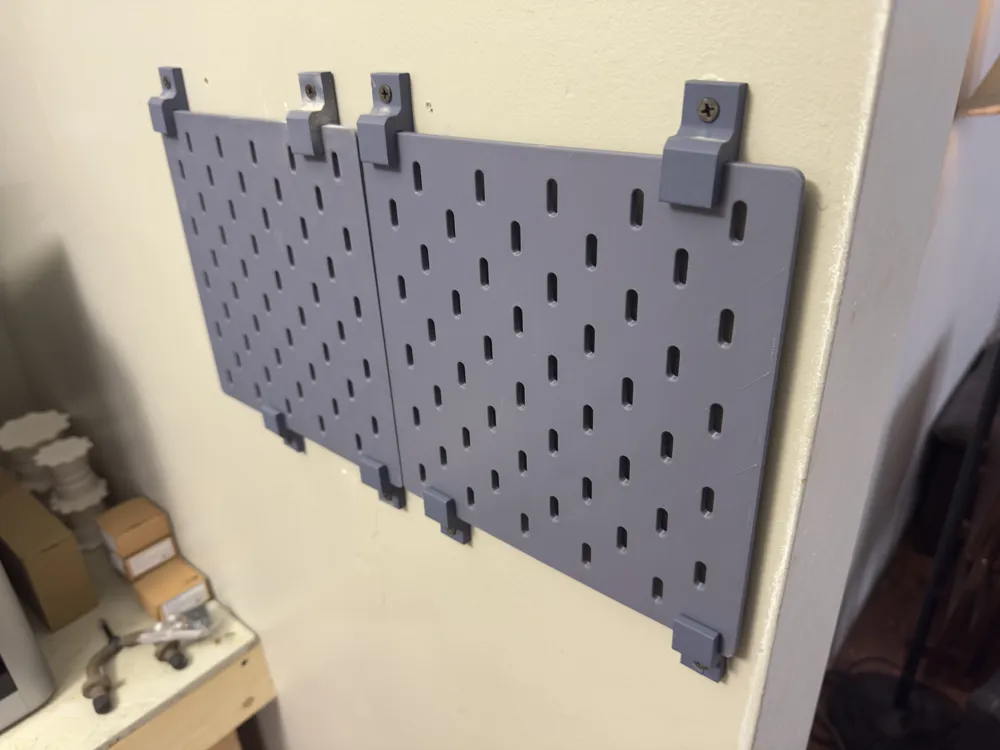

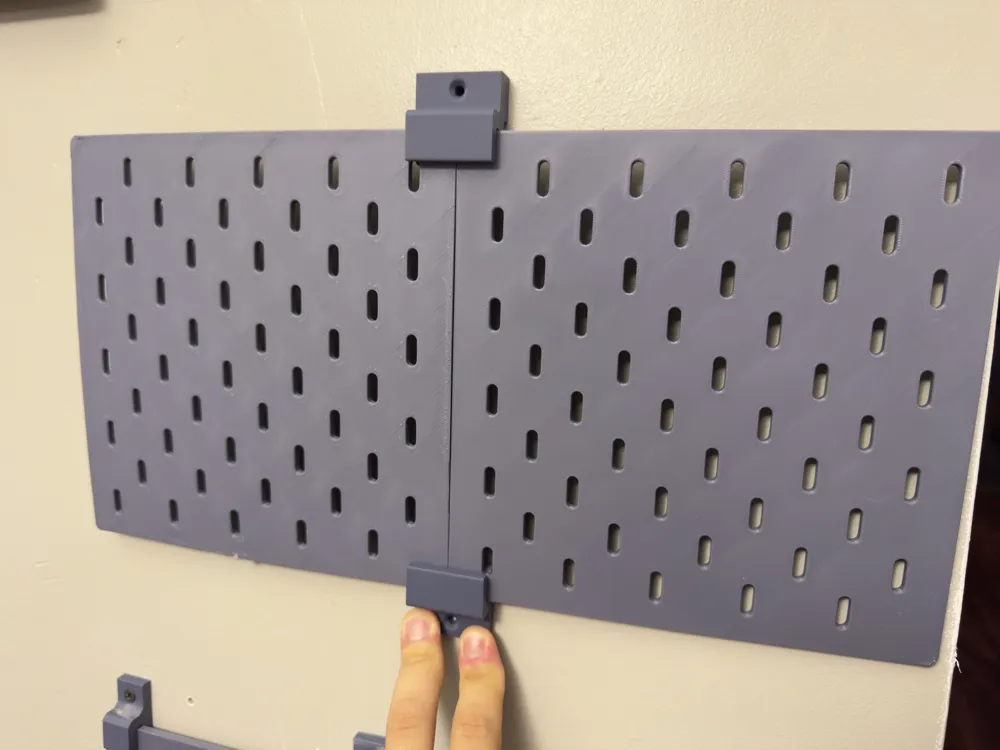

If they're mounted square, it would allow for boards to be slid out easily if one is damaged.

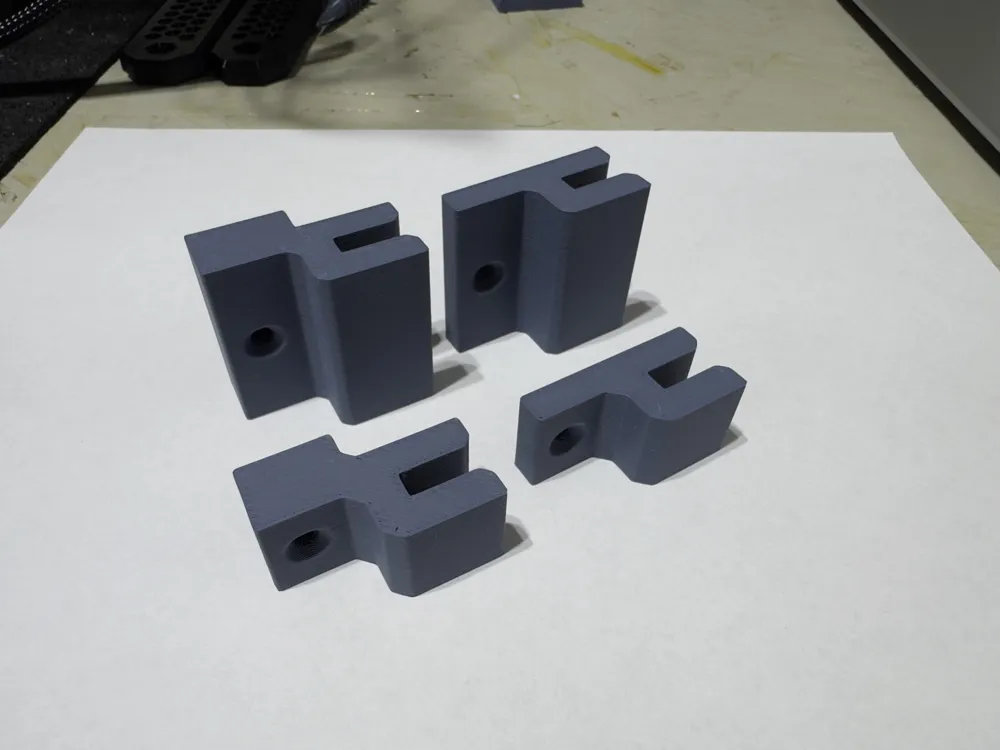

All four models are available on one plate and may be separated as needed. I figured this was easier than uploading multiple print profiles.
I modeled them with four walls and four top and bottom shell layers for some added strength. Obviously you can modify them to fit your use case.
These are designed to be mounted with standard #8-2in. drywall screws. If the need arises, I can modify it to work with #6-3in. drywall screws too. Just figured 2in. screws would be sufficient for now.
