240W Gallium Nitride Modified 3-prong Enclosure

I need a 240W gallium nitride charger that can simultaneously provide Type-C fast charging and charge laptops However almost all products on the market cannot provide Type-C fast charging while also providing DC output Furthermore no 240W gallium nitride charger comes with a 3-pin detachable cable for grounding

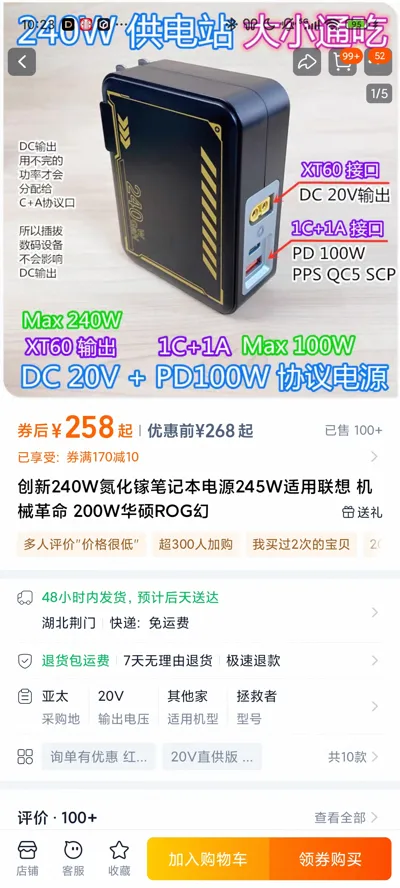

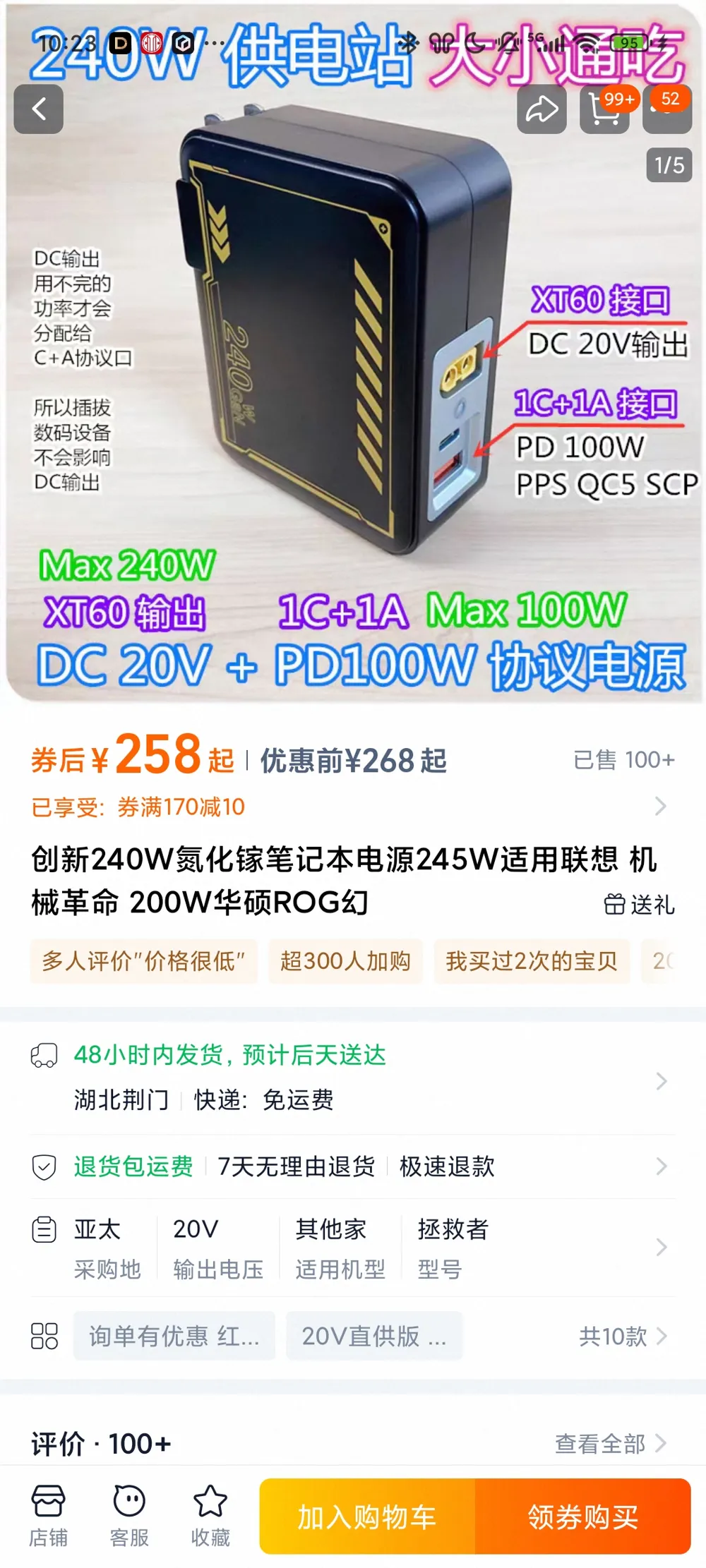

After comparison I found the only 240W gallium nitride charger that supports DC output and dynamic power allocation linked below:

https://e.tb.cn/h.hr9xDGZ8Ugr6iTM?tk=XSPM4iEhEjG

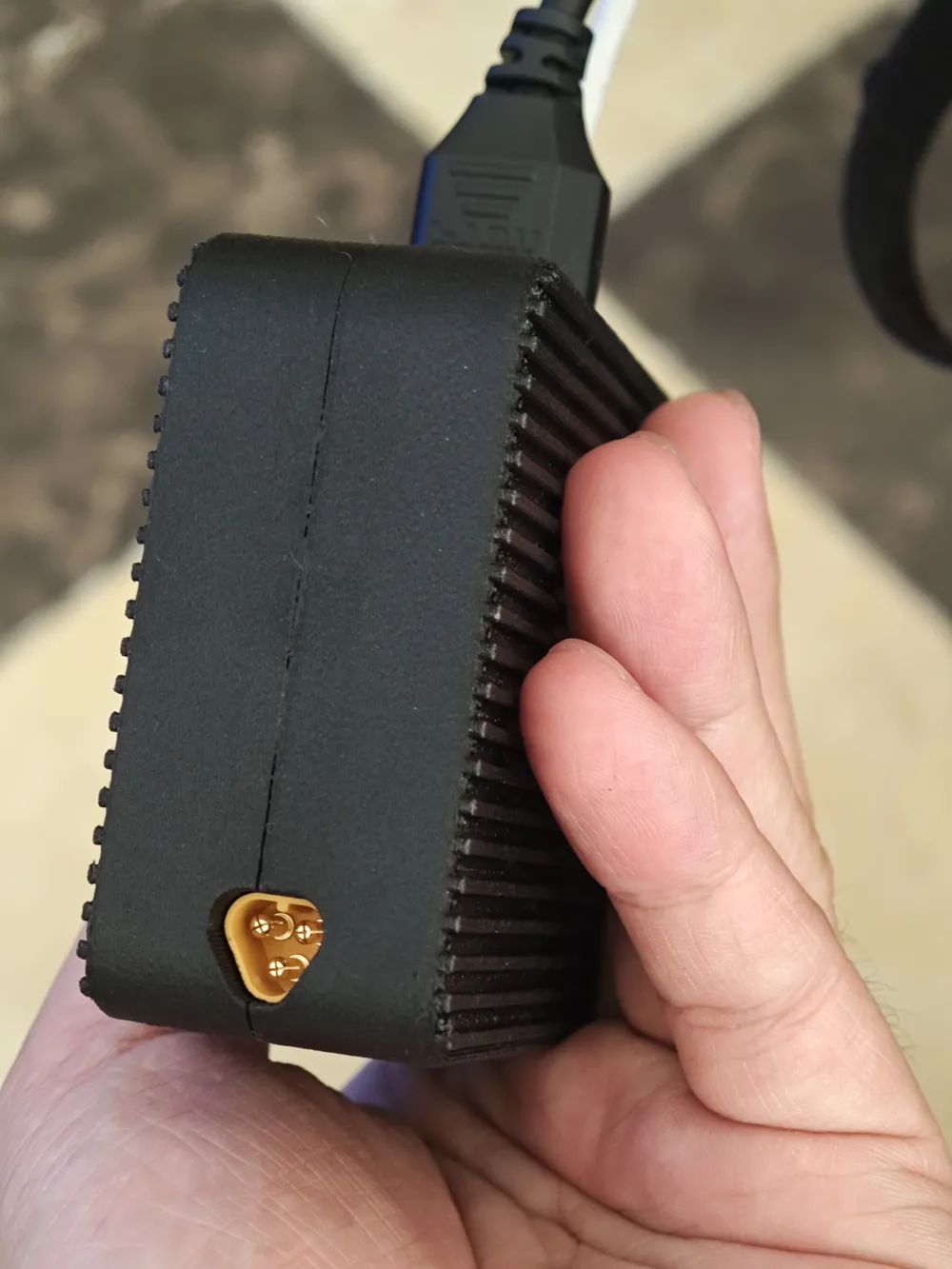

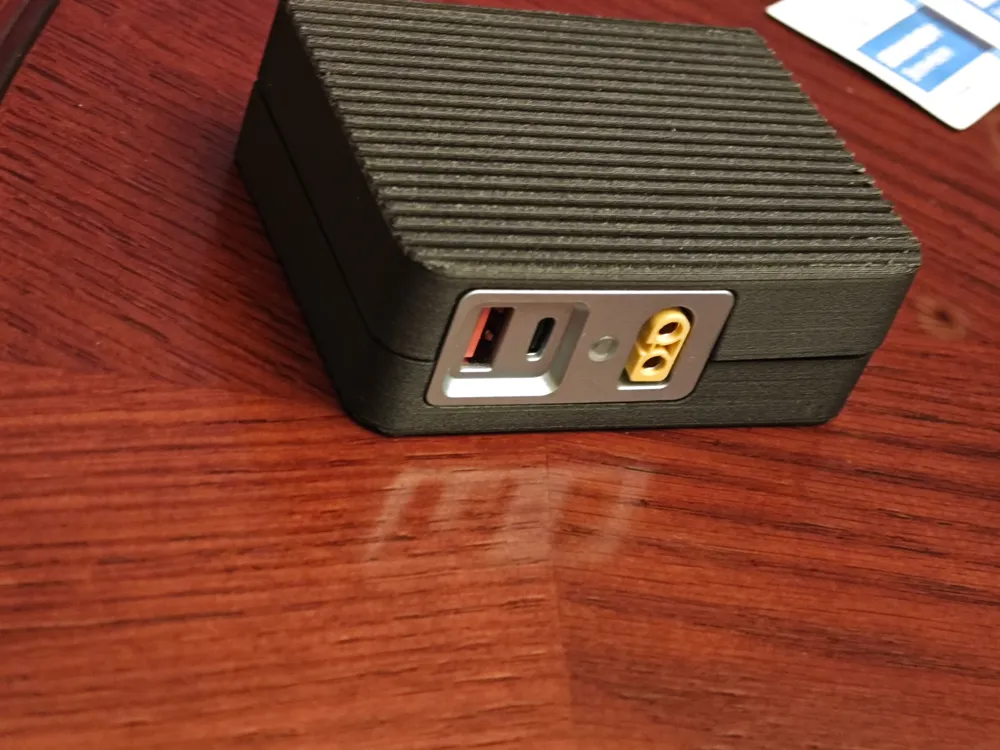

However this charger also does not have a version with a 3-pin detachable cable so I redesigned the charger's casing using an MT30 connector as the AC cable connector to ensure portability

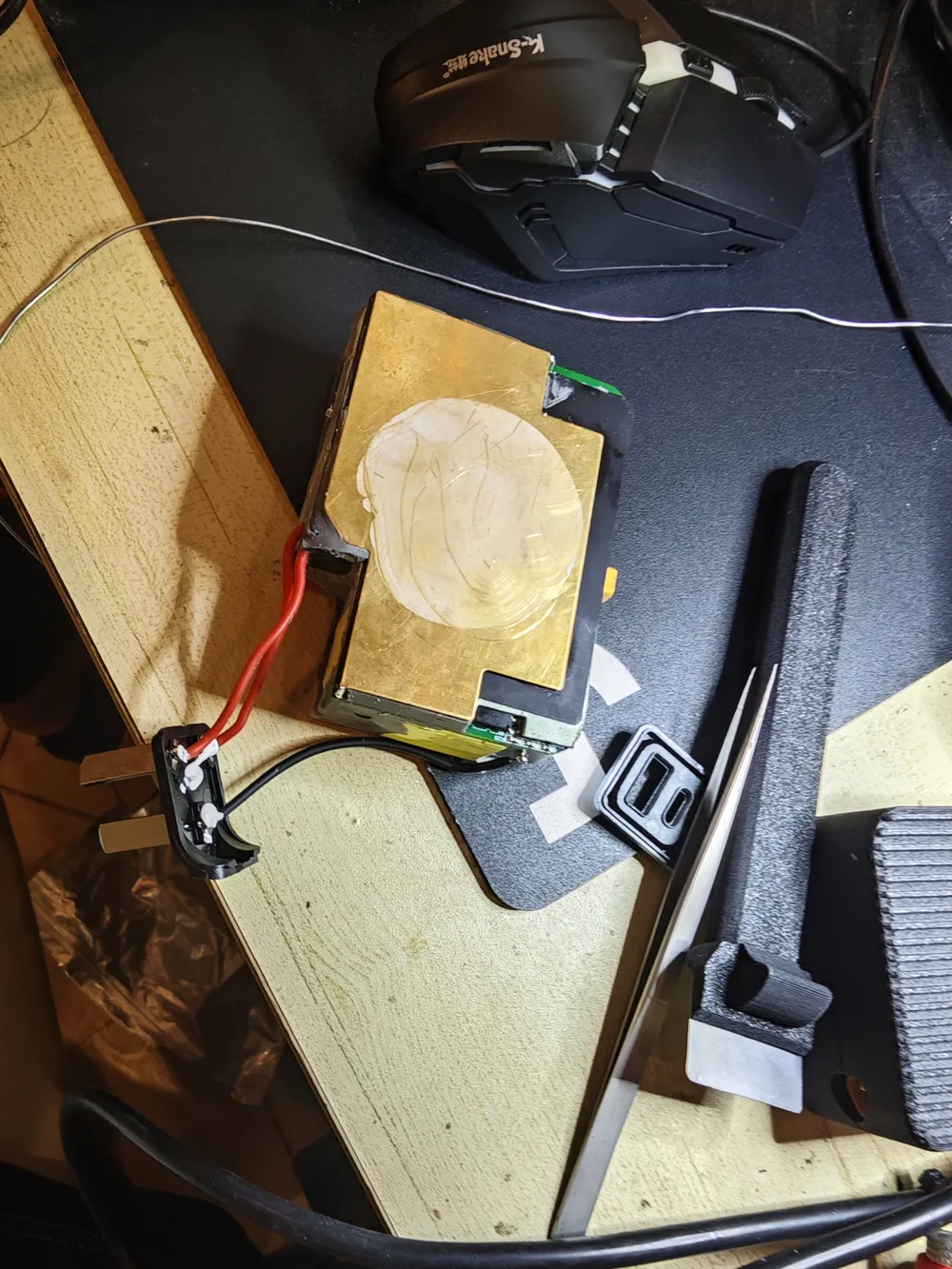

It is recommended to print with ABS or ASA for high temperature resistance Assembly is extremely simple after soldering the connector just glue the casing with 704 adhesive

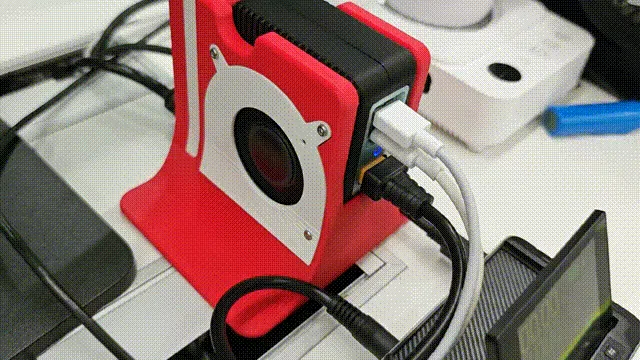

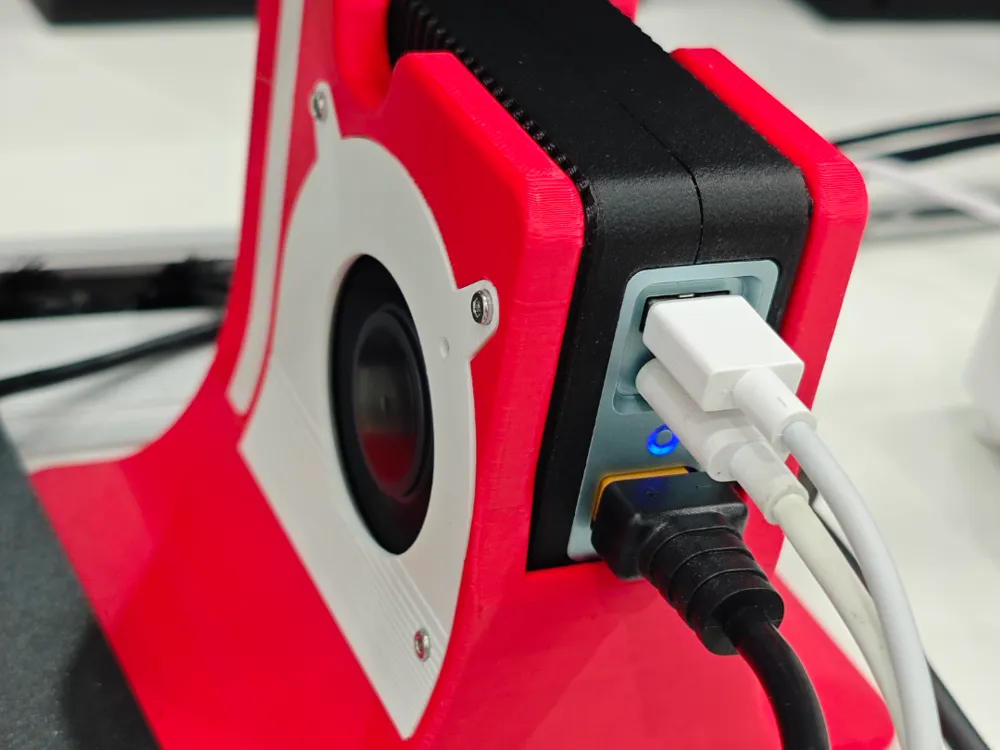

Additionally for aesthetic appeal convenience and extra heat dissipation I also designed a corresponding desktop base you can find details at the homepage link
