School cone stand

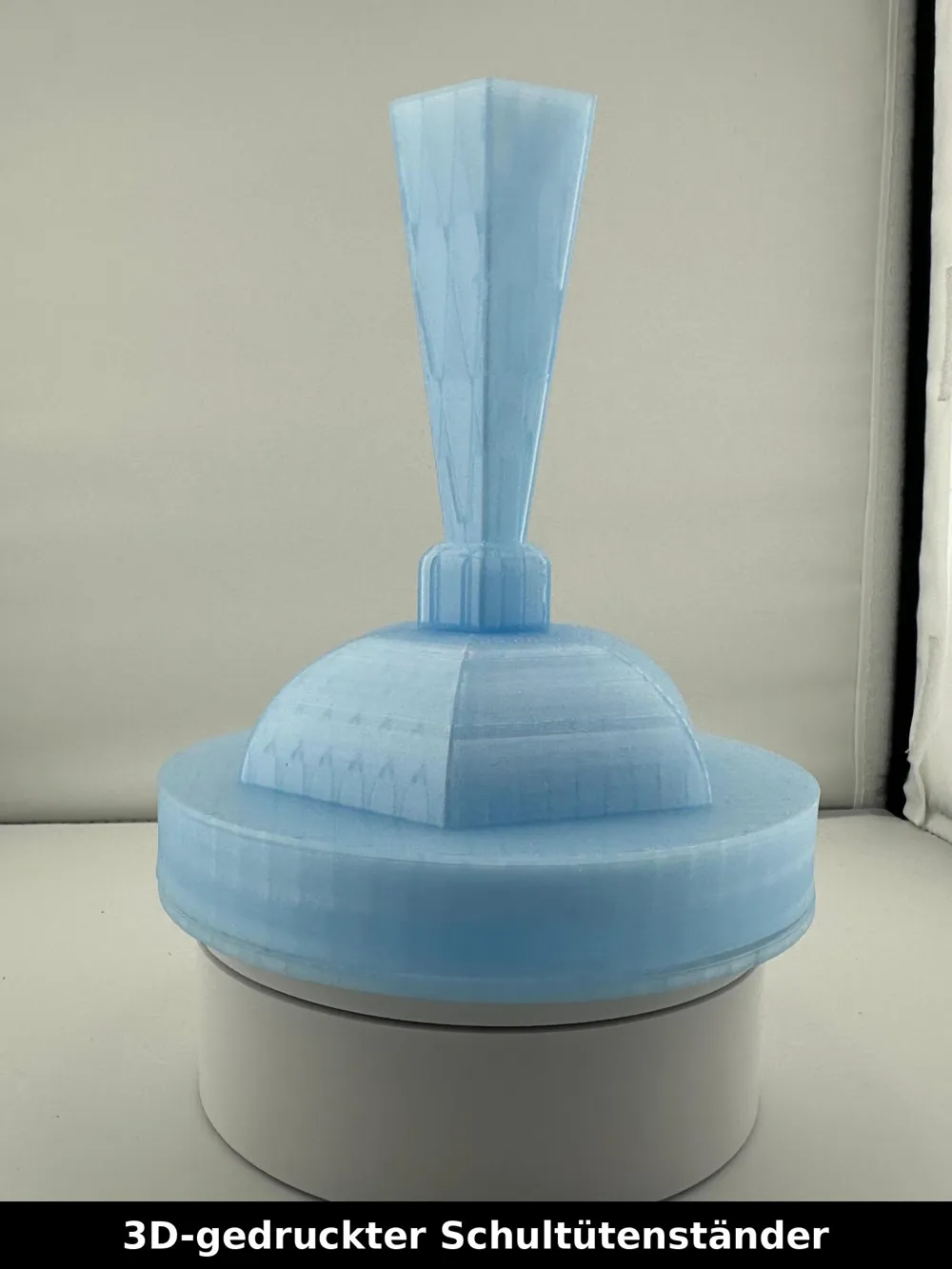

3D-printed school cone stand with weight insert (for 1 kg weight plate)

Secure stand for the big day!
On the first day of school, you often want to briefly put down the school cone – while eating, for photos, or to have your hands free
This 3D-printed school cone stand is the perfect solution: stable, modular, and easy to transport

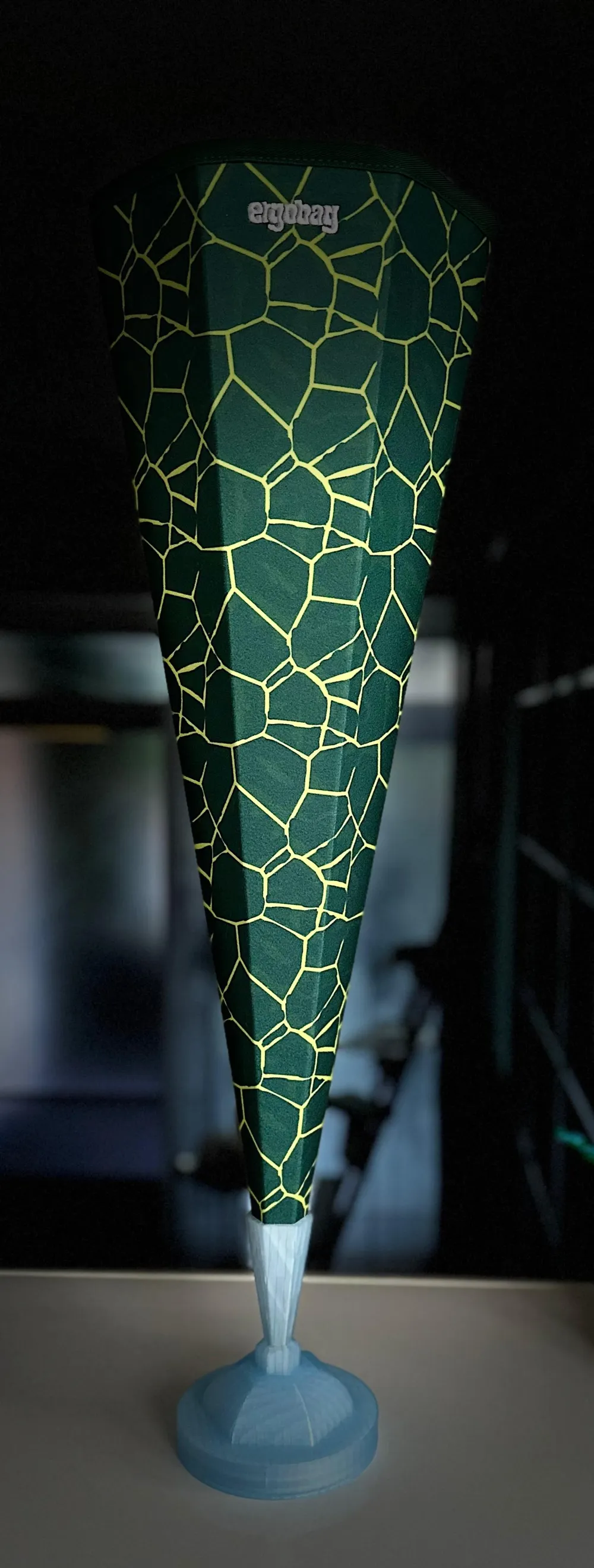

The stand is designed for a hexagonal school cone approx 75 cm high,
but also fits round and most common school cone shapes

✨ Features

• Secure Stand thanks to a 1 kg weight plate (Ø approx 125 mm, approx €10 online)

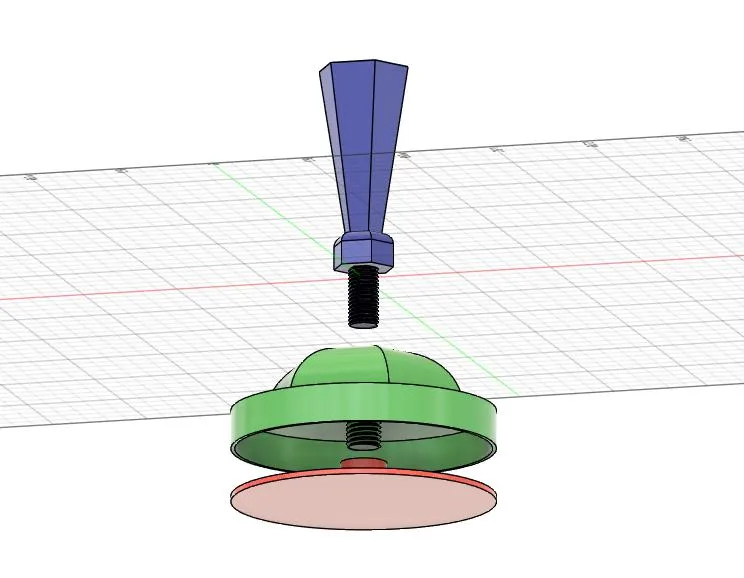

• Modular: Top and bottom connected with a thread

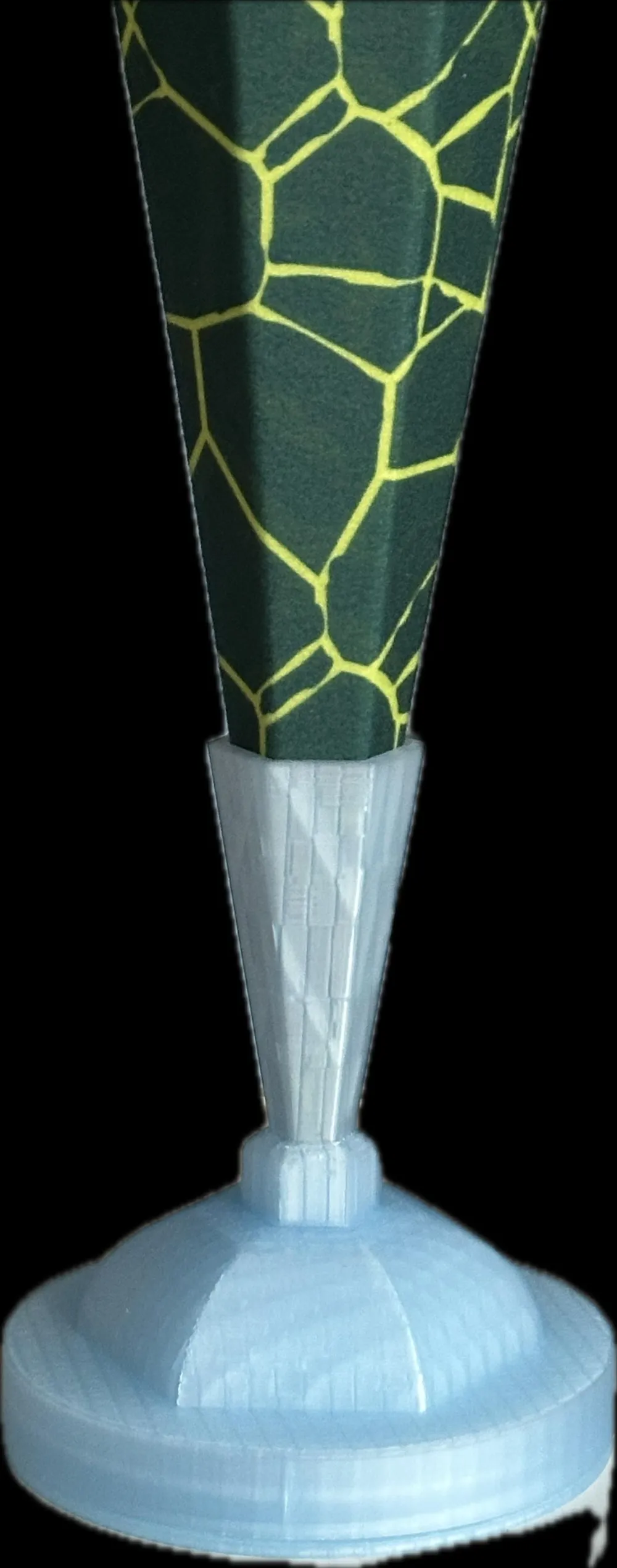

• Gentle Hold: The tip of the school cone is protected
• Easy Assembly: Assembled in a few seconds
• Universally Applicable: For hexagonal, round, and most standard school cones
• Customizable: Colors and engravings freely adaptable

🛠 Setup & Usage

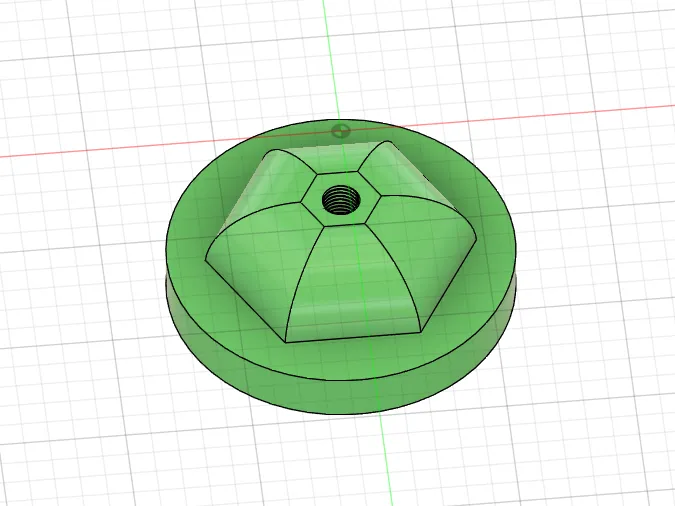

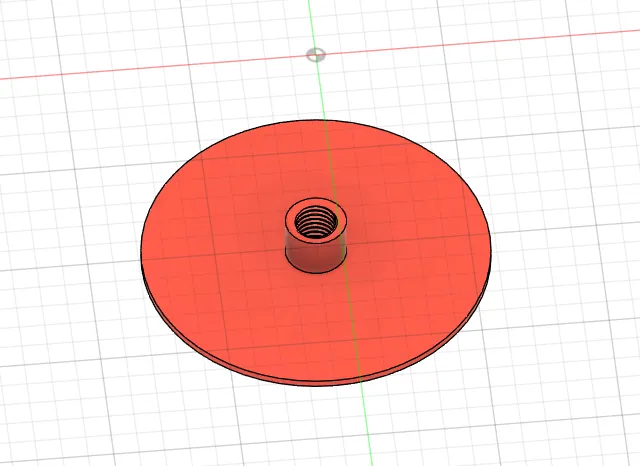

1. Print Base Plate, weight recess integrated
2. Insert 1 kg weight plate

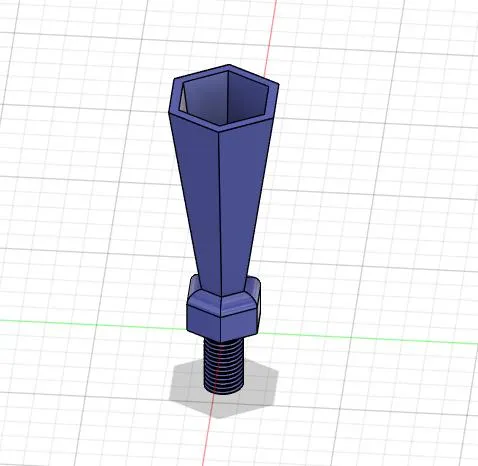

3. Screw on Upper Holder
4. Place school cone inside – done!

📐 Technical Data

• Material Recommendation: PETG or PLA+ (PETG for higher temperature resistance)
• Layer Height: 0.2mm layer
• Infill: 20–30% (base plate preferably stronger for stability)
• Printing without supports possible
• Weight: 1 kg weight plate, outer diameter approx 125 mm
• School Cone Size: Designed for 75 cm length, fits most common sizes

📦 Required Parts

• 3D-printed parts (STL files in download)
• 1 × 1 kg weight plate
• Optional: Foam rubber insert for protecting the school cone tip
