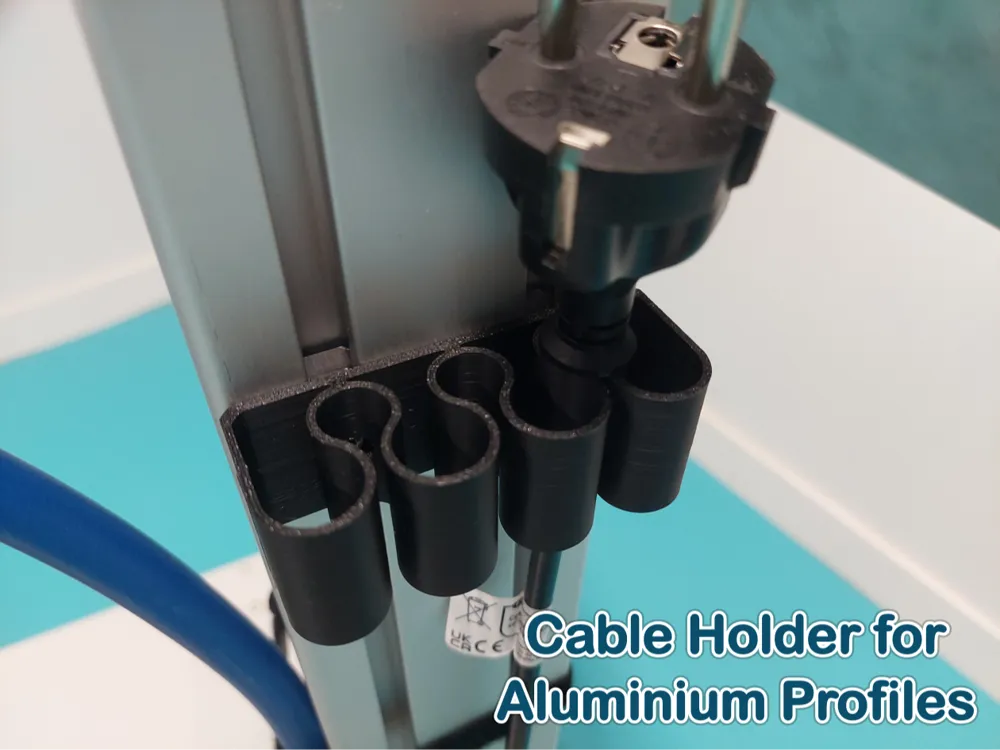

Cable Holder for Aluminium Profiles
Print Profile(1)
Bill of Materials
- Cone-Head Screws x 2: M3 × 12 mm
Description
Don’t forget to Like 👍 and Collect 📂 this design so you can easily find it later and support my work!
👉 And don’t hesitate to check out my other creations right here!

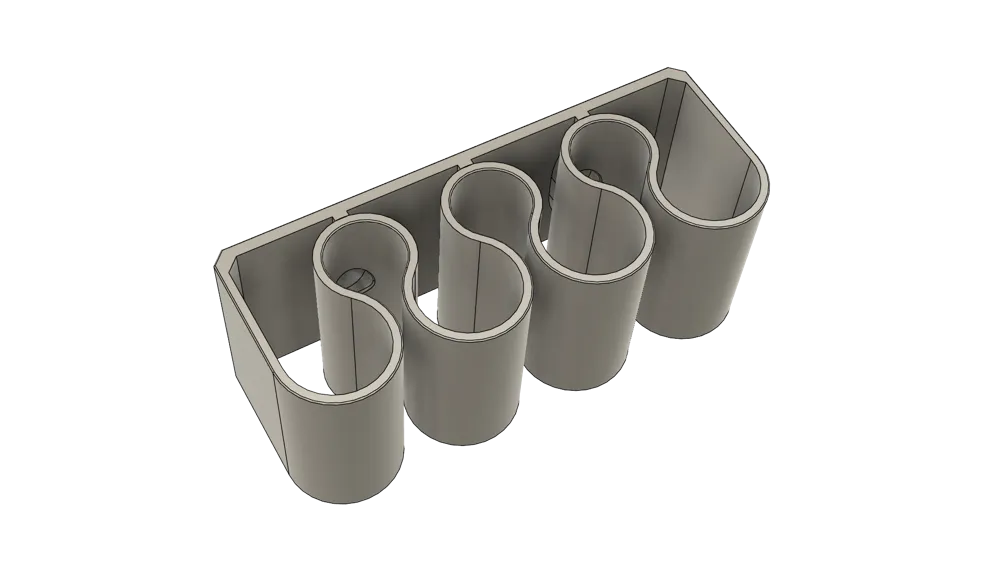

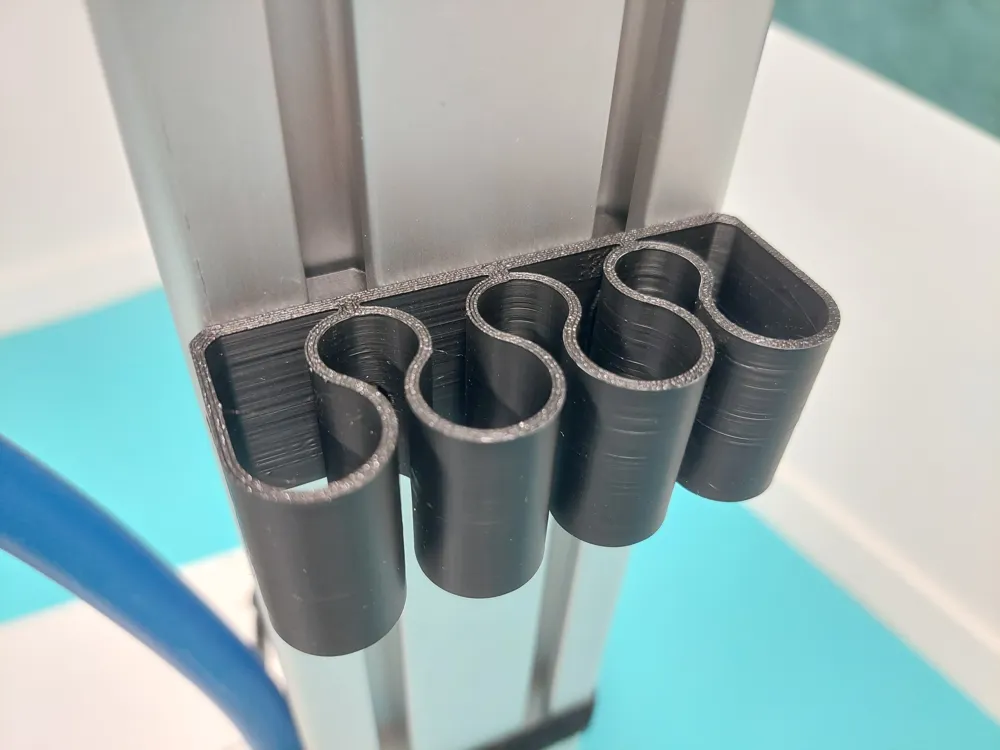

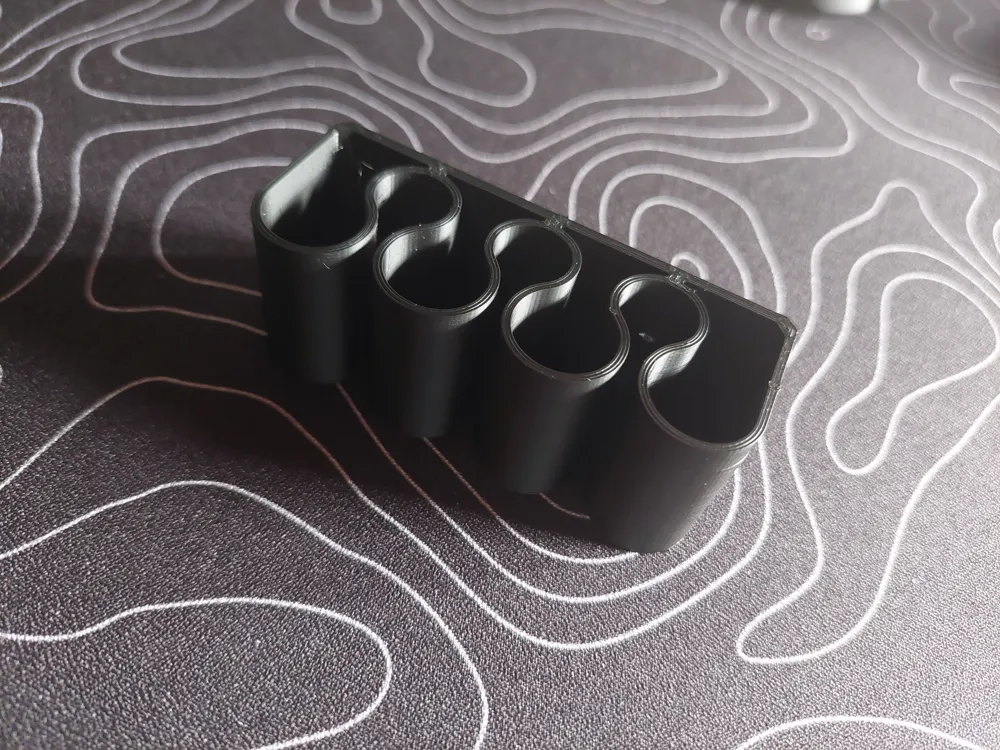

This is a cable holder designed for three cables, accommodating diameters of up to approximately 14 mm. It can be mounted onto an 8 mm slot aluminium profile with dimensions of 80×80 mm.

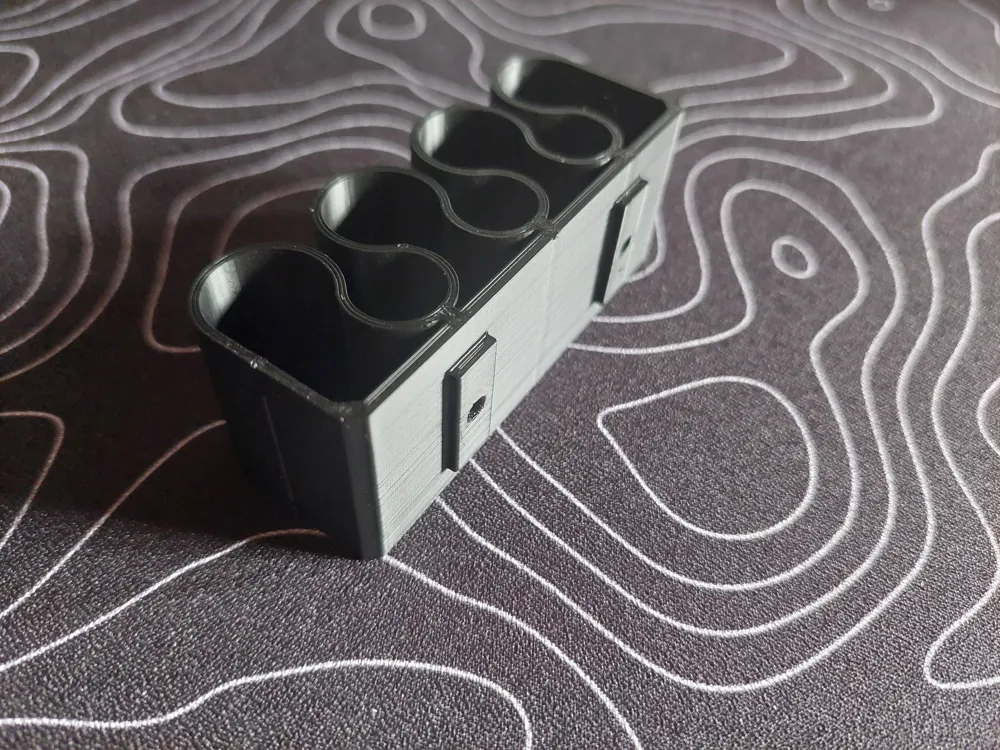

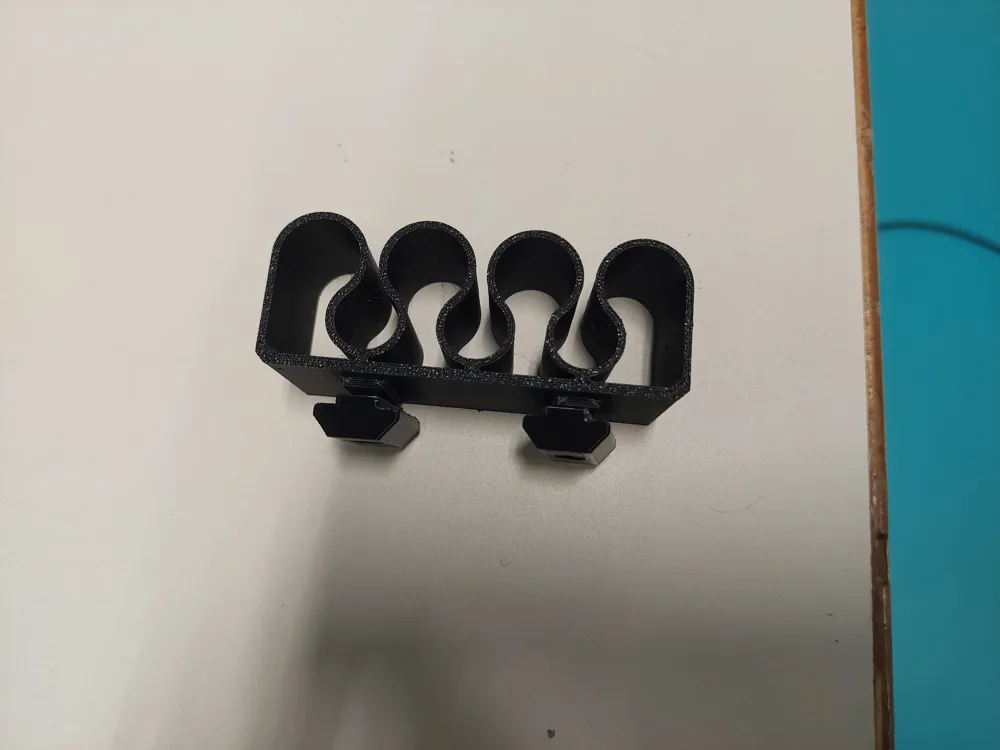

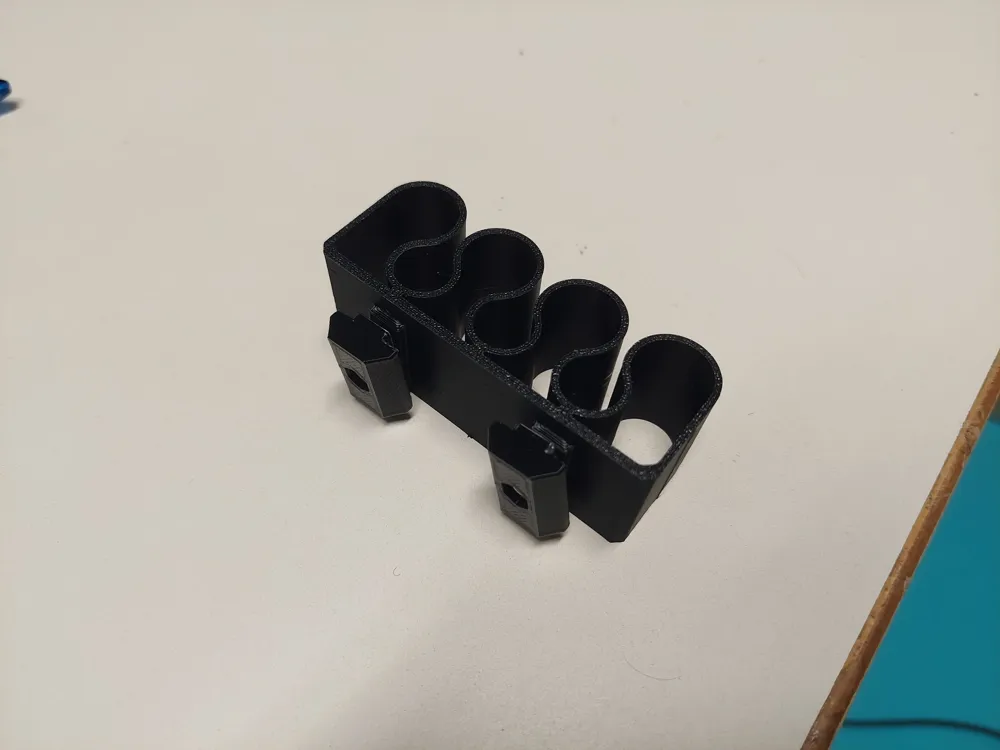

The fixing holes are spaced 40 mm apart (centre to centre) and are intended for M3 cone-head screws (12–16 mm long), which can be easily inserted and tightened with a standard wrench. The holder can be securely attached to the aluminium profile using the Customisable T-Nuts for Aluminium Profiles model.
