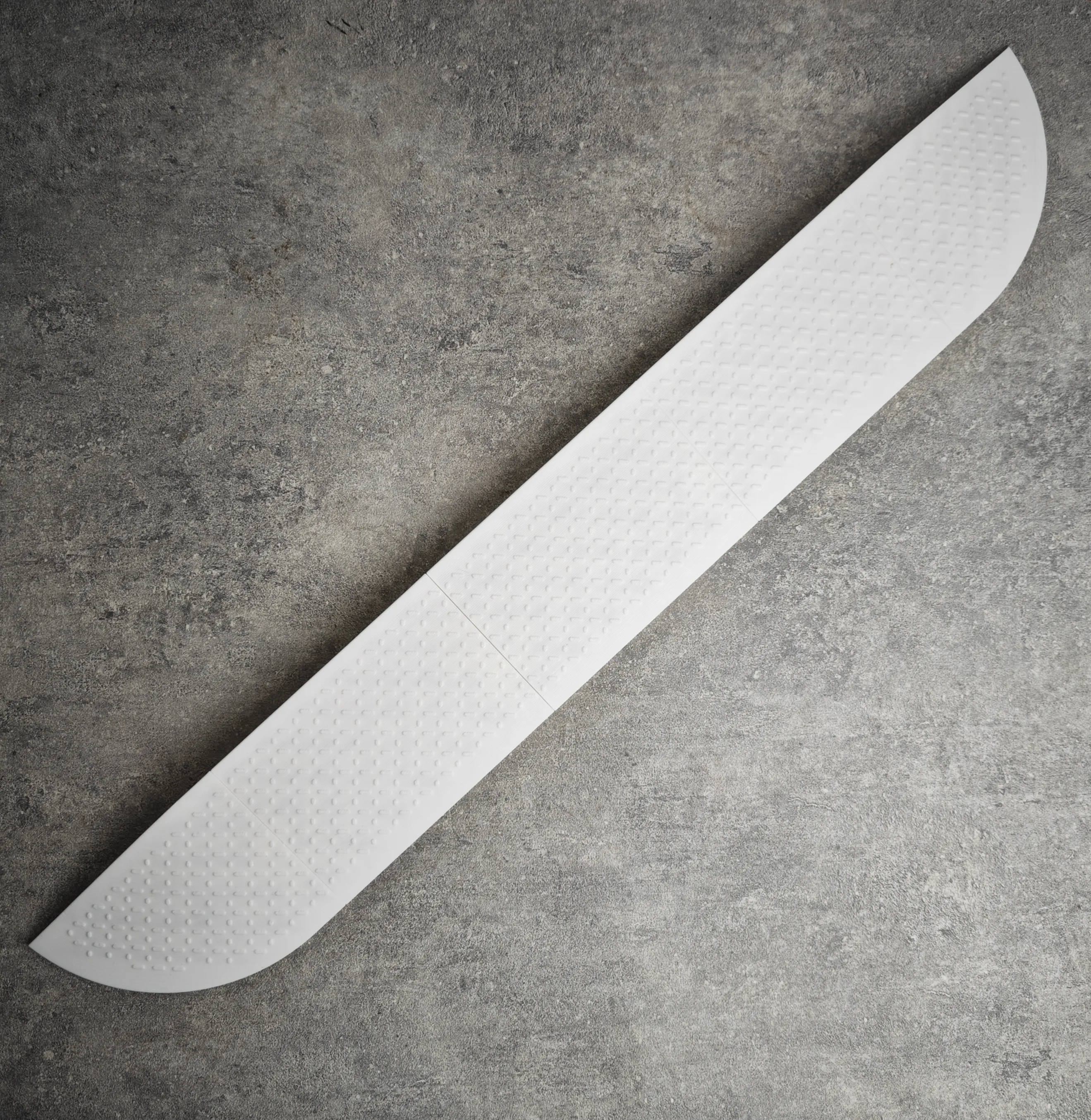

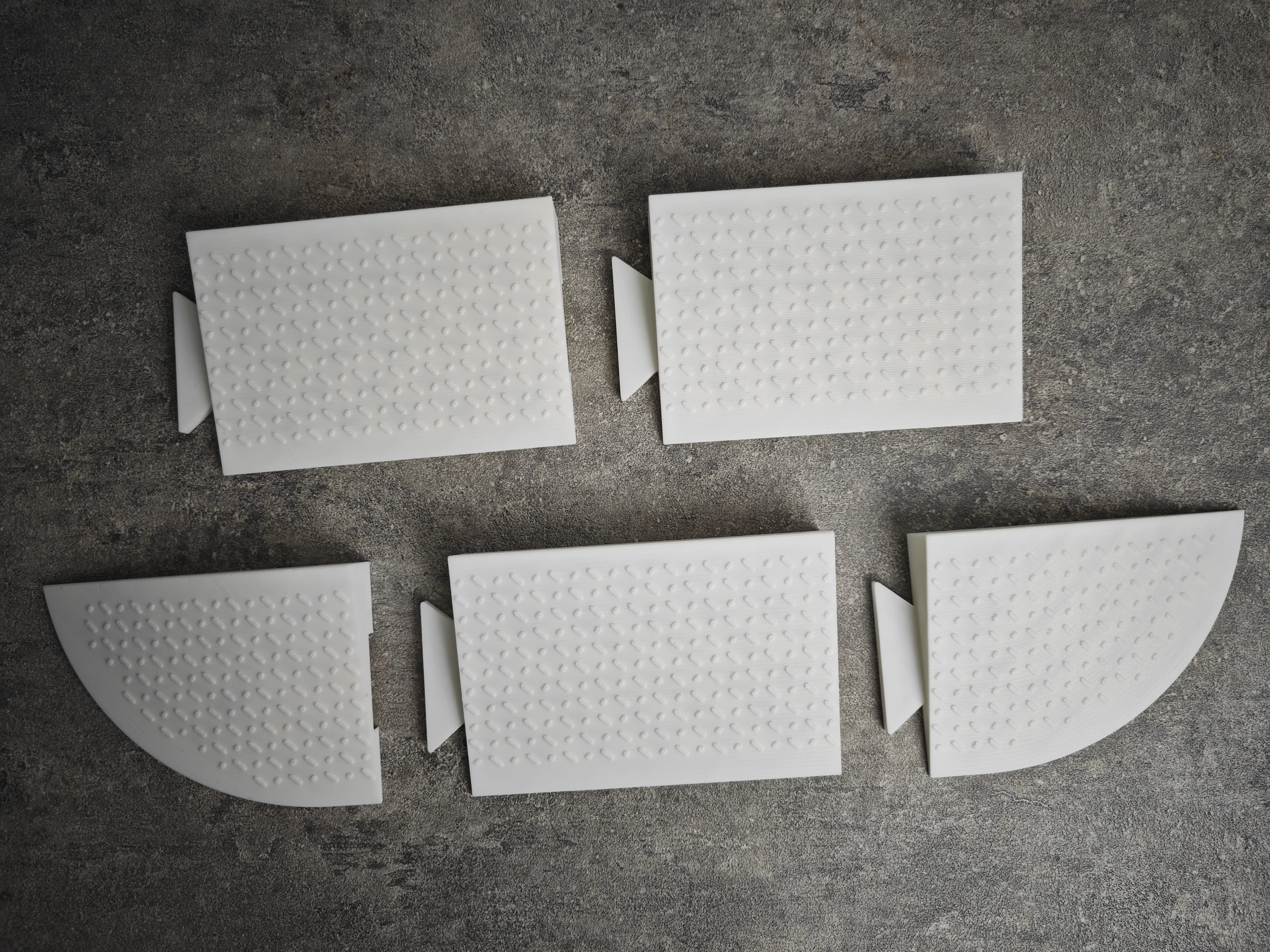

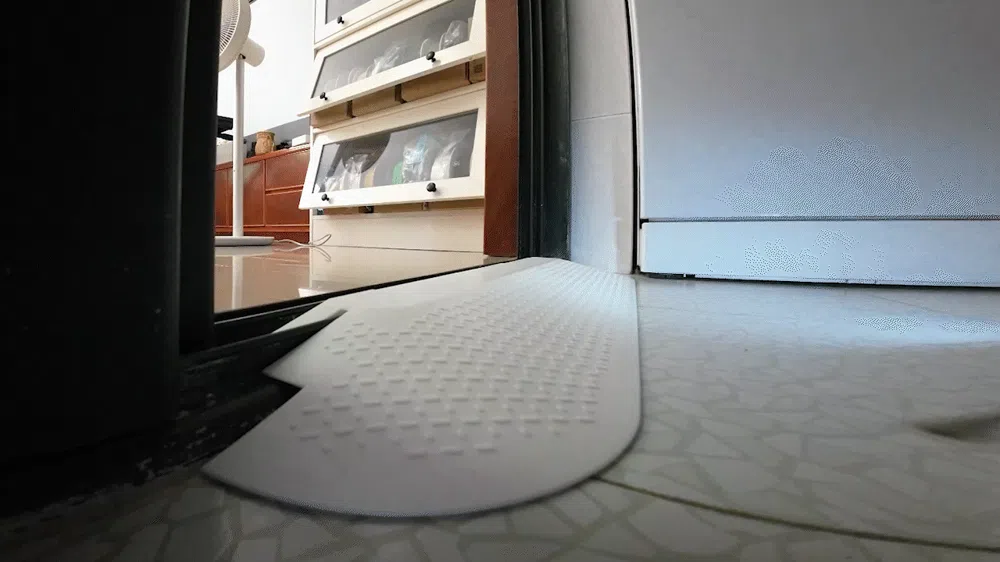

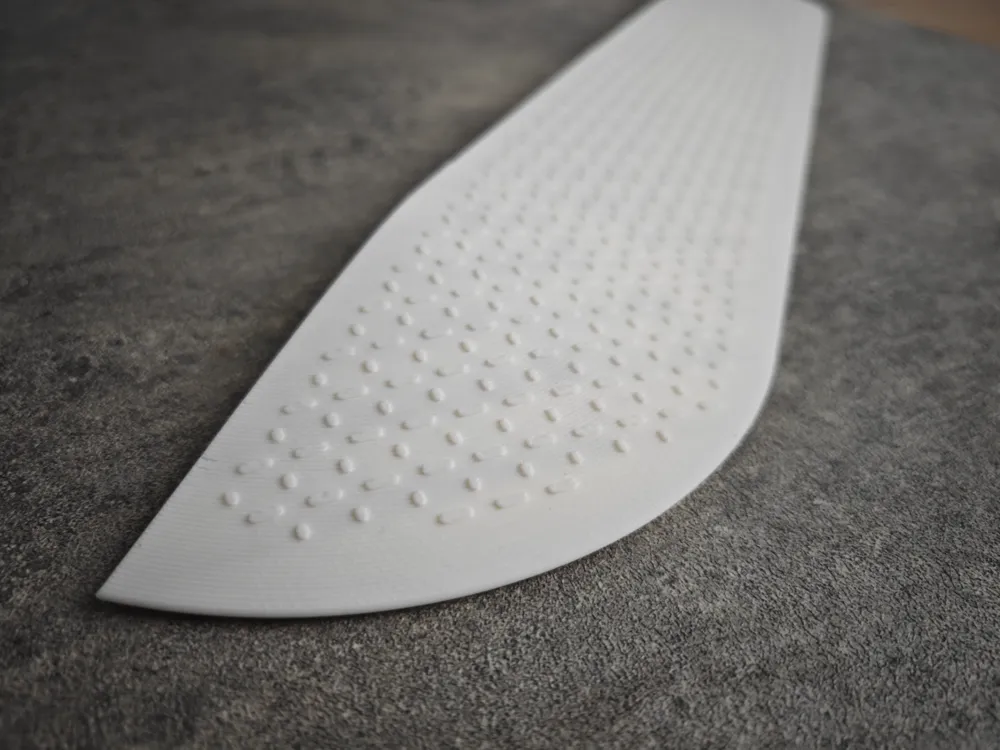

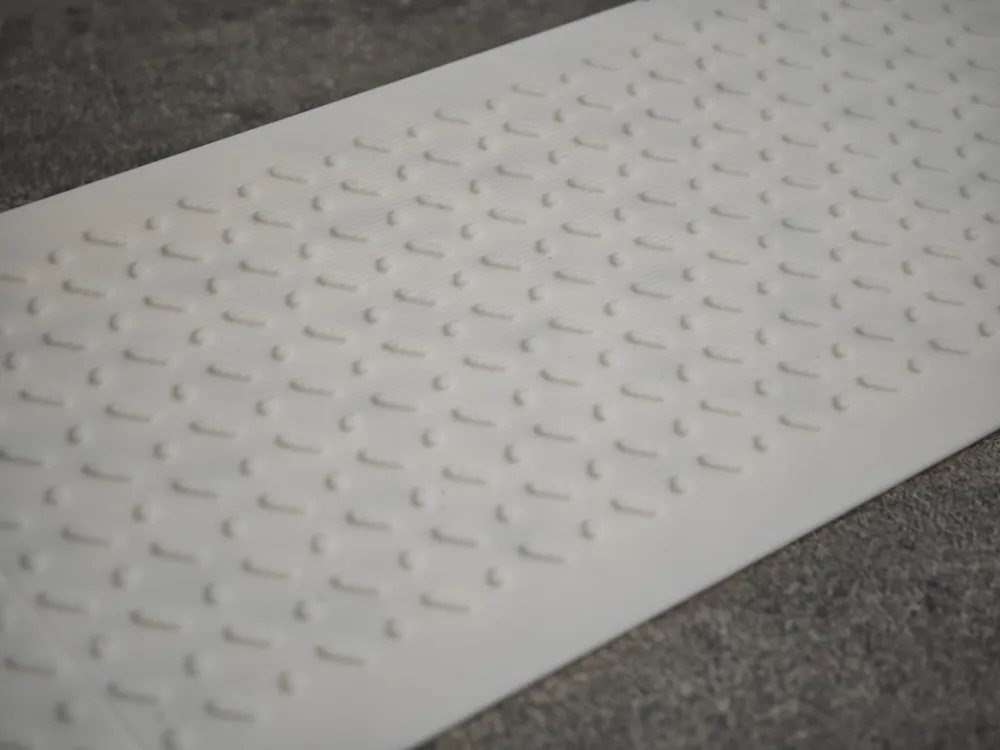

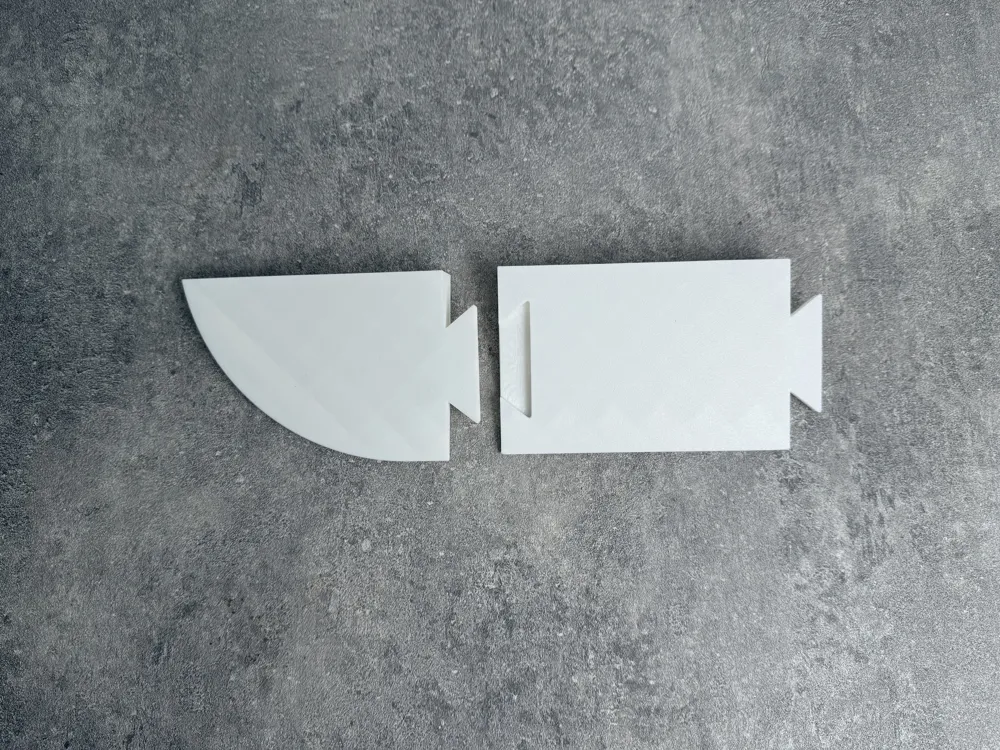

Good anti-slip effect, high aesthetic value, and does not obstruct door opening or closing. Modular design uses mortise and tenon joints, the middle three modules in the diagram are the same and can be assembled to different lengths.

If the regular threshold version's size is not suitable, you can adjust it to your own size using the scaling function of your slicing software.

The sliding door version requires customization: I will provide a side view for reference. If you need a specific size, you can leave a comment or send me a private message, and I will upload the configuration you need.

Versions

Regular threshold version: Full version dimensions 700mm x 100mm x 23mm, individual module dimensions are 140mm x 100mm x 23mm

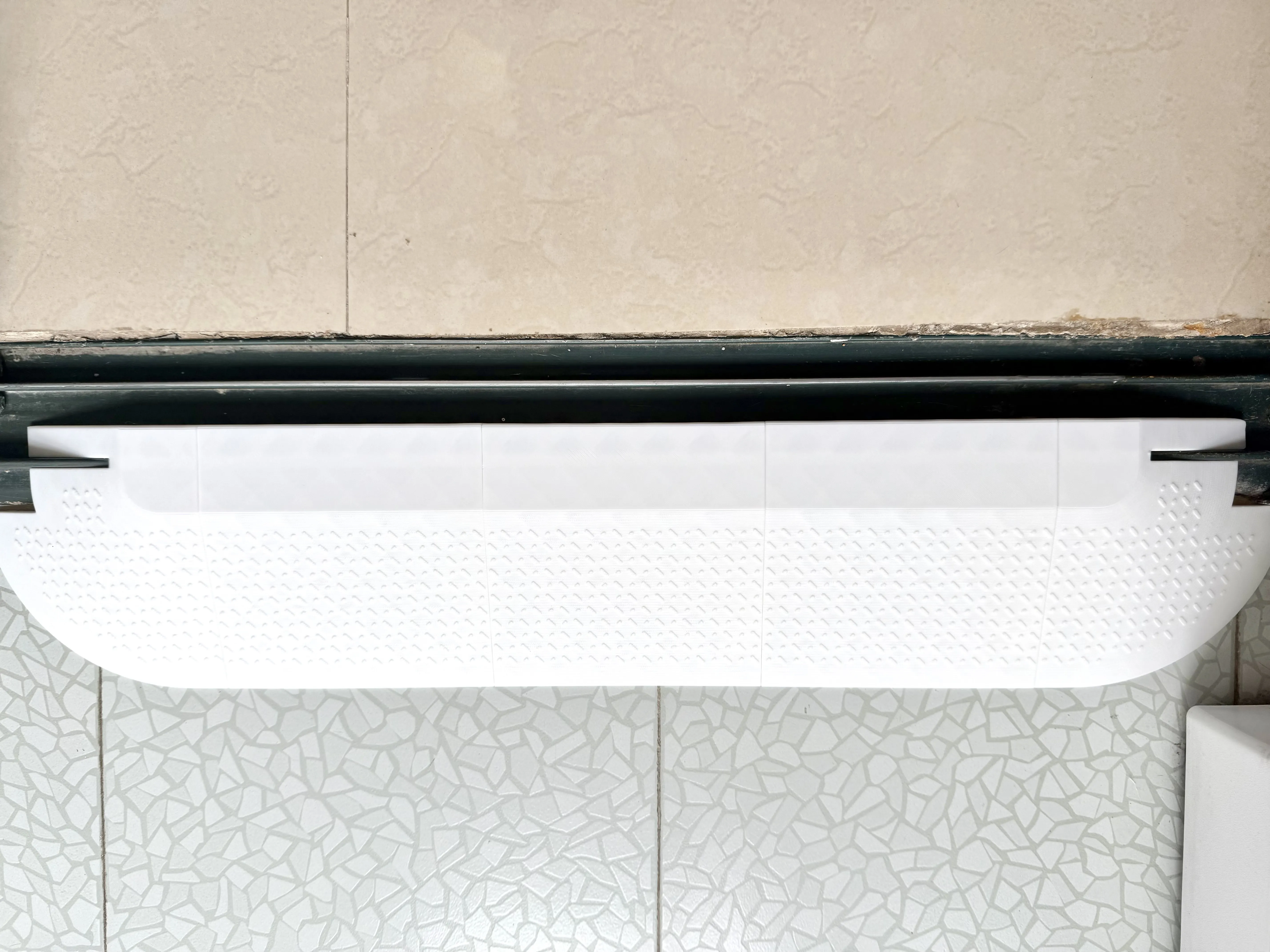

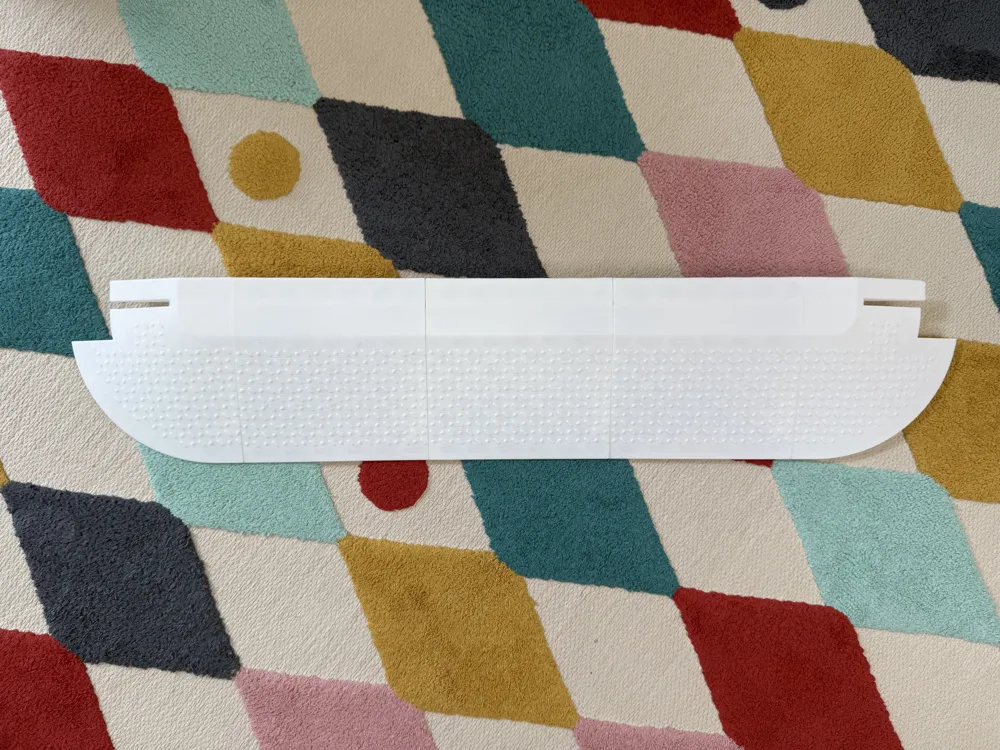

Sliding door version: Full version dimensions 700mm x 100mm x 28.7mm, individual module dimensions are 140mm x 100mm x 28.7mm
Side view corresponding to the uploaded model:

The side view below can be used to mark your dimensions⬇:
