Bill of Materials
- M3 nut insert x 3:
- M3 bolt x 3: At least 10mm length
- e27 bulb socket x 1:
- e27 LED bulb x 1:
- Cable with switch x 1:
Description

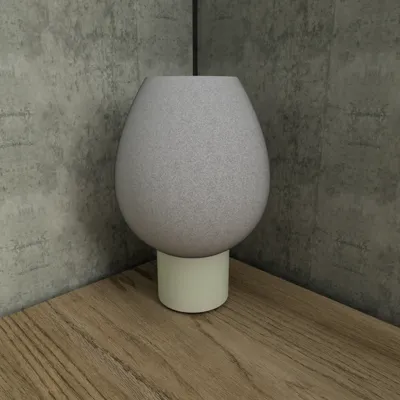

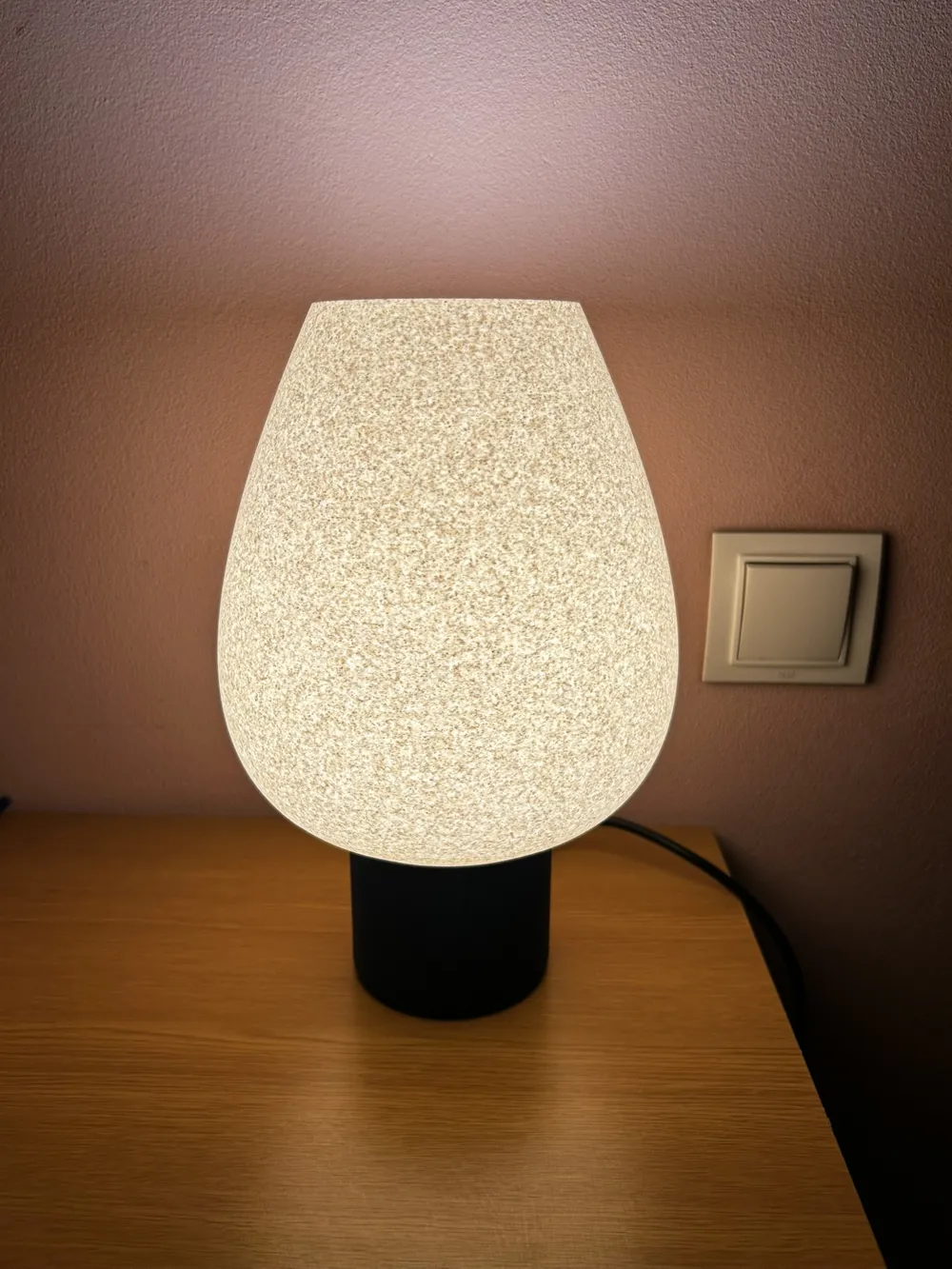

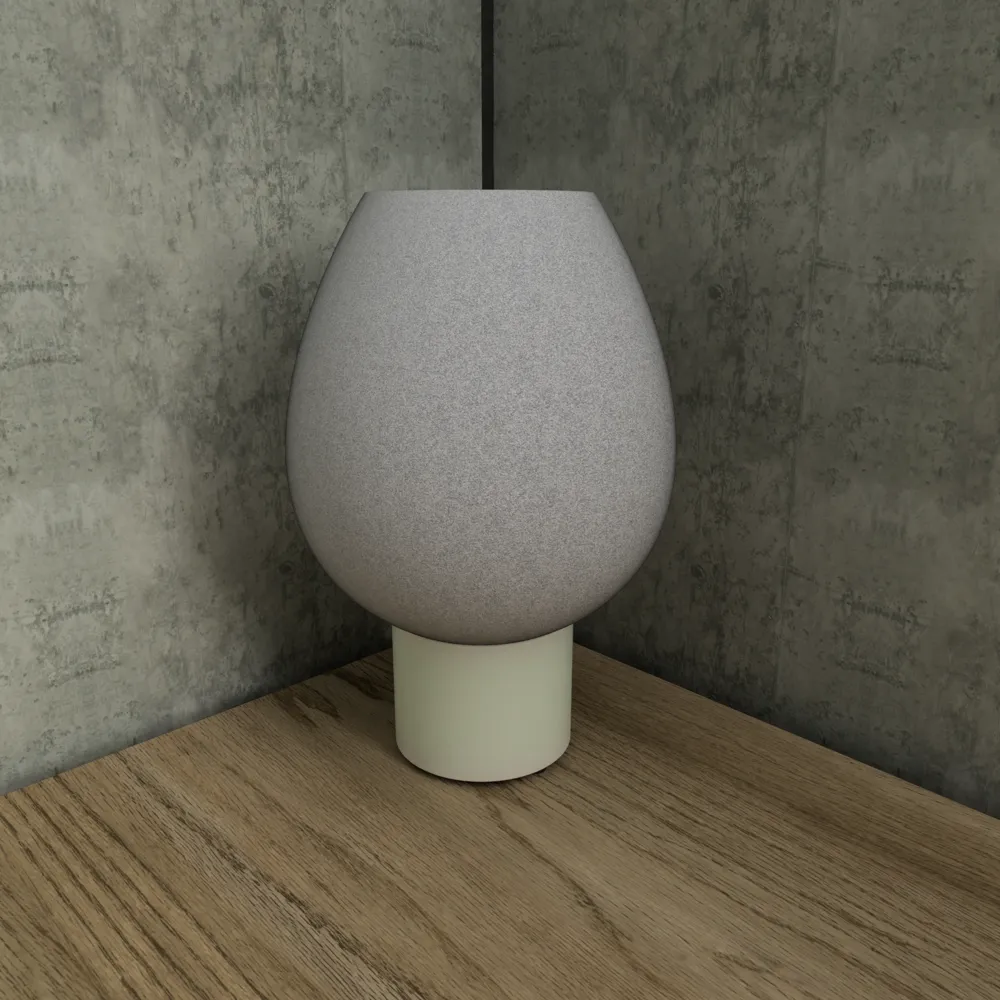

Modular Lamp, ideal for intimate bedrooms. You need just one base, make it the color you want.

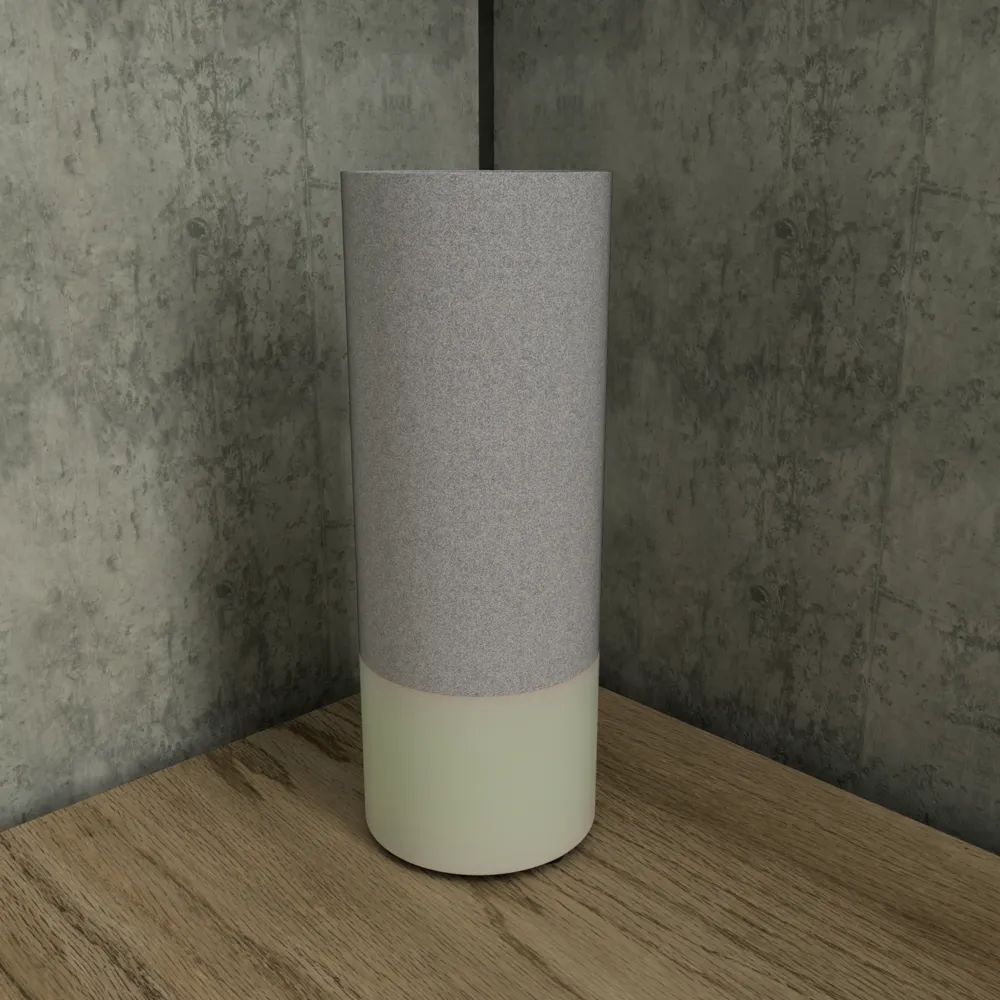

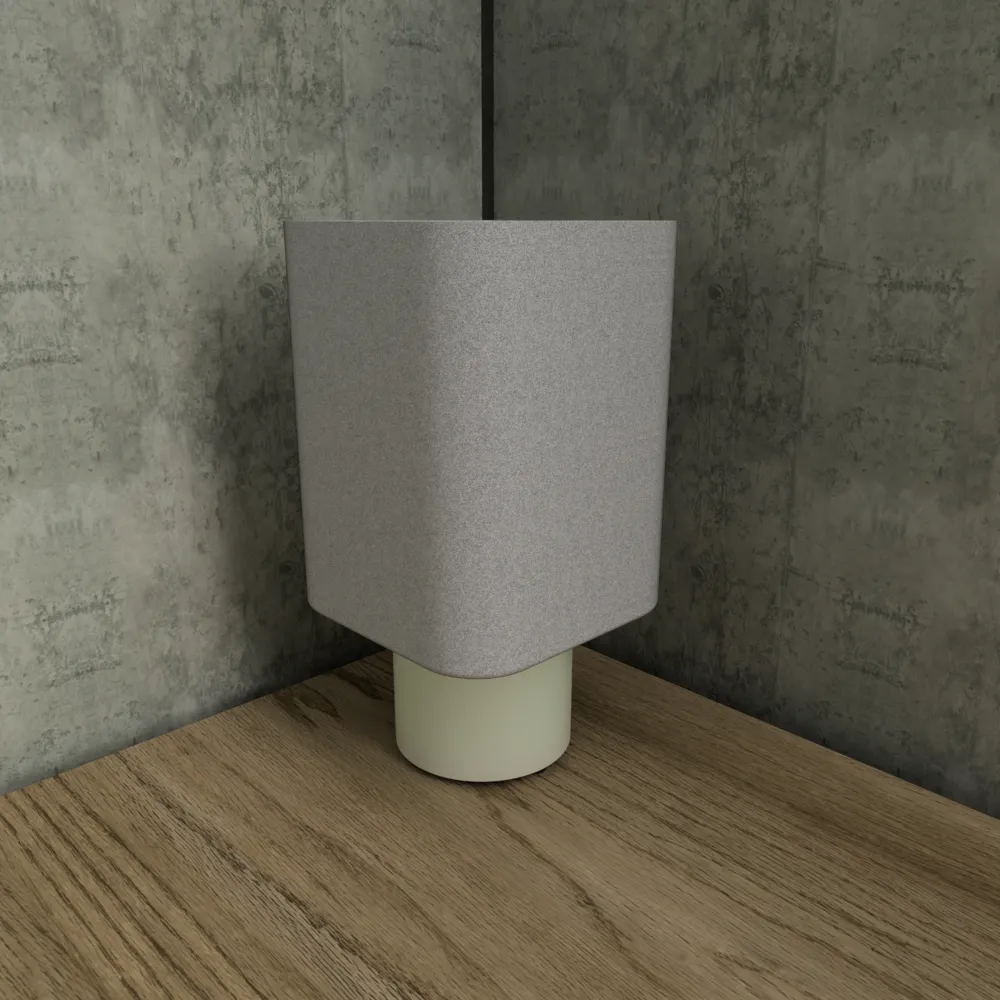

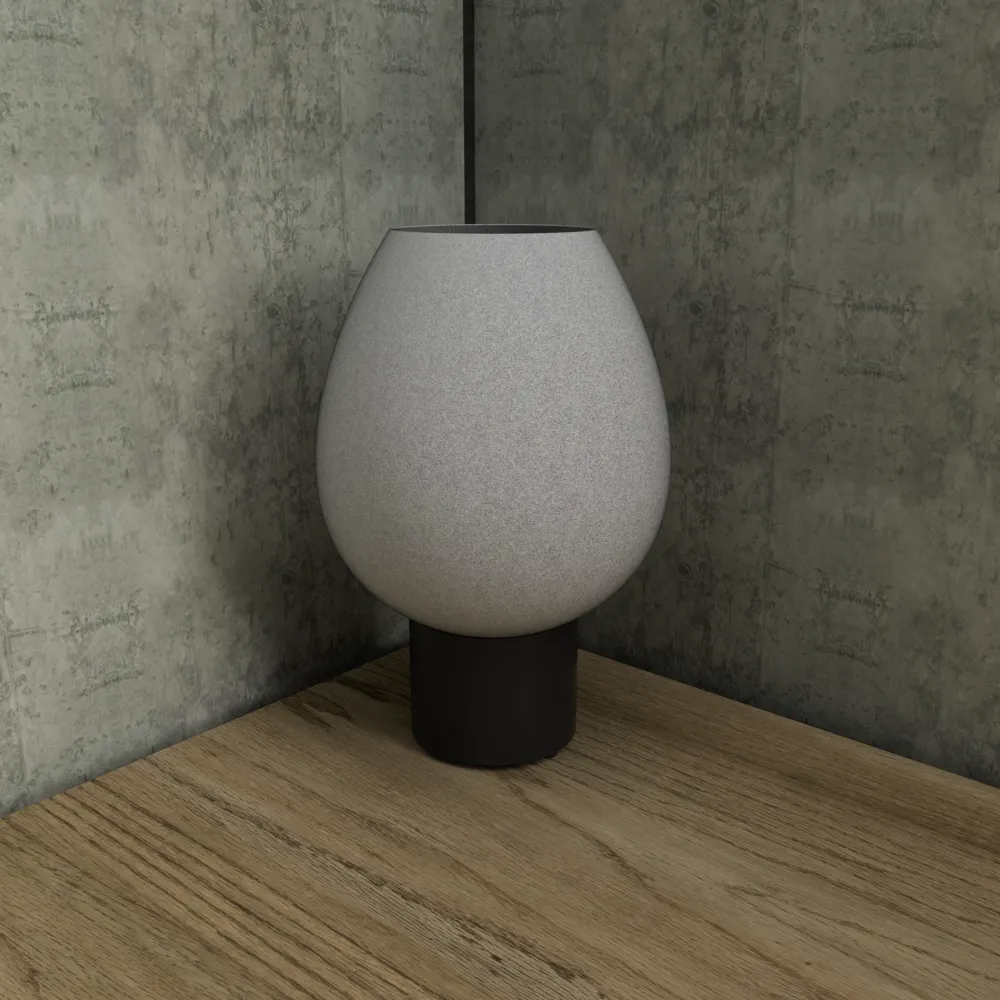

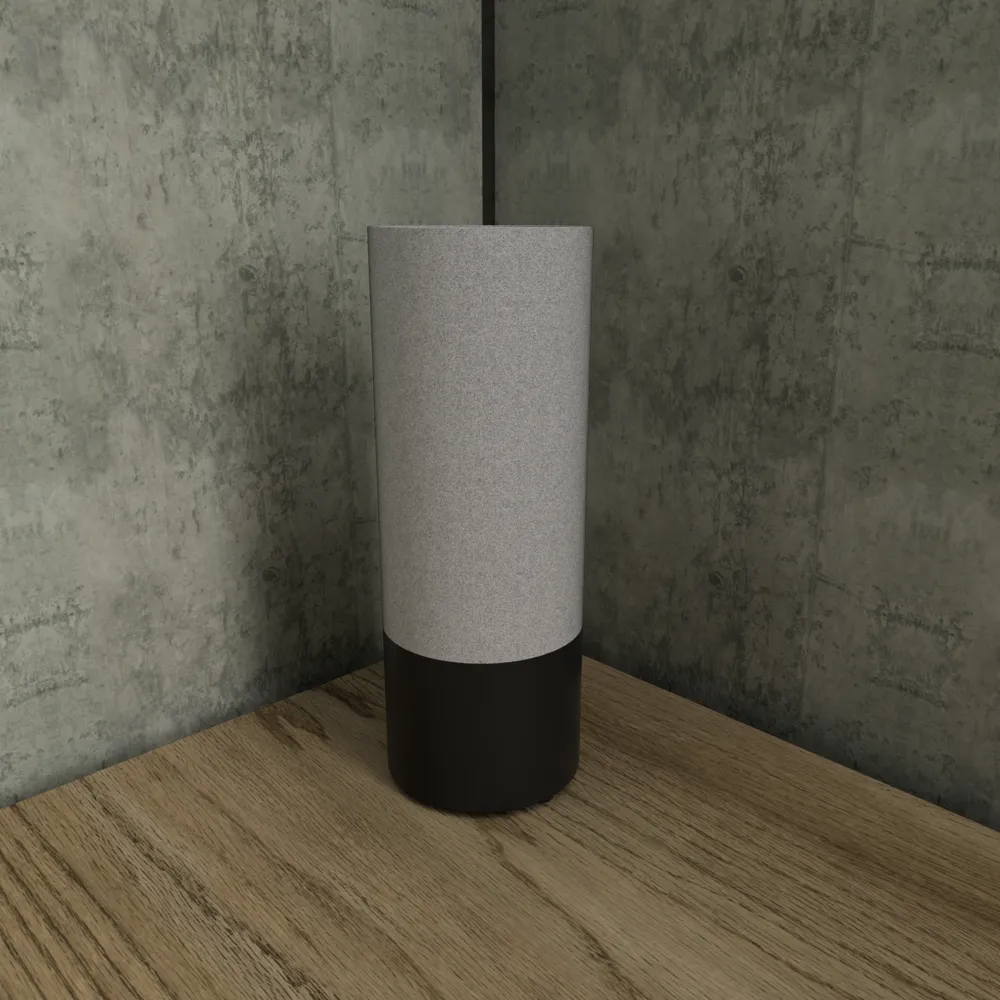

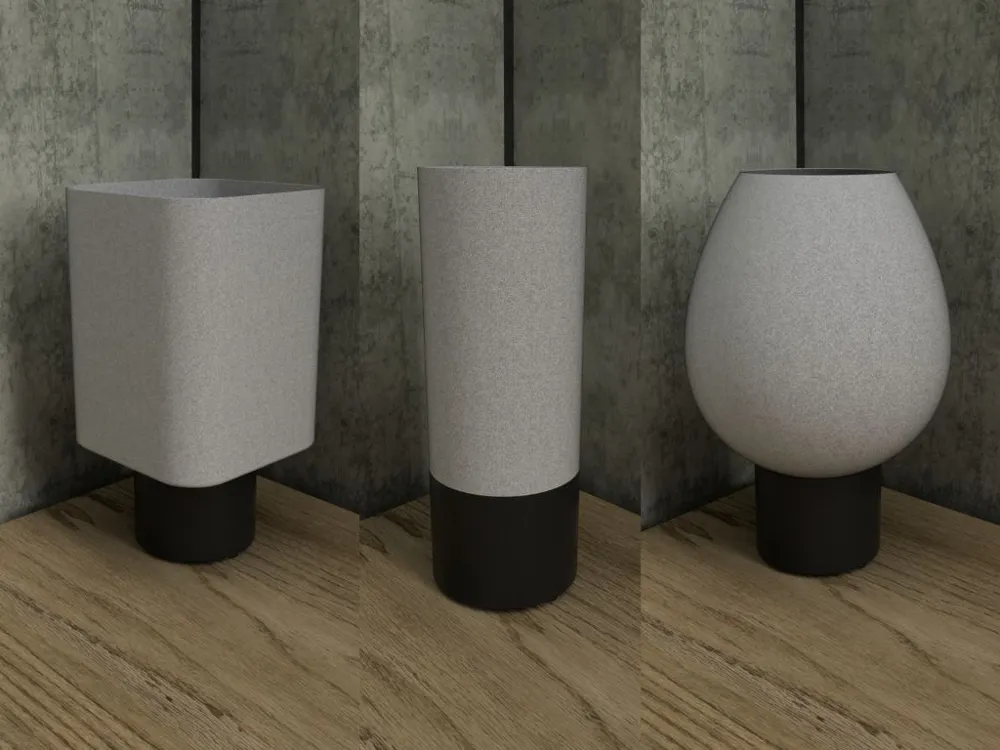

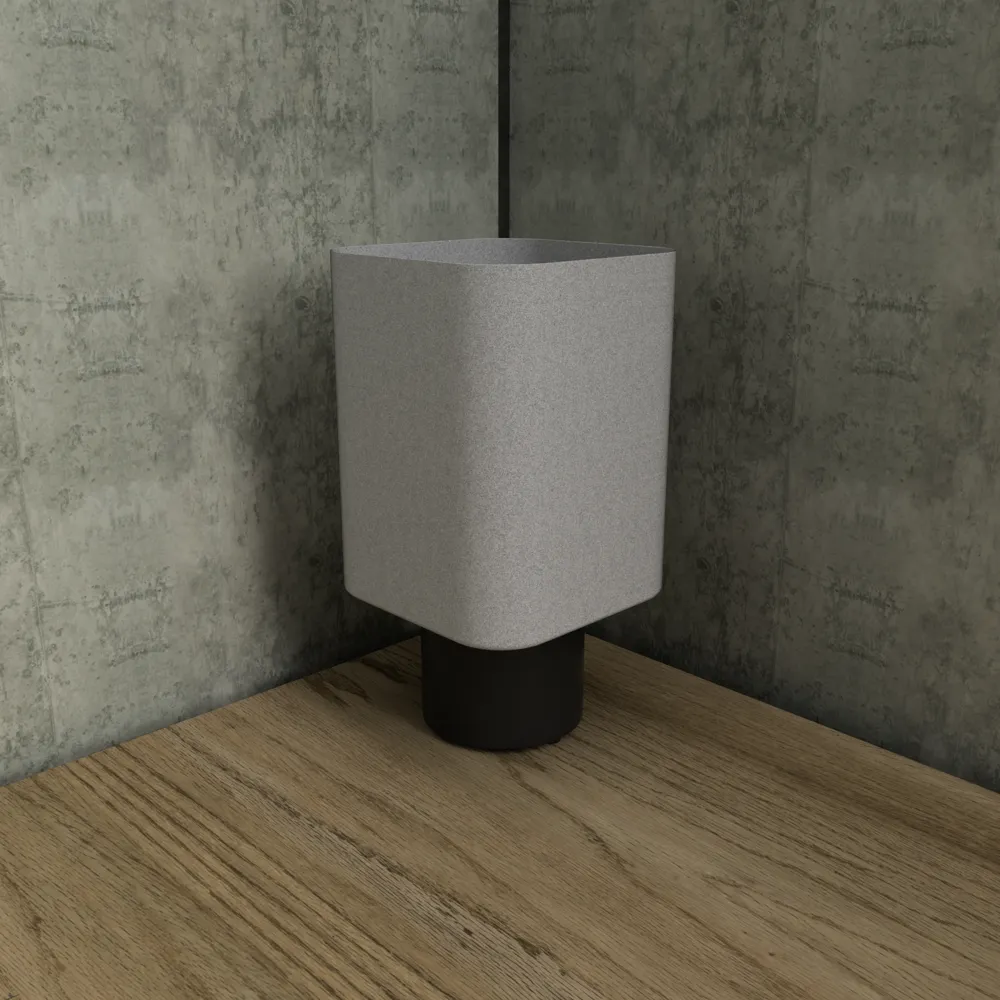

You have 3 types of lids, All of them are compatible with the base. When you get bored about one lid you can change it without change the base. I recommend to print the lids with Bambu Lab PLA Marble.
Instructions for the base:
- Print the two parts of the base

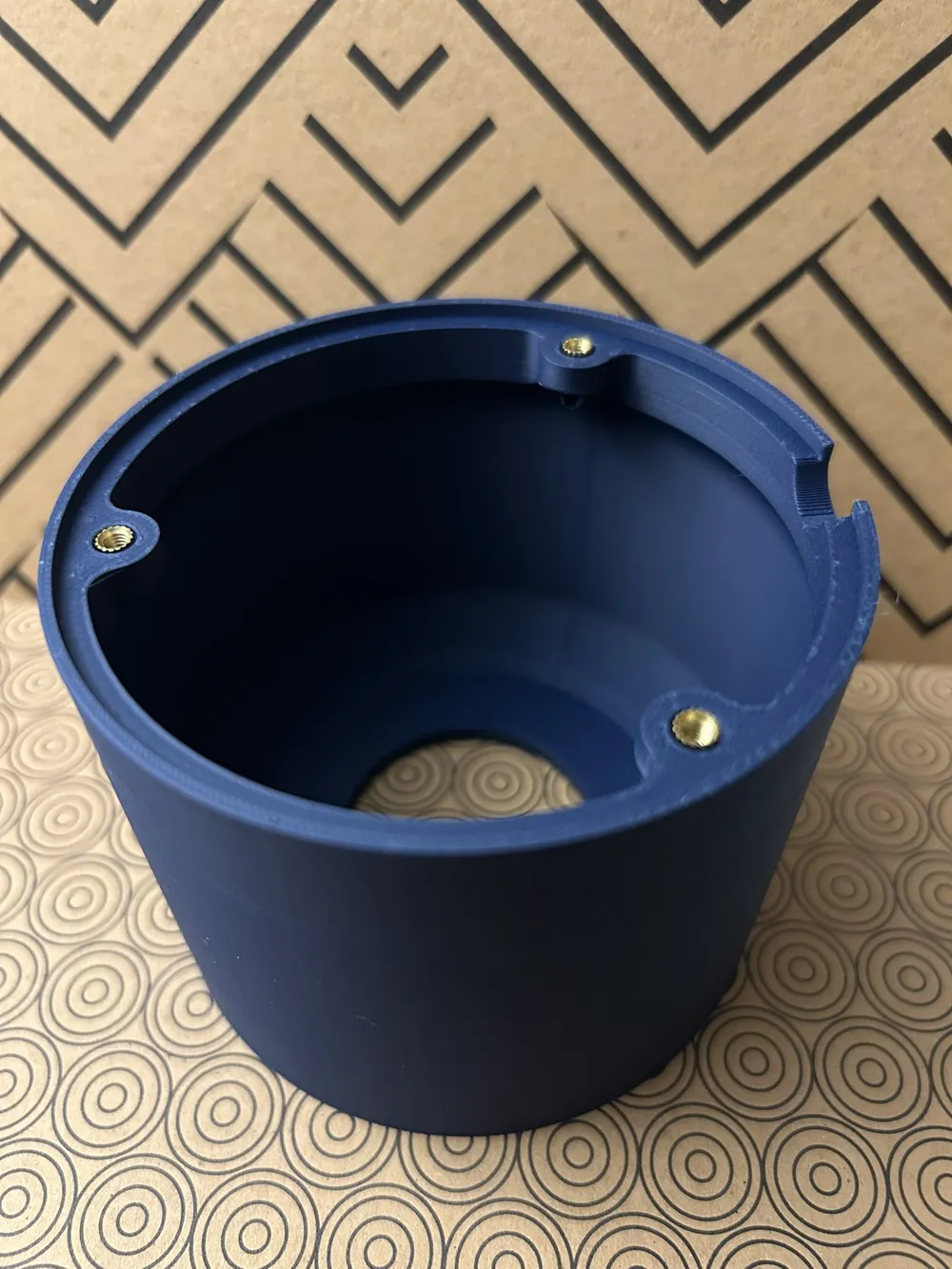

- You need 3 nut inserts that you place in the base holes. (In this project I use M3 nut inserts, if you prefer other dimensions you can modify the model on your own)
- The main hole for the LED bulb is like 40mm, that is enough for a standard e27 bulb socket. Install the socket with the cable.

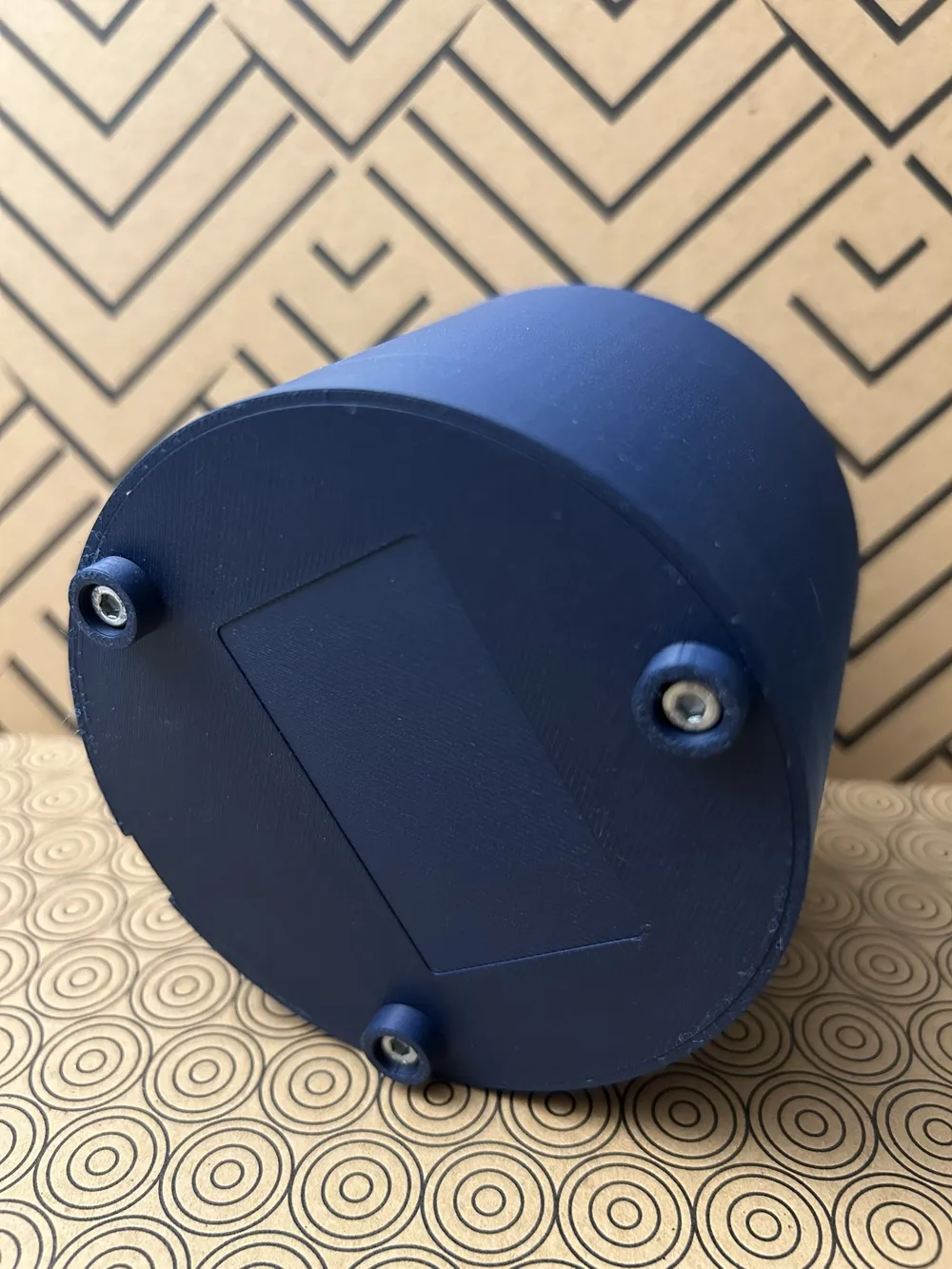

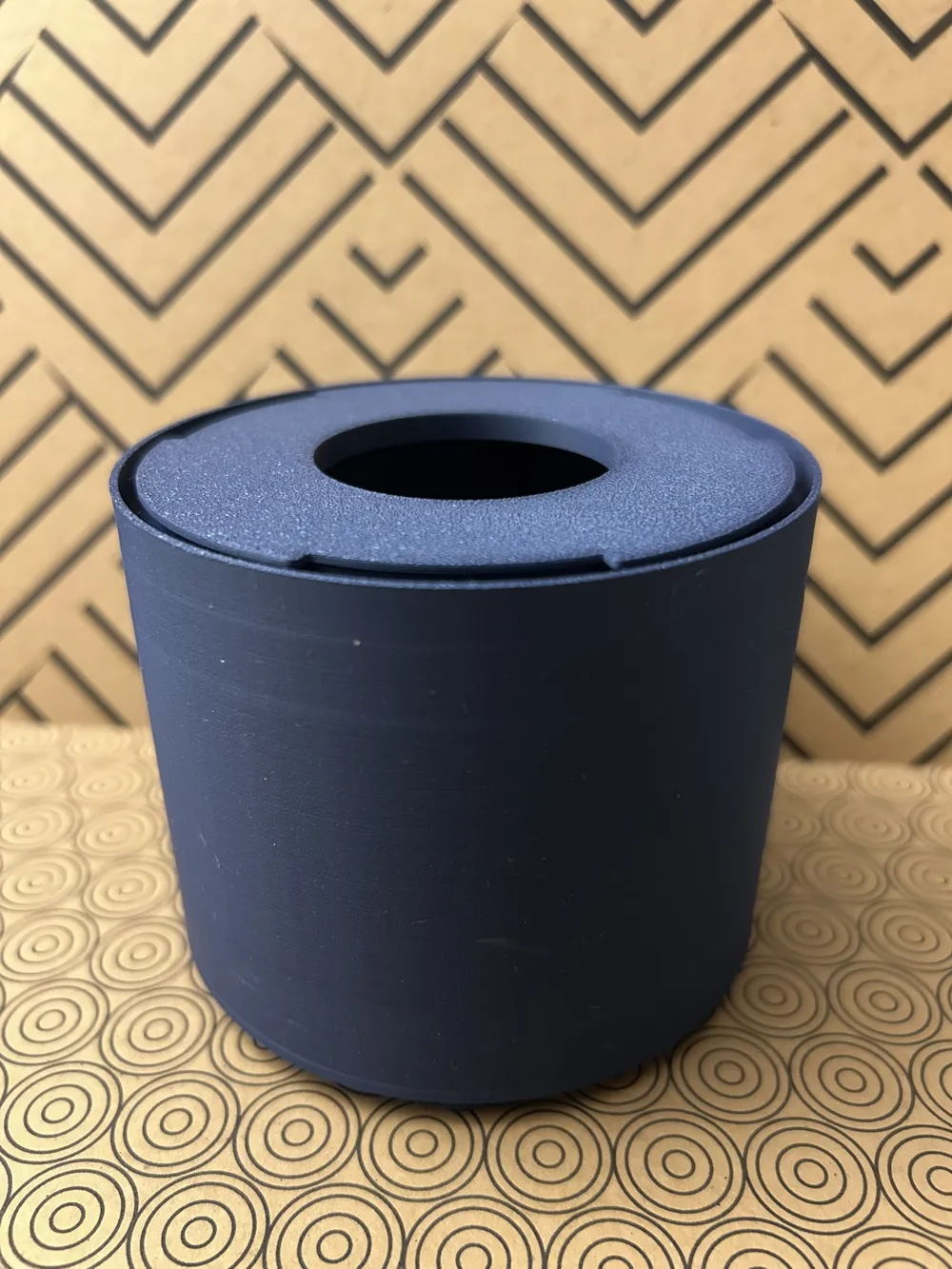

- You can now install the base cover with 3 M3 bolts, I recommend at least 10mm length.
- Now put the LED bulb in the socket and try it.
- USE ONLY LED LIGHT BULBS!

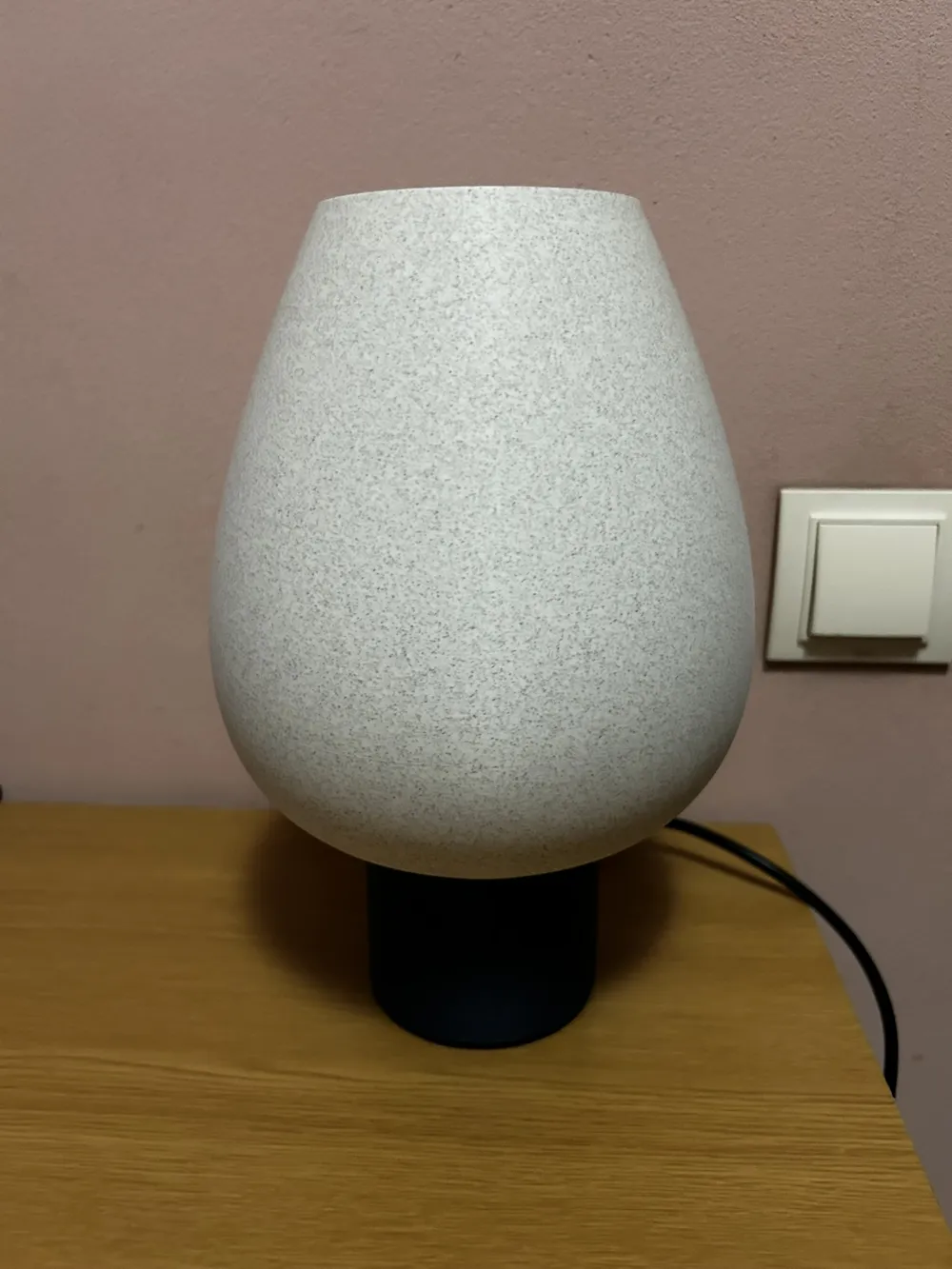

Now you can twist the lid on the base and DONE!!! You have a Modern Lamp for you space!
Please contact me if you need a commercial license or you have any questions at darius.giurgi@outlook.com or contact@xeotype.com
