Meshtastic Faketec Universal V3 Enclosure
Print Profile(2)
Description
Version 1: Direct installation version, no modifications needed
Version 2: Requires button modification as shown in the figure below, appearance is consistent with V3 casing

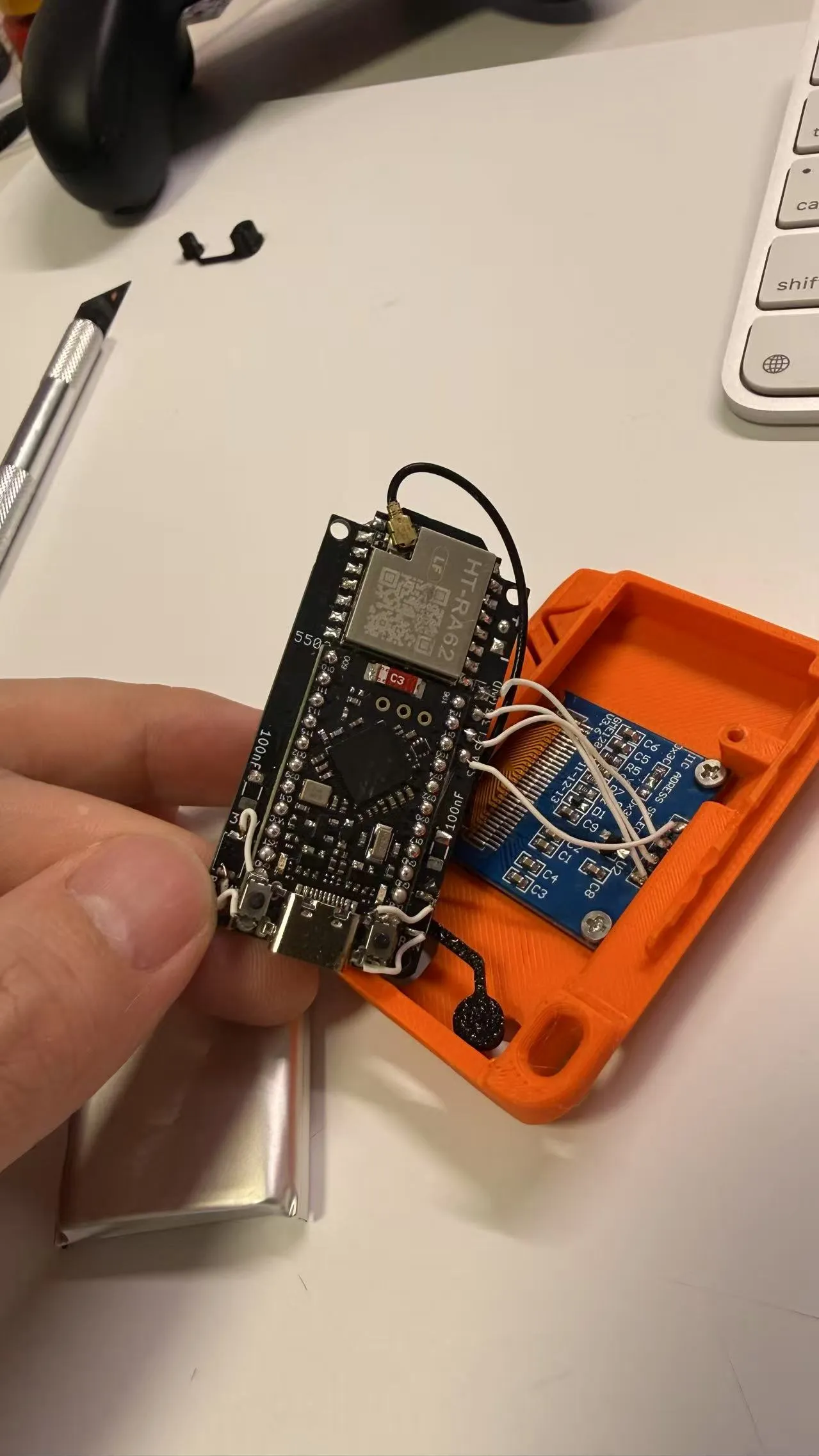

The screen uses i2c 0.96 and can be installed in the direction shown in the figure below. You need to prepare two M2 x 3 self-tapping screws and one M2 x 5 self-tapping screw. No glue is needed
The front cover has reserved space for GPS antenna installation, with maximum support for a 15x15mm antenna. The back casing space can accommodate a 336H GPS module, battery size 803040
