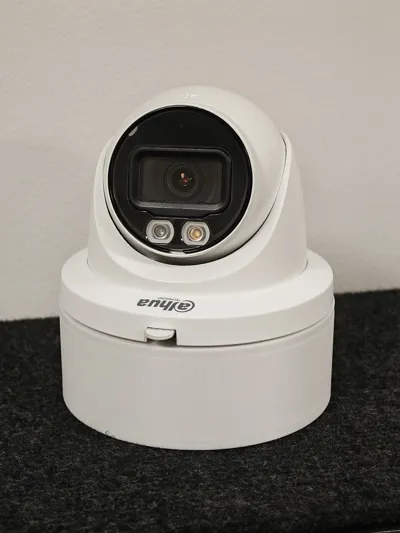

Hi, I’d like to present my design for a junction box for mounting DAHUA cameras. I based it on the PFA-130 type boxes, which fit perfectly with the new series of Dahua cameras.
The box has mounting holes arranged on a Ø84mm circle, but upon request from other users, I can also prepare variants for Ø70mm and Ø68.5mm.

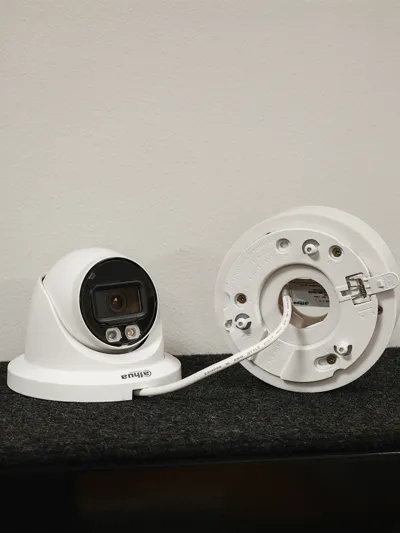

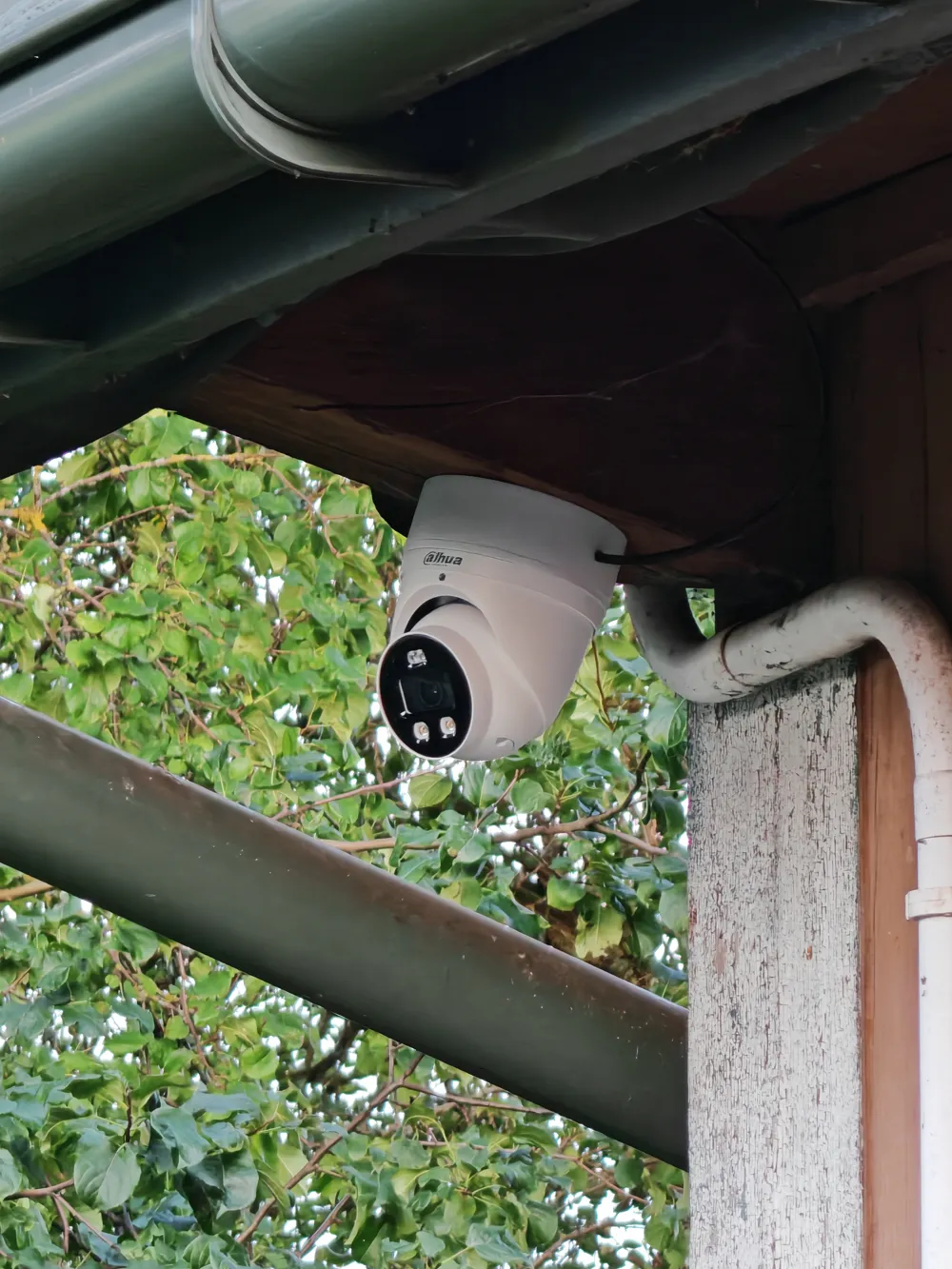

In my setup, I routed a Cat.5e F/UTP cable through the side of the box by gently drilling a Ø6mm hole.

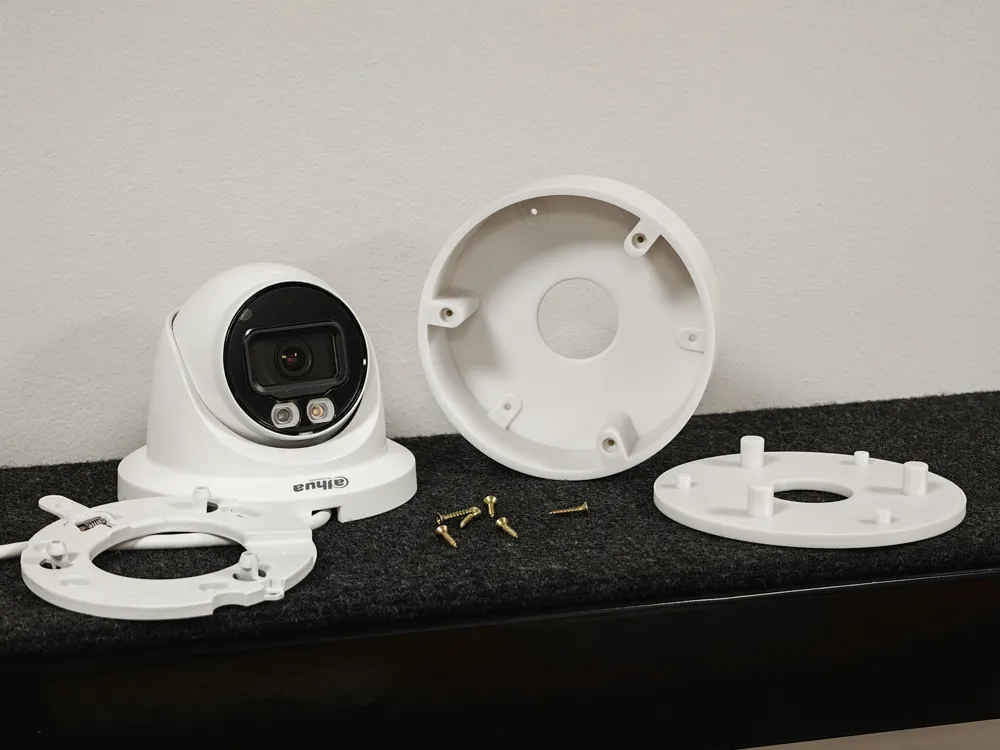

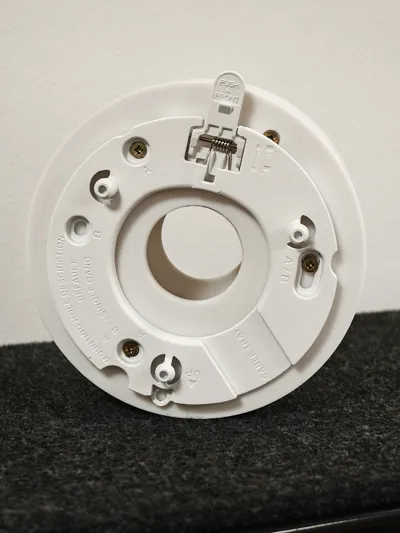

For installation, I recommend using wood screws (self-tapping screws for plastics also work) sized 3.5x12/15/16mm to fasten the camera base to the box, and 3.5x25mm screws to connect the two parts of the box (top to bottom).
To mount the box to its final location, I recommend using 3.5mm screws with a length of at least 15mm.
This junction box has already been tested with the following cameras:

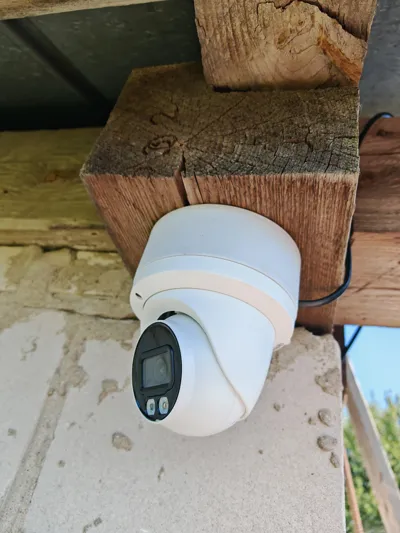

- IPC-HDW3849H-AS-PV-0280B-PRO – a large and heavy camera, holds perfectly.

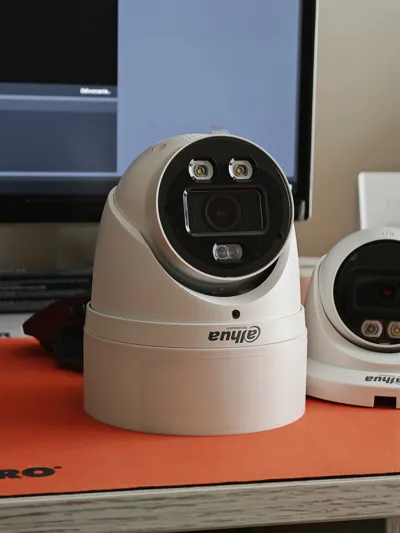

- IPC-HDW2849TM-S-IL-0280B – a classic camera, also fits and stays stable.

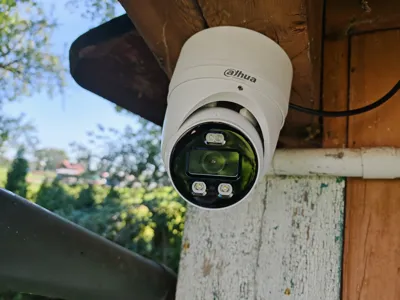

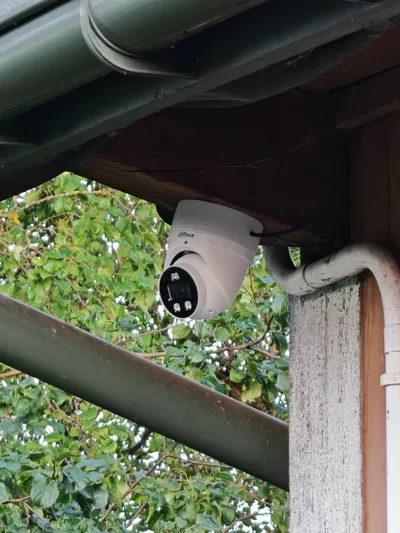

I recommend printing with at least PET-G if you plan to use the boxes outdoors, as I did.
