Pokeball - Generation 4+
Remixed by
IP Report
Print Profile(9)
Beast Ball Single Color - 0.2mm, 2 walls, 15% infill
Designer
2.7 h
3 plates
Heal Ball - 0.2mm, 2 walls, 15% infill
Designer
2.8 h
4 plates
Dream Ball - 0.2mm, 2 walls, 15% infill
Designer
2.8 h
5 plates
Dusk Ball Single Color - 0.2mm, 2 walls, 15% infill
Designer
2.7 h
3 plates
Click to see more
Open in Bambu Studio
Boost
519
1464
120
32
1.3 k
782
Released
Description
Description
See original model for assembly instructions: https://makerworld.com/en/models/839922-pokeball#profileId-785849

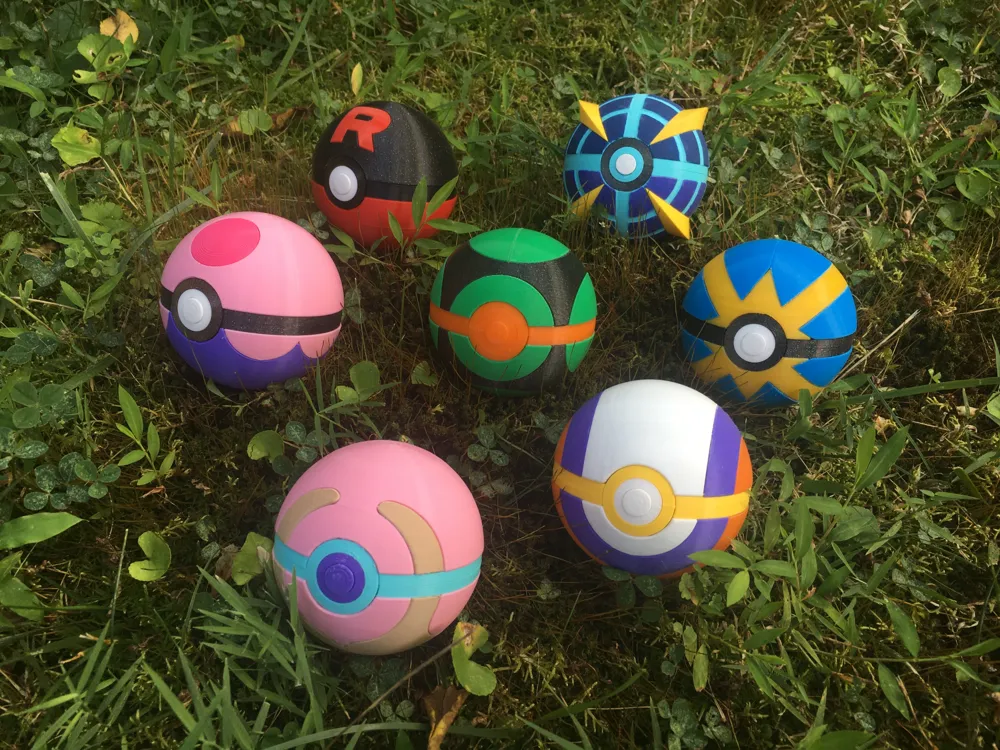

Profiles and models for the Generation 4 Pokeball designs. The lid geometries have been modified from the original design, but identical mounting alignment pin patterns make them inter-compatible.
Misc. Info:

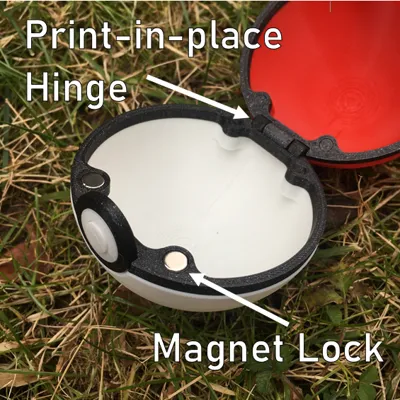

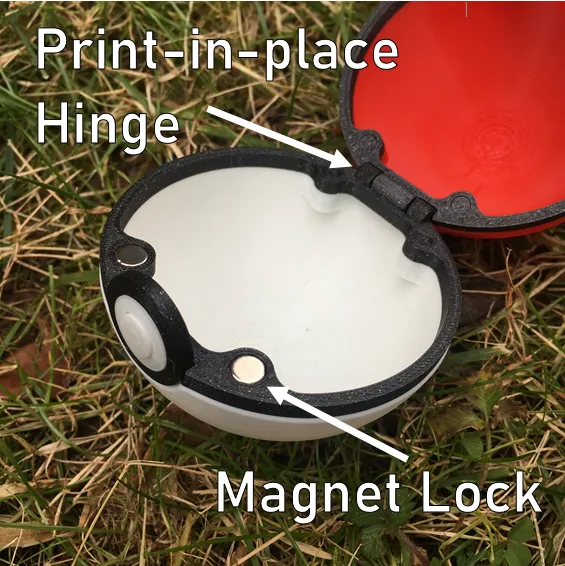

- The print-in-place ring mechanism has two versions with different tolerances. Make sure your elephants foot compensation is set properly to prevent the hinge from seizing.
- The loose version has a minimum gap size of 0.3mm, and should work with most (non-bambu) printers
- The tight version has a minimum gap size of 0.2mm, and should only be printed if you are confident with your printer's capabilities
- The magnets I used measure 6mm x 1.75mm (6x2 nominal). I got them from amazon: https://www.amazon.com/gp/product/B07KJ9H31P
- Printable alignment pins are included, but you can use machined pins too
This remix is based on
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
