SONOFF SNZB-01P/02P Secure Clip Wall Mount

Secure wall mount for SONOFF SNZB-01P/02P with bottom latch and clip lock.

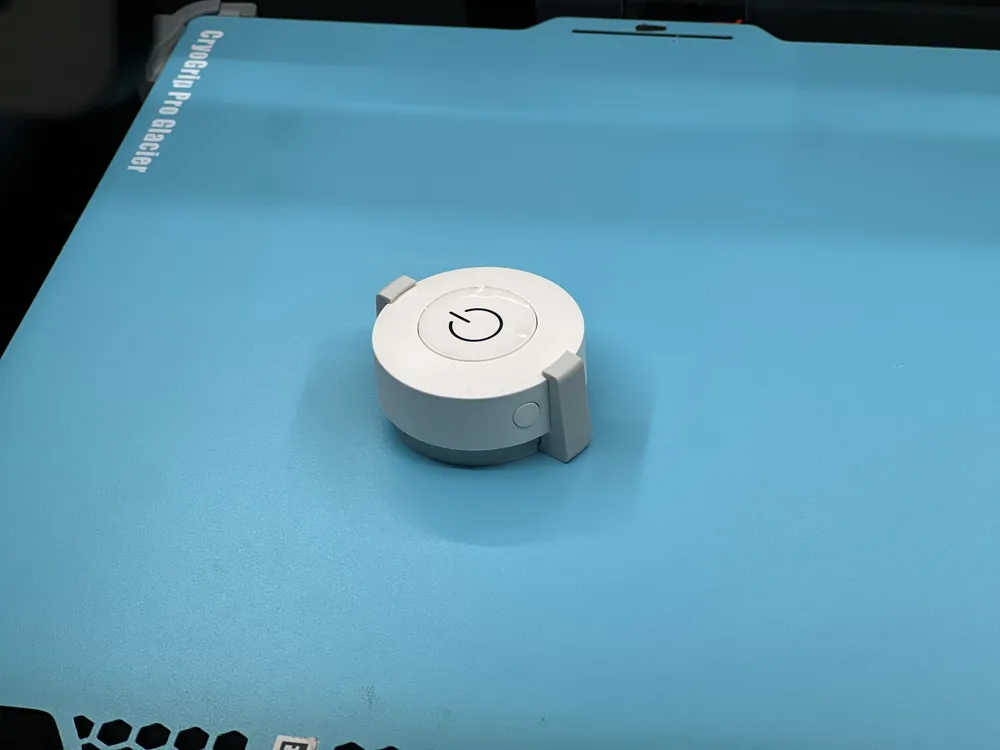

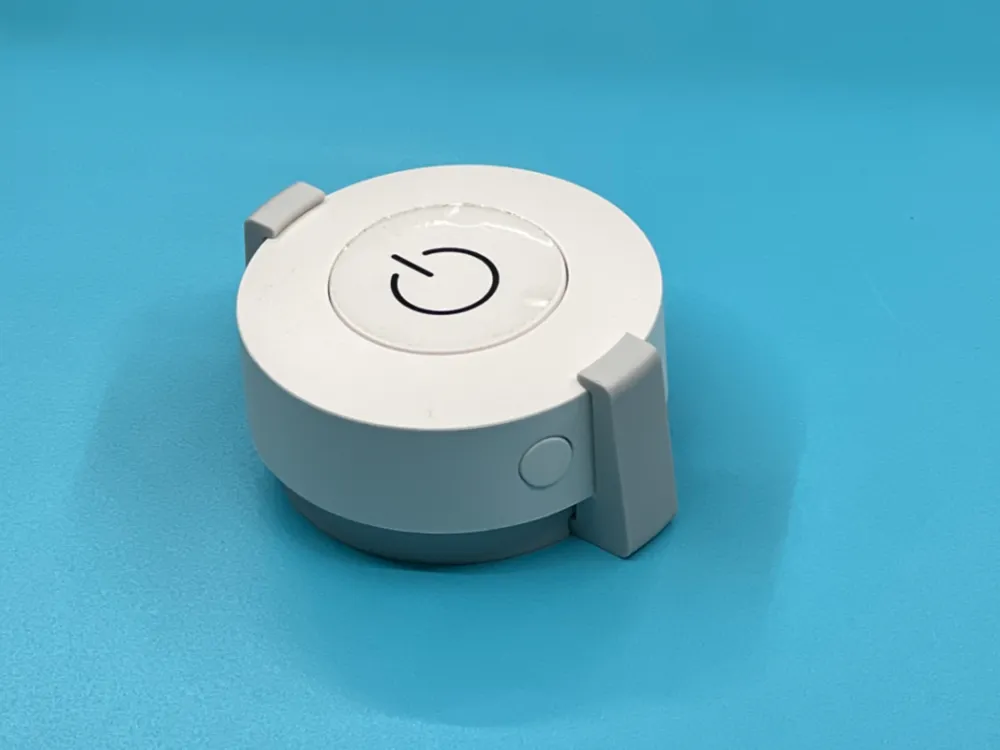

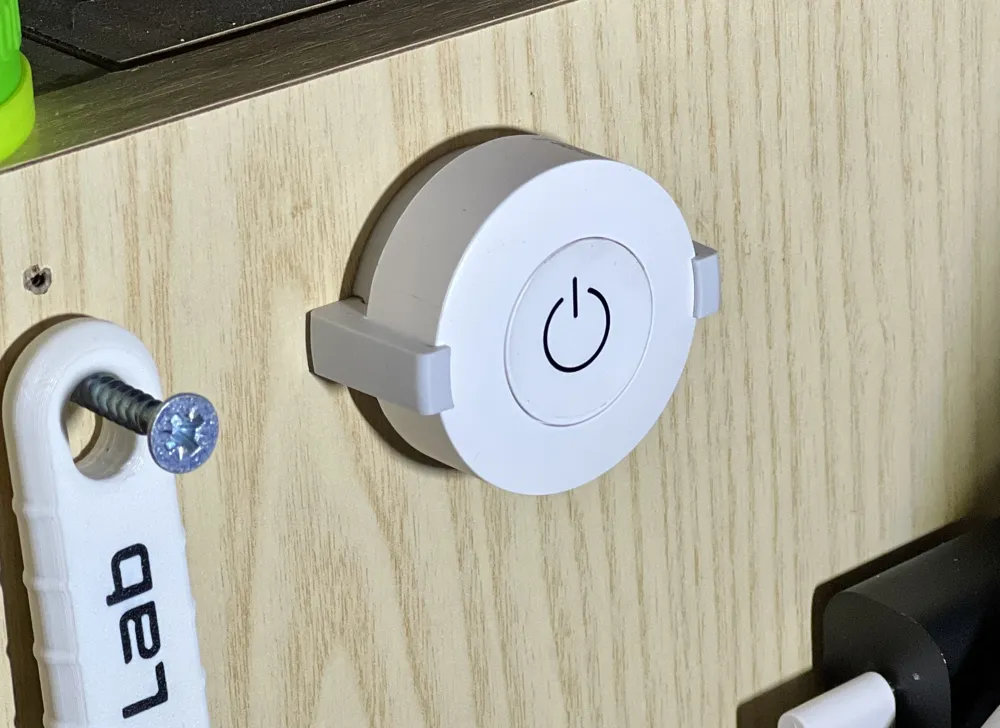

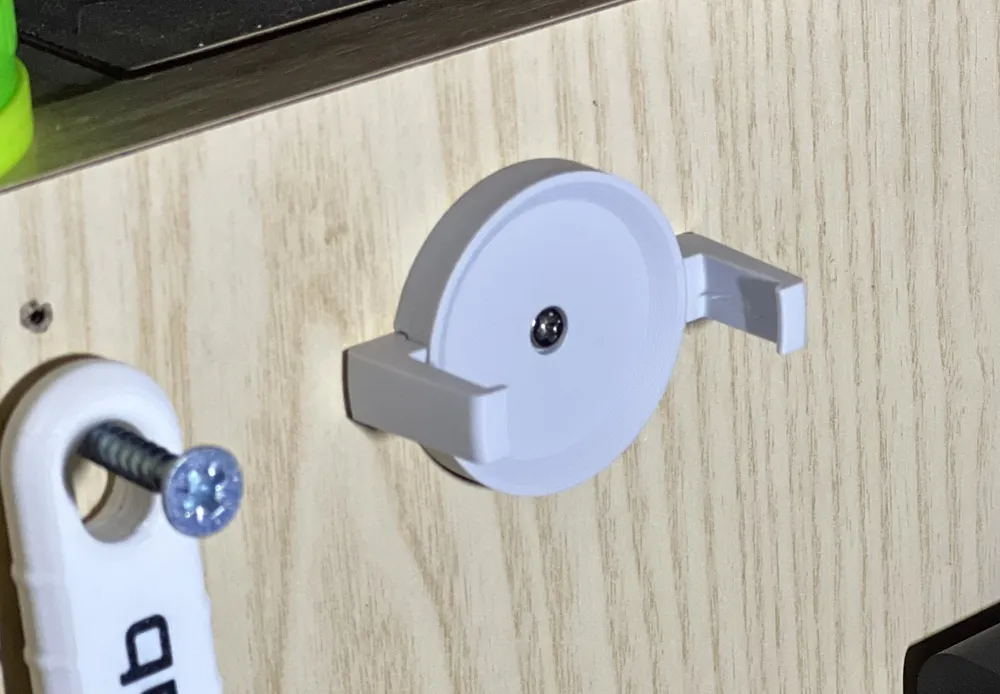

This wall mount secures the SONOFF SNZB-01P and SNZB-02P without relying on the magnetic connection, which I find less reliable especially for the button. Instead, the device is locked in place by a bottom latch that holds it firmly along the X and Y axes, while two clips secure it on the Z axis. The mount can be installed using either the included screw or the provided adhesive pad.

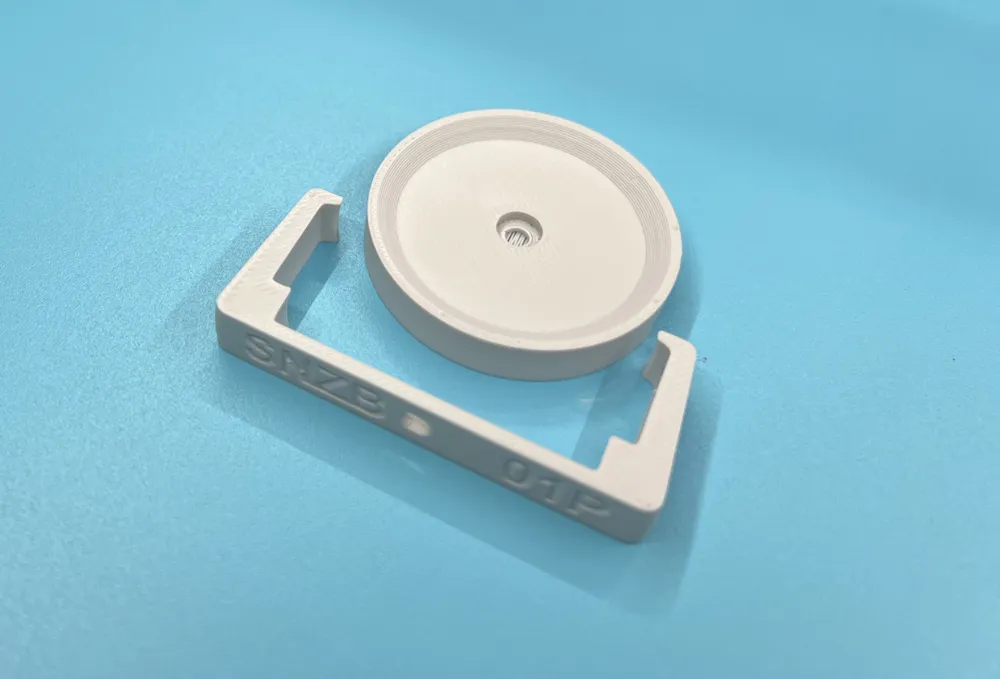

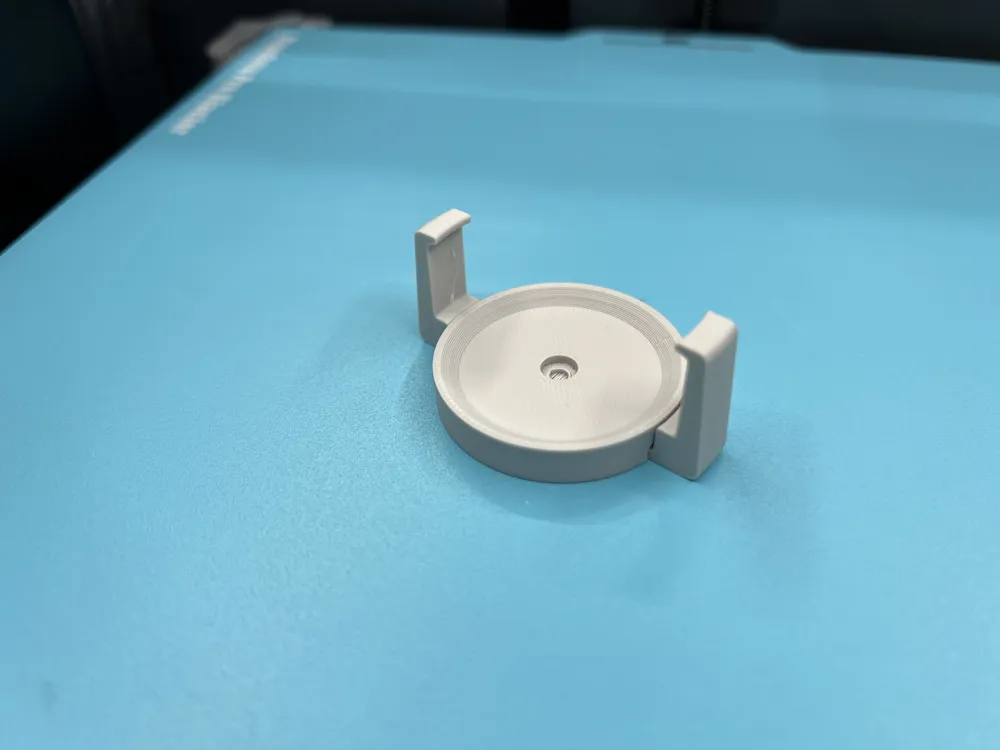

The model is divided into two parts: the main body and the retention clips. I chose this approach to avoid making the clips extremely fragile if printed vertically. By rotating them 90°, they become far more resilient and resistant to breaking during installation.

Both versions share the same central body, while the retention clips differ in size to fit the specific devices.

Printing is straightforward: standard PLA is sufficient, no supports are required. The sacrificial layer only needs to be pierced with the screw or a 3 mm drill bit.

Design Features

• Bottom latch secures the device along the XY axes.
• Two retention clips lock it on the Z axis.

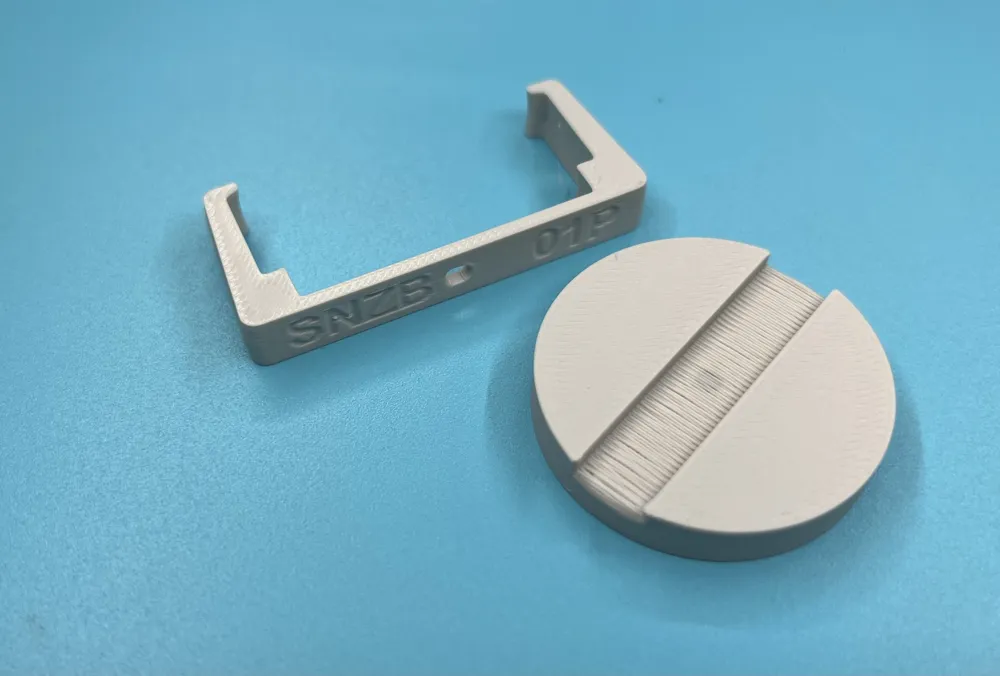

• Engraved text on the underside helps identify the correct clip.

• Provided with STEP files for easy adjustments or remixes — feel free to share your modifications in the comments.
