LED Name Lamp - Martin

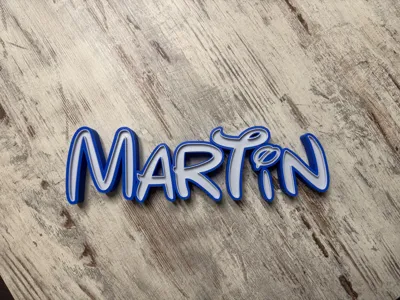

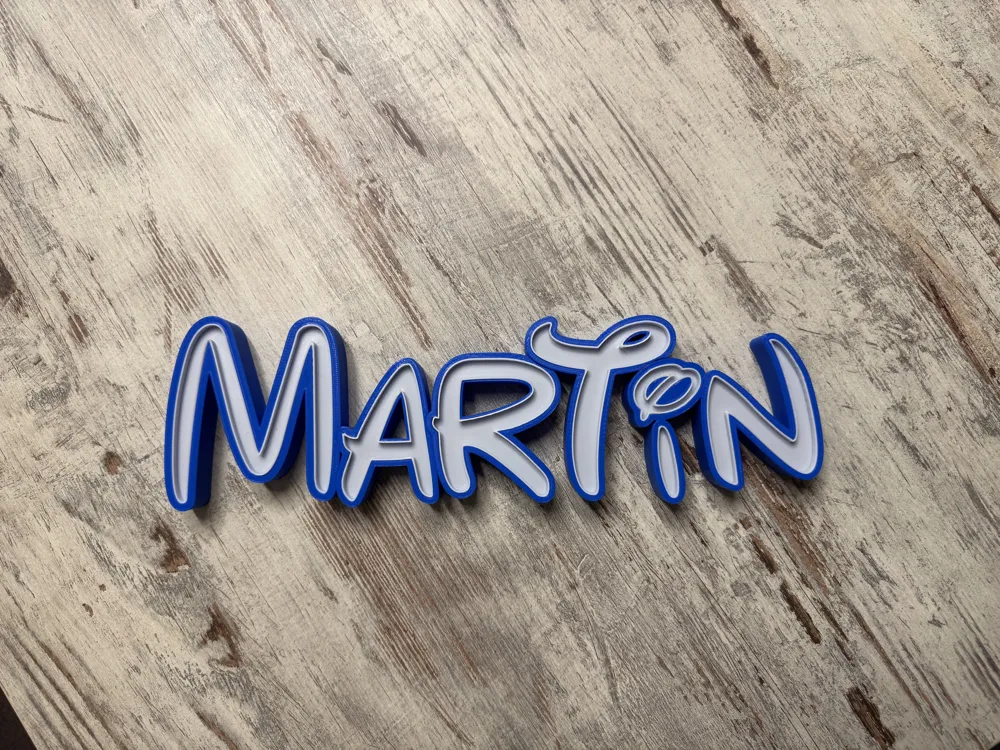

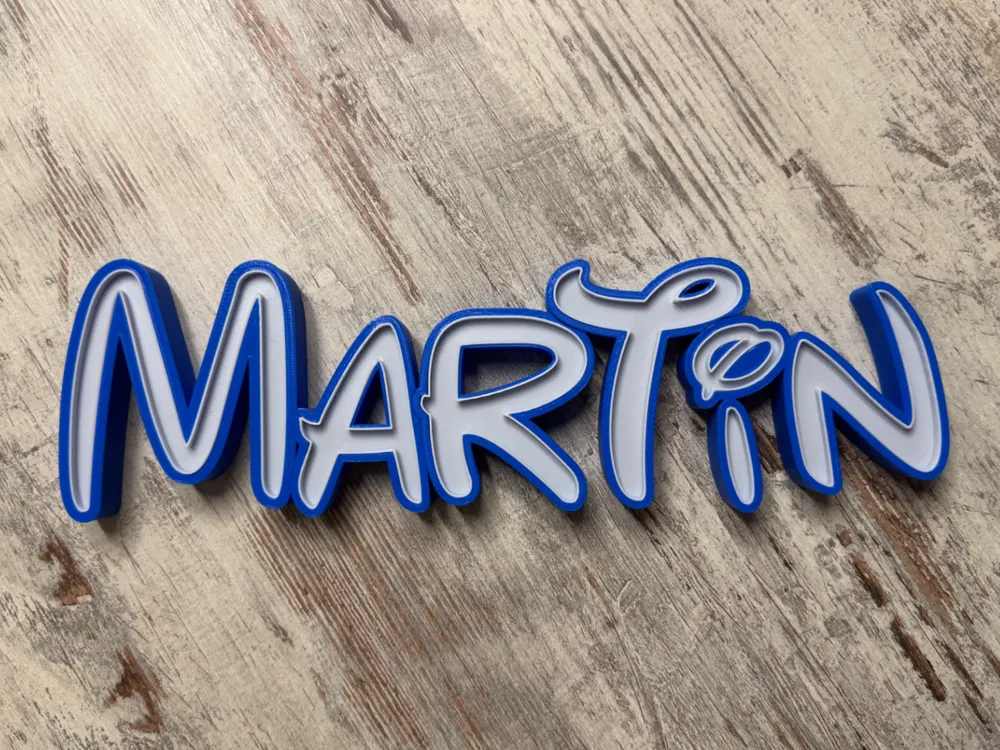

"Martin" as a printable LED name lamp


ATTENTION:
The finished name has been included as an STL The letters are all pre-arranged If the print surface is large enough, you can drag 1-3 letters together onto one plate and print them consecutively Please do not forget to "merge the letters" Be careful not to let the letters slip, otherwise the openings will no longer fit and the geometry of the entire name will be altered


Print settings: 0.2mm with 8% infill is sufficient
For the bodies, I would use "Seamless" support for the LED channels

Please do not scale much smaller Otherwise, the covers might no longer fit Max 85% (Print a test beforehand) - Do not forget to scale the covers as well

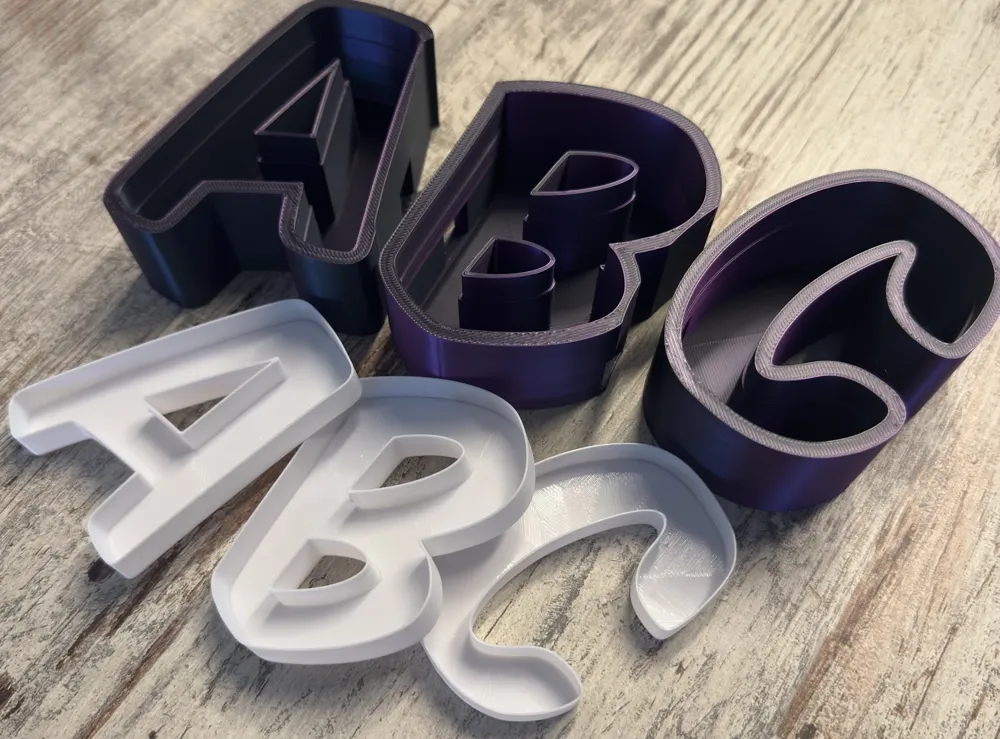

The covers can also be printed mirrored on the X-axis This way, the covers finish flush at the front The disadvantage, however, is that the covers are no longer as easy to remove I recommend printing a mirrored cover as a test beforehand

The letter pairs must be glued together Please ensure that the LED channels are flush with each other A special adhesive for PLA/PETG is best suited for this

For LEDs, I like to use inexpensive 5m RGB LED strips from Amazon for 8-12€ These can be cut to length at the end Higher-quality RBGic can also enable individually controllable letters, depending on skill

If you have any questions, I am happy to help


I am happy to create further individual LED names upon request and a small donation.
