0.2mm layer, 2 walls, 15% infill

Designer

34 min

1 plate

5.0(1)

Open in Bambu Studio

Boost

Released

Bill of Materials

Bambu Filaments

Select all

List other parts

LCD Digital Thermometer x 1: https://www.ebay.com.au/itm/174343079877?var=473540951035

Description

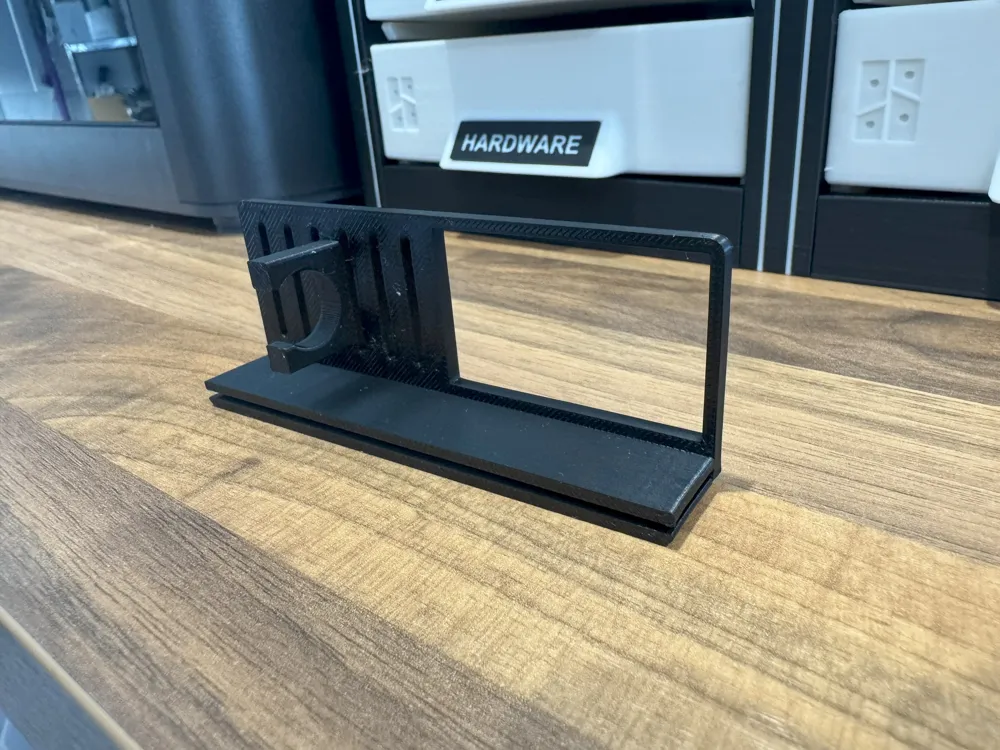

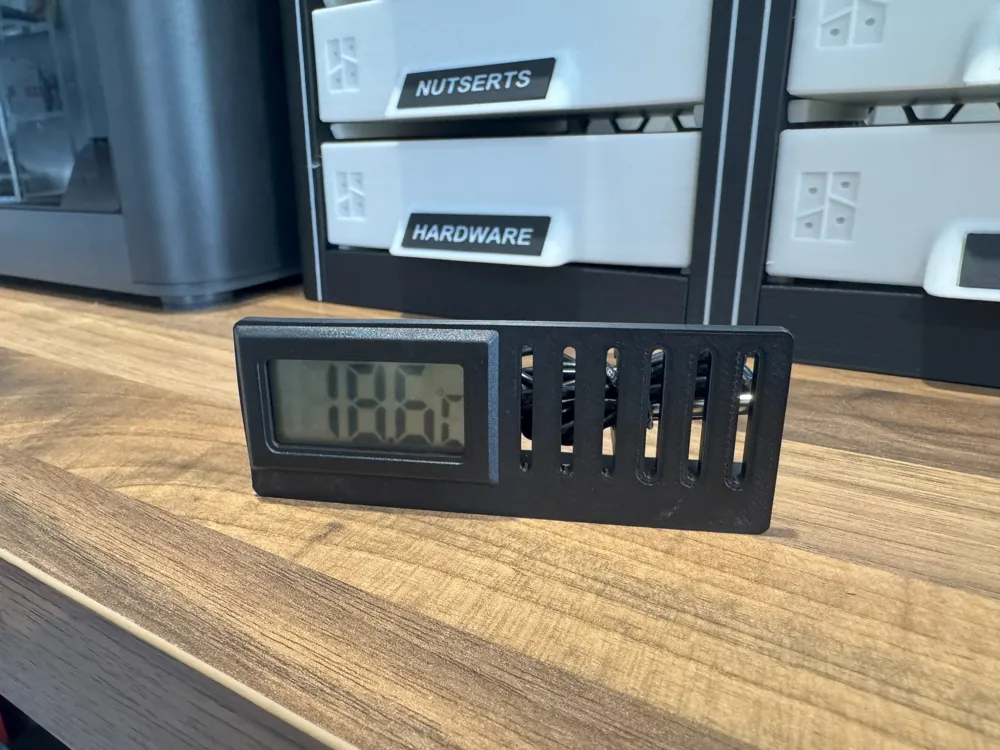

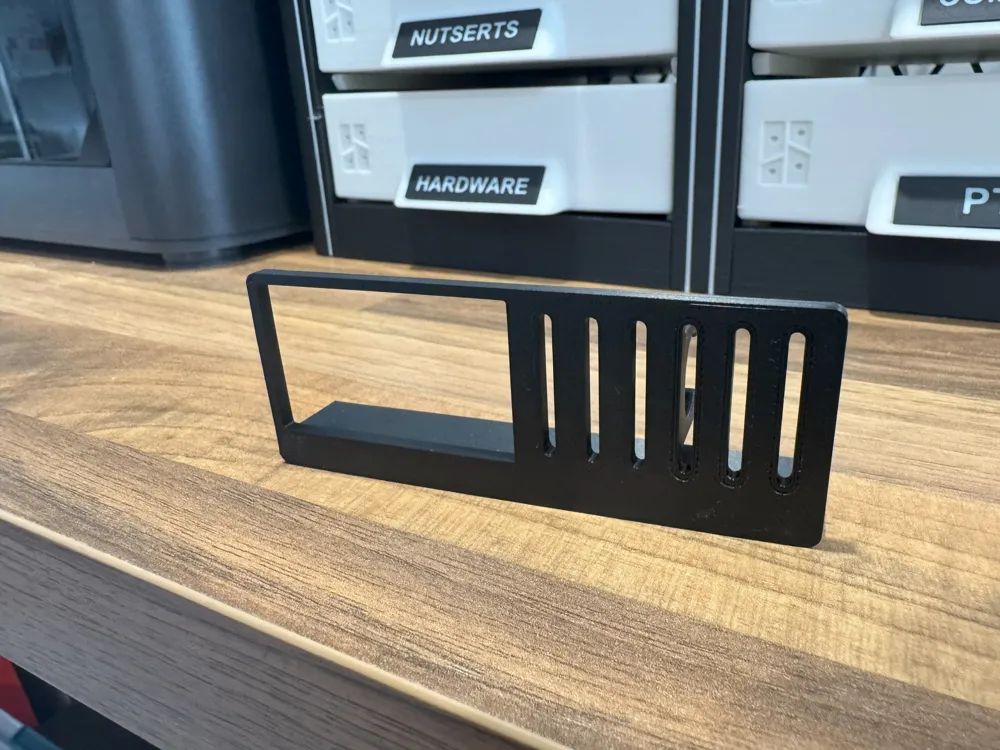

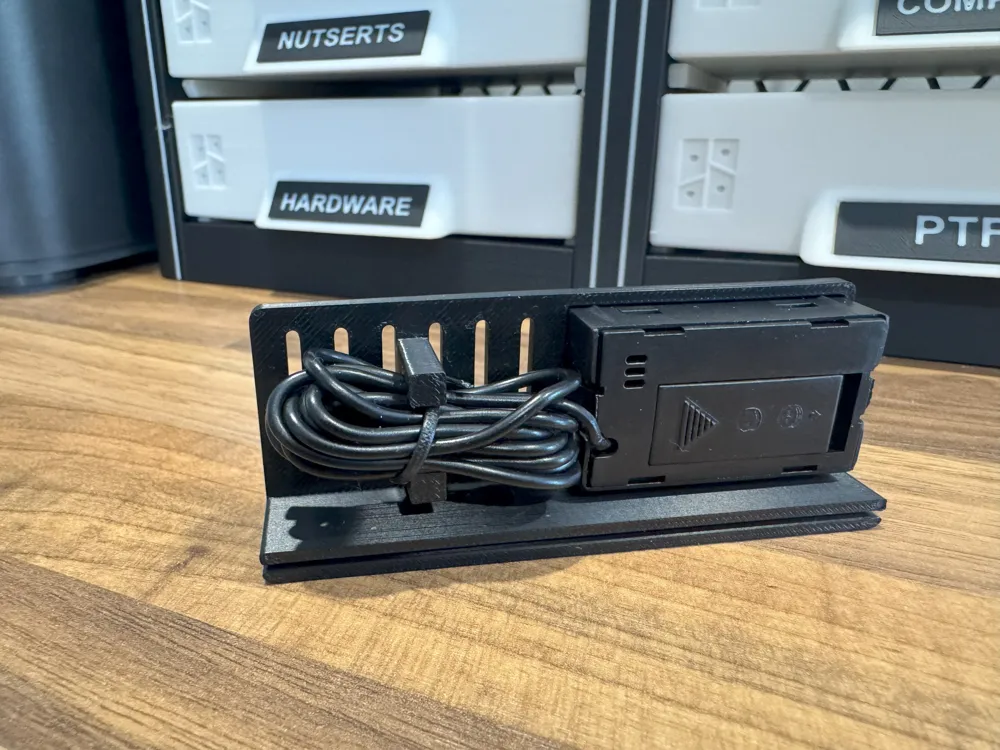

This is a thermometer mount suited to fit thermometers with external temperature probes and dimensions of 48mm x 28.6mm x 15.2mm found on eBay for under $4 AUD with free shipping.

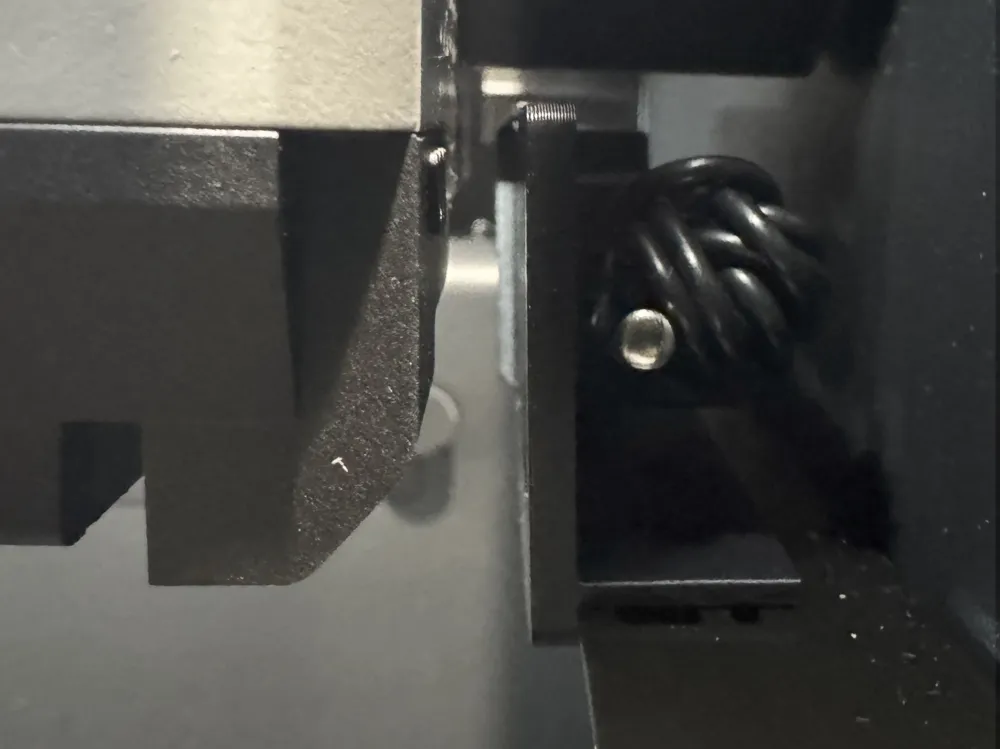

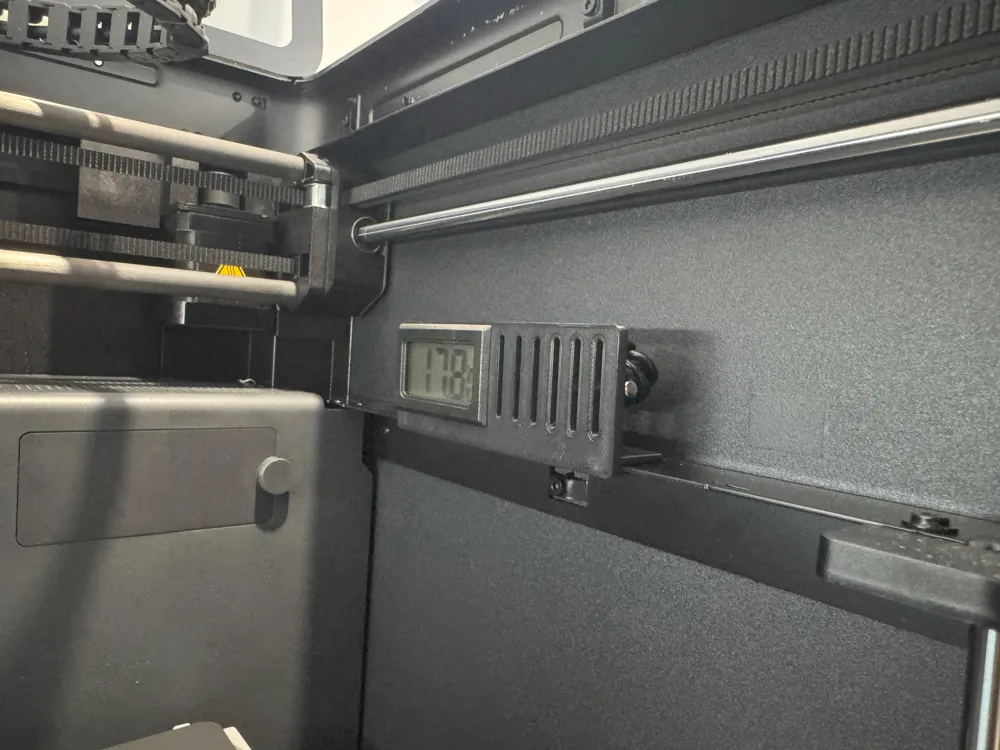

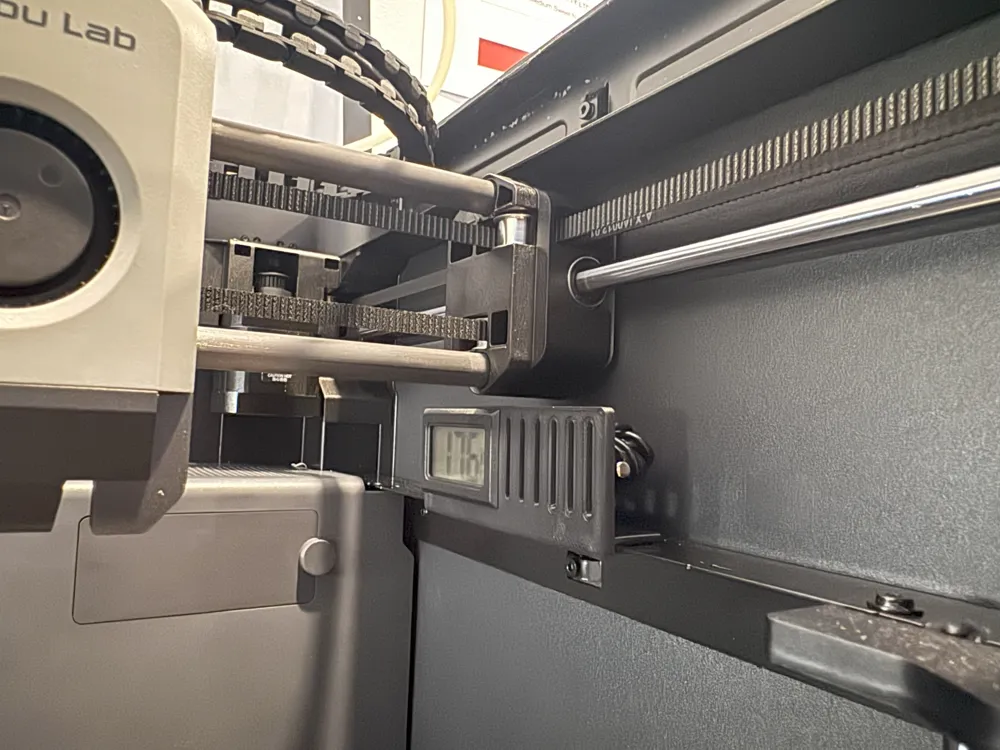

This snaps onto the P1S chassis without any mounting hardware needed, clearing the gantry and print head easily. It uses only 10.5g of filament and takes 35 minutes to print.

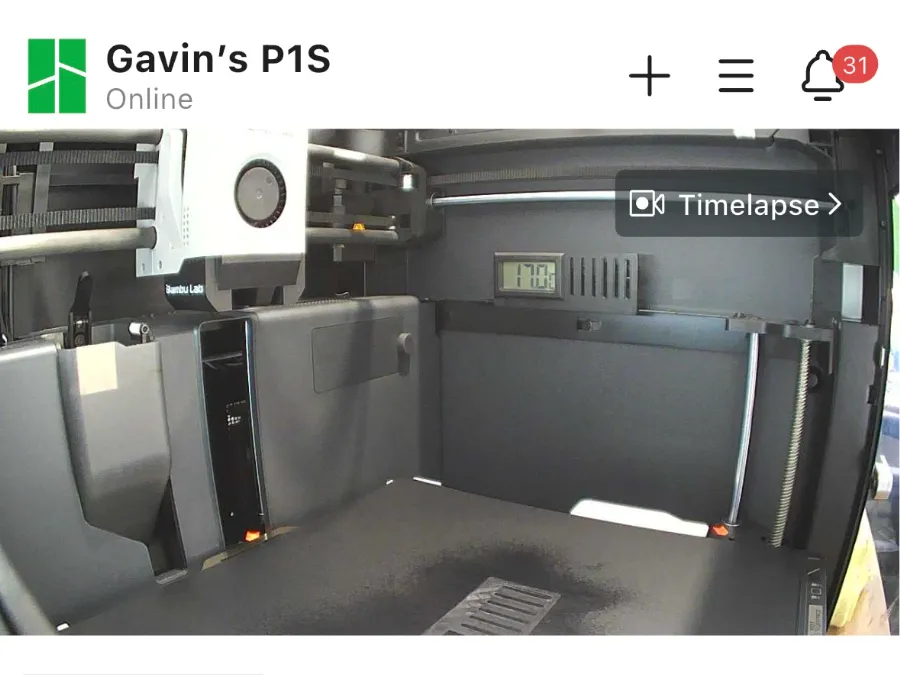

Thermometer is viewable from the built in camera through the Handy app, allowing chamber temp monitoring if you are trying to pre-heat using the bed and AUX fan for high temp filaments.

I've printed a test piece in Creality ender series PLA and then the final piece in Bambu ASA both printed in tolerance.

It goes without saying but do not print the final piece in PLA as it will begin to melt and may droop, causing interference with the gantry! High Temp filaments only!
