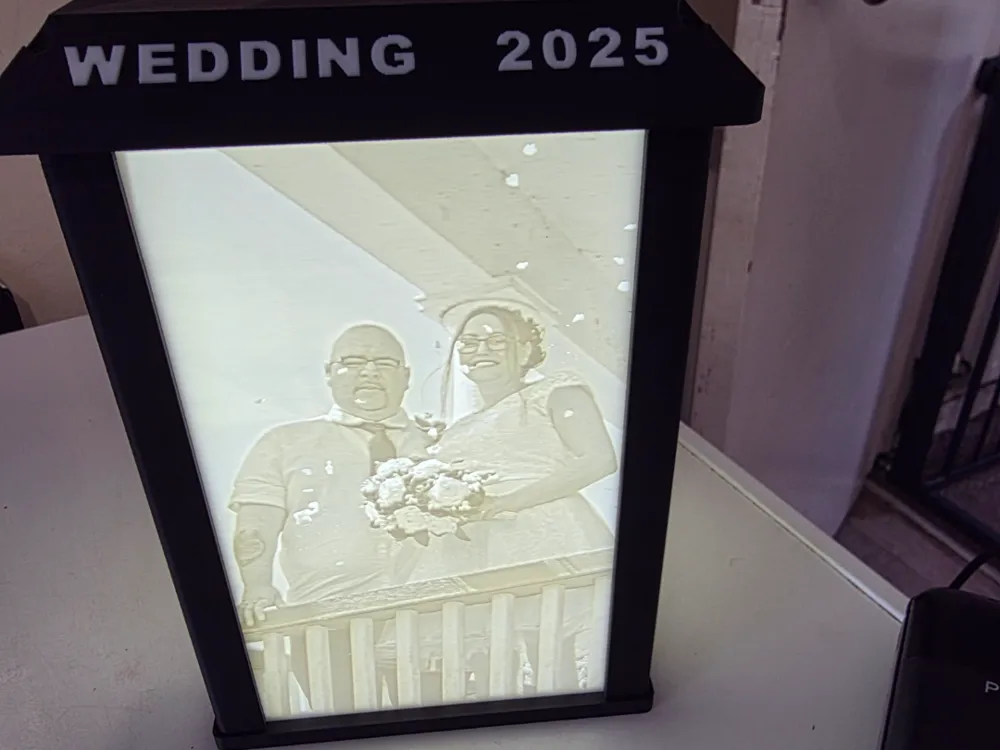

lithothane box for 3 lithothanes
Print Profile(1)
Description

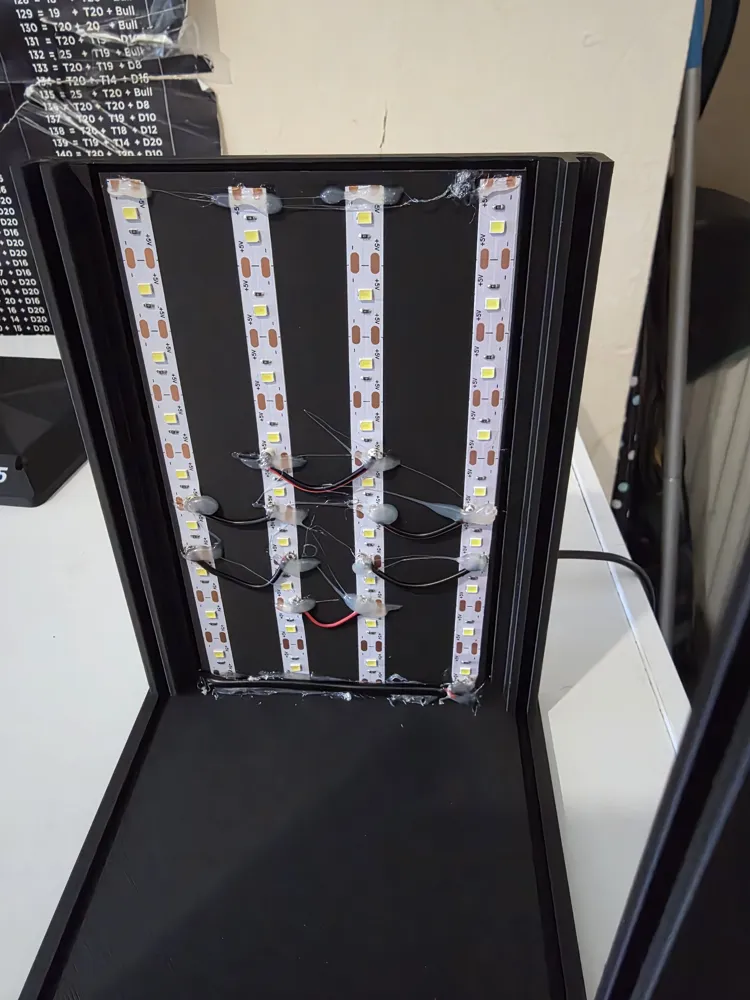

here is my take on a triple box lithophane i designed to be used with 10mm wide led strips that are very cheap and easy to solder up
i used 5v led strips with a usb end as will work with 5v charger plugs powerbanks computers etc
the lithos need to be
beetween 163mm and 162mm high
beetween 104mm and 102mm wide

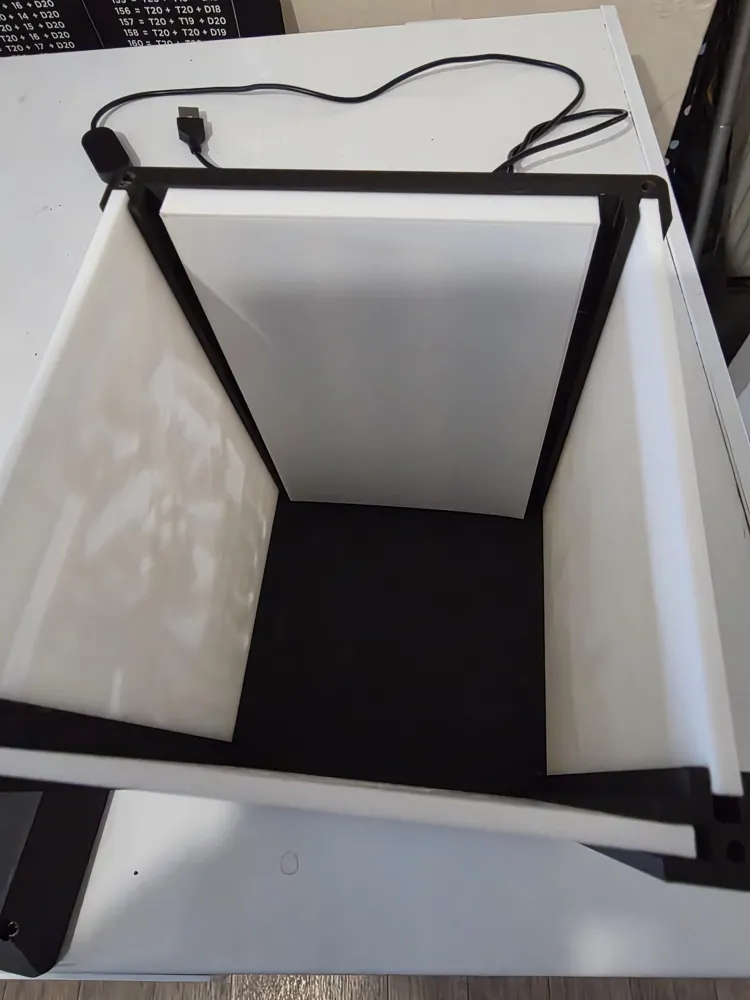

the white diffuser part is not needed but makes it look cleaner on the inside
the hole in back is 4.2mm to allow power lead out the back i used a little hot glue on solder connections and the power wire to make sure it all stays in place try not to put to much glue or it will stop the diffuser from sitting correctly

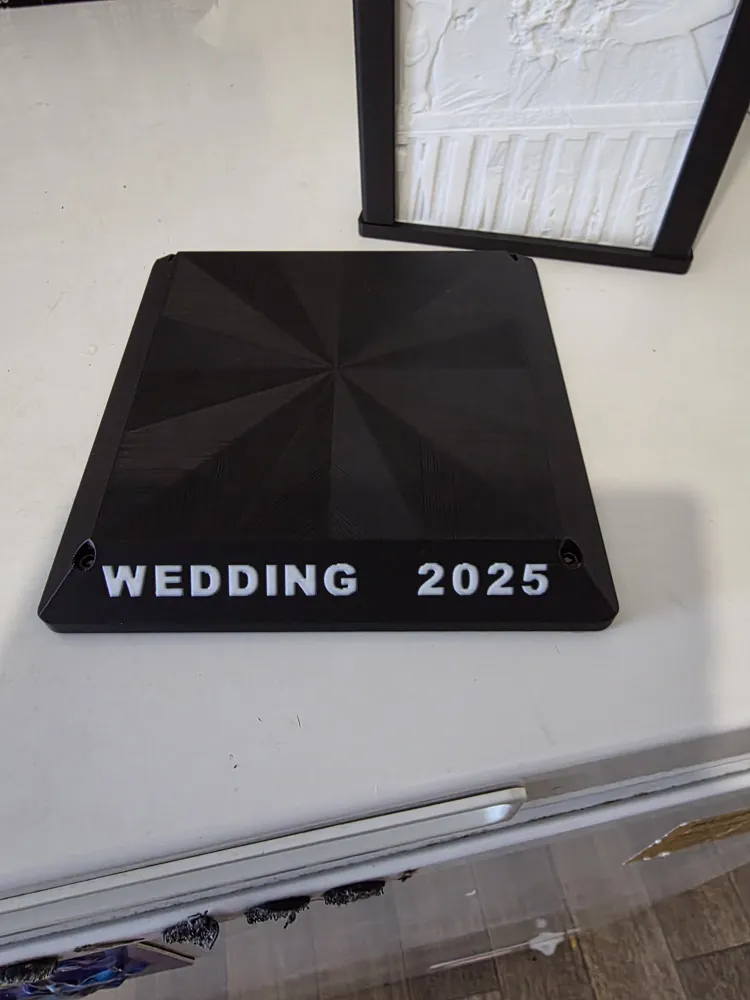

the top part will have no text but you can easily add text in bambu studio
the top is secured with x4 12mm m3 screws

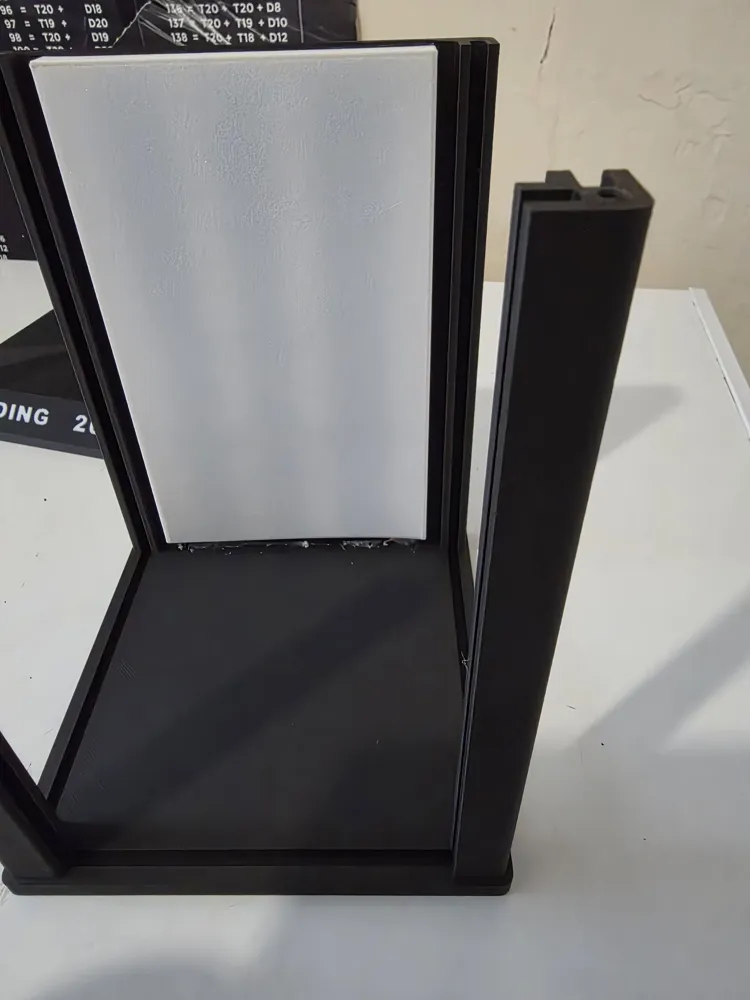

there is supports on back wall i use petg as a interface to allow very clean easy to remove supports could use normal pla i just love clean easy support removal
the whole model only takes around 25 hours and not much filament used
