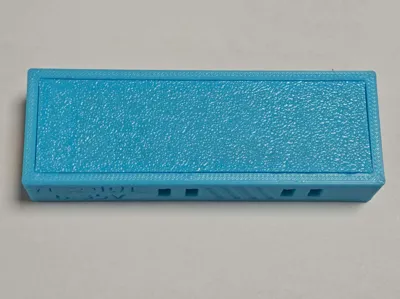

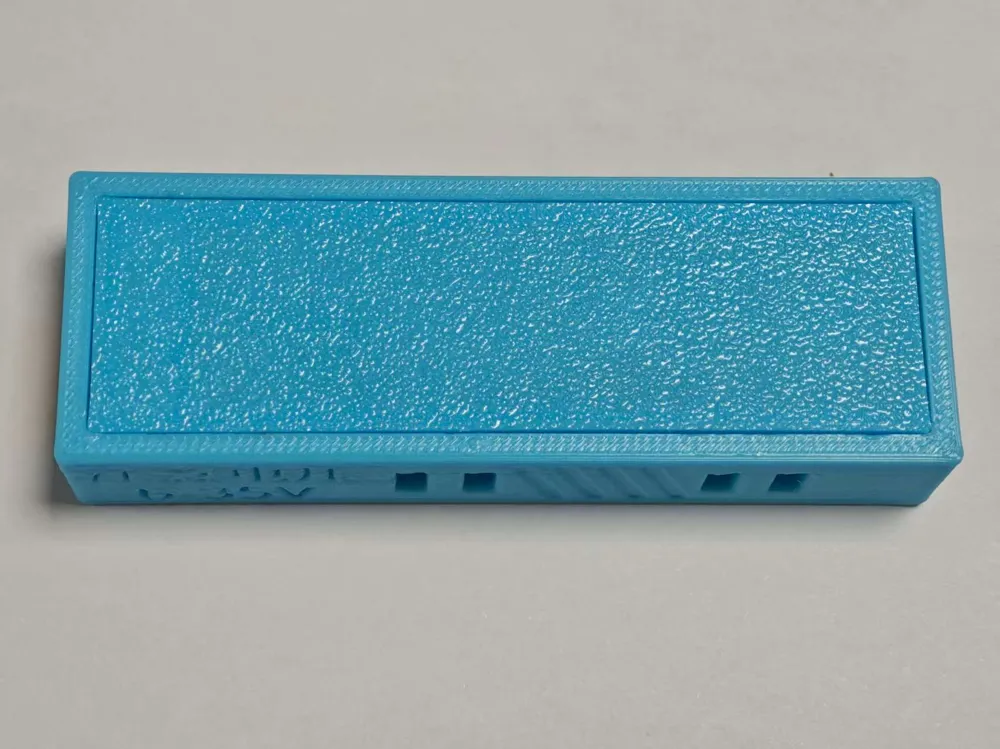

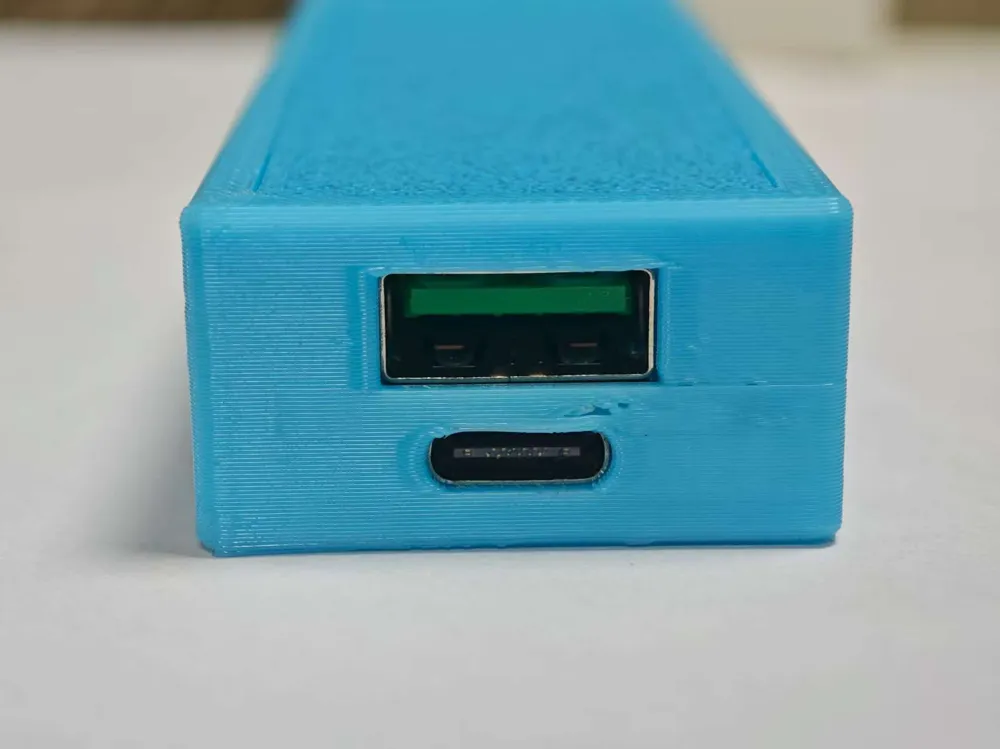

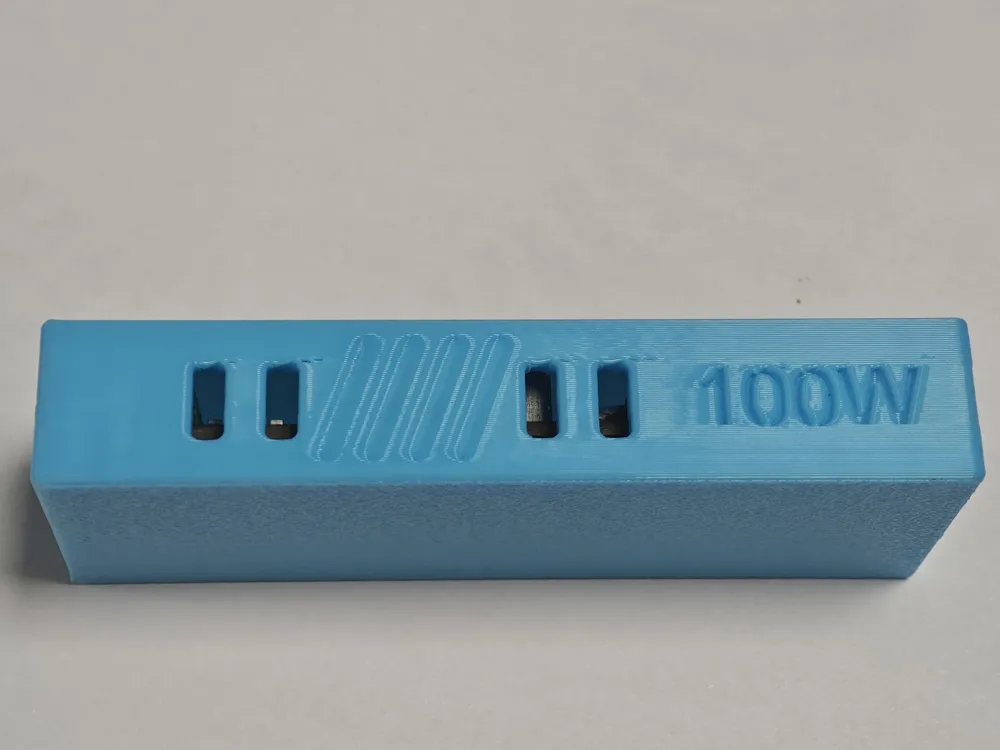

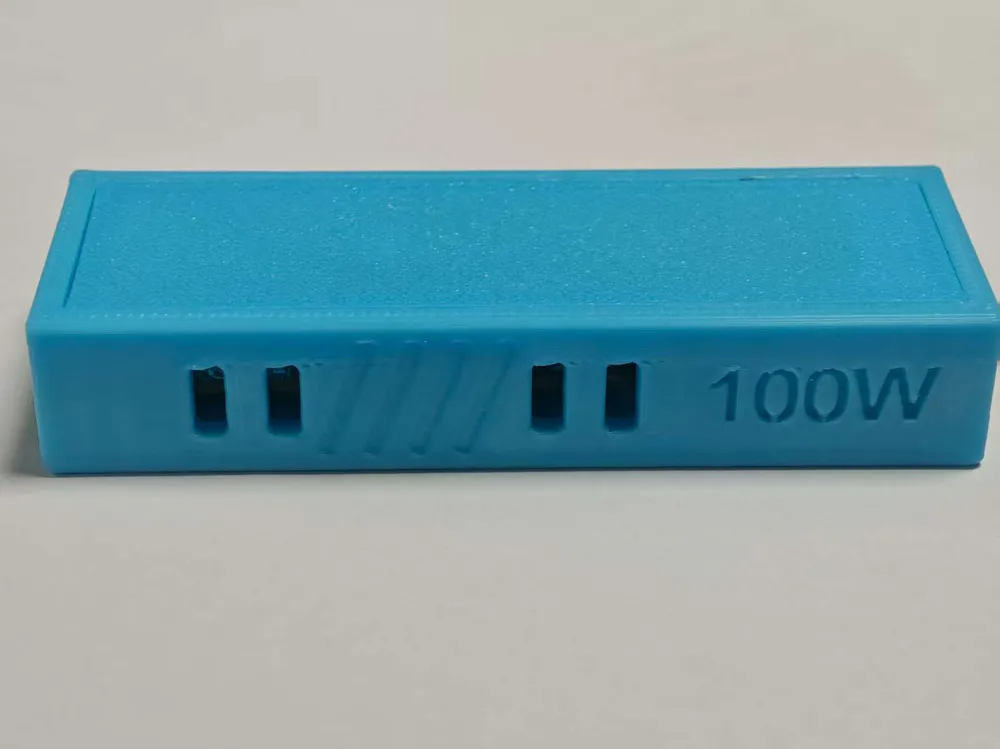

sw3518 charging module, XT60 interface, 100W super fast charging, very high interface fit, a boon for RC enthusiasts, no screws needed.

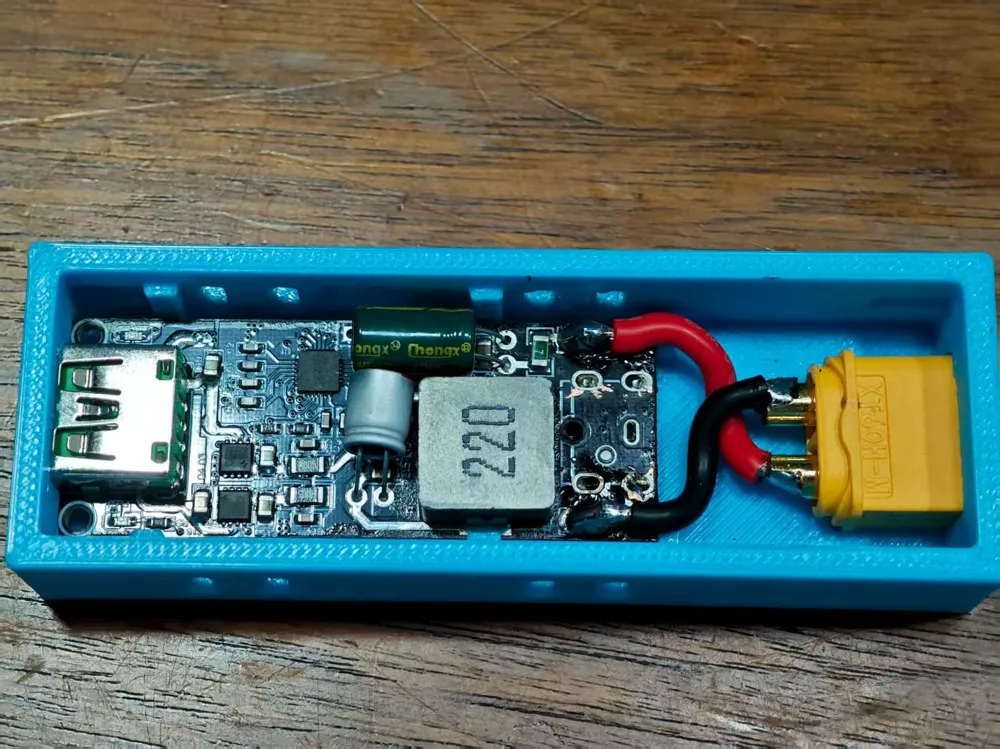

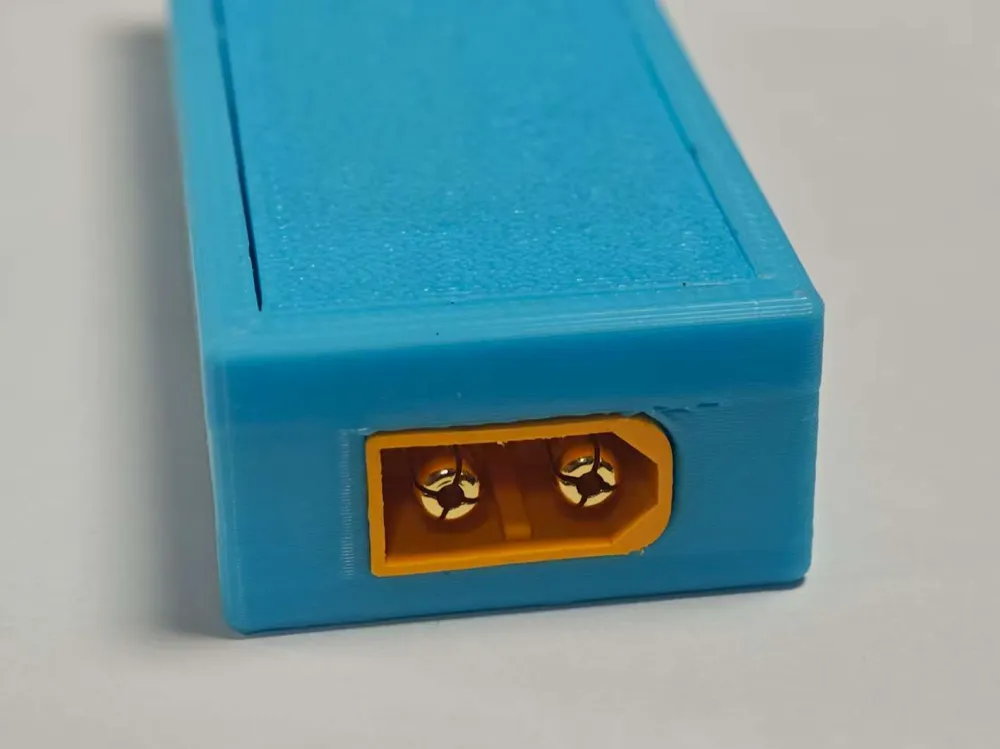

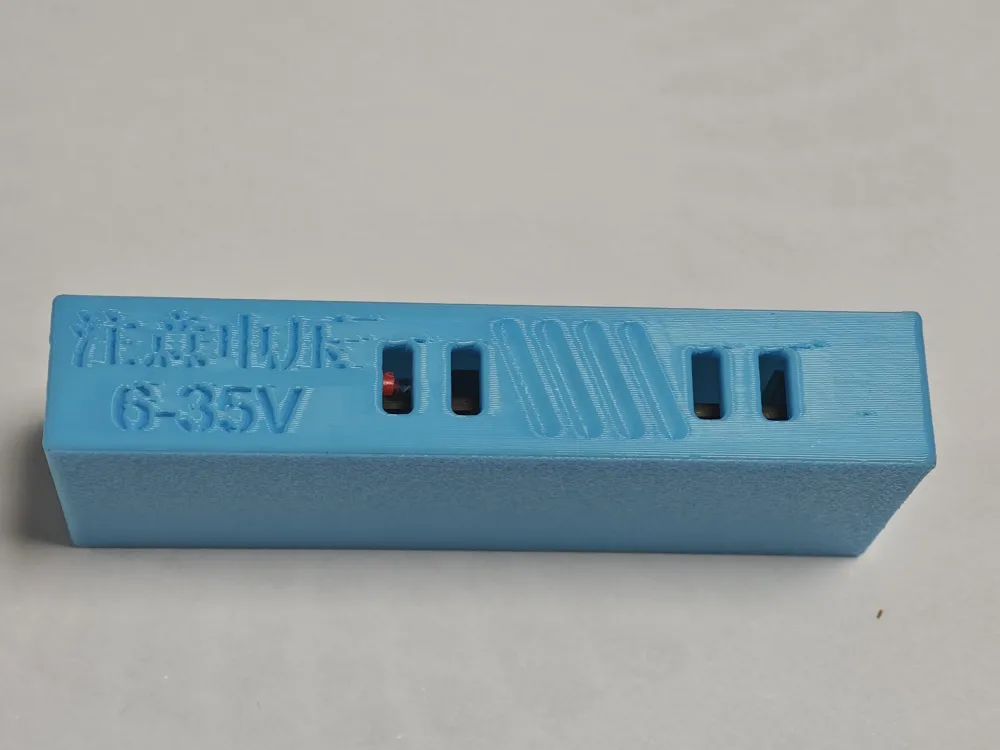

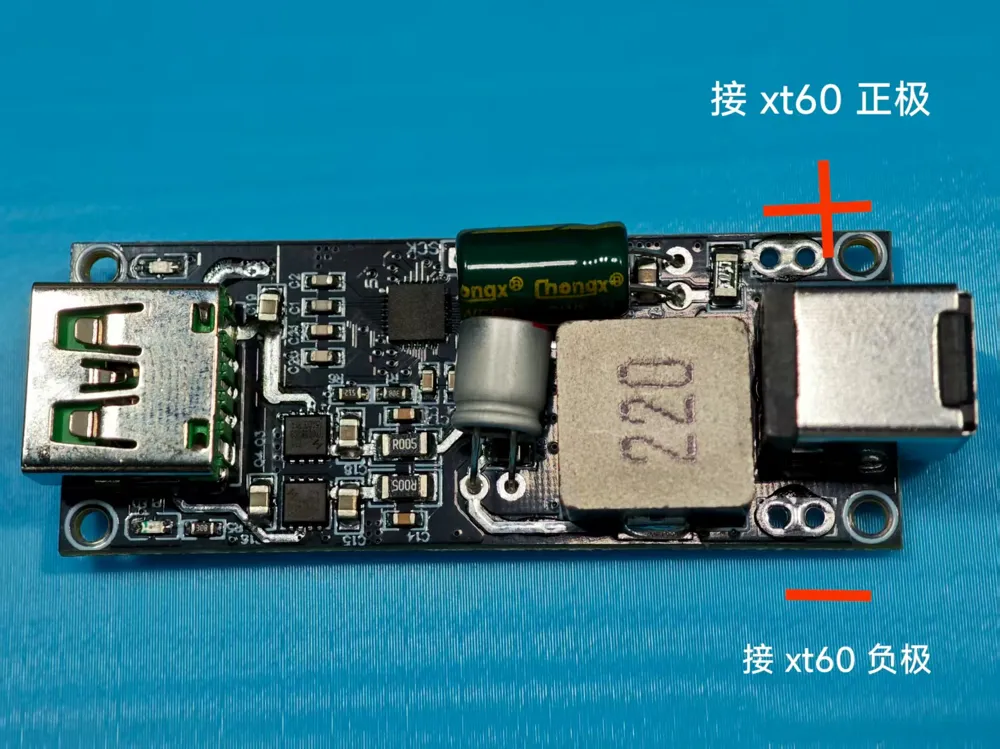

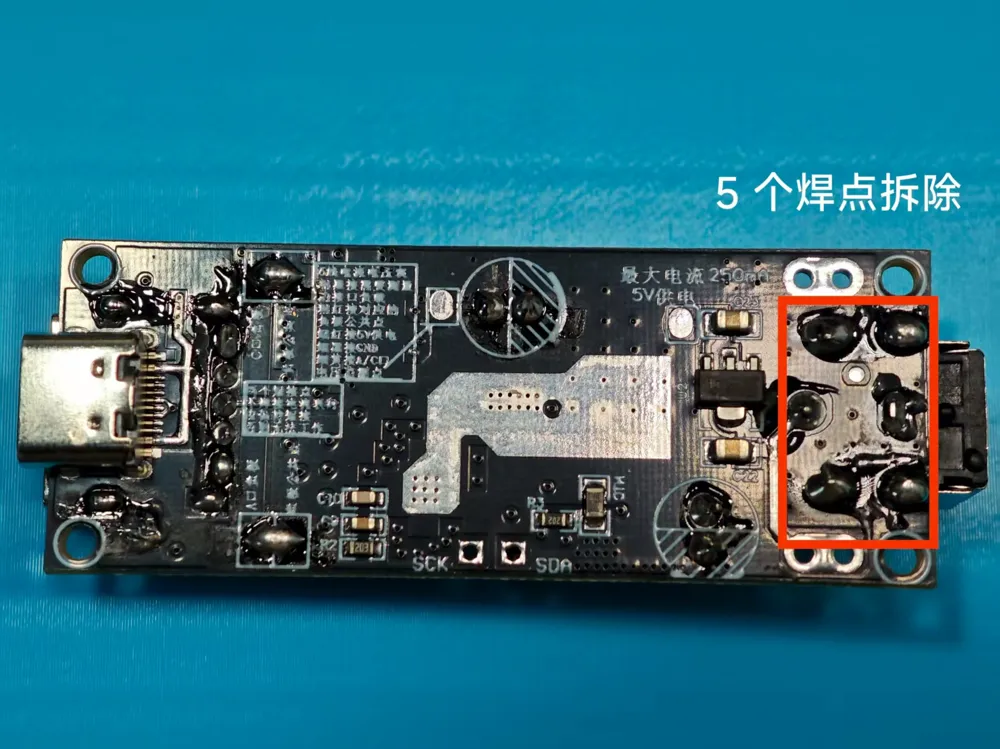

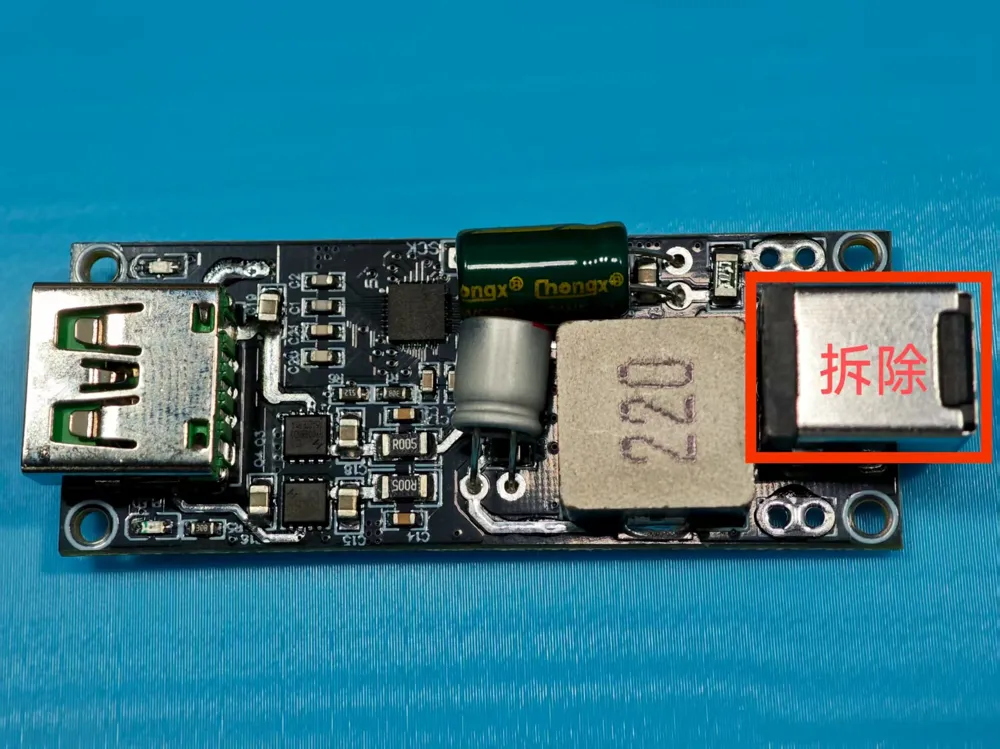

sw3518 fast charging module, supports up to 100W, unlike another 3518 module, this one is larger. I made some changes based on design inspiration from foreign experts, and after multiple prototypes, the interface fit is very high. The XT60 connector in the picture is reversed, but it has been corrected in the model. Welcome everyone to download and use it, please like and boost

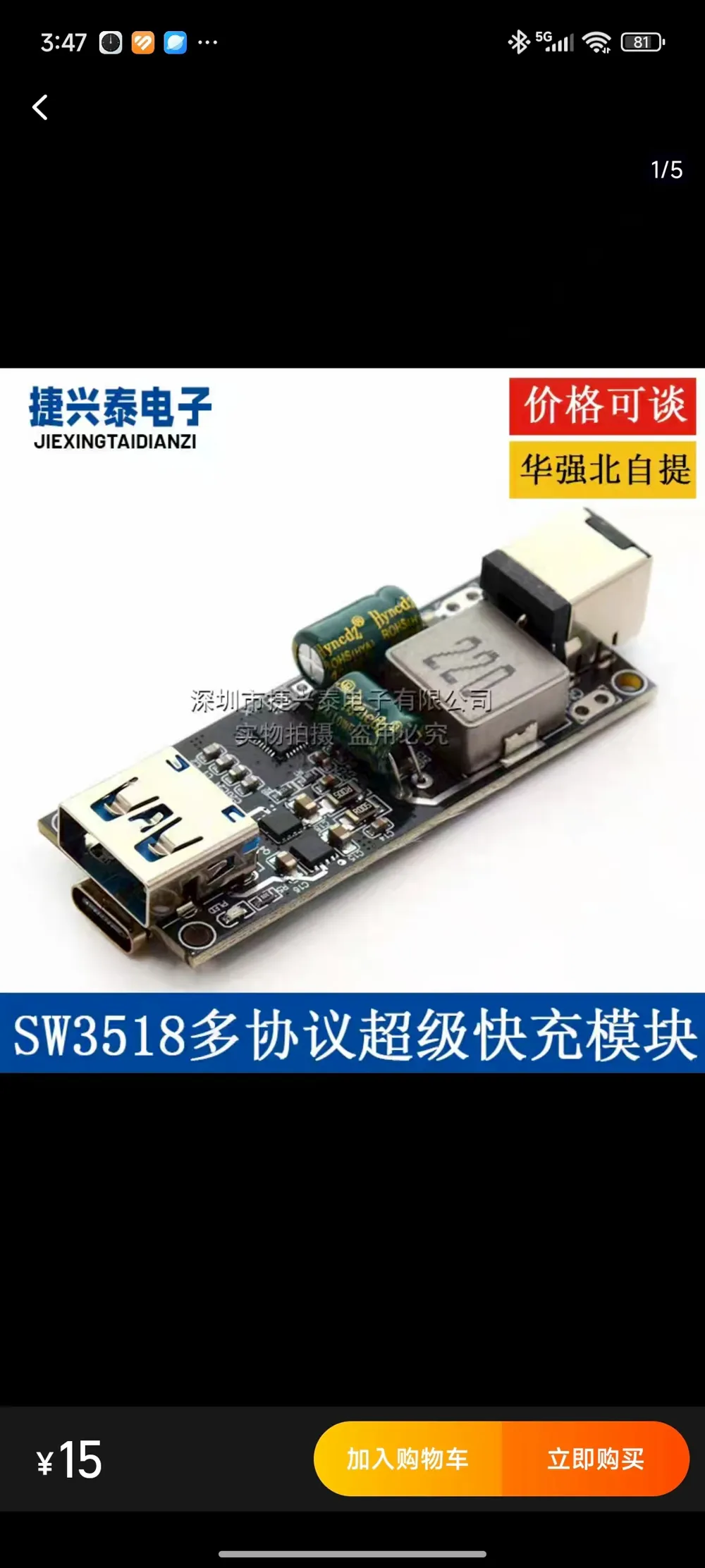

sw3518 fast charging module introduction:

Supports full range PPS 3.3-21V; 20V5A 100W supports PPS/PD3.0/PD2.0 supports QC4+/QC4/QC3.0/QC2.0

Supports PE2.0/PE1.1 supports AFC/FCP/SCP/SFCP

Supports VOOC

Multiple protection mechanisms Input overvoltage protection Input undervoltage protection Output overcurrent protection Output short circuit protection

Integrated thermistor temperature protection

Equipped with fuse to ensure safe operation

This module can be understood as a charger integrating multiple protocols (for details, please check the description, which contains charging test data for all mainstream brands), but it cannot be connected to AC power and requires a DC power supply (power adapter). You need to prepare it yourself or purchase it from Taobao. The input voltage is DC 6-30V. It is recommended to use a 24V DC power supply. The power supply current can be selected according to your needs. If 100W output is required, for power supply longevity, consider adding 20%, so choose a 24V5A power supply. For 200W output, a 24V10A power supply is needed. Power interface size requirements:

The DC interface size for the 100W module is 5.5*2.5 (5525)

Output power issue

Since the module is a step-down module, the input must be greater than the output by 1.2V. Since 100W is 20V5A for PD protocol and 140W is 20V7A for PD protocol, full power output can only be achieved with an input greater than 21.2V. 24V power supplies are very cost-effective, so a 24V power supply is recommended

Battery power supply issue

Regarding battery power supply: The module can only output power and cannot charge batteries. If only battery power is used, a 24V battery pack is required.

If it's a 12V car power supply, 12V cannot provide full power, with PD protocol maxing out at 36W. Charging only phones is fine. For car use, you need to purchase a cigarette lighter to DC male adapter cable from Taobao (this store does not have it).

The 100W module corresponds to a 5.5*2.5 (5525) DC plug

Simultaneous A port and C port output issue

A single A port and C port can output simultaneously, but there is no fast charging. When outputting simultaneously, it is distributed as 5V2A/5V2A

Input voltage: DC 6-30V (try not to use at critical values)

Recommended input power parameters: recommended voltage 24V, current selected according to power usage. If 100W power is needed, choose a 24V5A power supply (20% redundancy to extend power supply life)

Input DC female socket size: 100W module is DC5.5*2.5 (referred to as 5525)

Step-up/step-down type: Step-down (input must be greater than output by 1.2V)

Input/output type: Output only supported (battery power not recommended)

Output interface: USB-A and USB-C

Supports full range PPS 3.3-21V, PPS max 3A, 63W. Adding our store's OLED display module can change it to 5A. PD max 20V5A 100W. PD protocol greater than 60W requires a 100W data cable. Supports PPS/PD3.0/PD2.0 supports QC4+/QC4/QC3.3/QC2.0 supports PE2.0/PE1.1 supports AFC/FCP/SFCP supports VOOC (first generation) max 22.5W. Multiple protection mechanisms: Input overvoltage protection, Input undervoltage protection, Output overcurrent protection, Output short circuit protection. Onboard integrated SMD thermistor, equipped with fuse to ensure safe operation
