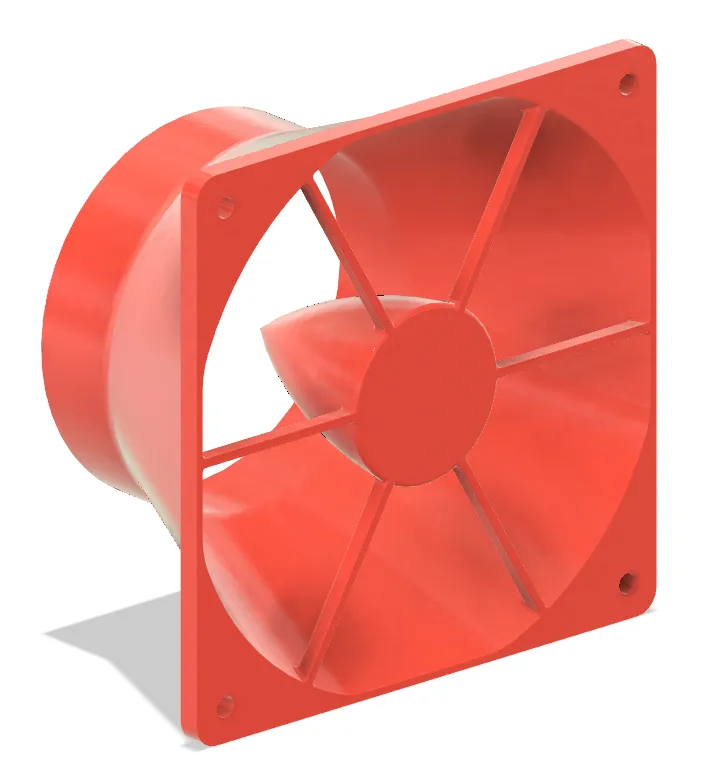

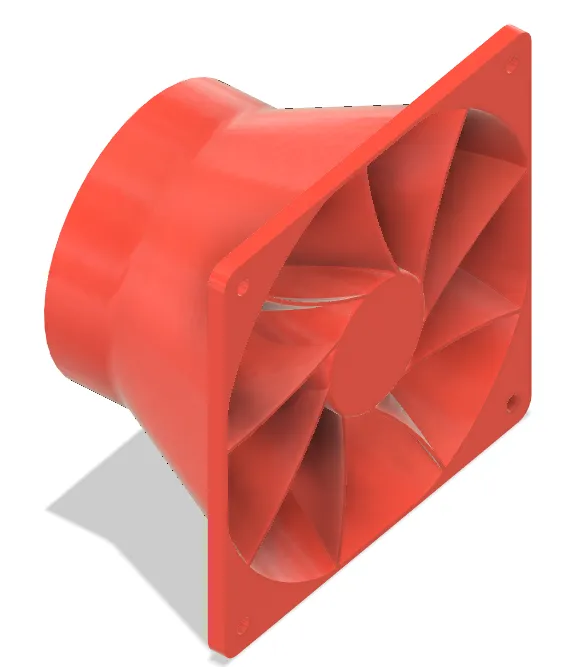

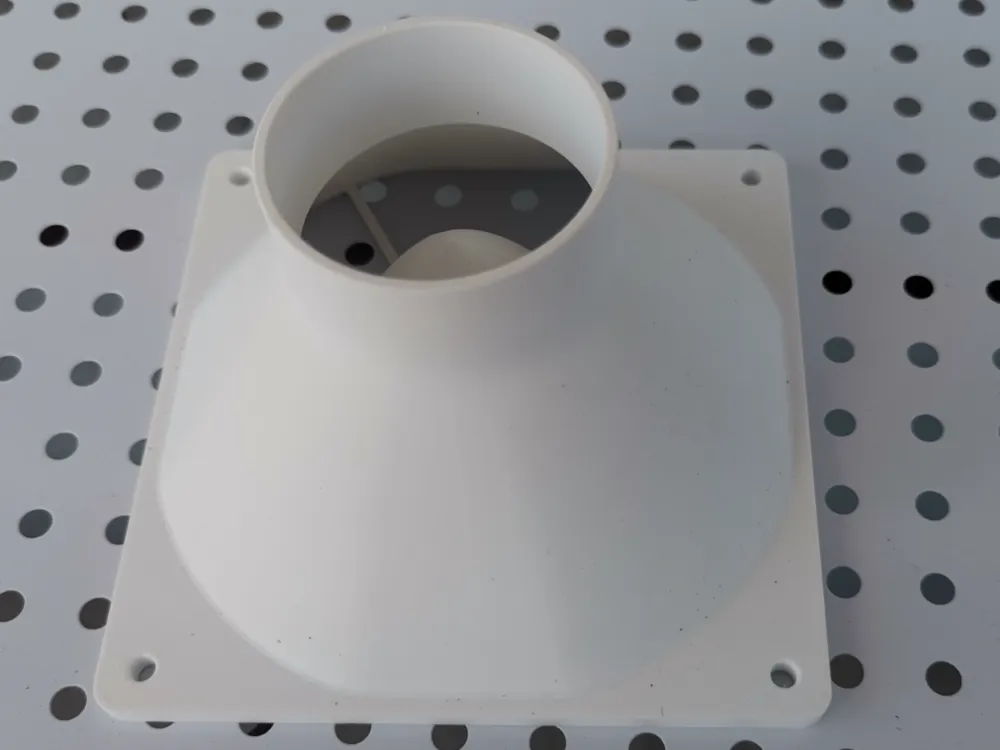

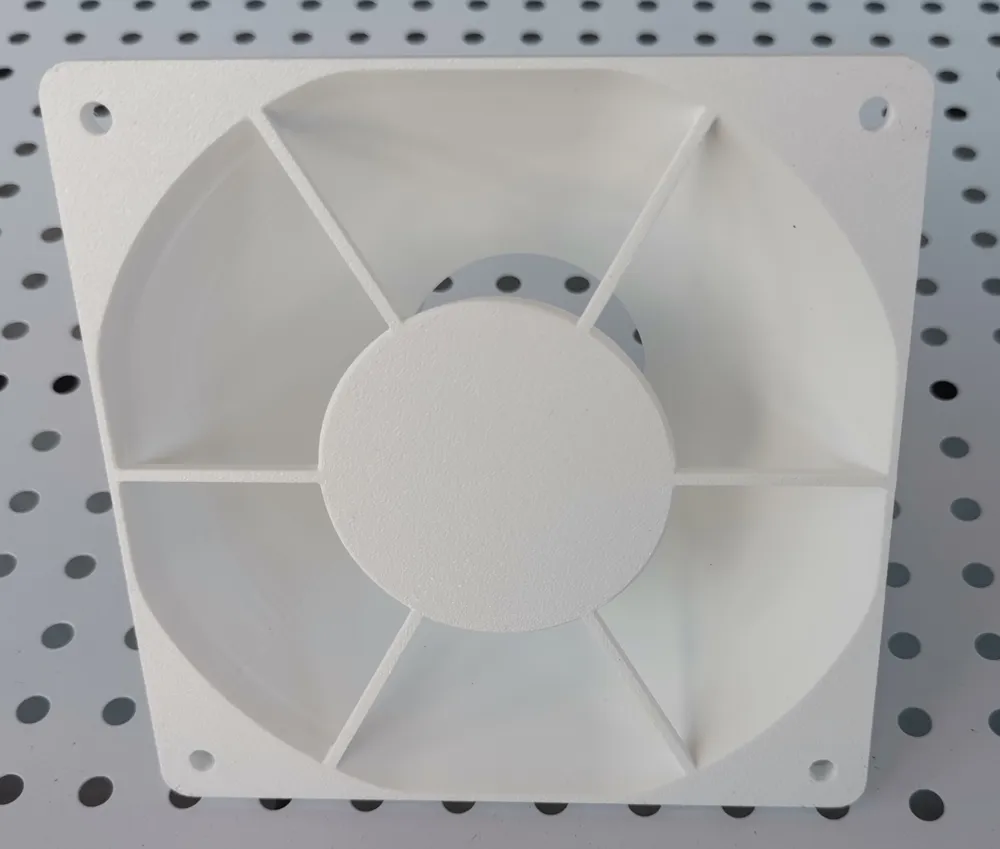

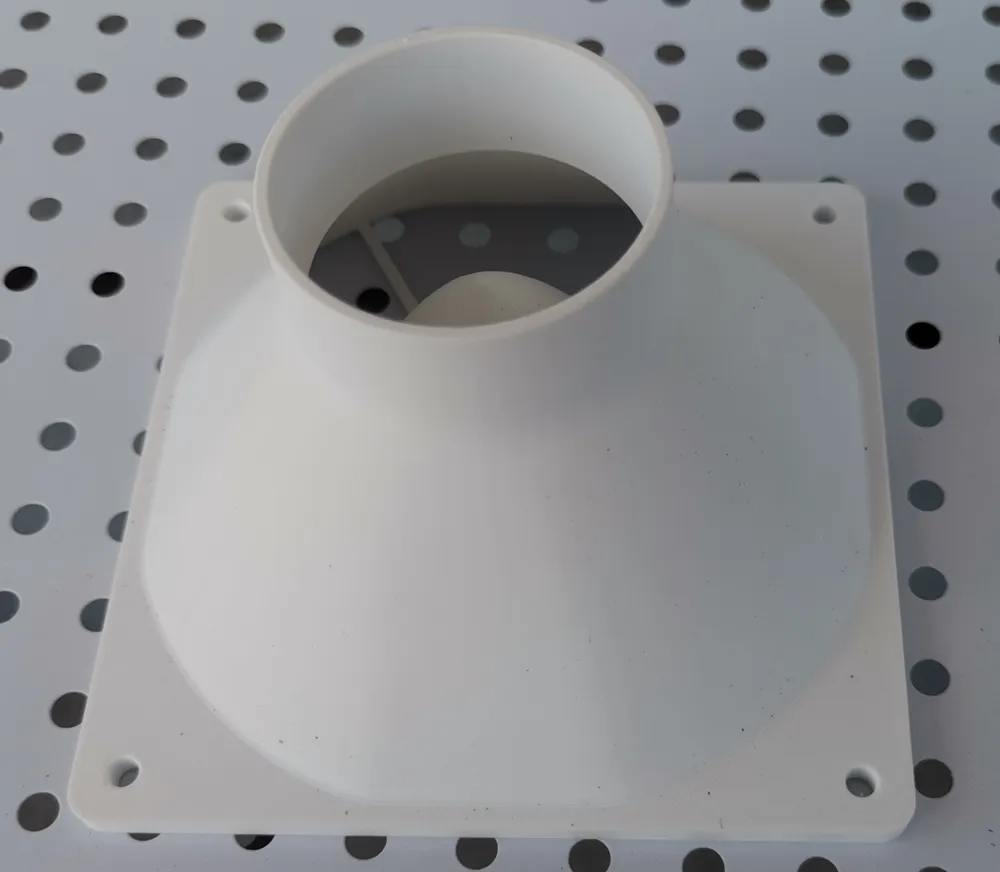

Optimal aerodynamic performance 12cm fan to 75-80-85-90-95-100mm outer diameter interface intake adapter
Print Profile(2)
Description
Boost Me (for free)
Thanks to all my friends for your support, thank you!
I. Foreword:
This intake adapter, when paired with my other fan output exhaust adapters, can form a DIY ducted fan The adapter's diameter can be freely matched according to your exhaust hose specifications, supporting hoses with diameters from 50 to 120mm When installing, be sure to pay attention to the position of the fan's intake adapter and exhaust adapter, otherwise, the aerodynamic effect will be very poor, remember that
II. Matching Exhaust Adapters
III. Other Smaller Diameter Intake Adapters
IV. Assembly
Required Parts
1. 2 M4*40 machine screws
2. 2 M4*45 machine screws
3. 4 M4 nuts
4. 1 12cm x 2.5cm fan

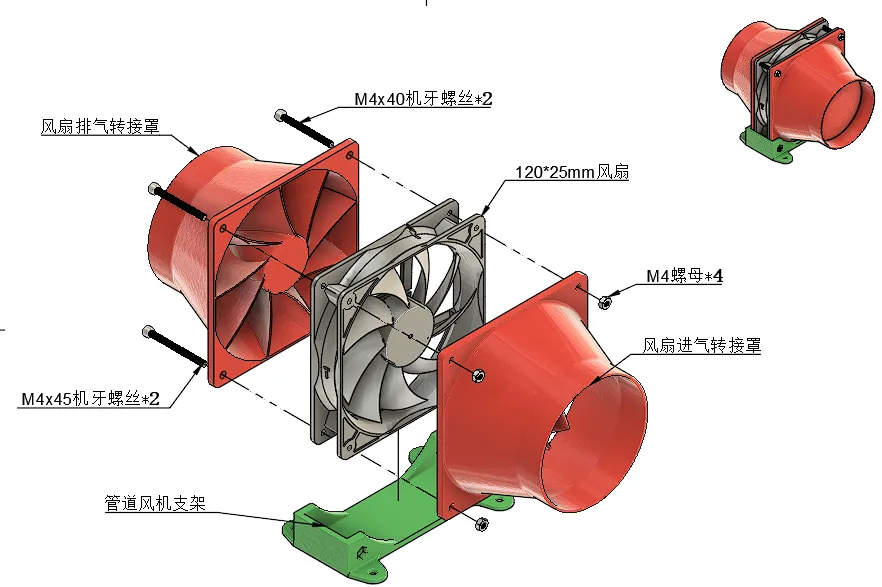

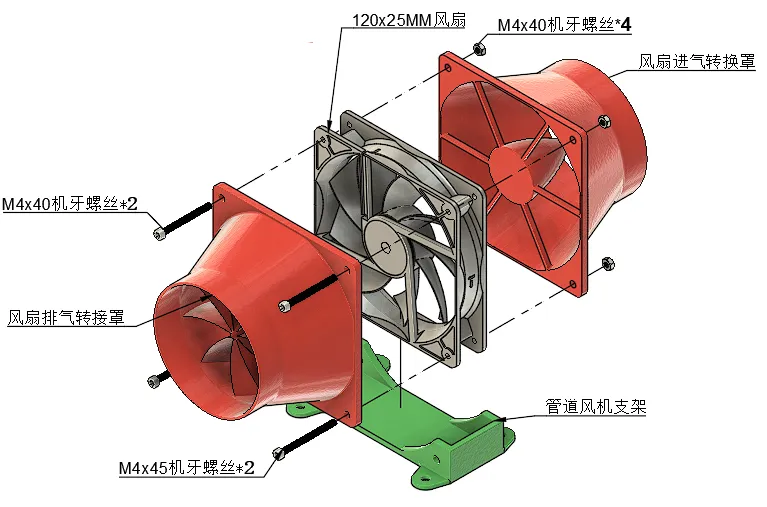

Assembly method as shown below
