P1S/X1C Poop Chute, Poop Bucket, Poop Slide

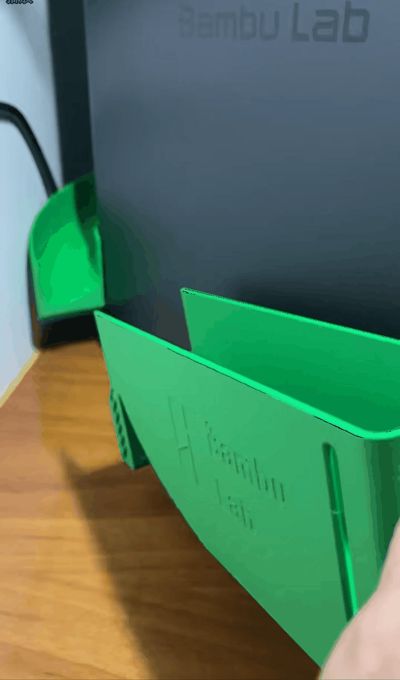

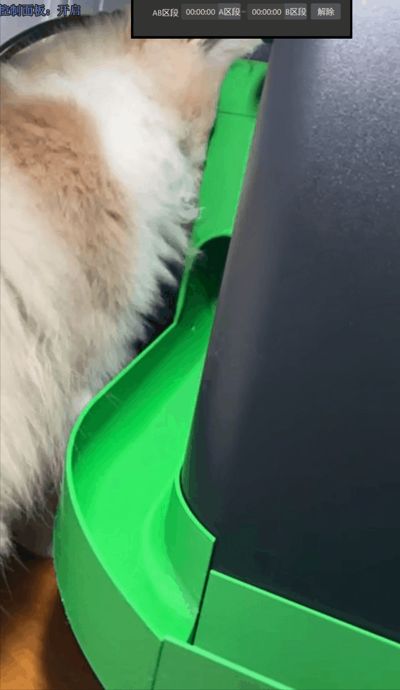

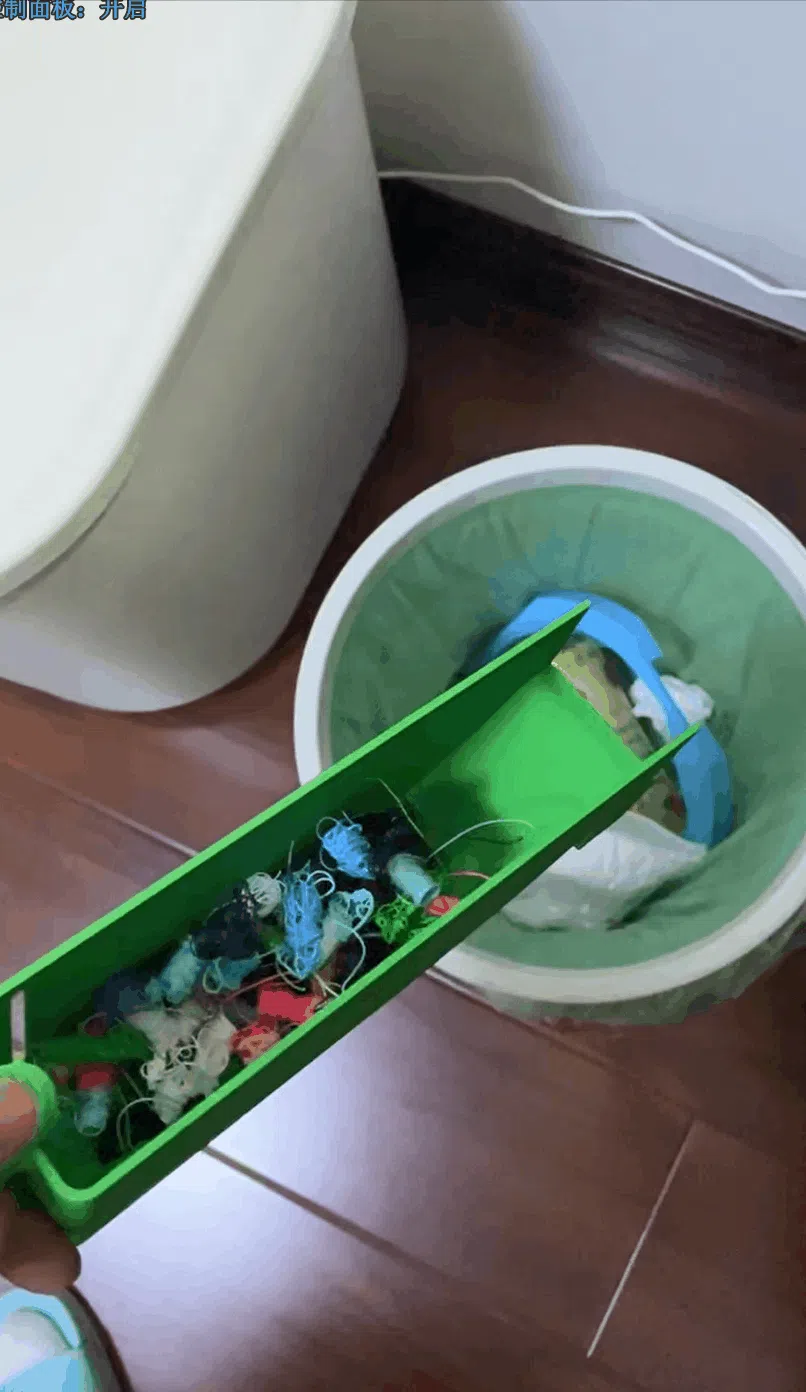

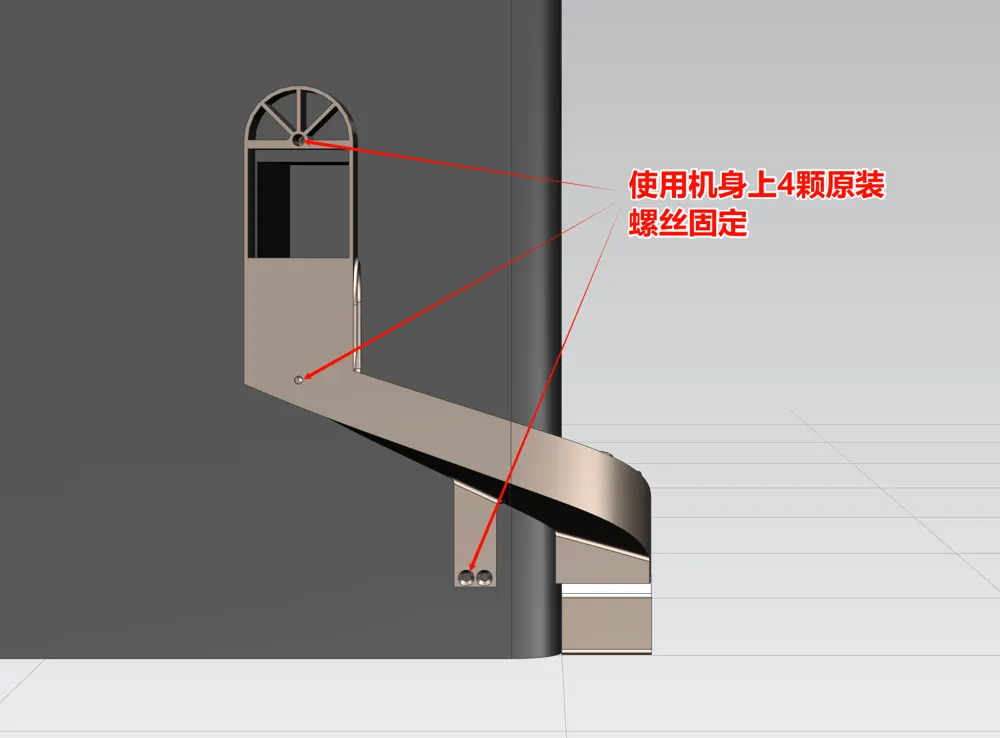

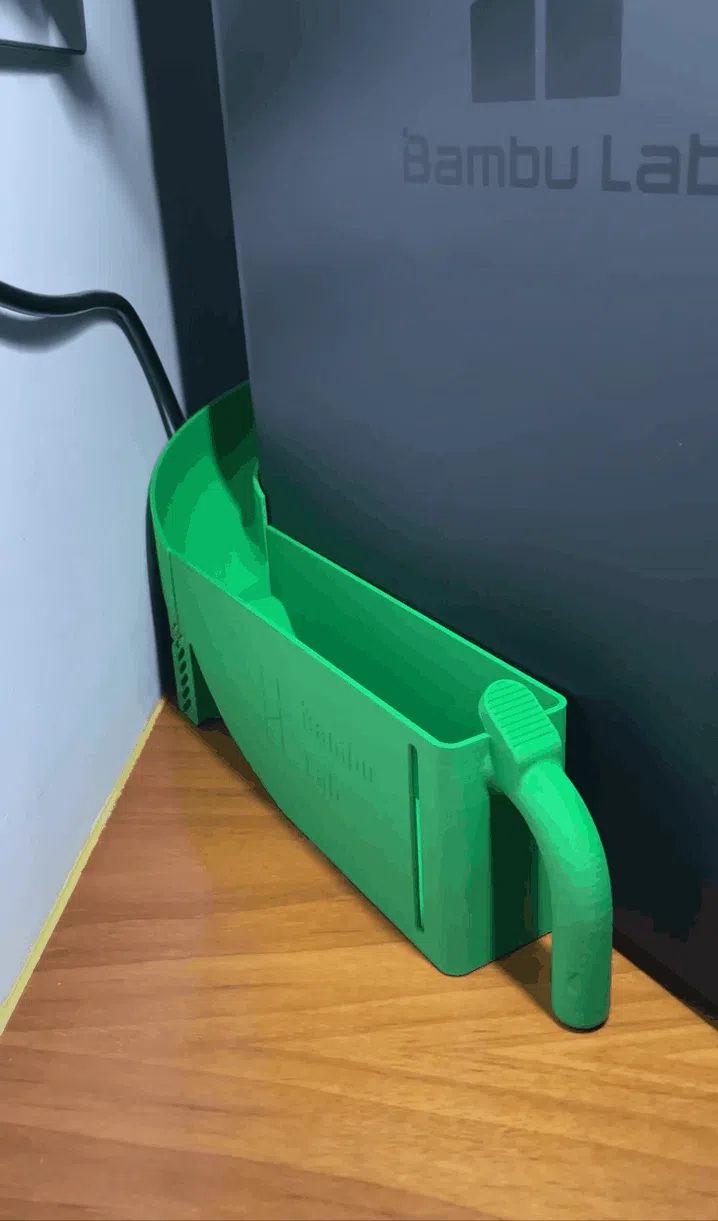

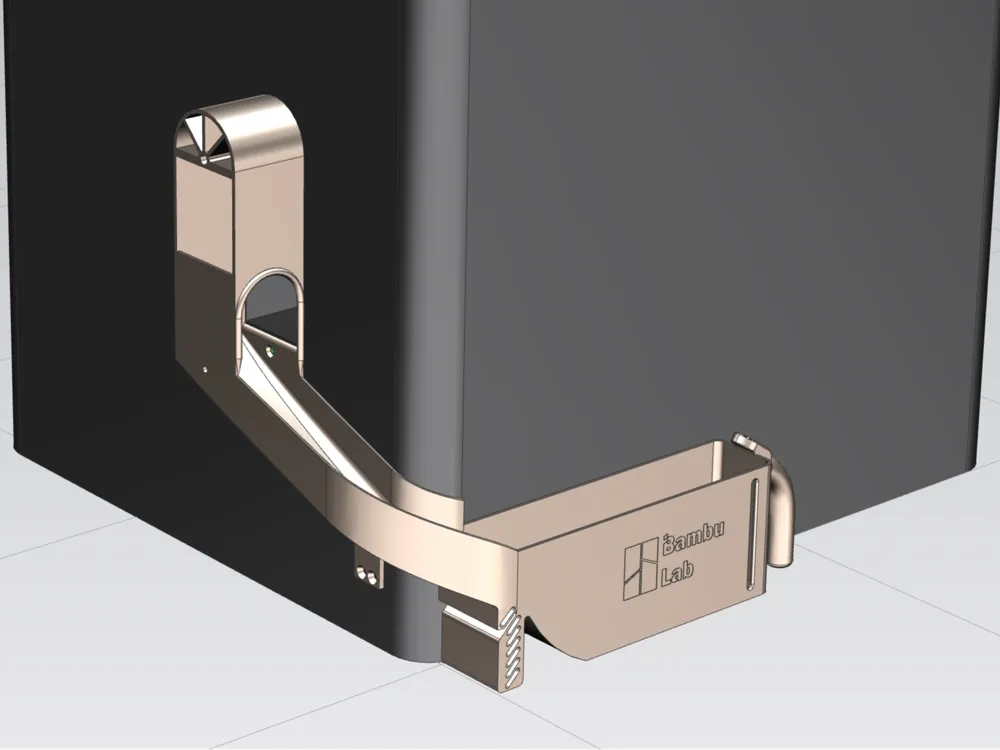

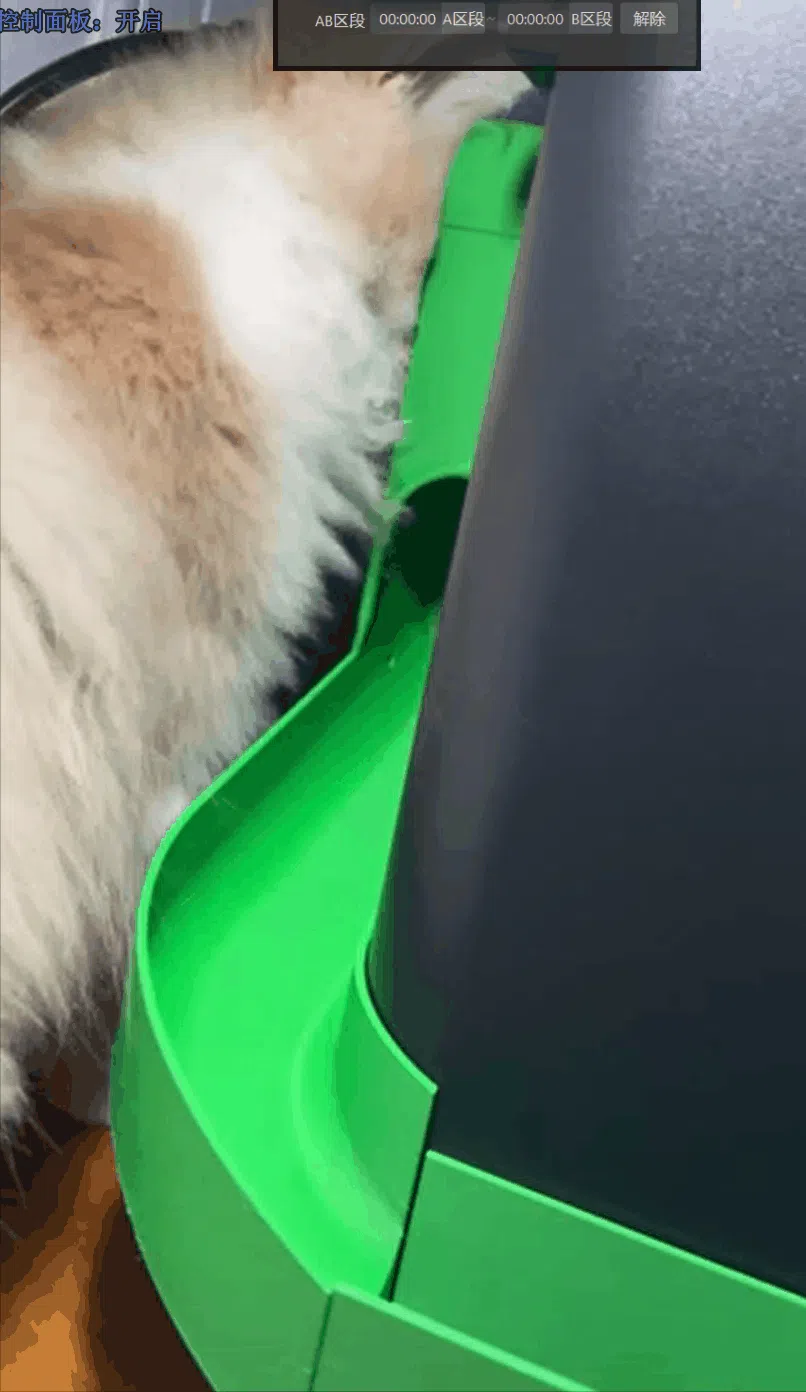

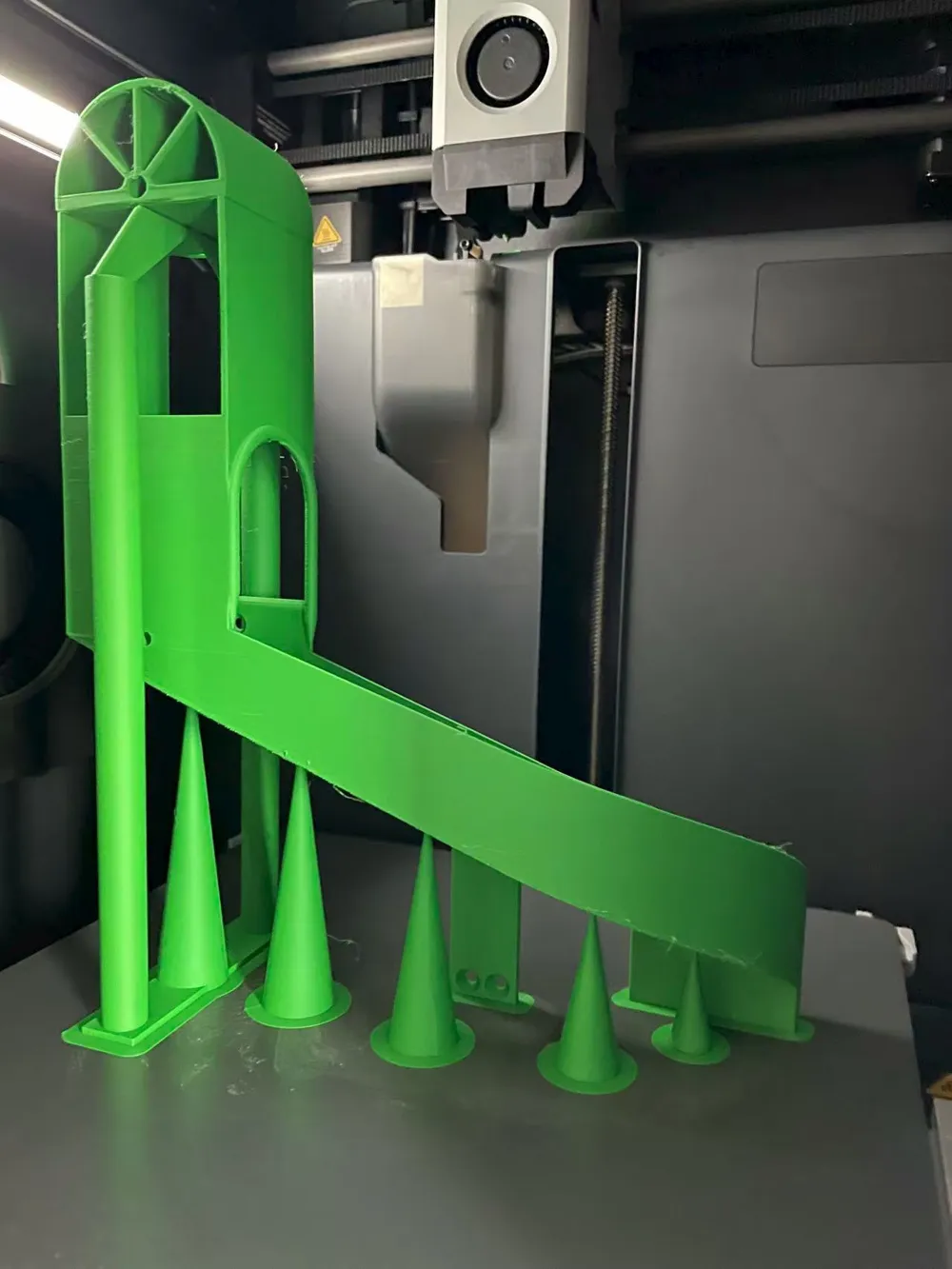

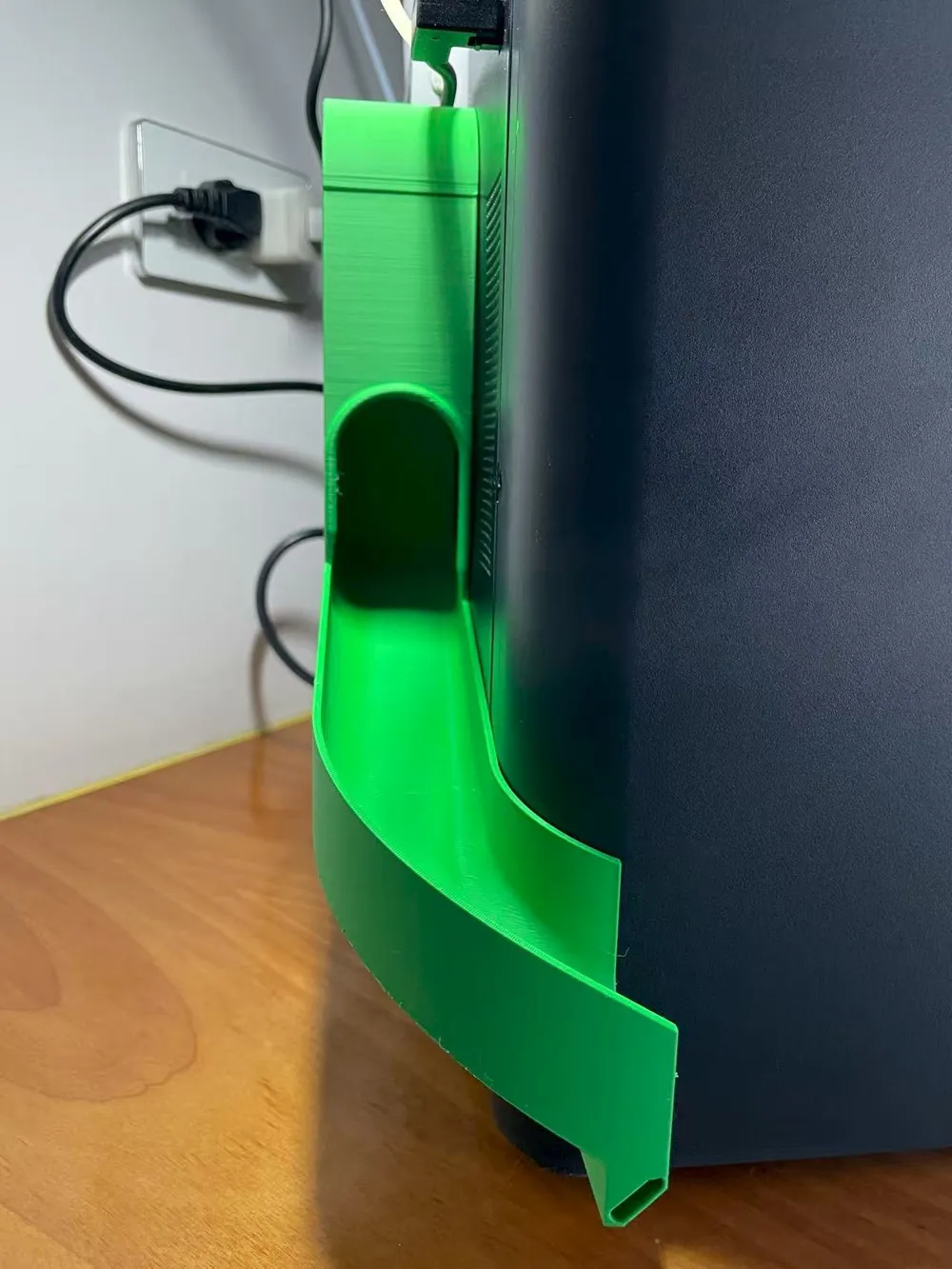

I couldn't find one that suited me, so I made one to share with everyone, hoping it helps. This is a two-piece filament waste box, very convenient to access from the front. You can print it directly and install it without purchasing any accessories. The waste chute width is 45mm (this dimension is set as the maximum width based on the protrusion of the power supply at the back of the machine). The waste chute has built-in supports (a version without supports is also available for download) 1. The two-piece filament waste box is divided into a fixed part, the "waste chute", and a movable part, the "waste collection bin", solving unnecessary blind spot issues and making use from the back more convenient 2. You can firmly fix the chute end to the machine body using the original factory screws (designed with a protruding step that perfectly integrates with the back shell, no need for separate extended screws) 3. European arch design enhances aesthetics, allowing waste to be elegantly discharged 4. Amusement park slide design allows waste to be easily discharged and happily slide down 5. The two-piece design ensures the chute is firmly fixed to the back of the machine, preventing leaks, eliminating the need to operate in the blind spot at the back, and allowing direct removal from the front 6. Magnetic connection (optional installation of magnets with 10mm diameter and 3mm thickness), quick and easy removal without misalignment 7. Side strip design visually indicates waste status in real time 8. Added handle design and thumb rest design for easier and more stable removal of the waste bin 9. The inside of the waste bin has a rounded R-angle design, making waste slide out and empty more conveniently 10. Side Bambu Lab LOGO as a symbol of prestige 11. Magnet specifications: 10x3mm diameter (full thickness), 4 pieces required in total (optional installation based on personal need) August 24, 2025 Update:

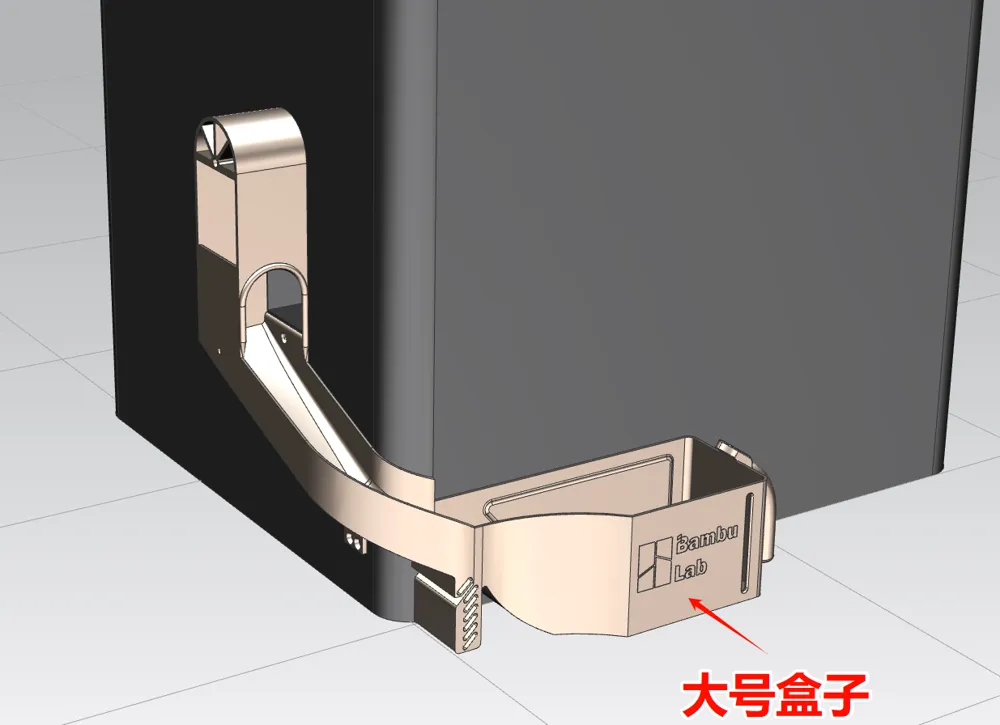

• Added a large filament waste box (waste bin)

August 27, 2025 Update:

• Modified the dimensions of the magnet installation location for a better fit (magnet thickness may have negative tolerance)
