The model has a 0.25mm gap between moving parts, which should work with most filaments.&nbsp;The 3MF print profile has presets that seemed to work fine for me, using PLA and a 0.4mm nozzle: 0.20mm layer height, 3 wall loops, 15% infill, Classic wall generator.&nbsp;2026-03-28, 1.2<ul><li>updated print profile</li><li>improvements to surface quality</li><li>slightly reduced filament</li></ul>2026-01-17, 1.1.1<ul><li>tweak to profile to improve travel</li><li>updated model file name</li></ul>2026-01-03, 1.1<ul><li>updated print profile</li><li>increased infill</li><li>tweaked seams (scarfs enabled)</li><li>improved surface quality</li></ul>2025-08-21, 1.0<ul><li>initial release</li><li>tested, functional design</li></ul>&nbsp;

Folding Phone Stand (Single Color)


Folding Phone Stand (Multi Color)

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

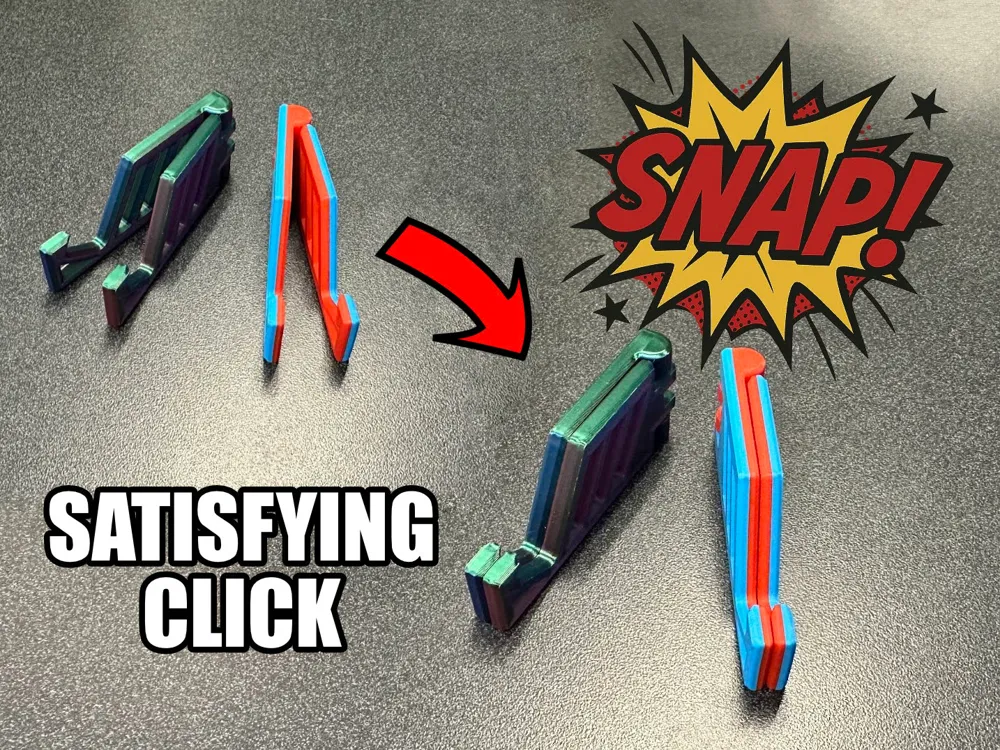

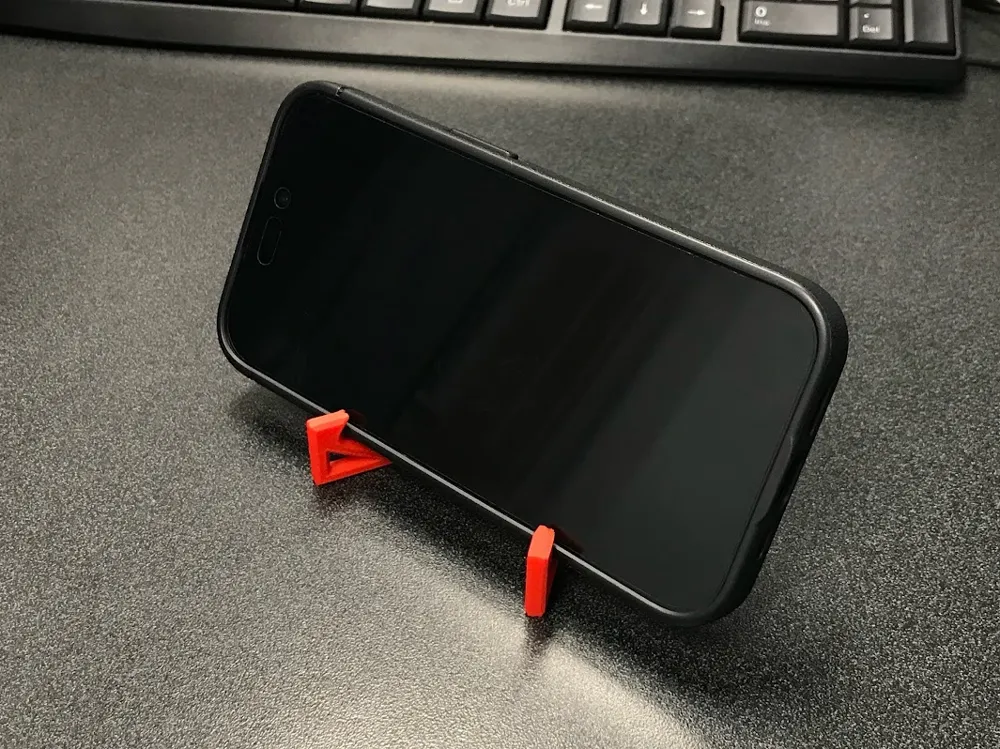

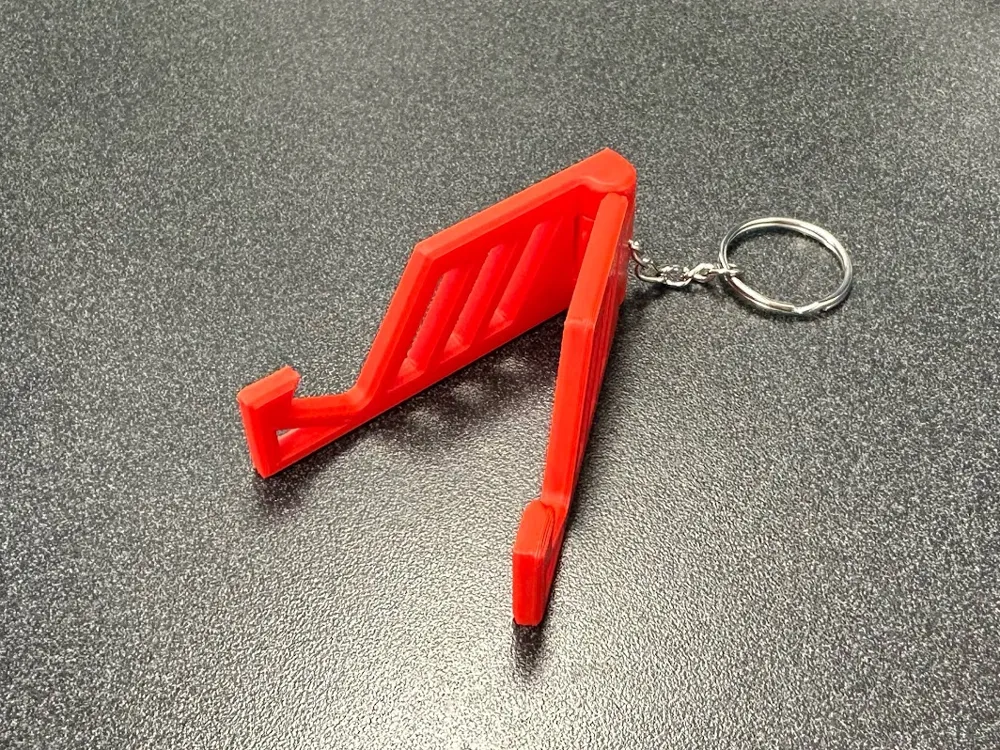

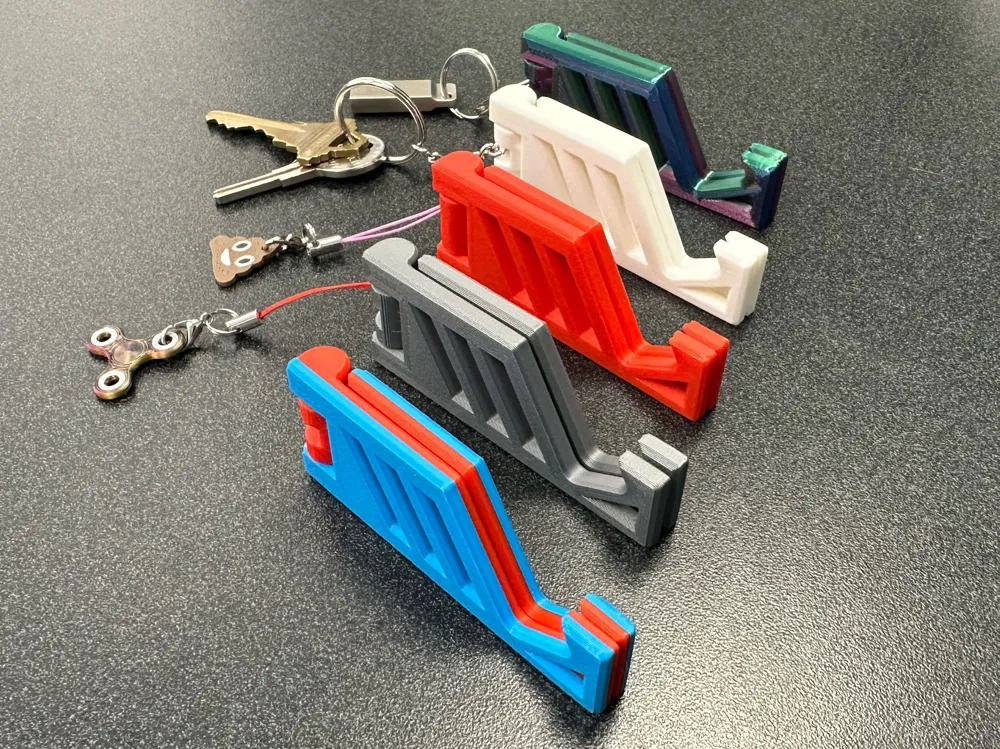

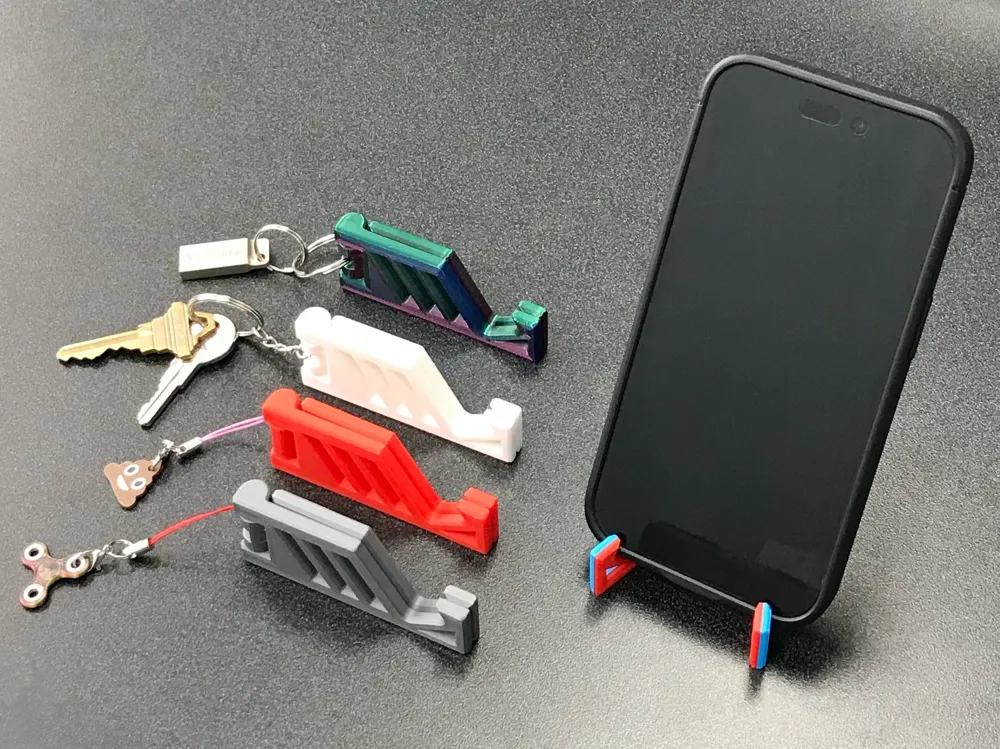

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Like my work? A BOOST would be greatly appreciated! Thank you!</boostcontent></boostme>&nbsp;Yes, yet another folding phone stand. This is my take on the common 3D model, designed completely from scratch.&nbsp;🔑 Keychain-sized. Big-time convenience. Perfect for travel!🎒 From pocket to go in one snap. Easily watch videos anywhere!📐 Minimalist. Mighty. Magical.🌀 Satisfying by design. Engineered with a precision hinge and a locking mechanism that clicks into place like a dream. It’s the kind of tactile joy you didn’t know you needed.&nbsp;▪️ Pocketable, Folding Design - perfect for travel ▪️ Optimized Hinge System ▪️ Works with Keychains and Charms▪️ Satisfying SNAP when closed (dare I say that this is almost fidget-like?)&nbsp;📱 Angled at 60º, it can hold phones and other devices up to 15mm thick.&nbsp;Prints in-place without supports, overhangs, or any bridges. 💥 Uses less than 14g of filament and prints in under an hour.&nbsp;Works with most keychains or charm straps.&nbsp;Example keychain from Amazon: <a target="_blank" rel="noopener noreferrer ugc" href="https://www.amazon.com/dp/B07TVK54L3/">https://www.amazon.com/dp/B07TVK54L3/</a>Example charm strap from Amazon: <a target="_blank" rel="noopener noreferrer ugc" href="https://www.amazon.com/dp/B0DGX8KW6C/">https://www.amazon.com/dp/B0DGX8KW6C/</a>&nbsp;The model has a 0.25mm gap between moving parts, which should work with most filaments (I made several test prints using PLA, PLA Silk, and PETG). If you find this too loose or too tight (where the hinge won&#39;t even move), please let me know! I can easily upload more versions of the model with different tolerance offsets.&nbsp;<figure class="image image_resized" style="width: 50.43%"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001721641/design/2025-08-21_7ed04109420fc.png"></figure>&nbsp;&nbsp;Folding Phone Stand Changelog:&nbsp;2026-03-28, 1.2<ul><li>updated print profile</li><li>improvements to surface quality</li><li>slightly reduced filament</li></ul>2026-01-17, 1.1.1<ul><li>tweak to profile to improve travel</li><li>updated model file name</li></ul>2026-01-03, 1.1<ul><li>updated print profile</li><li>increased infill</li><li>tweaked seams (scarfs enabled)</li><li>improved surface quality</li></ul>2025-08-21, 1.0<ul><li>initial release</li><li>tested, functional design</li></ul>&nbsp;Created from scratch using FreeCAD.&nbsp;

Folding Phone Stand
