Portable Monitor Stand for Laptops
Print Profile(1)
Description

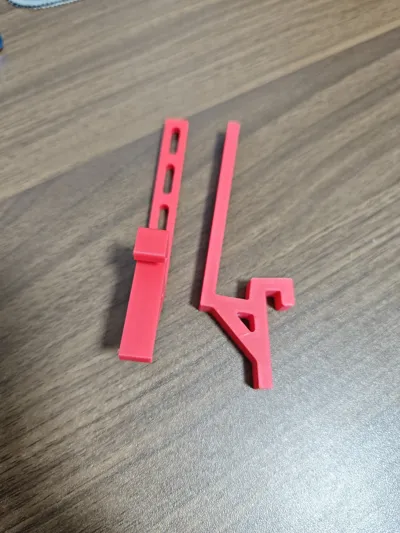

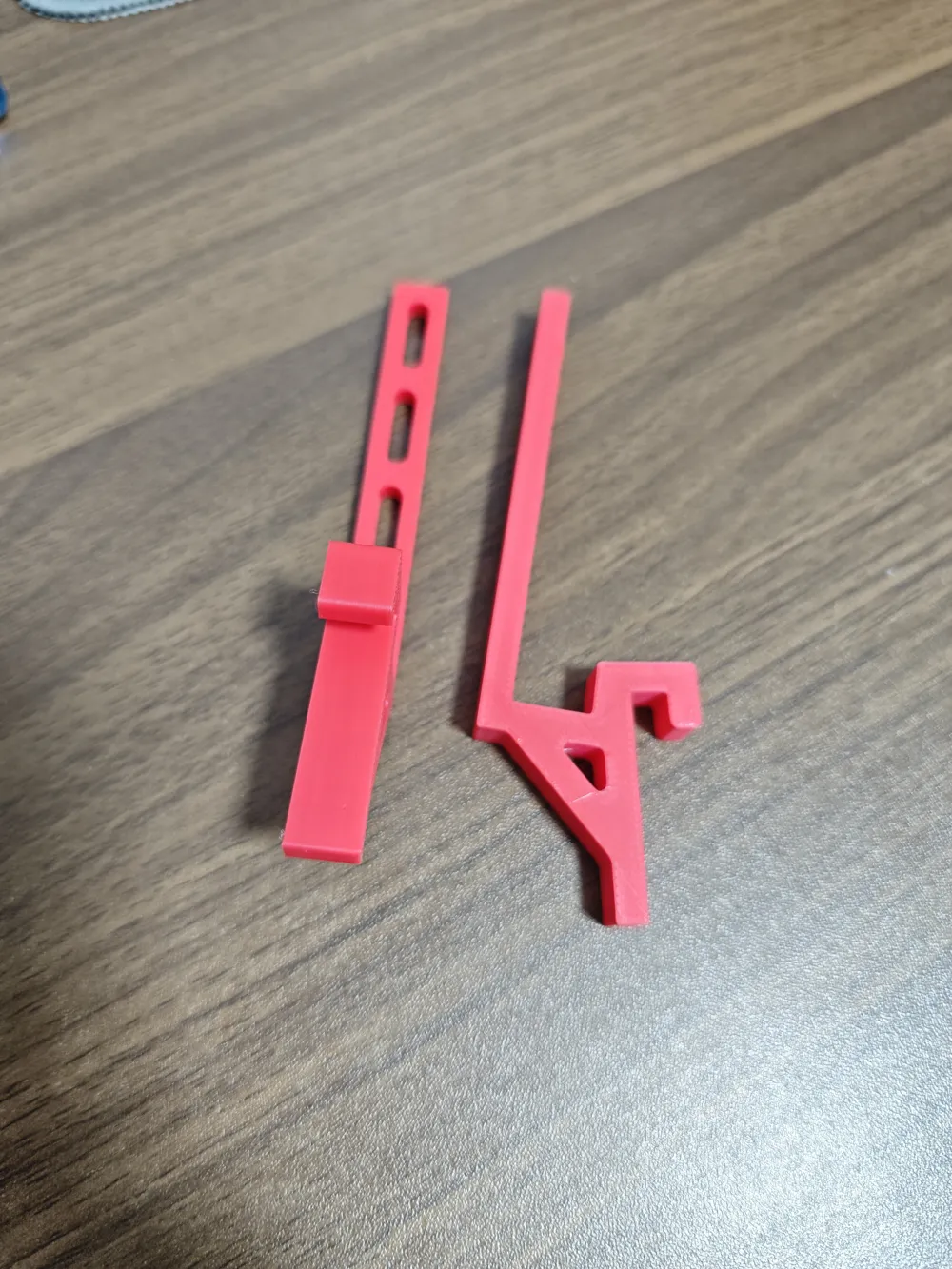

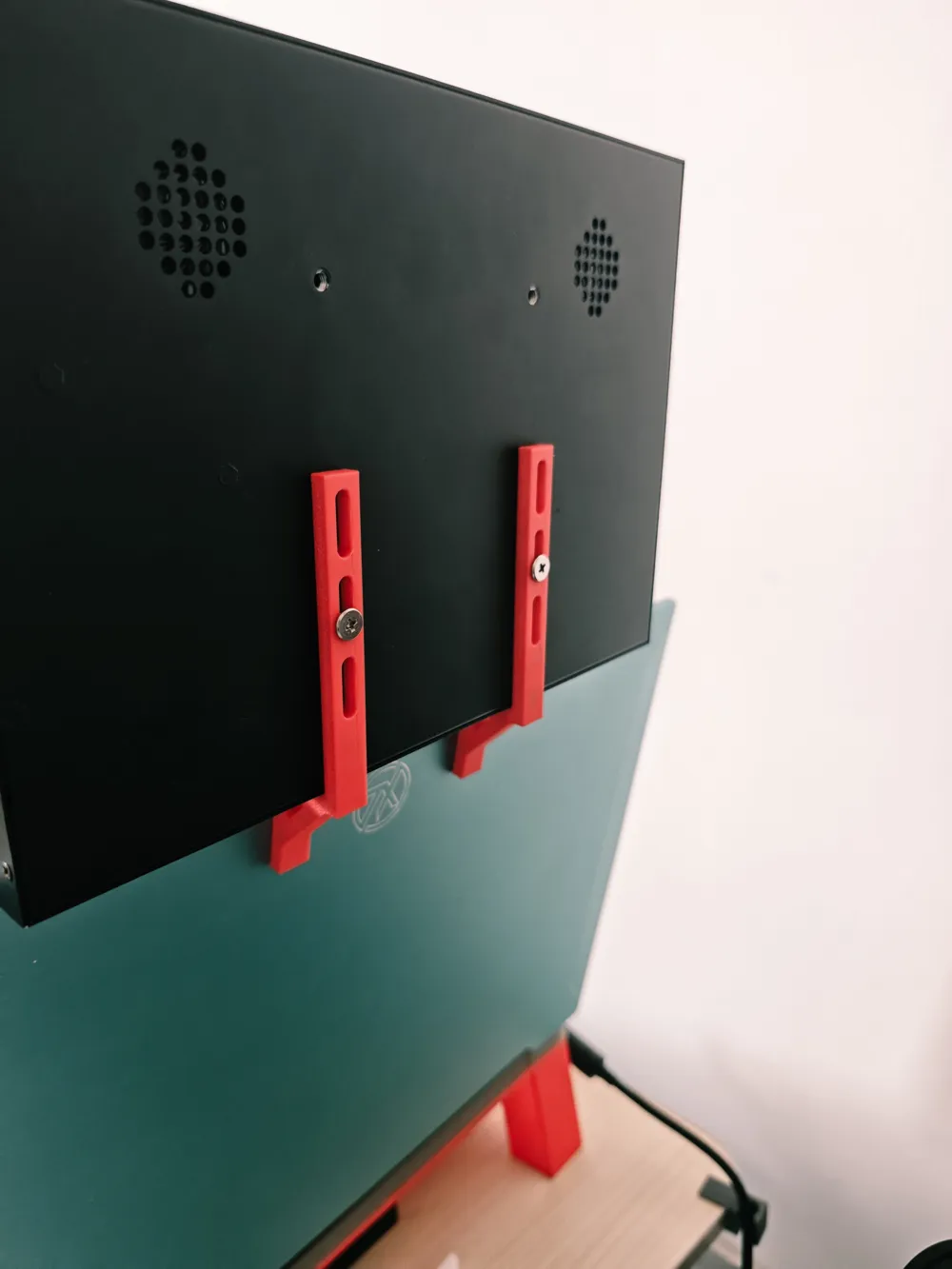

Redesigned based on Aton's model, adjusted the angle to better align the viewing angles of the laptop screen and portable monitor, and avoids excessive opening/closing to reduce bearing pressure. The reinforcement rib position has been adjusted to make it less prone to breaking, and wider screw holes have been added to accommodate other portable monitors as much as possible. It can be secured with M4 screws of 8/10/12mm length.

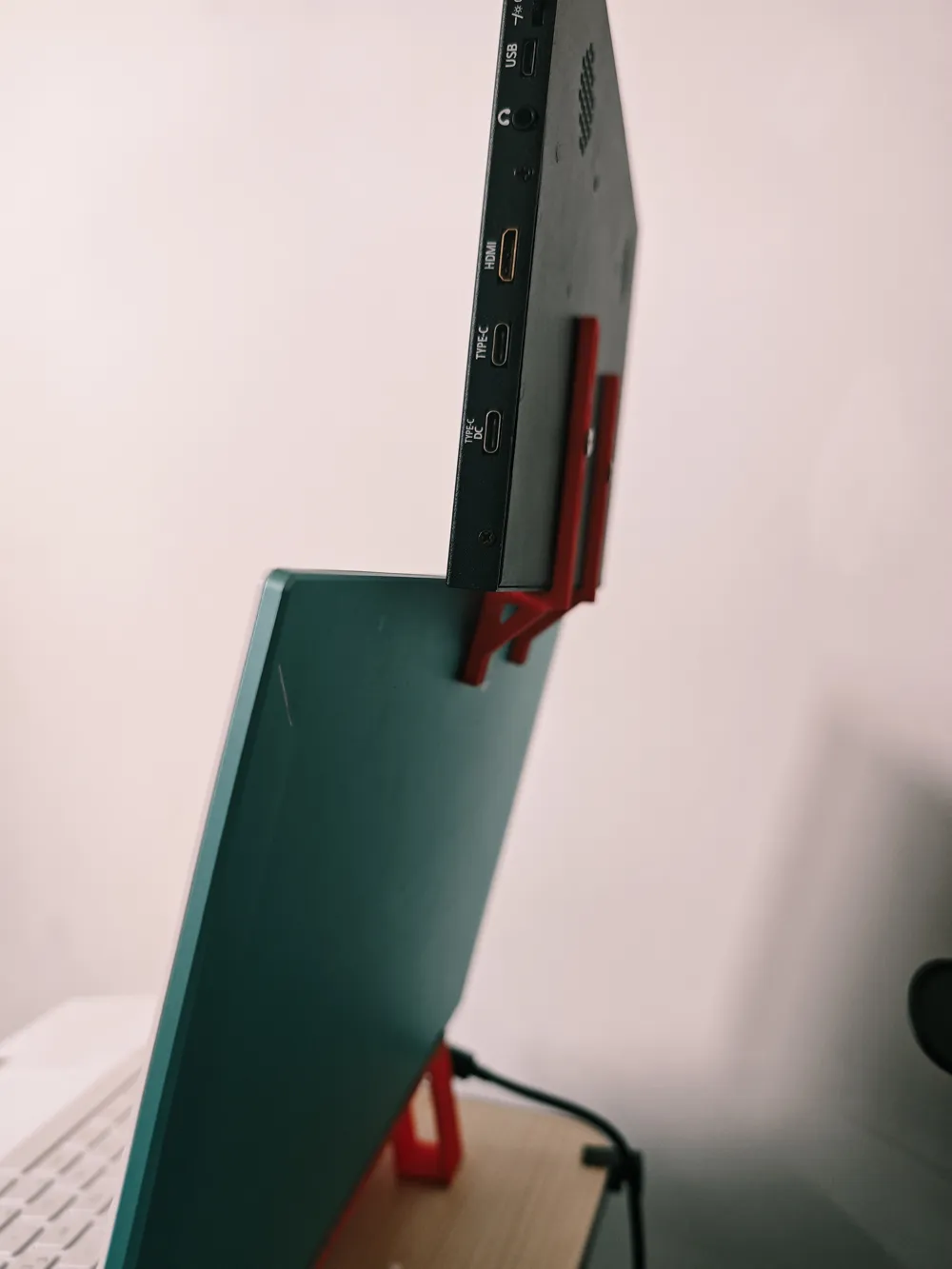

The printing profile provides options for laptop screen thickness of 6mm and 8mm, and portable monitor thickness of 10mm~15mm. CAD drawings are also provided for easy modification.

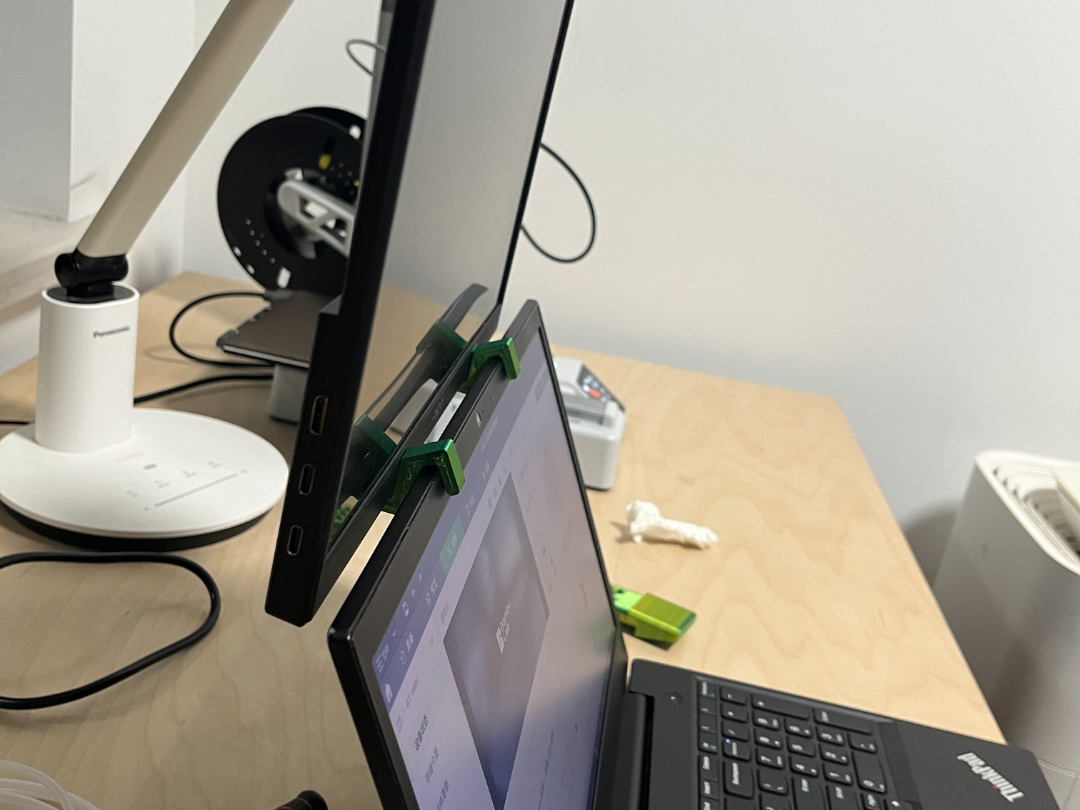

I use a Tianxuan 5 PRO with a 6mm screen thickness and a 13mm portable monitor. This stand can also be used for tablets, but it's not recommended due to weight issues.
This remix is based on
