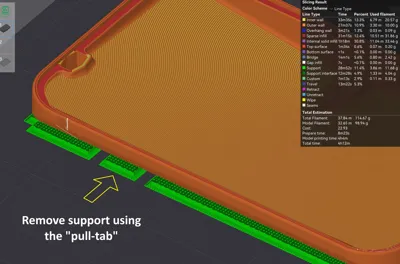

With 200mm cloth arc (tray to top of arc).&nbsp;0.2mm, 3w, 15% - (0.1mm tray - with infill combination on)&nbsp;Using layer height modifier to print drip tip in better quality and cylindrical negative body to create a hole that allows air circulation for the bottom of the hole for the arc so it won&#39;t stay damp. If you prefer without you can just delete them. There won&#39;t ever be a drop coming from that hole because of the tight tolerance but wanted to have it optional anyway. This hole is not visible if you preview in browser but after you slice the model.&nbsp;v1.3 <ul><li>Wider area on plate for the arc to prevent lifting.</li><li>Adjusted support for easier removal.</li></ul>

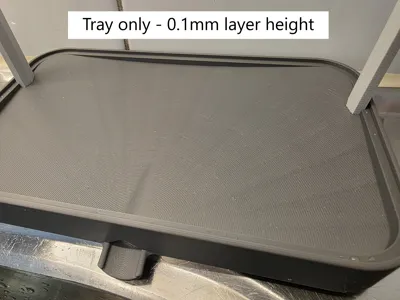

Center drain - 0.2mm, 3w, 15% - (0.1mm tray) - v1.3

0.1mm


No drain - 0.14mm




Rest same, with 200mm height arc.&nbsp;0.2mm, 3w, 15% - (0.1mm tray - with infill combination on)&nbsp;Using layer height modifier to print drip tip in better quality and cylindrical negative body to create a hole that allows air circulation for the bottom of the hole for the arc so it won&#39;t stay damp. If you prefer without you can just delete them. There won&#39;t ever be a drop coming from that hole because of the tight tolerance but wanted to have it optional anyway. This hole is not visible if you preview in browser but after you slice the model.&nbsp;v1.3 <ul><li>Wider area on plate for the arc to prevent lifting.</li><li>Adjusted support for easier removal.</li></ul>

Side / No drain - v1.3

No drain



A1 mini center CAD.png

A1 mini side CAD.png

A1 mini side CAD RH.jpg

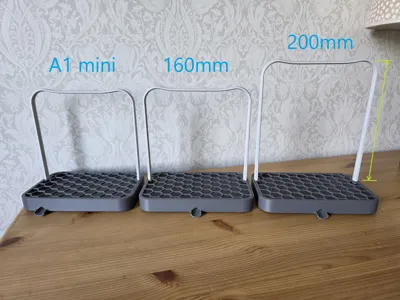

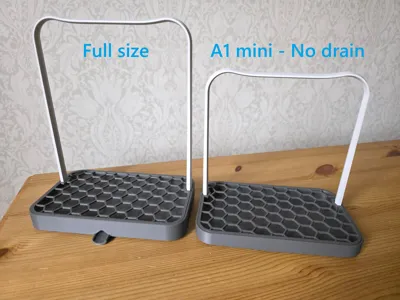

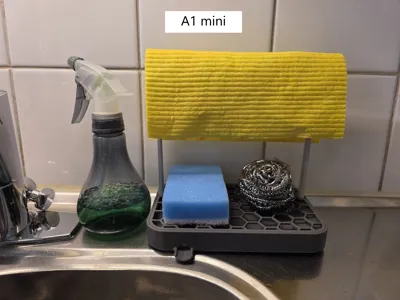

5mm narrower width and 43.35mm lower to fit the A1 Mini print bed. 6mm shallower holes for the arc to allow for some more height.To add more friction for the arc mount in order to compensate for the shallower holes, side walls have been added around the arc holes, from drip tray to grid brim.&nbsp;0.2mm, 3w, 15% - (0.1mm tray - with infill combination on)&nbsp;Special thanks to user Funky @FunkyBone for the inspiration for A1 Mini adaptation.I&#39;ve uploaded the version he modified because there are some small improvments to both physical model and print profile compared to v1.0, most importantly the is 6mm higher arc and +0.5mm height including adjustment to tip angle. Also the following below.&nbsp;Using layer height modifier to print drip tip in better quality and cylindrical negative body to create a hole that allows air circulation for the bottom of the hole for the arc so it won&#39;t stay damp. If you prefer without you can just delete them. There won&#39;t ever be a drop coming from that hole because of the tight tolerance but wanted to have it optional anyway. This hole is not visible if you preview in browser but after you slice the model.&nbsp;v1.3 <ul><li>Wider area on plate for the arc to prevent lifting.</li><li>Adjusted support for easier removal.</li></ul>

A1 Mini - all 4 versions - Center / Side / No drain - v1.3

160mm - height above tray

170mm

180mm

190mm

1.5mm extra - 4mm total height - Orig.=2.5mm

2.5mm extra - 5mm total height - Orig.=2.5mm

3.5mm extra - 6mm total height - Orig.=2.5mm

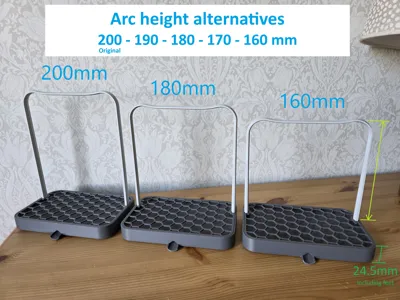

Lower height alternatives.10, 20, 30 and 40mm lower than original which is 200mm high above tray. Tray is 24.5mm above bench for drain versions and 19.5mm for tray without drain.&nbsp;Feet risers. Attach with CA / Superglue or hot glue.+1.5 / 2.5 / 3.5mm giving a total foot height of 4 / 5 / 6mm.&nbsp;v1.3

ARC height alternatives 160-190mm & FEET risers +4 5 6mm tot

Funky

25-09-13 22-11-02 9836.jpg

25-09-13 22-11-10 9837.jpg

This Print Profile is 5 mm smaller in width and 49,35mm smaller in height to fit on the A1 mini plate.

A1 mini 0.2mm layer, 3 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

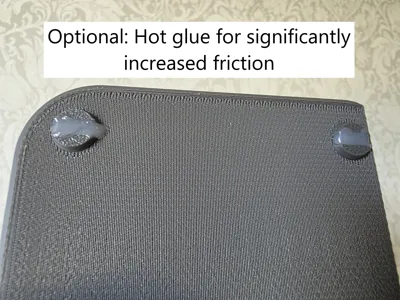

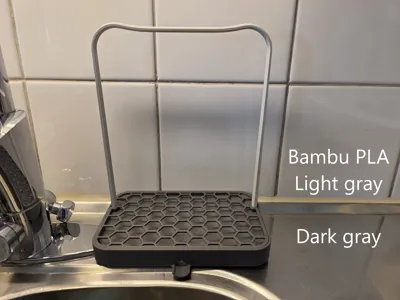

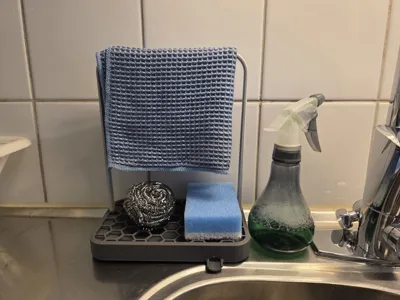

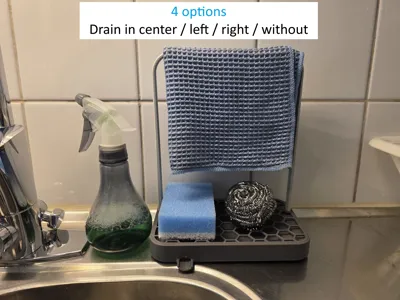

Dish sponge and cloth holder with drainage. High cloth holder arc so you won&#39;t have to fold the cloth which in turn makes it not fall down easily and also being out of the way for placing sponge.Tray with feet so water won&#39;t accumulate underneath. &nbsp;Feet has a slot for optional hot glue application. Increases friction significantly.Drip part can be warmed up and bent further down if preferred.&nbsp;4 drain versions: Center, Left or Right hand side and a No drain version.&nbsp;Height alternatives: Height from tray grid to arc top:<ul><li>200mm / 7.9in - Original - 224mm / 8.82in total height.</li><li>190mm</li><li>180mm / 7.1in</li><li>170mm</li><li>160mm / 6.3in</li></ul>Bench to tray measurment is 24mm / 0.95in for drain versions and 19mm / 0.75in without.&nbsp;Feet riser alternatives: If you have inset sink with higher brim, this could help. Original feet height is 2.5mm.<ul><li>+1.5mm - 4mm tot.</li><li>+2.5mm - 5mm tot.</li><li>+3.5mm - 6mm tot. </li></ul>Uses support to allow for fixed feet and drip.&nbsp;Hope you like it!<boostme><boosttitle>Boost Me</boosttitle></boostme>

Dish Sponge + Cloth Holder
