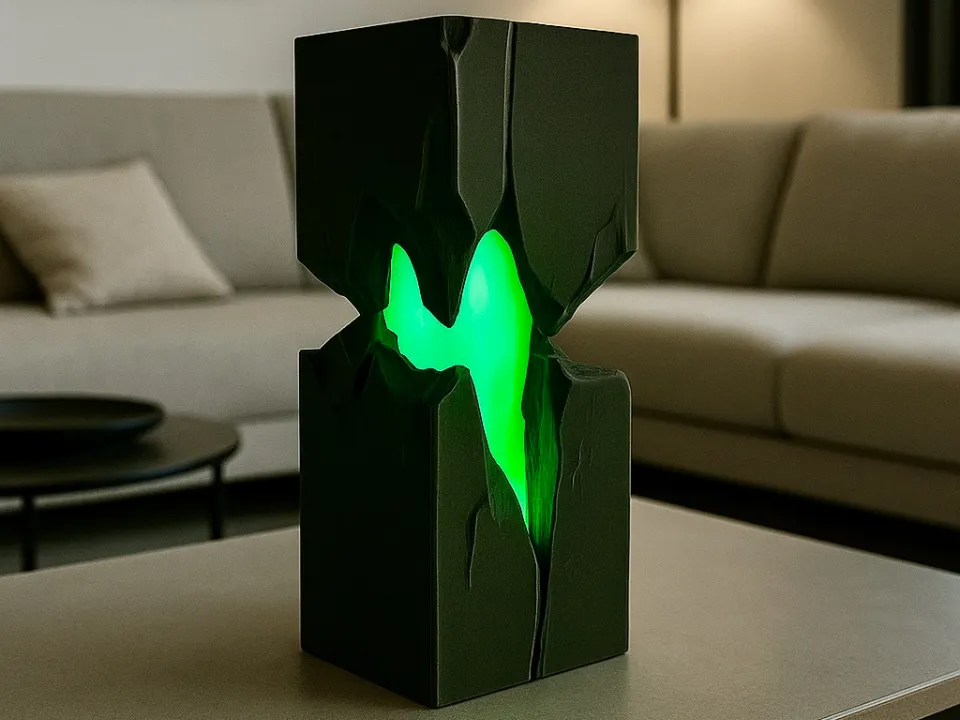

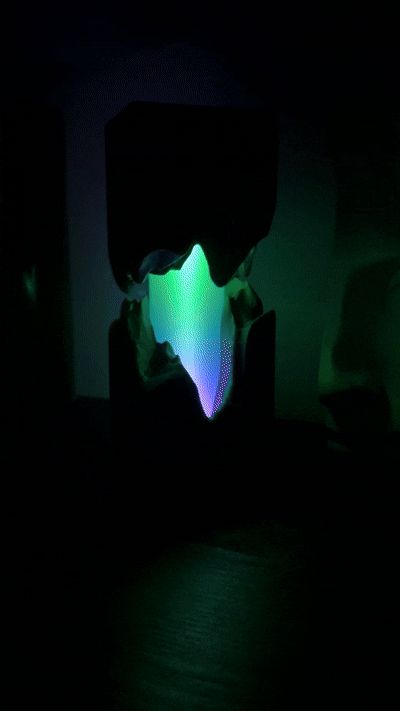

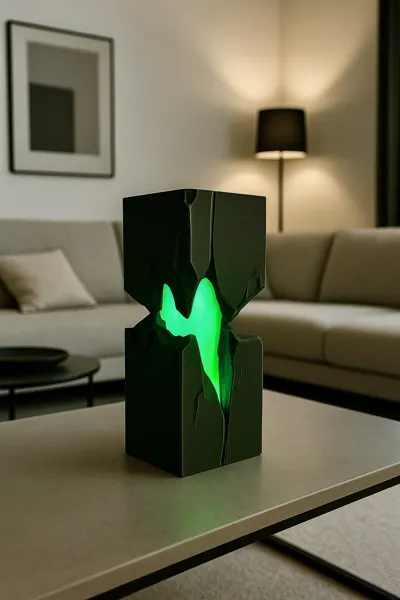

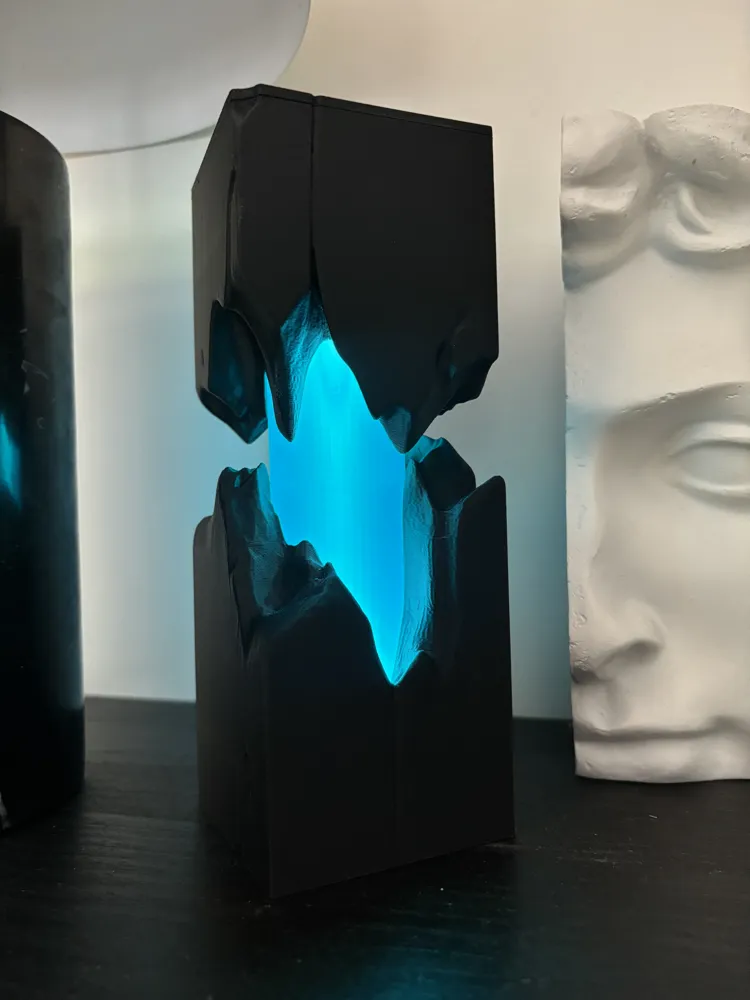

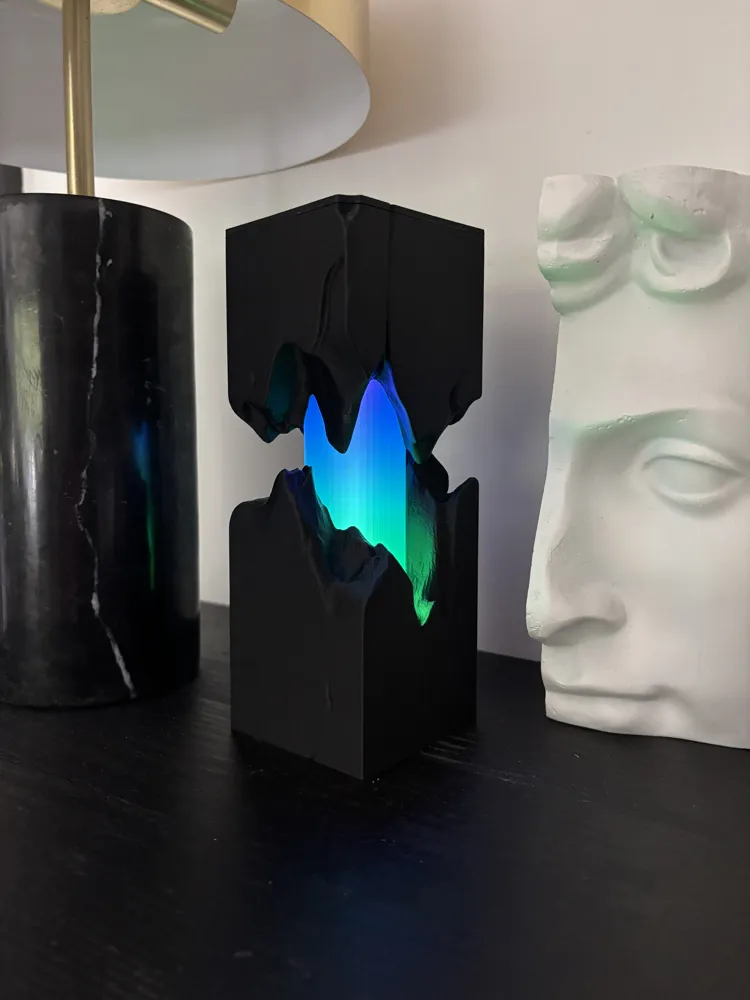

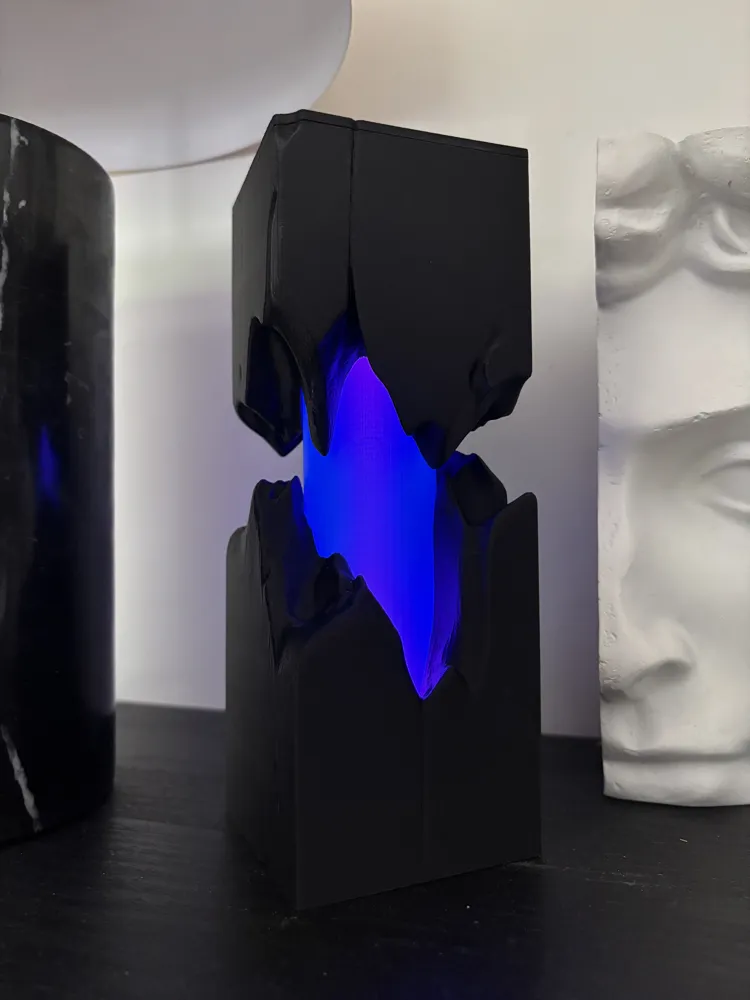

Fractured Monolith Lamp
A mysterious black monolith, split open to reveal a radiant core of light.
This design blends minimalist geometry with futuristic sci-fi energy, making it both a decorative art piece and an ambient lamp.
Printed in three parts:
- Two matte black PLA blocks forming the fractured shell
- One inner tube in translucent blue PLA to diffuse the light
The lighting is powered by the Bambu Lab KC007 module, offering multiple RGB modes.
👉 Advantage: you can press the top of the monolith to manually switch modes, or use the remote control for additional light programs.
Perfect as modern home decor, a futuristic desk lamp, or a unique conversation piece.
🔹 Enhanced Dual-Light Profile
For those who want twice the light output, an improved print profile is included.
This version allows you to install two Bambu Lab KC007 light modules:
- One in the base, as in the standard model
- A second one in the upper suspended rock section
👉 The result is a brighter and more immersive glow, with illumination coming from both ends of the fractured monolith.
“Tip: with a KC007 in each rock block (top and bottom – see ‘two light’ print profile), using the smooth mode via the remote control, you get a very nice two-tone halo effect in the rendering.”
⚙️ Printing Parameters
🔹 Translucent Core (blue PLA)
- Walls:
- Wall count = 1
- Top / Bottom Surfaces:
- Top layers = 0
- Bottom layers = 0
- Infill:
- Density = 100 %
- Pattern = Concentric
- Advanced:
- Infill / wall overlap = 15 %
- Infill angle = 45°
- Minimum infill area = 15 mm²
- Detect narrow solid infill = Enabled
- Other:
- Ensure vertical shell thickness = Enabled
- Detect floating vertical walls = Enabled
👉 Result: a smooth glowing halo, with uniform light diffusion thanks to concentric infill and no top/bottom layers.
🔹 Fractured Shell (matte black PLA)
- Same settings as above, except:
- Infill density = 10 % (instead of 100 %)
👉 Result: lighter, faster to print, still strong enough since the interior is not visible.
