Very chic bladeless fan
Print Profile(1)
Description
I wanted to give a new life to an old Enrico Coveri Collection fan...
I removed the motor and speed selector and used it in a fan without visible blades that I've always wanted... a Dyson.
For those who don't have the motor, you can get it here:
https://it.aliexpress.com/item/1005004452041334.html?spm=a2g0o.tesla.0.0.573204kH04kHCL&pdp_npi=5%40dis%21EUR%2124%2C57%E2%82%AC%2120%2C39%E2%82%AC%21%21%21%21%21%40211b441 e17559425243166718ea271%2112000029224546827%21btf%21%21%21%211%210&afTraceInfo=1005004452041334__pc__c_ppc_item_bridge_pc_same_wf__qYzgQL3__1755942524687&gatewayAdapt=glo2ita

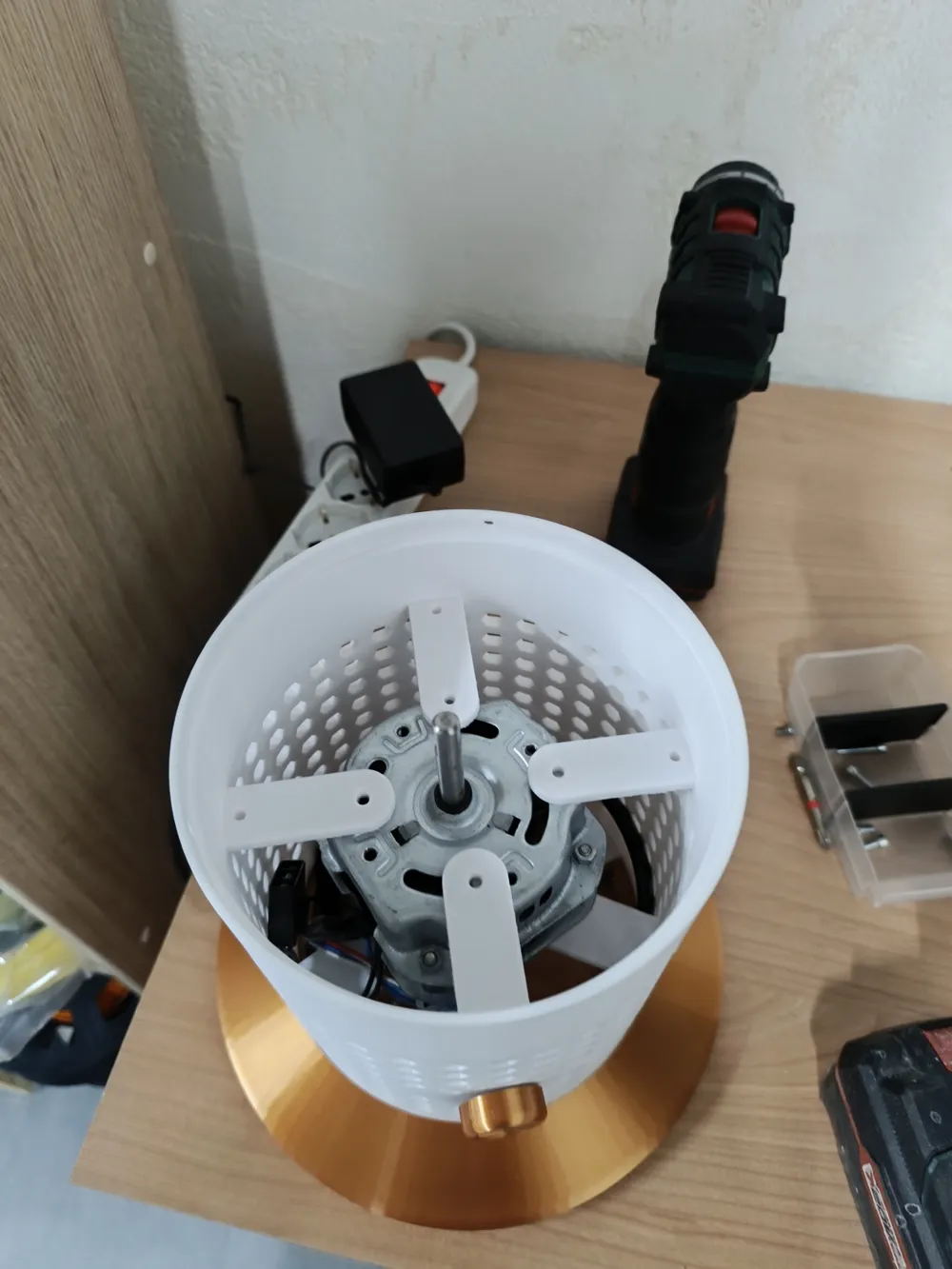

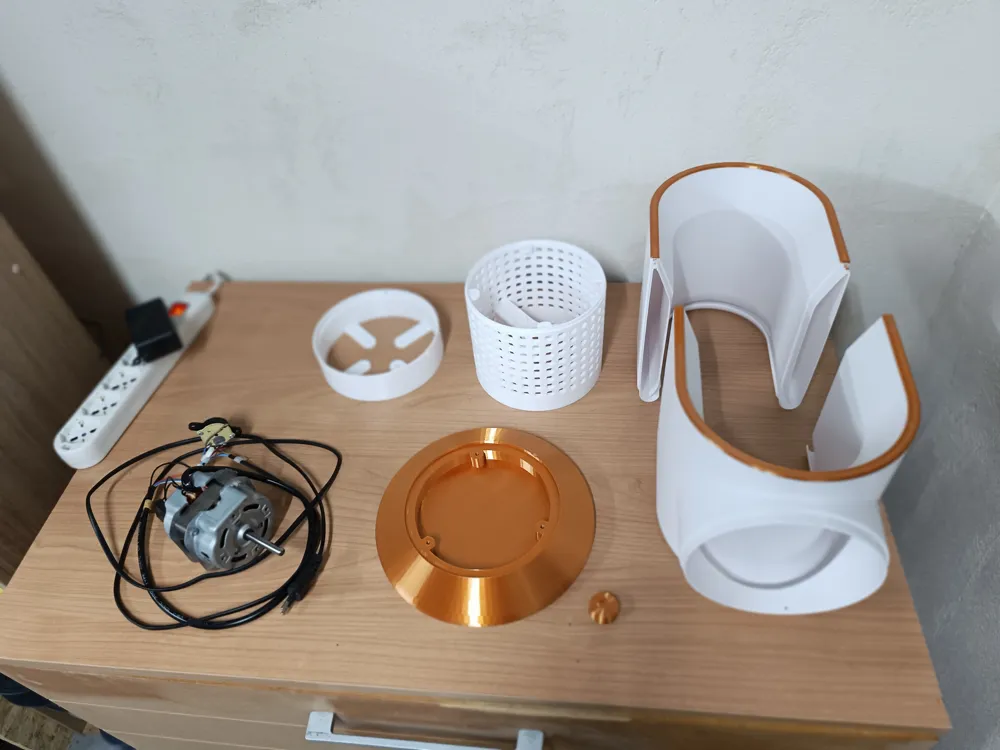

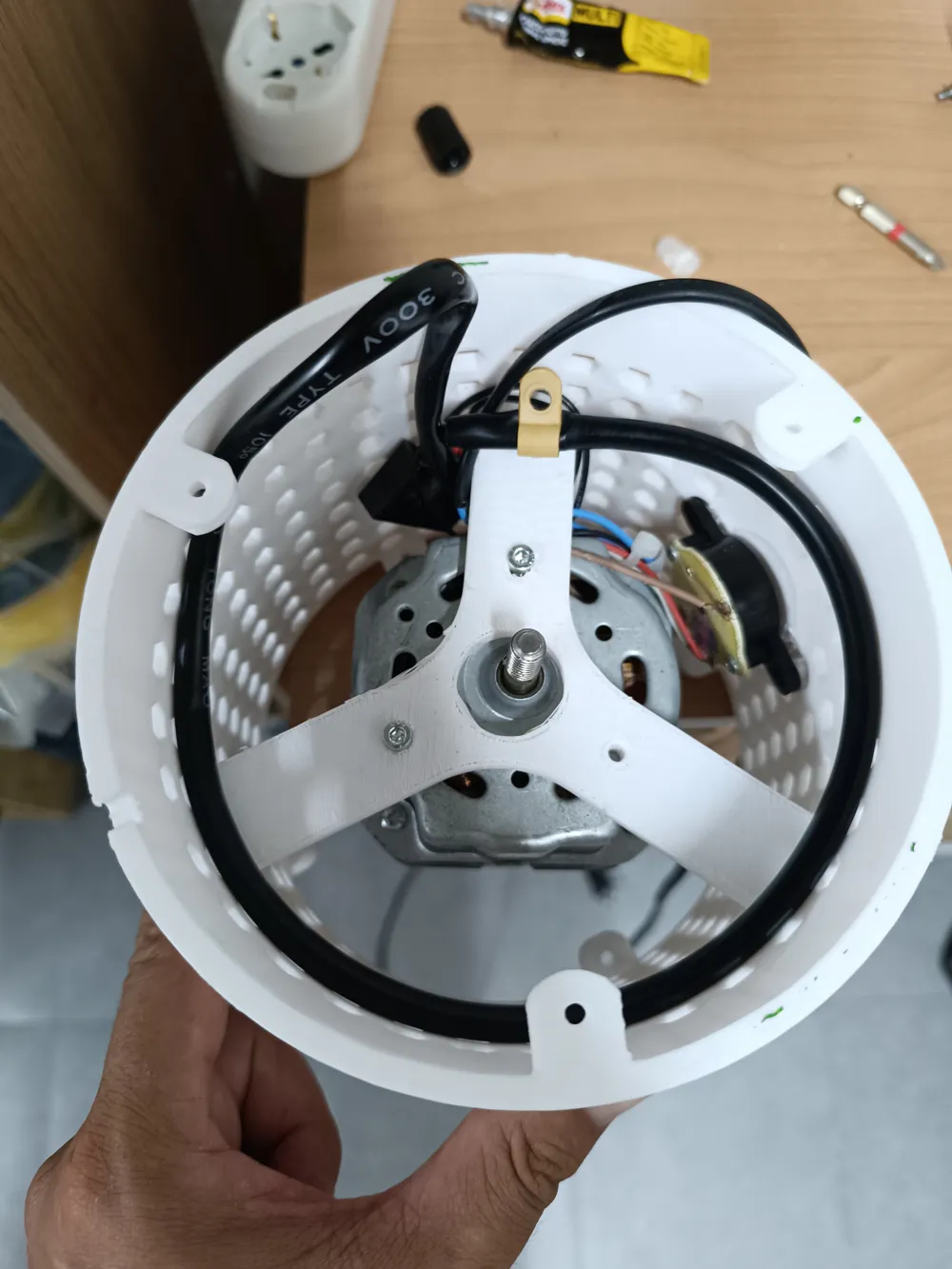

1) Once the base is printed, insert the motor between the base and the motor body. They are joined using simple M4 screws.

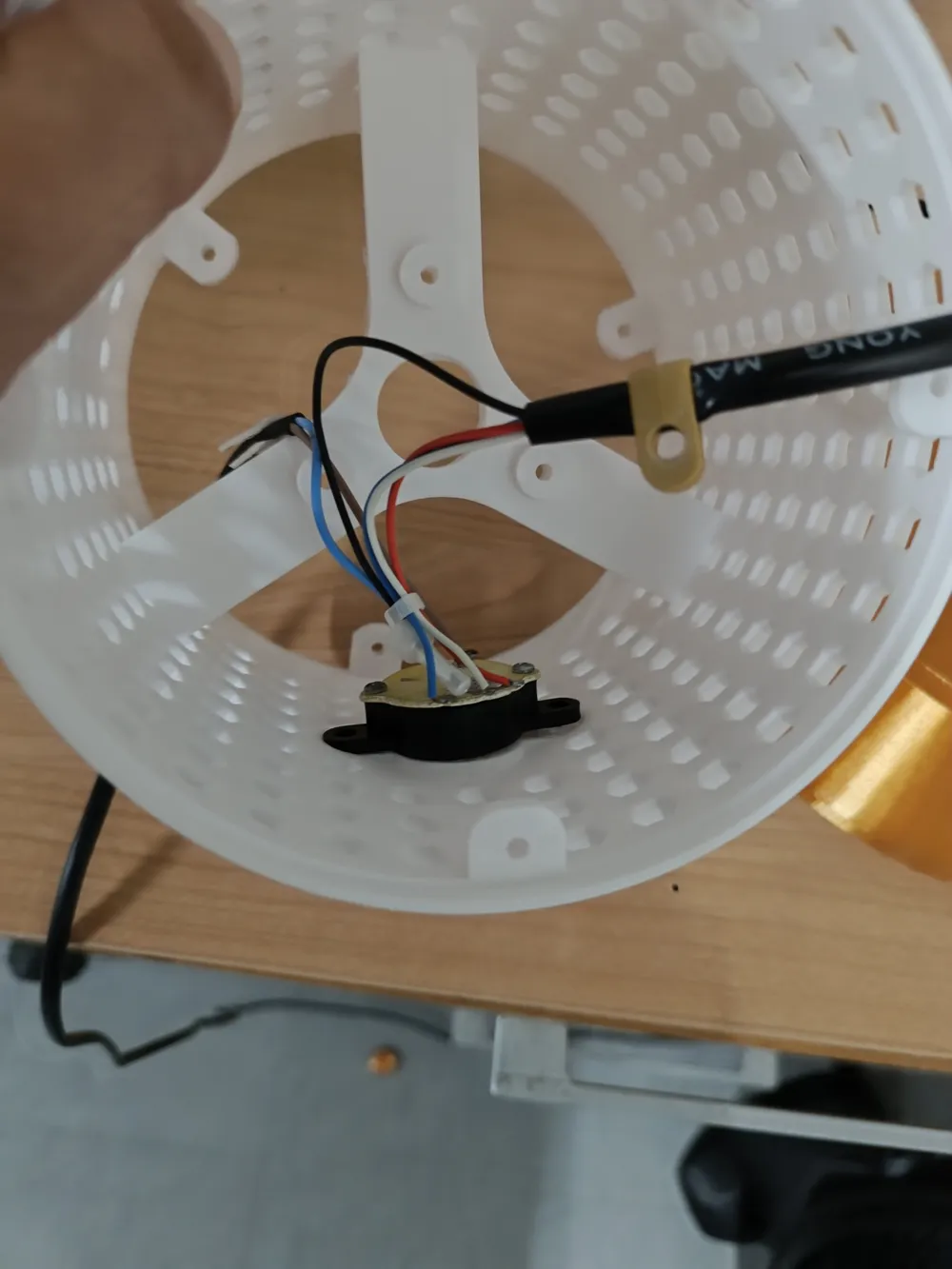

2) Glue the knob to the speed selector.

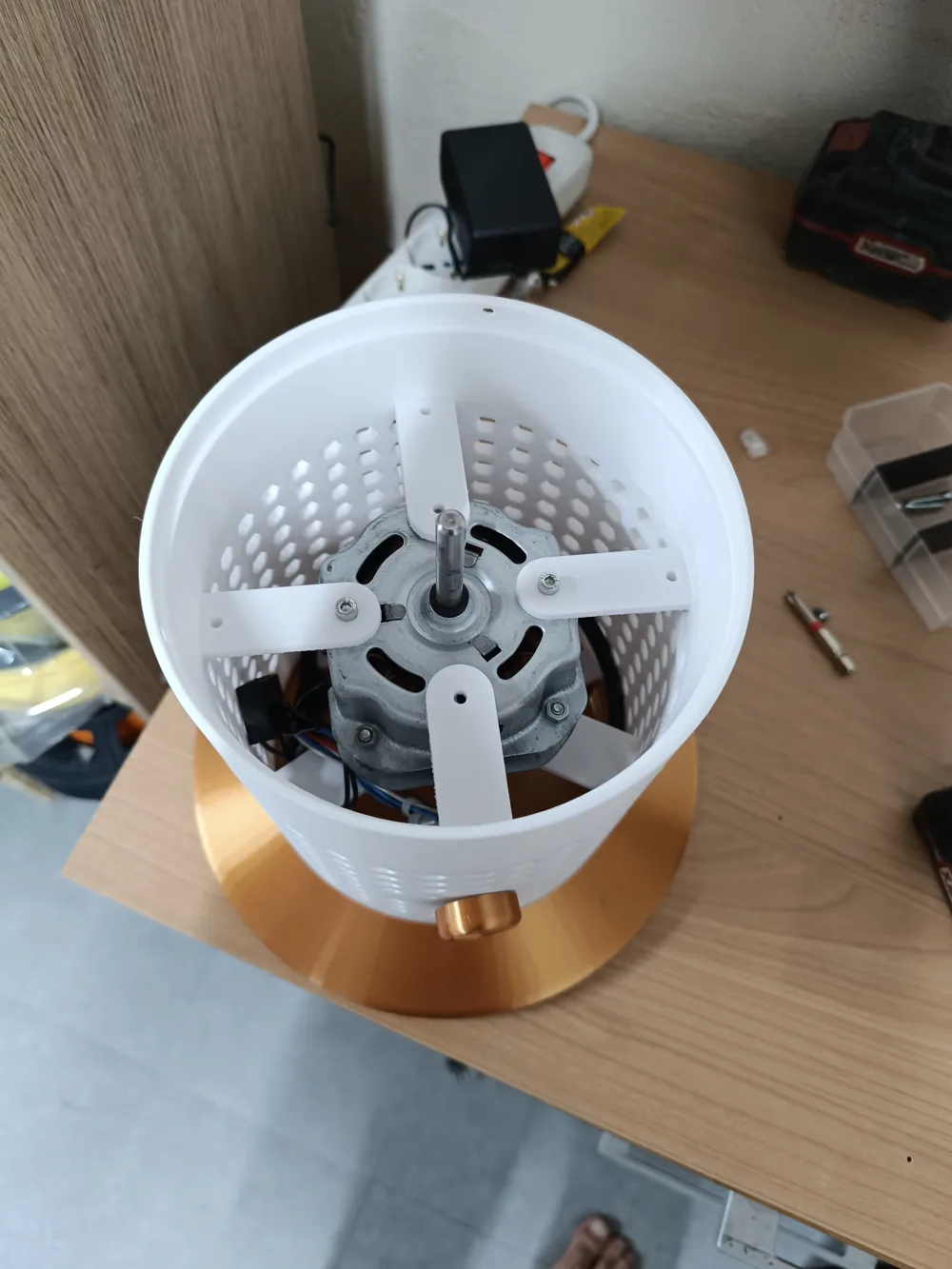

3) Screw the fan body to the motor and the motor body.

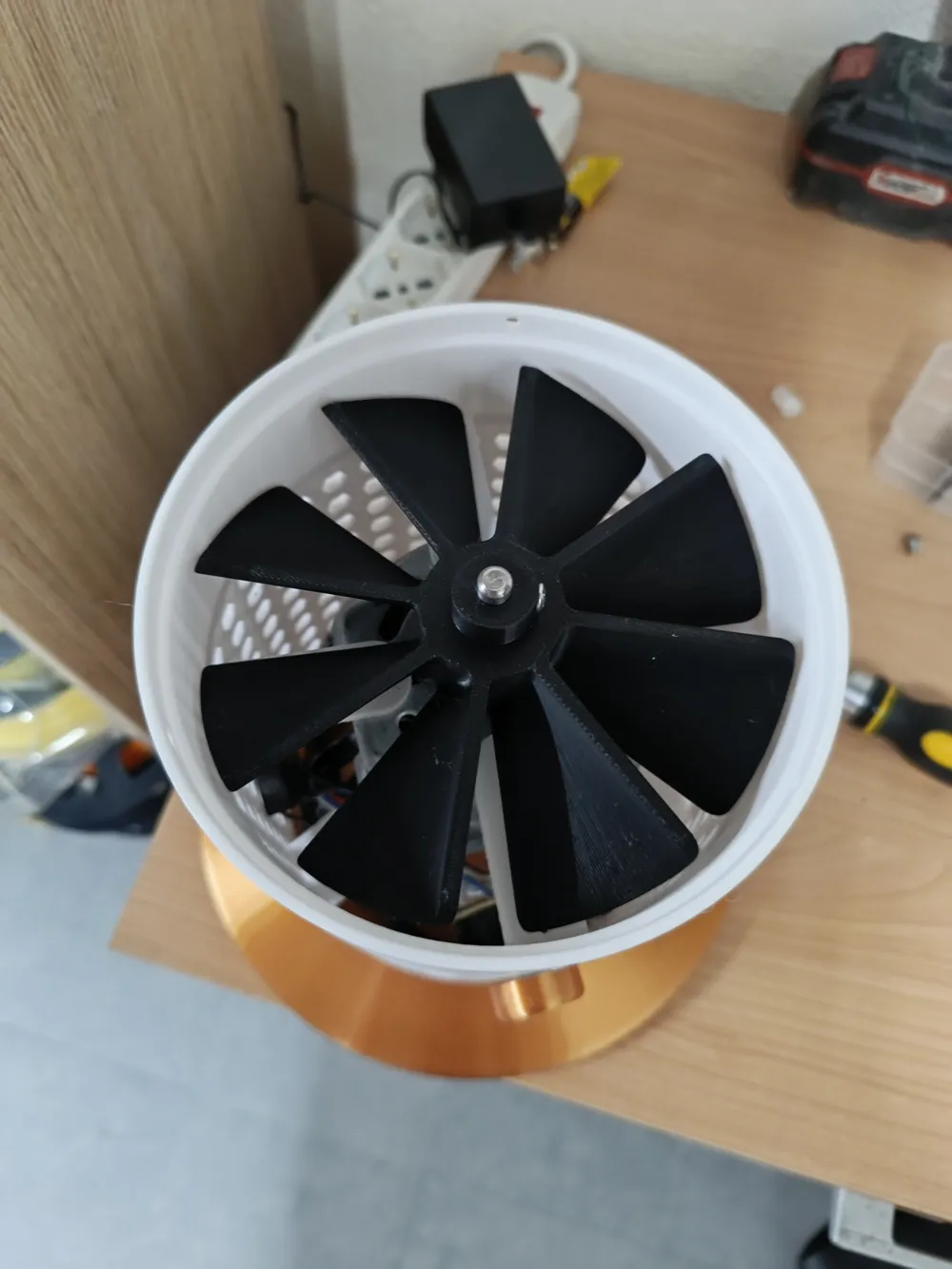

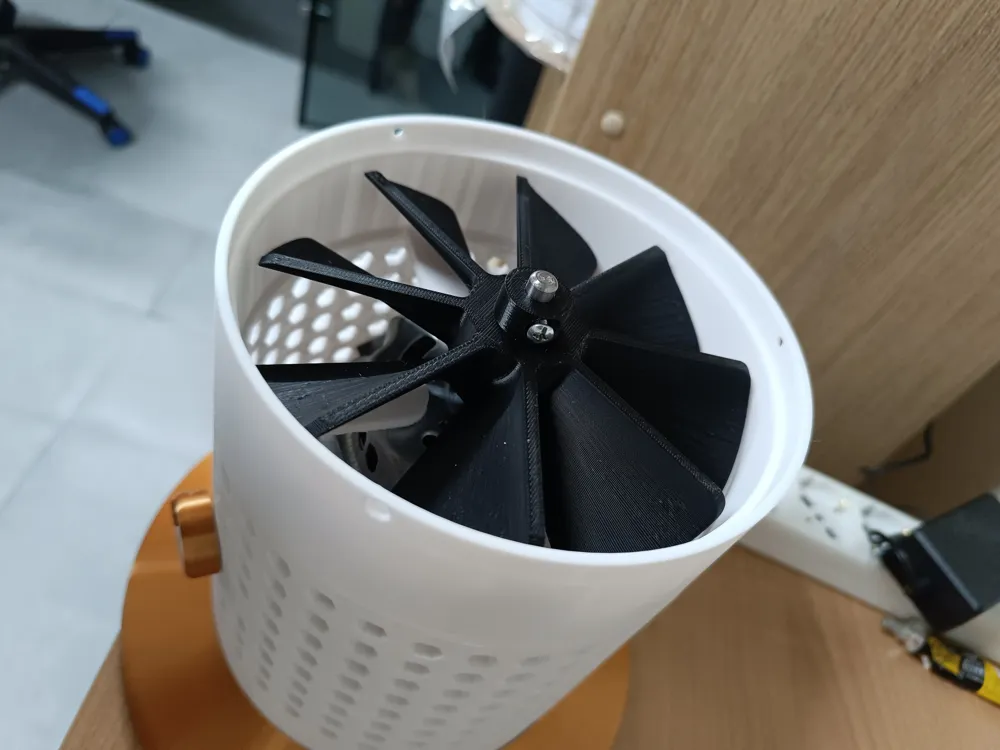

4) Insert the fan I designed and secure it with an M5 screw (I just inserted it without an M5 screw because it fits easily under pressure).

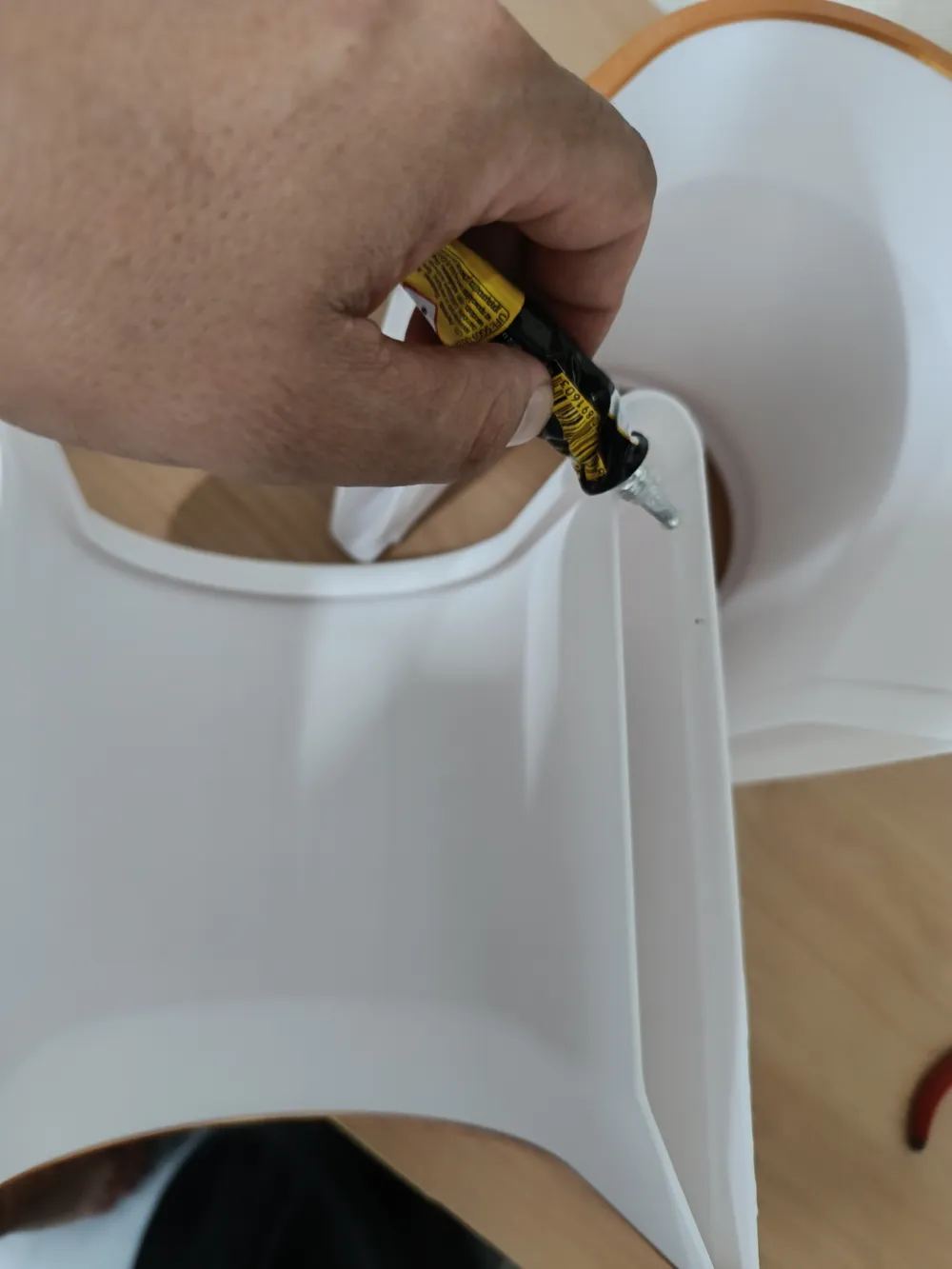

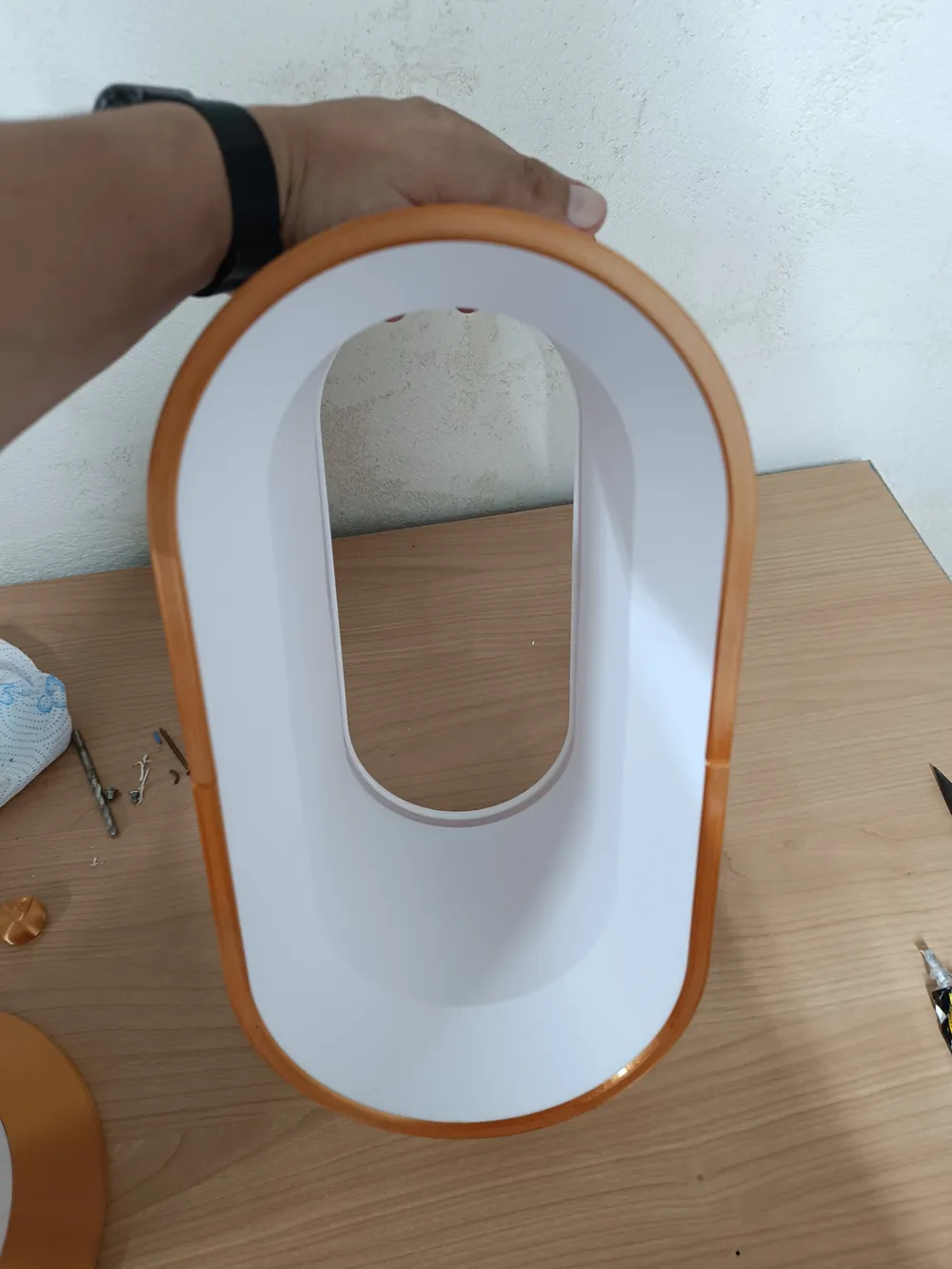

5) Glue the two parts together to form the oval where the air will come out.
6) Join the fan body and the oval and secure it with three M3 screws (not too long, or they could touch the fan and cause a disaster).

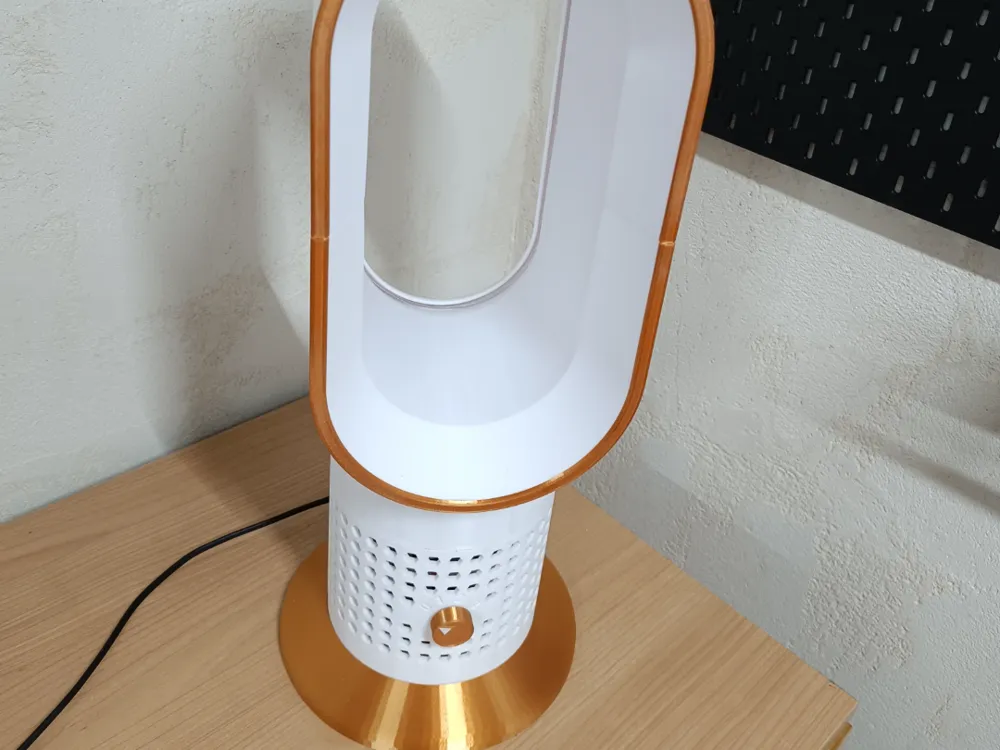

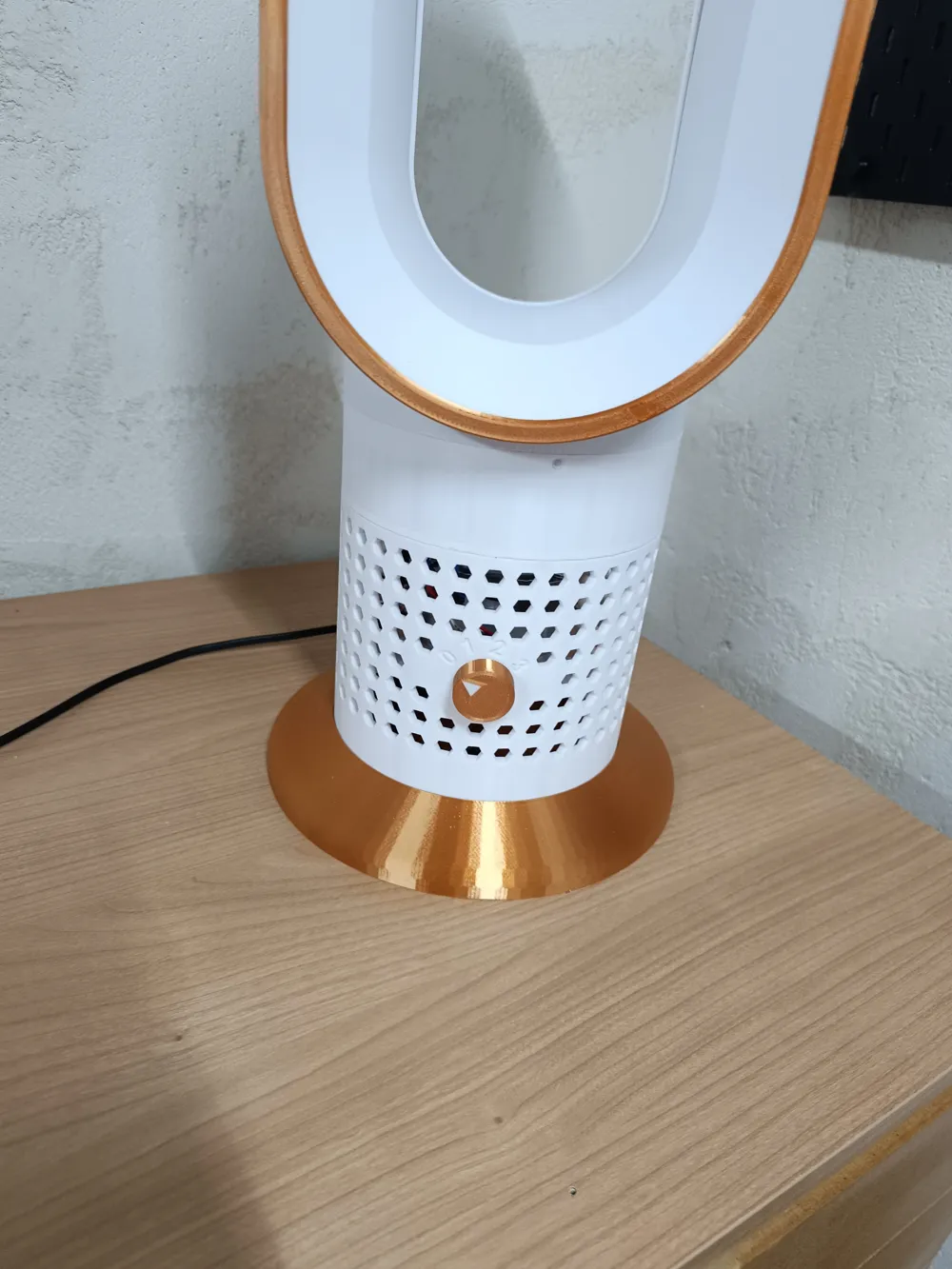

7) Finally, enjoy the cool, pleasant air of your new bladeless fan!!!

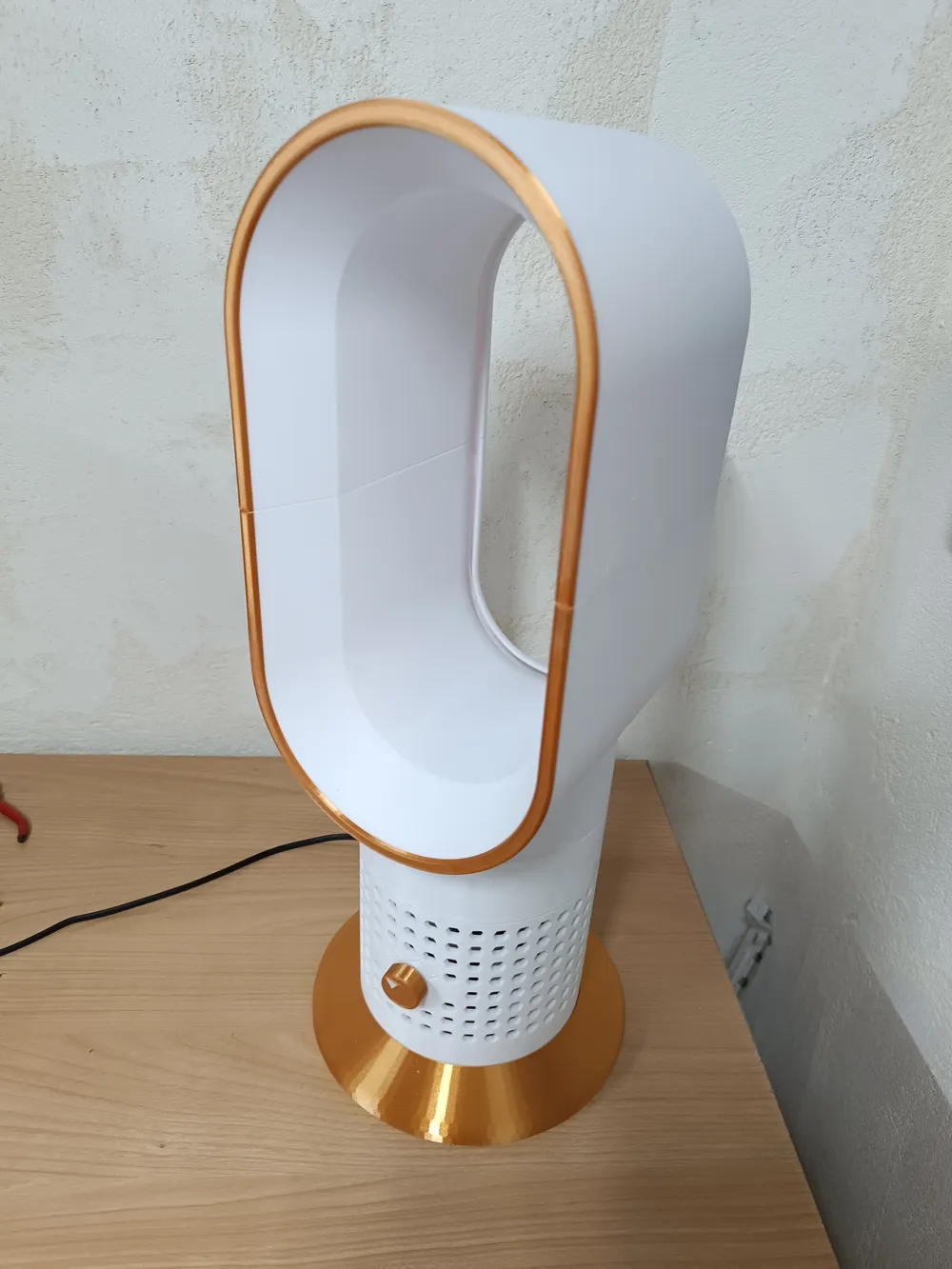

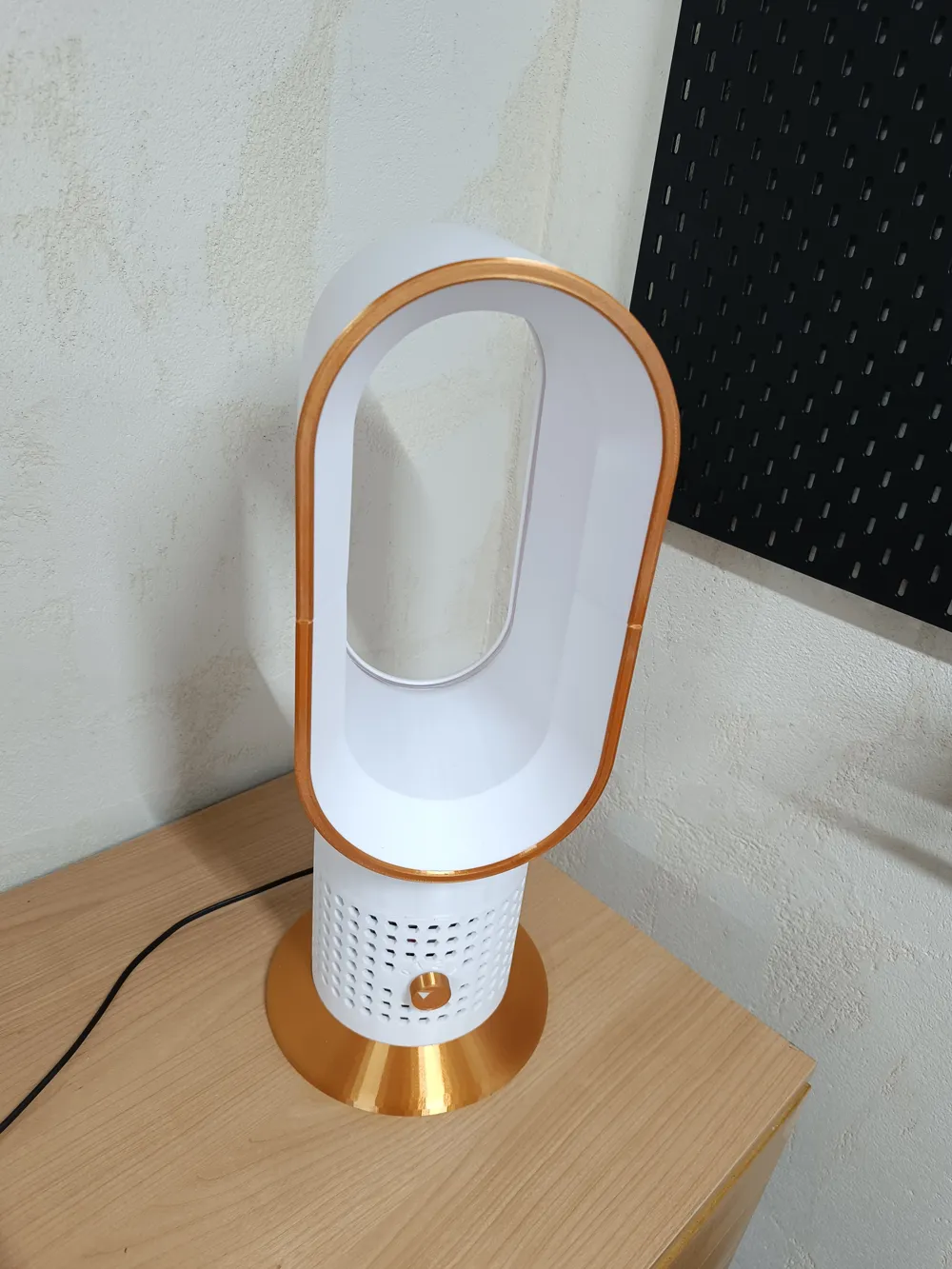

At the end of the day, the fan will be about 57cm tall, and like me, you'll have salvaged a fan motor that would have been thrown away.
Yes, I know it takes a while to print, but I assure you, the result is very nice and works really well.
