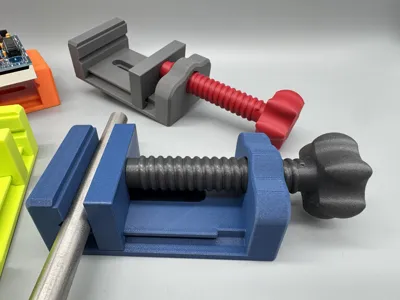

Project: Small Ingenious Stable Vise consisting of only three printed parts.

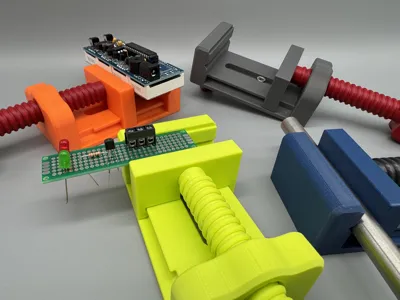

With a small offset step for clamping flat items like circuit boards etc. and a prism for round items which can be used for example for laser engraving pens etc.
Optimal for soldering, gluing, laser engraving, clamping etc.
Version 1
Jaw width 60mm, Jaw height 25mm
Maximum jaw opening 68mm
Central elongated hole for M5 DIN912 for mounting
Version 2
Jaw width 80mm, Jaw height 30mm
Maximum jaw opening 82mm
Central elongated hole for M5 DIN912 for mounting
During the design, not only was attention paid to ensuring that the parts without support material can be printed, but also that they can be printed without prior knowledge using standard print settings.
Design Highlights:
The spindle is internally reinforced by a hollow body at the handle / thread transition.
The main body has two prism-shaped recesses on the underside to stiffen the body, so that there is only minimal deformation when the spindle is tightened firmly.
Assembly:
The spindle is screwed into the main body until the dovetail protrudes on the other side. Then the jaw with
the recess is threaded into the dovetail until it rests at the bottom. Subsequently, by further rotating the spindle, the jaw is threaded into the two guide grooves. Done.
Very easy to print and without support material.
No matter which printer. A1 mini up to H2D
Boost Me (for free)
Enjoy it? Then I would greatly appreciate your free support. Thank you very much for that.

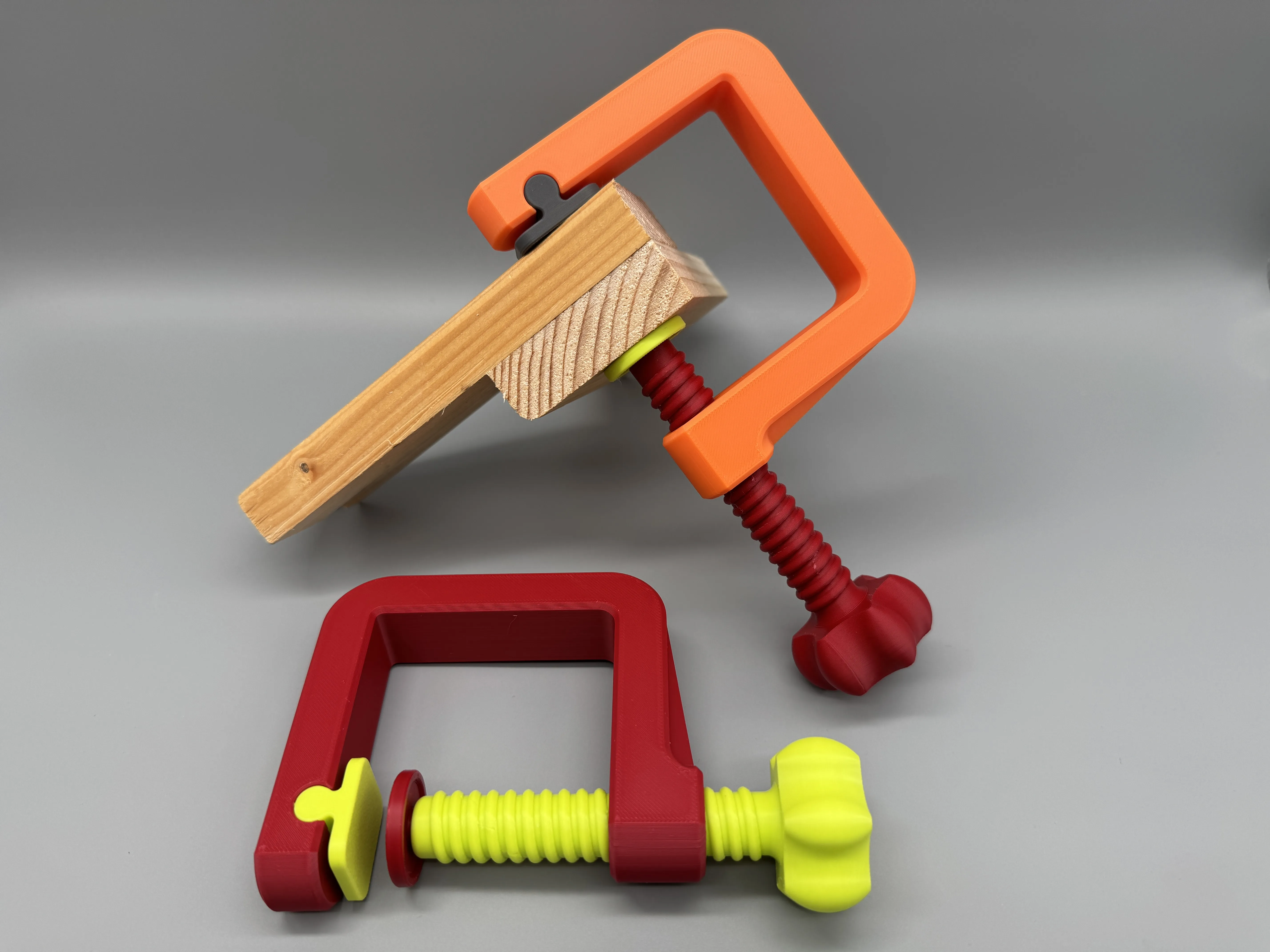

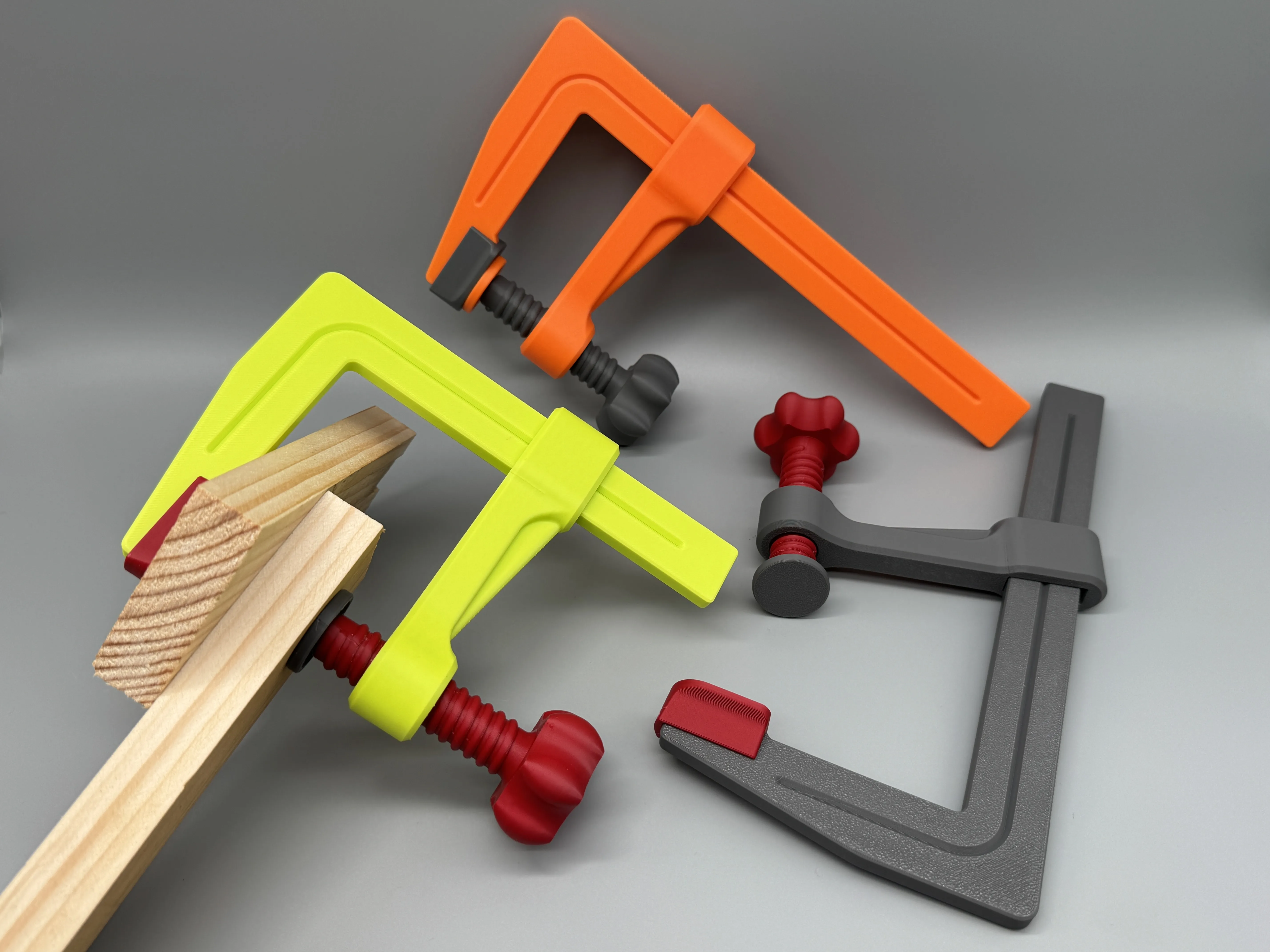

See also my other “exciting” projects: (Click on photo)
