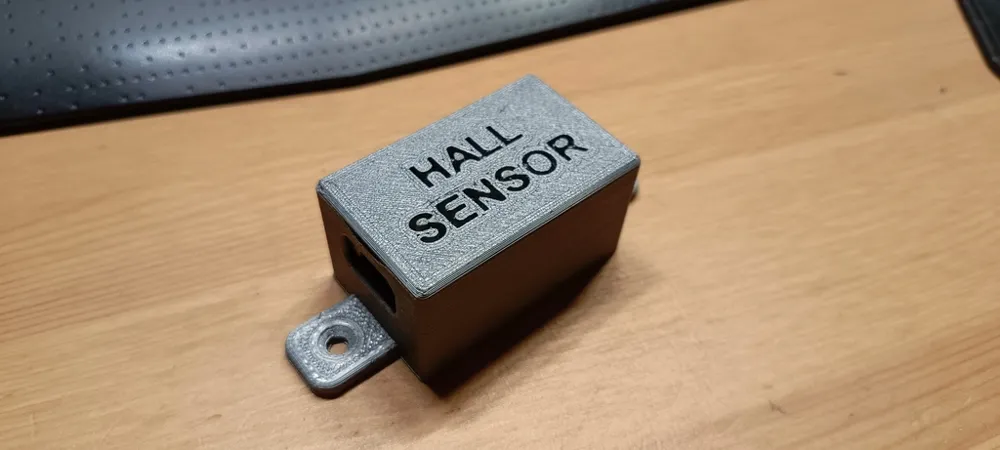

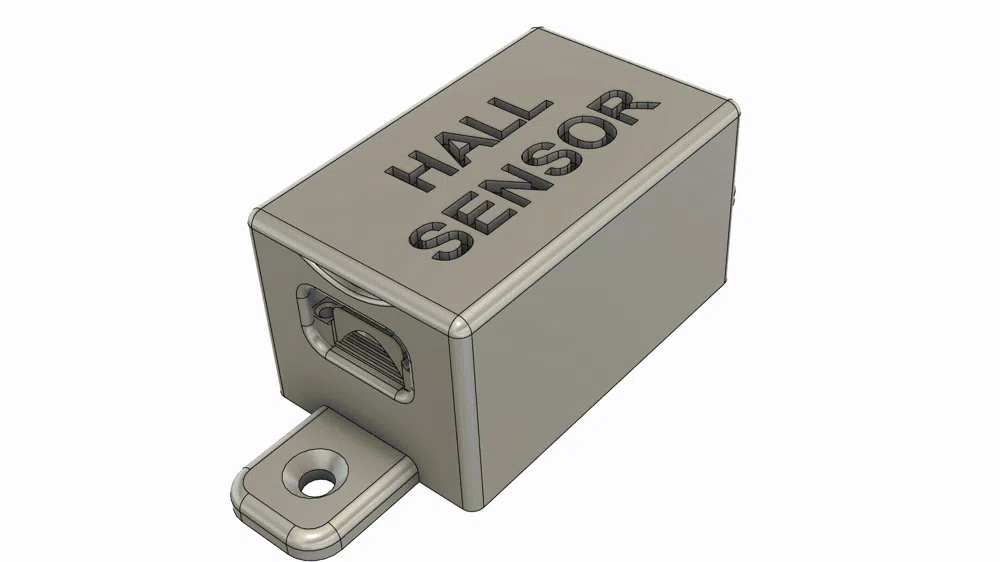

📦 Enclosure for WCS1600 / WCS1700 / WCS1800 Hall Current Sensor (3–5V)
This is a practical 3D printed enclosure designed for popular Hall current sensors: WCS1600, WCS1700, and WCS1800 operating in the 3–5V range.
Project available for non-commercial use (CC BY-NC license).
WCS1600 WCS1700 WCS1800 3-5V adjustable DC 100A 70A 35A Hall current sensor on AliExpress
✨ Enclosure Features:

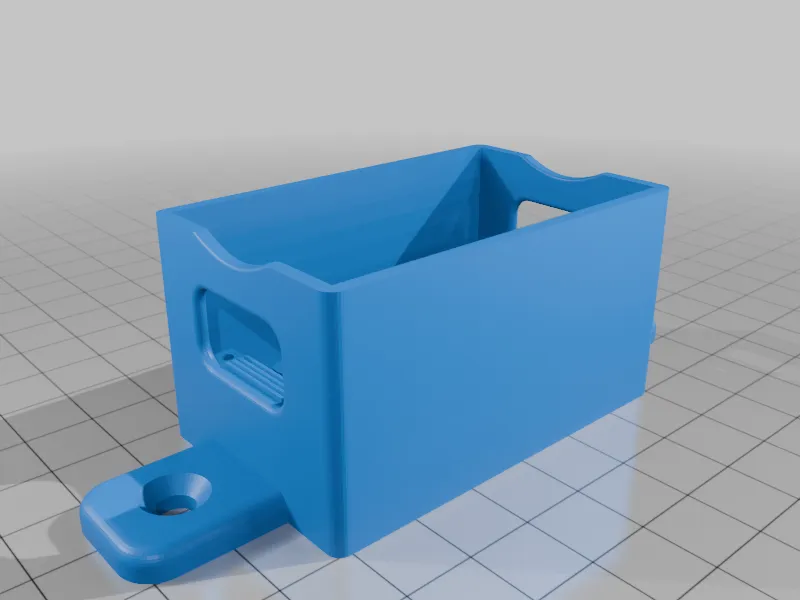

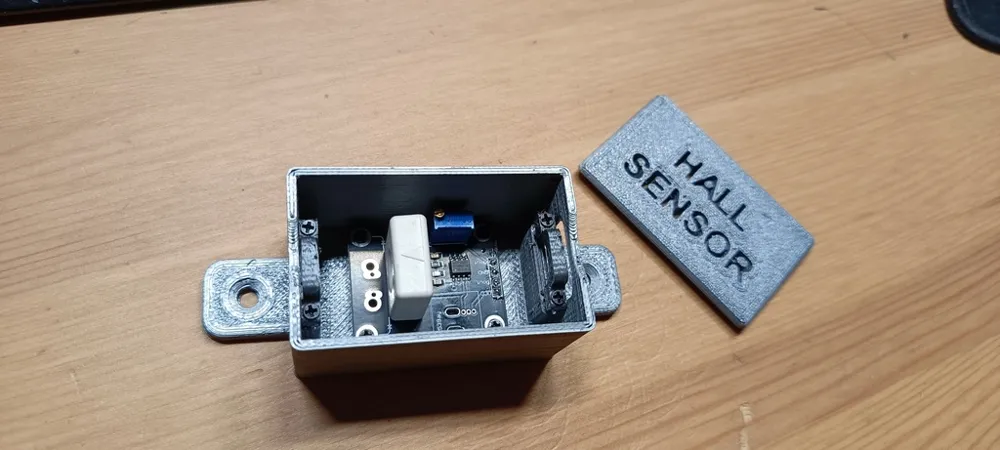

- 🔧 Module Mounting – space for the sensor board with mounting holes for stable screw attachment.

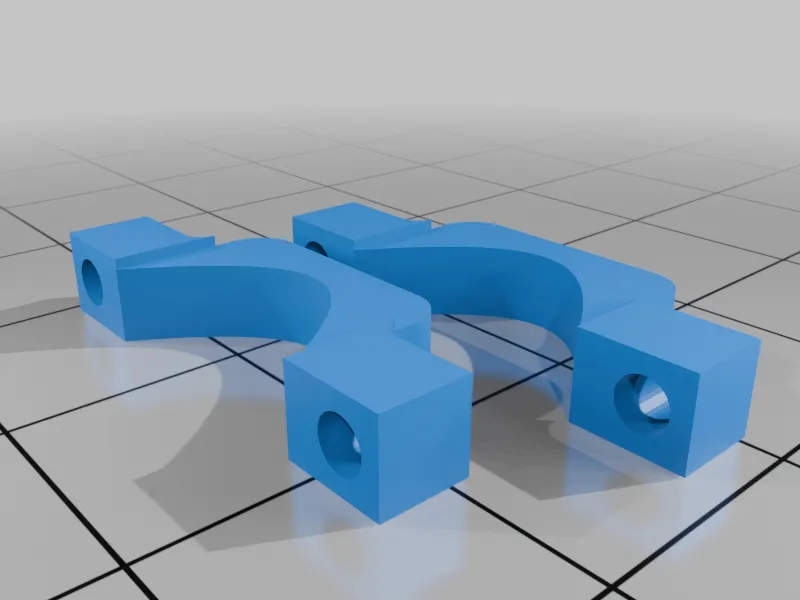

- 🔌 Cable Holder – dedicated holes allow easy cable routing and protection against pulling out.

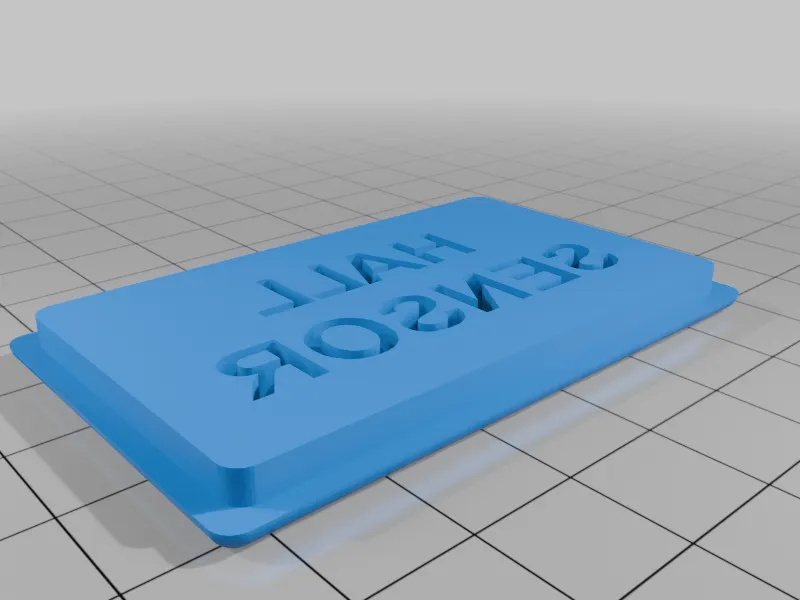

- 🪛 Press-fit Lid – quick closing and opening without the need for screws.
- 🧱 Mounting Holes – the base of the enclosure has spaces for wall or board mounting.
🖨️ Printing:
- Recommended filament: PLA / PETG (PETG recommended for higher thermal resistance).
- Layer height: 0.2 mm
- Infill: 20–30%
- No supports required (enclosure designed for FDM printing).
📌 Application:
The enclosure is suitable for DIY electronics projects, measurement systems, current monitoring, Arduino, ESP32, and Raspberry Pi projects
📜 License:
Project available under the Creative Commons – BY-NC (Attribution, Non-Commercial) license.
You may print and share, but you may not sell models or prints.
