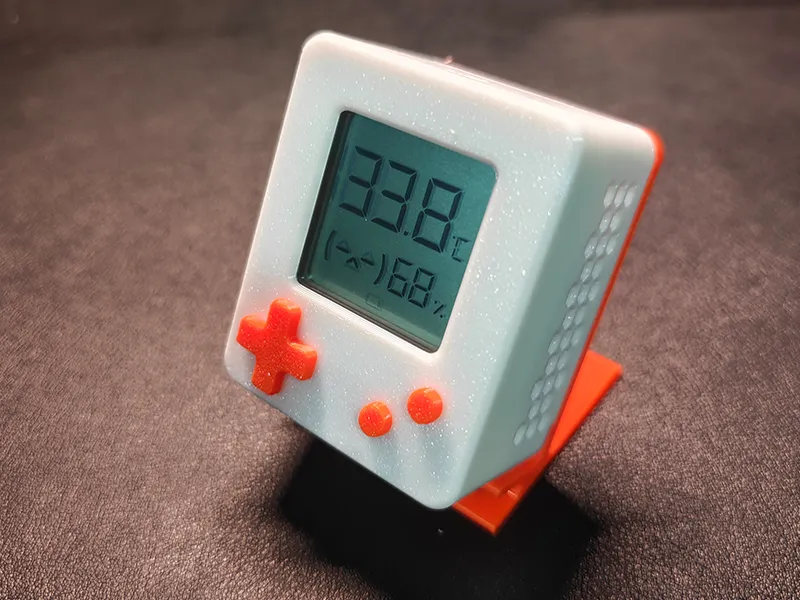

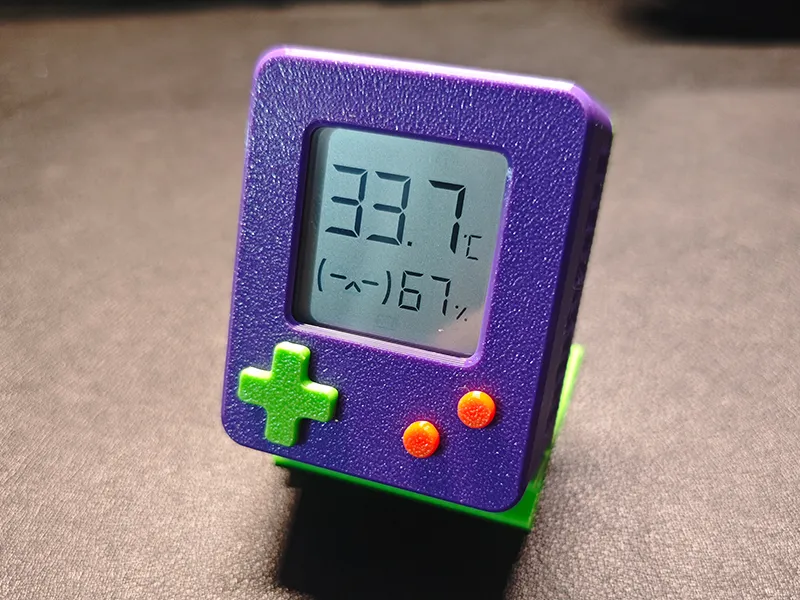

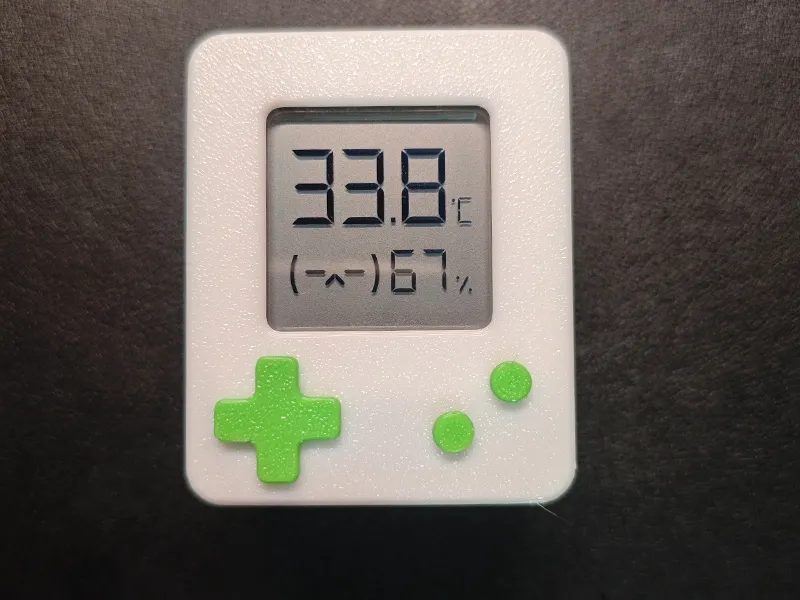

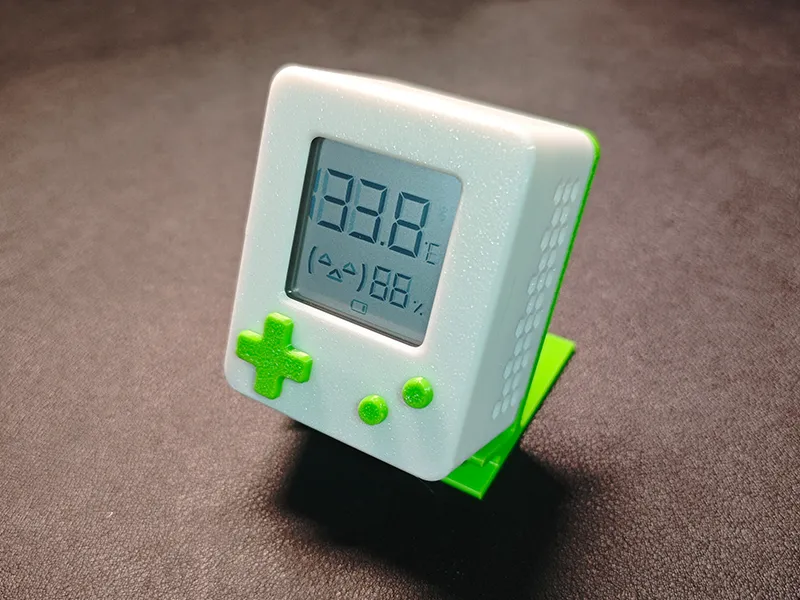

Xiaomi Temperature and Humidity Monitor 2 - Modified AAA Battery Case
Print Profile(2)
Description
Setup:

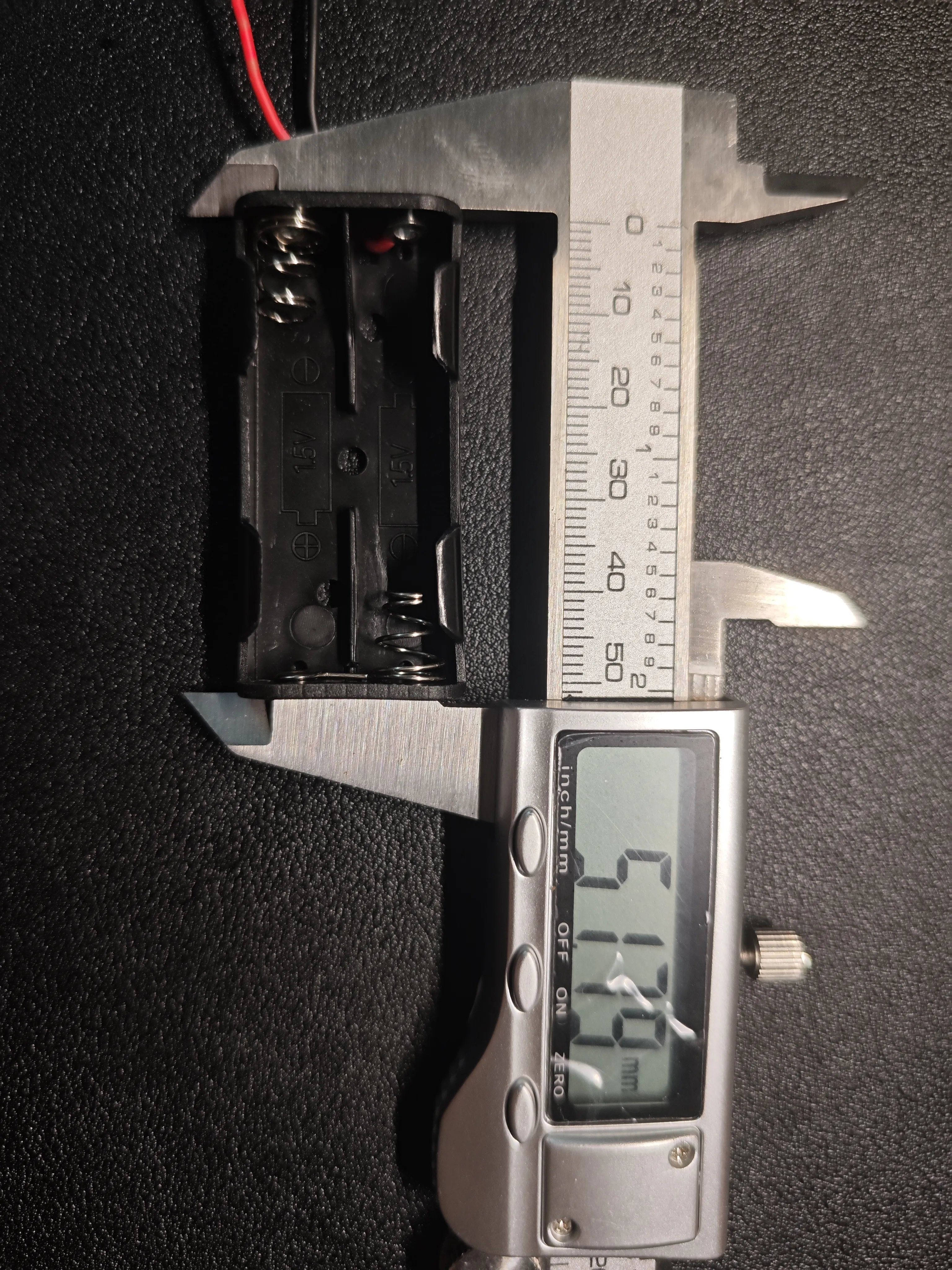

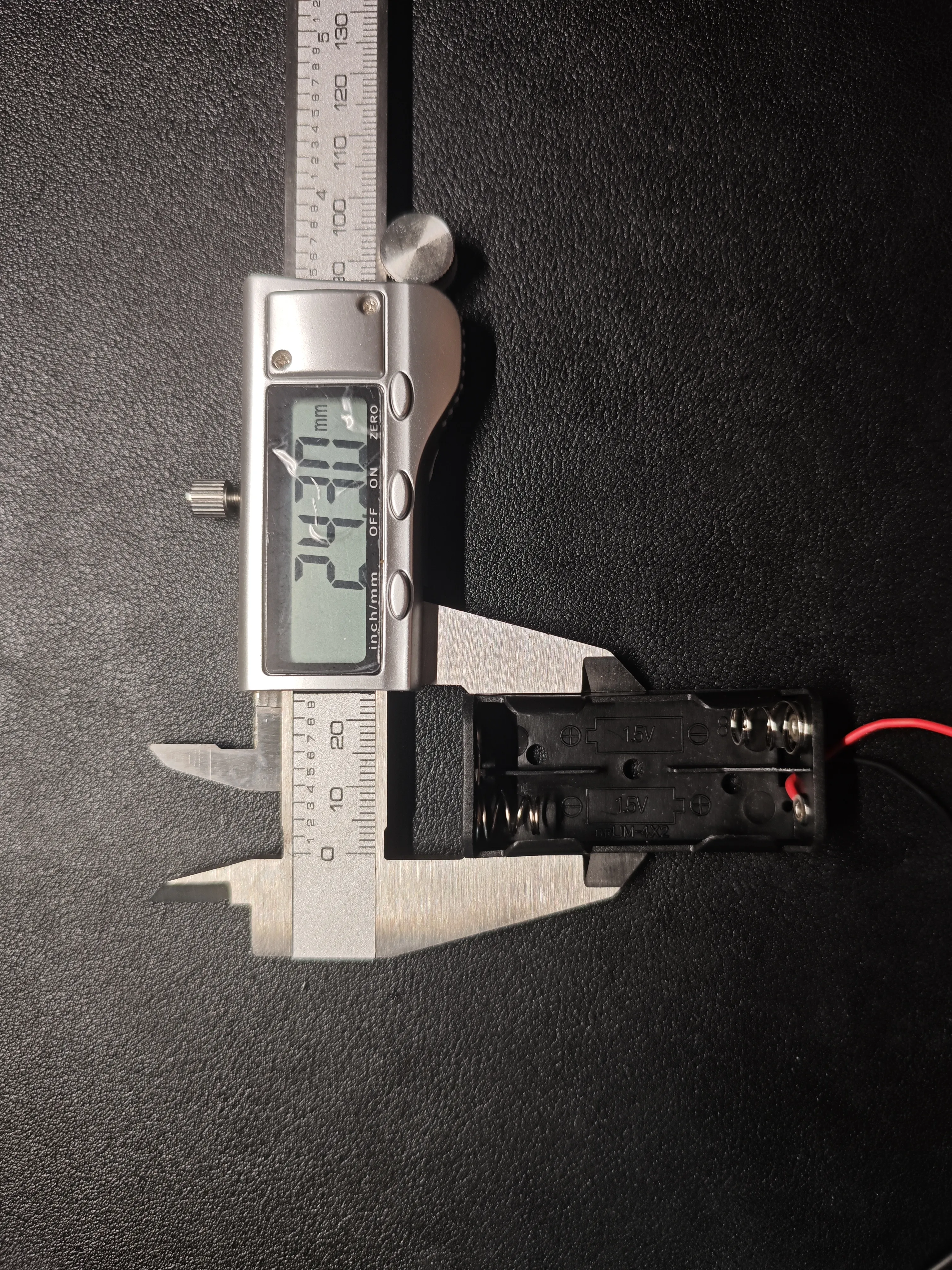

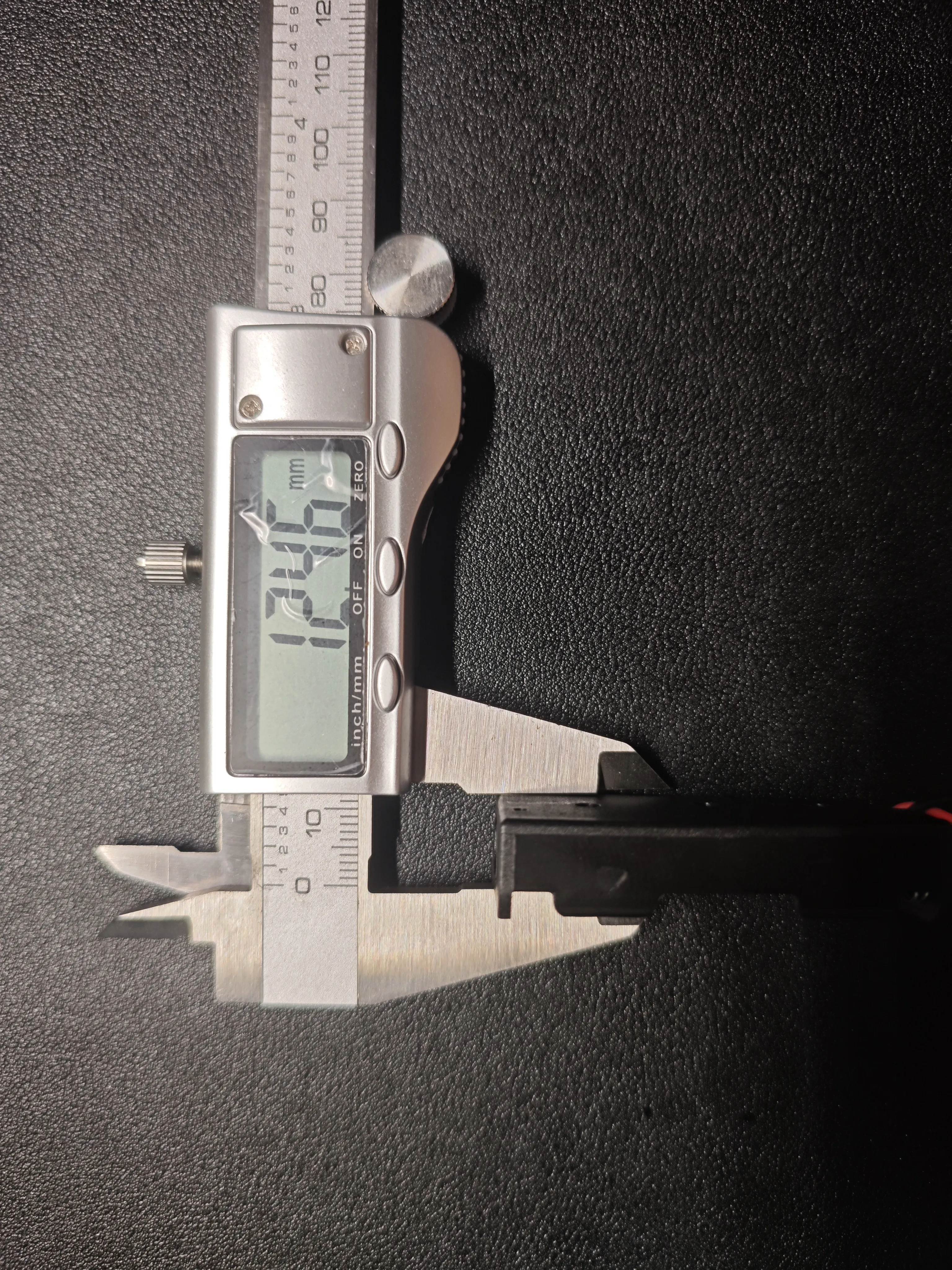

1. Purchase a AAA battery box with wires online, they cost about 6 cents each. You can also print your own, it is recommended that the length does not exceed 52mm and the height does not exceed 15mm
2. printing a CR2032 battery modification piece. The one I used is quite sturdy CR2032 Battery Dummy

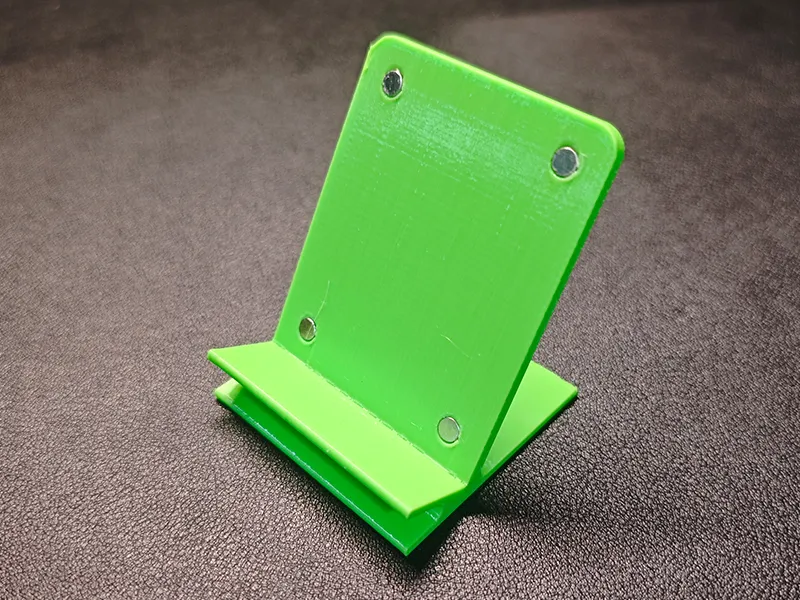

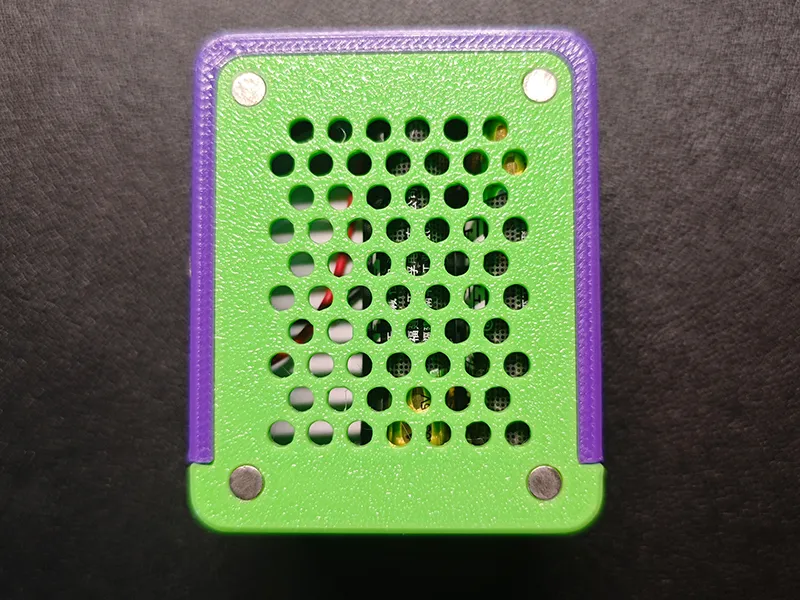

3. The magnetic stand and back cover together require eight 4x2mm round magnets (sellers label the height as 2mm, but it is actually only 1.55mm, several sellers have this size)
Installation Instructions:

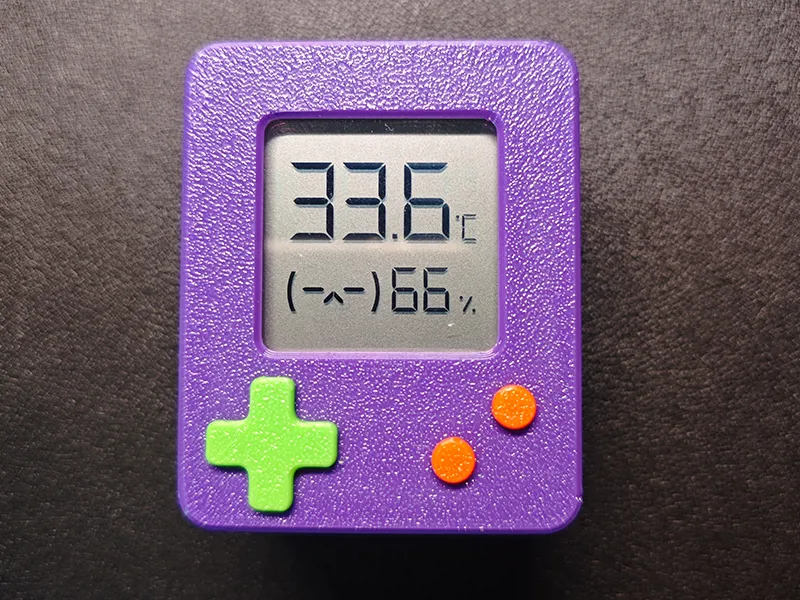

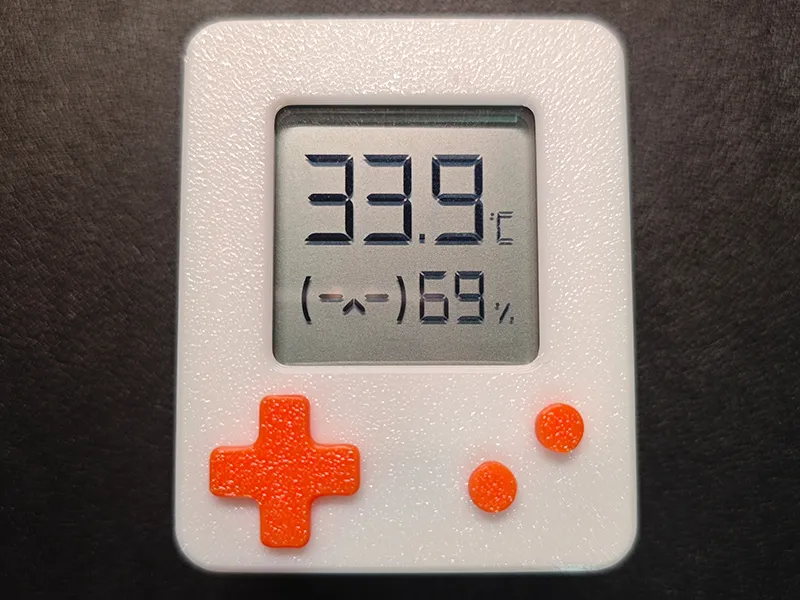

- Decorative buttons require glue
- If the battery box height is appropriate, the original back cover can also be placed inside
- Due to potential printing issues, some clearance has been left to prevent the thermometer/hygrometer from being overly compressed If the installation is a bit loose, insert a piece of paper
- First, insert the thermometer/hygrometer diagonally from the back, then gently push it flat, and finally place it into the slot
- PETG was used for the printing material, PLA has not been tested yet (the thermometer/hygrometer might be a bit loose if printed with PLA)
