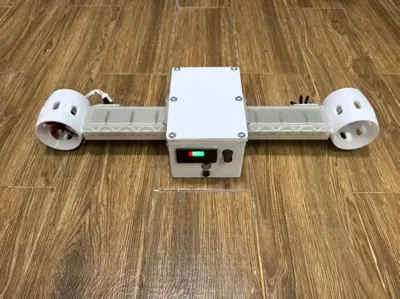

Underwater Thruster Gen 1
Print Profile(1)
Description
Uses two 2212 motors with 3.5 banana plugs (propeller 60 is max), it is recommended to buy one with integrated propeller and propeller connector
Battery requires 12-14V, 10C discharge (ask the seller to provide a 60A protection board)
ESC 50A or above, 60A bidirectional ESC is recommended
Voltmeter (optional)
One 12mm self-locking, one reset waterproof switch each
3.5 banana plug wire (10cm)
One DC male and one DC female charging cable each
One Type-C charging cable
3-series lithium battery charging module
1 square millimeter wire
M5×20mm, M3×10mm, M2×5 screw, nut, washer, 30 sets (extra for spare) four M2×10mm screws, M2×7mm screws
There are quite a few screws, it is recommended to buy a screw set for a dozen yuan
Heat shrink tube set
Rubber bands (regular small rubber bands)
Hot glue gun

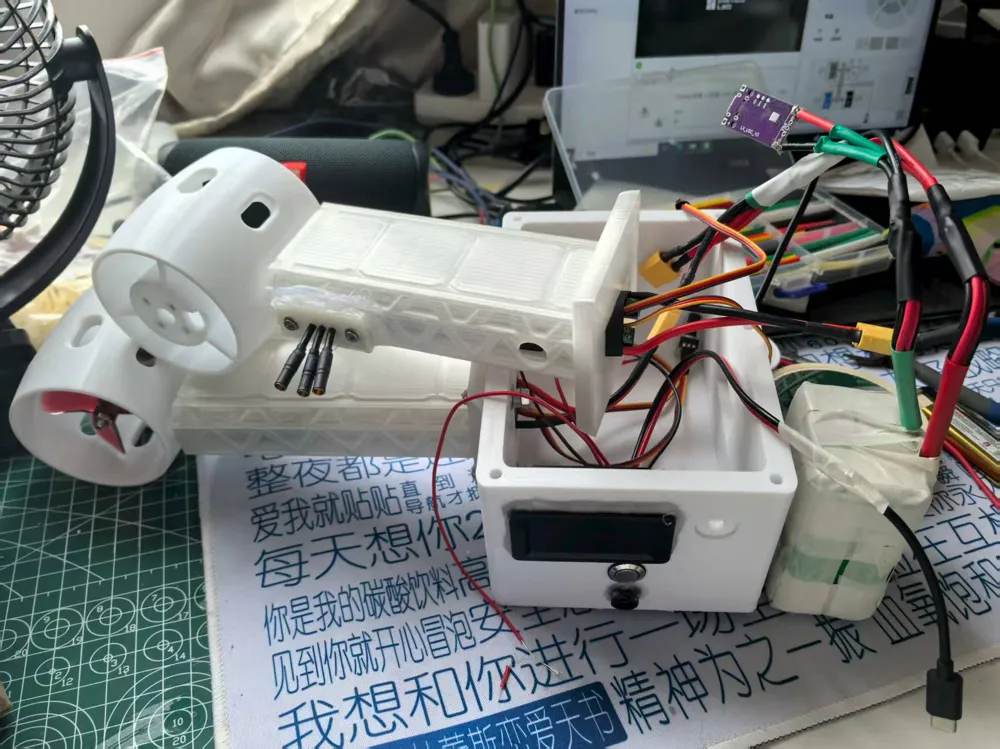

Assembly is slightly difficult
Requires a little bit of electrical knowledge
Will update with a more user-friendly and easy-to-install next-generation product later (I'm waiting to learn modeling, this one was sliced with Bambu Lab software)
The next generation will focus on being lightweight, easy to use, and easy to install
So everyone can use fun things
I'm also a beginner, still learning...
